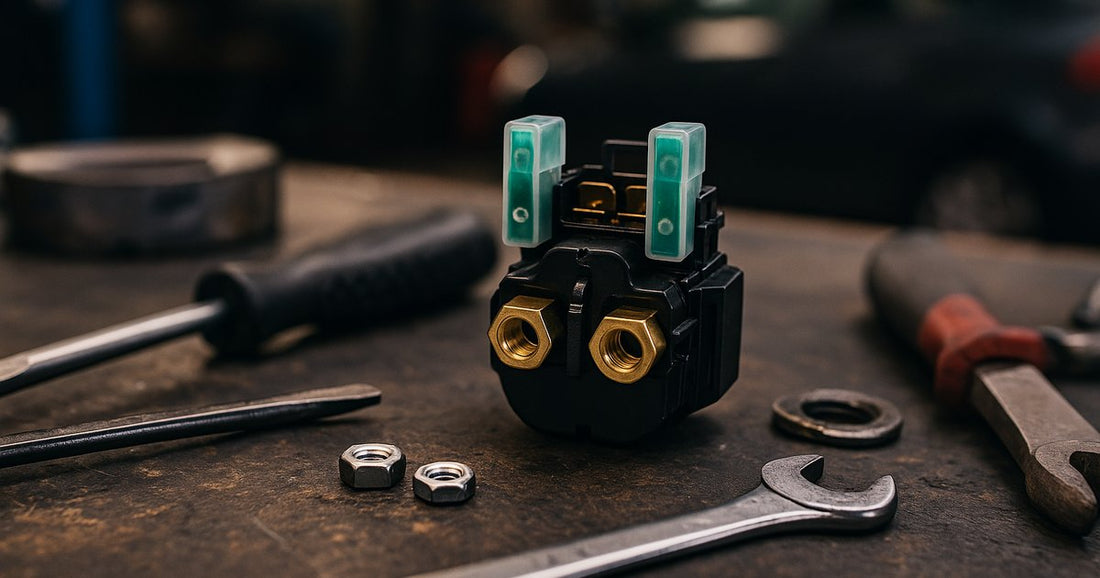

Starter Relay Solenoid for Yamaha YZF R1: A DIY Guide

Imagine this: you're geared up for a weekend ride on your Yamaha YZF R1, but all you hear is a disheartening click when you hit the starter button. A faulty starter relay solenoid might be the culprit, leaving you stranded and frustrated. Understanding how to replace this small yet crucial component can save you time and money, keeping your bike ready for the road. In this guide, we'll delve into the practical steps needed to diagnose and replace the starter relay solenoid on your Yamaha YZF R1, ensuring your bike starts smoothly every time.

Understanding the Role of the Starter Relay Solenoid

The starter relay solenoid is a vital component in your Yamaha YZF R1's ignition system. It acts as an intermediary between the battery and the starter motor. When you press the starter button, the solenoid receives a small electrical current that closes a larger circuit, allowing high current to flow from the battery to the starter motor. This action cranks the engine, getting you on your way. A failing solenoid often results in the starter motor not receiving enough current, leading to a non-starting engine or a clicking sound as the solenoid attempts to engage.

Common symptoms of a failing starter relay solenoid include intermittent starting issues, a clicking sound without engine turnover, or complete failure to start. It's crucial to address these signs promptly, as ignoring them could lead to being stranded or causing further damage to the starter motor. Replacing the solenoid is a relatively straightforward task that can be accomplished with some basic tools and mechanical knowledge.

Signs Your Starter Relay Solenoid Needs Replacement

Recognising the signs of a failing starter relay solenoid can save you from unexpected breakdowns. Here are some common indicators:

• Clicking Sound: A repeated clicking noise when pressing the starter button often points to a faulty solenoid.
• Intermittent Starting: If your bike starts inconsistently, the solenoid might be failing to engage properly.
• No Start Condition: Complete failure to start, even with a fully charged battery, can indicate a dead solenoid.
• Burning Smell: A burnt smell near the starter motor could mean the solenoid is overheating due to electrical resistance.

These symptoms warrant an inspection and possibly a replacement of the starter relay solenoid. Addressing these issues early can prevent further electrical problems and ensure reliable starts.

Tools and Parts Required

Before beginning the replacement process, gather the necessary tools and parts. Having everything on hand will streamline the repair and reduce frustration. Here's what you'll need:

• Replacement Starter Relay Solenoid: Ensure compatibility with your Yamaha YZF R1 model year.
• Socket Set: A metric socket set is essential for removing and installing bolts.
• Phillips and Flathead Screwdrivers: Useful for removing panels and securing connections.
• Multimeter: To test electrical connections and verify the solenoid's functionality.
• Torque Wrench: For ensuring bolts are tightened to the correct specifications.

Ensure you have a clean workspace and appropriate lighting. A well-organised environment will make the process smoother and help avoid losing small parts.

Step-by-Step Replacement Guide

Replacing the starter relay solenoid on a Yamaha YZF R1 is a manageable task. Follow these steps to ensure a successful replacement:

1. Disconnect the Battery: Start by disconnecting the negative terminal of the battery to prevent electrical shorts.
2. Locate the Solenoid: The solenoid is typically found near the battery or under the seat. Refer to your service manual for exact location.
3. Remove the Old Solenoid: Use the socket set to remove bolts securing the solenoid. Carefully disconnect the wiring harness and note their positions.
4. Test the New Solenoid: Use a multimeter to confirm the new solenoid's functionality before installation.
5. Install the New Solenoid: Position the new solenoid and secure it with bolts. Reattach the wiring harness, ensuring all connections are tight and correct.
6. Reconnect the Battery: Reconnect the battery's negative terminal and test the starter by pressing the starter button.

Ensure all components are securely fastened and that there are no loose connections. Testing the system before reassembling any panels will save time if adjustments are needed.

Potential Pitfalls and Troubleshooting

While replacing the starter relay solenoid is straightforward, there are potential pitfalls to be aware of:

• Incorrect Wiring: Misconnecting the wiring can lead to electrical shorts or non-functionality. Double-check connections against a wiring diagram.
• Faulty Replacement Part: Always test new components with a multimeter before installation to ensure they're not defective.
• Battery Issues: If the bike still won't start, test the battery voltage. A weak battery may mimic solenoid issues.
• Loose Connections: Ensure all bolts and connections are secure to avoid intermittent electrical faults.

If you encounter persistent issues after replacement, reviewing your work and consulting a professional mechanic may be necessary to avoid further complications.

Cost Considerations

Replacing a starter relay solenoid is generally cost-effective. The part itself typically costs between £20 and £50, depending on the brand and supplier. Labour costs can be avoided by doing the work yourself, but if you opt for professional installation, expect to pay an additional £50 to £100 for labour. Ignoring a faulty solenoid can lead to more severe starter motor issues, which could cost £200 or more to repair or replace.

Investing in quality parts and performing timely maintenance not only saves money but also enhances reliability and performance. For compatible parts, check out the starter relay solenoid for Yamaha YZF R1 at 4Drive.

Key Takeaways

• Recognise signs of a failing starter relay solenoid to prevent breakdowns.
• A multimeter is essential for testing solenoid functionality before installation.
• Ensure proper wiring connections to avoid electrical faults.
• DIY replacement can save significant labour costs.
• Invest in quality parts to enhance reliability and avoid future issues.
• Regular maintenance can prevent costly starter motor repairs.
• Always verify the compatibility of replacement parts with your specific bike model.
