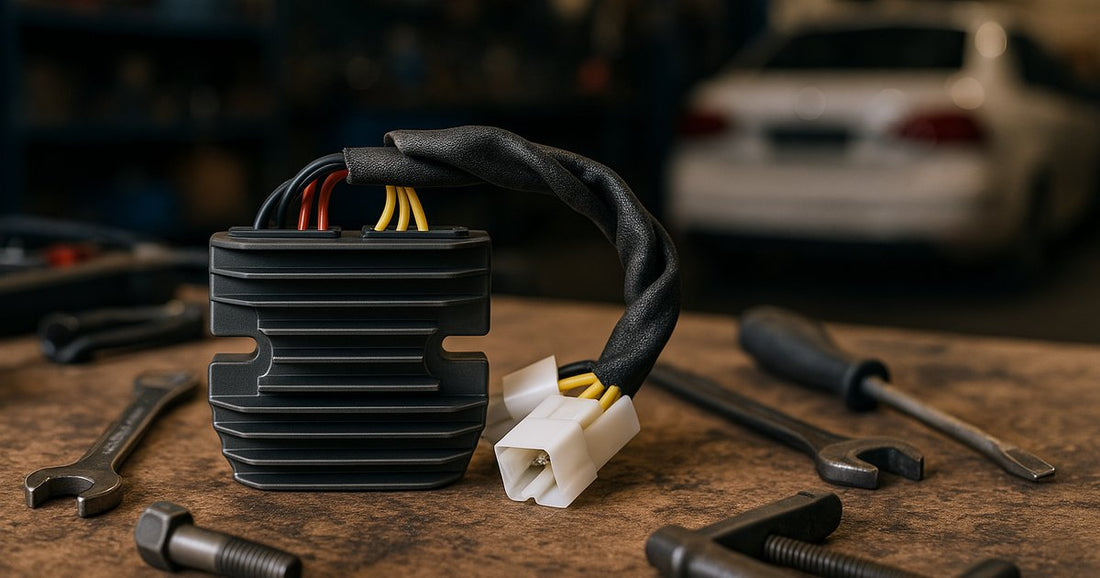

Understanding the MOSFET Regulator Rectifier for Honda NT700V

For UK motorcyclists, particularly those navigating the bustling streets of cities like London, the reliability of their bike's electrical system is paramount. The Honda NT700V, known for its robust touring capabilities, can suffer from charging system issues that are both inconvenient and costly. One key component that often requires attention is the regulator rectifier. The traditional units can struggle with heat dissipation, leading to failures that can leave you stranded. Upgrading to a MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) regulator rectifier offers a more efficient and reliable solution, ensuring your journeys remain uninterrupted.

What is a MOSFET Regulator Rectifier?

The MOSFET regulator rectifier is a modern upgrade from the traditional SCR (Silicon Controlled Rectifier) units found in many older motorcycles. It serves two crucial functions: converting AC (alternating current) from the stator into DC (direct current) to charge the battery, and regulating the voltage to prevent overcharging. MOSFET technology enhances this process by providing superior heat management and more precise voltage control. This is particularly beneficial for the Honda NT700V, reducing the risk of electrical failures that can lead to costly repairs and downtime.

Unlike SCR units, MOSFET regulator rectifiers maintain a consistent output even under varying loads, which is vital for modern bikes equipped with additional electronics such as GPS and heated grips. This consistency protects sensitive components from voltage spikes, prolonging the life of both the battery and the motorcycle's electrical systems. With a typical output voltage of around 14.5 volts, a MOSFET unit ensures that the battery is charged optimally without the risk of overcharging.

Benefits of Upgrading to a MOSFET Unit

Upgrading to a MOSFET regulator rectifier offers several advantages that directly impact the performance and longevity of your Honda NT700V. Firstly, the improved efficiency and heat dissipation reduce the likelihood of overheating, a common issue with traditional rectifiers. This not only extends the lifespan of the regulator itself but also prevents damage to the stator and battery, potentially saving you hundreds of pounds in repair costs.

Moreover, the stable voltage output provided by a MOSFET unit supports the growing electrical demands of modern motorcycles. Whether you're riding through the rain-soaked streets of Manchester or the winding roads of the Lake District, reliable power delivery ensures that all your devices remain functional. Additionally, the enhanced durability of MOSFET units means less frequent replacements, offering peace of mind for long-distance touring enthusiasts.

Installation Guide: Step-by-Step Process

Installing a MOSFET regulator rectifier on your Honda NT700V can be a straightforward task for those with basic mechanical skills. Here’s a detailed guide to help you through the process:

1. Gather the Tools: You will need a multimeter, wire strippers, a set of screwdrivers, and heat shrink tubing.
2. Disconnect the Battery: Always start by disconnecting the negative terminal of the battery to prevent any electrical shorts.
3. Locate the Existing Rectifier: Typically found near the battery or under the seat, remove the mounting screws and disconnect the wiring harness.
4. Prepare the Wiring: Strip the wires and apply heat shrink tubing to protect the connections. This step is crucial to prevent moisture ingress, especially in the UK's wet climate.
5. Install the MOSFET Unit: Connect the new regulator rectifier using the provided wiring harness. Ensure secure connections to avoid voltage drops.
6. Test the Installation: Reconnect the battery and use a multimeter to ensure the output voltage is within the 14.5 volts range while the engine is running.
7. Secure the Unit: Mount the regulator in place, ensuring it is well-ventilated to enhance heat dissipation.

Troubleshooting Common Issues

Even with a reliable MOSFET regulator rectifier, issues can arise. If you notice your battery isn't charging correctly, start by checking the connections for corrosion or looseness. Poor connections can lead to voltage drops and inefficient charging. Additionally, use a multimeter to test the stator output; it should produce AC voltage consistently across all phases.

If the battery is overcharging, it could indicate a fault within the regulator itself. In such cases, replacing the unit is often more cost-effective than attempting repairs. For persistent issues, ensure the ground connection is secure and consider consulting a professional mechanic to avoid further complications.

Comparison: MOSFET vs Traditional Rectifiers

Key Takeaways

• MOSFET regulator rectifiers offer superior heat management and voltage regulation.
• Upgrading can prevent costly repairs to the stator and battery.
• Installation requires basic tools and mechanical skills.
• Consistent voltage output supports modern electrical demands.
• Check connections and stator output for troubleshooting.
• MOSFET units provide longer lifespan and reliability.
• Consider consulting professionals for persistent electrical issues.

FAQs

How does a MOSFET regulator rectifier improve heat management? The MOSFET design allows for more efficient heat dissipation by using a more advanced semiconductor technology that reduces the resistance and heat generated during the voltage regulation process, ensuring cooler operation.

Can I install a MOSFET regulator rectifier myself? Yes, with basic mechanical skills and the right tools, you can install a MOSFET regulator rectifier. Follow the installation guide carefully to ensure all connections are secure and the unit is properly mounted.

What are the signs of a failing regulator rectifier? Common symptoms include a battery that won't hold a charge, dimming lights, or erratic electrical behaviour. These issues often stem from poor voltage regulation or overheating.

How often should I check my regulator rectifier? Regular maintenance checks every 6 months or during routine servicing can help identify potential issues early. Look for signs of corrosion, loose connections, and test the voltage output with a multimeter.

Is a MOSFET upgrade cost-effective? While the initial cost is higher, the improved reliability and reduced risk of damage to other components make it a cost-effective solution in the long run, especially for frequent riders.

For those looking to upgrade their Honda NT700V with a more reliable and efficient charging system, consider the MOSFET regulator rectifier available at 4Drive. This upgrade ensures your bike's electrical system is robust and ready for any journey.
