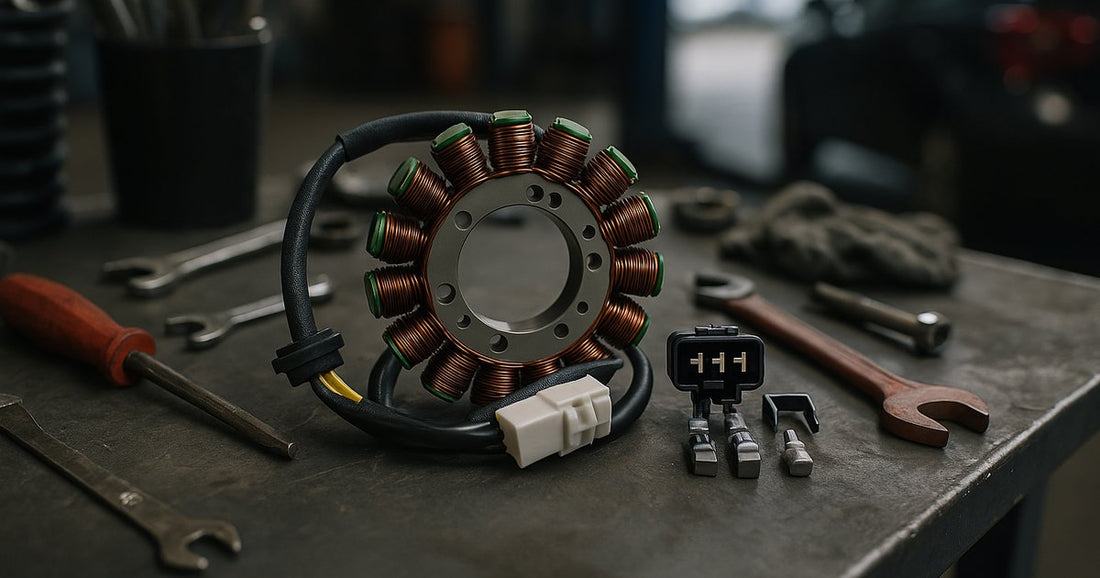

DIY: Replacing Your Aprilia RSV1000 R's Stator Magneto Generator

For UK motorbike enthusiasts, maintaining an Aprilia RSV1000 R is not just about performance, but also about ensuring reliability on those scenic British roads. A common issue with these bikes is the stator magneto generator failure, often leading to a dead battery and stranded rides. Ignoring a faulty stator can result in further electrical damage, costing you hundreds of pounds in repairs. This guide provides a detailed, step-by-step process for replacing the stator magneto generator, ensuring your Aprilia is road-ready and reliable.

Understanding the Stator Magneto Generator

The stator magneto generator is integral to your Aprilia RSV1000 R's charging system. It converts mechanical energy from the engine into electrical energy to charge the battery and power the bike's electrical systems. Typically, the stator comprises wire coils mounted on a metal core, surrounded by a rotating magnet known as the flywheel. Over time, the stator can fail due to overheating, wire insulation breakdown, or physical damage.

Symptoms of a failing stator include dimming lights, a weak or dead battery, and erratic electrical behaviour. Testing the stator involves measuring resistance across its coils and checking for continuity. A healthy stator should have a resistance of approximately 0.2 to 0.5 ohms. If your stator fails these tests, replacement is necessary to avoid being left stranded and facing additional repair costs.

Tools and Parts Required

Before starting the replacement, gather the necessary tools and parts. You'll need a new stator magneto generator, which you can find at 4Drive. Additionally, have a socket set, torque wrench, flywheel puller, multimeter, and gasket scraper ready. A workshop manual specific to your Aprilia model is also valuable for torque specifications and detailed diagrams.

Ensure you're working in a well-lit area and have a clean surface to lay out parts as you remove them. The entire process should take around 2 to 3 hours for a competent DIY mechanic. Remember to disconnect the battery before starting to prevent any electrical shorts or shocks.

Step-by-Step Replacement Guide

1. Remove the Fairings: Begin by removing the fairings to access the stator cover. This typically involves unscrewing several bolts and carefully unlatching any clips.
2. Drain Engine Oil: Place a suitable container beneath the bike and remove the oil drain plug to drain the engine oil. This prevents oil spillage when removing the stator cover.
3. Remove the Stator Cover: Unscrew the bolts securing the stator cover. Use a gasket scraper to gently break the seal and remove the cover without damaging the mating surfaces.
4. Extract the Flywheel: Use a flywheel puller to remove the flywheel, exposing the stator. Take care not to damage the crankshaft or threads.
5. Replace the Stator: Unscrew the old stator, noting the wire routing. Install the new stator, ensuring wires are routed correctly and secured with clips.
6. Reinstall Components: Replace the flywheel, ensuring it is torqued to the manufacturer's specification. Refit the stator cover with a new gasket, and torque the bolts evenly.
7. Refill Engine Oil: Reinstall the drain plug, and refill with the correct oil type and volume as specified by Aprilia (e.g., 10W-40, 3.5 litres).
8. Test the System: Reconnect the battery, start the engine, and measure the charging voltage at the battery terminals. It should be between 13.5 to 14.5 volts when revving the engine.

Common Challenges and Solutions

Replacing the stator magneto generator can present several challenges. One common issue is stubborn stator cover bolts. Applying penetrating oil and using an impact driver can help loosen them without stripping. Another challenge is aligning the flywheel correctly. Marking the position of the old flywheel before removal can aid in correct installation.

Oil leaks after reassembly are often due to improperly seated gaskets. Always use a new gasket and ensure the mating surfaces are clean and free from old residue. If the charging system still underperforms after replacement, check the rectifier/regulator, as it may also be faulty.

Cost Implications of Stator Replacement

Replacing the stator yourself can save significant labour costs, typically ranging from £100 to £200 at a professional workshop. The part itself might cost between £80 and £150, depending on the supplier. However, ignoring a faulty stator can lead to battery failure, necessitating a new battery and potentially a new rectifier/regulator, adding another £50 to £100 to your expenses.

By tackling this DIY project, you not only save on labour costs but also gain a deeper understanding of your bike's electrical system, equipping you to handle future issues more effectively.

Tips for Future Prevention

To prolong the life of your new stator, ensure your bike's electrical connections are clean and secure. Regularly inspect wiring for signs of wear or corrosion, especially in damp UK conditions. Consider installing a voltmeter to monitor your charging system's health in real-time.

Additionally, ensure your battery is in good condition, as a weak battery can strain the stator, leading to premature failure. Keeping your bike under a cover or in a garage can also protect electrical components from moisture-induced corrosion.

Key Takeaways

• Replace your Aprilia RSV1000 R's stator if you experience dim lights or battery issues.
• Gather all necessary tools and use a new gasket to prevent oil leaks.
• Follow the step-by-step guide to ensure correct installation and alignment.
• Test the charging system post-installation for proper function.
• Inspect and maintain electrical connections to prolong stator life.
• DIY replacement can save £100–£200 compared to professional services.
• Regular maintenance can prevent future electrical failures and costs.

FAQ

How do I know if my stator needs replacing? Symptoms include dimming lights, a battery that won't hold a charge, or erratic electrical behavior. A multimeter test showing no continuity or incorrect resistance values (0.2 to 0.5 ohms) confirms the need for replacement.

What oil type should I use after replacing the stator? For the Aprilia RSV1000 R, use a high-quality 10W-40 motorcycle oil. Ensure the oil is suitable for wet clutches and refill the engine with approximately 3.5 litres.

Can I reuse the old gasket? It's advisable to use a new gasket to ensure a proper seal and prevent oil leaks. Reusing an old gasket risks improper sealing and potential leaks.

Why is my battery still not charging after replacing the stator? If the battery isn't charging, check the rectifier/regulator, as it might also be faulty. Ensure all electrical connections are clean and secure, and test the charging voltage at the battery terminals.

What if I don't have a flywheel puller? A flywheel puller is essential for safe removal without damaging components. Consider borrowing or renting one if you don't have it, as improper tools can cause costly damage.
