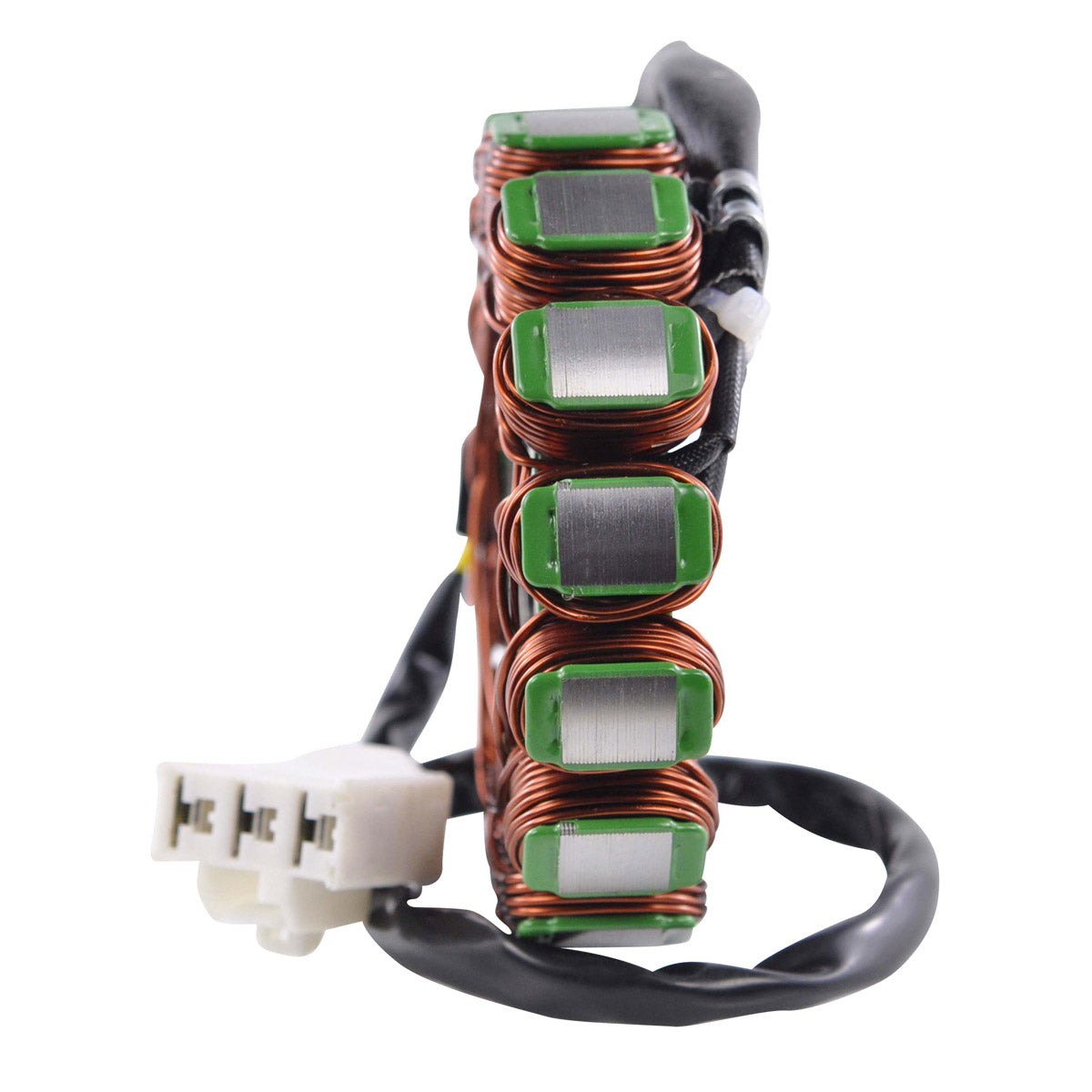

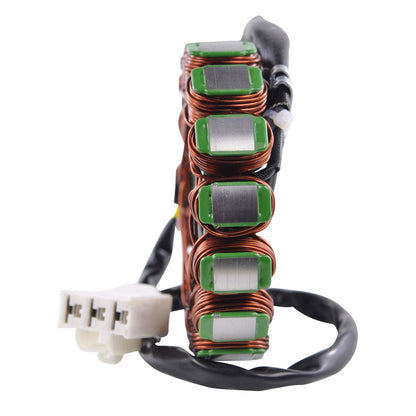

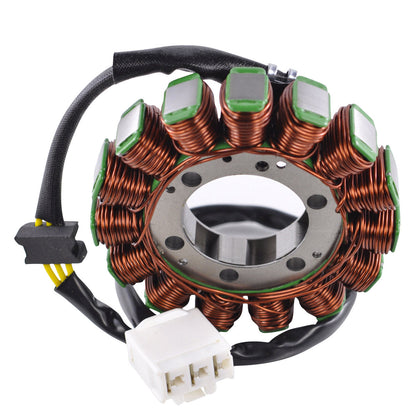

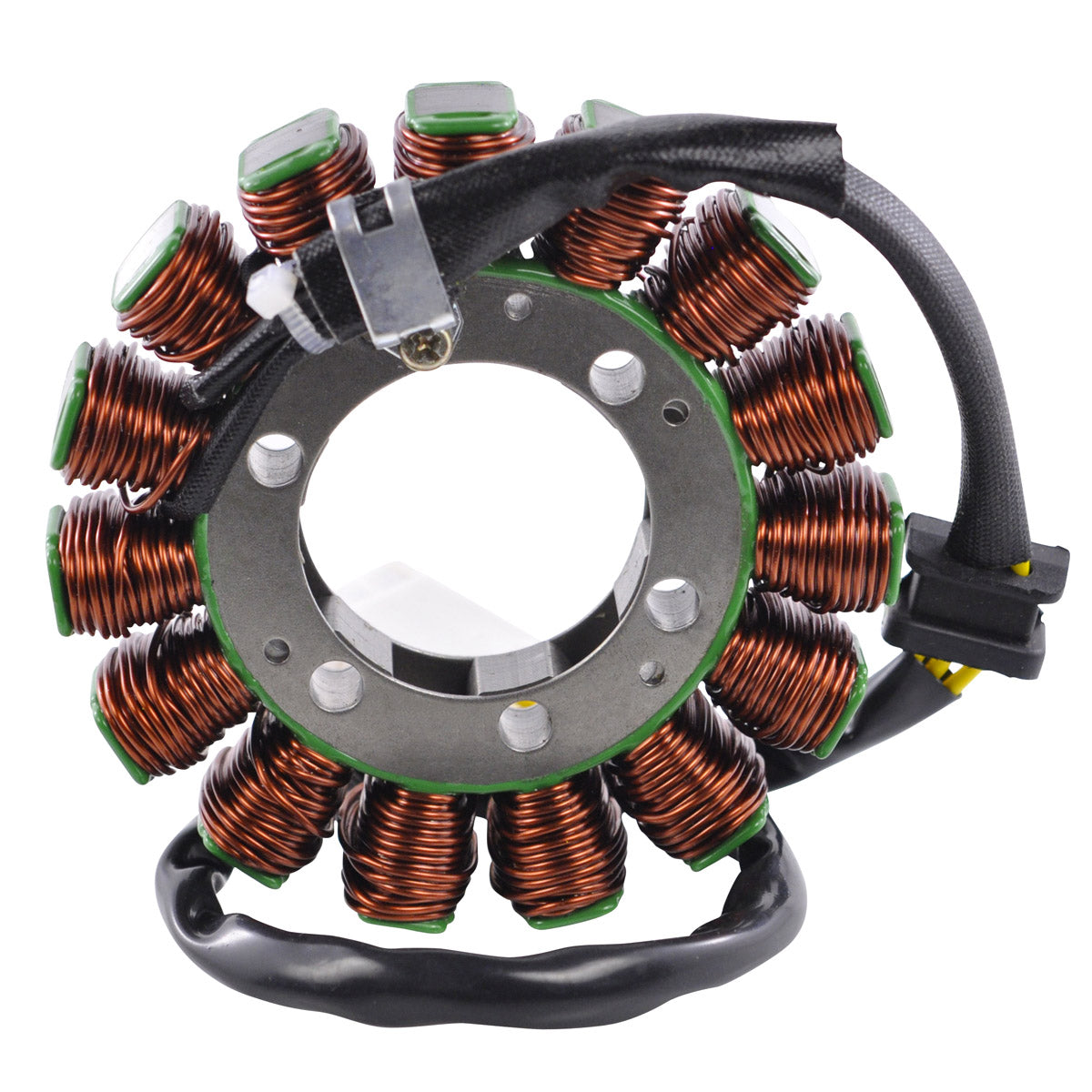

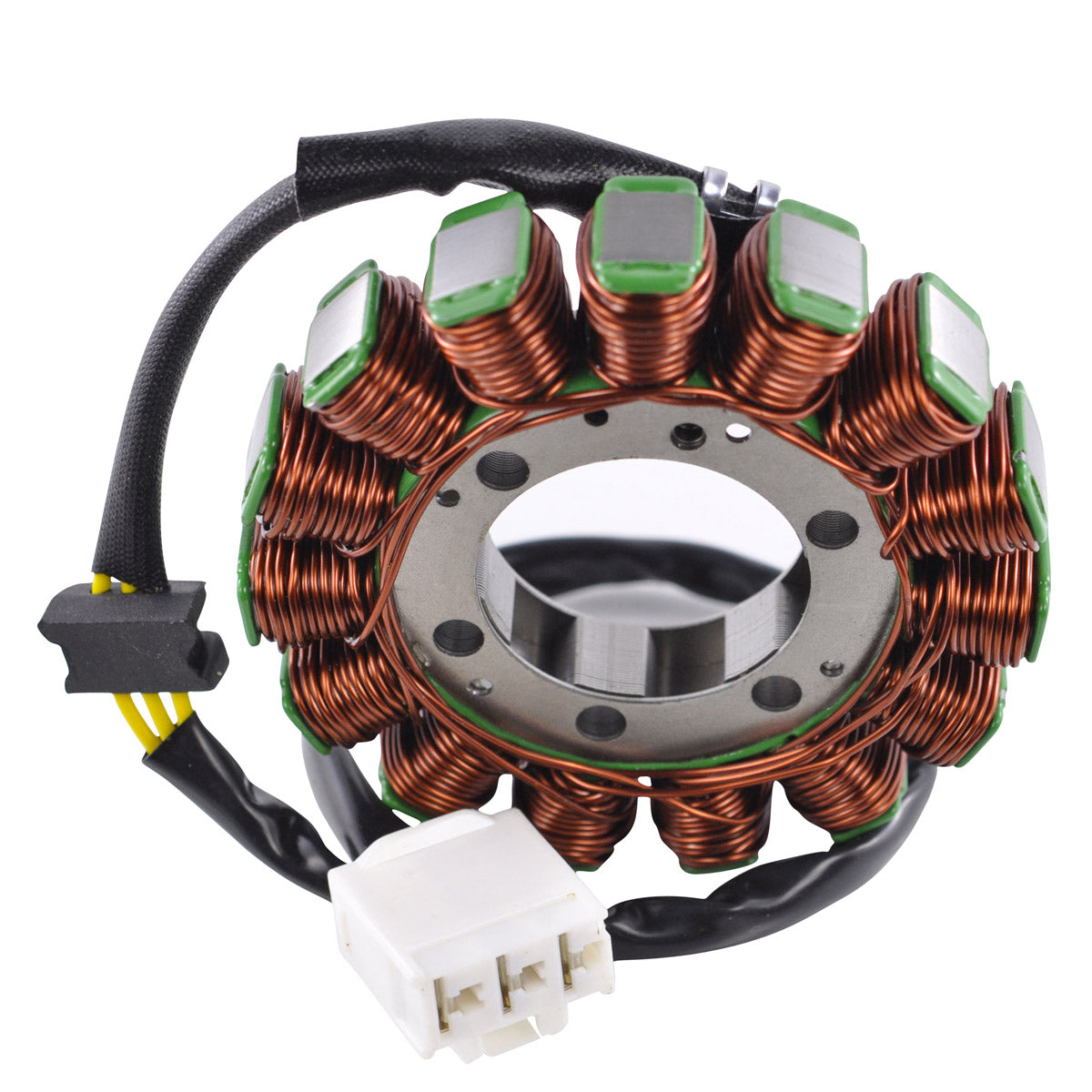

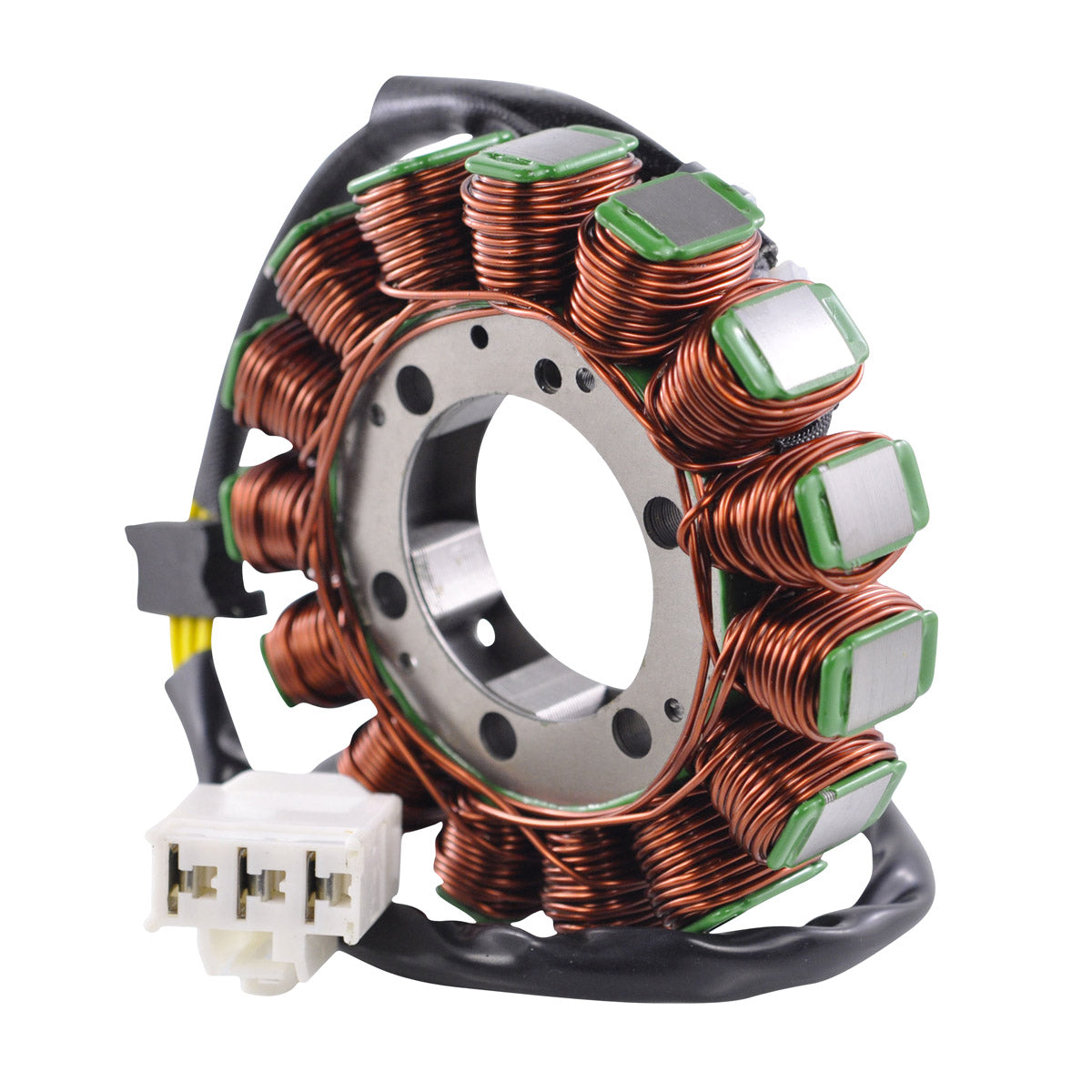

Kokusan Stator for Aprilia RSV4 and Tuono V4
RSV4 1000 Factory, R, RF and RR, Tuono V4 1000 and 1100, 2011-2020 - OEM 2D000049
This is a brand new aftermarket Kokusan stator for the Aprilia RSV4 and Tuono V4, designed specifically to address the charging system failures these models are known for. The problem on the original setup is heat: the OEM stator runs hot enough to cook its own insulation, and a like-for-like replacement simply repeats the failure a season or two later.
RMSTATOR tackle this at the source. The unit is built with lower strength magnets, which drops the stator output and, with it, the heat the stator generates. The result is a charging system that runs cooler and survives, rather than one that produces more current than the bike needs while destroying itself doing so. It remains a direct replacement for the original unit, fitting in the standard position with the standard connector, and the connectors and rubber grommet are included. Every unit is tested before it is shipped.
Key Features
- Kokusan type stator, direct replacement for the original unit
- Lower strength magnets reduce output and heat generation
- Engineered against the known Aprilia charging system overheating failure

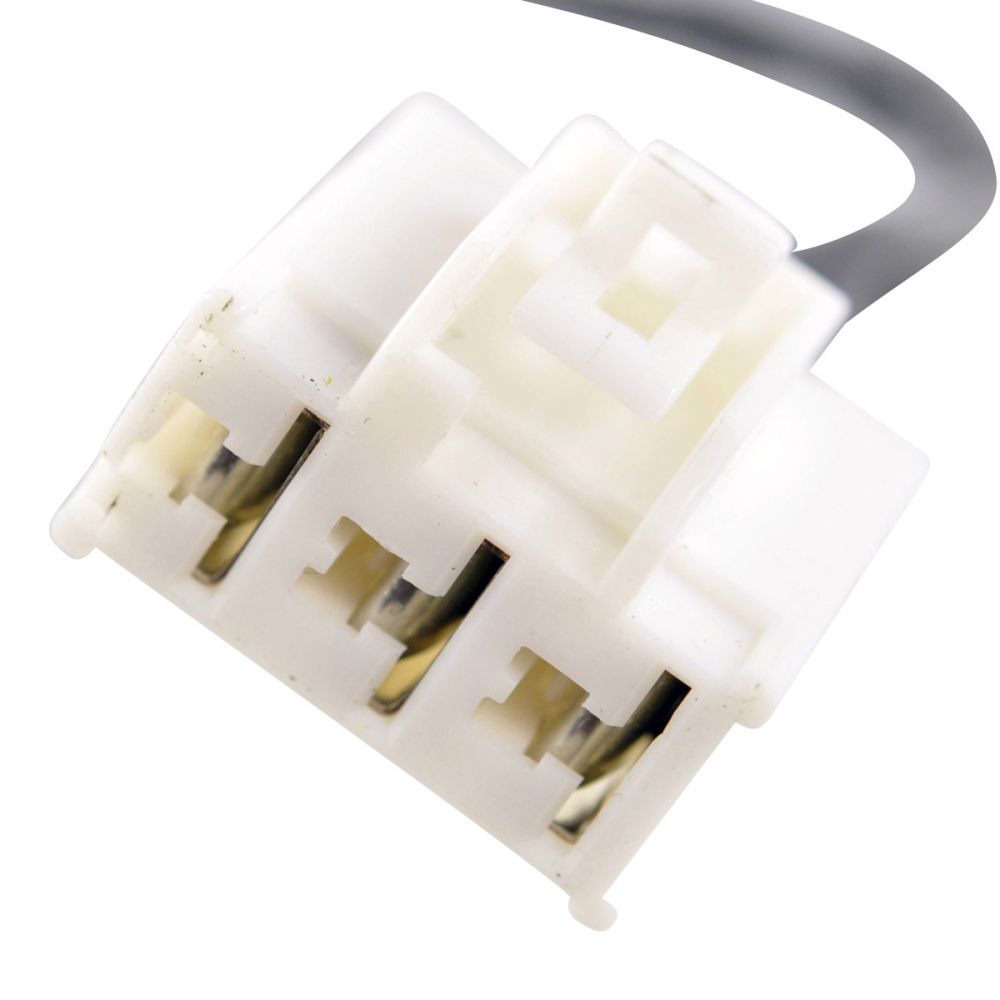

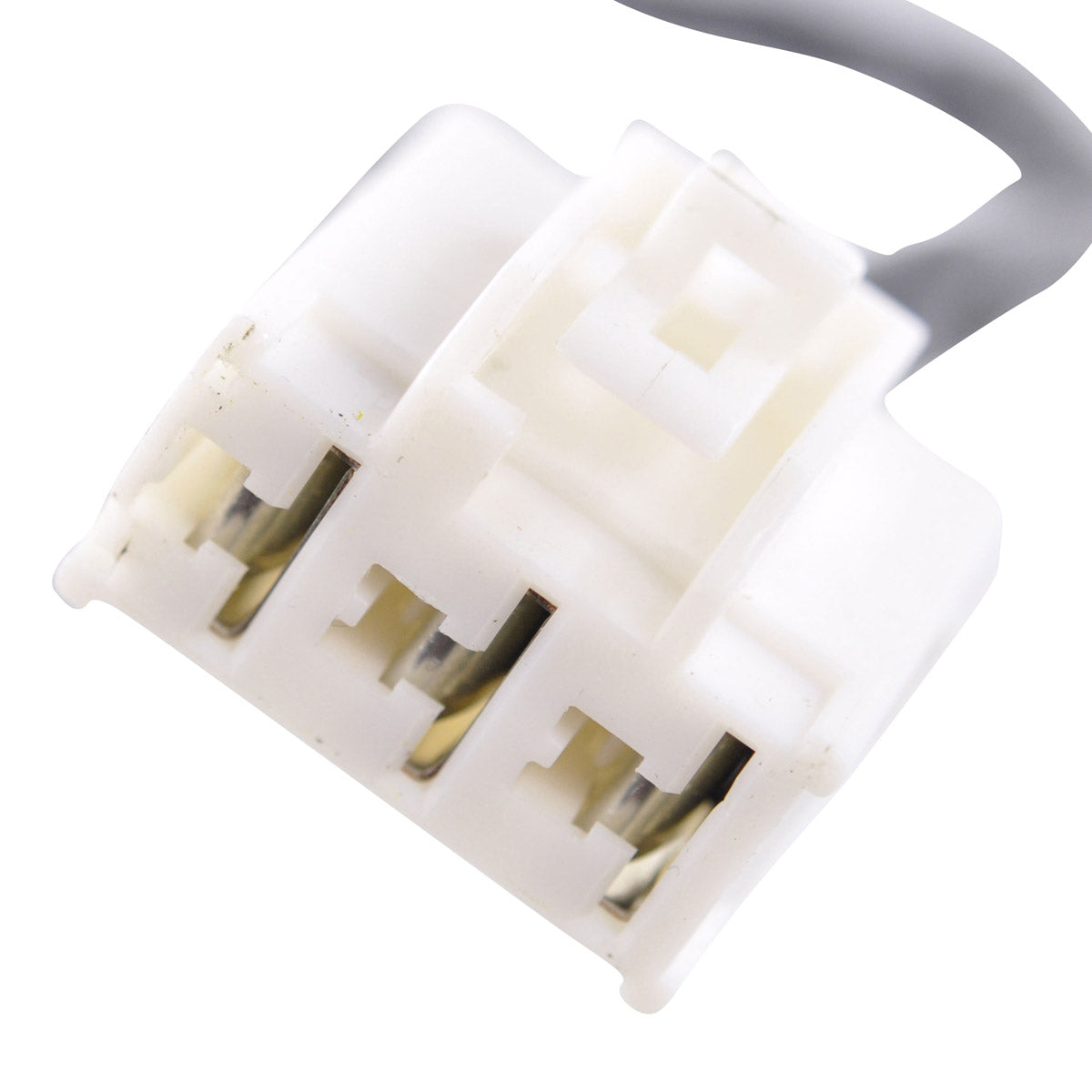

- 15 poles, 3 wires, single 3-pin plug

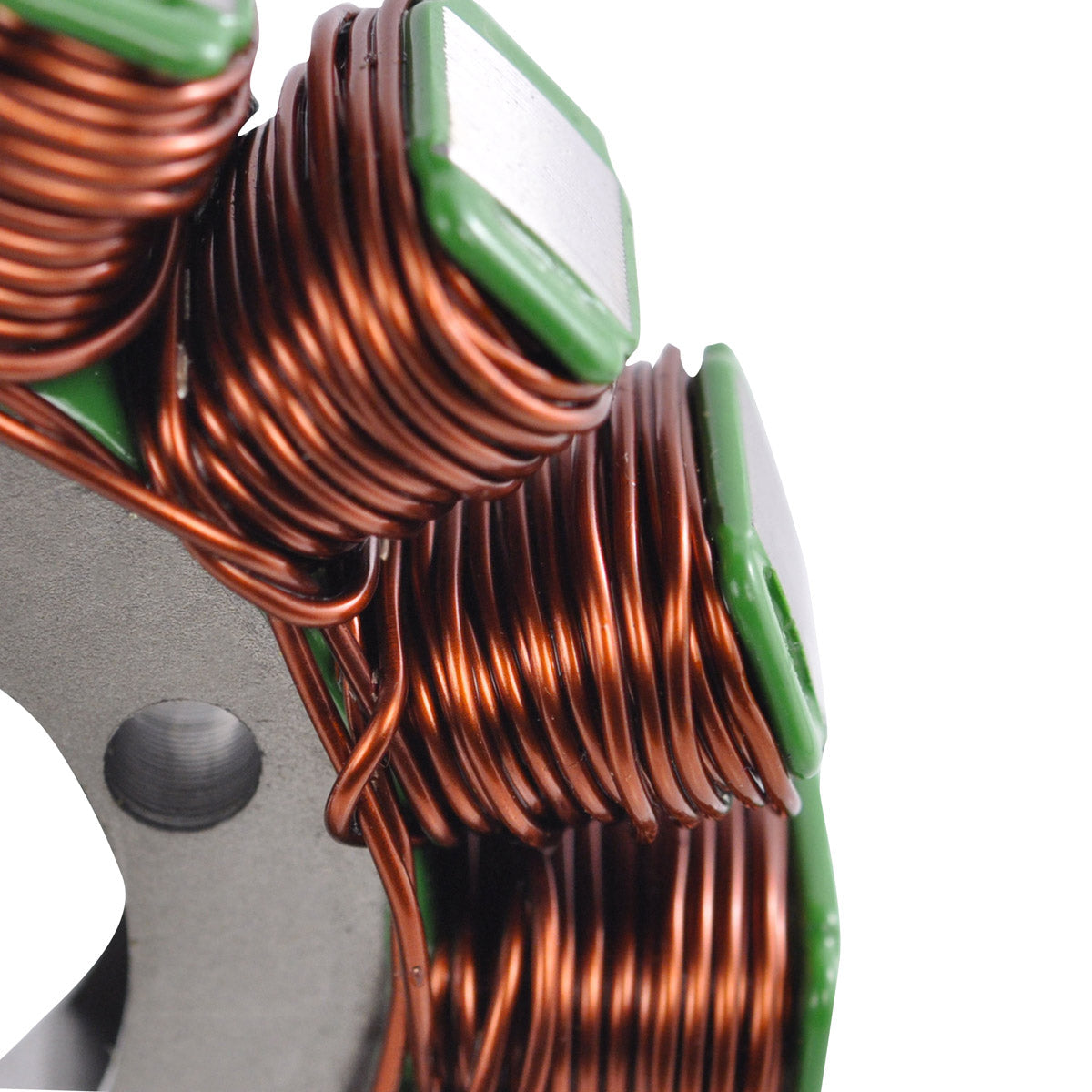

- Windings rated to 200 degrees Celsius

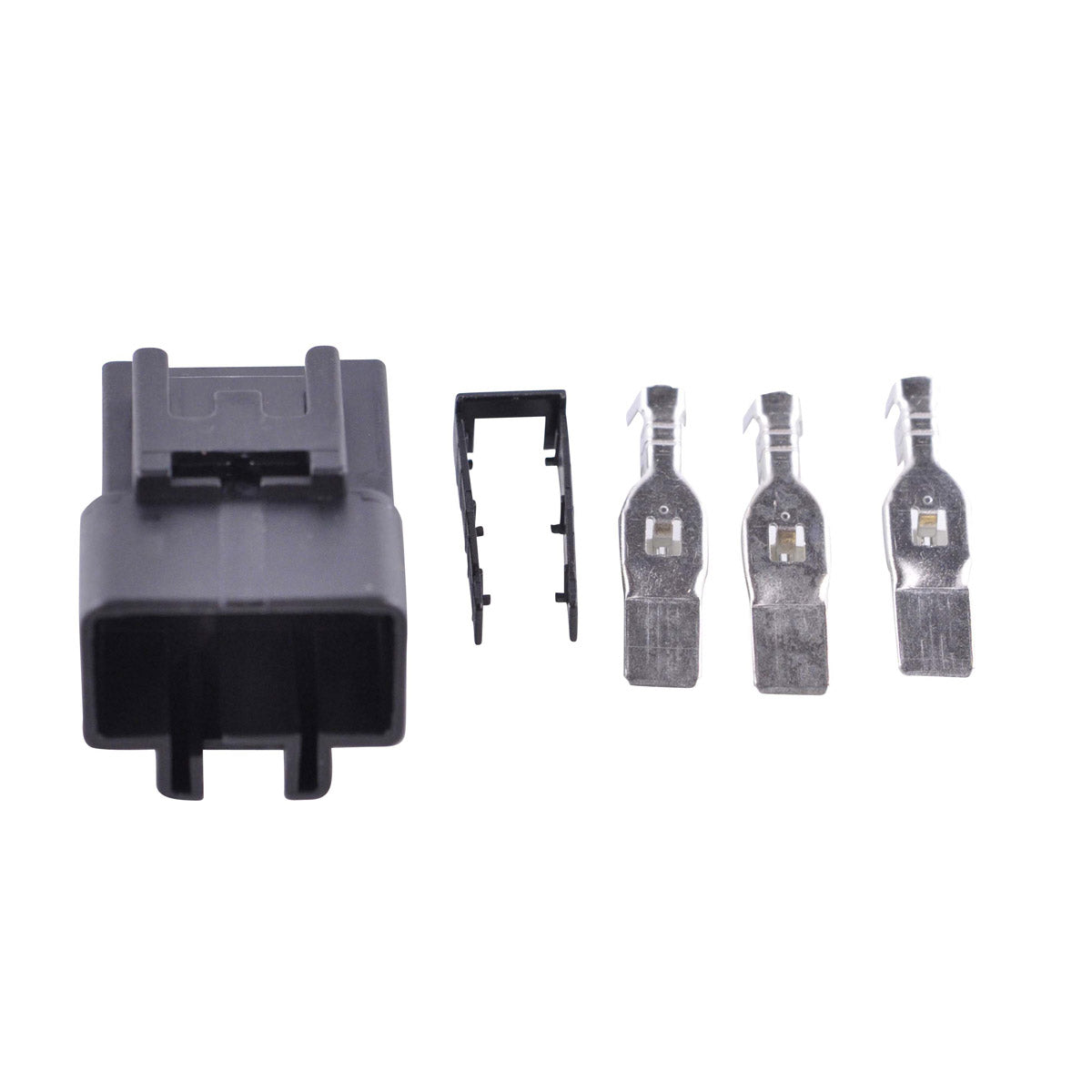

- Connectors and rubber grommet included
- Every unit tested before shipping
- Aftermarket replacement for OEM 2D000049
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 43 mm |
| Exterior diameter | 105 mm |
| Thickness | 13.8 mm |
| Wire length (stator to grommet) | 125 mm |
| Wire length (grommet to plug) | 320 mm |
| Number of wires | 3 |
| Number of plugs | 1 |
| Number of pins | 3 |
| Number of poles | 15 |
| Resistance (Yellow to Yellow) | 0.3 ohms +/-20% |
| Temperature rating | 200 degrees Celsius |
| Part number | RMS010-103591 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Aprilia RSV4 1000 Factory | 2011-2020 |
| Aprilia RSV4 1000 R | 2011-2020 |
| Aprilia RSV4 1000 RF | 2011-2020 |
| Aprilia RSV4 1000 RR | 2011-2020 |
| Aprilia Tuono V4 1000 | 2011-2020 |
| Aprilia Tuono V4 1100 | 2011-2020 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 2D000049 | Aprilia |
| 897479 | Aprilia |
| 1A010 | Aprilia |
Frequently Asked Questions
Does this fit without modification?
Yes. It is a direct replacement for the original stator and fits in the standard position using the standard connector, so no modification to the loom or the cases is needed.
What is included?

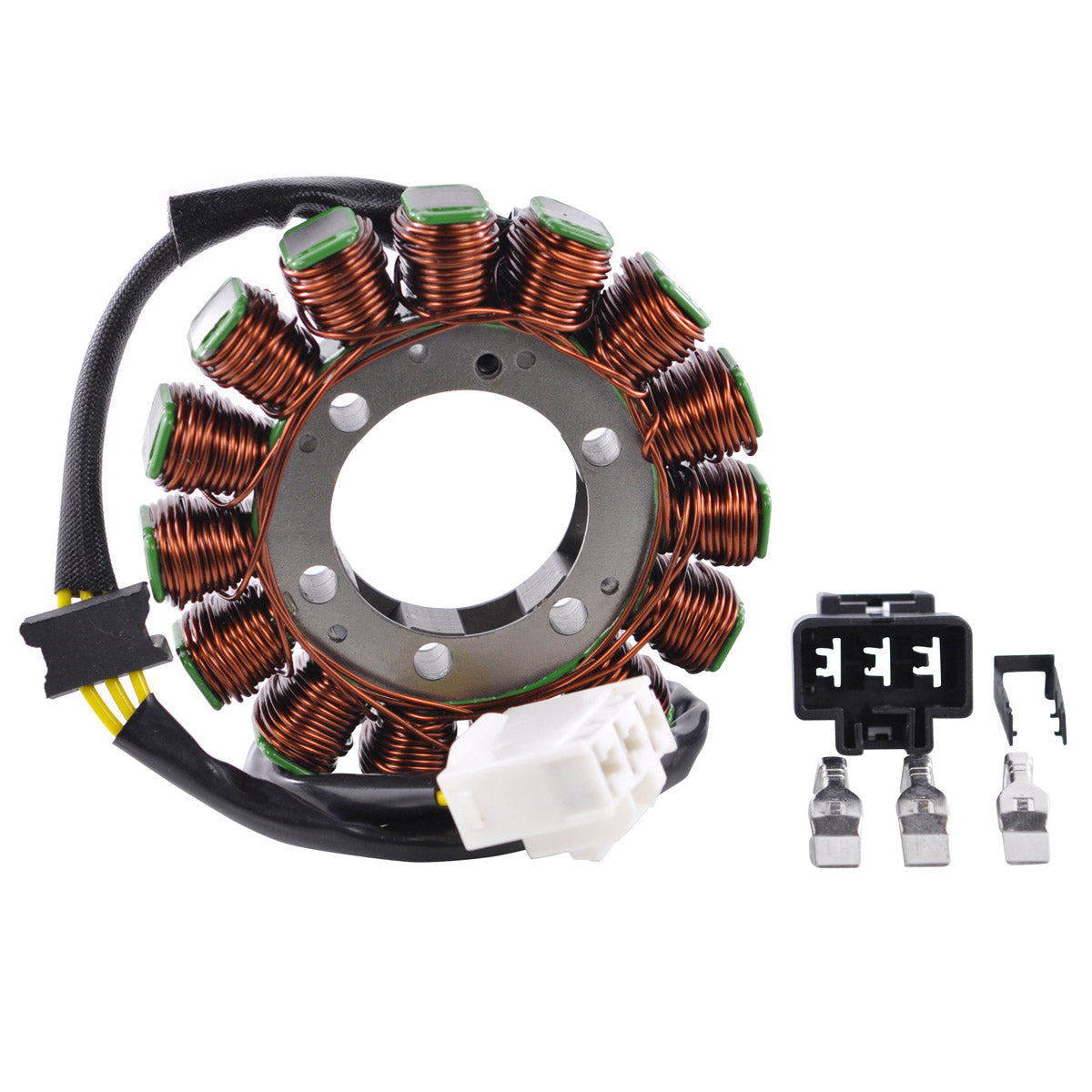

The Kokusan stator, its connectors and the rubber grommet.
Why does this unit use lower strength magnets?
The original Aprilia charging system fails through heat. Lower strength magnets drop the stator output and therefore the heat the stator generates, which is what allows the unit to survive where a like-for-like replacement does not.
How do I confirm my stator has failed?
With the engine off and the plug disconnected, measure between the Yellow wires - this unit reads 0.3 ohms +/-20% between each pair. An open circuit reading, a near-zero reading, or continuity between any wire and the engine case indicates a failed winding. Discoloured or blackened windings on the removed unit confirm heat damage.
