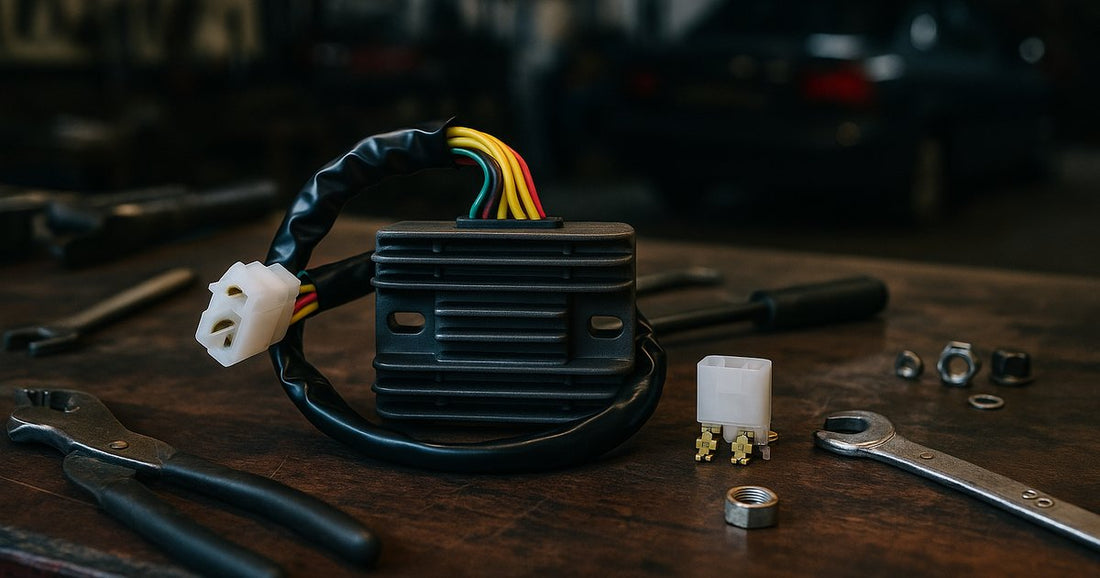

DIY: Replacing Your Yamaha V-Star 650's Regulator Rectifier

In the UK, a failing regulator rectifier on your Yamaha V-Star 650 can leave you stranded at the most inconvenient times, such as during a Sunday ride through the Cotswolds. Ignoring this vital component can lead to battery failure, leaving you with a hefty recovery bill and the hassle of sourcing a replacement. Understanding how to replace it yourself not only saves on labour costs but also ensures you're never caught off guard. With the right tools and guidance, you can tackle this task in an afternoon, gaining both confidence and expertise in maintaining your motorcycle.

Understanding the Regulator Rectifier's Role

The regulator rectifier is crucial in converting the AC voltage generated by your bike's alternator into DC voltage, which charges the battery and powers the electrical components. On a Yamaha V-Star 650, maintaining a steady 14.5V DC is ideal for optimal performance. A faulty regulator rectifier can cause overcharging, undercharging, or erratic electrical behaviour, leading to battery damage or failure. Symptoms of a failing unit include dimming lights, erratic engine performance, or a battery that frequently loses charge.

Tools and Parts You'll Need

Before starting, gather the necessary tools and parts to ensure a smooth process. You'll need a multimeter for testing voltage, a set of screwdrivers, socket wrenches, and possibly a heat gun if connectors are heat-shrunk. For the replacement, a compatible regulator rectifier specifically designed for the Yamaha V-Star 650 is essential. You can find such parts on 4Drive's product page. Ensuring you have the right part saves time and prevents compatibility issues.

Step-by-Step Replacement Process

1. Disconnect the Battery: Begin by disconnecting the negative terminal to prevent electrical shorts. This safety step is crucial.
2. Locate the Regulator Rectifier: It's typically found near the battery or under the seat. Remove any covers or fairings if necessary.
3. Test the Current Unit: Use a multimeter to check the output voltage. If it's outside the 13.5V to 14.5V range, replacement is necessary.
4. Remove the Old Unit: Unplug the connectors and unscrew the mounting bolts. Handle the wiring with care to avoid damage.
5. Install the New Regulator Rectifier: Position the new unit, secure it with bolts, and reconnect the wiring. Ensure all connections are tight and secure.
6. Reconnect the Battery: Reattach the negative terminal and test the system. Check the voltage output to confirm proper installation.

Common Pitfalls and How to Avoid Them

One common mistake is neglecting to check the voltage output before and after installation. This step is vital to ensure the new regulator rectifier functions correctly. Additionally, improper connector handling can lead to poor electrical connections, resulting in issues down the line. Always handle connectors with care, ensuring they are clean and secure. Lastly, be wary of aftermarket parts that may not meet OEM specifications; they can cause more harm than good, leading to further electrical problems.

Cost Implications of Neglect

Ignoring a faulty regulator rectifier can lead to more than just a dead battery. Continuous overcharging can cause the battery to swell and possibly leak, damaging other components. Battery replacement costs can range from £50 to £120, while additional damage to wiring or the alternator could add another £100 to £300 in repairs. Regular checks and timely replacements are a cost-effective way to maintain your motorcycle's health.

Key Takeaways

• Always test the existing regulator rectifier before replacement to confirm faults.
• Use a multimeter to ensure correct voltages are maintained.
• Secure and clean all electrical connections to prevent future issues.
• Choose OEM-specification parts to avoid compatibility problems.
• Regular maintenance checks can prevent costly repairs and ensure reliability.
• Disconnecting the battery is crucial for safety during electrical repairs.
• Properly installed, a new regulator rectifier should maintain a steady 14.5V output.

FAQs

How can I tell if my regulator rectifier is failing? Symptoms include dimming lights, erratic engine behaviour, or frequent battery discharge. Testing with a multimeter can confirm if the output is outside the normal range of 13.5V to 14.5V.

Can I use a universal regulator rectifier? While universal units are available, it's best to use a model specific to the Yamaha V-Star 650 to ensure compatibility and avoid potential electrical issues.

Do I need any special tools? Basic tools like screwdrivers and socket wrenches are sufficient. A multimeter is essential for testing, and a heat gun may be needed for connectors.

What should the voltage output be after installation? After installation, the voltage output should be between 13.5V and 14.5V. This ensures the battery is charged correctly without overloading the electrical system.

Is this a job for a beginner? While some mechanical experience is beneficial, following detailed instructions can make this a doable project for a confident beginner. Allow yourself a few hours for the task.

For a reliable replacement, consider purchasing a regulator rectifier from 4Drive, ensuring you're well-equipped for the task at hand.
