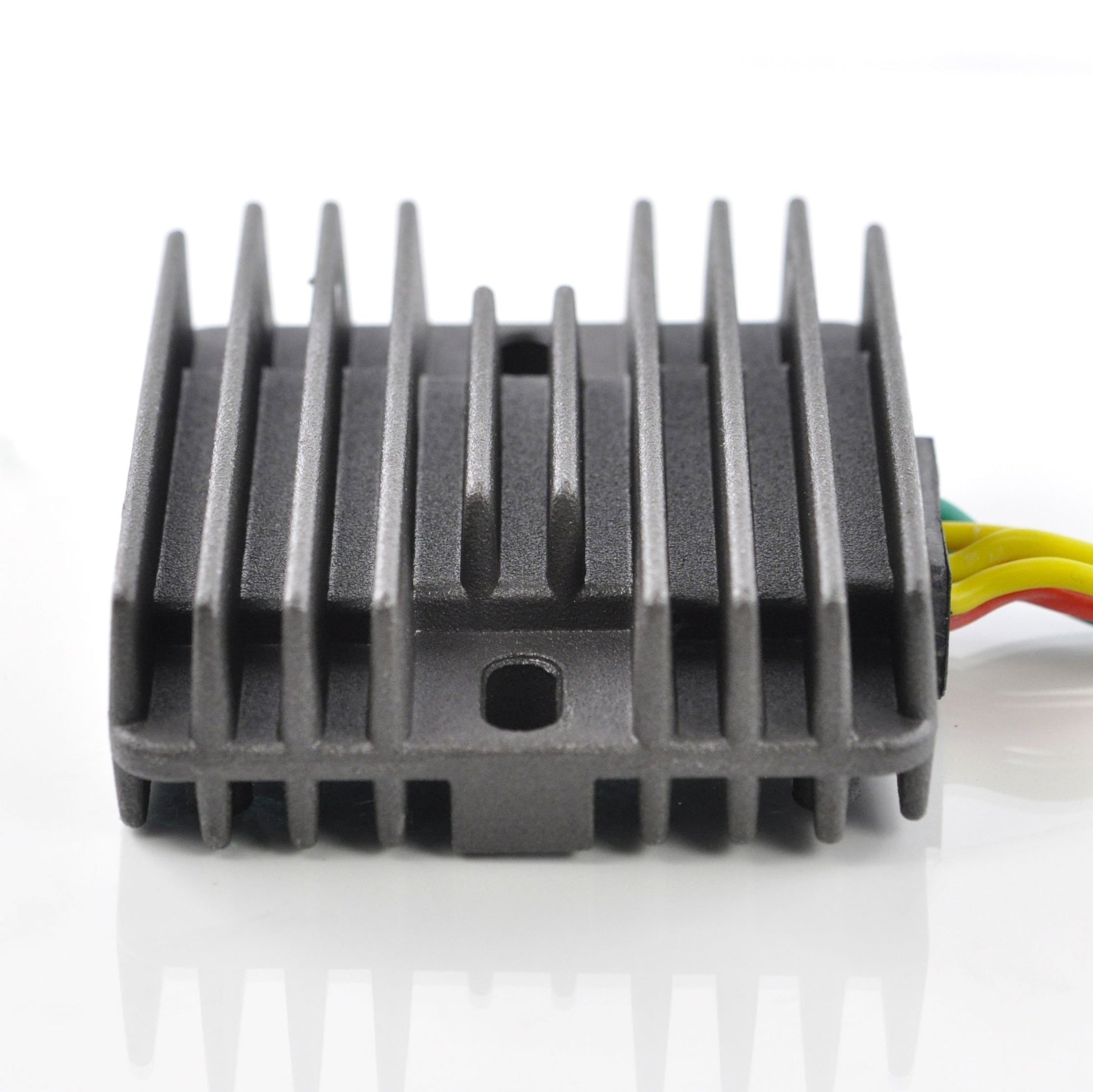

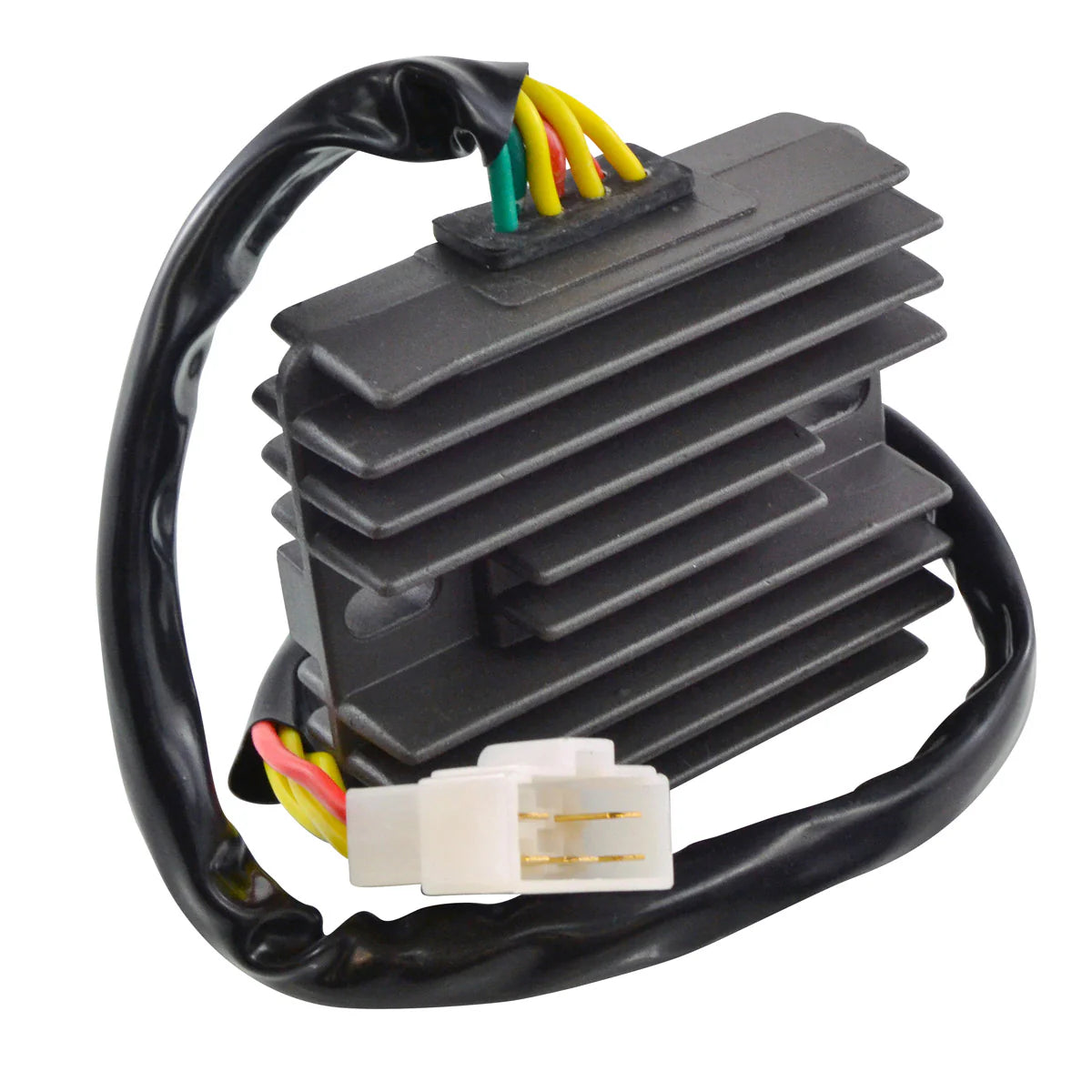

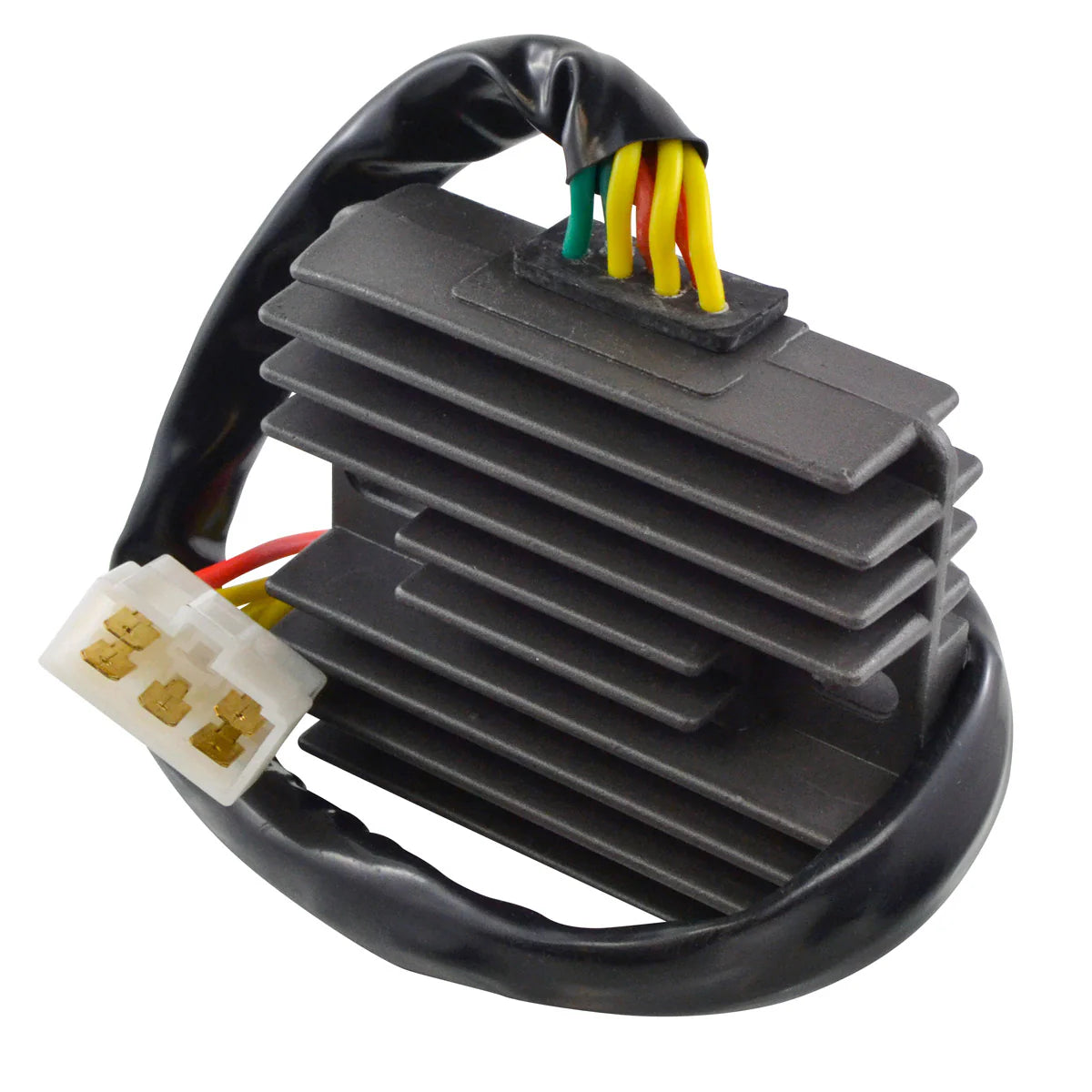

Brand new aftermarket voltage regulator rectifier, supplied under RMSTATOR part number RMS020-103273 and built as a direct replacement for the original unit. It is plug-and-play and direct fit, with no assembly required, so the job is a straight swap for the failed original rather than a wiring exercise.

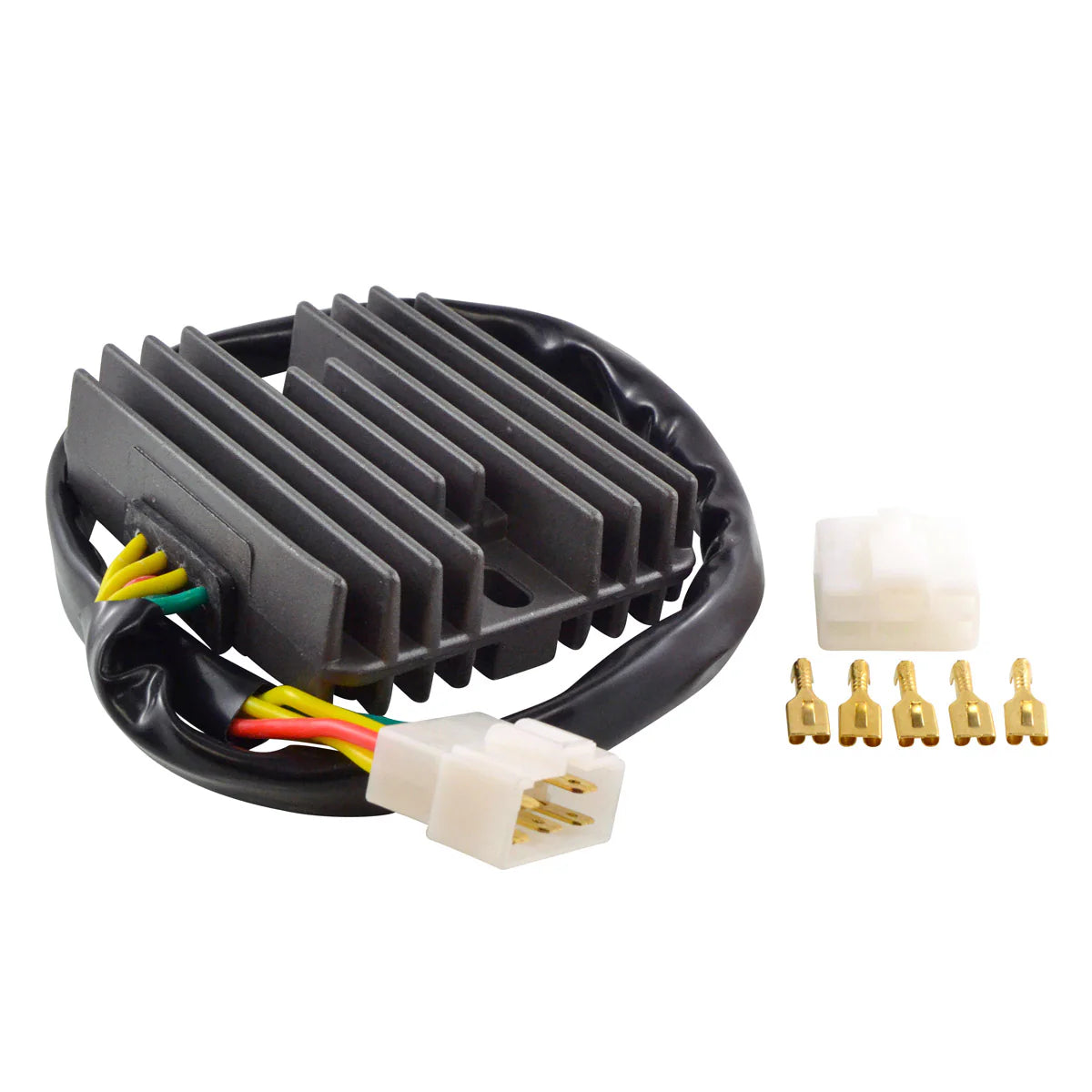

The unit is built with a higher grade of electric components, and the quality exceeds the OEM equipment it replaces. Every unit is tested before it is shipped. The opposite connector, on the main harness side, is included as well - those plugs are often found melted, corroded or otherwise defective, and are a major cause of repeat electrical problems after a regulator has been changed.
Key Features
- Brand new aftermarket voltage regulator rectifier
- Direct replacement for your original unit
- Plug-and-play, direct fit, easy installation
- No assembly required
- Higher grade of electric components - quality exceeds the OEM equipment
- Opposite connector (main harness side) included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part Number |
RMS020-103273 |

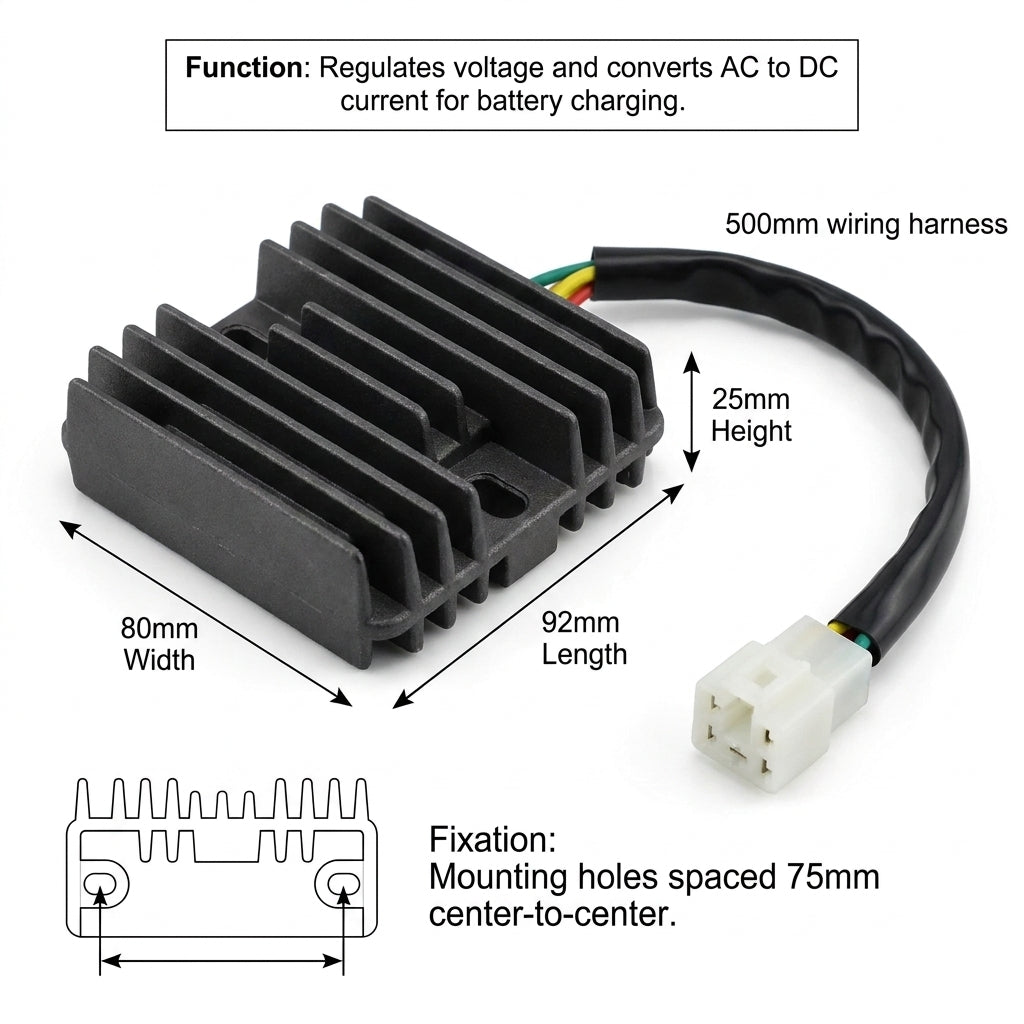

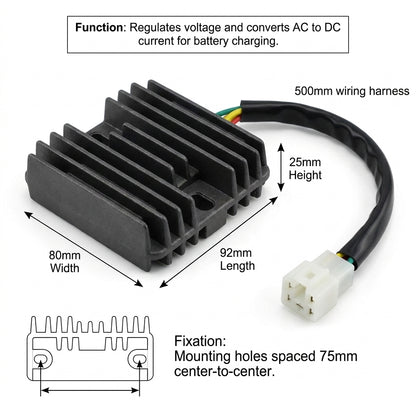

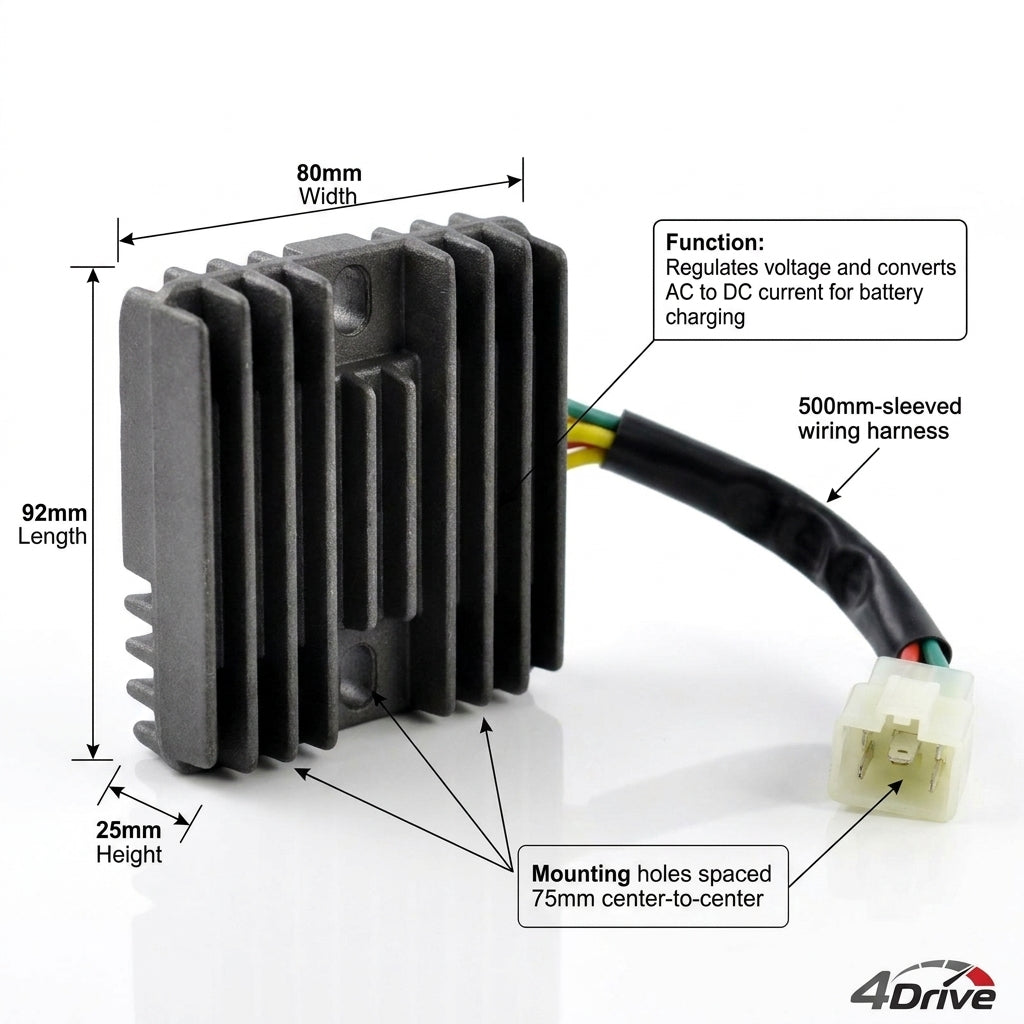

| Width |
80 mm |
| Length |
92 mm |
| Height |
25 mm |
| Wires Length |
500 mm |
| Fixation Holes Centre to Centre |
75 mm |
| Number of Plugs |
1 |
| Number of Pins |
5 |
| Number of Wires |
5 |
| Minimum Charging Voltage |
14.5 V +/- 0.5 V |
| Maximum Charging Current |
50 A / 500 W |
| Open Circuit Voltage |
Less than 15 V |
| Operation Temperature |
-20 degrees C to 85 degrees C |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha FZS FZ1 1000 |
1999-2016 |
| Yamaha V-Star 650 XVS |
1999-2016 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 5FL-81960-00-00 |
Yamaha |
| 5KP-81960-00-00 |
Yamaha |
Frequently Asked Questions
Does fitting this require any modification?

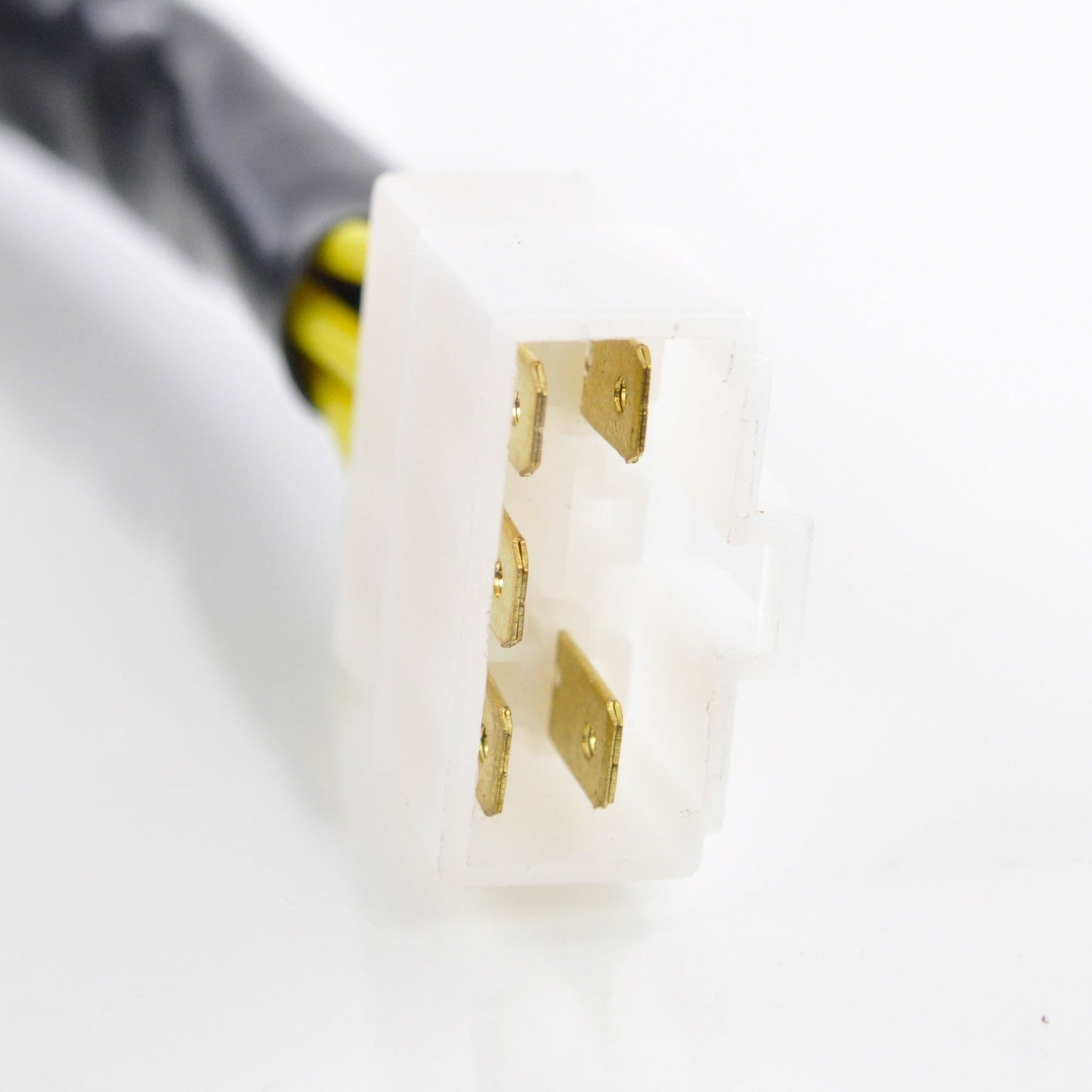

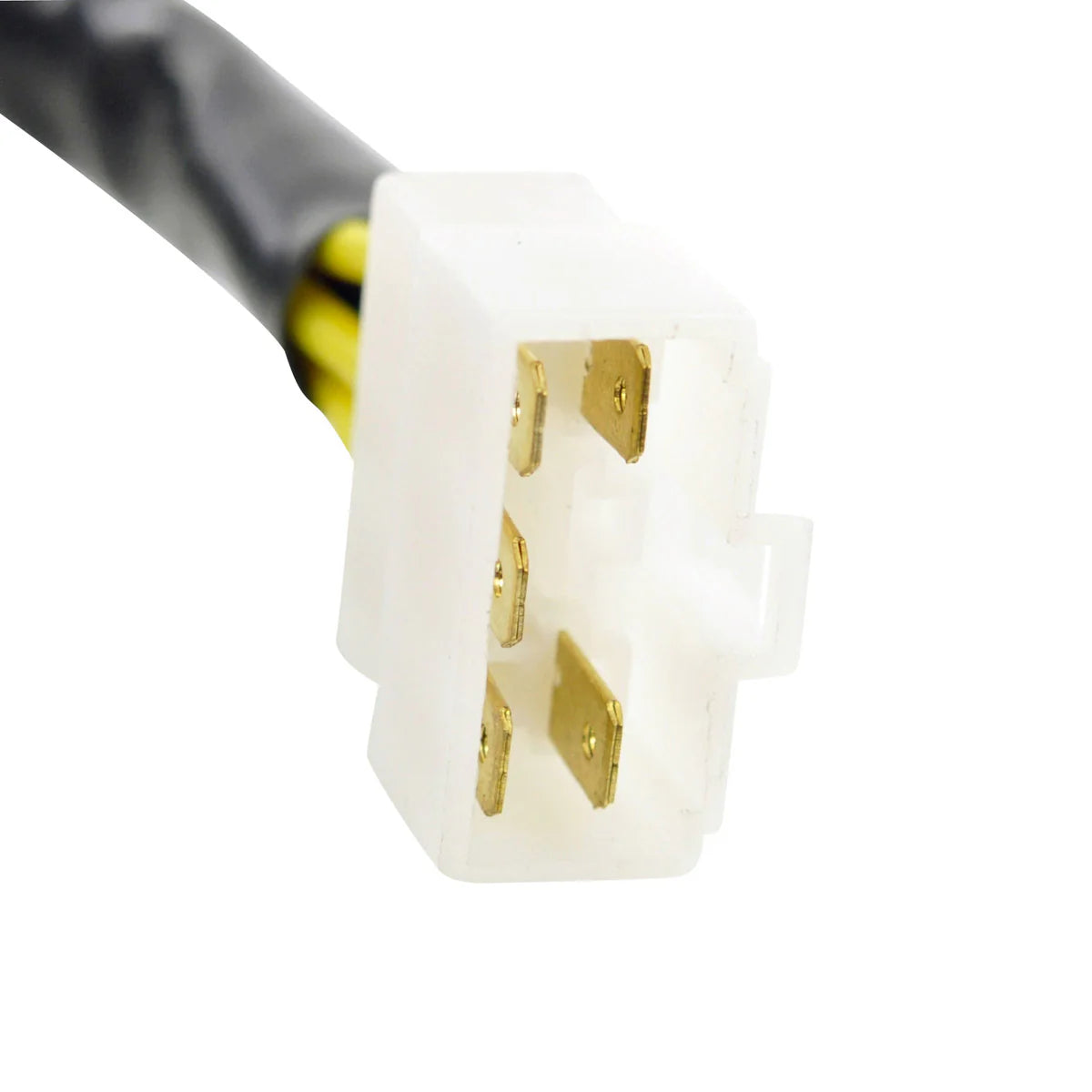

No. It is a direct replacement for the original unit, plug-and-play and direct fit, with no assembly required. It uses a single five-pin plug on five wires of 500 mm, and the mounting holes are 75 mm centre to centre.
What is included?

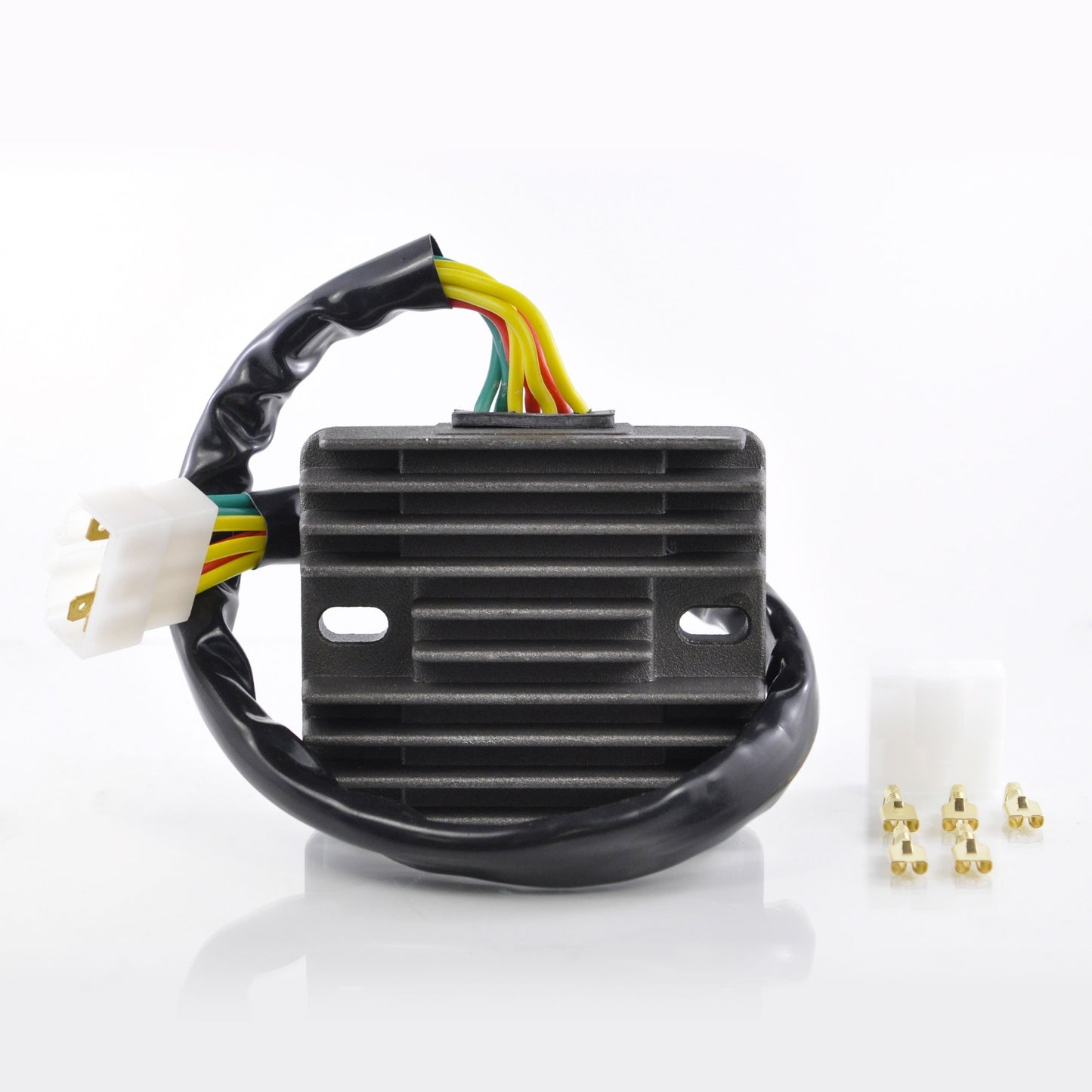

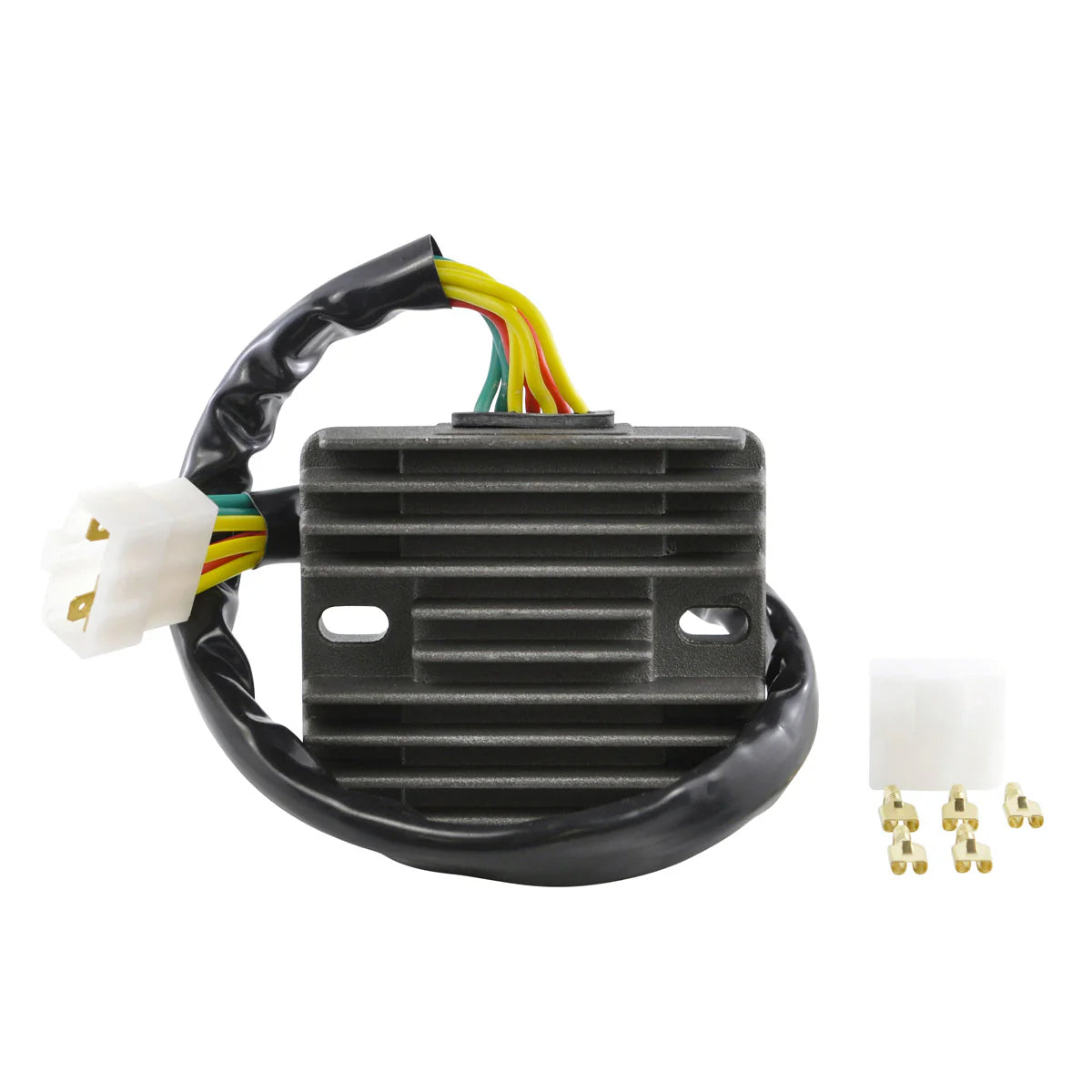

The regulator rectifier unit and the opposite connector on the main harness side. Every unit is tested before it is shipped.
How do I tell whether my old regulator has failed?
Measure the battery voltage with the engine running. A healthy charging system should hold at least 14.5 V, plus or minus 0.5 V. If the voltage never rises above resting battery level the regulator is not charging, and if it runs above 15 V it is overcharging. A flat battery that keeps coming back, or dimming and flickering lights, usually points the same way.

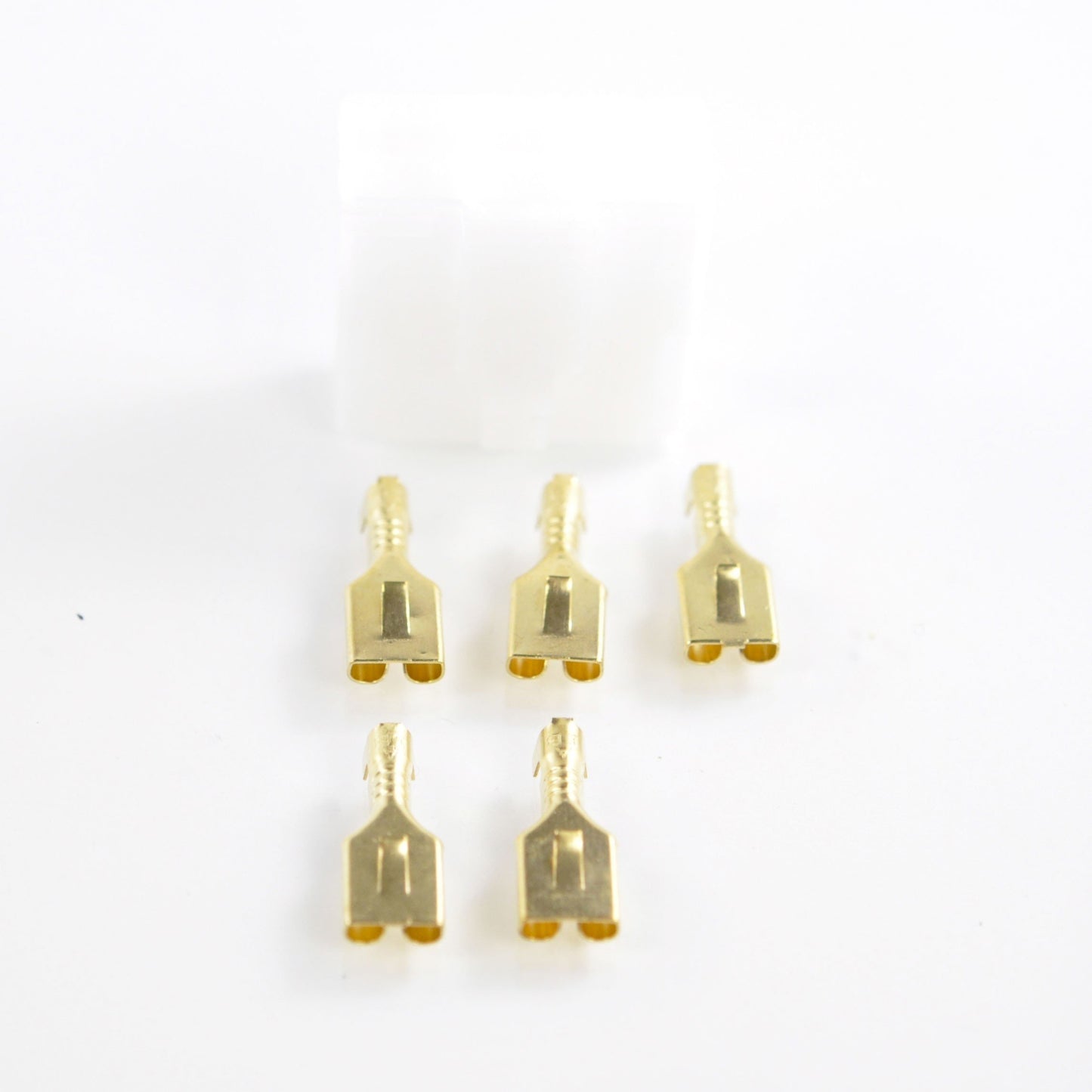

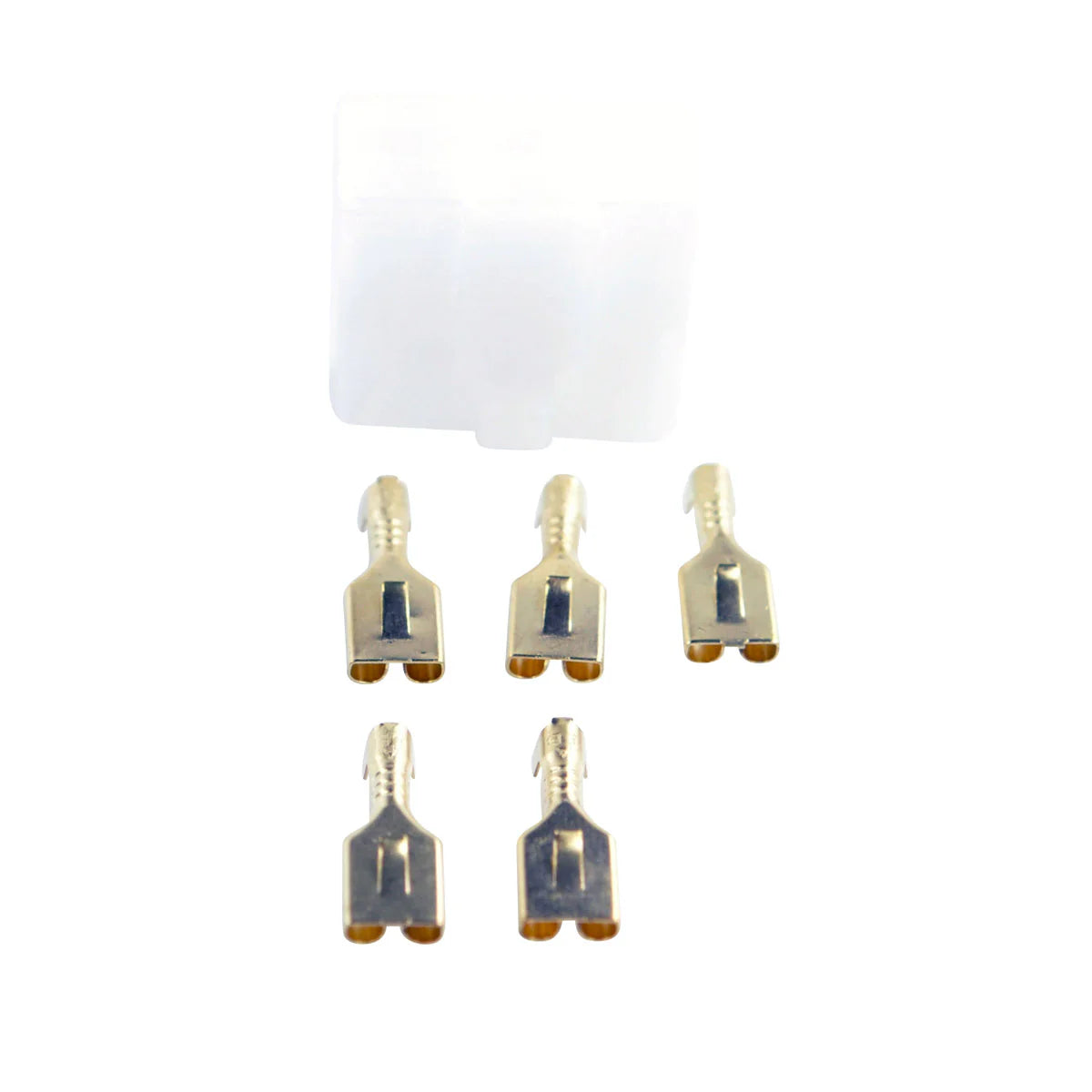

Why is a second connector supplied?
The plug on the main harness side is very often melted, corroded or otherwise defective by the time the regulator itself fails, and reusing it is a major cause of repetitive electrical issues. Replacing both sides at once deals with the whole joint rather than half of it.
