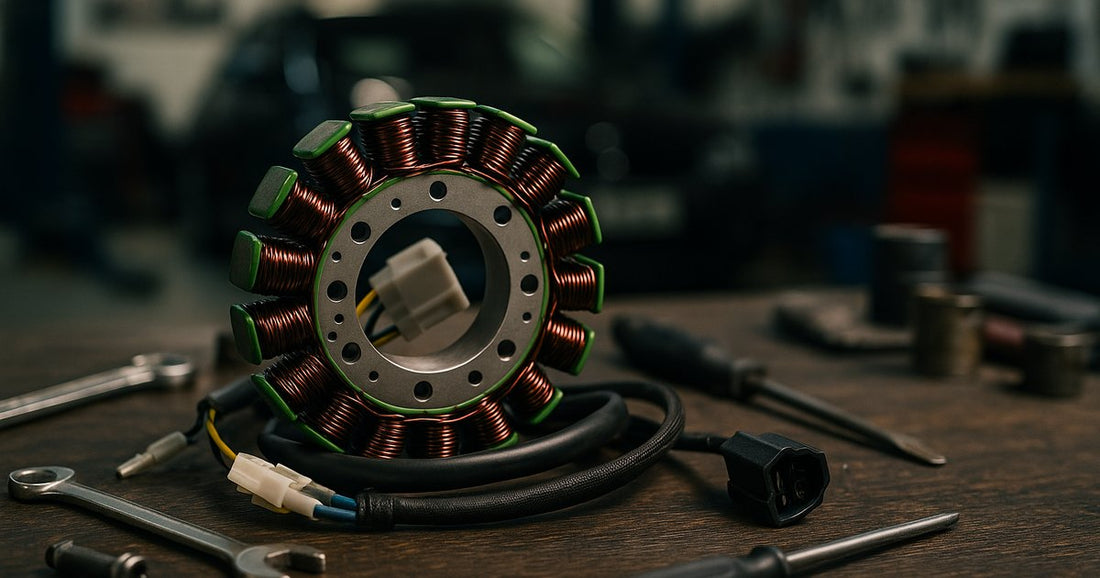

Honda VTX 1300 Stator 31120-MEA-671: Common Issues & Fixes

For UK motorcycle enthusiasts, the Honda VTX 1300 is a popular choice, known for its reliability and performance. However, like any machine, it can encounter issues, particularly with its stator. A failing stator can leave you stranded, unable to start the engine, or worse, cause unexpected power loss while riding. Understanding the common issues associated with the Honda VTX 1300 stator 31120-MEA-671 can save you from costly repairs and keep your bike running smoothly. This guide will delve into the typical problems, practical fixes, and preventive measures you can take.

Understanding the Role of the Stator

The stator is a critical component of the motorcycle's electrical system, responsible for generating the AC electricity that powers your bike's battery and electrical components. In the Honda VTX 1300, the stator works in conjunction with the rotor to produce sufficient electrical charge. When operating correctly, it ensures that your battery remains charged and all electrical systems function optimally. However, issues with the stator can lead to battery drain, poor engine performance, or a complete failure to start.

In the VTX 1300, the stator is located near the engine, where it is subject to high temperatures and vibrations. This exposure can lead to insulation breakdown and wire damage over time. A malfunctioning stator can manifest in several ways, such as dimming headlights, erratic idling, or a dead battery, making it crucial to address issues promptly.

Common Symptoms of a Faulty Stator

Recognising the signs of a faulty stator early can prevent further damage to your motorcycle. Common symptoms include:

1. Dimming or Flickering Headlights: As the stator fails, it may not produce enough charge, causing headlights and other lights to dim or flicker.
2. Dead Battery: A consistently dead battery, despite regular charging, might indicate a stator issue.
3. Engine Stalling: Inadequate power supply can lead to engine stalling, particularly at idle or low speeds.
4. Unusual Noises: A whining or buzzing noise from the stator area might suggest mechanical issues within the stator.

These symptoms can also be caused by other electrical issues, so it's essential to perform a thorough diagnosis before proceeding with repairs.

Diagnosing Stator Problems

Diagnosing a stator issue involves a few systematic steps to ensure accuracy. Here's how you can diagnose problems with your VTX 1300 stator:

1. Visual Inspection: Check for burned or damaged wiring around the stator. Look for any signs of melting or corrosion.
2. Multimeter Testing: Use a multimeter to measure the AC voltage output from the stator. Disconnect the stator from the rectifier and test each phase. A healthy stator should produce around 50-70 volts AC at 5,000 RPM.
3. Continuity Check: Test for continuity between the stator wires and the ground. Infinite resistance indicates no short to ground, whereas any continuity suggests a fault.

If your tests indicate a fault, replacing the stator is usually the best course of action.

Replacing the Stator: A DIY Guide

Replacing the stator on a Honda VTX 1300 can be tackled by a competent DIY mechanic. Allow approximately 3-4 hours for this task and ensure you have the following tools: socket set, torque wrench, gasket scraper, and a new stator gasket.

1. Preparation: Disconnect the battery to prevent any electrical shorts. Remove the seat and fuel tank to access the stator cover.
2. Remove Stator Cover: Using the socket set, unbolt the stator cover. Carefully remove it, noting the position of any dowels or alignment pins.
3. Old Stator Removal: Unscrew the stator from the cover. Pay attention to the routing of the wires to ensure correct installation of the new stator.
4. Install New Stator: Position the new stator, ensuring wires are correctly routed. Torque the bolts to the manufacturer's specifications, typically around 10 Nm.
5. Reassemble: Clean the mating surfaces and install a new gasket. Reattach the stator cover and all removed components. Reconnect the battery.

After installation, perform a voltage test to confirm the new stator is functioning correctly.

Cost Implications and Maintenance Tips

Ignoring stator issues can lead to more significant electrical problems, potentially affecting the regulator/rectifier or battery, leading to costs upwards of £200-£500. Regular maintenance and early diagnosis can mitigate these costs. Here are some maintenance tips:

• Regularly check electrical connections for corrosion or damage.
• Keep the battery terminals clean and tight.
• Ensure the stator cover is free from oil leaks, which can cause overheating.
• Periodically test the voltage output to catch any declines early.
• Replace the stator gasket during every stator service to prevent oil leaks.

Comparison of Stator Options

Key Takeaways

• Regularly inspect your stator and electrical connections to prevent failures.
• Use a multimeter for diagnosing electrical issues effectively.
• Consider both OEM and aftermarket stators based on budget and requirements.
• Follow a step-by-step approach for DIY stator replacement.
• Maintain clean and secure battery connections to ensure reliable performance.
• Monitor voltage output regularly to catch potential issues early.
• Replace the stator gasket during each service to prevent leaks.

FAQ

Q1: How often should I replace the stator on my Honda VTX 1300?

A1: The stator lifespan can vary widely based on riding conditions and maintenance. Typically, a well-maintained stator should last between 40,000 to 60,000 miles. Regular checks and prompt repairs can extend its life.

Q2: Can I ride my VTX 1300 with a faulty stator?

A2: Riding with a faulty stator is risky as it can lead to battery drainage and sudden engine shutdowns. It’s advisable to address stator issues promptly to avoid being stranded and prevent damage to other electrical components.

Q3: What tools do I need to replace a stator?

A3: Essential tools include a socket set, torque wrench, multimeter, gasket scraper, and a new gasket. A service manual for your specific model can also be invaluable for correct torque specifications and assembly instructions.

Q4: Are aftermarket stators reliable?

A4: Aftermarket stators can be reliable if sourced from reputable manufacturers. However, they may not always match the fit and finish of OEM parts. Always check reviews and warranty terms before purchasing.

Q5: How can I test my stator at home?

A5: You can test your stator at home using a multimeter. Measure the AC voltage output at idle and higher RPMs, and check for continuity between the stator leads and ground. Any deviation from normal values indicates a potential issue.

For reliable replacement parts, consider the Honda VTX 1300 stator 31120-MEA-671 available at 4Drive. Keep your motorcycle running smoothly with high-quality components.
