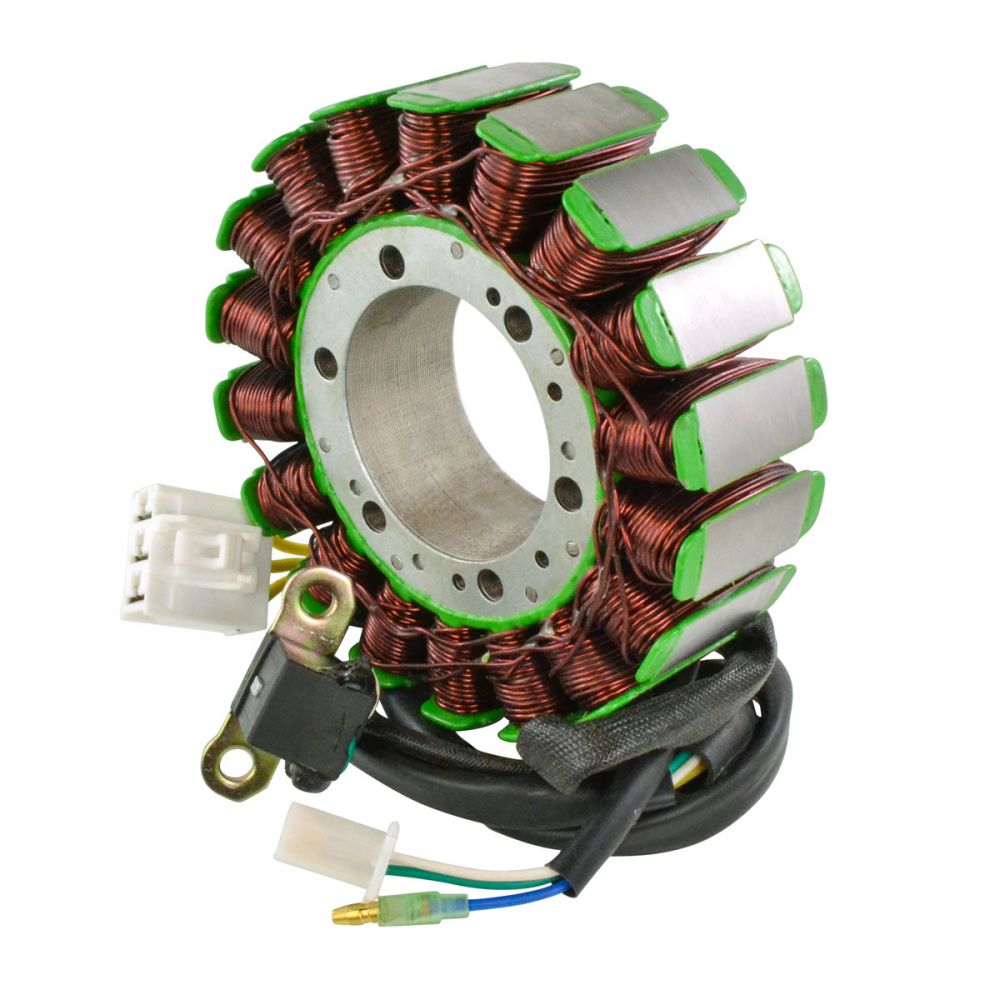

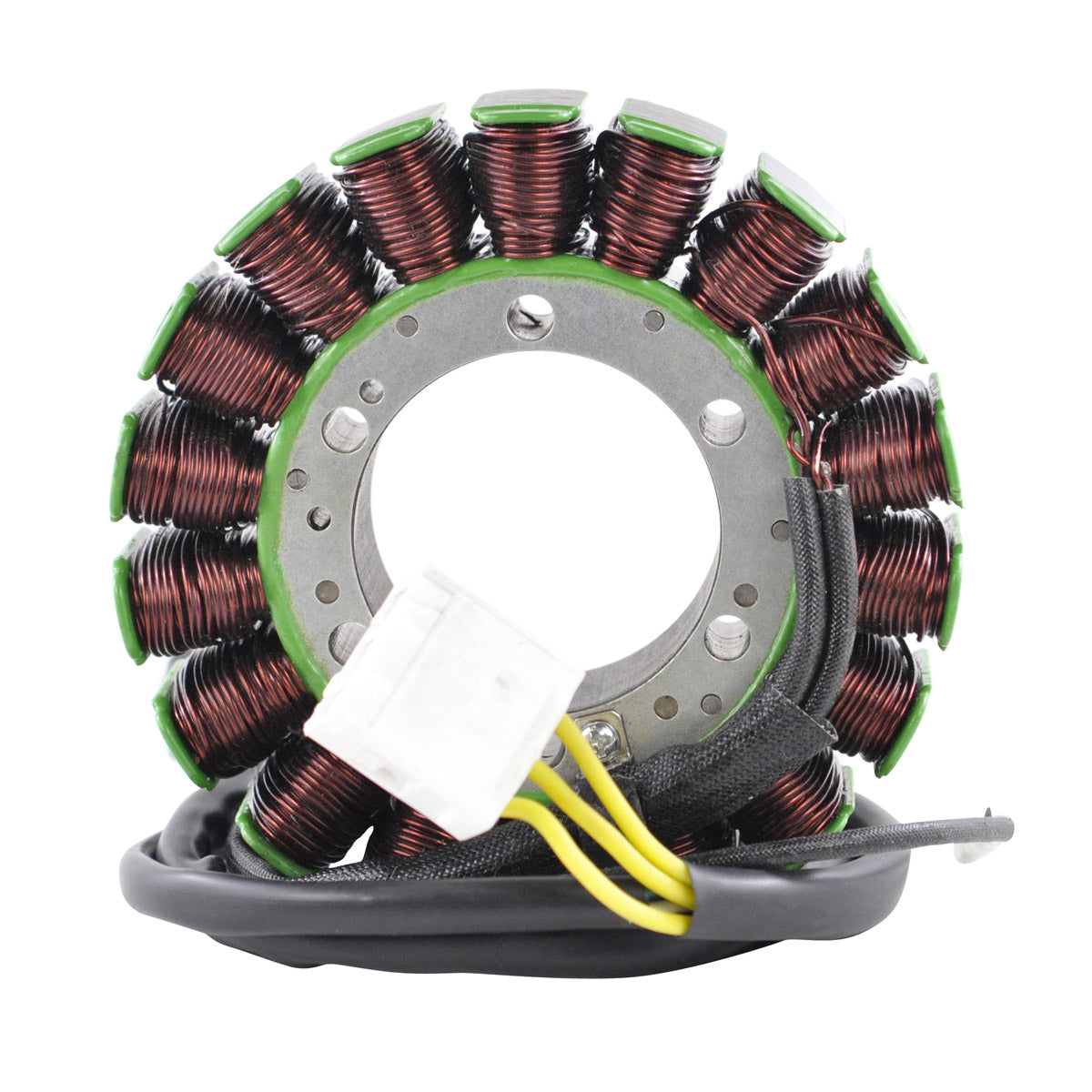

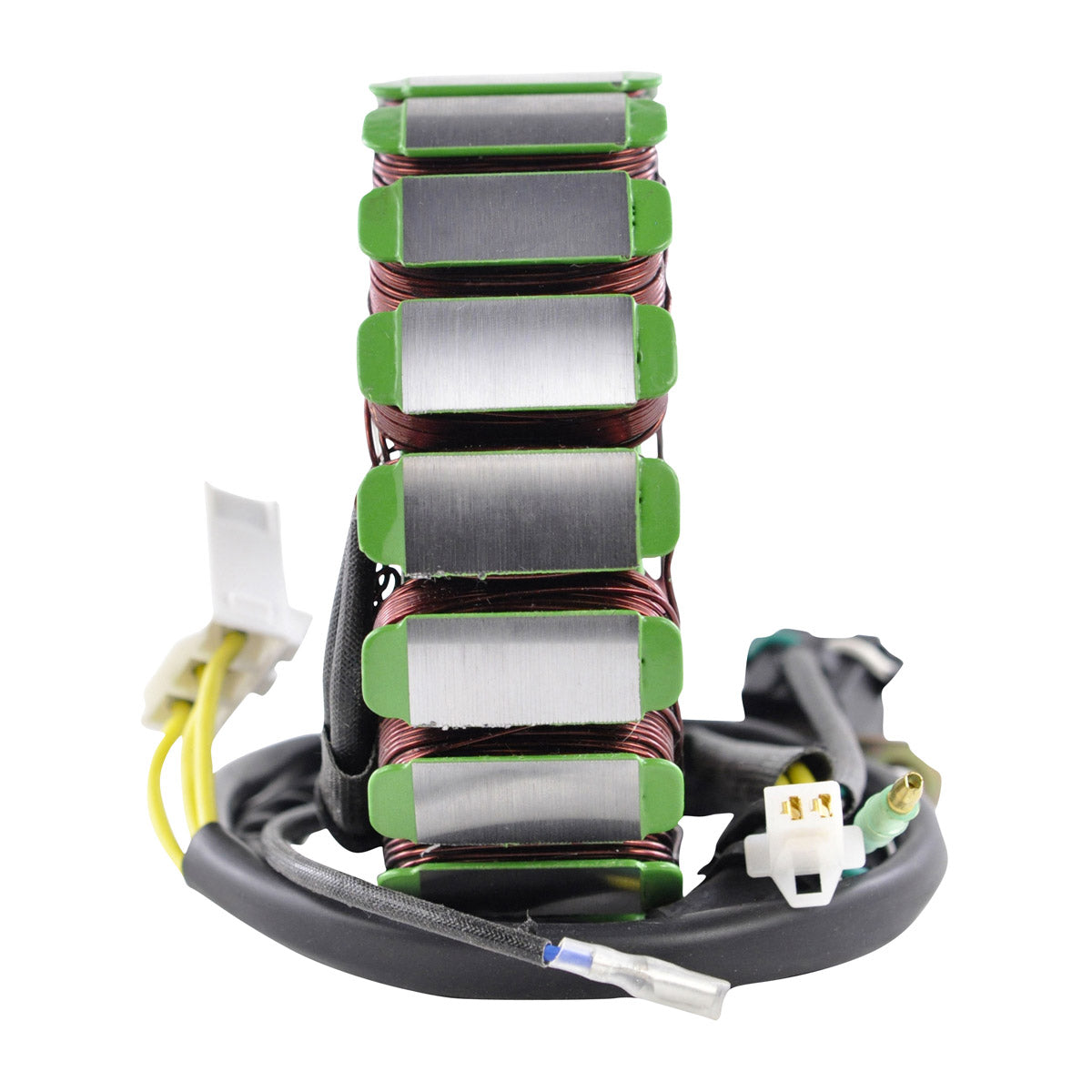

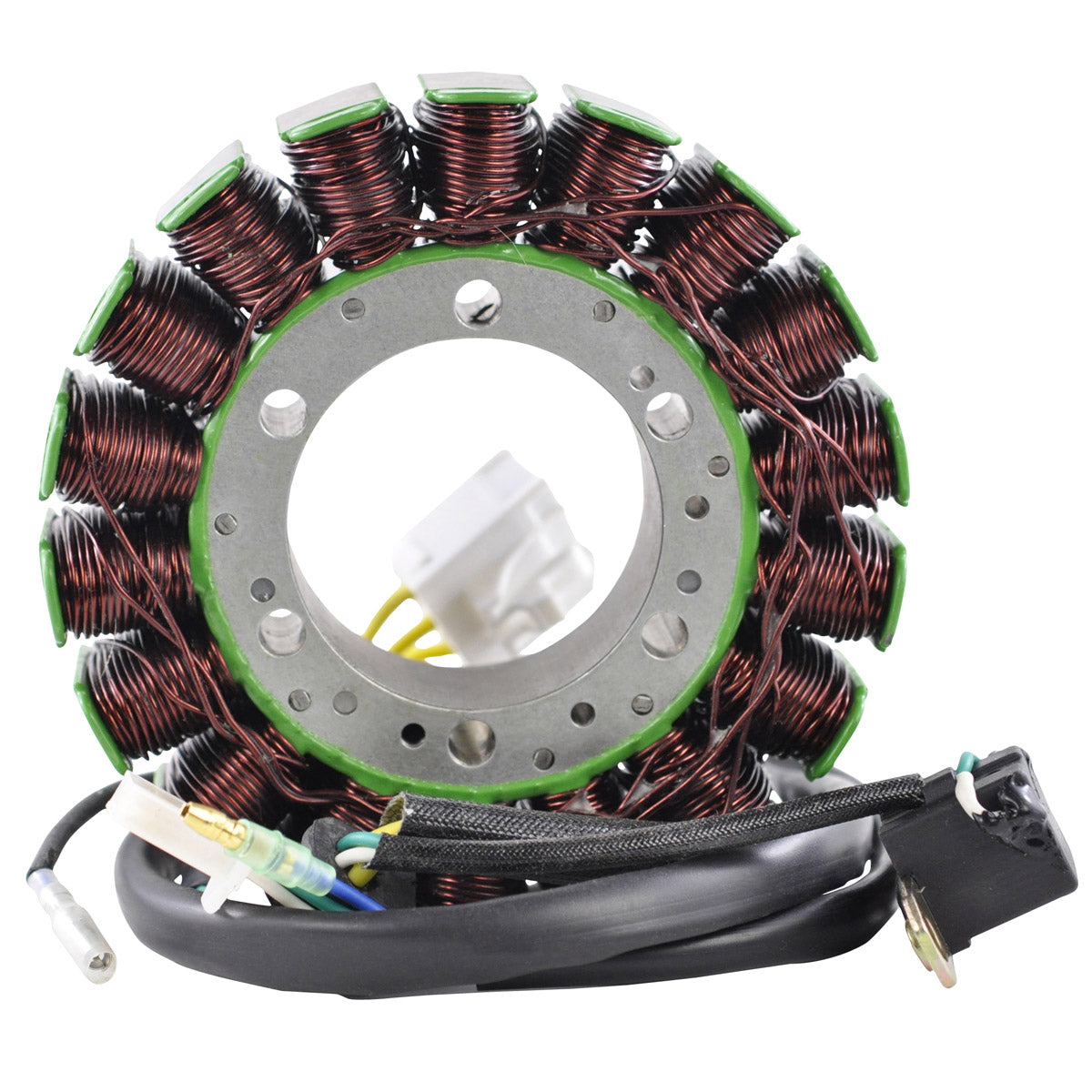

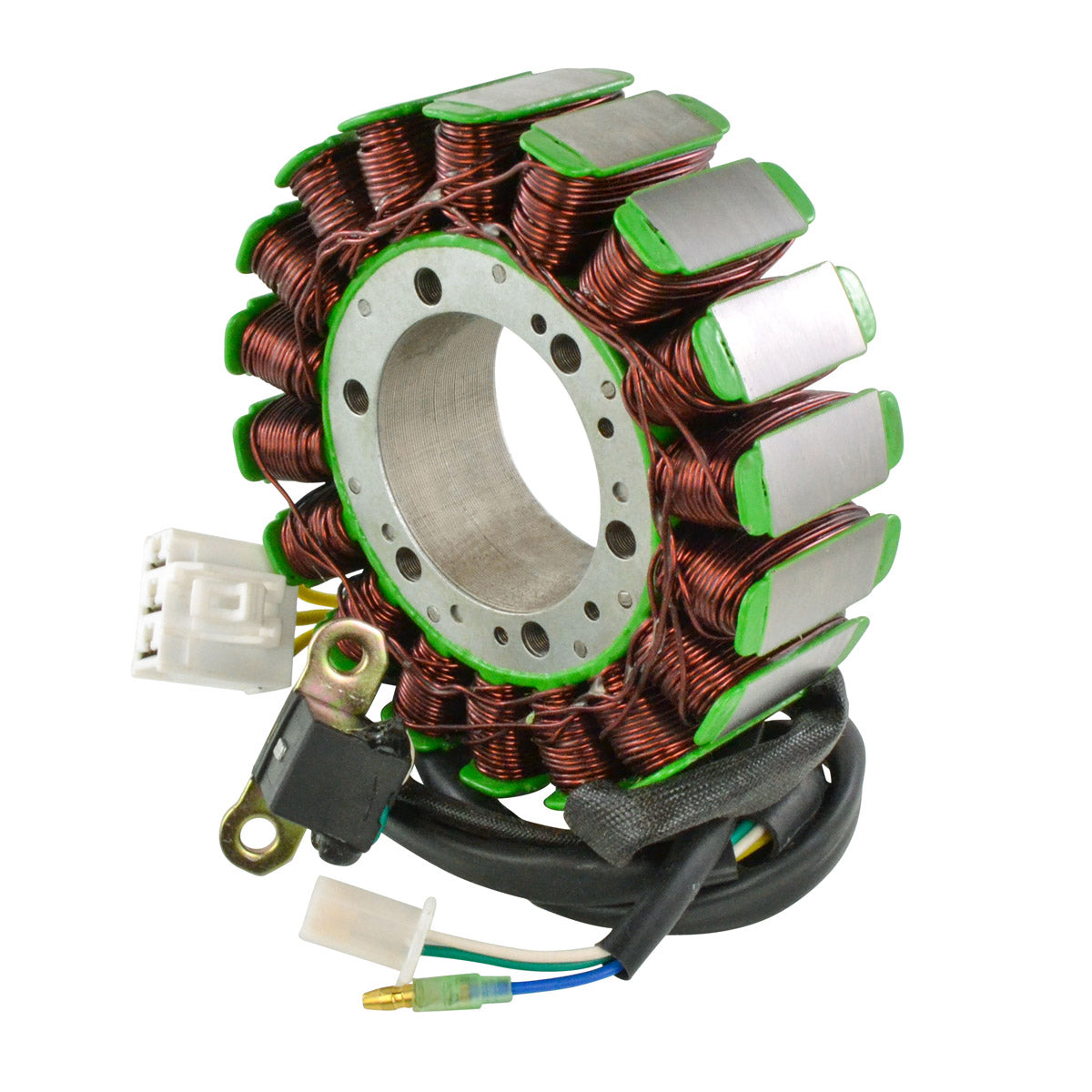

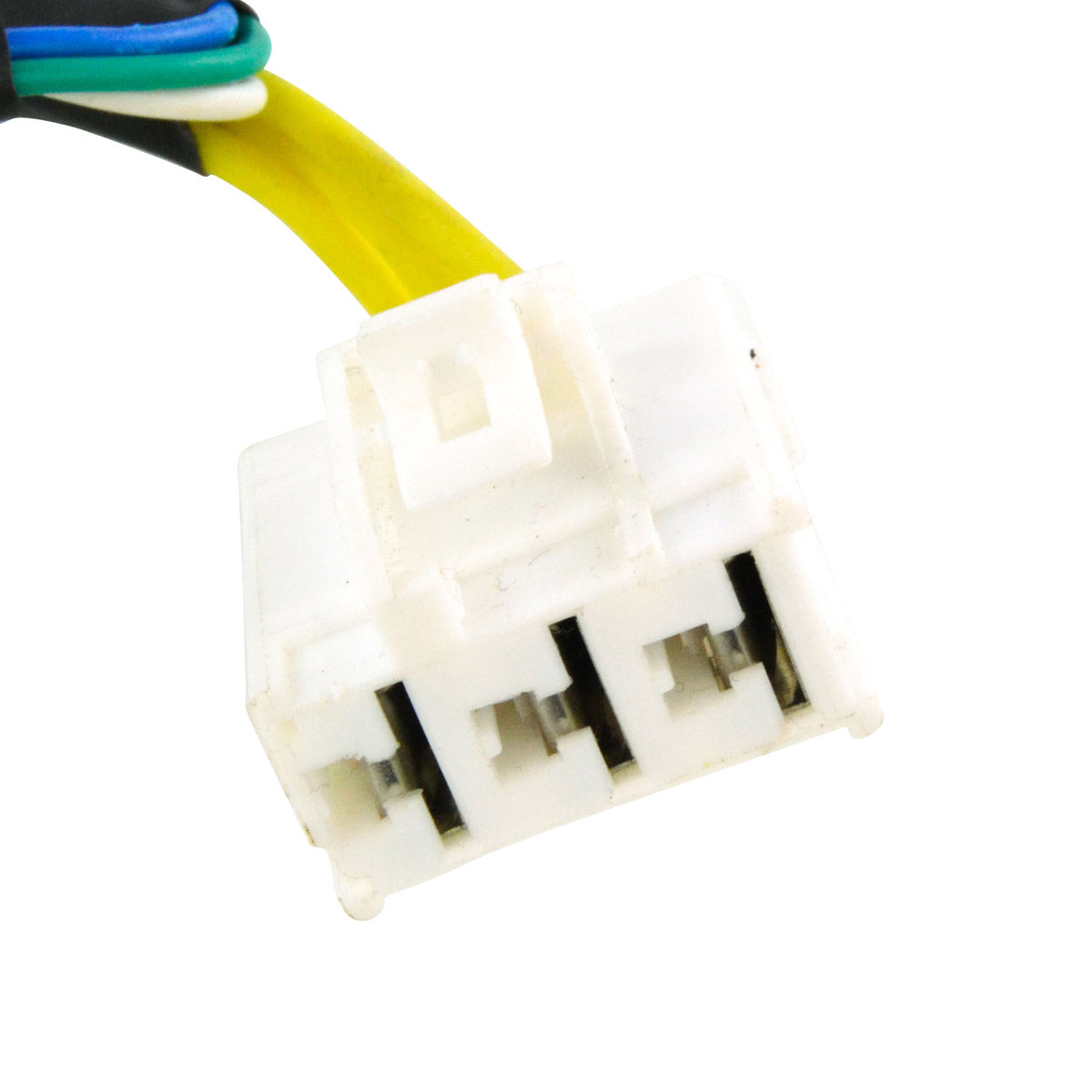

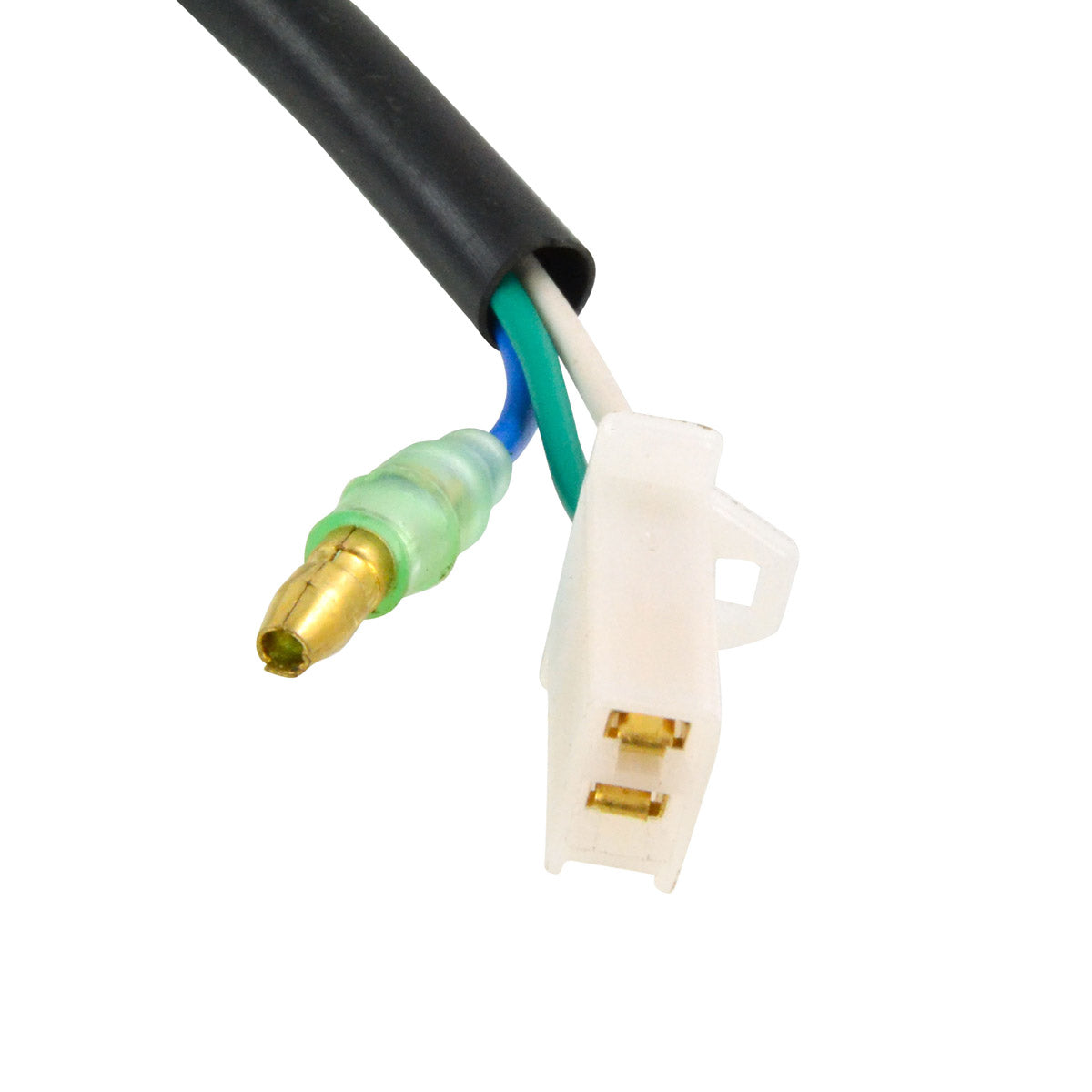

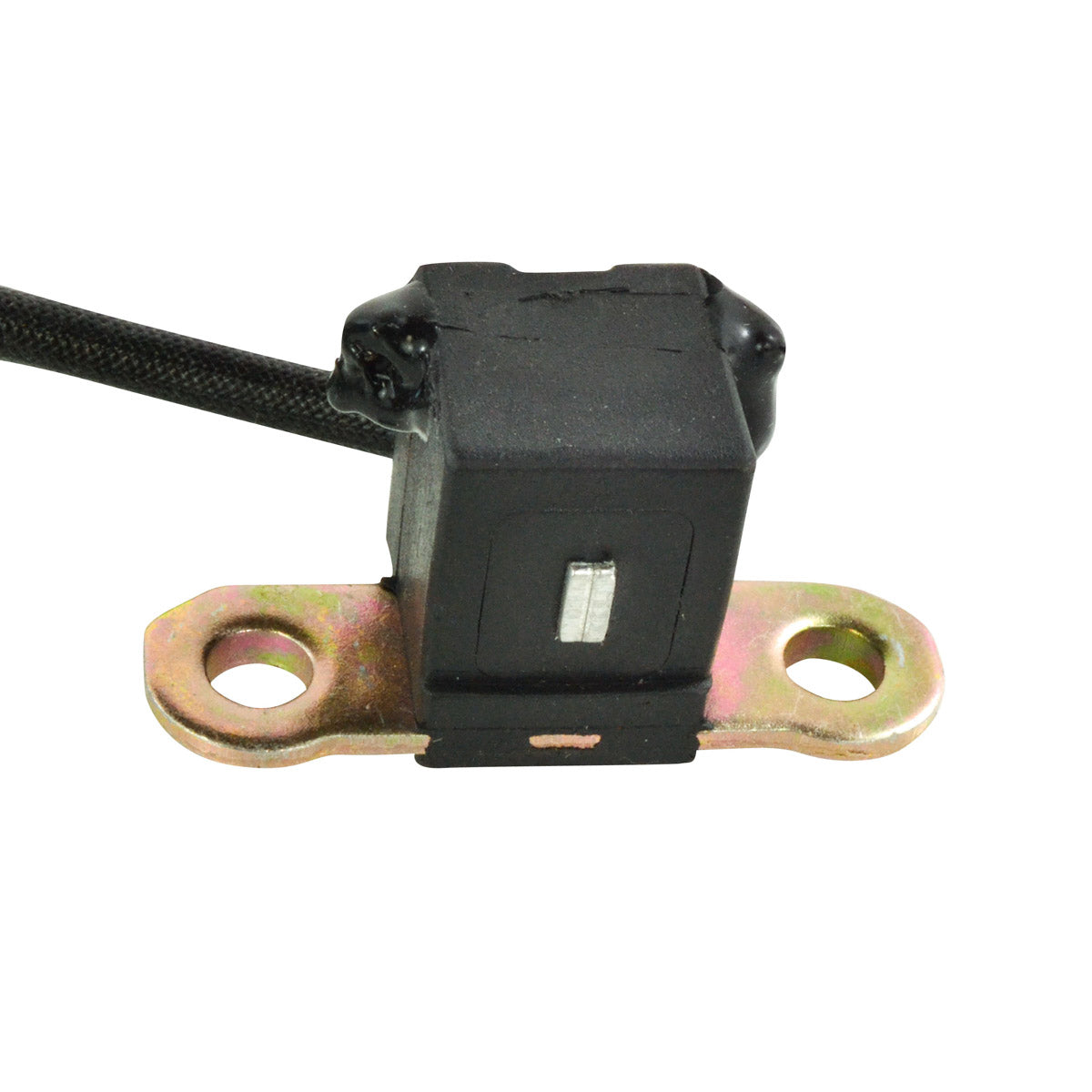

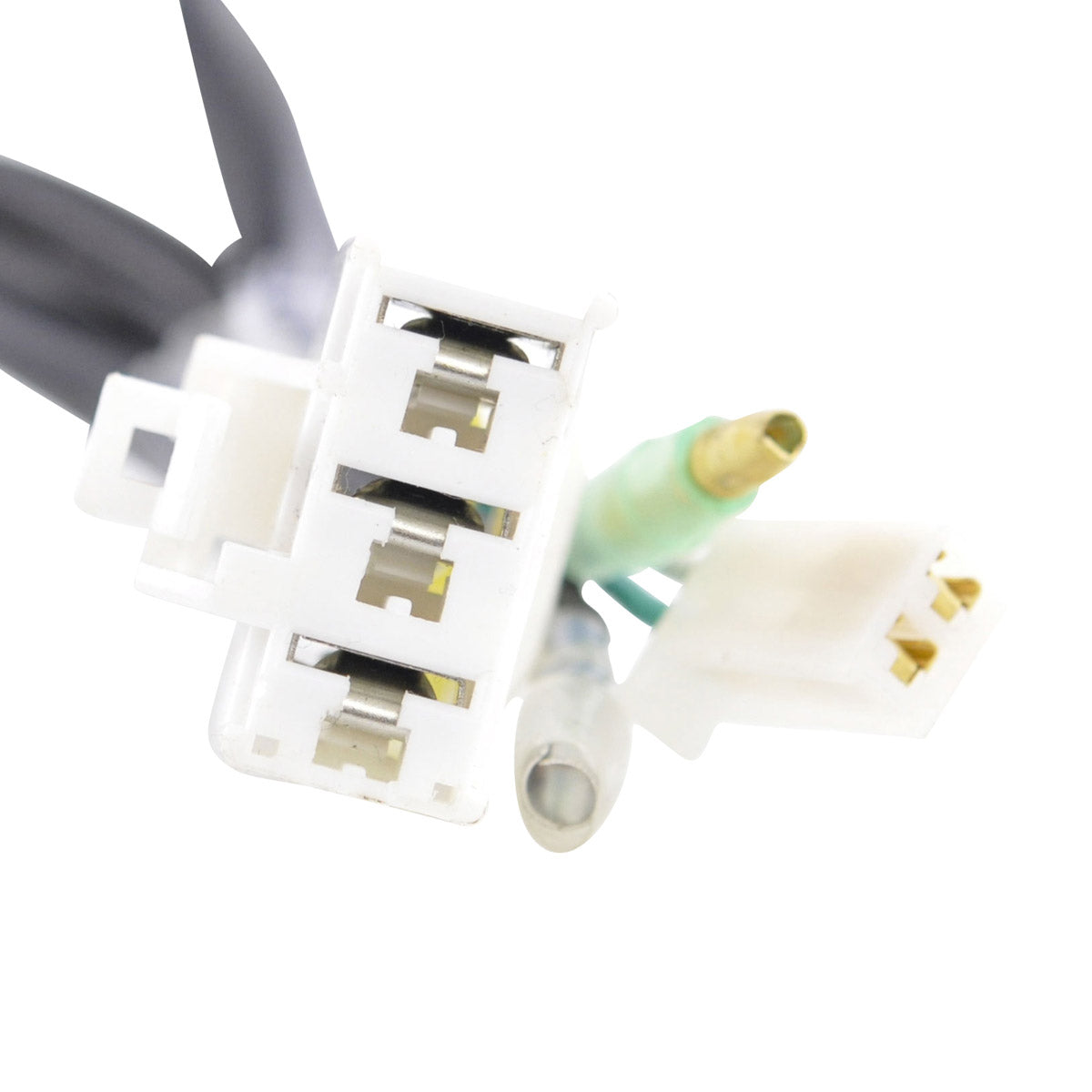

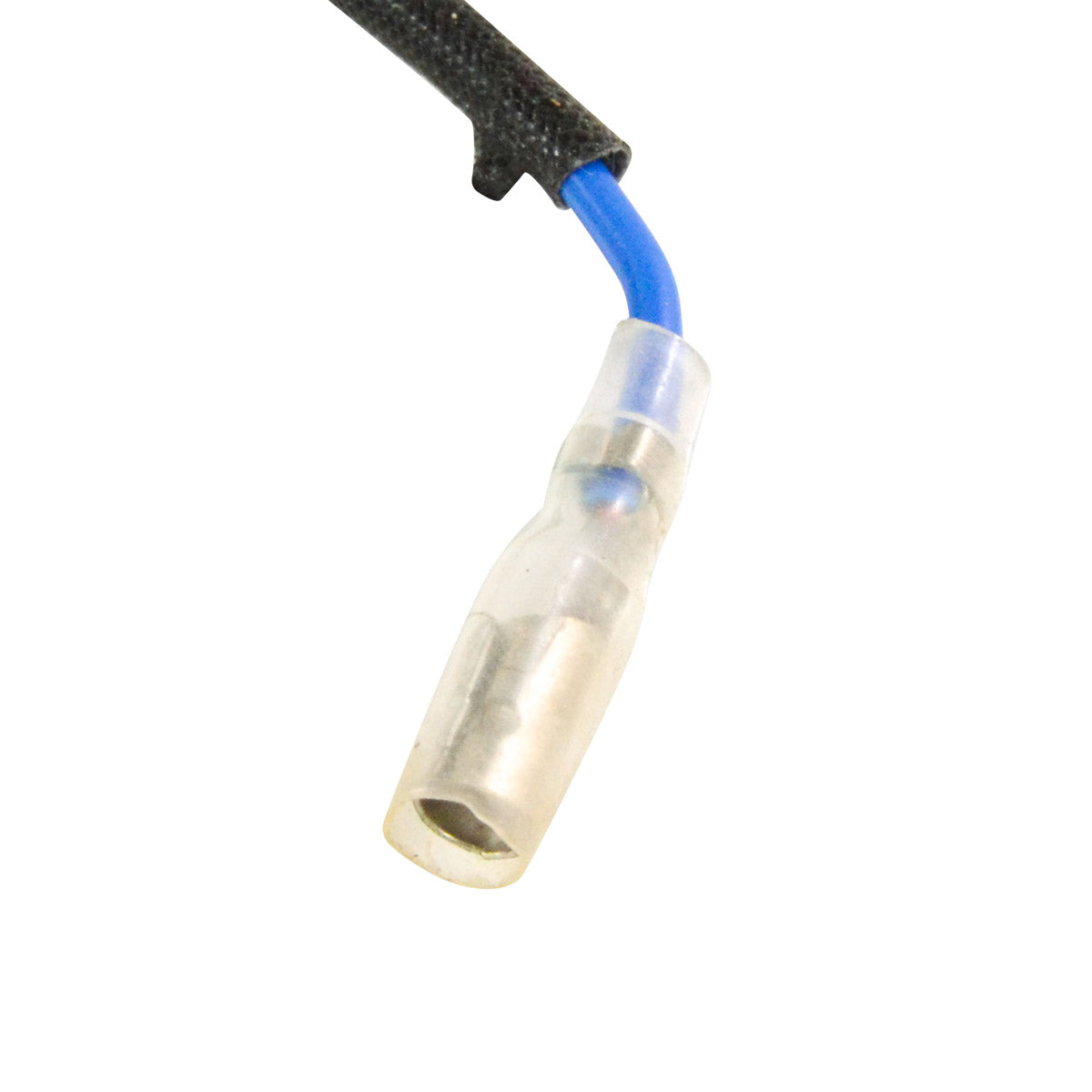

Generator Stator for Honda VTX 1300
Honda VTX 1300 2003-2004 - OEM replacement for 31120-MEA-671
This is a brand new aftermarket generator stator built as a direct replacement for the original charging coil fitted to the Honda VTX 1300 in 2003 and 2004. It is a plug-and-play, direct fit part - the original loom plugs straight into it and no modification to the wiring or the engine cases is needed. The stator is supplied complete with its pickup pulsar coil, connector, rubber grommet and back plate, so the whole assembly can be swapped as one piece rather than transferring parts across from the old unit.
RMSTATOR build this unit with the highest grade lamination materials and the highest grade copper windings, rated to resist 200 degrees Celsius. Heat is what kills a stator on a big v-twin, and the winding specification is where an aftermarket unit either improves on the original or repeats its failure. This one is rated to deliver 20 percent more output over stock while working with all other OEM components in the charging system, so the regulator rectifier, the flywheel and the battery all stay as they are. Every unit is tested before it is shipped.
Key Features
- Direct replacement for the original unit, plug-and-play fitment
- 20 percent more output over stock
- Works with all other OEM components
- Highest grade lamination materials and copper windings
- Windings resistant to 200 degrees Celsius
- Pickup pulsar coil, connector, rubber grommet and back plate included
- Every unit tested before shipping
- Aftermarket replacement for OEM 31120-MEA-671
Technical Specs
| Specification | Detail |
|---|---|
| Interior diameter | 54 mm |
| Exterior diameter | 126 mm |
| Thickness | 33 mm |
| Wire length (stator to grommet) | 140 mm |
| Wire length (grommet to alternator) | 410 mm |
| Wire length (grommet to pickup coil) | 615 mm |
| Pickup coil wire to grommet | 90 mm |
| Number of wires | 2 |
| Number of plugs | 4 |
| Number of pins | 7 |
| Alternator resistance (yellow wires) | 0.6 ohms +/-20% |
| Pickup resistance (Green to White) | 196 ohms +/-20% |
| Winding temperature rating | 200 degrees Celsius |
| Part number | RM01572 |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Honda VTX 1300 | 2003-2004 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 31120-MEA-671 | Honda |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a direct plug-and-play replacement for the original stator on the 2003-2004 Honda VTX 1300, so the standard loom connects straight to it and nothing needs to be cut or adapted.
What is included?
The stator itself plus the pickup pulsar coil, the connector, the rubber grommet and the back plate.
How do I confirm my old stator has failed?
With the engine off and the plug disconnected, measure across the yellow alternator wires - this unit reads 0.6 ohms +/-20%. The pickup coil reads 196 ohms +/-20% from Green to White. Readings that are open circuit, near zero, or that show continuity to the engine case indicate a failed winding. A flat battery on a bike that runs and starts normally is the classic symptom.
Does the extra output require a different regulator?
No. The unit is rated at 20 percent more output over stock and is designed to work with all other OEM components, so the original regulator rectifier and flywheel stay in place.
