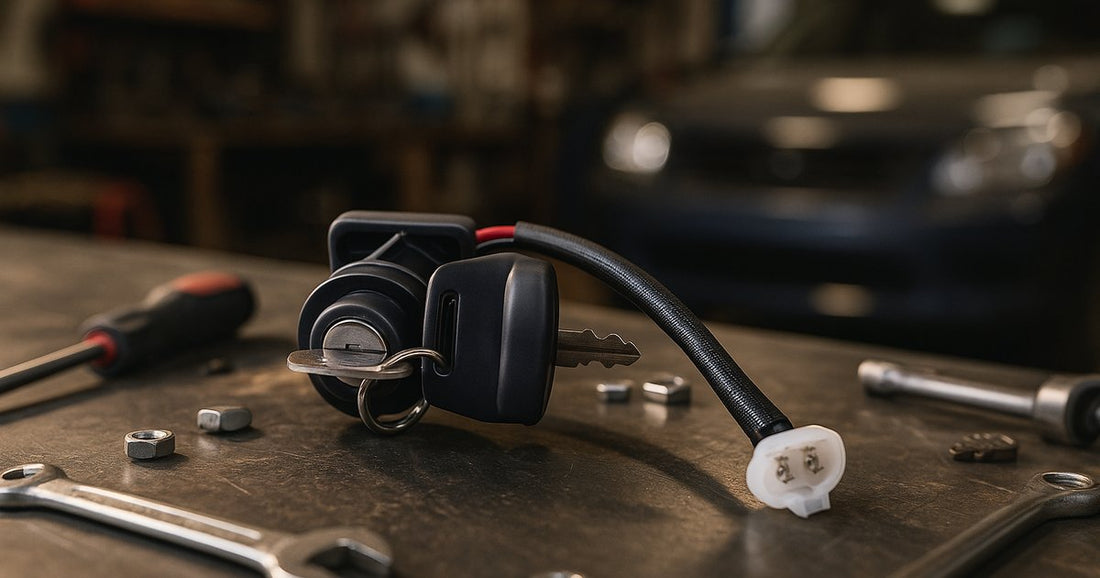

How to Install a 2-Position Ignition Key Switch on Suzuki LTZ-90

In the UK, Suzuki LTZ-90 owners often find themselves needing to replace the ignition key switch due to wear and tear from frequent use, especially in harsh weather conditions. Ignition issues can leave you stranded at the most inconvenient times, and a malfunctioning switch can cost you both time and money if not addressed promptly. A DIY replacement not only saves on labour costs but also ensures you understand your vehicle better, enhancing your ability to troubleshoot minor issues in the future.

Understanding the Suzuki LTZ-90 Ignition System

The Suzuki LTZ-90 features a simple yet effective ignition system, crucial for starting the quad's engine. The 2-position ignition key switch plays a vital role, allowing power to flow to the ignition circuit when turned to the 'On' position. This switch interacts with the CDI (Capacitor Discharge Ignition) module, which is responsible for generating the spark needed to ignite the fuel-air mixture in the engine's combustion chamber. A faulty ignition switch can disrupt this process, leading to starting issues or intermittent engine cut-outs. Understanding the system’s components and their interaction is essential before attempting a replacement.

Tools and Materials Required

Before you begin the installation process, gather the necessary tools and materials. This ensures a smooth workflow and prevents interruptions:

• 2-position ignition key switch specifically for Suzuki LTZ-90 (available at 4Drive)
• Phillips and flathead screwdrivers
• Socket set and ratchet
• Wire cutters and strippers
• Multimeter for electrical testing
• Electrical tape or heat shrink tubing
• Zip ties for securing wires

Ensure you have a clean and well-lit workspace to avoid losing any small components during the process.

Step-by-Step Installation Guide

1. Disconnect the Battery: Start by disconnecting the negative terminal of the battery to prevent any electrical shorts. This is a crucial safety step before working on any electrical components.
2. Access the Ignition Switch: Locate the ignition switch on the quad’s dashboard. You may need to remove some panels using your screwdrivers to gain full access.
3. Remove the Old Switch: Unscrew the mounting hardware securing the old ignition switch. Carefully disconnect the wiring harness, ensuring you note the connection layout for the new switch installation.
4. Install the New Switch: Connect the new ignition switch to the wiring harness. Ensure all connections are secure and match the original layout. Mount the switch using the same hardware.
5. Test the Installation: Reconnect the battery and turn the key to the 'On' position. Use the multimeter to verify that power is reaching the ignition circuit. Start the engine to ensure proper operation.
6. Secure and Reassemble: Use zip ties to secure any loose wires, preventing them from interfering with moving parts. Reattach any panels you removed, ensuring all screws are tightened.

Common Mistakes and How to Avoid Them

One frequent mistake is failing to disconnect the battery, which can lead to electrical shorts and potential damage to the vehicle’s electrical system. Another common error is cross-wiring the ignition switch, which can prevent the quad from starting. Always double-check your connections against the wiring diagram provided with the new switch. Additionally, ensure all connections are tight; loose connections can lead to intermittent starting issues or complete failure of the ignition system.

Benefits of Upgrading Your Ignition Switch

Replacing an old or faulty ignition switch with a new, high-quality component can significantly enhance the reliability of your Suzuki LTZ-90. A new switch ensures a consistent and dependable connection to the CDI module, reducing the risk of electrical faults. Moreover, modern ignition switches often come with improved water resistance, crucial for UK riders who frequently face wet conditions. This upgrade not only improves start reliability but also contributes to overall vehicle safety.

Cost Implications of Ignition Switch Replacement

The cost of a new 2-position ignition key switch is relatively modest, especially when compared to the potential expenses incurred from damage caused by a faulty switch. Labour costs for professional installation can range from £50 to £100, depending on the garage rates in your area. By undertaking this installation yourself, you save on these labour costs and gain valuable experience. However, purchasing a quality switch is essential; cheaper alternatives may not offer the same reliability or longevity.

Key Takeaways

• Always disconnect the battery before working on electrical components to avoid shorts.
• Use a multimeter to verify electrical connections during installation.
• Ensure all wiring connections are secure and match the original layout.
• Consider upgrading to a water-resistant switch for improved durability.
• DIY installation can save significant labour costs and enhance your mechanical skills.
• Secure all wires with zip ties to prevent interference with moving parts.
• Verify the functionality of the new switch before final reassembly.

FAQs

What are the signs of a failing ignition switch?

Symptoms include difficulty starting the engine, intermittent power loss while driving, or the engine cutting out unexpectedly. In some cases, the ignition key may become stuck or rotate without engaging the ignition.

Can I use any 2-position ignition switch for my Suzuki LTZ-90?

It's crucial to use a switch designed specifically for the Suzuki LTZ-90 to ensure compatibility with the existing wiring and mounting points. A non-compatible switch can lead to electrical issues or improper fitment.

How long does it take to replace the ignition switch?

The replacement process typically takes about 1 to 2 hours, depending on your familiarity with the vehicle and the tools available. Ensure you have all necessary tools and parts before starting to avoid delays.

What should I do if the new switch doesn’t solve the starting issue?

If the problem persists after replacing the switch, further investigation is needed. Check the wiring for continuity and inspect the CDI module for faults. Consulting a professional mechanic may be necessary if the issue remains unresolved.

Is it safe to drive with a faulty ignition switch?

Driving with a failing ignition switch is not recommended, as it can lead to unexpected engine cut-outs, posing safety risks. It's advisable to replace the switch as soon as symptoms appear to avoid potential hazards.

For a reliable and high-quality 2-position ignition key switch, visit 4Drive and ensure your Suzuki LTZ-90 is always ready to ride.
