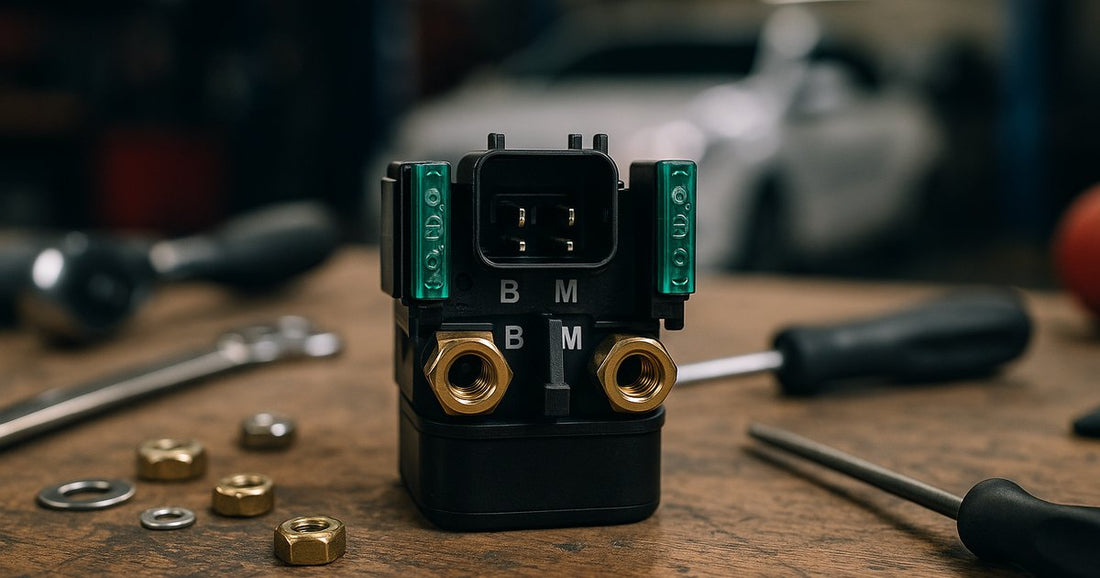

How to Test Your Starter Relay Solenoid on a Suzuki SV650

Imagine this: you're all geared up for a weekend ride on your Suzuki SV650, but as you turn the key, nothing happens. No sound, no engine roar—just silence. This could very well be the result of a faulty starter relay solenoid, a small but crucial component in your motorcycle's starting system. Ignoring this issue not only leaves you stranded but can also lead to more costly repairs down the line. In this article, we'll delve into the practical steps you need to take to test your starter relay solenoid, potentially saving you a trip to the mechanic and a hefty bill.

Understanding the Starter Relay Solenoid

The starter relay solenoid is an electromechanical switch that connects the battery to the starter motor when you turn the ignition key. In the Suzuki SV650, this component is crucial for initiating the engine start sequence. When functioning correctly, it ensures that the high current needed to start the engine is safely and effectively delivered. A faulty solenoid can manifest in several ways, such as a clicking sound without engine turnover, or no sound at all when you try to start the bike. Understanding these symptoms is the first step in diagnosing the problem.

Failure modes for the starter relay solenoid typically include corroded contacts, coil failure, or mechanical sticking. Corrosion can be due to exposure to moisture, particularly common in the UK's damp climate. Coil failure might arise from electrical overloads or age, and mechanical sticking can result from dirt ingress or physical damage. Recognising these issues early can prevent more extensive damage to your motorcycle's electrical system.

Tools and Preparations

Before diving into testing your starter relay solenoid, gather the necessary tools. You'll need a multimeter, a set of screwdrivers, and possibly a socket set, depending on your SV650's specific configuration. A service manual for your motorcycle can also be beneficial for precise specifications and diagrams. Ensure your multimeter is in good working order, and set it to measure DC voltage and resistance.

Safety is paramount. Ensure your motorcycle is on a stable stand, the ignition is off, and the battery is disconnected before you start. This prevents accidental shorts or shocks. Allocate about 30 minutes to an hour for this task, depending on your experience level. Having a clean, well-lit workspace can make the process smoother and more efficient.

Step-by-Step Testing Process

1. Locate the Starter Relay Solenoid: On the Suzuki SV650, the starter relay solenoid is typically located near the battery, under the seat. Remove the seat using the appropriate tools to gain access.
2. Inspect Visually: Check for any obvious signs of damage or corrosion on the relay and its connections. Clean any corrosion with a suitable contact cleaner.
3. Test the Coil: Set your multimeter to measure resistance (ohms). Disconnect the relay from the wiring harness and measure the resistance across the coil terminals. You should see a resistance value that matches the specifications in your service manual, typically around 3–5 ohms.
4. Check the Relay Operation: Reconnect the battery and set your multimeter to measure voltage. Have a friend turn the ignition key while you measure the voltage across the relay’s output terminals. A functioning relay should show a voltage close to the battery's voltage, around 12.6 volts or higher.
5. Final Evaluation: If the relay fails any of these tests, it's likely faulty and should be replaced. If it passes, the issue might lie elsewhere in the starting system.

Common Symptoms of a Faulty Relay

Understanding the symptoms of a faulty starter relay solenoid can help in quick diagnosis and resolution. Common signs include:

• A clicking sound when attempting to start the engine, indicating the relay is receiving power but not engaging properly.
• No sound or reaction when turning the ignition key, suggesting a complete failure of the relay.
• Intermittent starting issues, where the bike starts sometimes but not others, often due to erratic relay performance.
• Visible corrosion or damage on the relay terminals, affecting electrical connectivity.
• Burnt smell or appearance, indicating overheating or electrical failure inside the relay.

These symptoms can often be traced back to the issues discussed earlier, such as corrosion, coil failure, or mechanical sticking.

Cost Implications of Ignoring Relay Issues

Ignoring a faulty starter relay solenoid can lead to significant consequences. Primarily, you risk being stranded unexpectedly, which is inconvenient and potentially dangerous. From a financial perspective, a faulty relay can cause repeated stress on your starter motor, leading to premature wear and failure. Replacing a starter motor can cost between £150 and £300, not including labour. Additionally, if the relay causes electrical shorts, this could damage other components in your motorcycle's electrical system, further increasing repair costs.

Proactively testing and replacing a faulty relay can save you from these headaches and expenses. A new starter relay solenoid is relatively inexpensive, usually around £20 to £50, making it a cost-effective preventive maintenance measure.

Choosing the Right Replacement Relay

When selecting a replacement starter relay solenoid for your Suzuki SV650, ensure compatibility with your specific model year. Check the part number and specifications against your service manual or consult with a reputable supplier. Opt for OEM (Original Equipment Manufacturer) parts for guaranteed fit and performance, though high-quality aftermarket options can also be viable if they meet the necessary specifications.

Be wary of extremely cheap options, as these may not perform reliably and could lead to further issues. Consider purchasing from trusted retailers like 4Drive, where you can find quality parts and accessories.

Key Takeaways

• Test your starter relay solenoid if you experience starting issues with your SV650.
• Use a multimeter to check resistance and voltage for accurate diagnosis.
• Corrosion, coil failure, and mechanical sticking are common relay failure modes.
• Ignoring a faulty relay can lead to costly starter motor damage.
• Choose quality replacement parts from reputable suppliers.
• Regular maintenance can prevent unexpected breakdowns and expenses.
• Consult your service manual for specific resistance and voltage specifications.

FAQ

How can I tell if the starter relay is the problem? A faulty starter relay typically manifests as a clicking sound without engine turnover, or no sound at all when turning the ignition. Testing with a multimeter can confirm if the relay is faulty by checking for correct resistance and voltage readings.

Can I replace the starter relay solenoid myself? Yes, with the right tools and a basic understanding of your motorcycle’s electrical system, you can replace the starter relay solenoid yourself. Follow the steps outlined above, and ensure you purchase a compatible replacement part.

What should the resistance be across the relay coil? For a Suzuki SV650, the resistance across the relay coil should typically be around 3–5 ohms. Refer to your service manual for the exact specification, as this can vary slightly between model years.

Is it safe to use aftermarket relays? Aftermarket relays can be safe if they meet the specifications required for your motorcycle model. However, OEM parts are recommended for guaranteed compatibility and reliability. Ensure you buy from reputable suppliers or retailers like 4Drive.

What are the consequences of not replacing a faulty relay? Failure to replace a faulty relay can lead to starter motor damage, electrical system failures, and unexpected breakdowns. These issues can result in costly repairs, far exceeding the price of a new relay.
