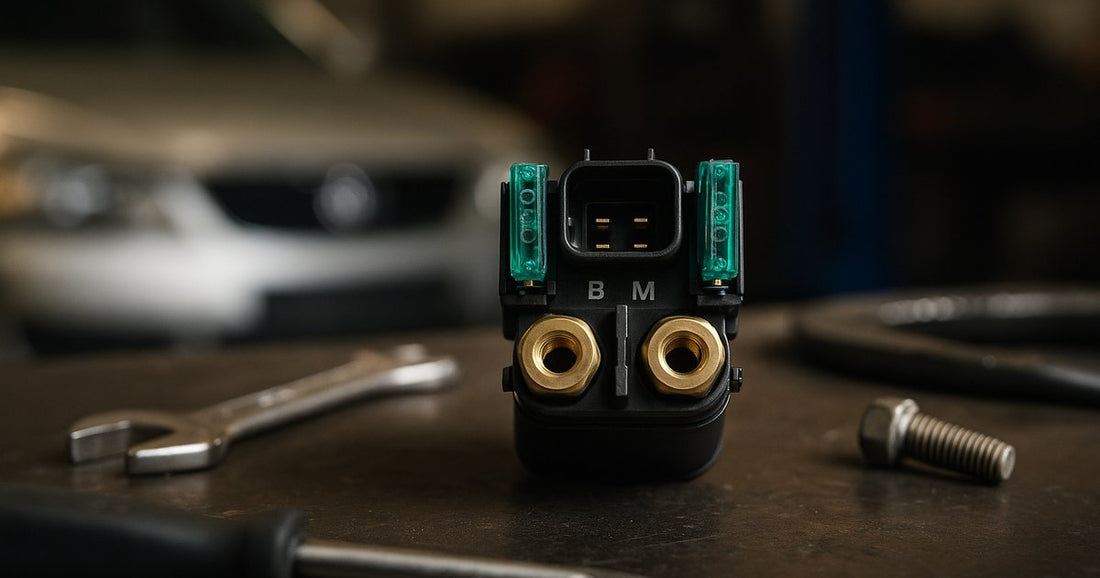

KTM Adventure 950 990: Signs You Need a New Starter Relay Solenoid

Imagine this: you're all set for an exhilarating ride on your KTM Adventure 950 or 990, only to be met with a frustrating silence when you hit the start button. In the UK, where unpredictable weather can make or break a riding day, a non-starting bike is more than just an inconvenience. It could be a sign of a failing starter relay solenoid, a crucial component that ensures your engine roars to life. Misdiagnosing this issue could lead to costly repairs or even being stranded miles from home. Let’s delve into the symptoms and solutions for a faulty starter relay solenoid on your KTM Adventure 950 or 990.

Understanding the Starter Relay Solenoid: The Basics

The starter relay solenoid is an essential part of your bike's ignition system. It acts as a bridge between the battery and the starter motor, enabling the necessary high current flow to start the engine. When you press the start button, the relay closes, allowing current to flow from the battery to the starter motor. Without a functioning solenoid, your starter motor won't receive the power it needs, leaving your bike immobilised.

In the KTM Adventure 950/990, the solenoid is designed to handle high current loads. However, wear and tear, corrosion, or internal short circuits can impair its function. Understanding its role and common failure modes is crucial for diagnosing starting issues effectively. The solenoid is generally located near the battery, making it relatively accessible for inspection and replacement.

Common Symptoms of a Faulty Starter Relay Solenoid

Identifying a faulty starter relay solenoid early can save you from unnecessary headaches and expenses. Here are the most common signs that indicate your solenoid might be failing:

• Clicking Sound: A rapid clicking noise when you press the start button often indicates a solenoid issue. This sound occurs because the solenoid is attempting to engage but cannot maintain the connection.
• No Sound at All: If there's complete silence upon pressing the starter, the solenoid might be entirely non-functional, possibly due to an internal short circuit.
• Intermittent Starting: If your bike starts sporadically, it could be a sign of a failing solenoid struggling to maintain a consistent connection.
• Starter Motor Runs Continuously: A stuck solenoid can cause the starter motor to run continuously, even after the engine has started, which can damage the starter motor.
• Burning Smell: A burnt smell or visible smoke near the battery area can be a sign of a shorted solenoid.

Diagnosing the Starter Relay Solenoid

Diagnosing a faulty solenoid involves a few straightforward steps. Before beginning, ensure your bike is on a stable surface and the ignition is off:

1. Visual Inspection: Check the solenoid for visible damage, corrosion, or burnt marks. Ensure all connections are tight and free of rust.
2. Check Battery Voltage: Use a multimeter to confirm the battery is fully charged. A weak battery can mimic solenoid failure symptoms.
3. Listen for Clicking: With a charged battery, press the start button and listen for a clicking noise. No click could mean a faulty solenoid.
4. Bypass Test: Carefully bypass the solenoid by connecting the battery directly to the starter motor using a jumper wire. If the starter motor runs, the solenoid is likely faulty.
5. Continuity Test: Use a multimeter to test for continuity across the solenoid terminals when activated. Lack of continuity indicates a failed solenoid.

Replacing the Starter Relay Solenoid

Once you've diagnosed a faulty solenoid, replacement is typically straightforward. Here’s how you can do it yourself:

1. Disconnect the Battery: Always start by disconnecting the negative terminal of the battery to prevent electrical shorts.
2. Access the Solenoid: Locate the solenoid near the battery. On the KTM Adventure 950/990, it's usually accessible without removing extensive bodywork.
3. Remove the Faulty Solenoid: Disconnect the wiring harness and unbolt the solenoid from its mounting bracket. Take note of the wiring setup for reinstallation.
4. Install the New Solenoid: Position the new solenoid in place, connect the wiring harness, and secure it with bolts. Ensure all connections are tight and corrosion-free.
5. Reconnect the Battery: Reattach the negative battery terminal and test the bike’s starting function.

This replacement process should take around 30–45 minutes with basic tools, including a socket set and a screwdriver.

Cost Implications and Avoiding Extra Expenses

A faulty starter relay solenoid is a relatively inexpensive part, usually costing between £20 and £50. However, if ignored, it can lead to more severe issues, such as damaging the starter motor, which might cost upwards of £300 to replace. Regular maintenance and prompt attention to starting issues can prevent these costly repairs.

When purchasing a replacement solenoid, consider factors like compatibility with your specific KTM model and the reputation of the brand. Avoid second-hand parts unless they are verified to be in excellent condition, as used components may have a reduced lifespan.

Checklist for Maintaining Your Starter System

Key Takeaways

• Recognise the symptoms of a failing starter relay solenoid to avoid being stranded.
• Perform regular checks to maintain the health of your bike’s starting system.
• Diagnose solenoid issues with visual and continuity tests.
• Replacing a solenoid is a straightforward DIY task with basic tools.
• Neglecting solenoid issues can lead to expensive starter motor damage.
• Buy quality parts to ensure reliability and longevity.

FAQ

What causes a starter relay solenoid to fail?
The starter relay solenoid can fail due to corrosion, excessive heat, and wear over time. Electrical short circuits and poor maintenance can also lead to premature failure.

Can I bypass the starter relay solenoid permanently?
Bypassing the solenoid is only a temporary solution for diagnostic purposes. Permanent bypassing can lead to starter motor damage and is not recommended as it bypasses essential safety features.

How do I know if my battery is causing the problem instead?
A weak or dead battery may mimic solenoid failure symptoms. Ensure your battery is fully charged and holds a charge. Use a multimeter to check for at least 12.6 volts at rest.

Is it difficult to replace the starter relay solenoid myself?
Replacing the solenoid is a manageable task for most DIY enthusiasts. With basic tools and a methodical approach, it can be completed in under an hour.

Why is my starter motor still running after the engine starts?
This issue may be caused by a stuck solenoid, which fails to disengage the starter motor. This can lead to starter motor damage and should be addressed promptly.

For KTM Adventure 950/990 owners, maintaining a reliable starter system is crucial for uninterrupted rides. If your bike is showing signs of a faulty starter relay solenoid, consider checking out the starter relay solenoid available at 4Drive to ensure a hassle-free start every time.
