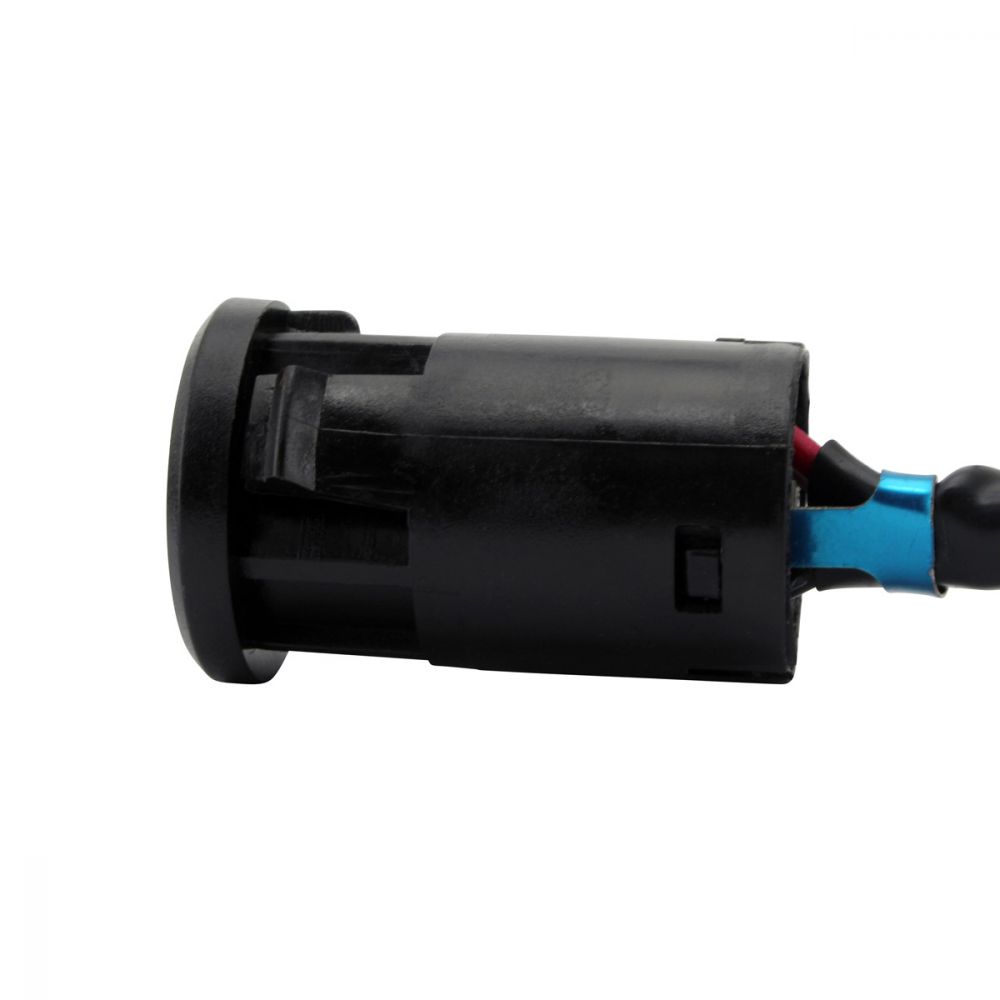

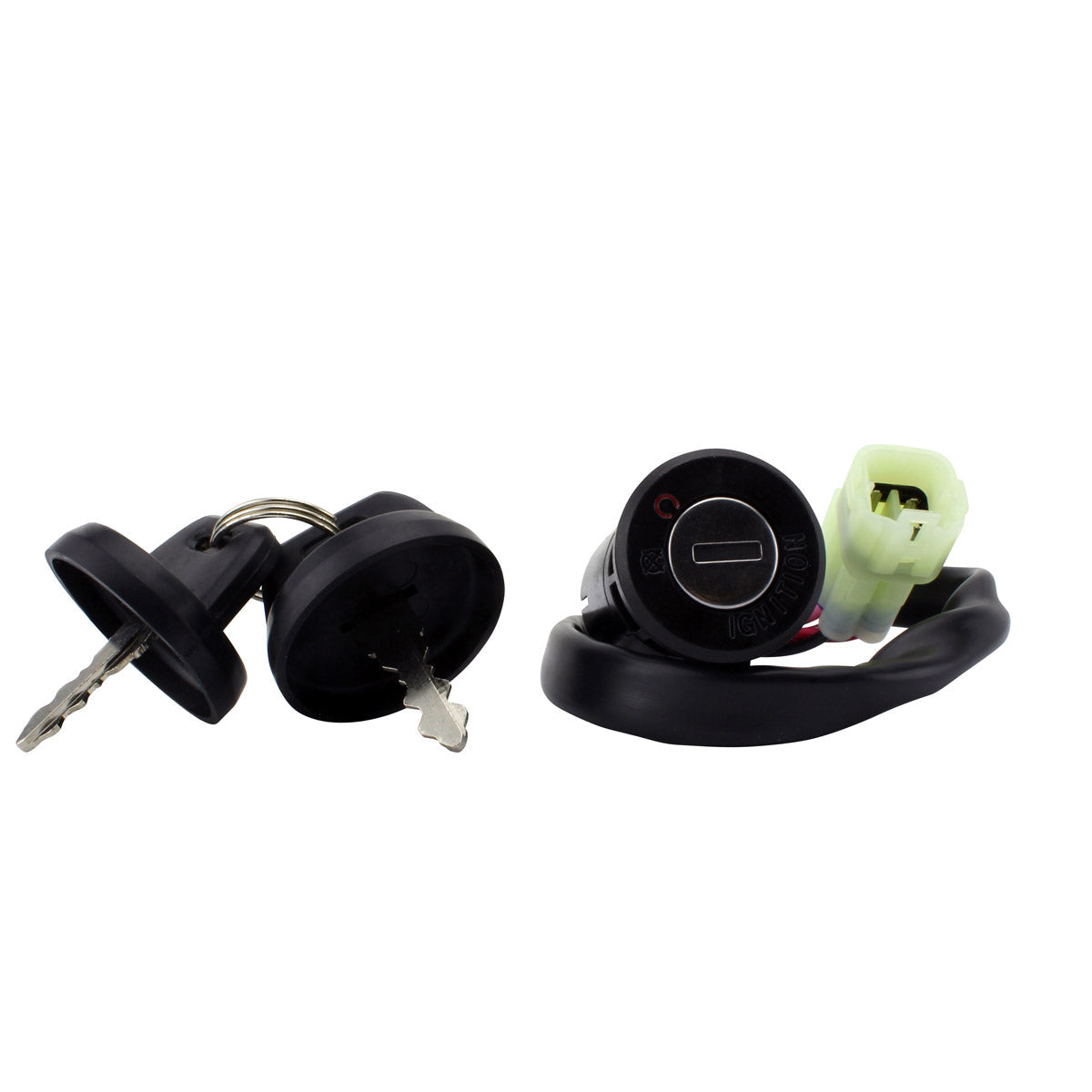

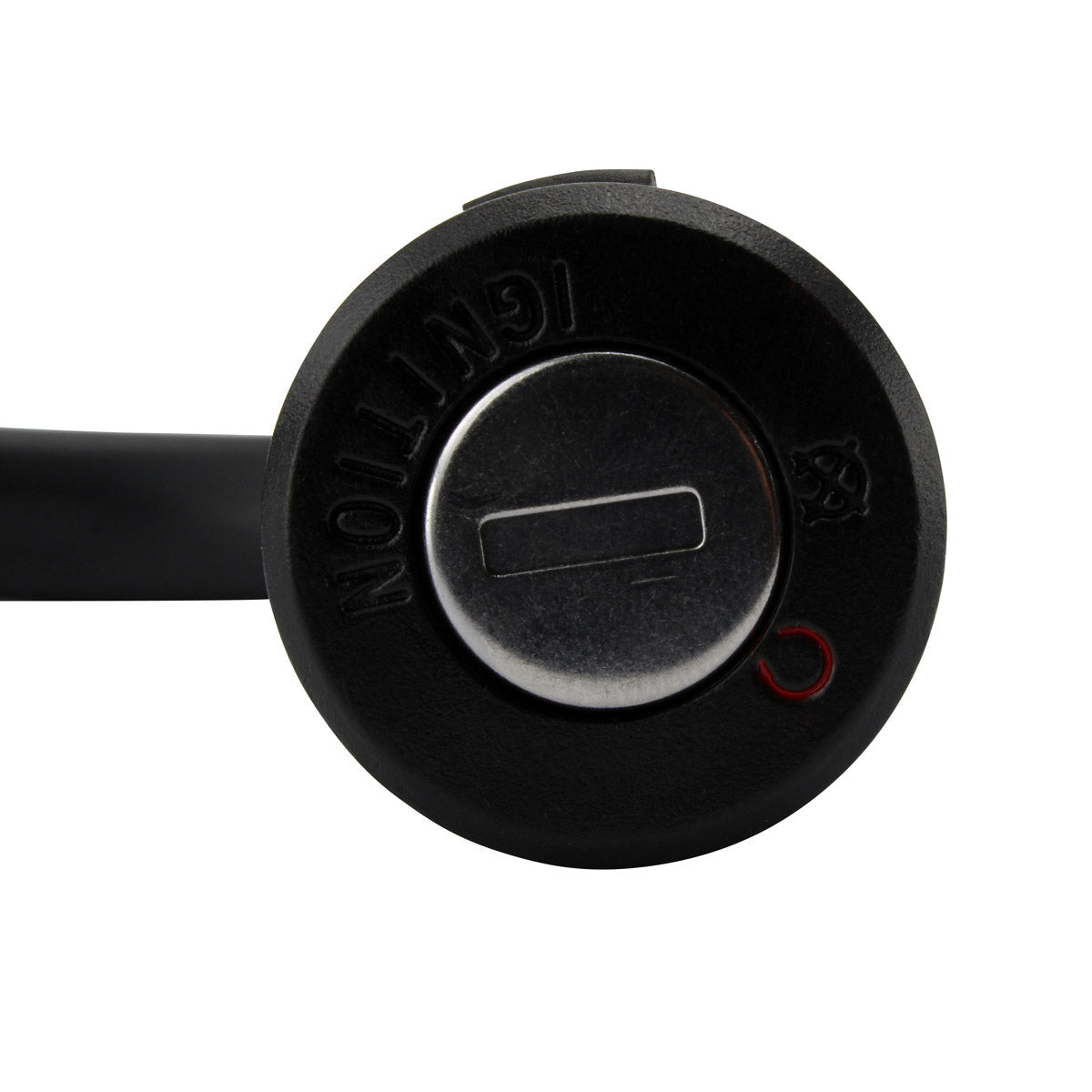

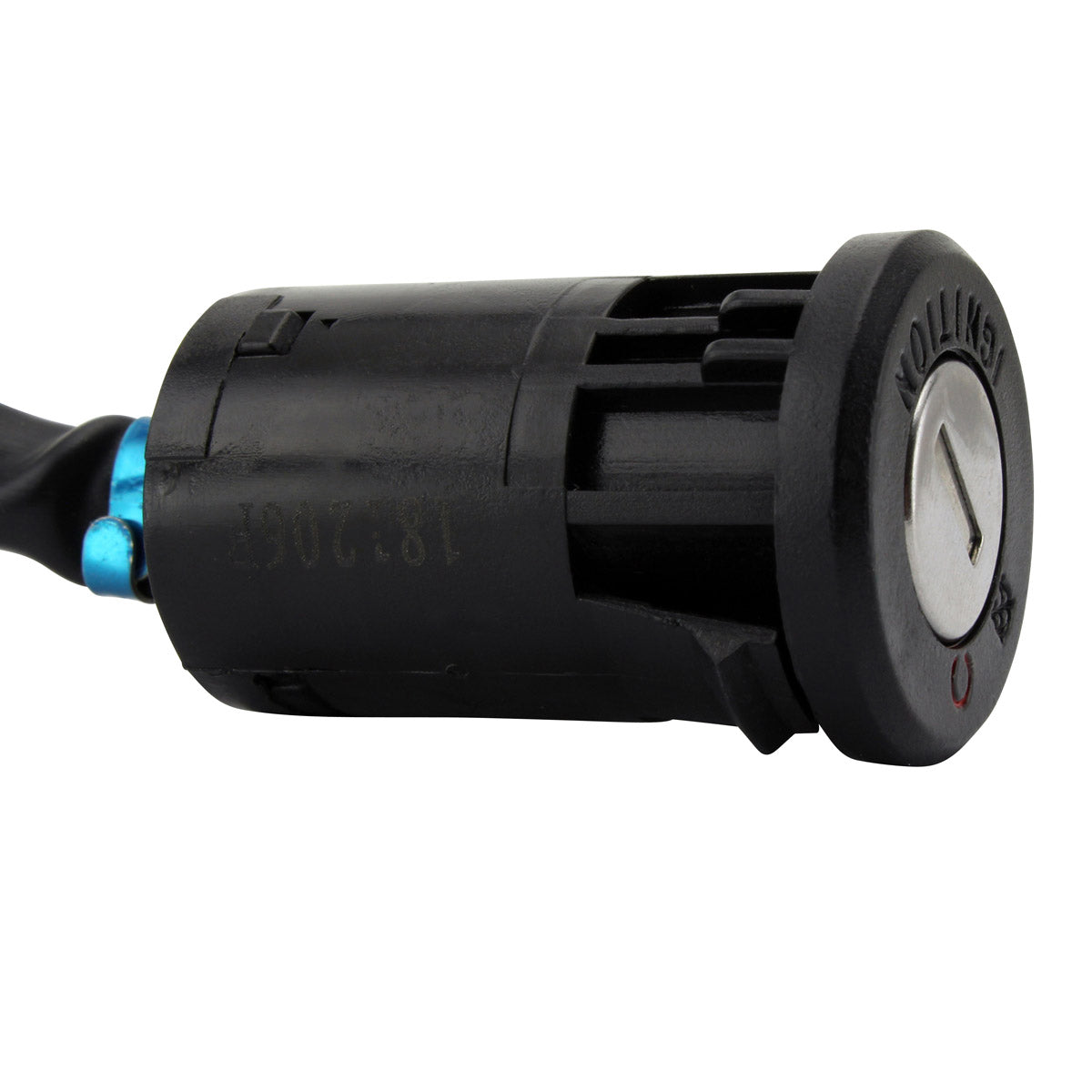

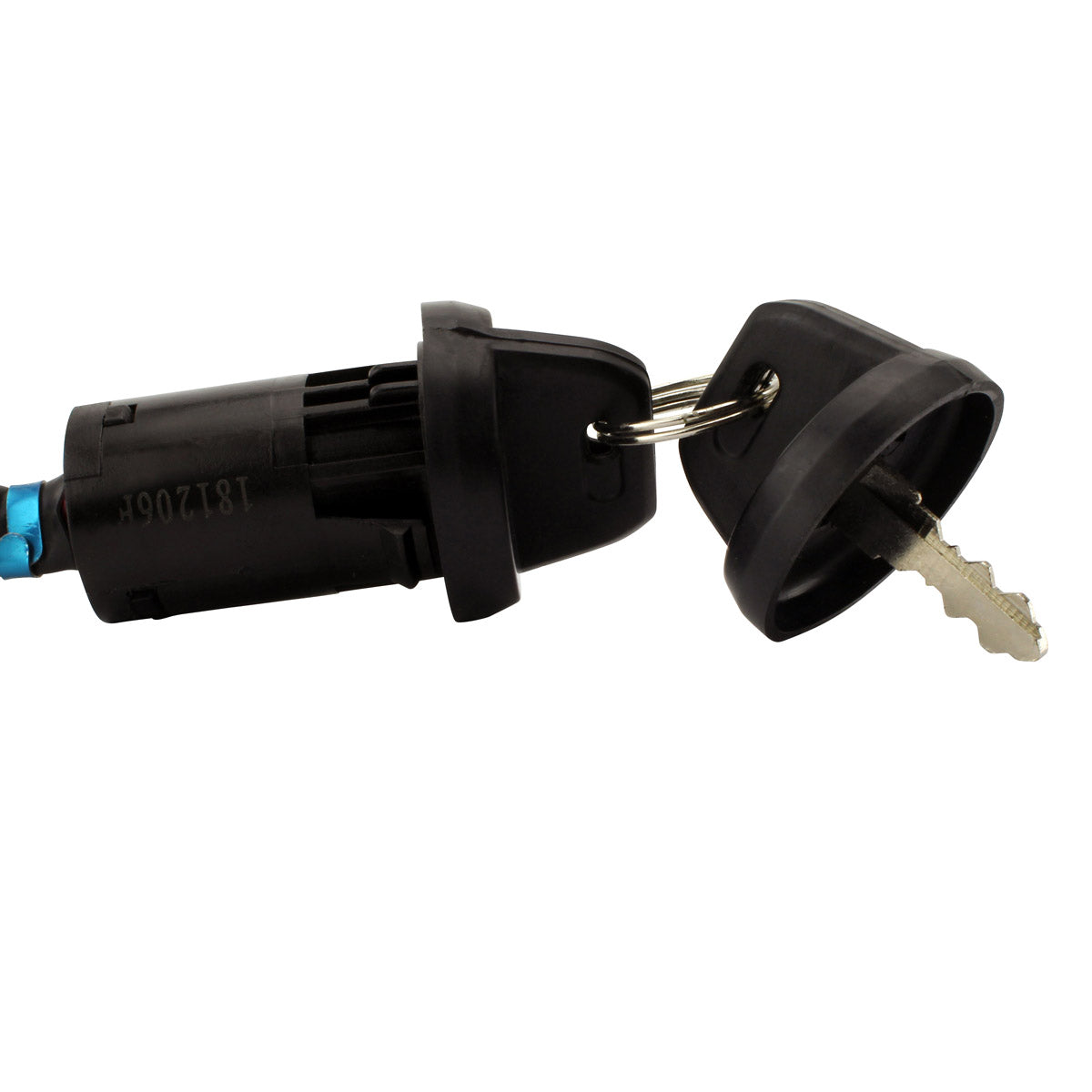

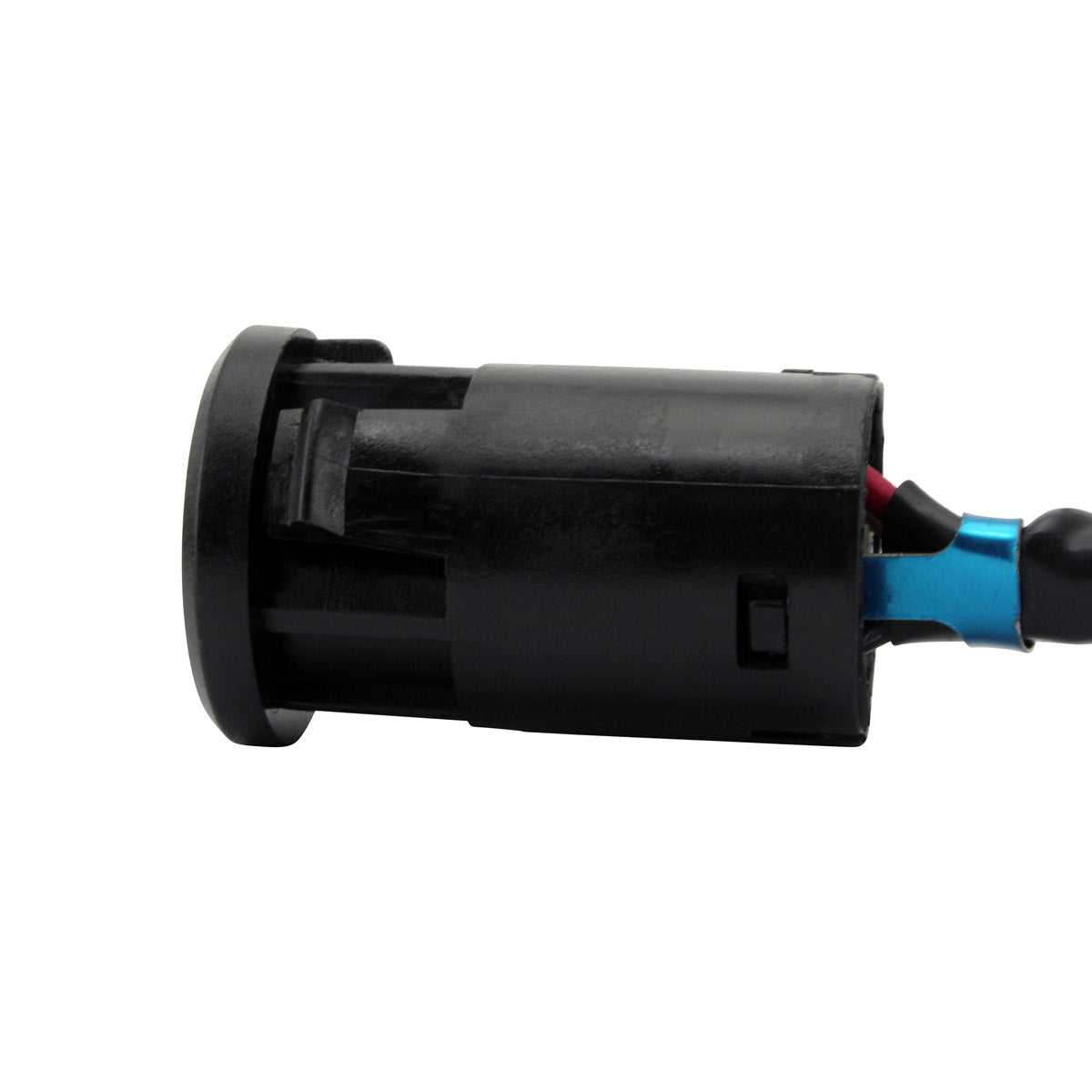

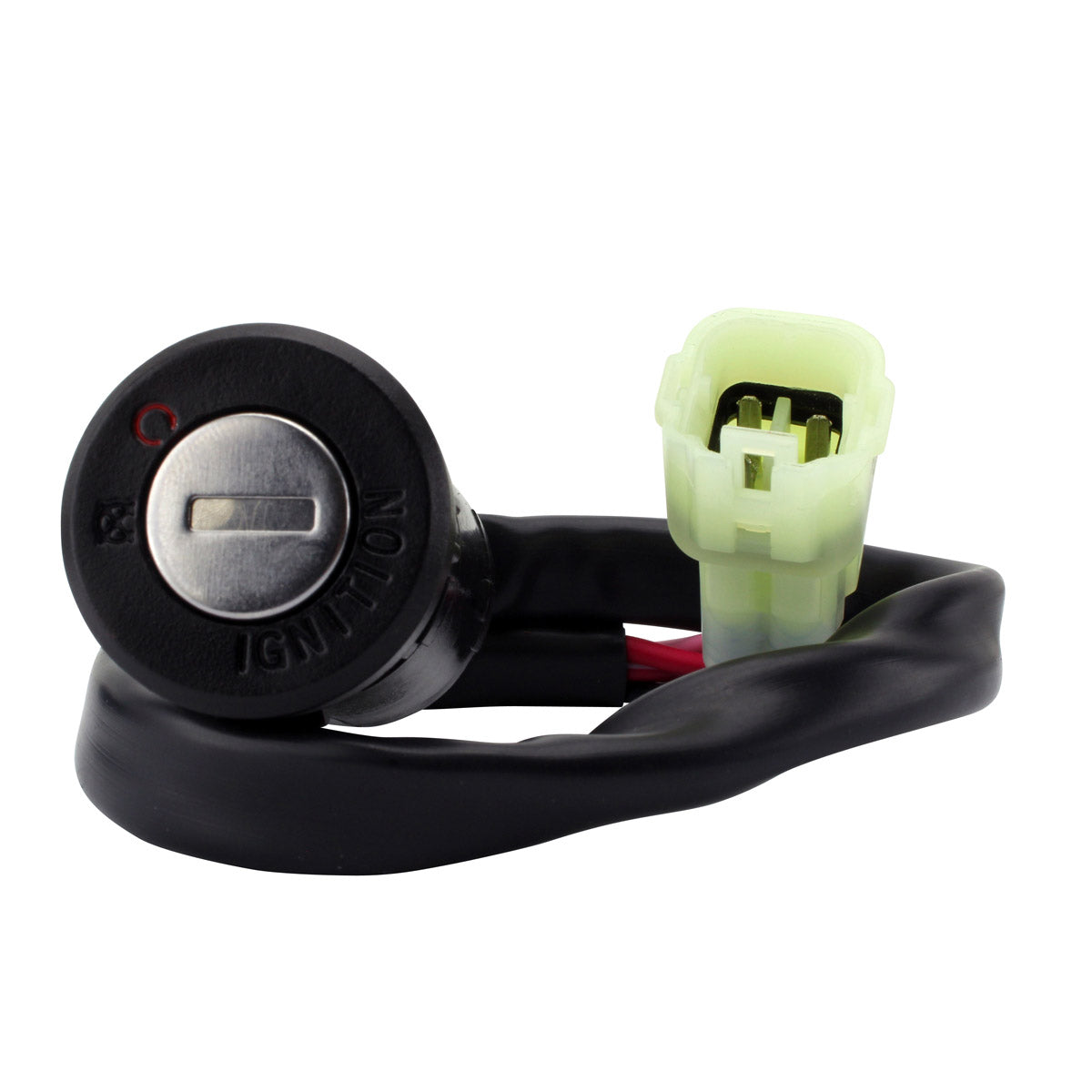

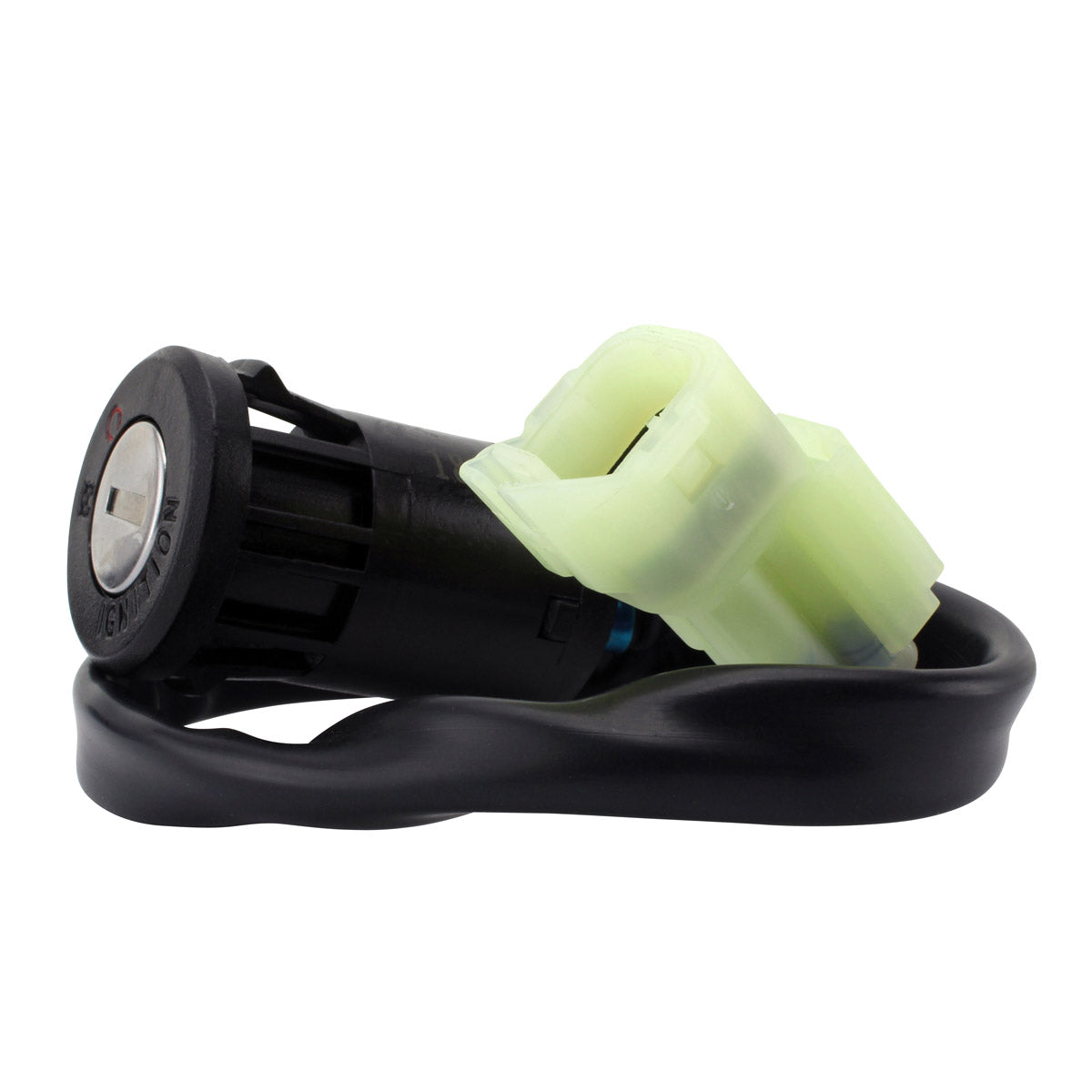

This is a brand new aftermarket 2-position ignition key switch supplied as a direct replacement for the original unit fitted to the Yamaha Raptor YFM 90 Carb. It is a plug-and-play, direct fit part, so the switch drops into the same location and mates with the machine's existing plug - there is no cutting, splicing or modification of the wiring loom required. Two keys are supplied with every switch, and the matching connectors are included in the box.

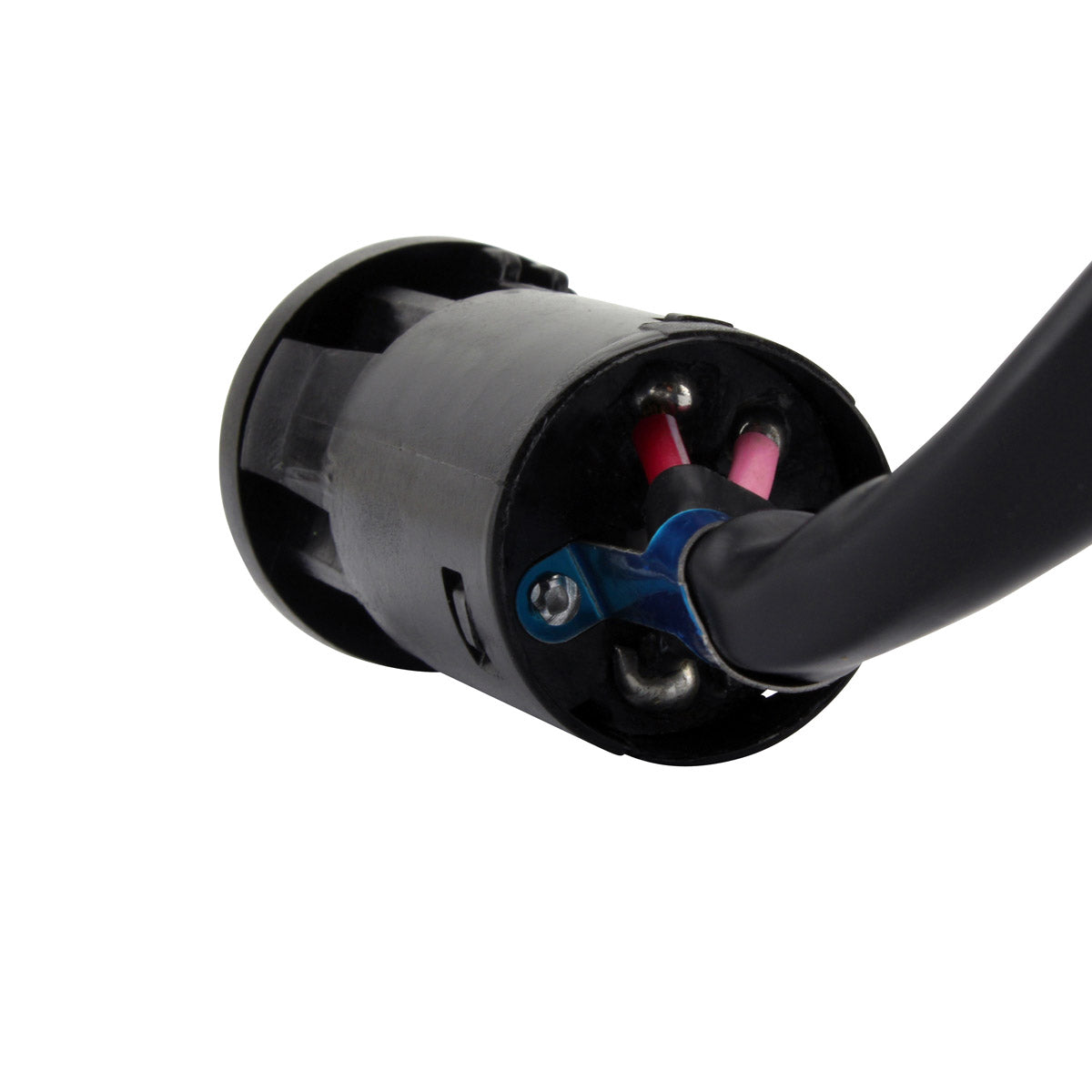

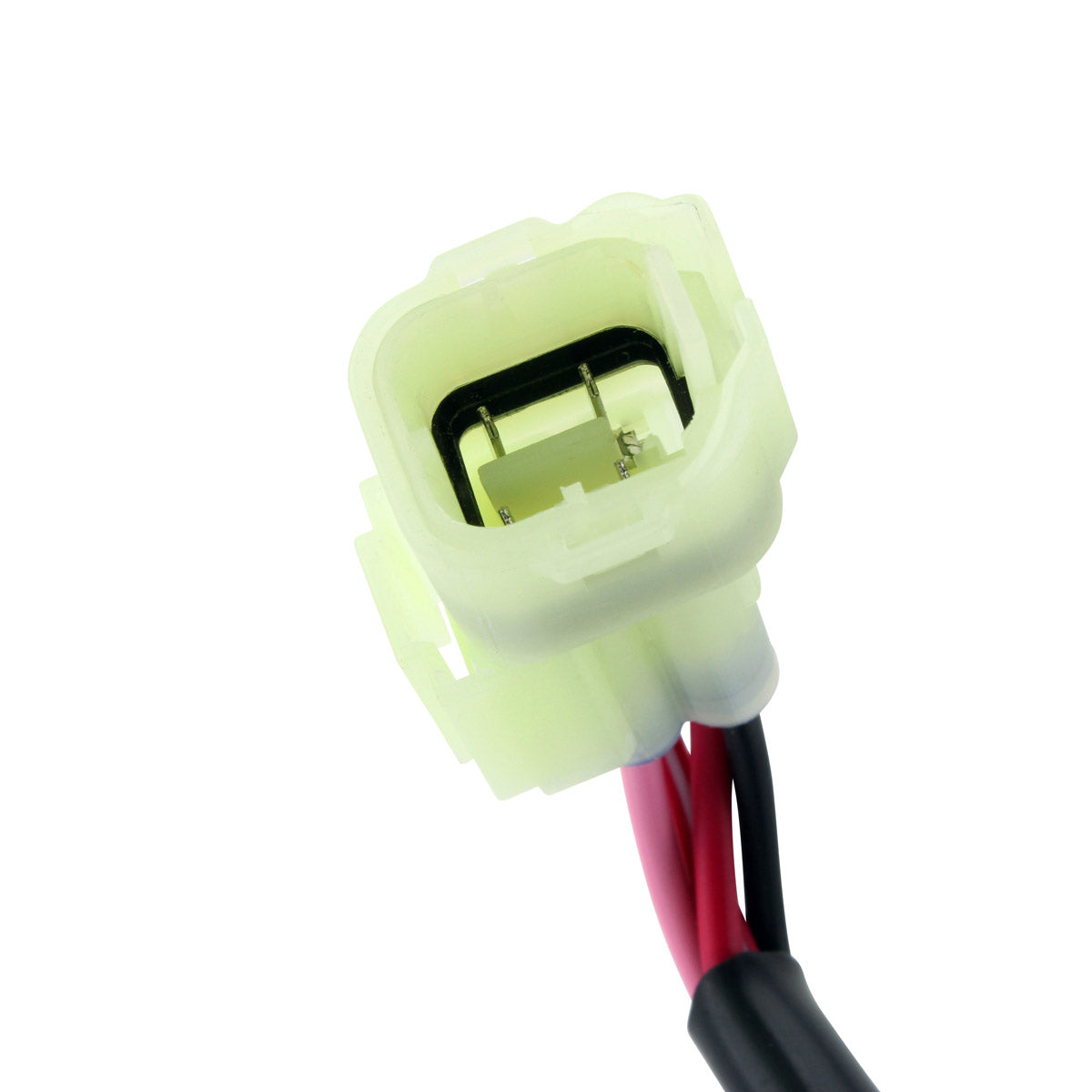

The switch operates over two positions, off and on. It carries four wires on a 300 mm lead terminating in a single plug, and measures 46 mm high by 46 mm long by 30.29 mm wide. It replaces Yamaha part numbers 43D-H2510-00-00 and 43D-H2510-01-00. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket replacement for the original ignition key switch
- Direct replacement - plug-and-play, direct fit, easy installation
- Two positions: off and on

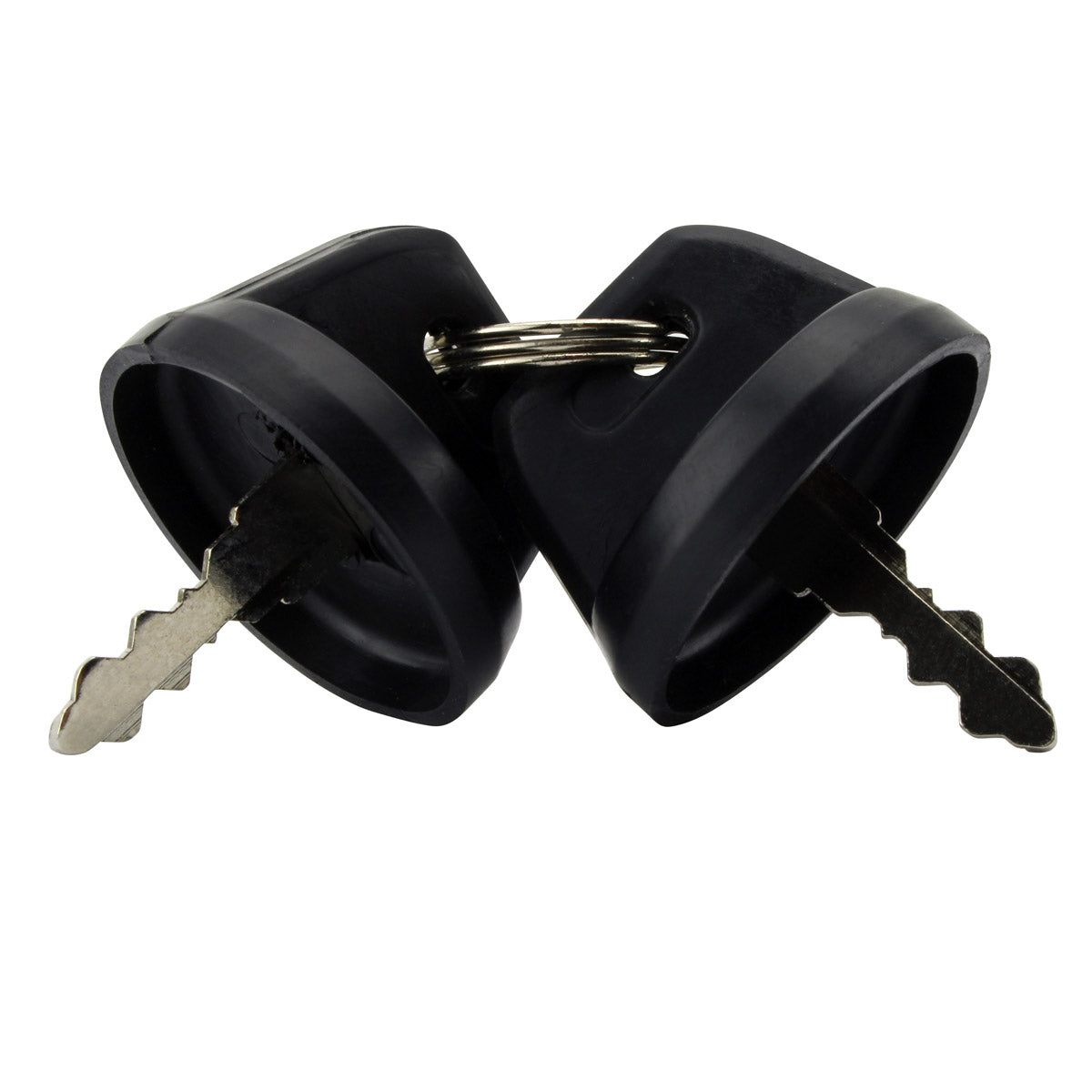

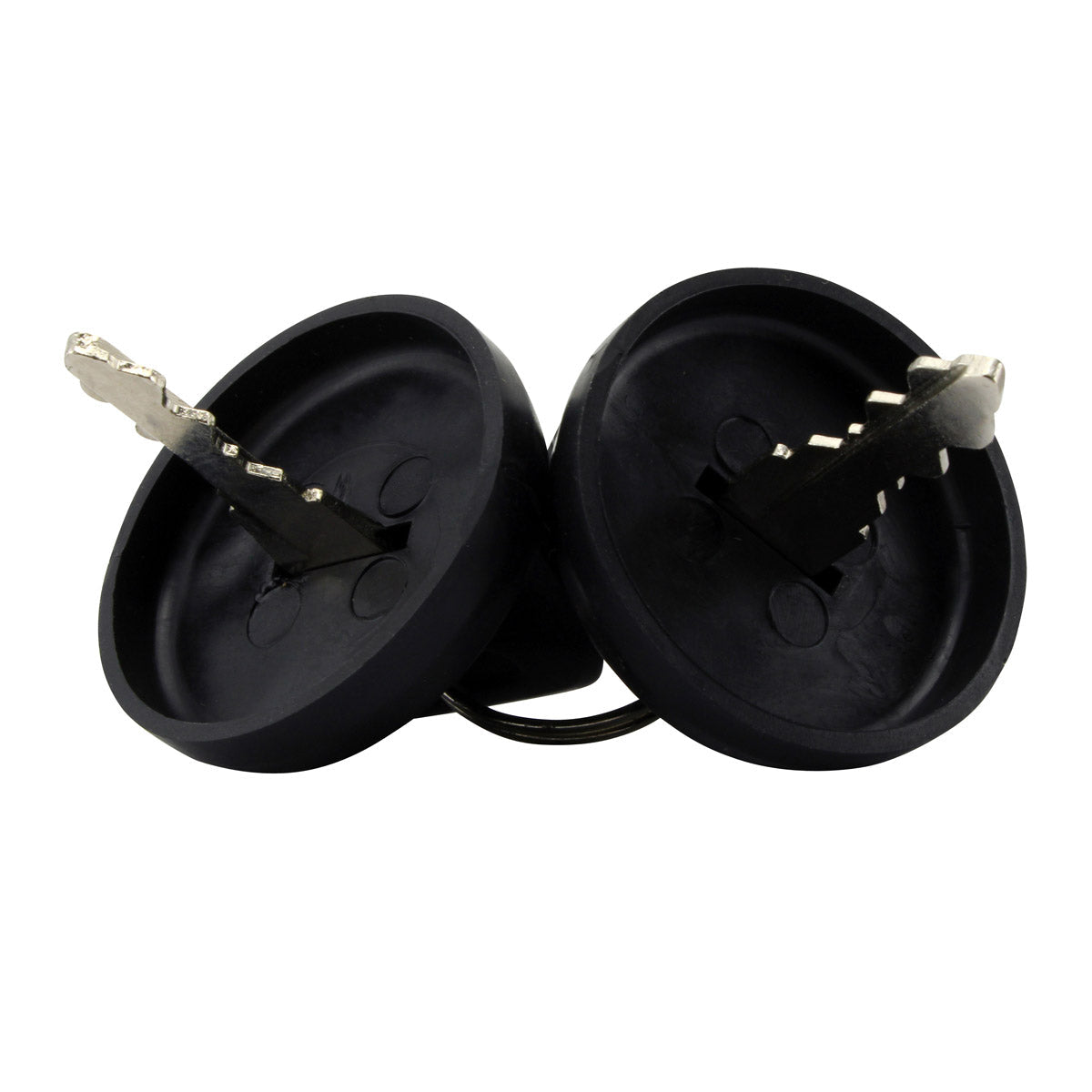

- Two keys included with every switch
- Connectors included
- Four wires on a 300 mm lead, single plug
- Every unit is tested before dispatch
Technical Specs
| Specification |
Detail |
| Part Number |
RMS110-107744 |
| Number of Positions |
2 (off, on) |
| Height |
46 mm |
| Length |
46 mm |
| Width |
30.29 mm |
| Wire Length |
300 mm |
| Number of Wires |
4 |
| Number of Plugs |
1 |
| Number of Keys |
2 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha Raptor YFM 90 Carb |
2009-2013 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 43D-H2510-00-00 |
Yamaha |
| 43D-H2510-01-00 |
Yamaha |
Frequently Asked Questions
Will this switch fit without modifying my wiring?
Yes. It is a direct replacement for the original unit and is plug-and-play, so it uses the machine's existing connector. No cutting, splicing or loom modification is needed.
What is included in the box?

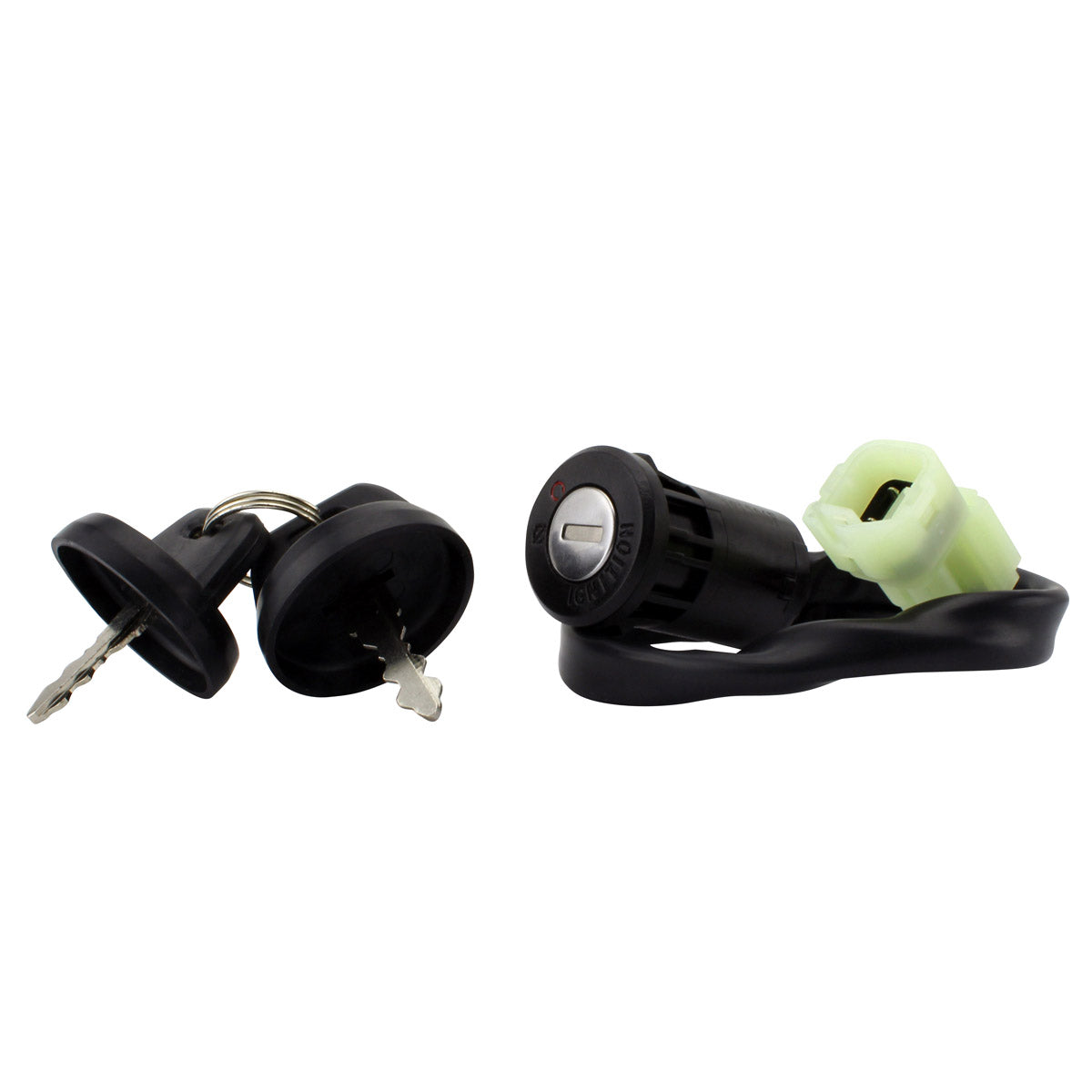

The ignition key switch, two keys and the connectors.
How do I know my old key switch has failed?
Typical symptoms are a machine that will not power up when the key is turned to on, power that cuts out when the key or the wiring behind it is moved, a key that turns freely without engaging a position, or corroded and melted terminals at the switch plug. A continuity check across the switch terminals in each position will confirm whether the switch itself is passing current.
Are the keys cut to match my original ignition key?
No. This is an aftermarket switch and it is supplied with its own two keys. It is not coded to your existing key, so you will use the keys that come with the switch.
