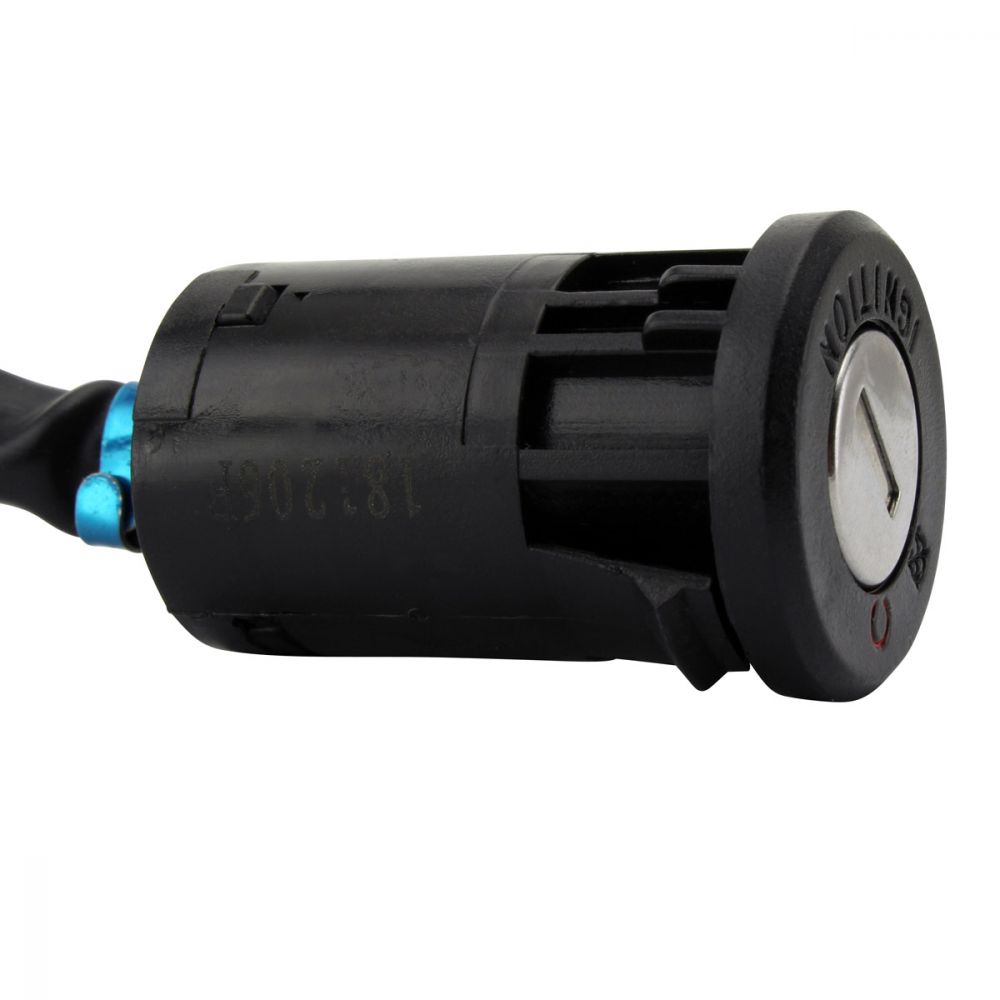

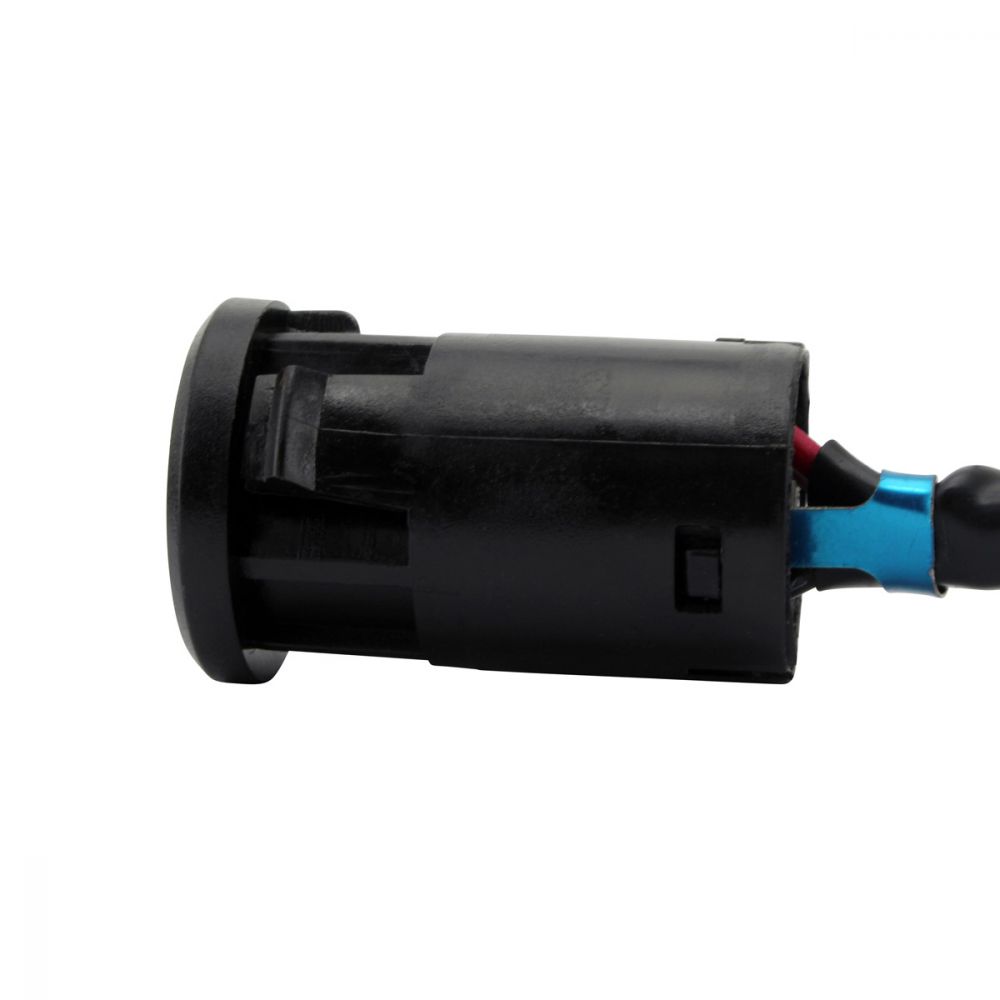

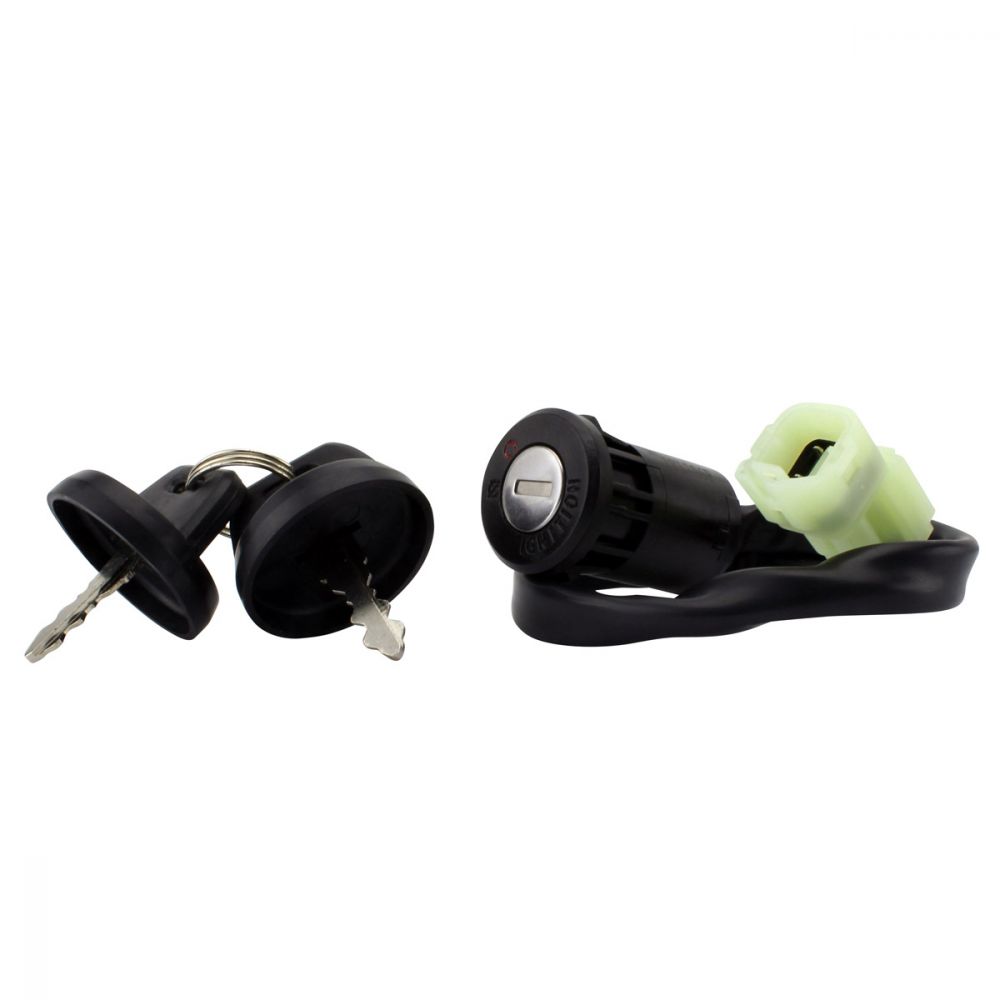

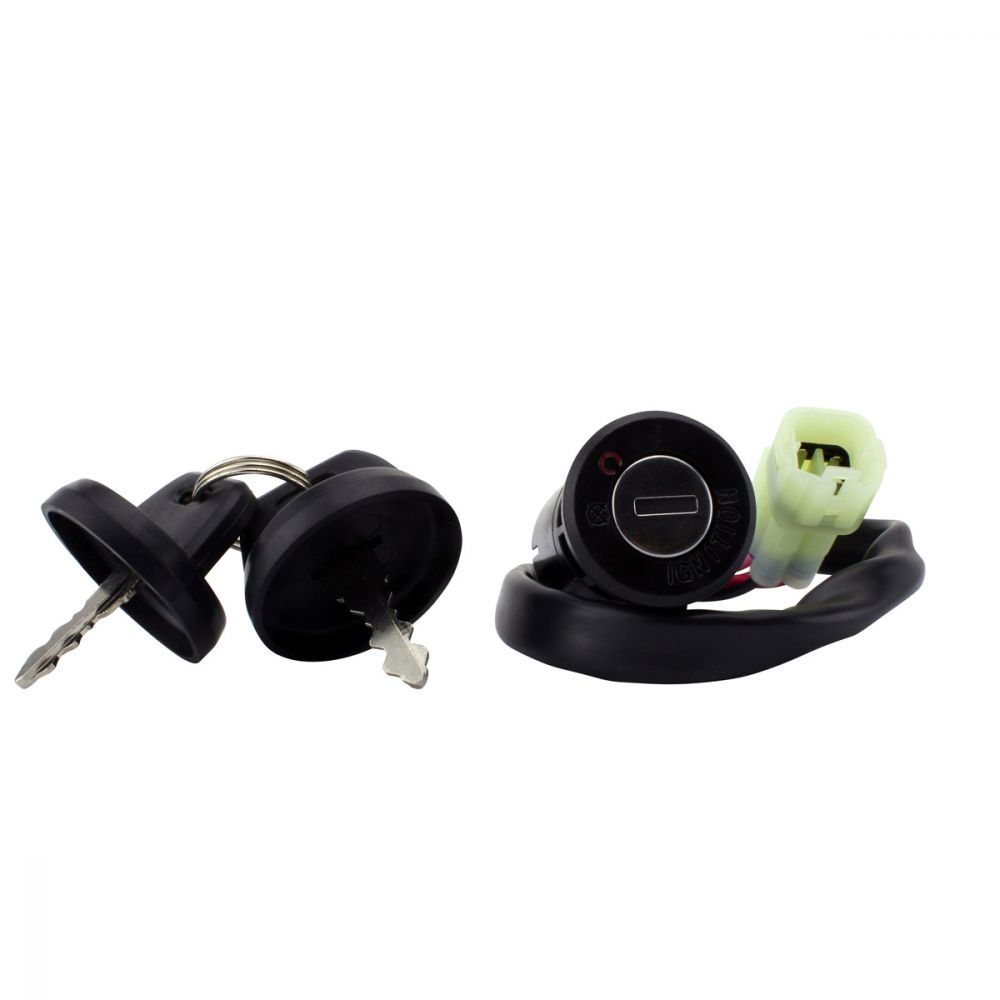

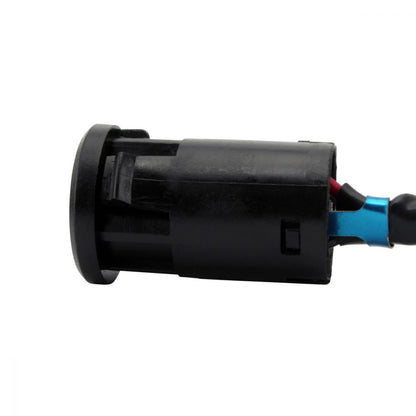

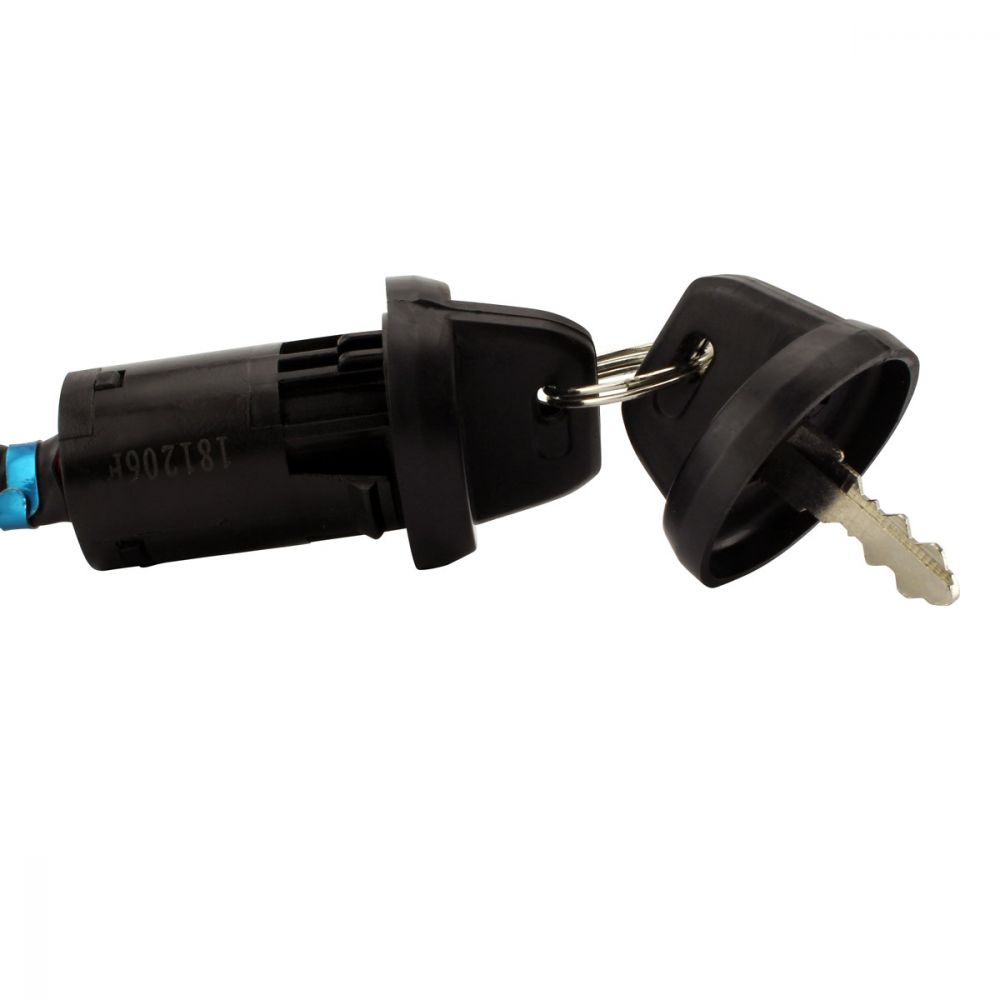

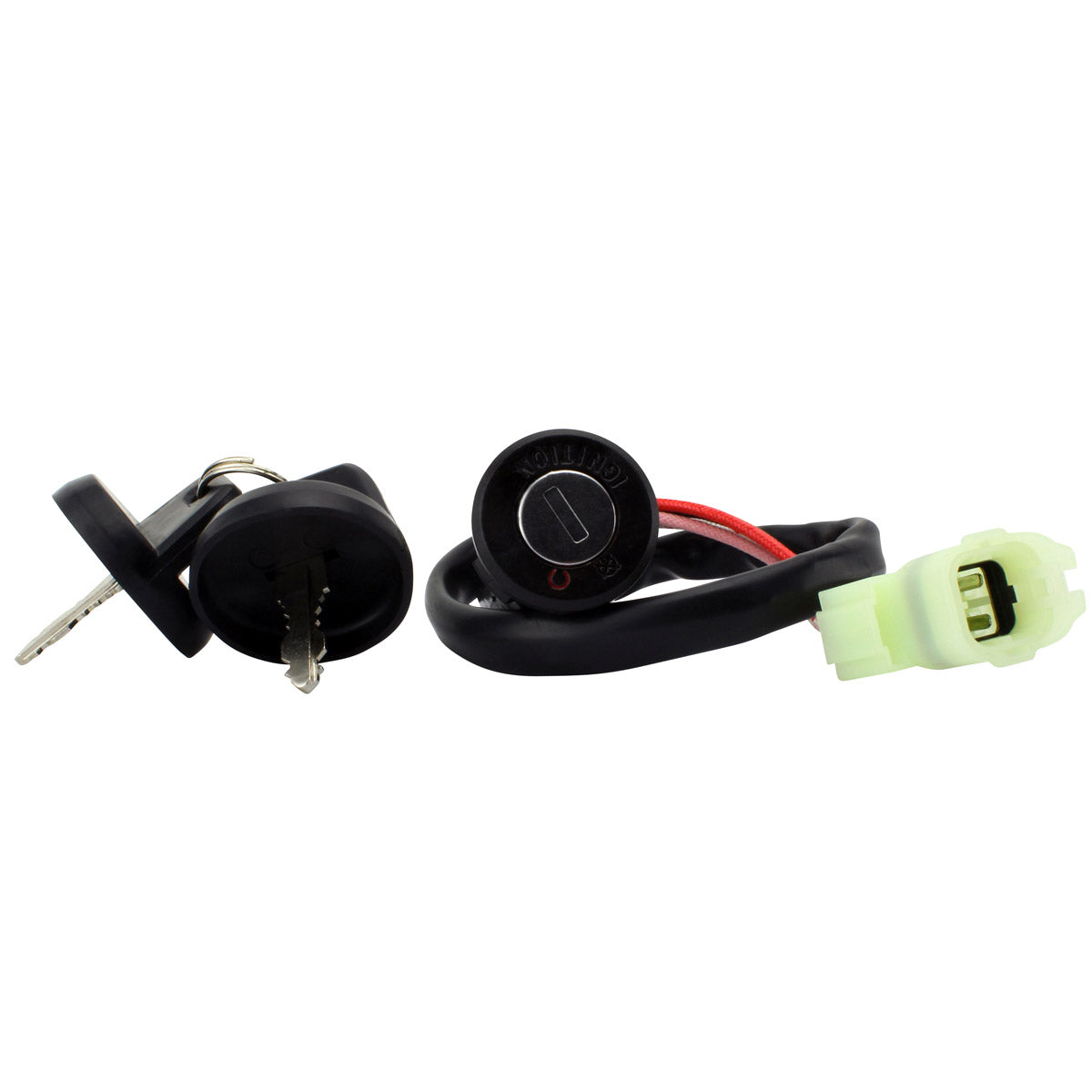

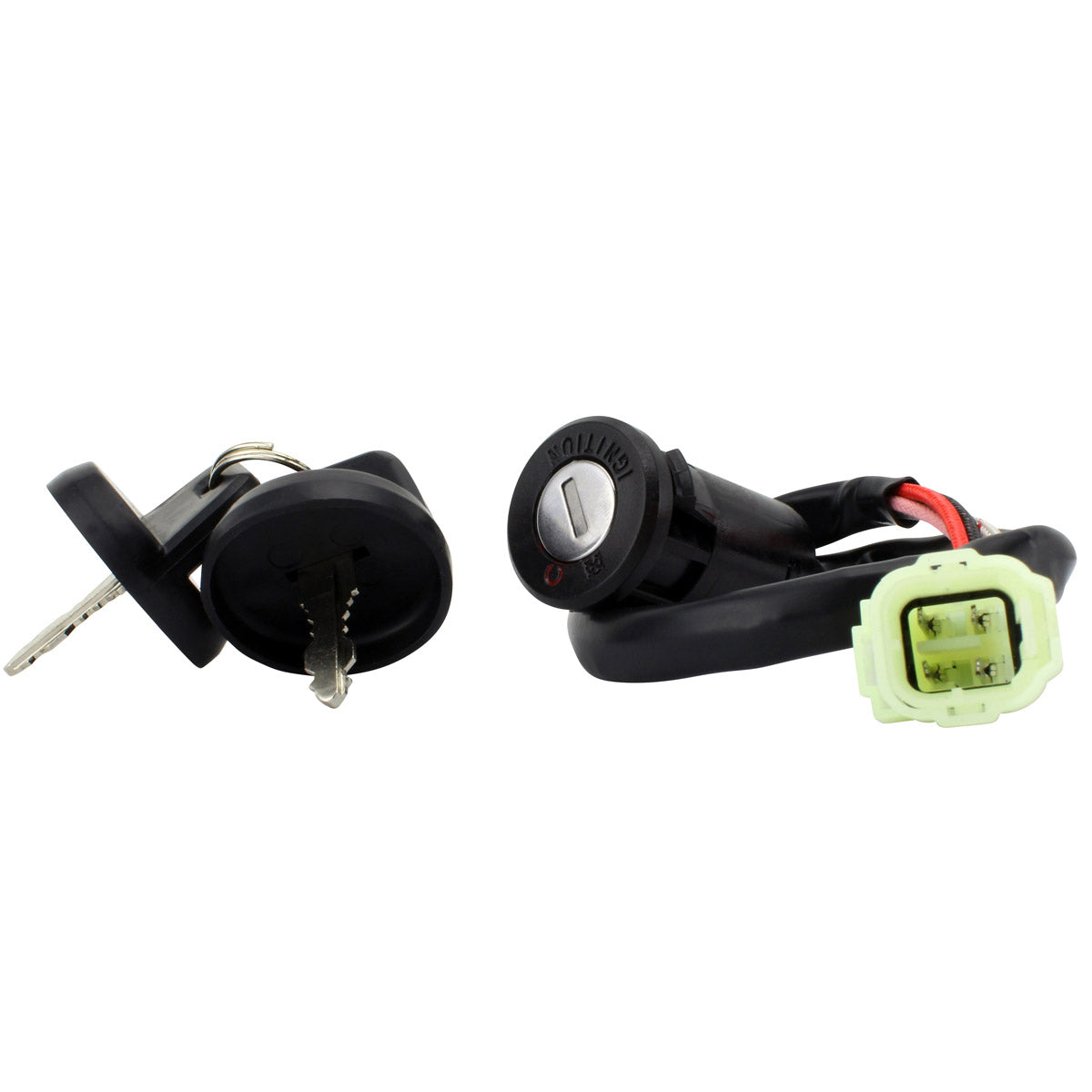

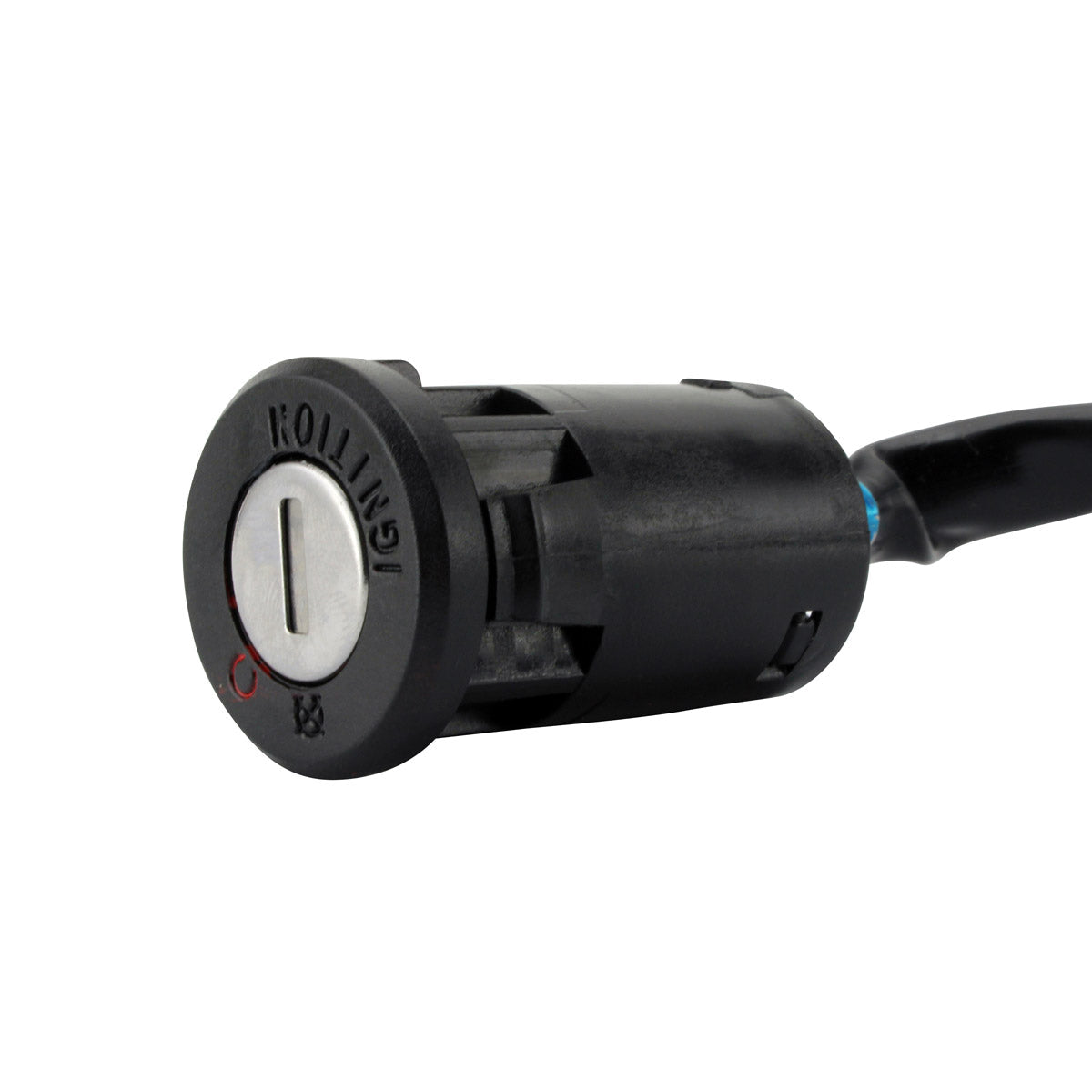

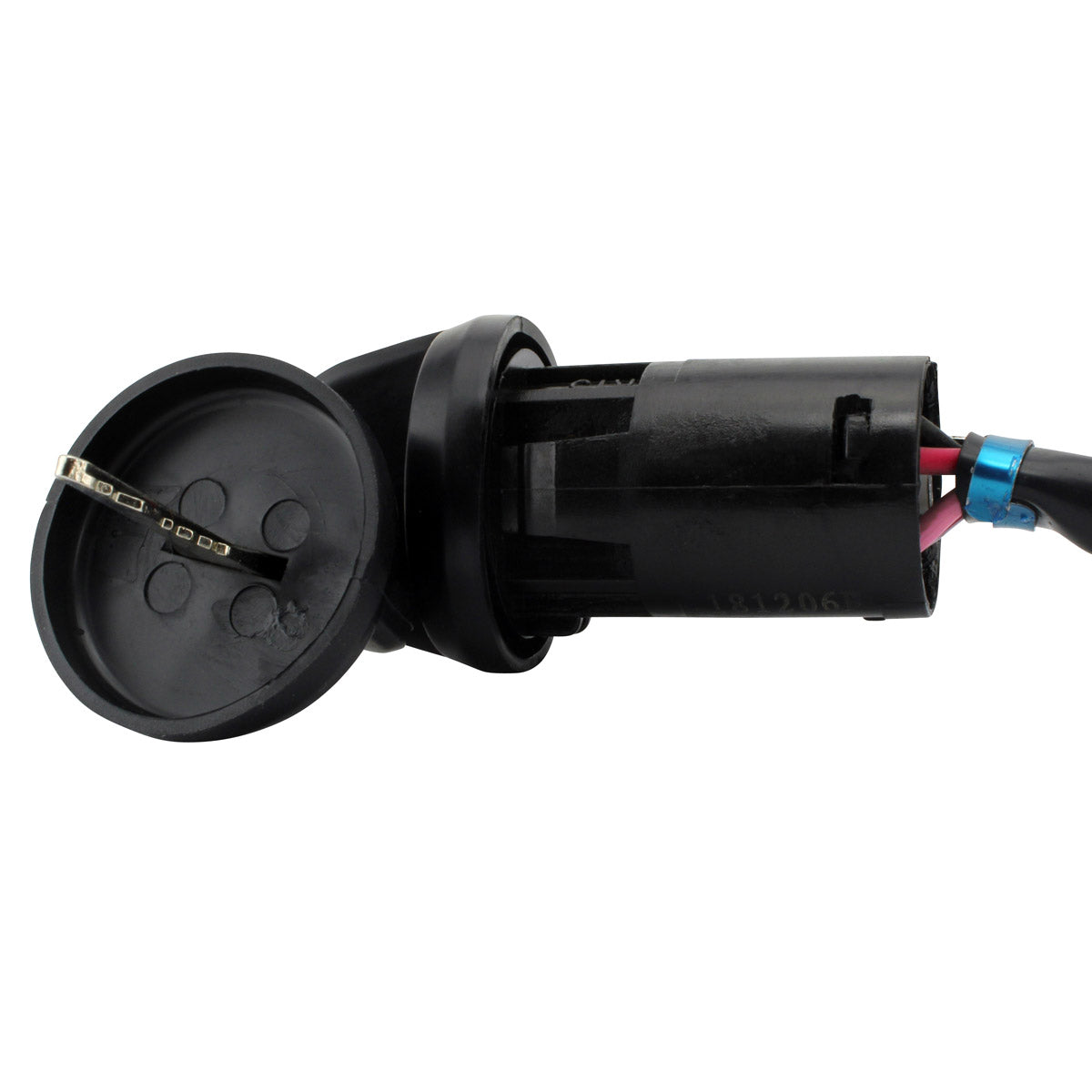

This is a brand new aftermarket 2-position ignition key switch, supplied as a direct replacement for the original unit fitted to the Can-Am DS 70 2x4 and DS 90 4-Stroke youth ATVs. It is a plug-and-play, direct fit part: it mounts in the original location and mates with the machine's existing plug, so there is no cutting, splicing or modification of the wiring loom. Two keys are supplied with every switch and the connectors are included.

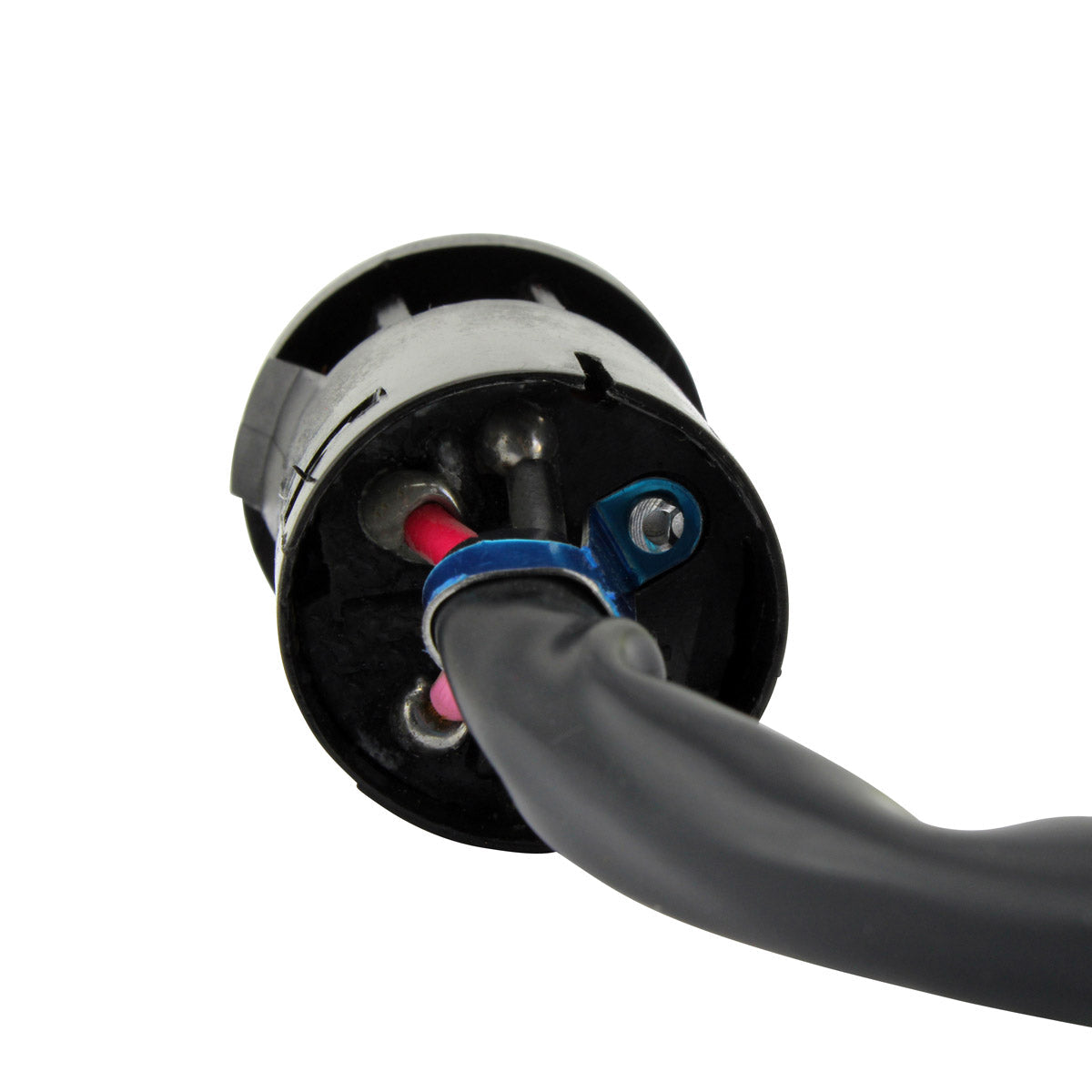

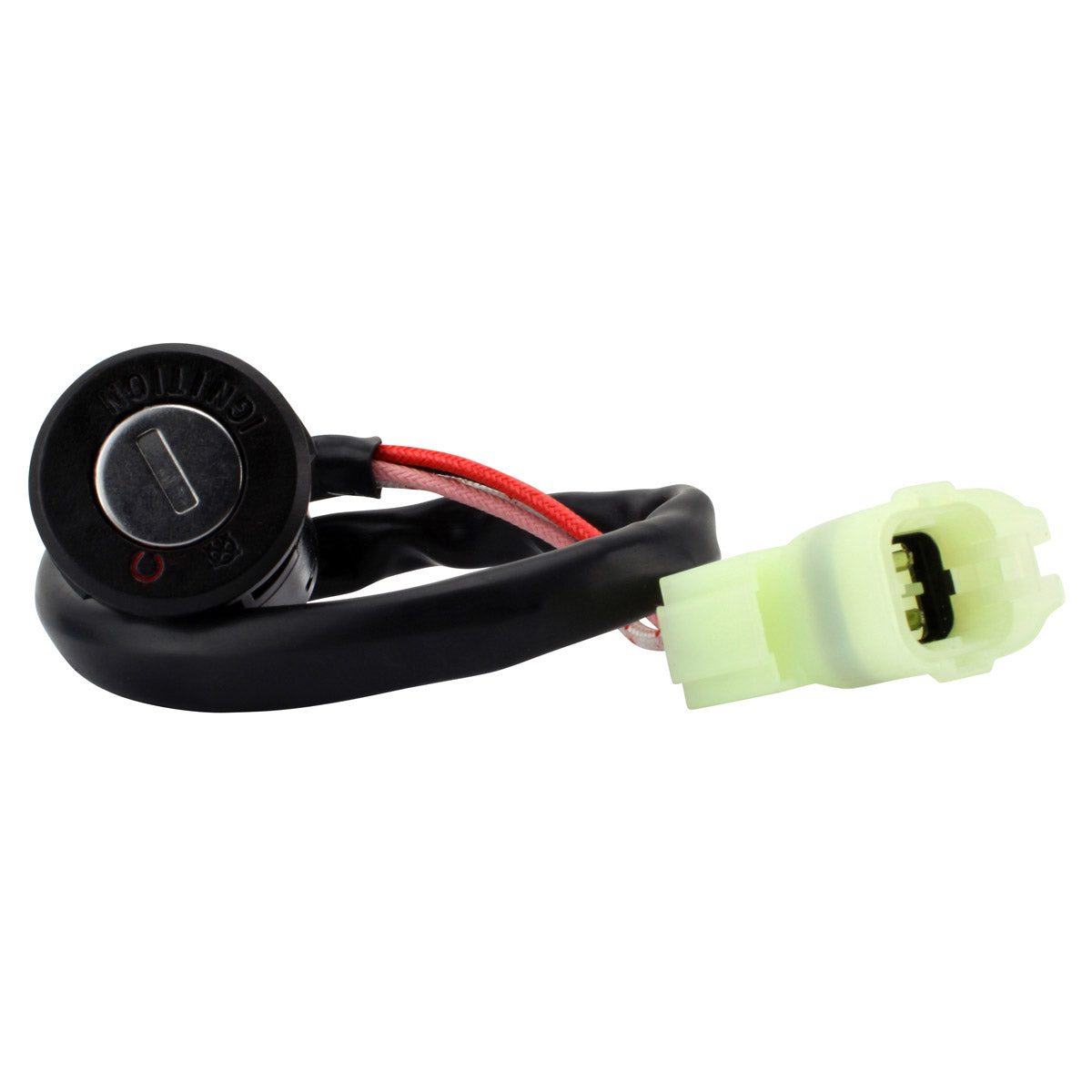

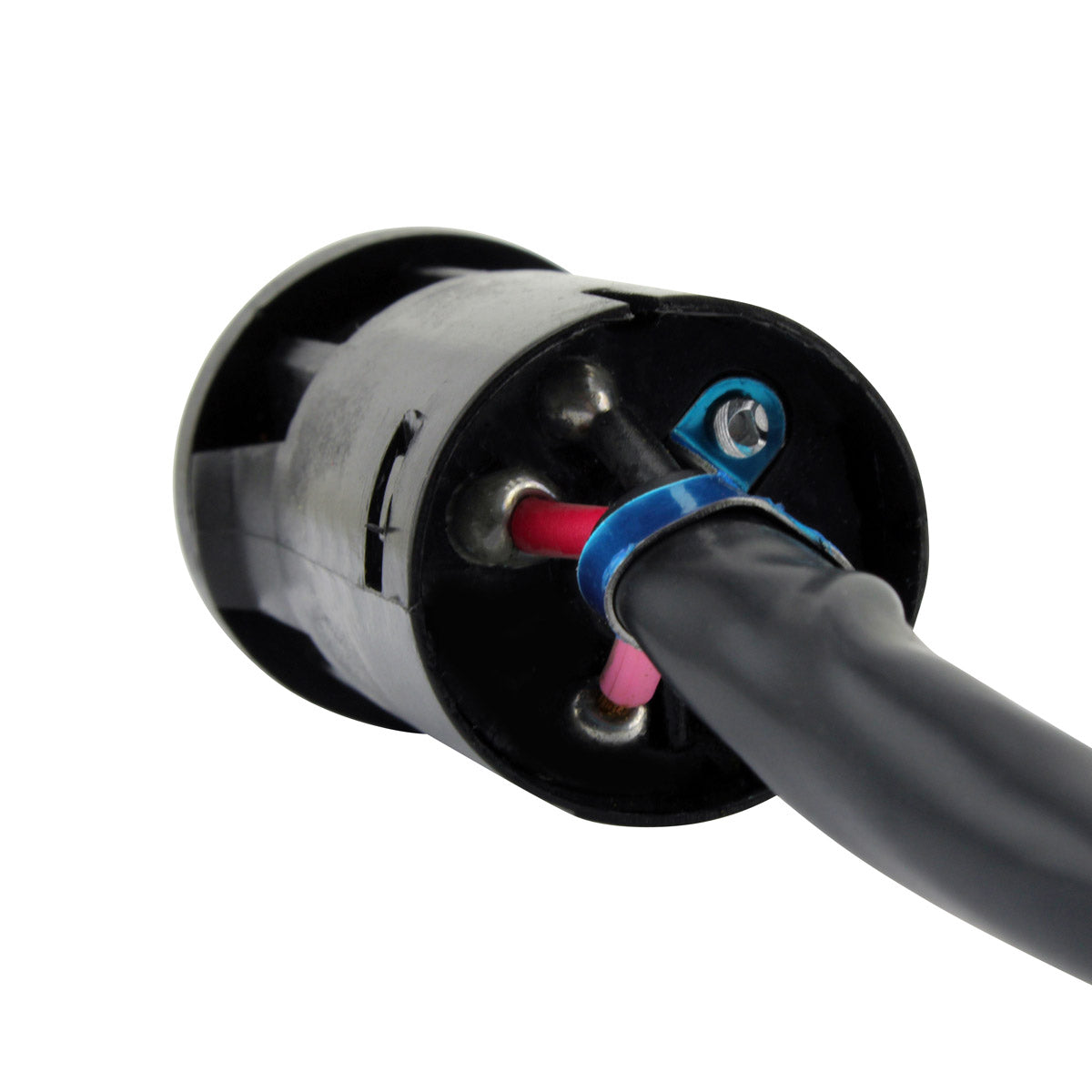

The switch operates over two positions, off and on. It carries four wires on a 330 mm lead terminating in a single plug, and the body measures 29 mm high by 46.5 mm long by 29 mm wide. It replaces Can-Am part numbers V35100DGF010 and V35100DGF010LL. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket replacement for the original ignition key switch
- Direct replacement - plug-and-play, direct fit, easy installation

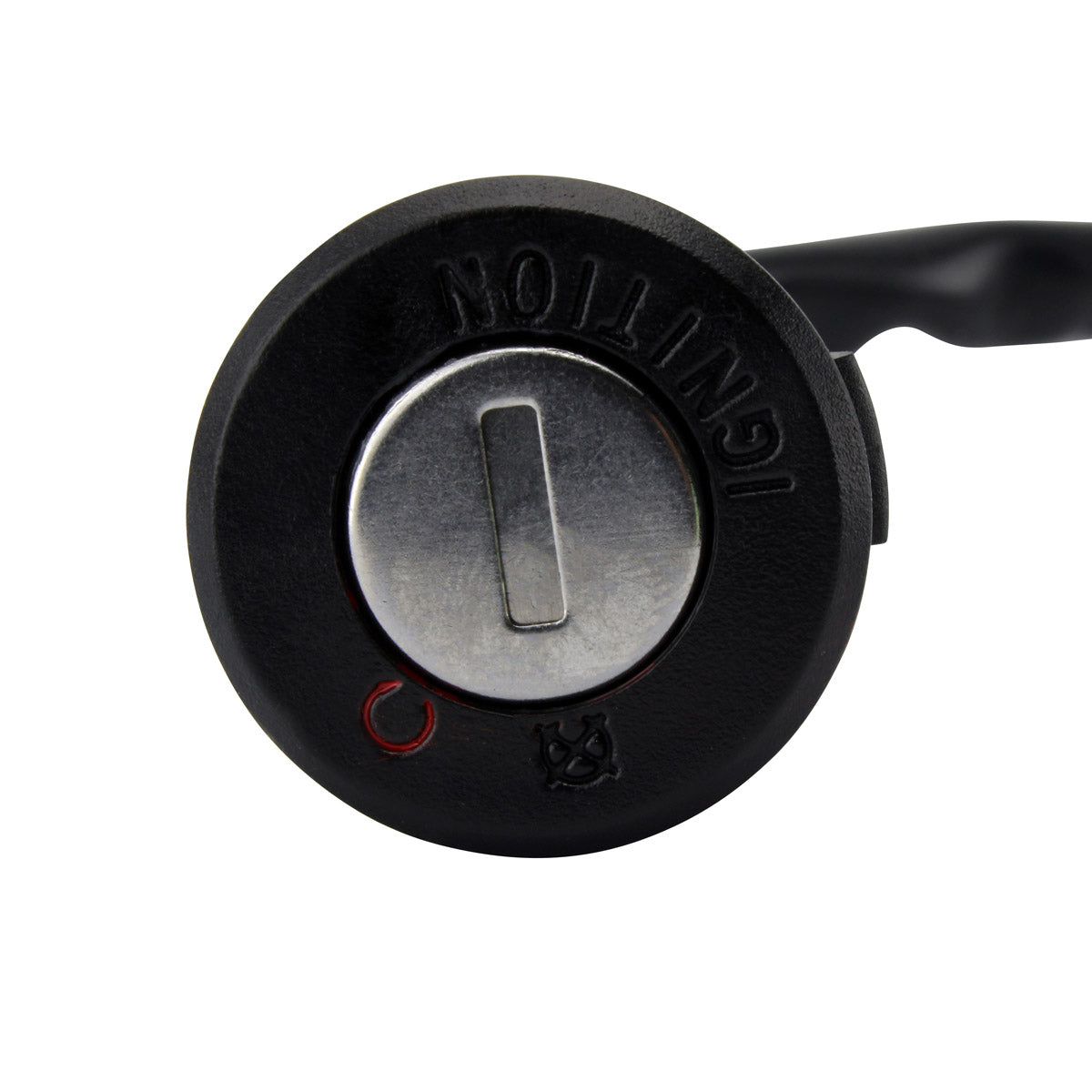

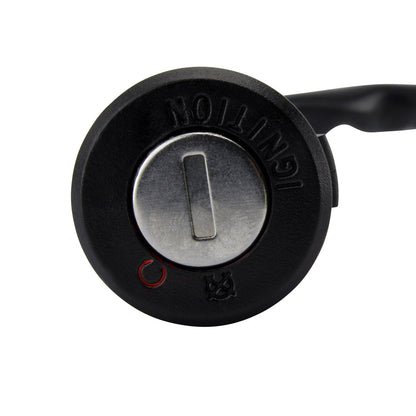

- Two positions: off and on

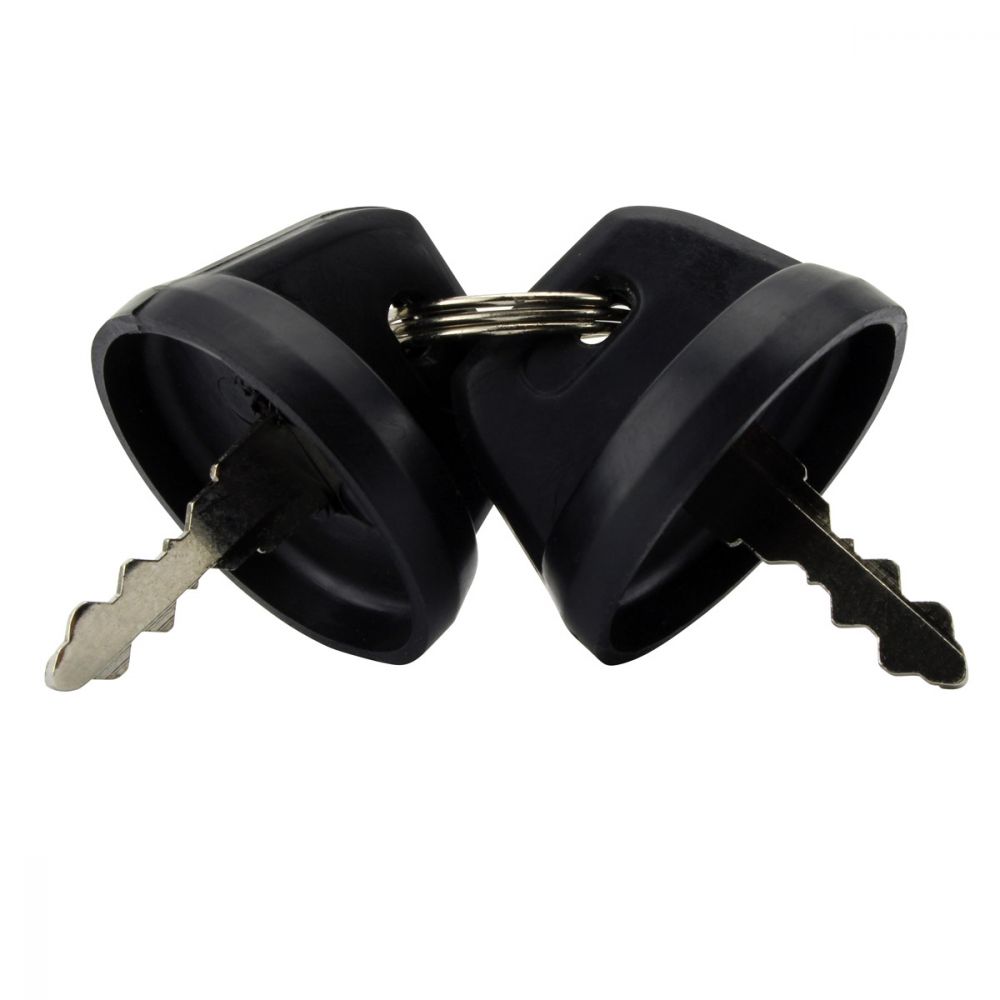

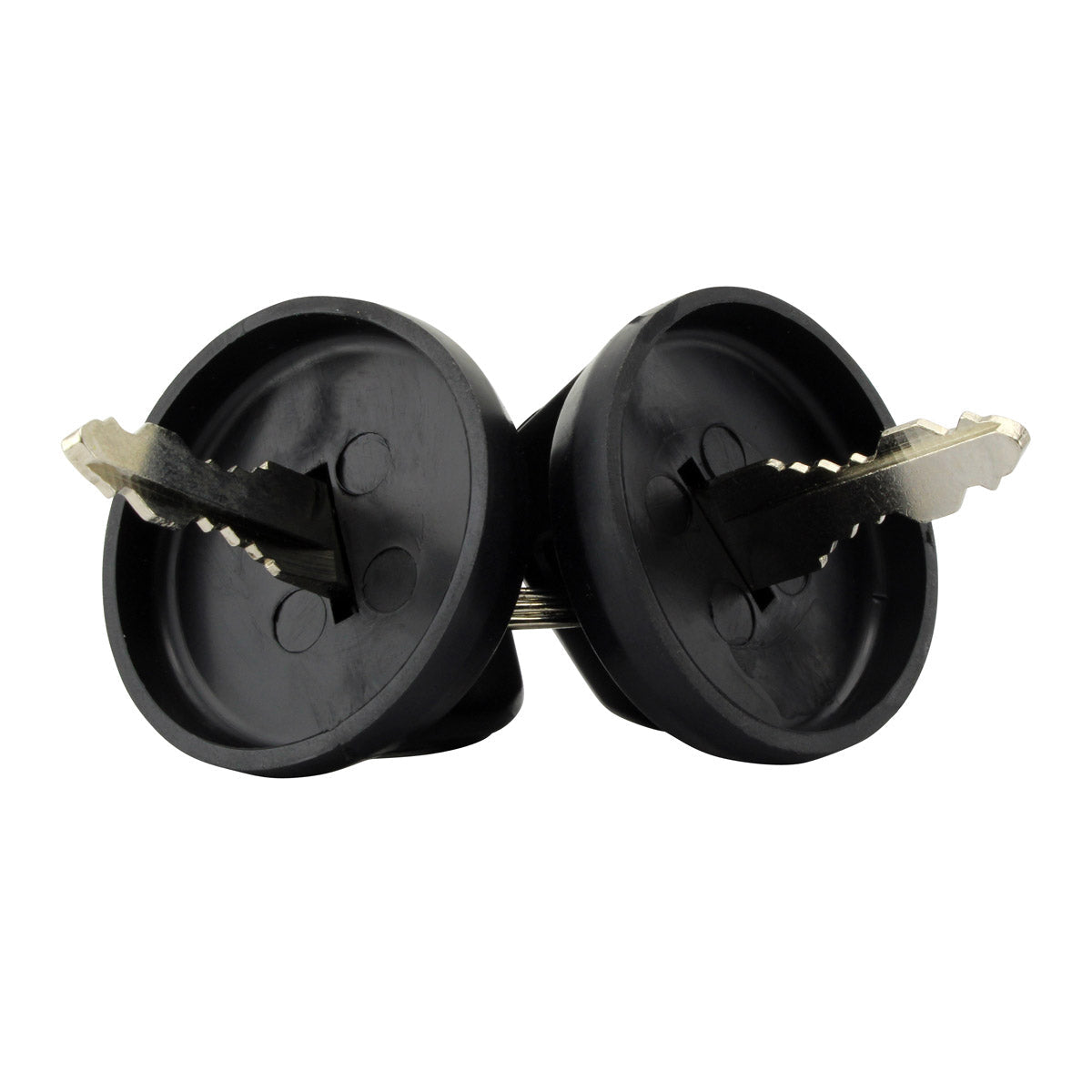

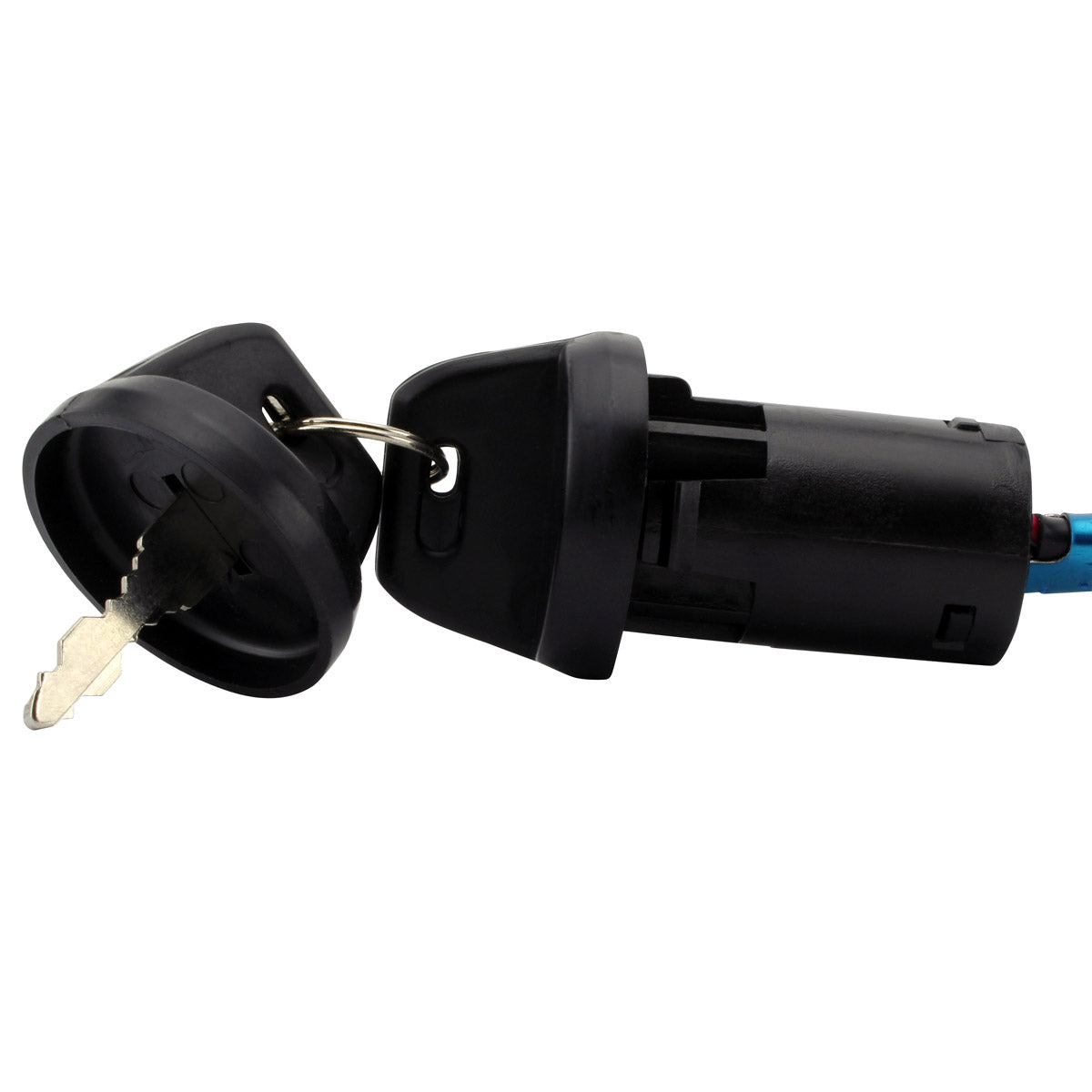

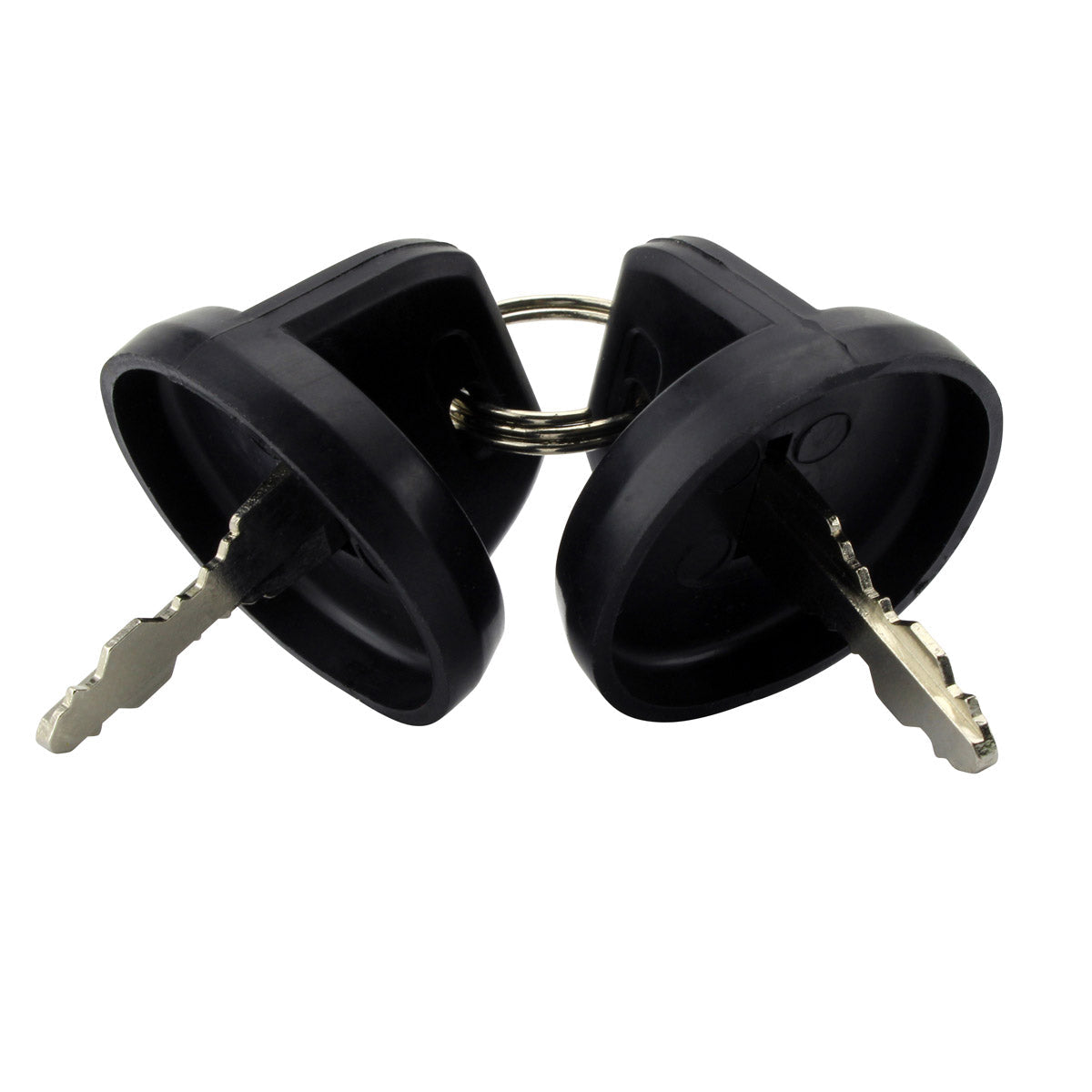

- Two keys included with every switch
- Connectors included

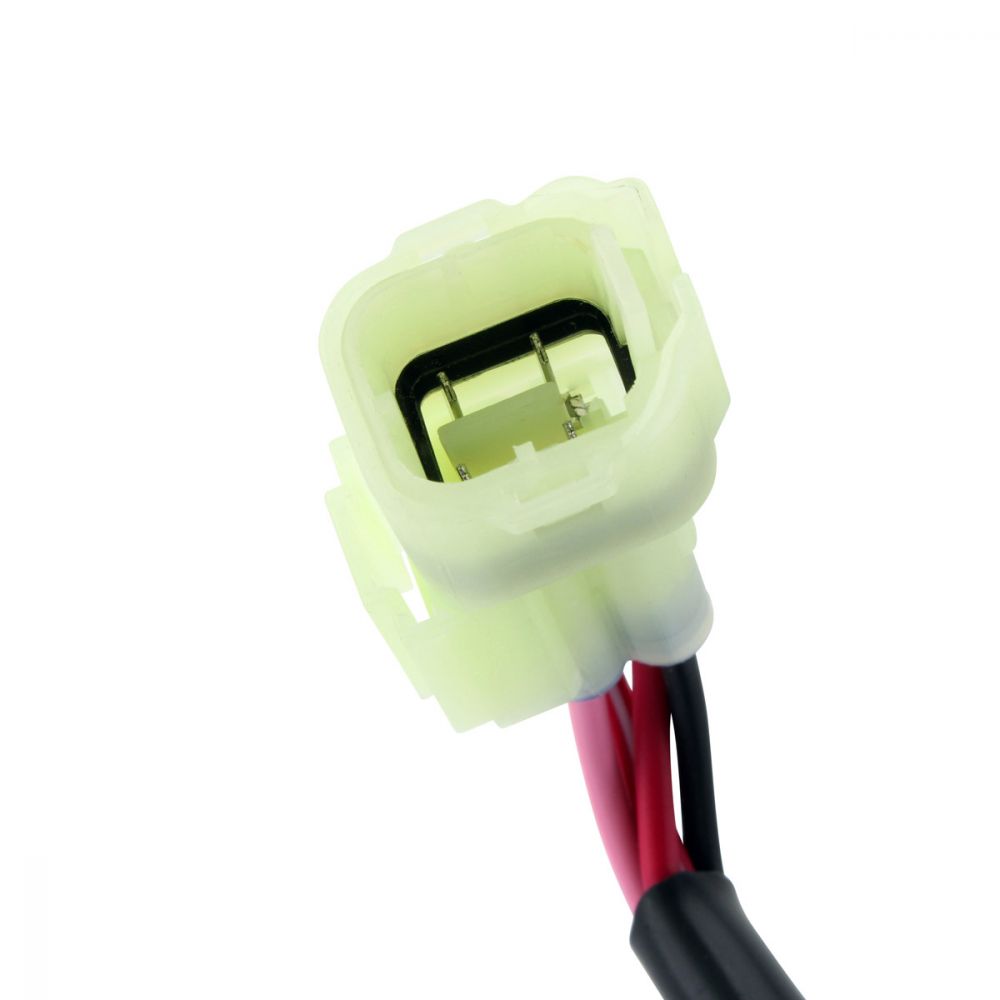

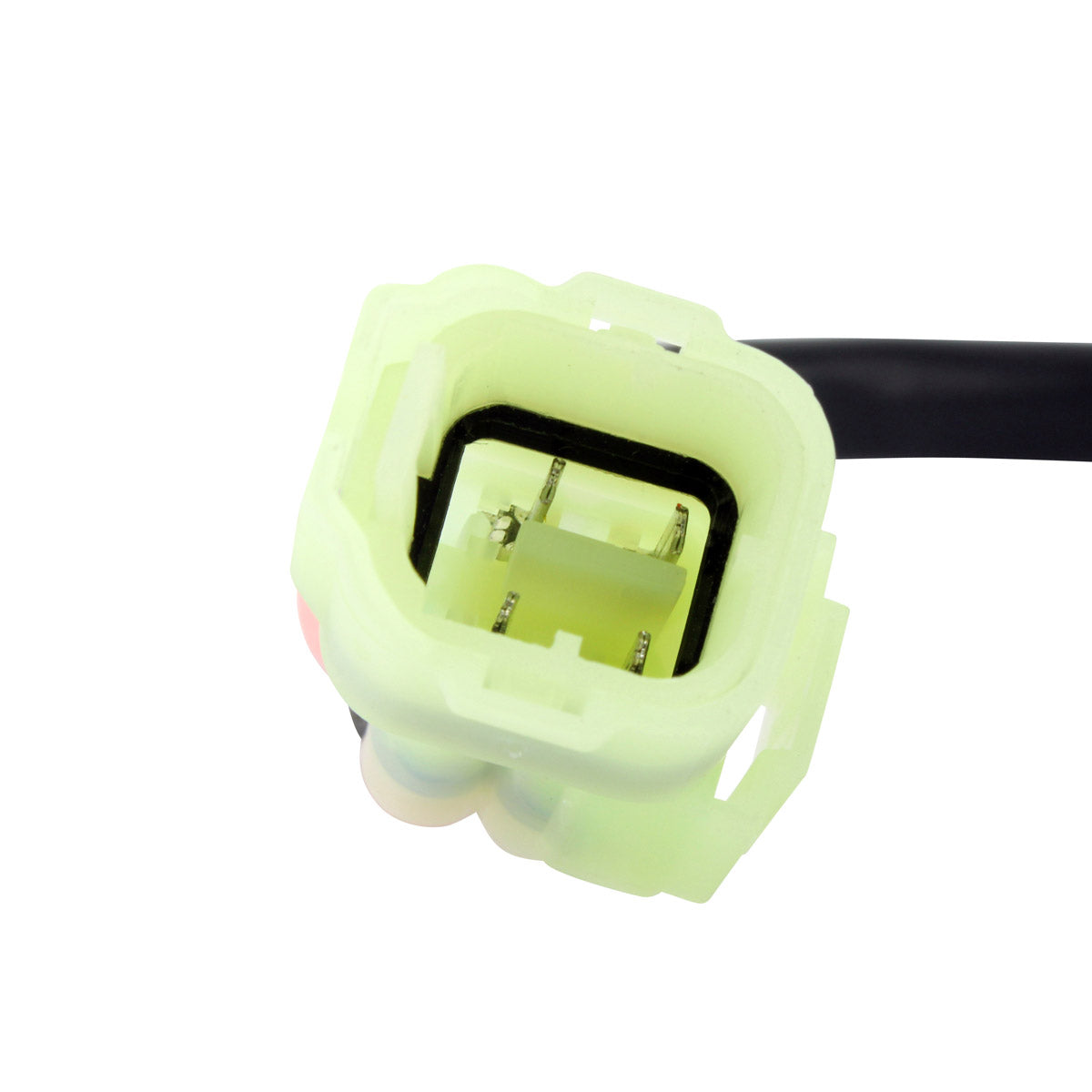

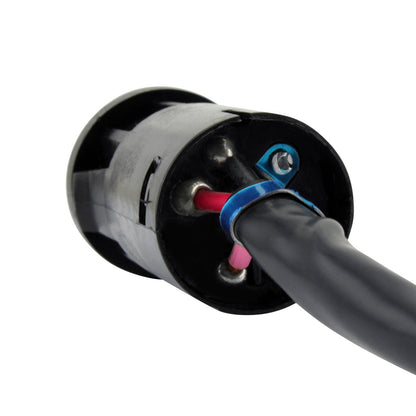

- Four wires on a 330 mm lead, single plug
- Every unit is tested before dispatch
Technical Specs
| Specification |
Detail |
| Part Number |
RMS110-107742 |
| Number of Positions |
2 (off, on) |
| Height |
29 mm |
| Length |
46.5 mm |
| Width |
29 mm |
| Wire Length |
330 mm |
| Number of Wires |
4 |
| Number of Plugs |
1 |
| Number of Keys |
2 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Can-Am DS 70 2x4 |
2008-2023 |
| Can-Am DS 90 4-Stroke |
2008-2023 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| V35100DGF010 |
Can-Am |
| V35100DGF010LL |
Can-Am |
Frequently Asked Questions
Will this switch fit without modifying my wiring?
Yes. It is a direct replacement for the original unit and is plug-and-play, so it uses the machine's existing connector. No cutting, splicing or loom modification is needed.
What is included in the box?
The two-position ignition key switch, two keys and the connectors.
How do I know my old key switch has failed?
Typical symptoms are a quad that will not power up when the key is turned to on, power that cuts out intermittently when the key or the wiring behind it is moved, a barrel that turns without engaging a position, or corroded and heat-damaged terminals at the plug. A continuity check across the switch terminals in the off and on positions will confirm whether the switch itself is passing current.
Are the keys coded to my existing ignition key?
No. This is an aftermarket switch supplied with its own two keys, so it is not cut to your original key code. You will use the keys that come with the switch.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
