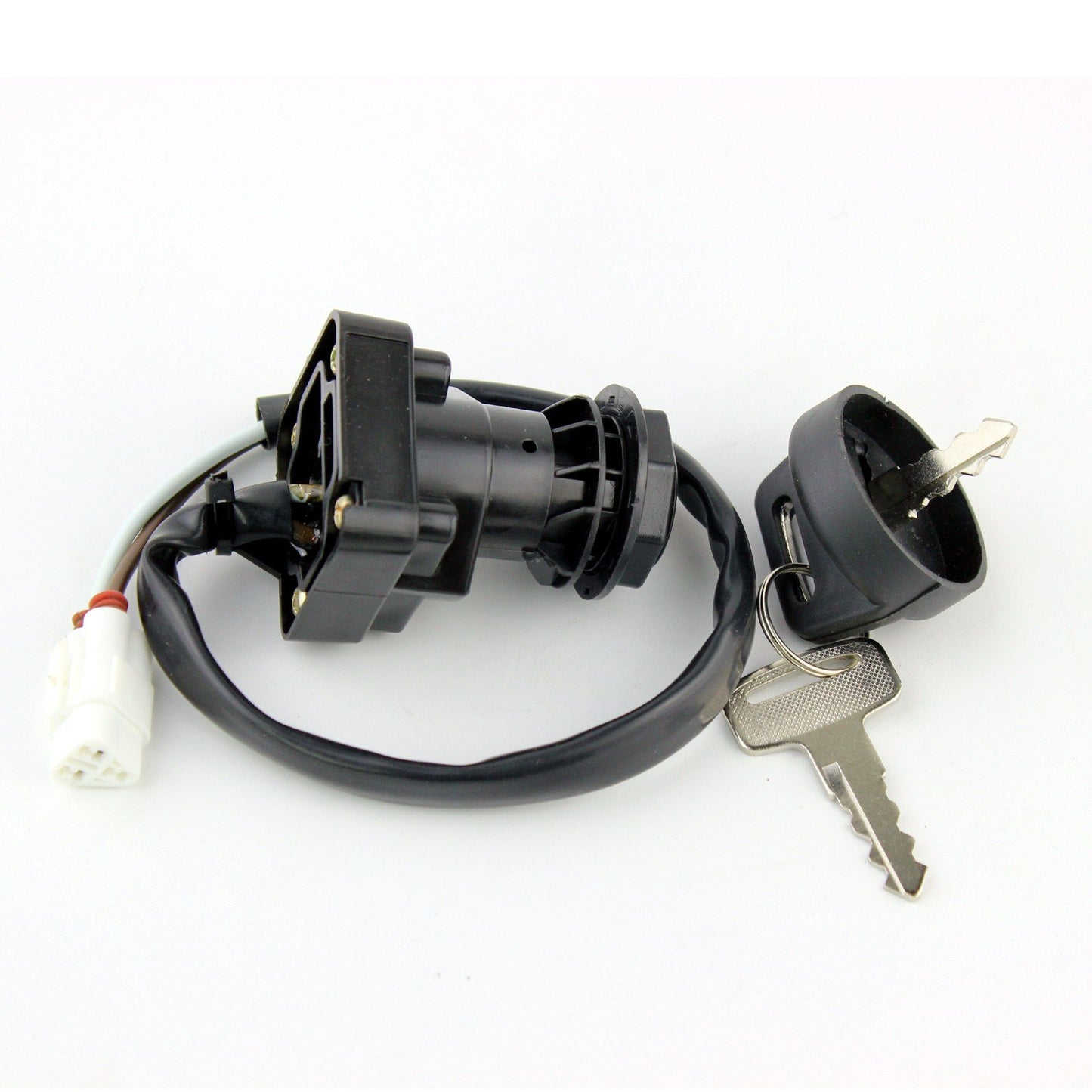

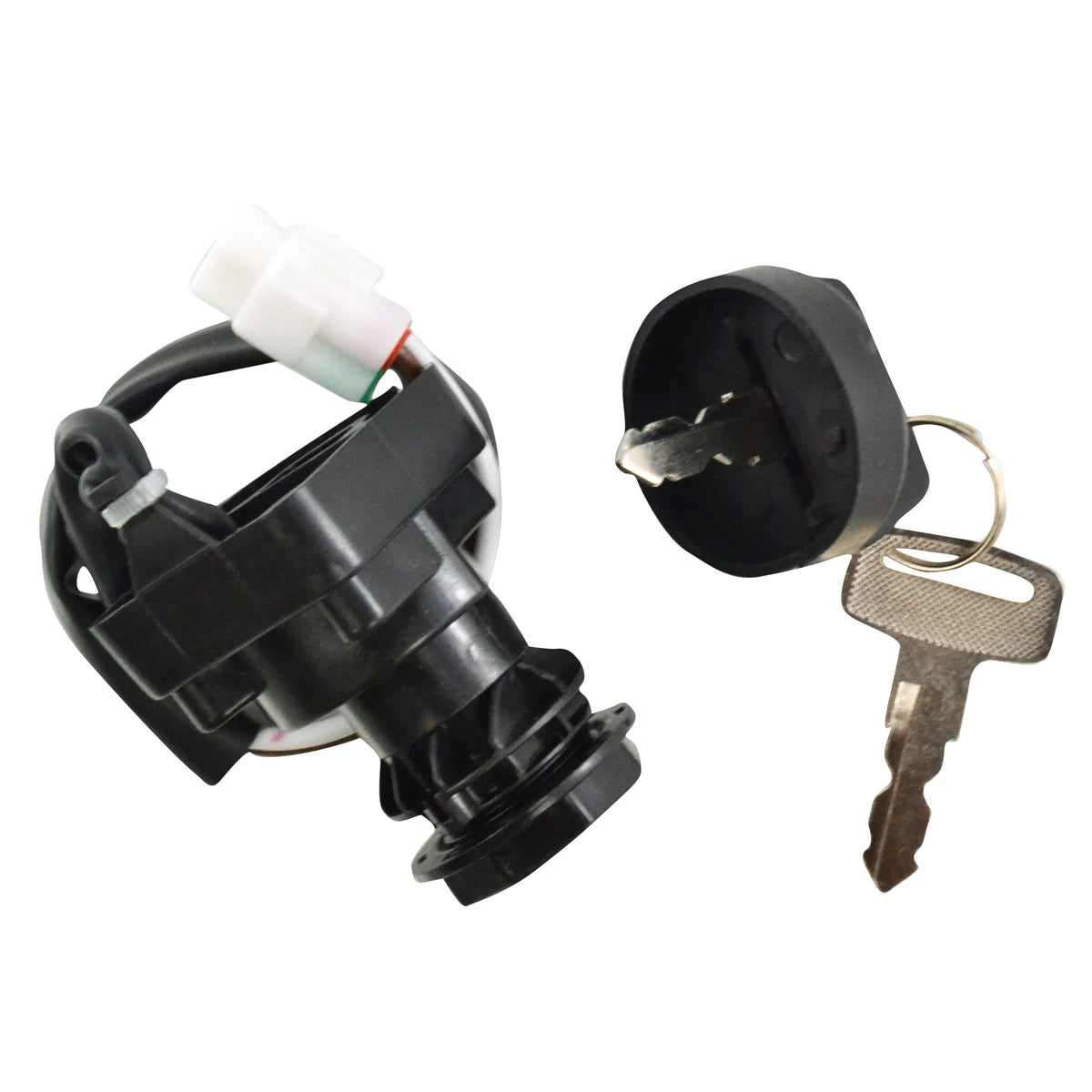

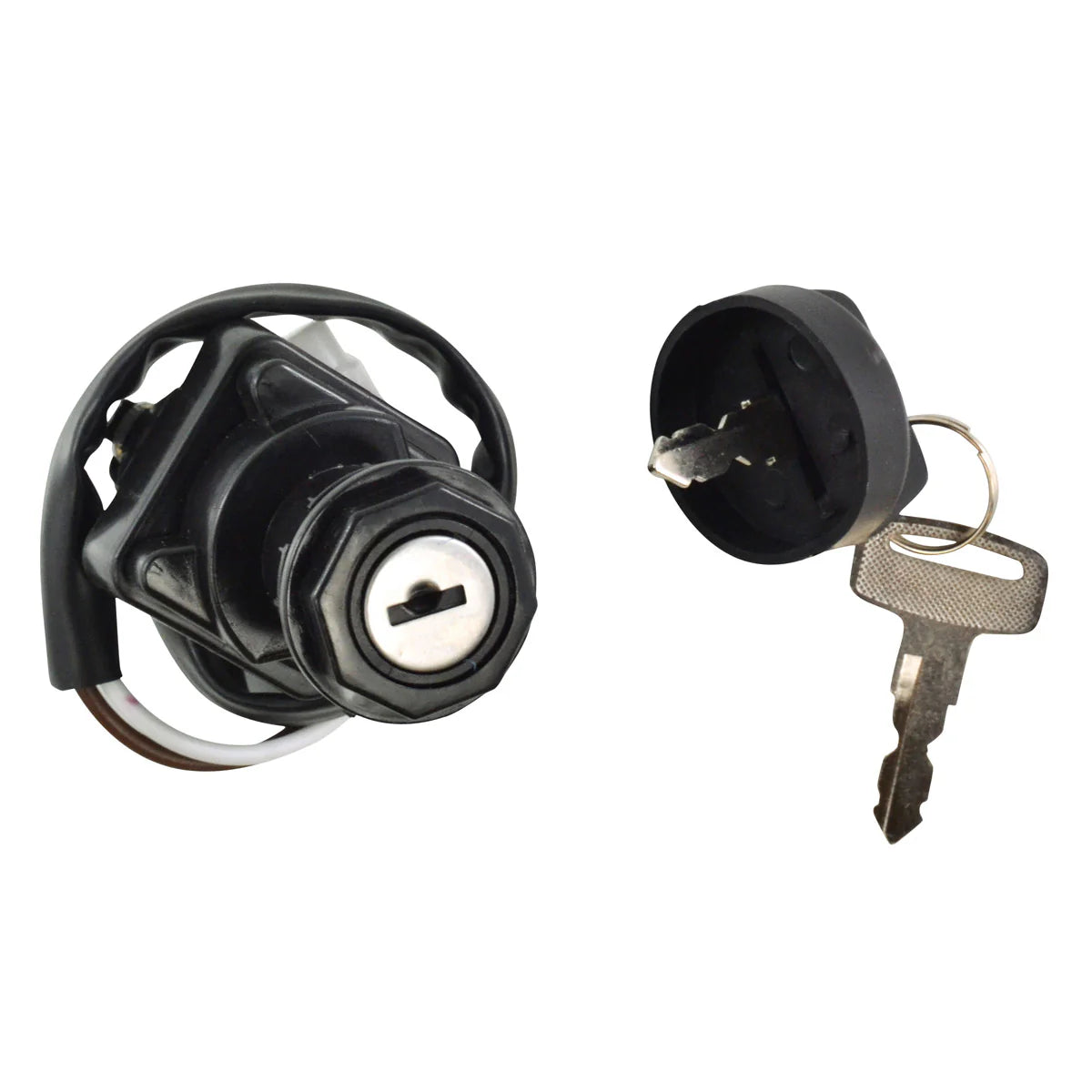

2-Position Ignition Key Switch for Kawasaki ATVs
Kawasaki KFX 450 R, KLF 300 Bayou and KVF 300, 360 and 400 Prairie, 1999-2014 - Part Number RM05016

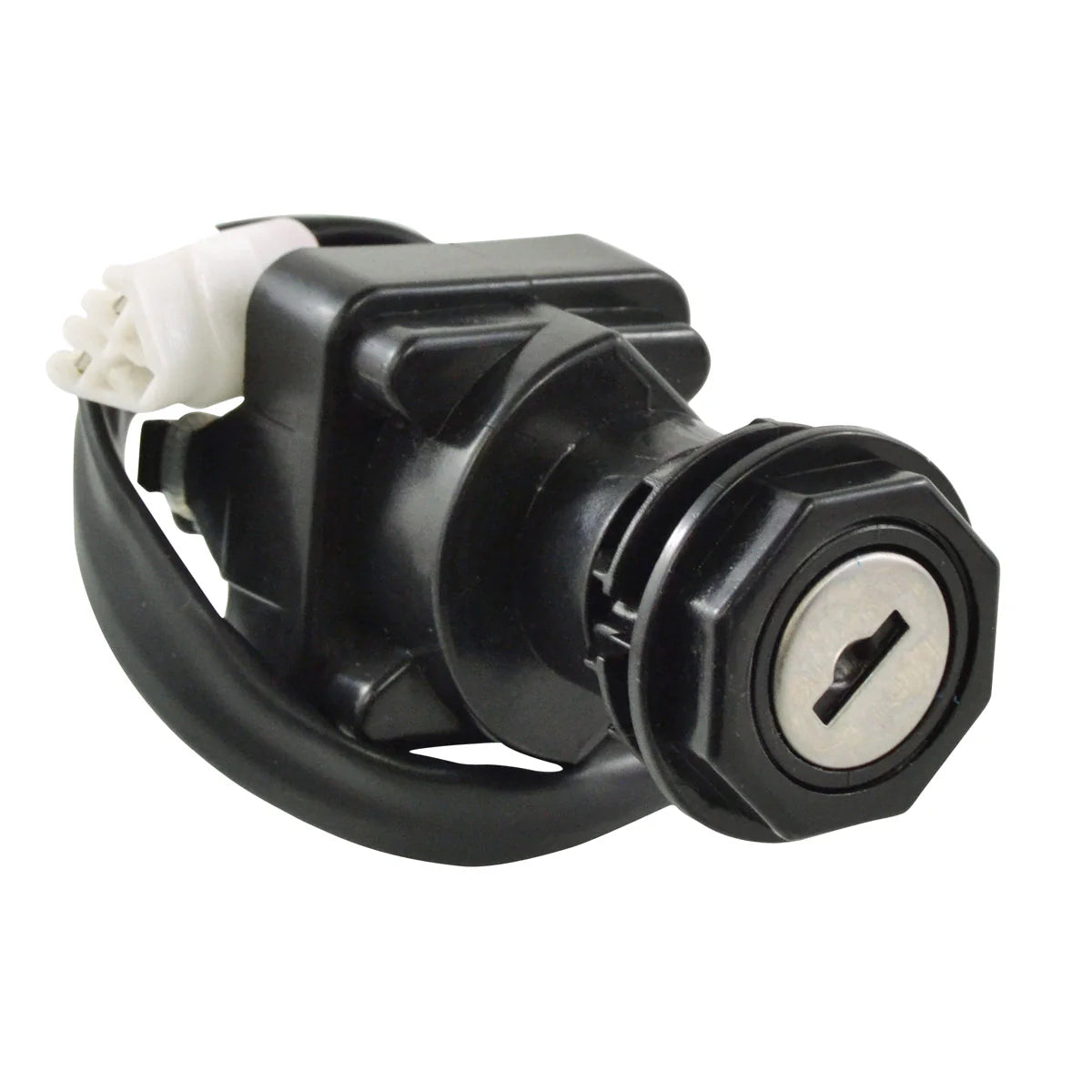

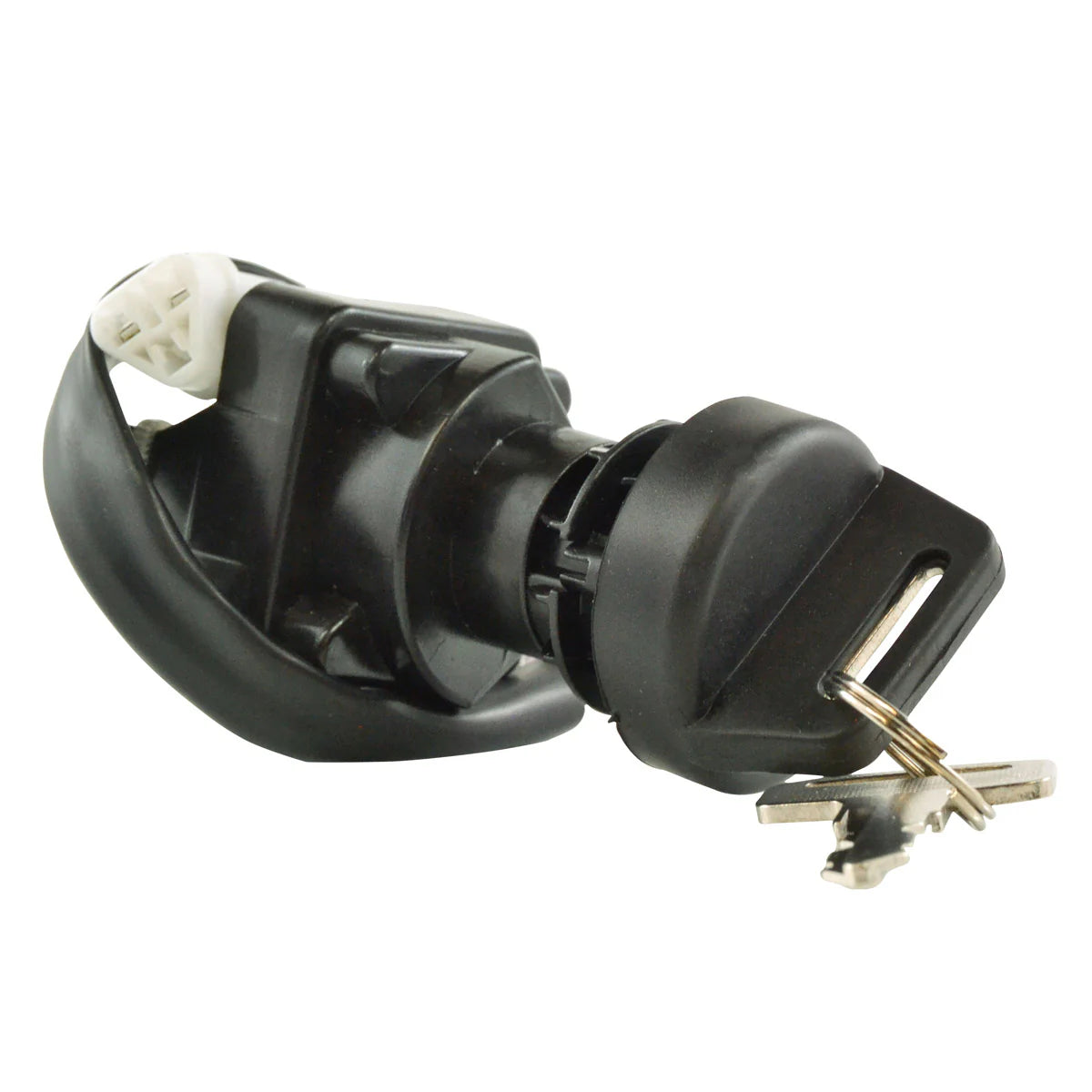

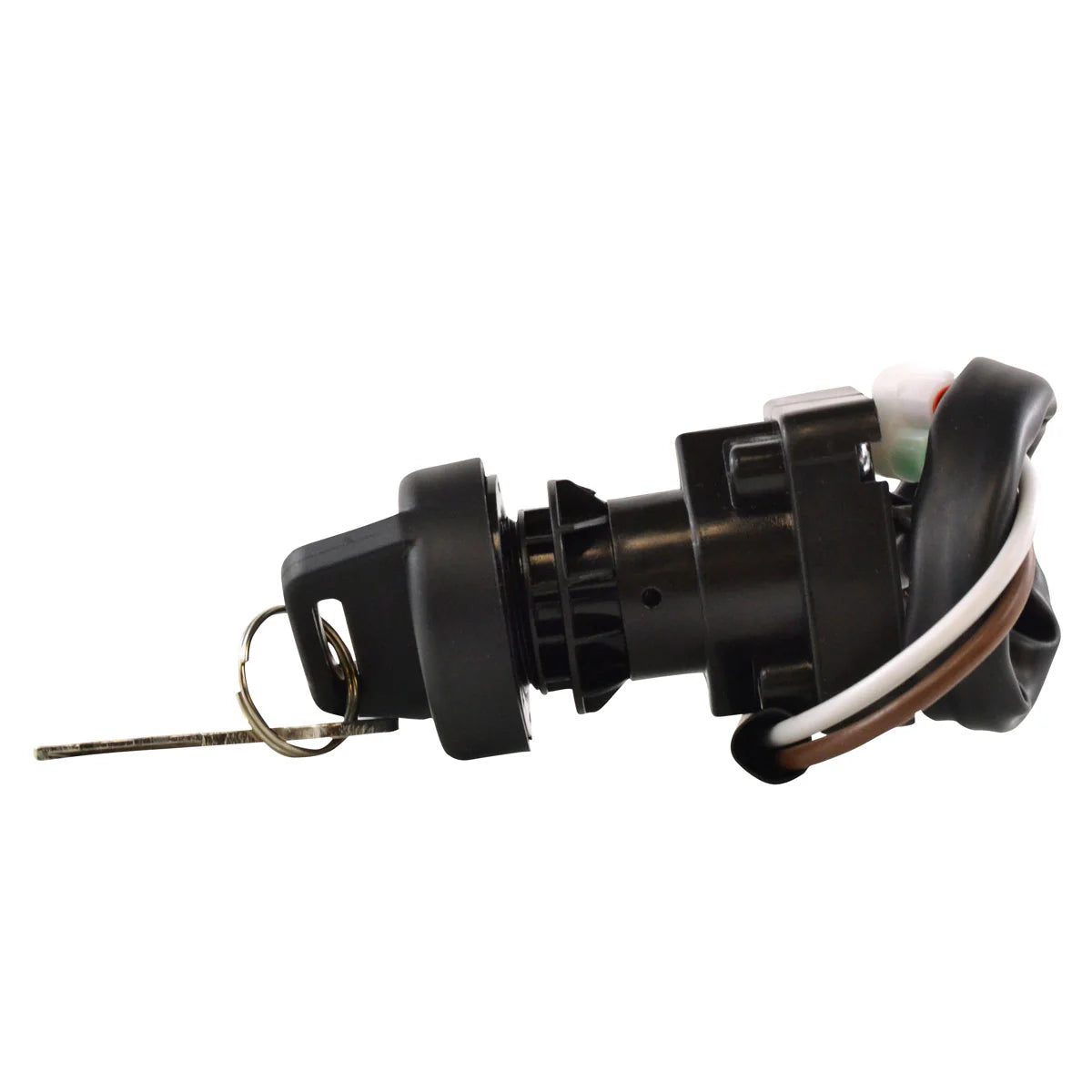

A brand new aftermarket two position ignition key switch for Kawasaki ATVs built between 1999 and 2014, covering the KFX 450 R sport quad and the KLF 300 Bayou and KVF 300, 360 and 400 Prairie utility machines. It is a direct replacement to your original unit - plug-and-play, a direct fit and easy to install, with a compact 34 by 34 mm body standing 55 mm tall.
The switch works in two positions, off and on, with two wires running through a single plug. Two keys are supplied cut to the new barrel and the mating connector is included, so the harness-side plug can be renewed at the same time if water has got into it. On working quads the ignition switch is a wear point that fails from vibration and moisture rather than mileage, and replacing the complete assembly is the reliable fix rather than trying to clean up corroded internal contacts.
Key Features
- Brand new aftermarket two position ignition key switch
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Two positions: off and on
- Two wires through a single plug
- Two keys included
- Connector included
- Compact 34 by 34 mm body
Technical Specs
| Specification |
Detail |
| Part Number |
RM05016 |
| Number of Positions |
2 (off / on) |
| Number of Wires |
2 |
| Number of Plugs |
1 |
| Keys Included |
2 |
| Height |
55 mm |
| Length |
34 mm |
| Width |
34 mm |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Kawasaki KFX 450 R |
1999-2014 |
| Kawasaki KLF 300 Bayou |
1999-2014 |
| Kawasaki KVF 300 Prairie |
1999-2014 |
| Kawasaki KVF 360 Prairie |
1999-2014 |
| Kawasaki KVF 400 Prairie |
1999-2014 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 27005-1229 |
Kawasaki |
Frequently Asked Questions
Does it need any modification to fit?
No. It is a direct replacement to your original unit - plug-and-play, direct fit, easy installation. The two wires terminate in a single plug that matches the harness side, and the 34 by 34 mm body fits the original mounting.
What is included?

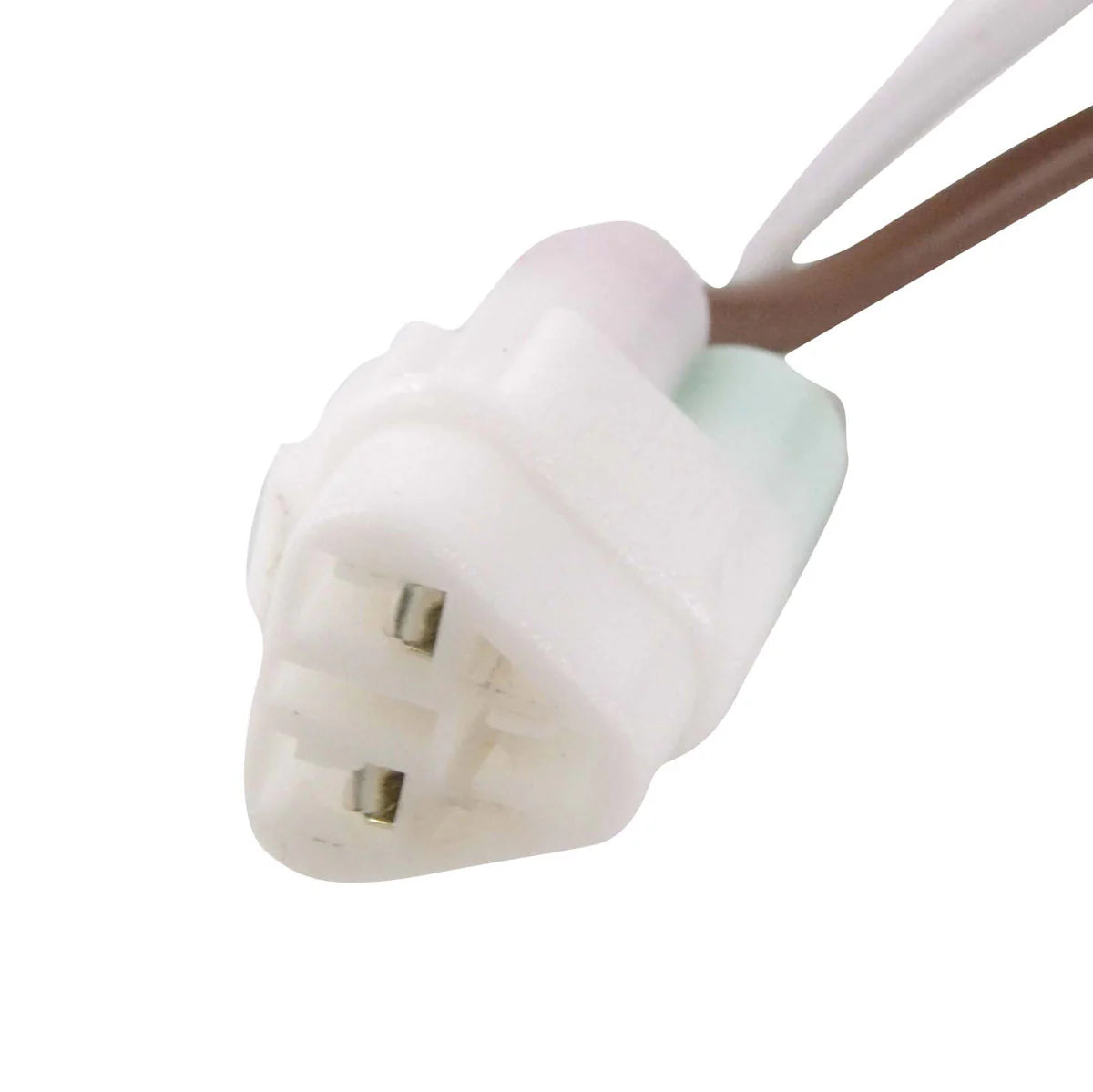

The ignition key switch, two keys and the mating connector, so both halves of the plug can be renewed if the original has corroded.
How do I tell whether the old switch has failed?
Classic symptoms are an engine that cuts out over rough ground, an ignition that only makes contact when the key is wiggled or pushed in, and a machine that is dead when the key is turned on despite a good battery. A continuity test across the two terminals in the on position confirms it - no reading, or a reading that flickers as the key is moved, means the switch is finished.
Will the supplied keys match my other locks?

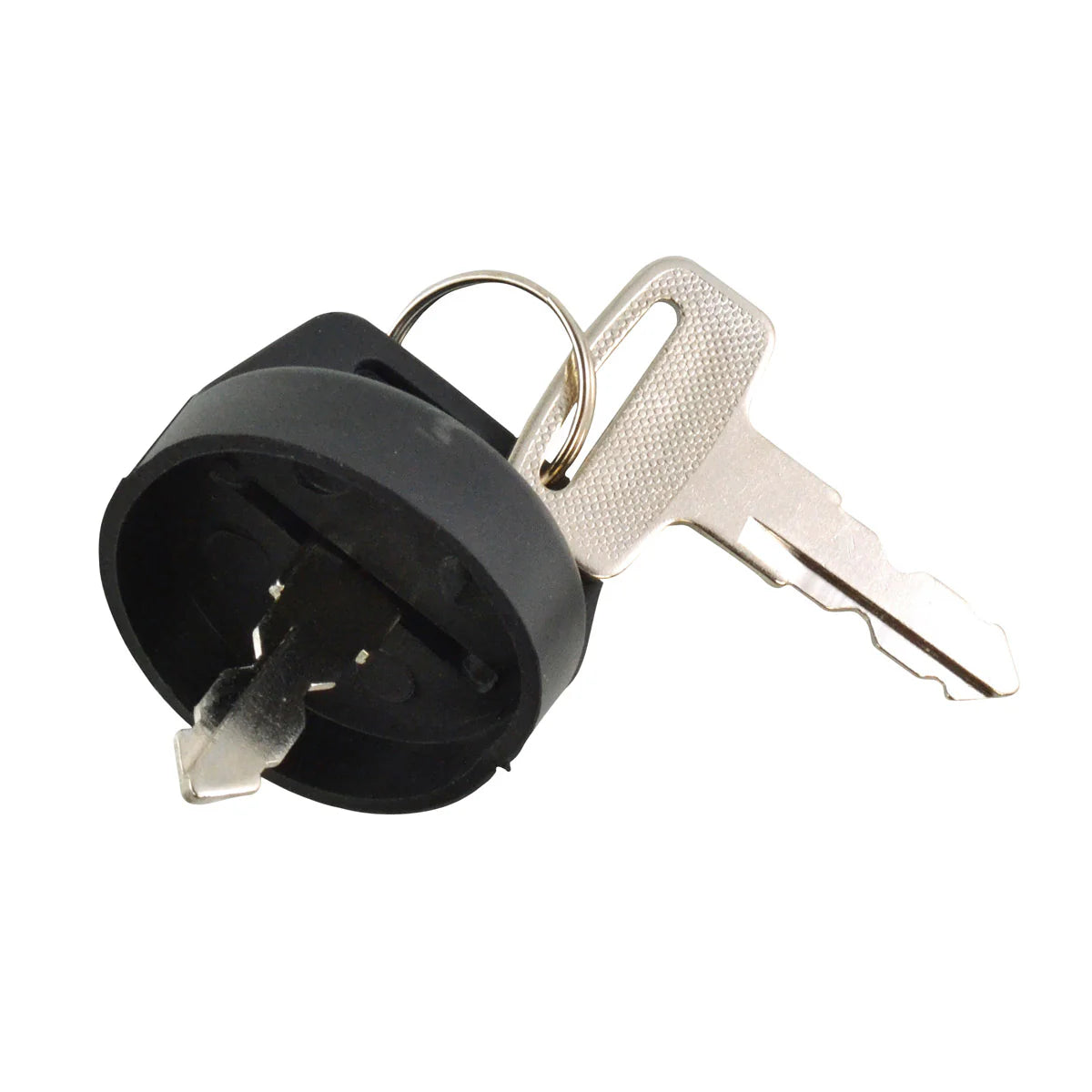

No. The two keys are cut to the new barrel, so any other lock keyed to your original ignition key will still need the old key. Keep it with the machine.
