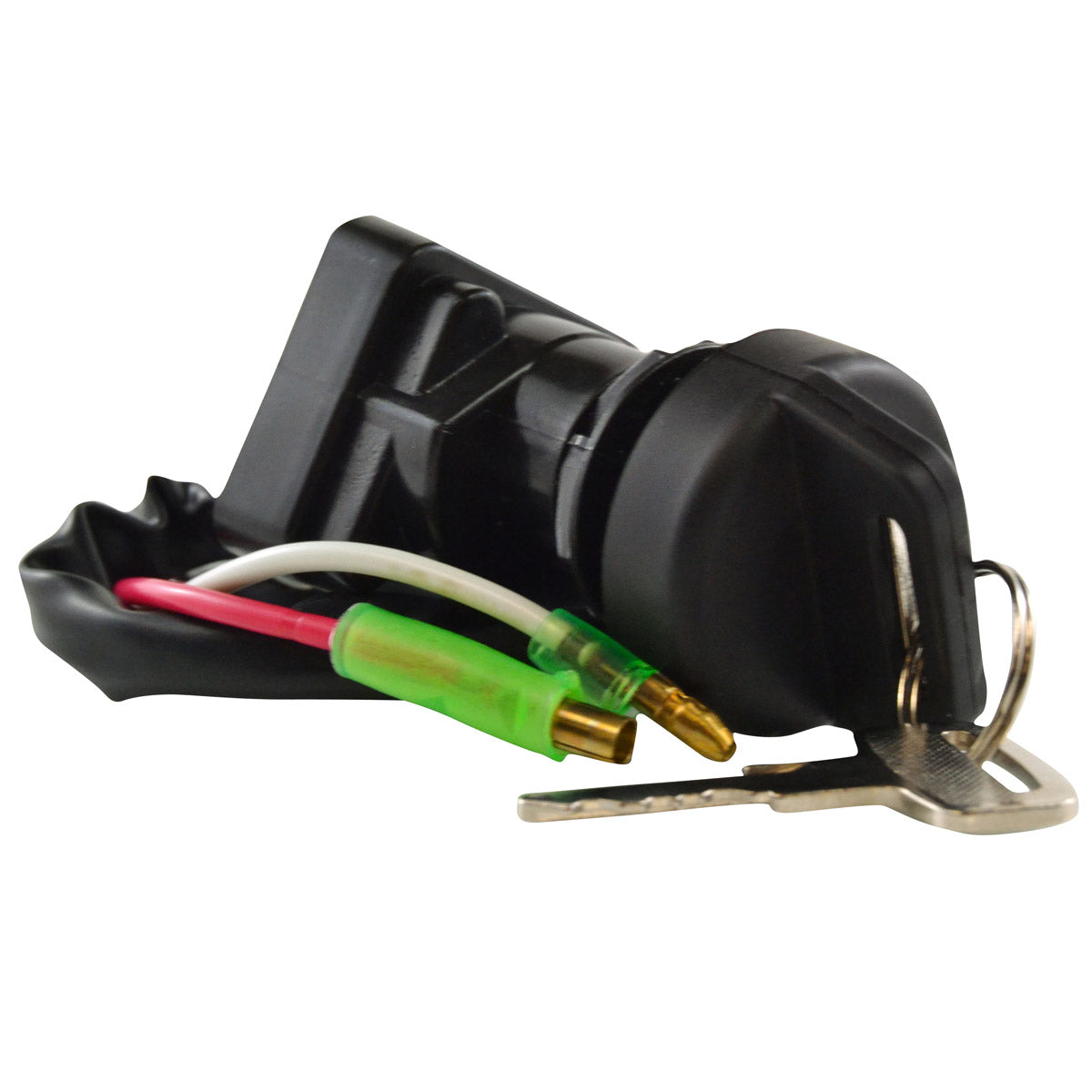

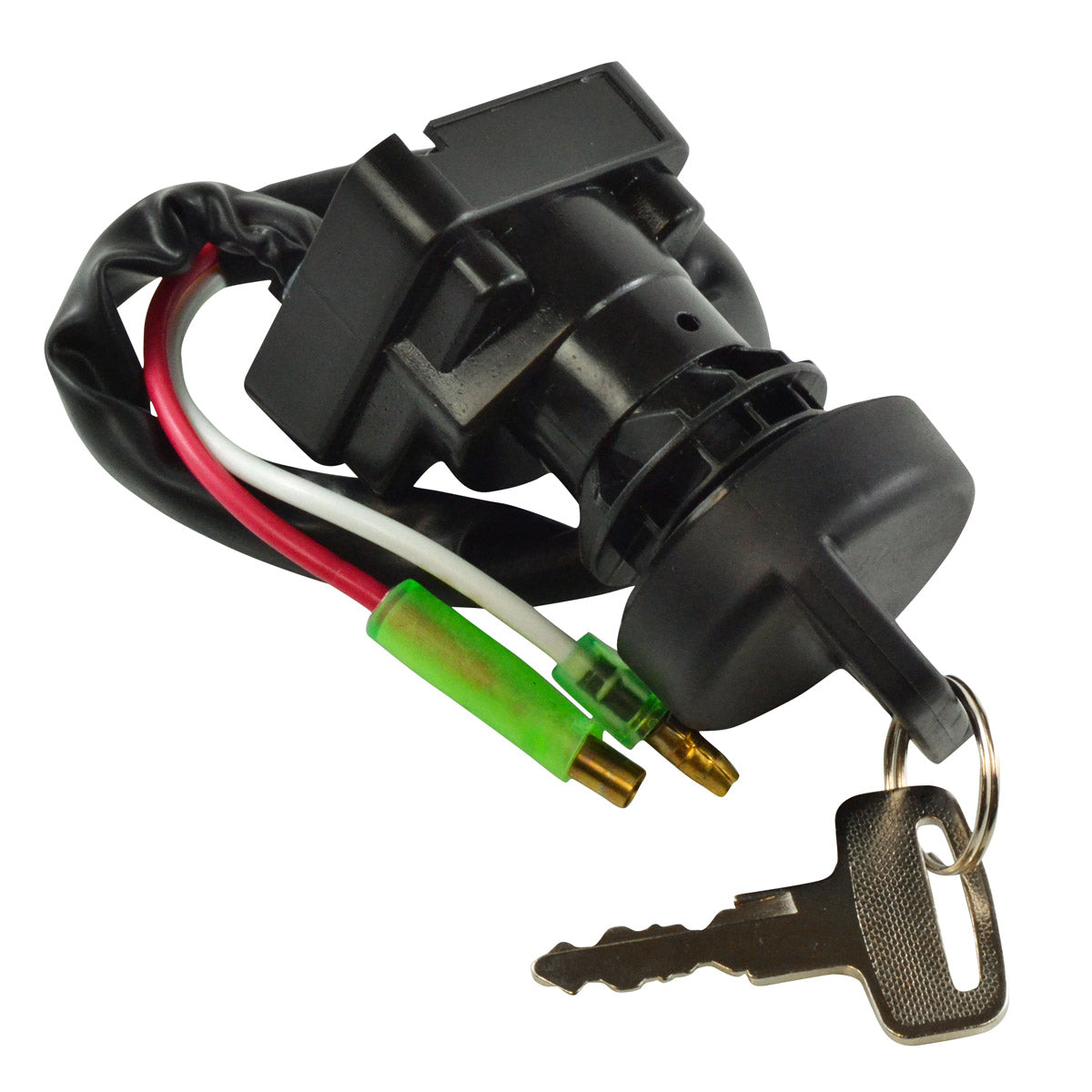

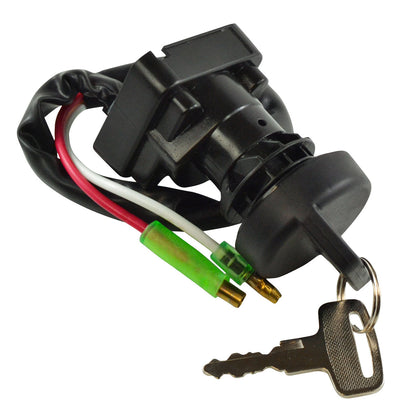

A brand new aftermarket two-position ignition key switch, supplied as a direct replacement for the original unit fitted to the Kawasaki KVF 400 Prairie and the KLF 300 and KLF 400 Bayou between 1988 and 2005. It is plug-and-play and fits directly in place of the factory switch, so no rewiring, splicing or drilling is needed. Our part number for this unit is RM05017.

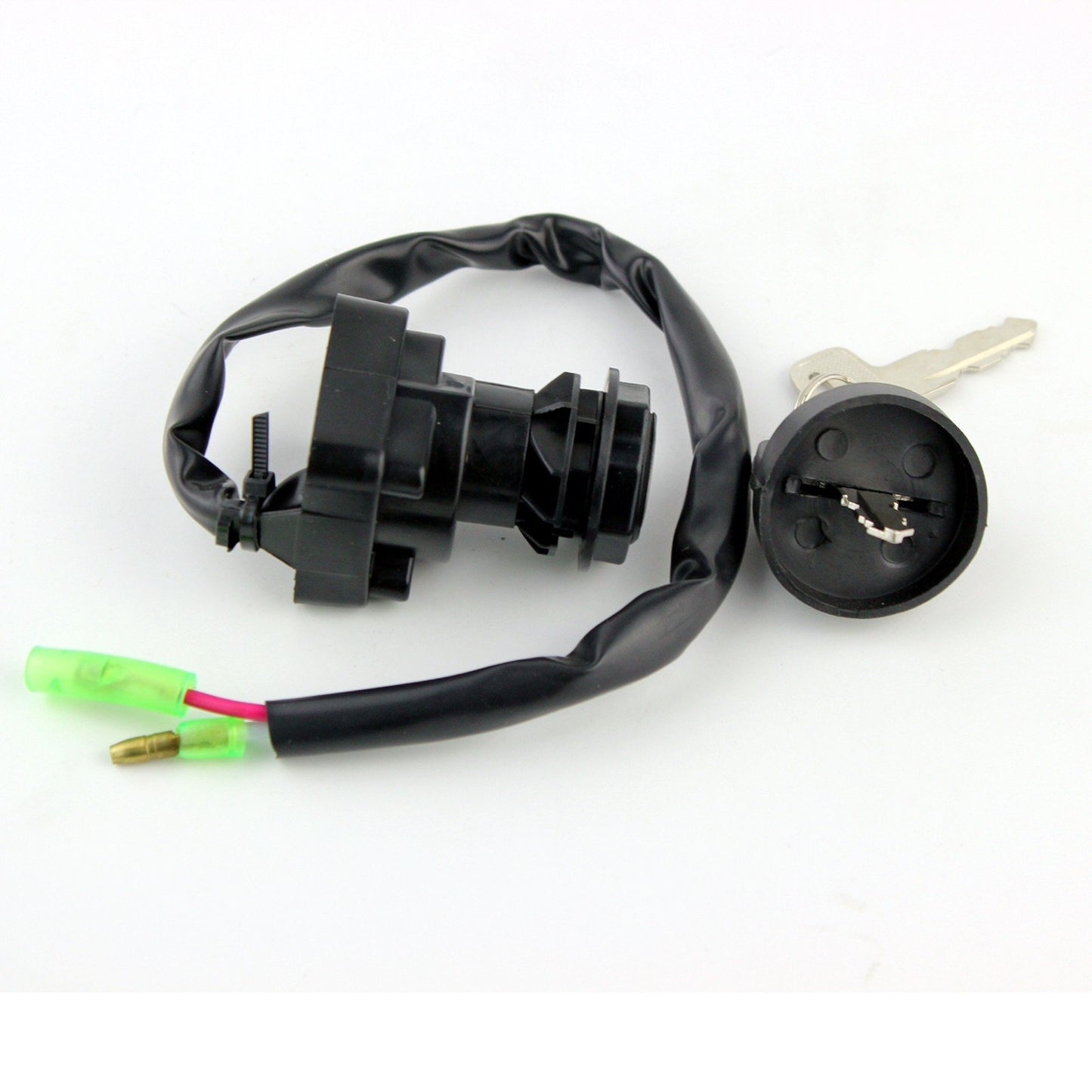

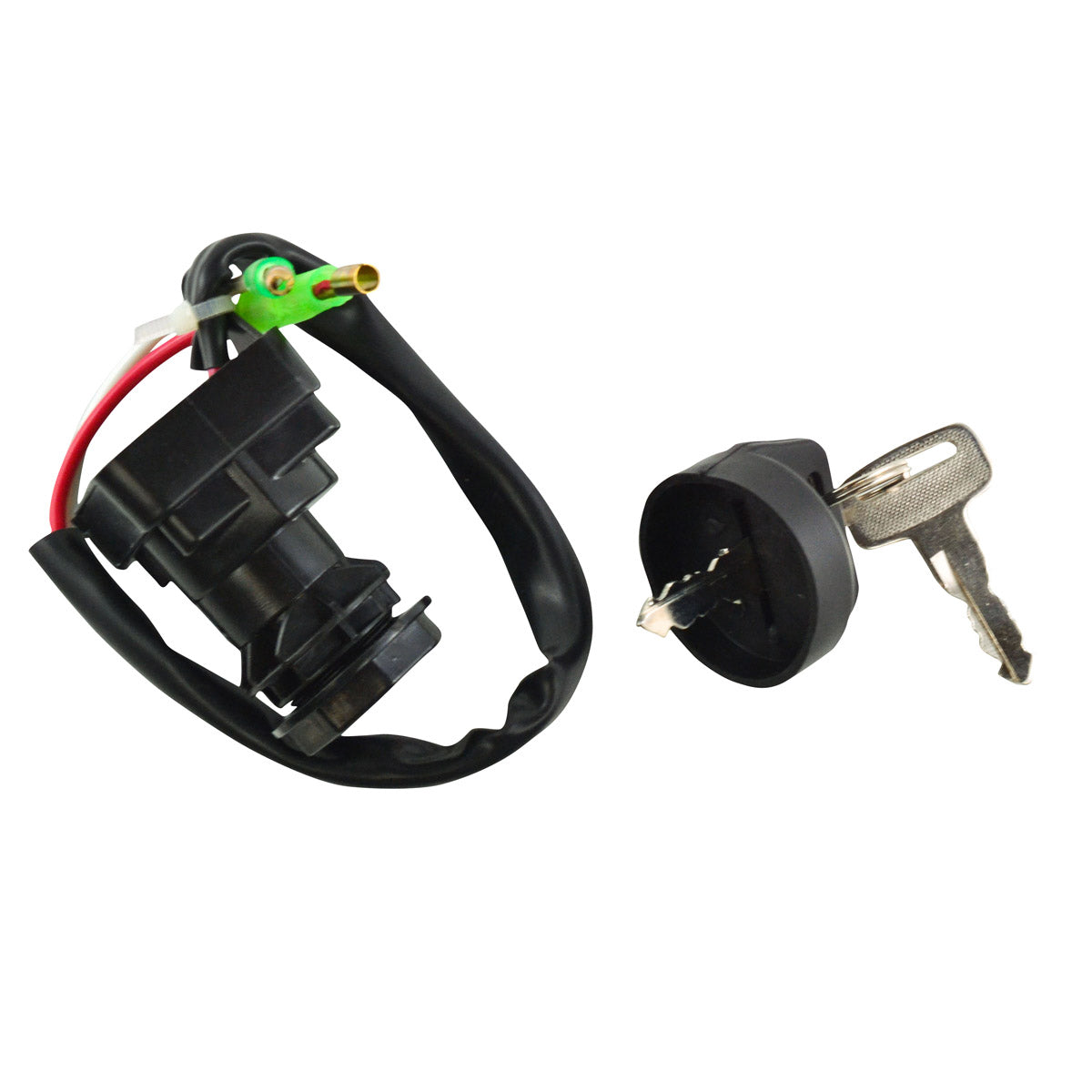

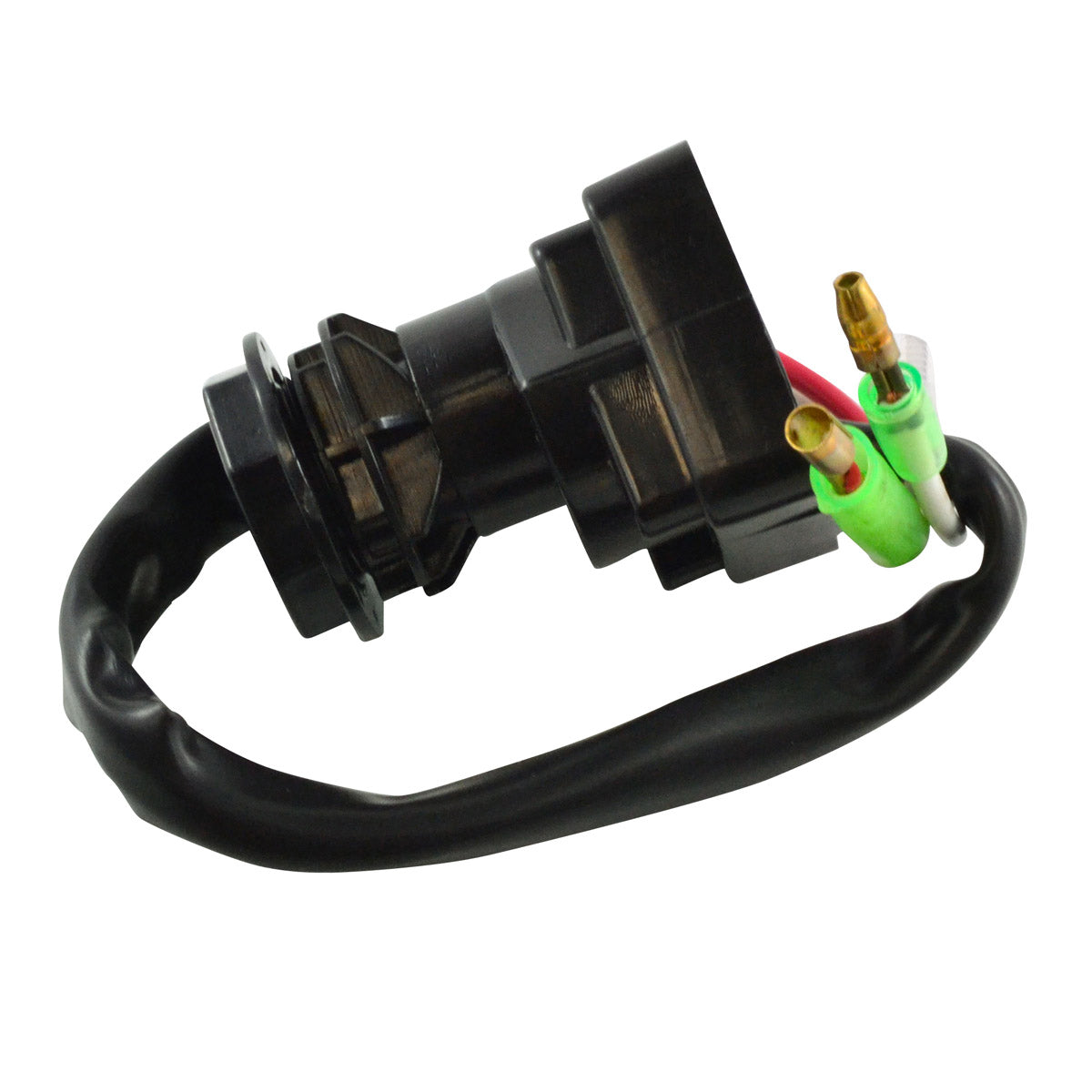

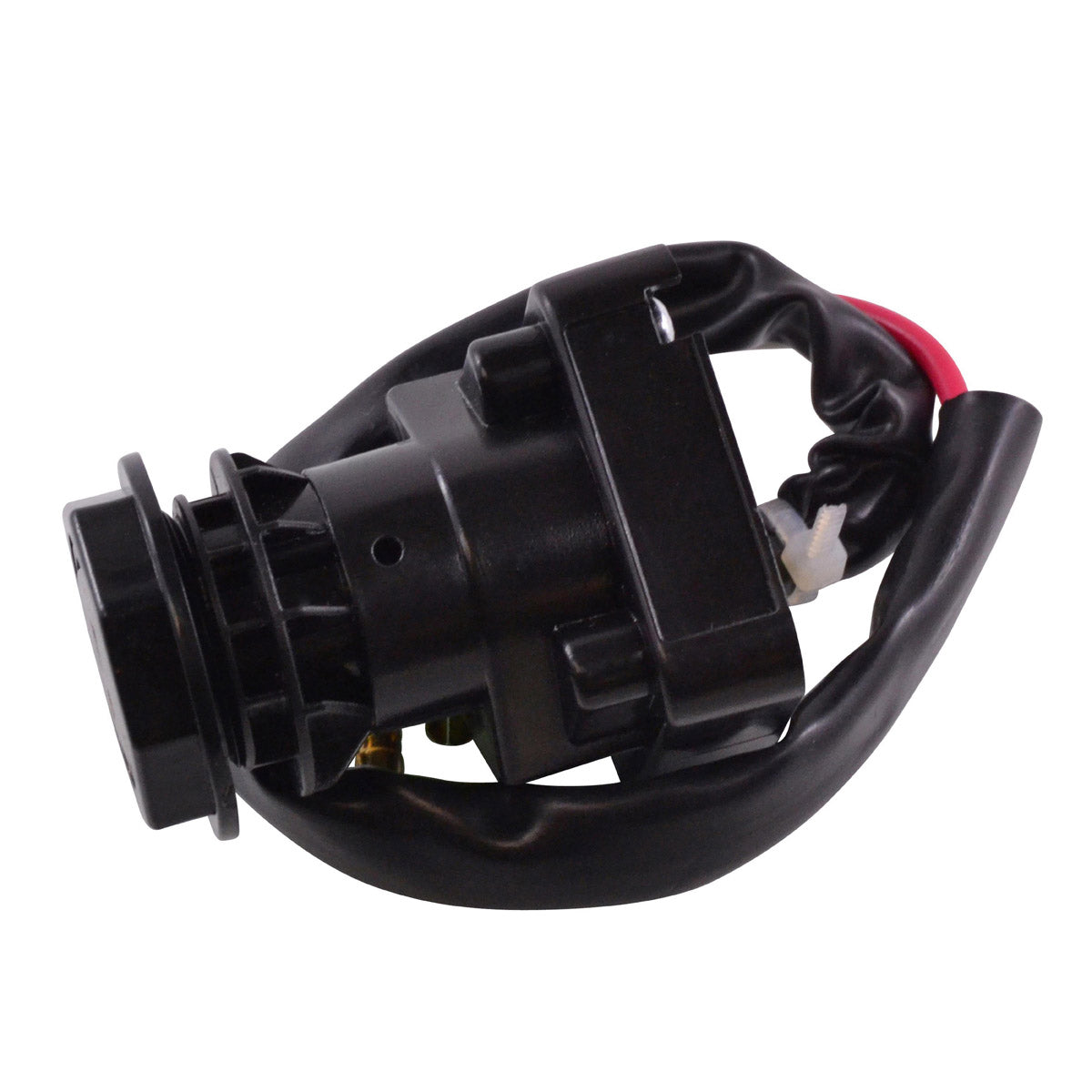

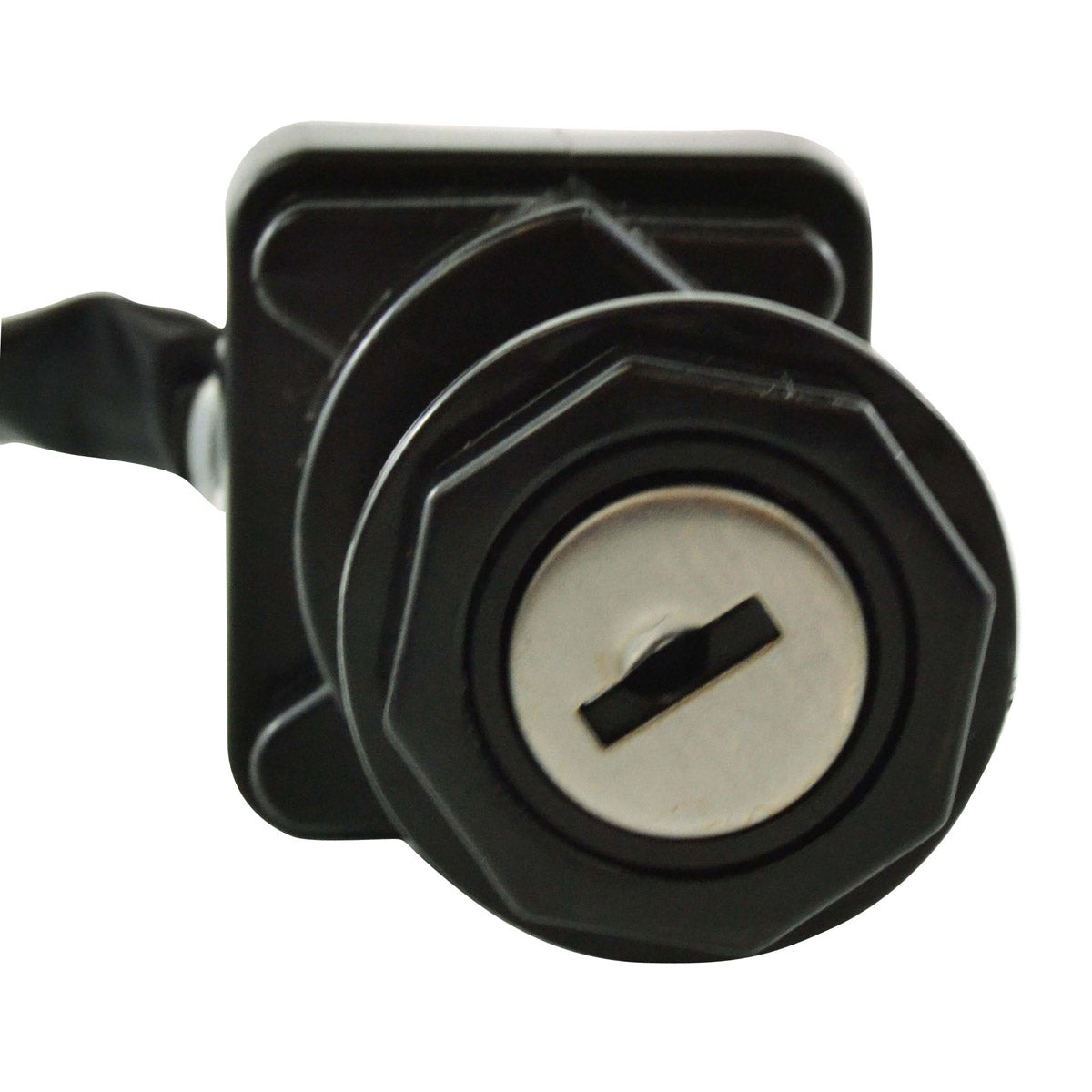

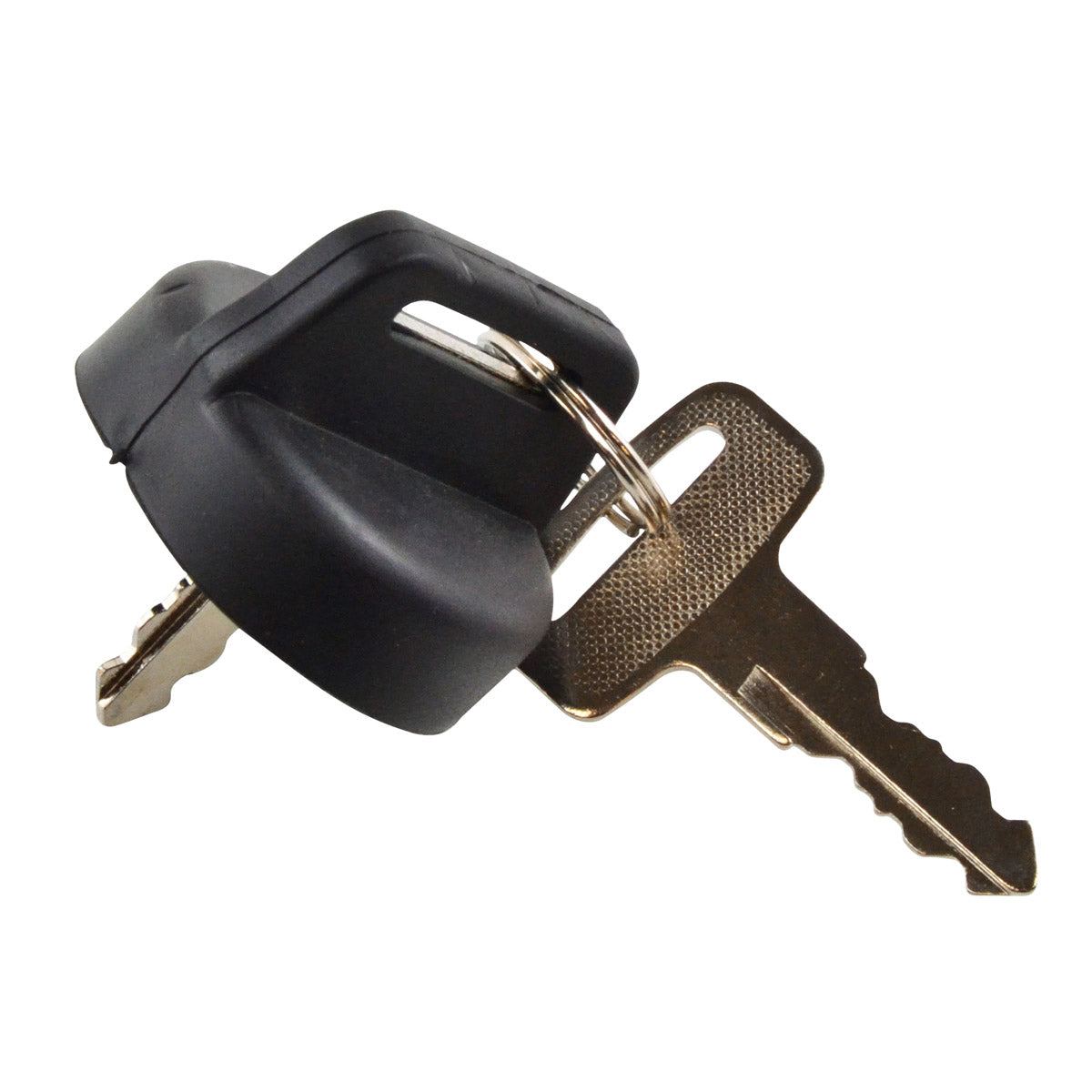

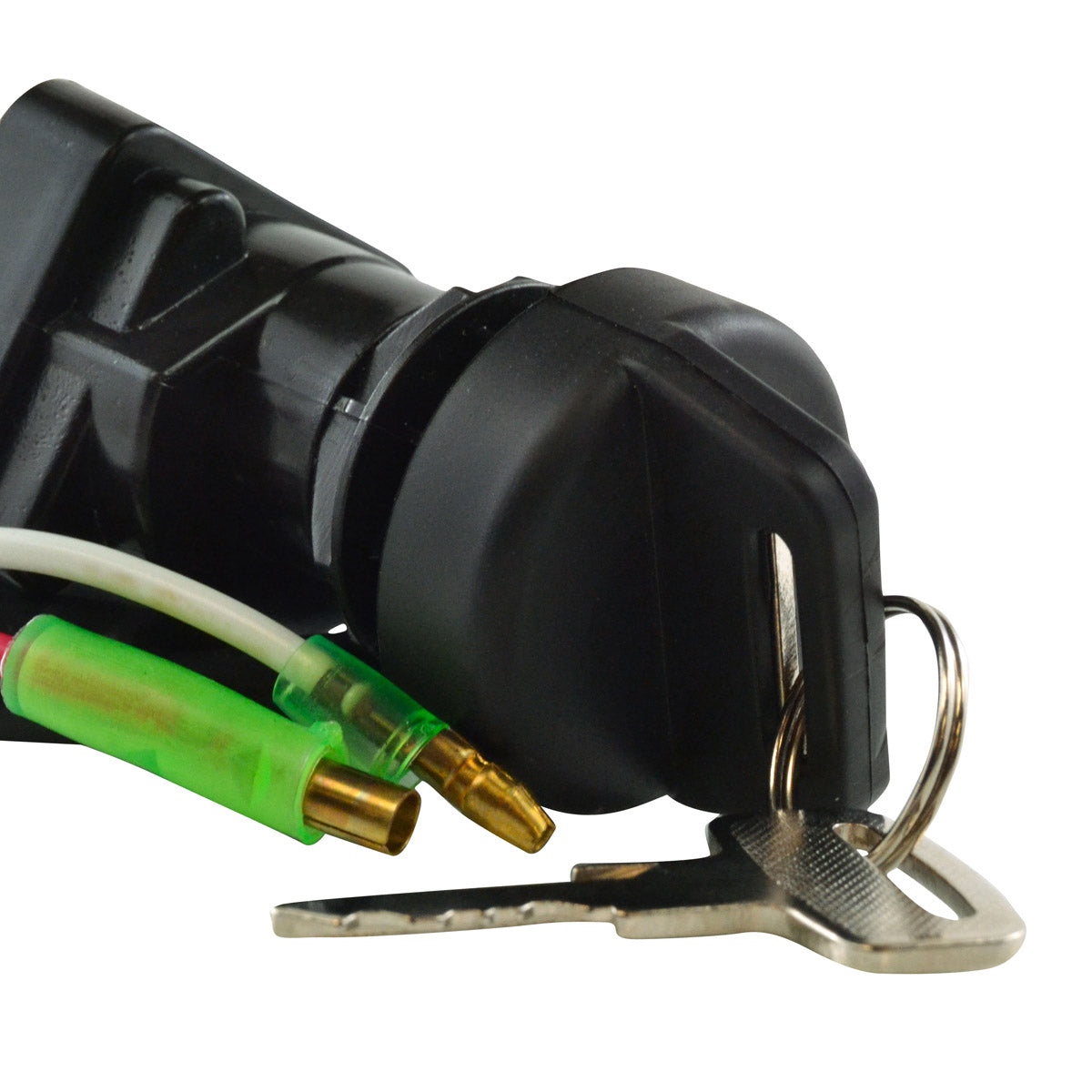

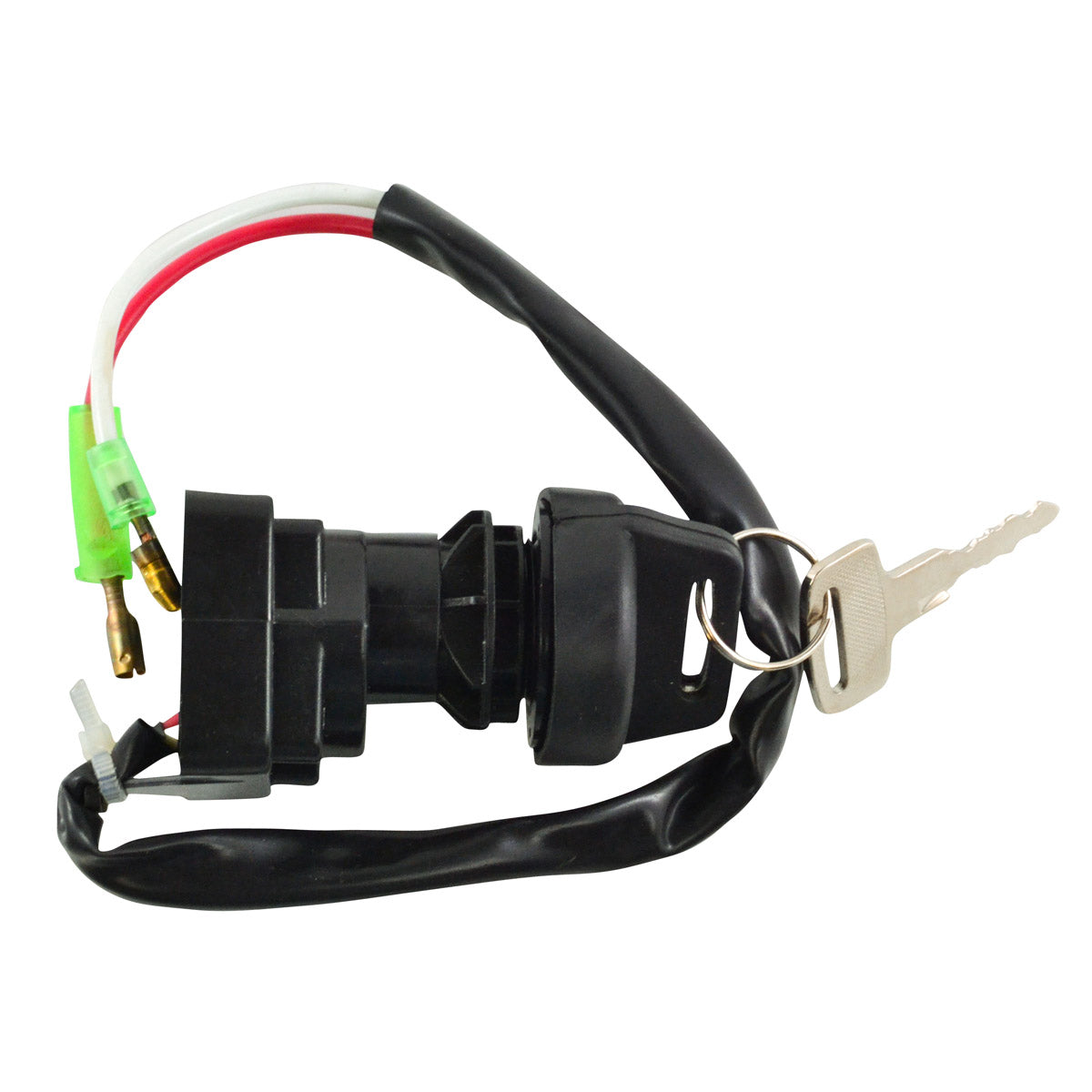

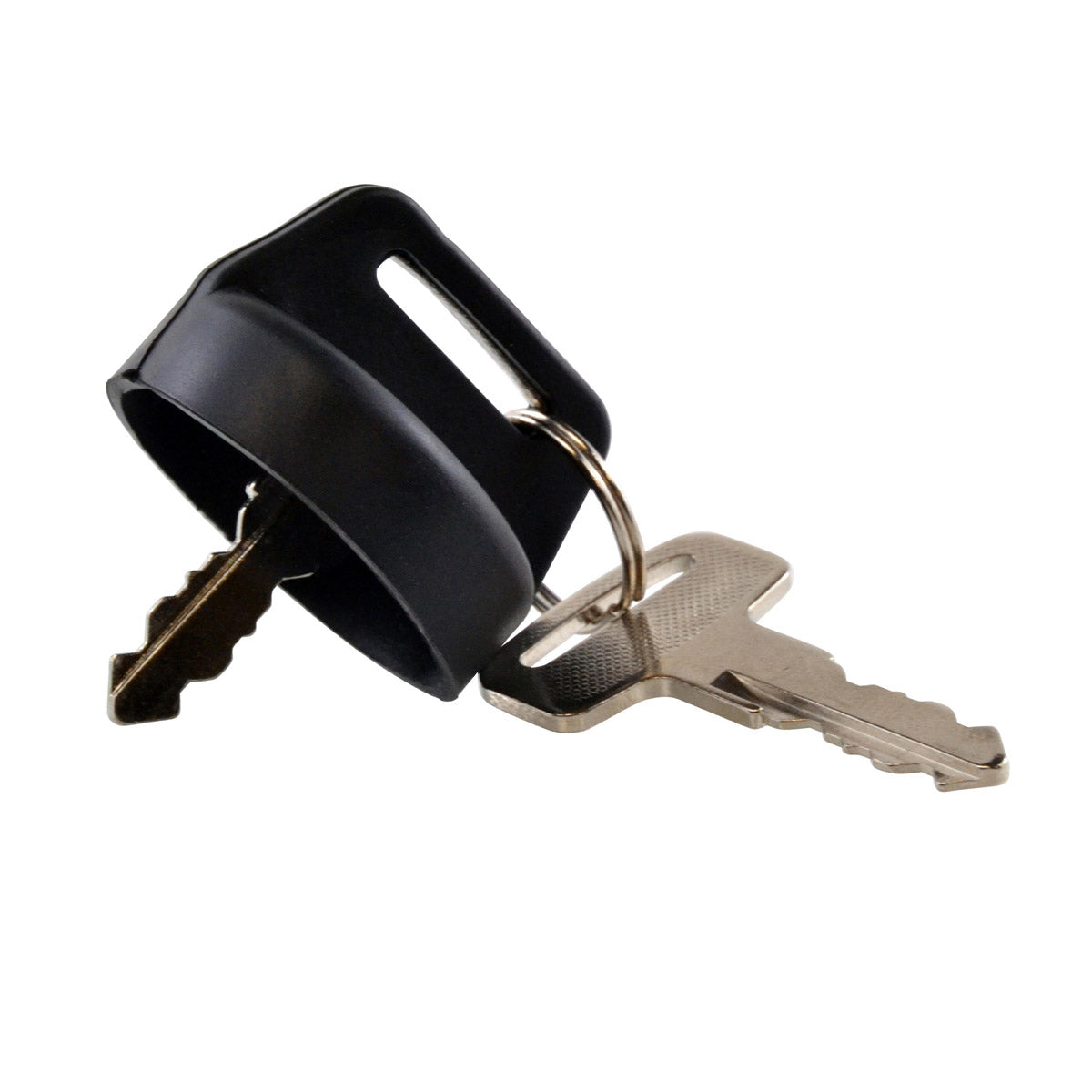

The switch body stands 45 mm tall and measures 34 mm by 35 mm, and it carries two wires through two plugs. There are two positions, off and on. Two keys and the matching connector are supplied in the box, so the switch can be fitted and the machine started without sourcing anything else. Every unit is tested before it is shipped, and all of our item photographs show the actual part - if you are in any doubt, compare them against your original switch before ordering.
Key Features
- Brand new aftermarket two-position ignition key switch
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Two positions: off and on
- Two keys included
- Connector included

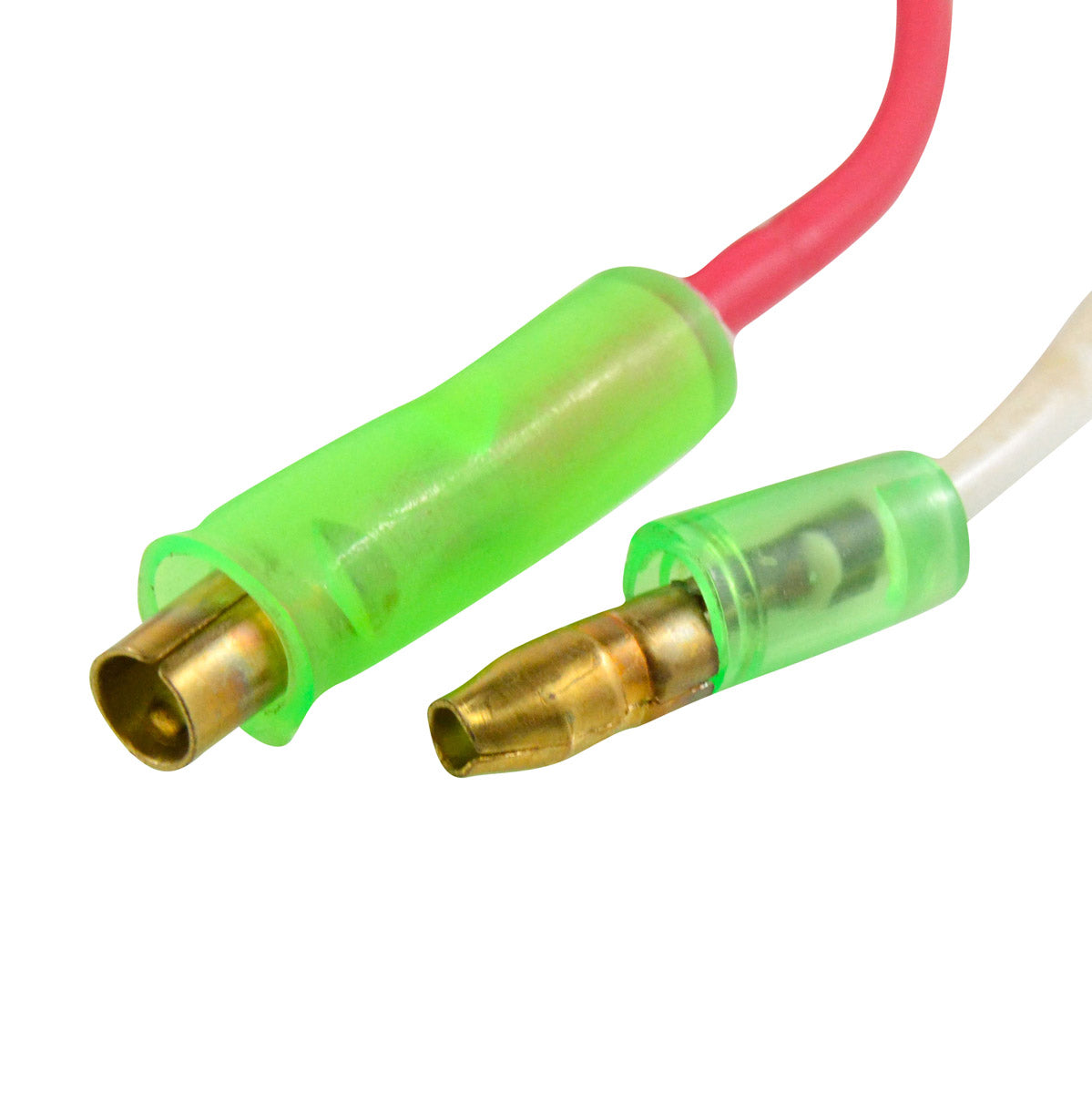

- Two wires through two plugs
- Every unit tested before dispatch
Technical Specs
| Specification |
Detail |
| Part Number |
RM05017 |
| Positions |
2 (off, on) |
| Height |
45 mm |
| Length |
34 mm |
| Width |
35 mm |
| Number of Wires |
2 |
| Number of Plugs |
2 |
| Keys Supplied |
2 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Kawasaki KVF 400 Prairie |
1988-2005 |
| Kawasaki KLF 300 Bayou |
1988-2005 |
| Kawasaki KLF 400 Bayou |
1988-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 27005-1132 |
Kawasaki |
| 27005-1159 |
Kawasaki |
| 27005-1201 |
Kawasaki |
Frequently Asked Questions
Do I need to modify anything to fit it?
No. It is a direct replacement for the original unit and is plug-and-play, using the same two-wire, two-plug arrangement as the factory switch. No cutting, splicing or drilling is required on the models listed above.
What is included?
The ignition key switch, two keys and the matching connector.
How do I tell whether my old switch has failed?
The usual signs are a machine that is completely dead with the key turned on, power that cuts in and out as the key or the harness is moved, a barrel that turns without a definite click between off and on, and corroded or discoloured terminals inside the switch plug. Testing continuity across the two switch wires in the off and on positions will confirm whether the switch is still making the circuit.
Which OEM part numbers does it replace?
Kawasaki 27005-1132, 27005-1159 and 27005-1201. Check the number stamped or labelled on your original unit against this list before ordering.
