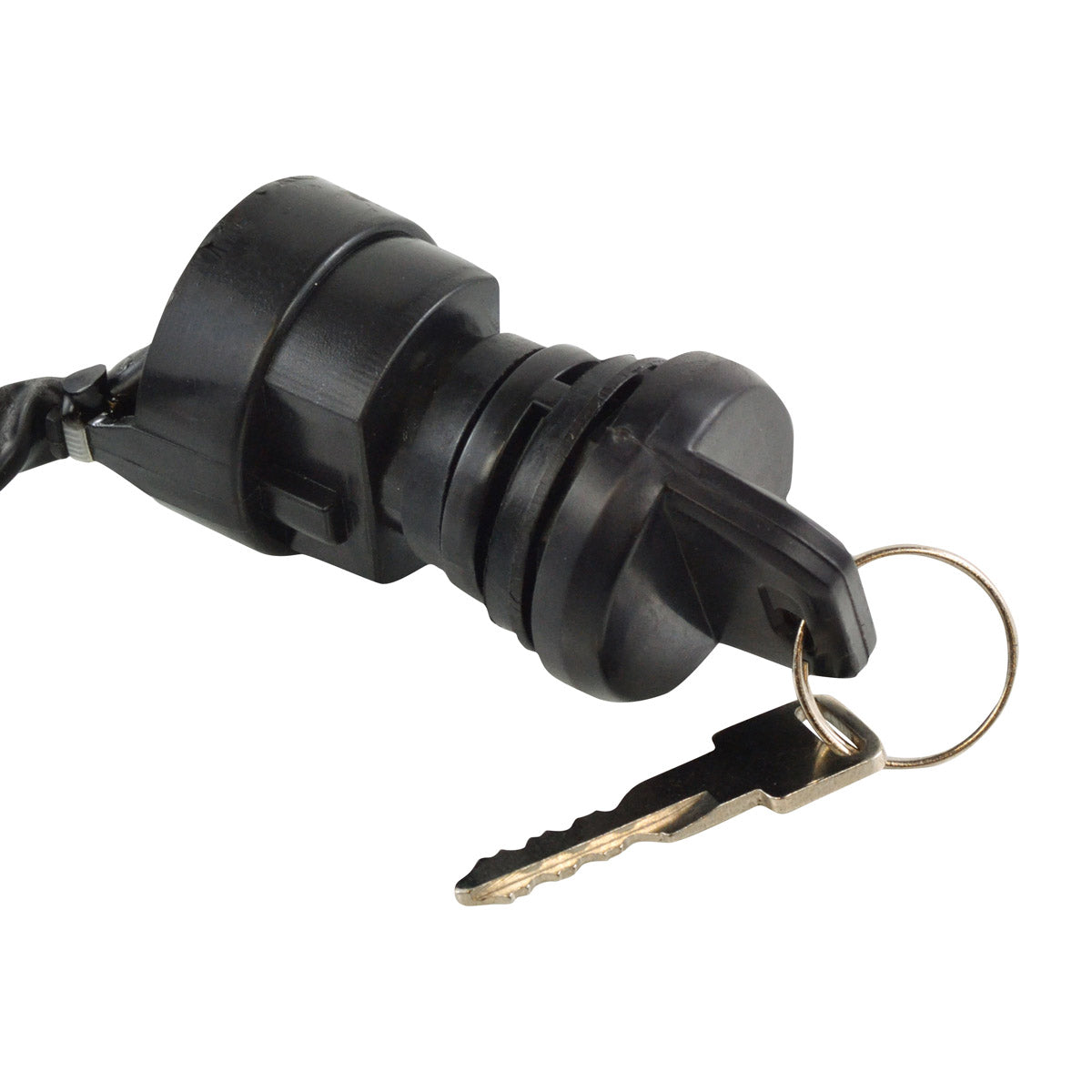

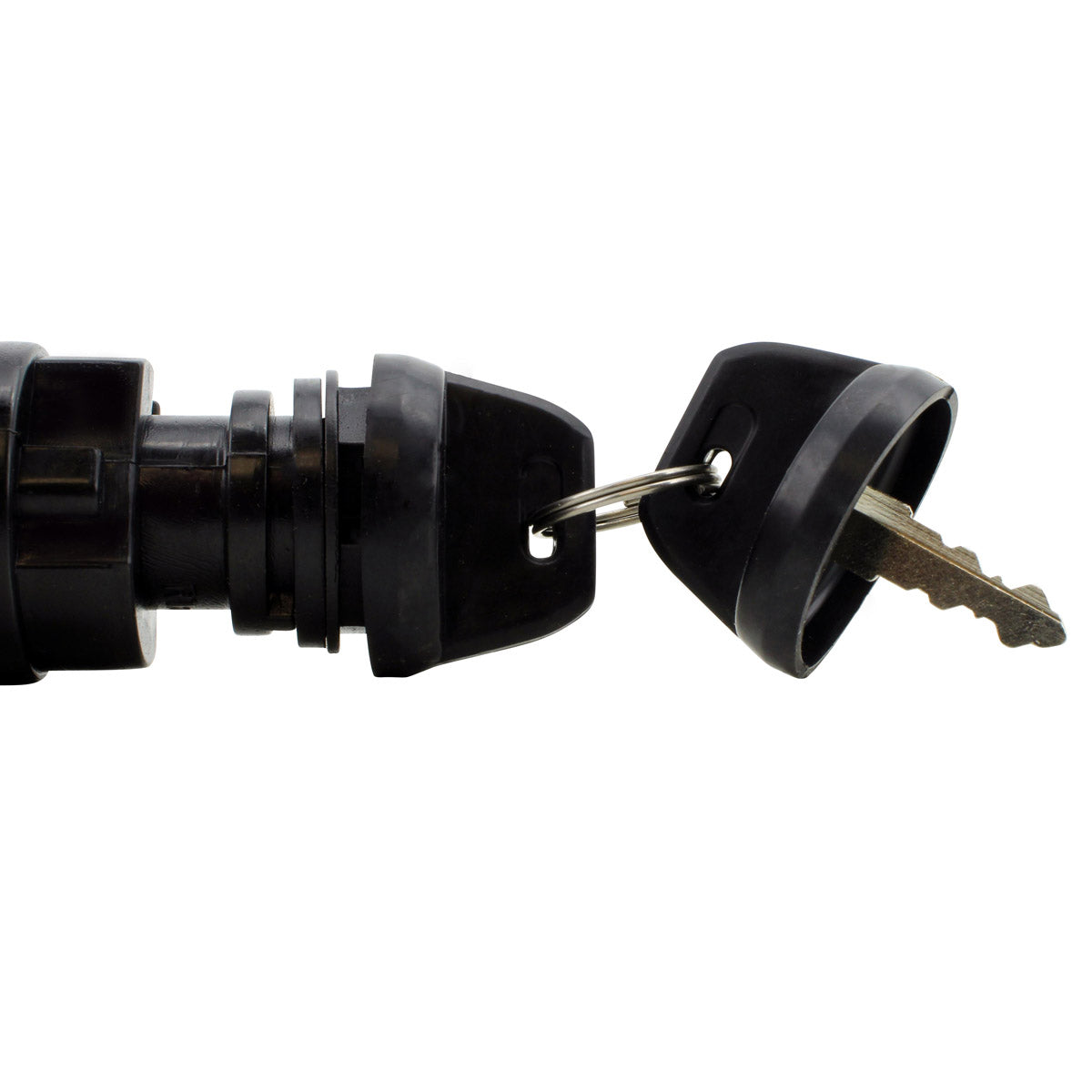

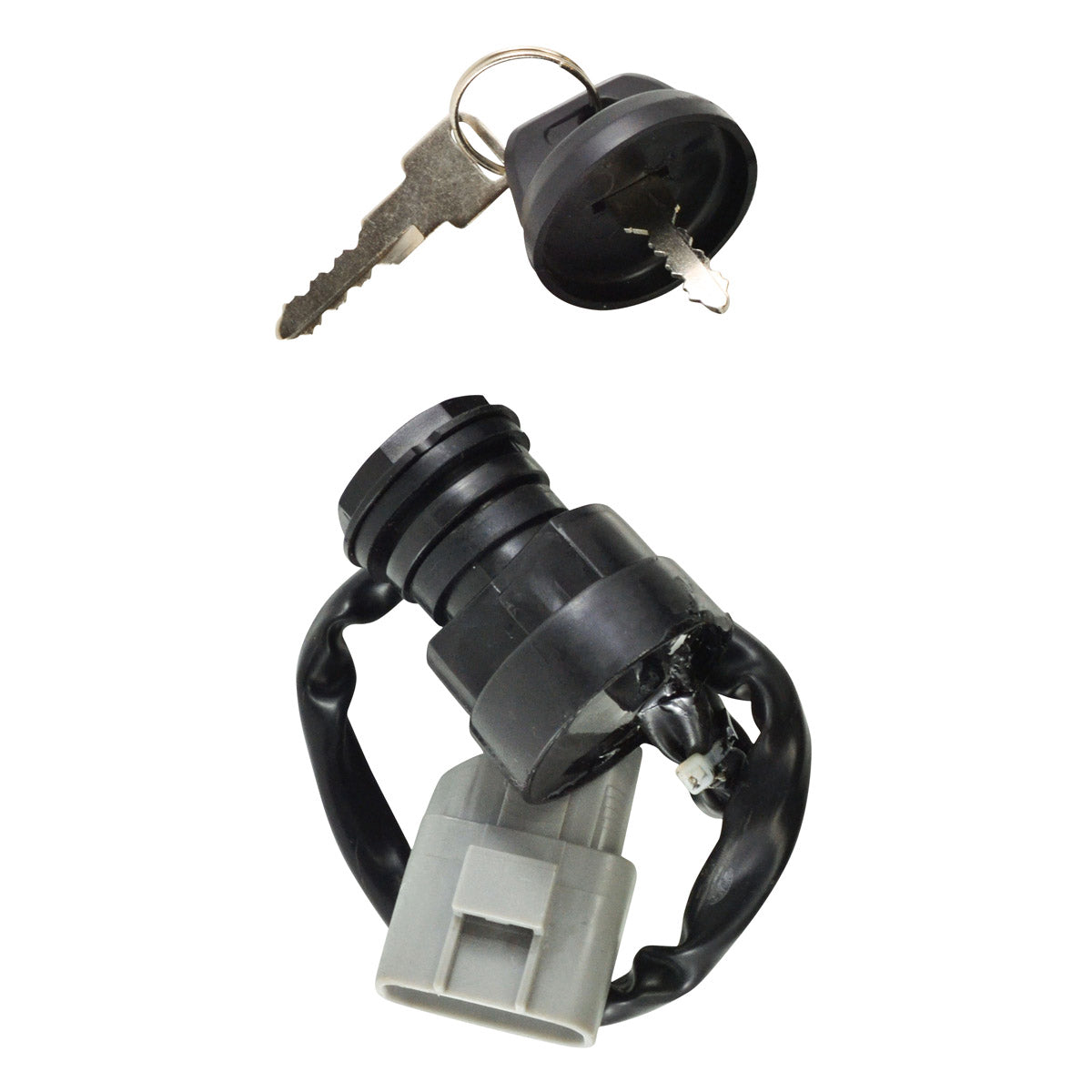

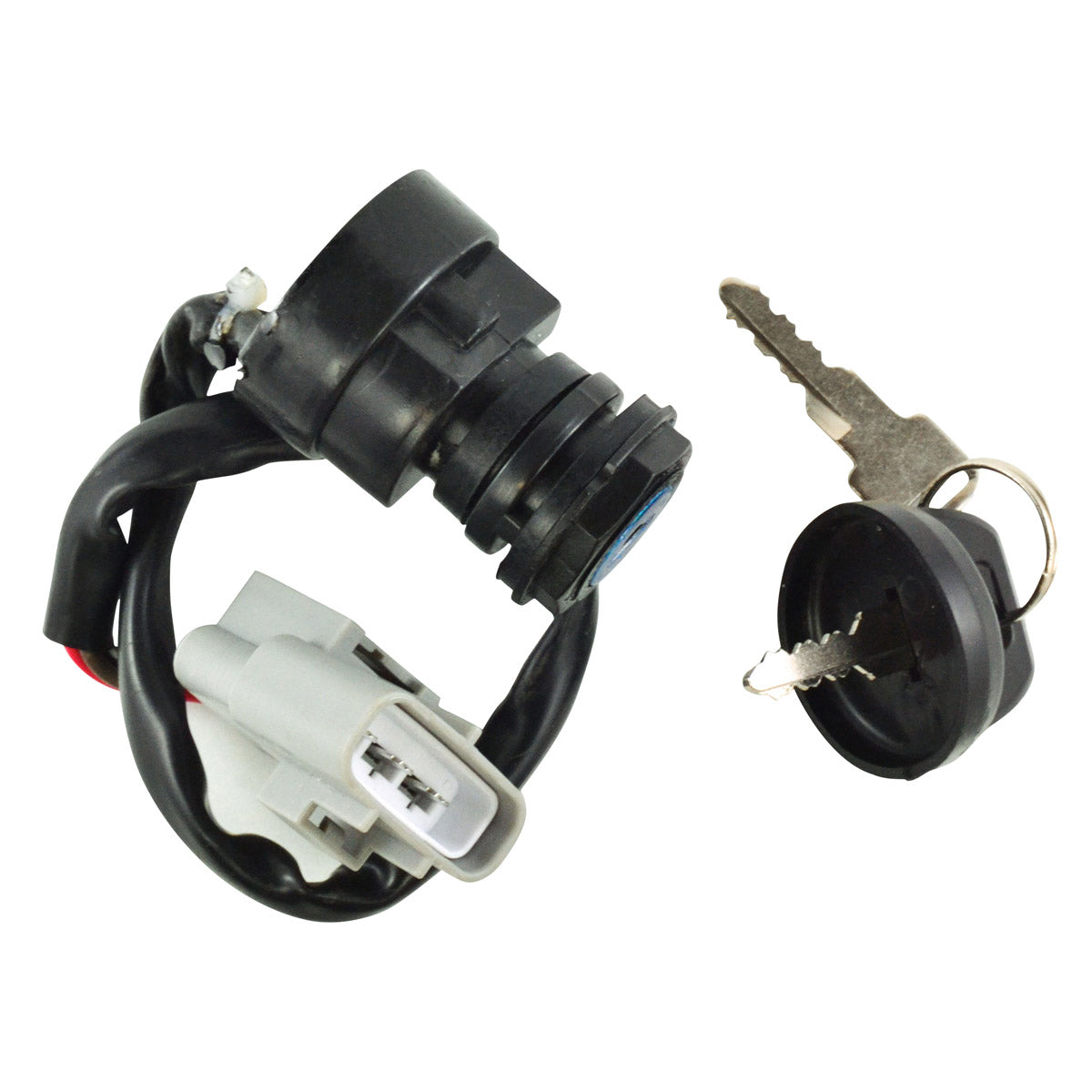

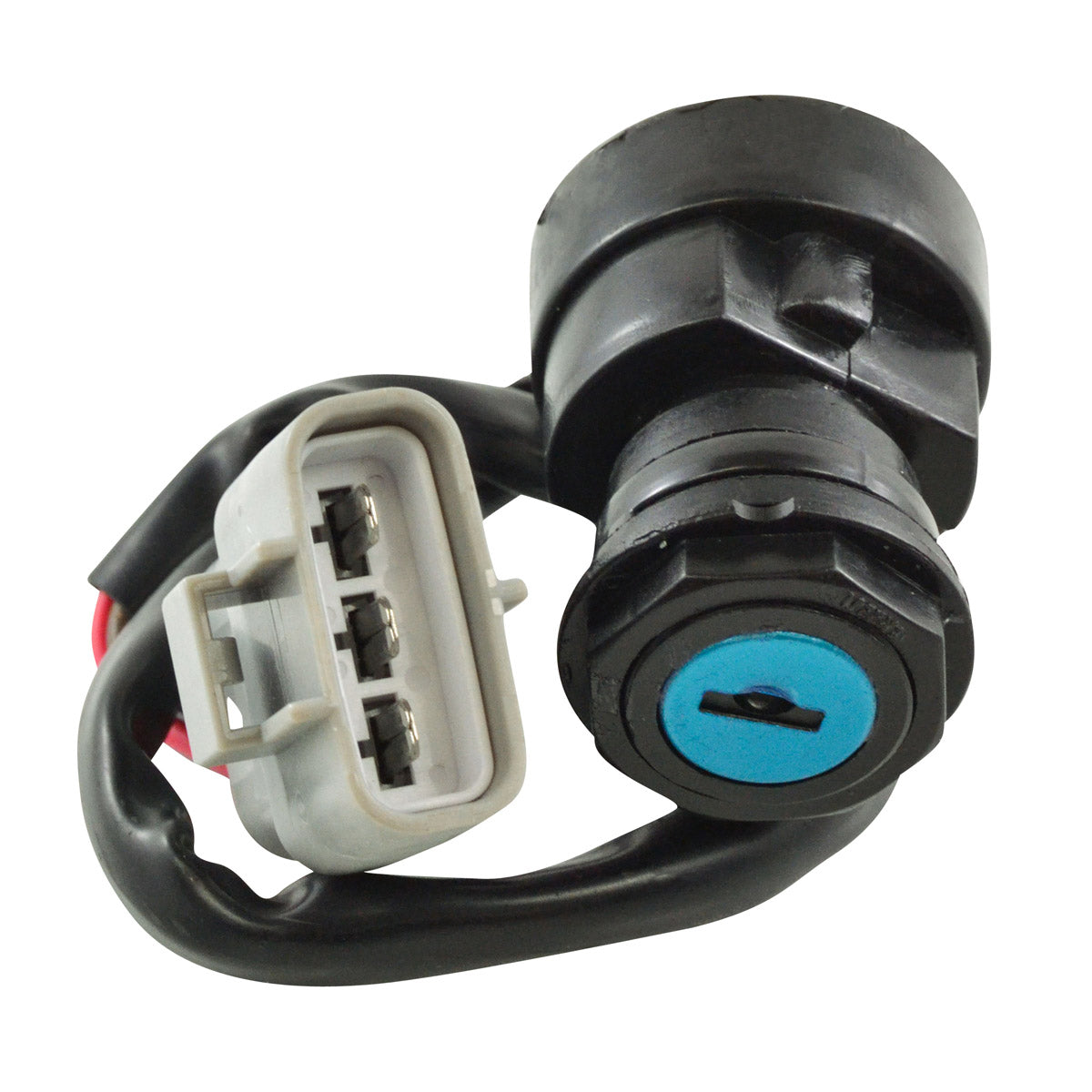

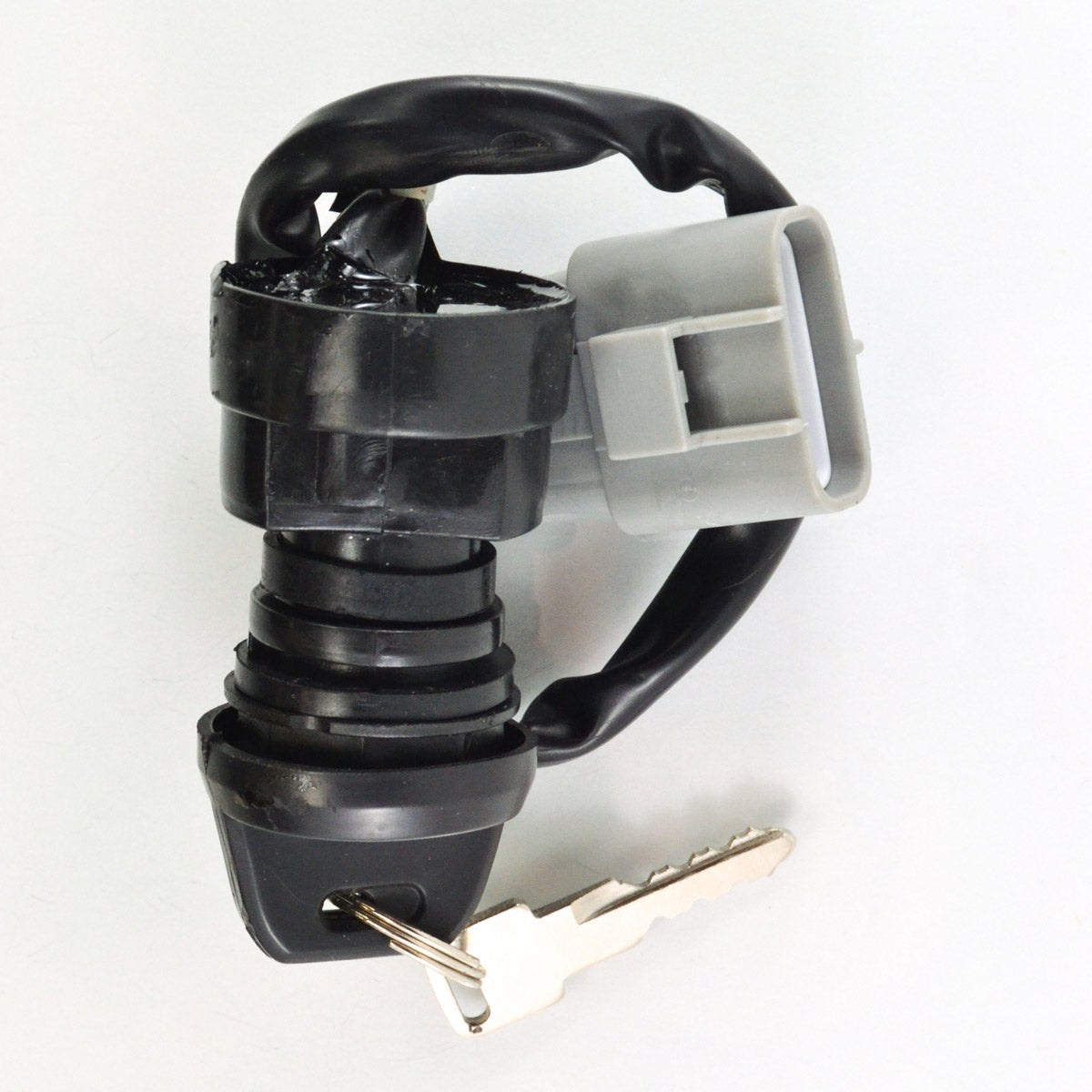

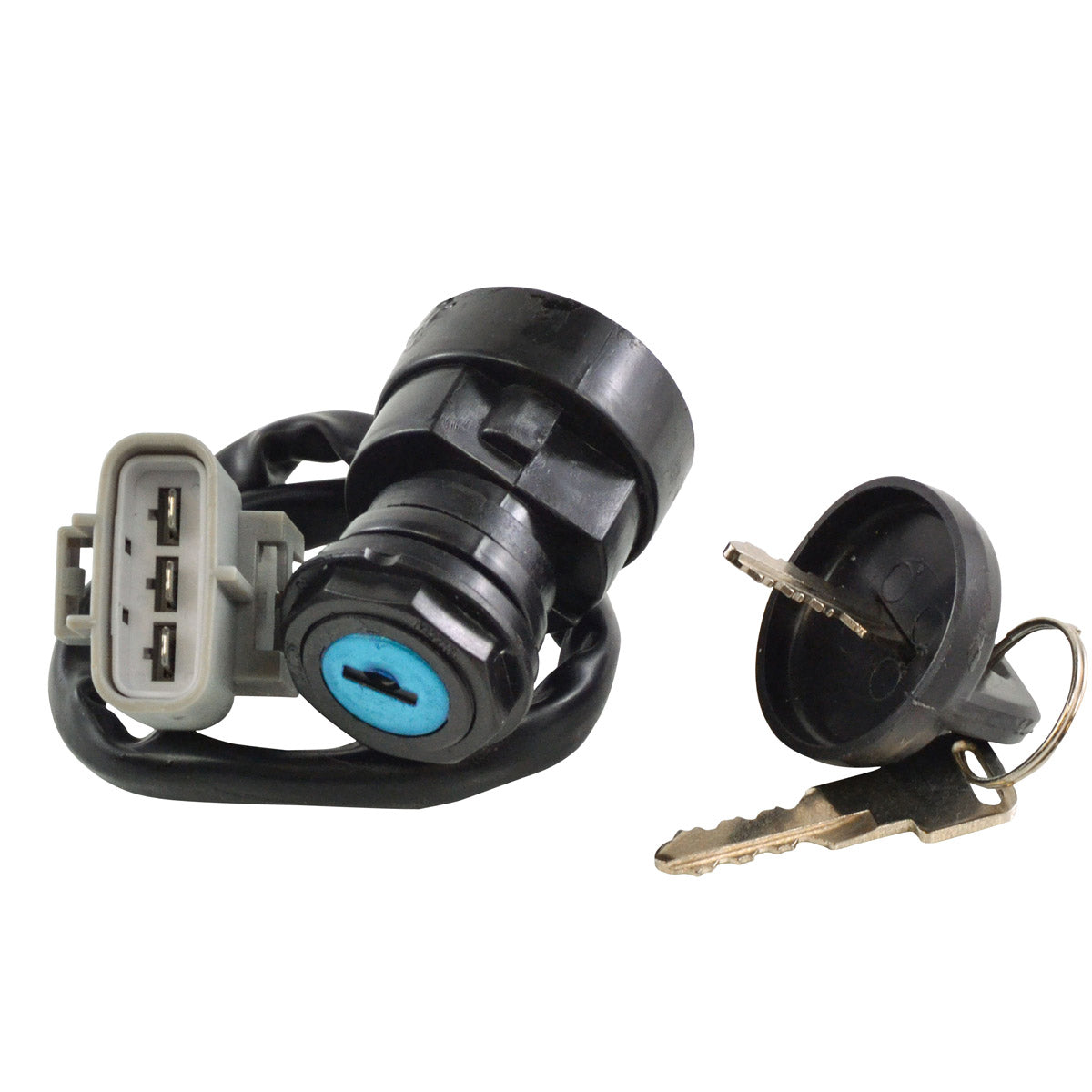

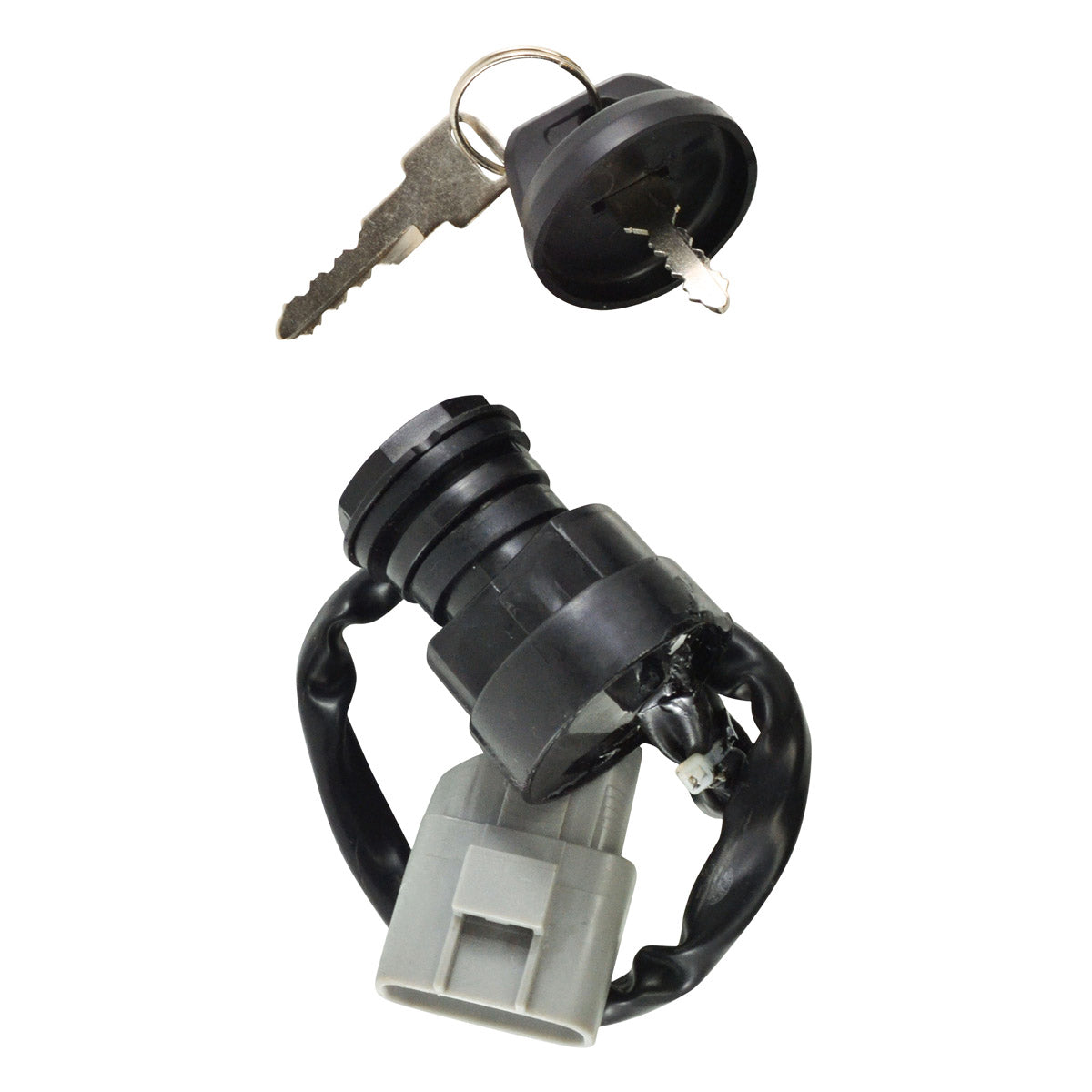

This is a brand new aftermarket two position ignition key switch from RMSTATOR, part number RM05012, built as a direct replacement for the original unit used across a wide span of Yamaha utility quads - the Big Bear 400, the Grizzly range from 350 to 700, and the Kodiak range from 400 to 700, covering 2002 to 2025. Yamaha carried this switch through several part number revisions over that period, and RM05012 supersedes all eight of them, so it fits whichever version came off your machine. Installation is plug-and-play and a direct fit.

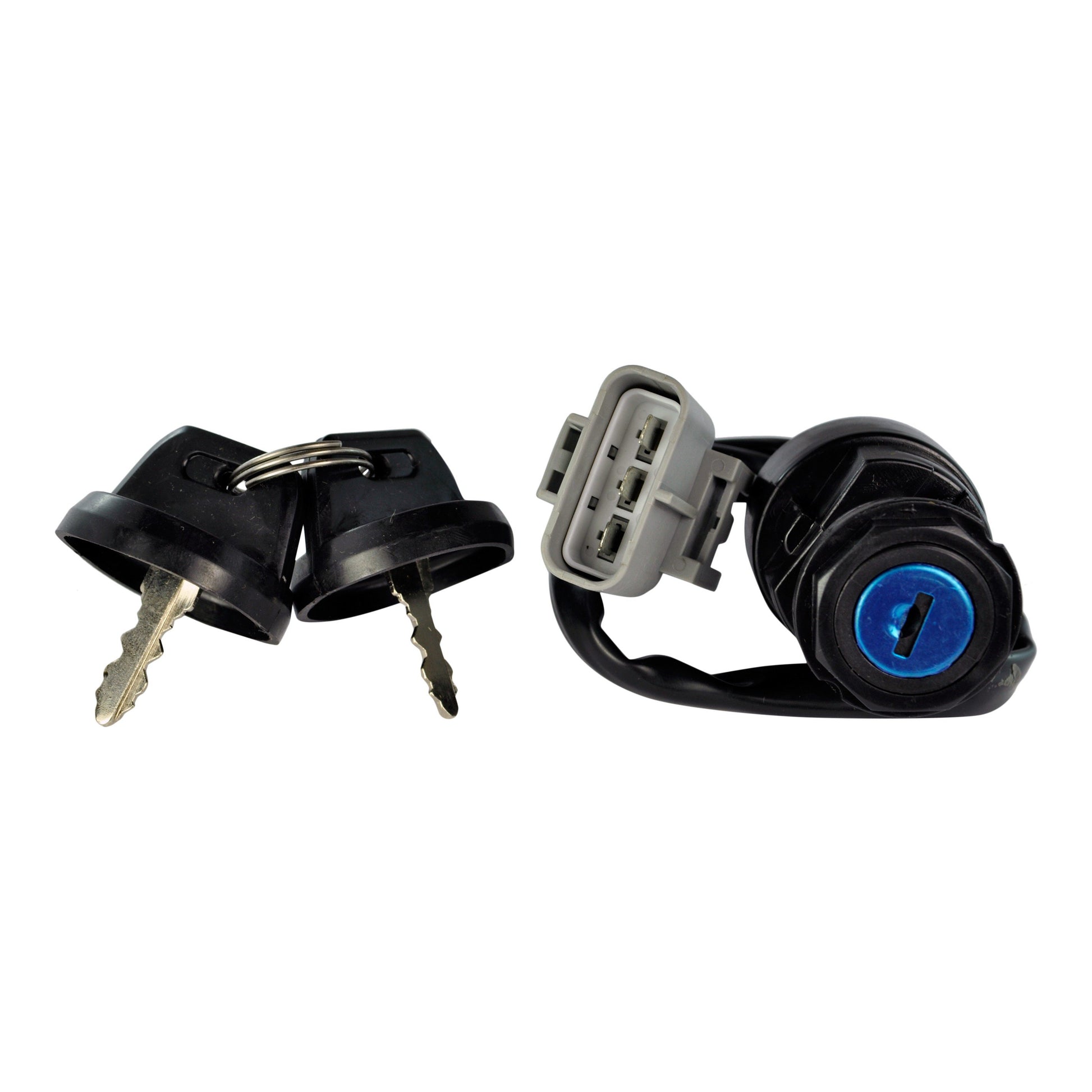

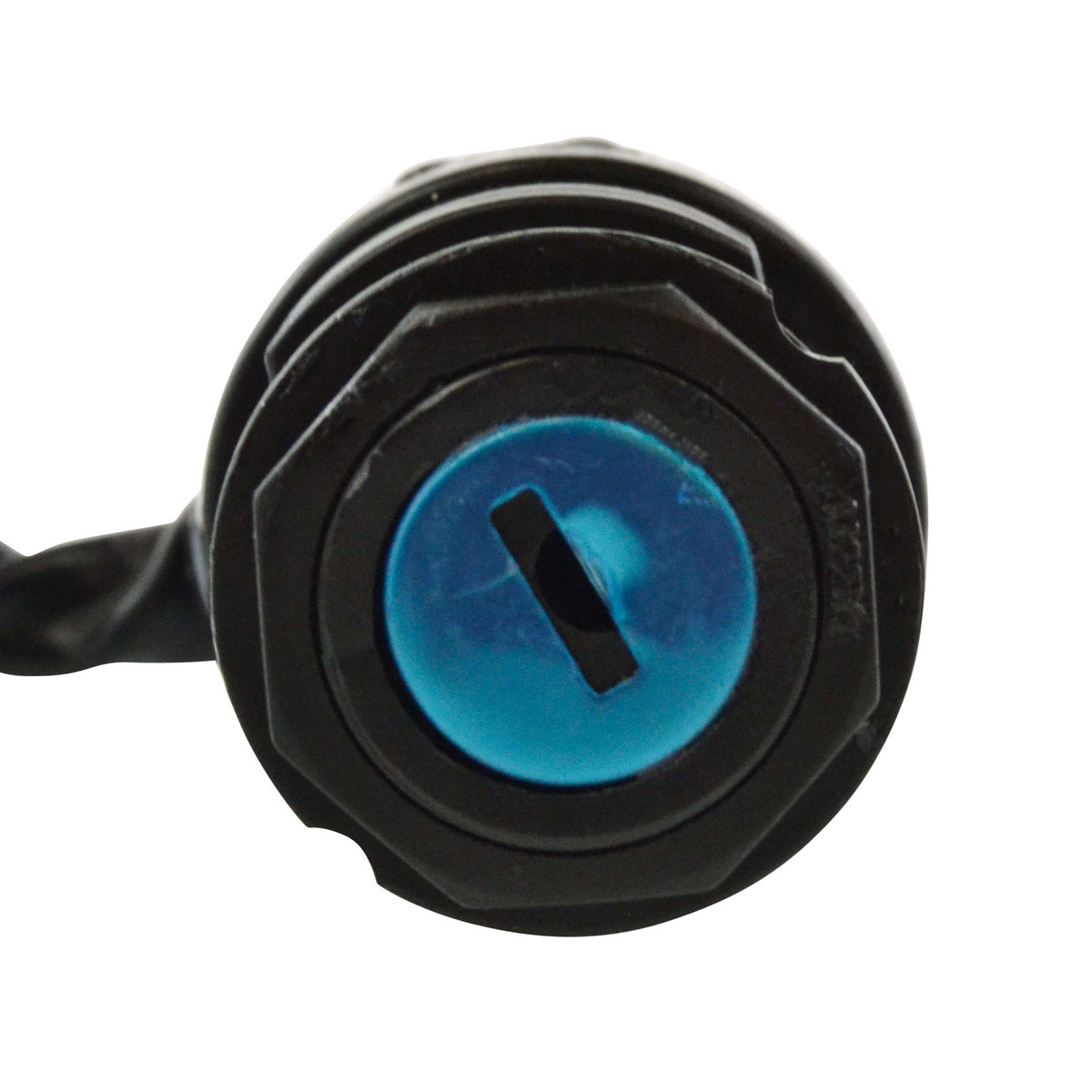

The ignition key switch is the gate between the battery and the ignition and accessory circuits. On a working utility quad it lives a hard life - jet washing, deep mud, river crossings and years of vibration force moisture and grit past the barrel until the internal contacts pit and corrode. When that happens the machine starts to behave unpredictably: it cuts out over rough ground and comes back when the key is nudged, the dash flickers or stays dead in the On position, or the barrel turns stiffly, feels loose, or will not turn at all. Because the switch is a sealed unit it cannot be serviced, so replacement is the fix. Two keys and the connector are supplied with this switch, and every unit is tested before it ships.
Key Features
- Brand new aftermarket two position ignition key switch
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Two positions - Off and On
- Two keys included
- Connector included
- Supersedes eight Yamaha part numbers
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RM05012 |
| Component |
Ignition key switch |
| Number of wires |
3 |
| Number of plugs |
1 |
| Number of keys |
2 |
| Number of positions |
2 (Off / On) |

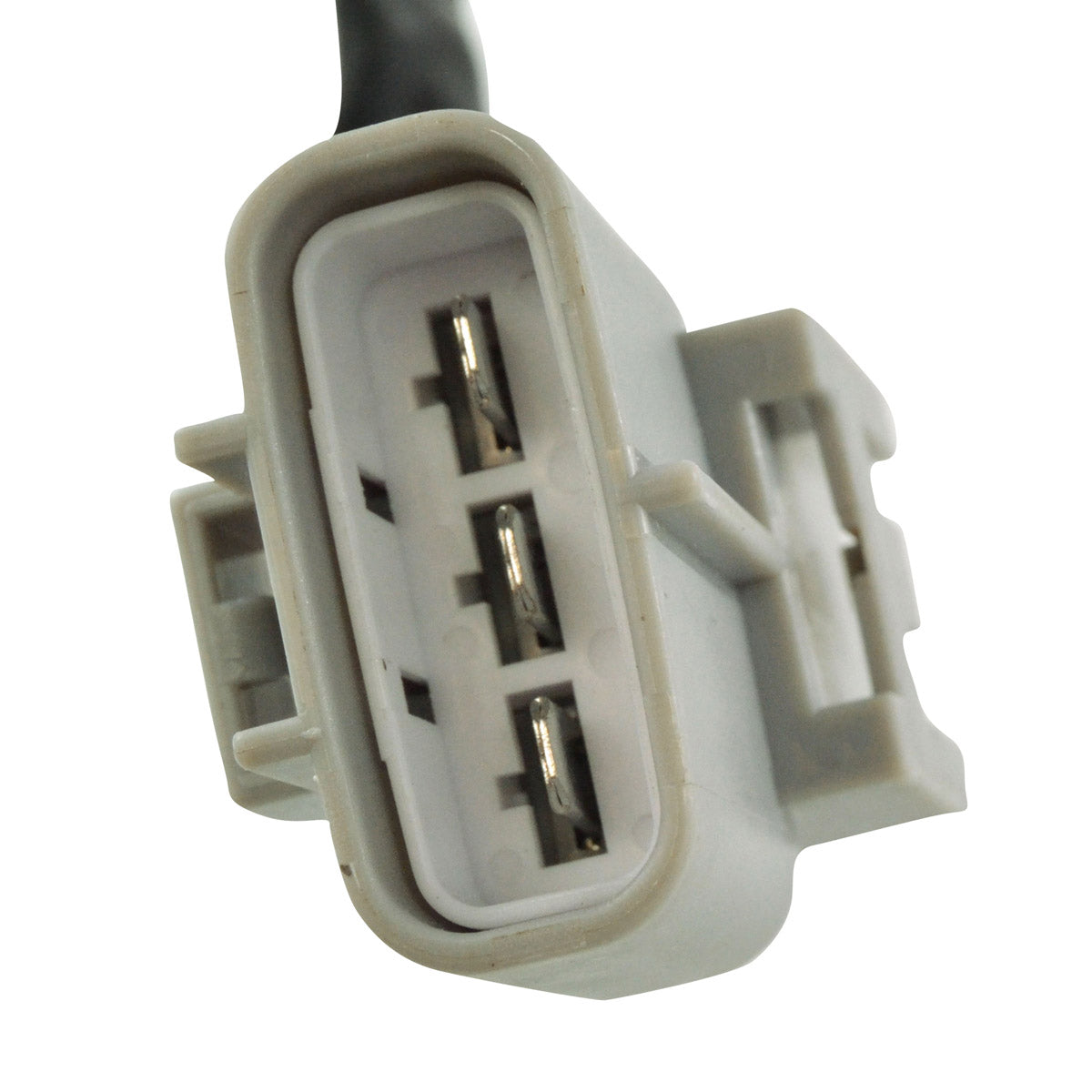

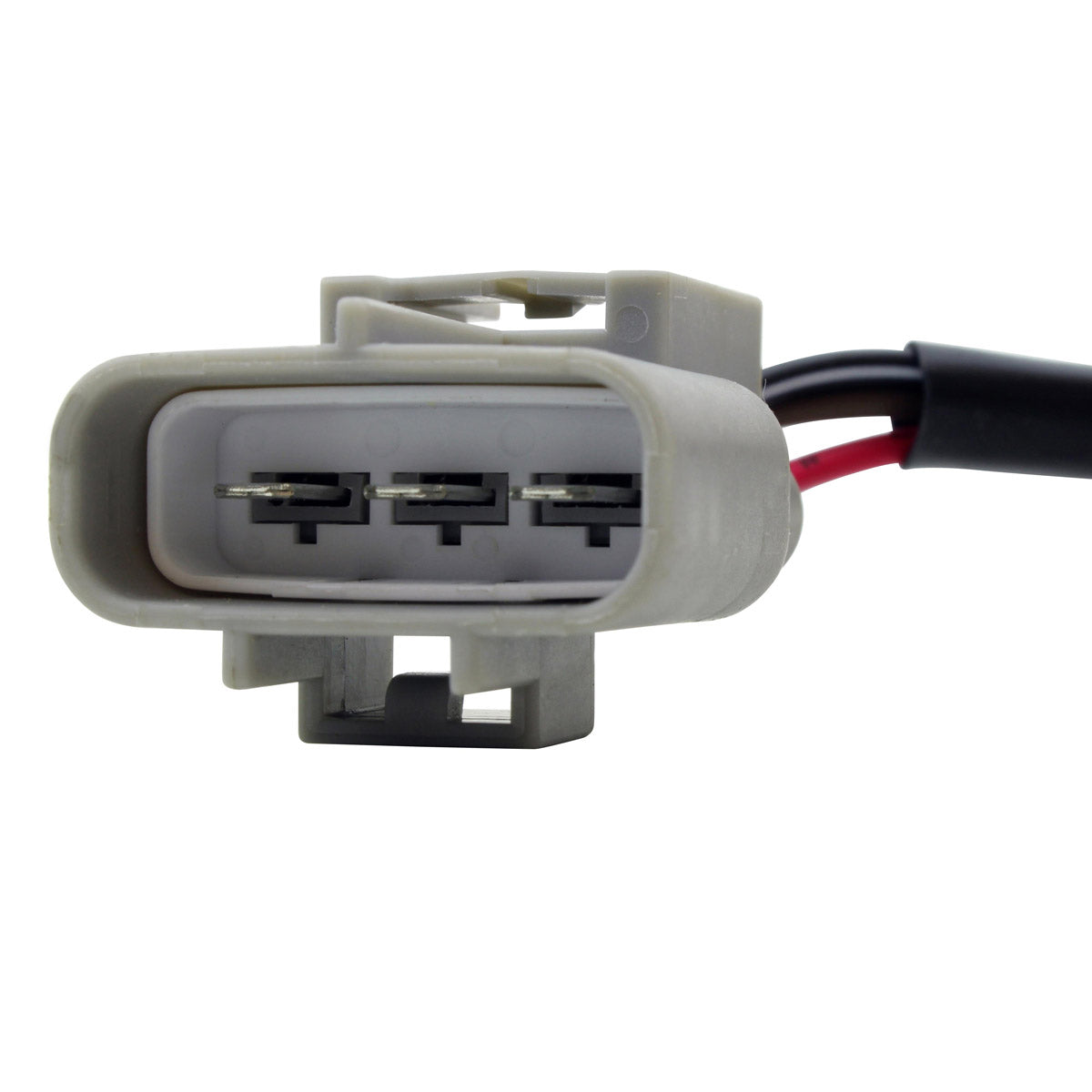

| Connector |
Included |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha Big Bear 400 |
2002-2025 |
| Yamaha Grizzly 350 to 700 |
2002-2025 |
| Yamaha Kodiak 400 to 700 |
2002-2025 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 28P-82510-02-00 |
Yamaha |
| 28P-82510-01-00 |
Yamaha |
| 28P-82510-00-00 |
Yamaha |
| 5KM-82510-02-00 |
Yamaha |
| 5KM-82510-01-00 |
Yamaha |
| 5KM-82510-00-00 |
Yamaha |
| 3B4-82510-01-00 |
Yamaha |
| 3B4-82510-00-00 |
Yamaha |
Frequently Asked Questions
Does it fit without modification?
Yes. RMSTATOR describe it as plug-and-play, a direct fit and easy to install, with three wires, a single plug and the connector supplied. Check the number stamped on your original switch against the eight Yamaha part numbers listed above before ordering.
What is included?

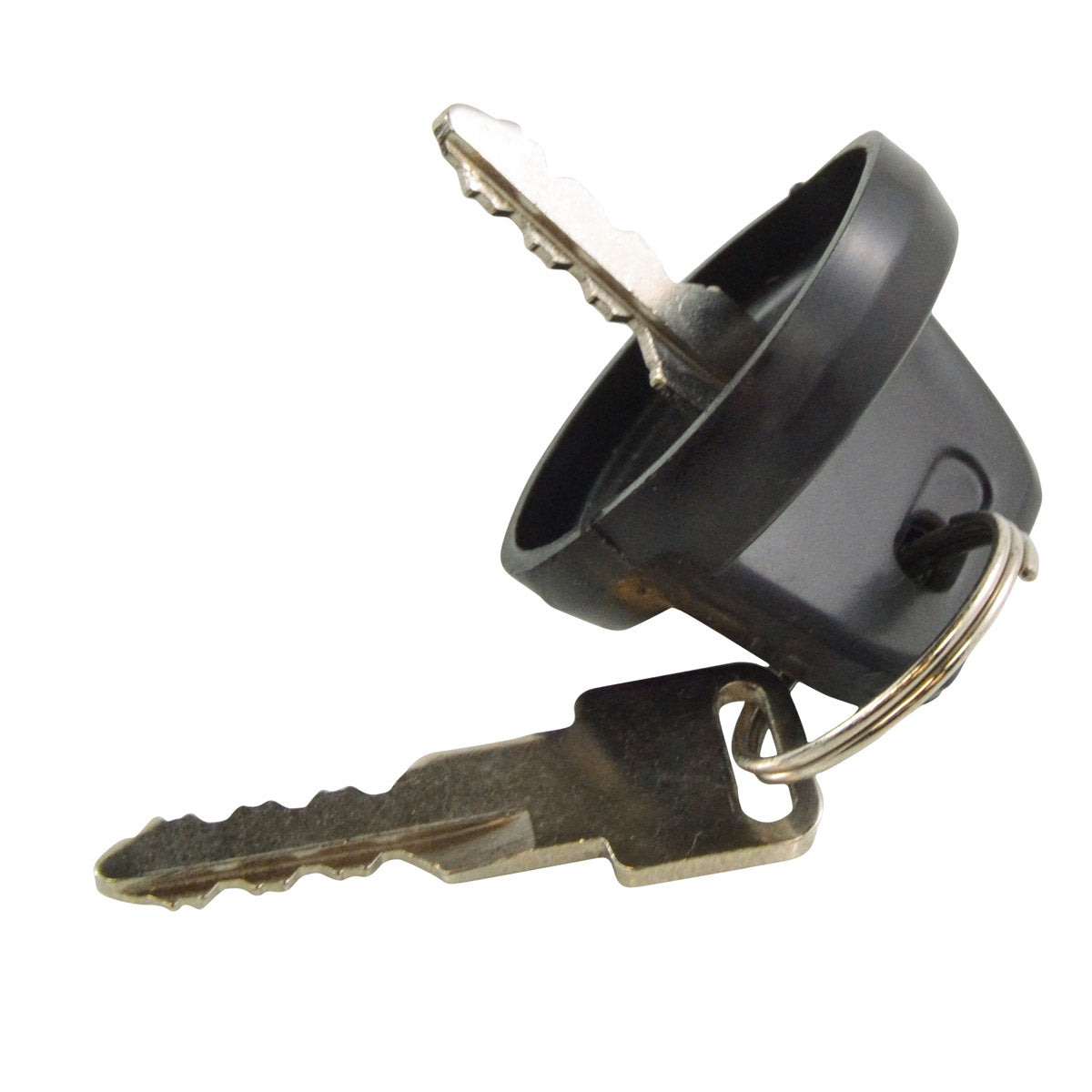

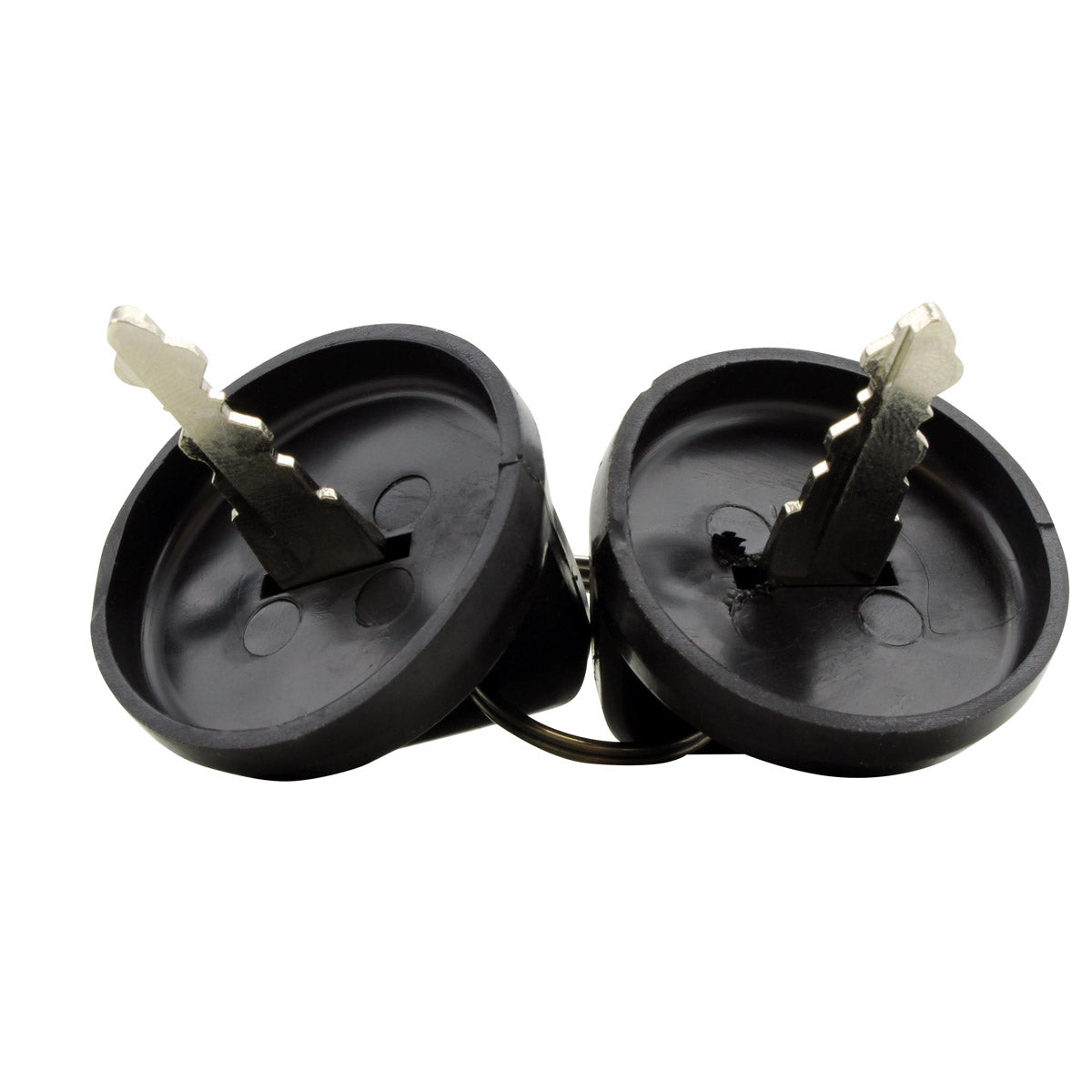

The ignition key switch, two keys and the connector.
How do I know the old key switch has failed?
Typical symptoms are the engine dying over bumps and restarting when the key is moved, dash and lighting power that comes and goes, no power at all with the key in the On position, or a barrel that is stiff, sloppy or jammed. Check the battery, main fuse and earth connections first, then test for continuity across the switch wires in the Off and On positions.
My old switch has a different Yamaha number - will this still work?
Very likely. Yamaha revised this switch several times across the model run and RM05012 cross references all eight numbers - the 28P, 5KM and 3B4 series in their 00, 01 and 02 revisions. If your number appears in the table above, this is the correct replacement.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
