2-Position Ignition Key Switch for Honda TRX 300 EX - RM05010
Honda TRX 300 EX Sportrax - 1993-2006

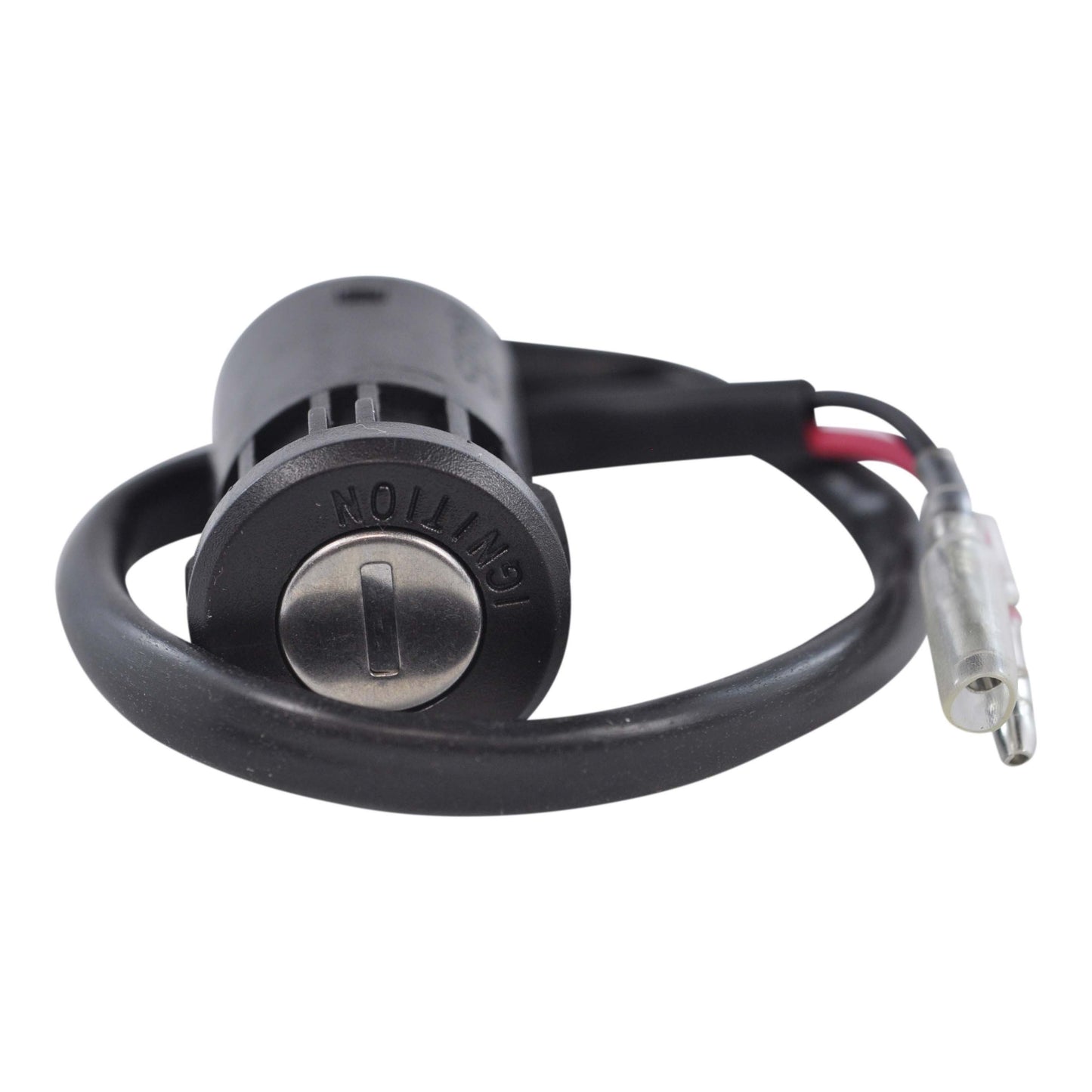

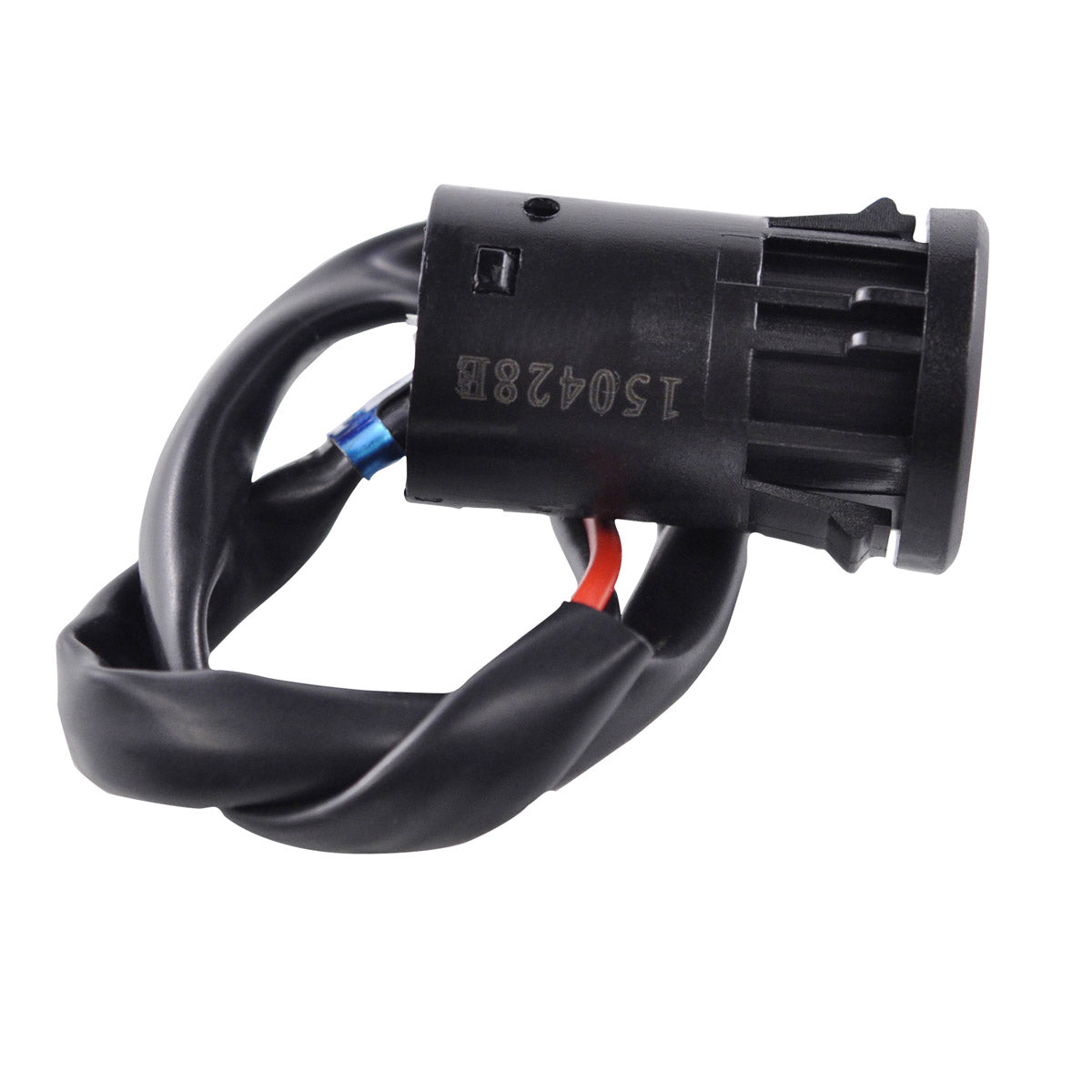

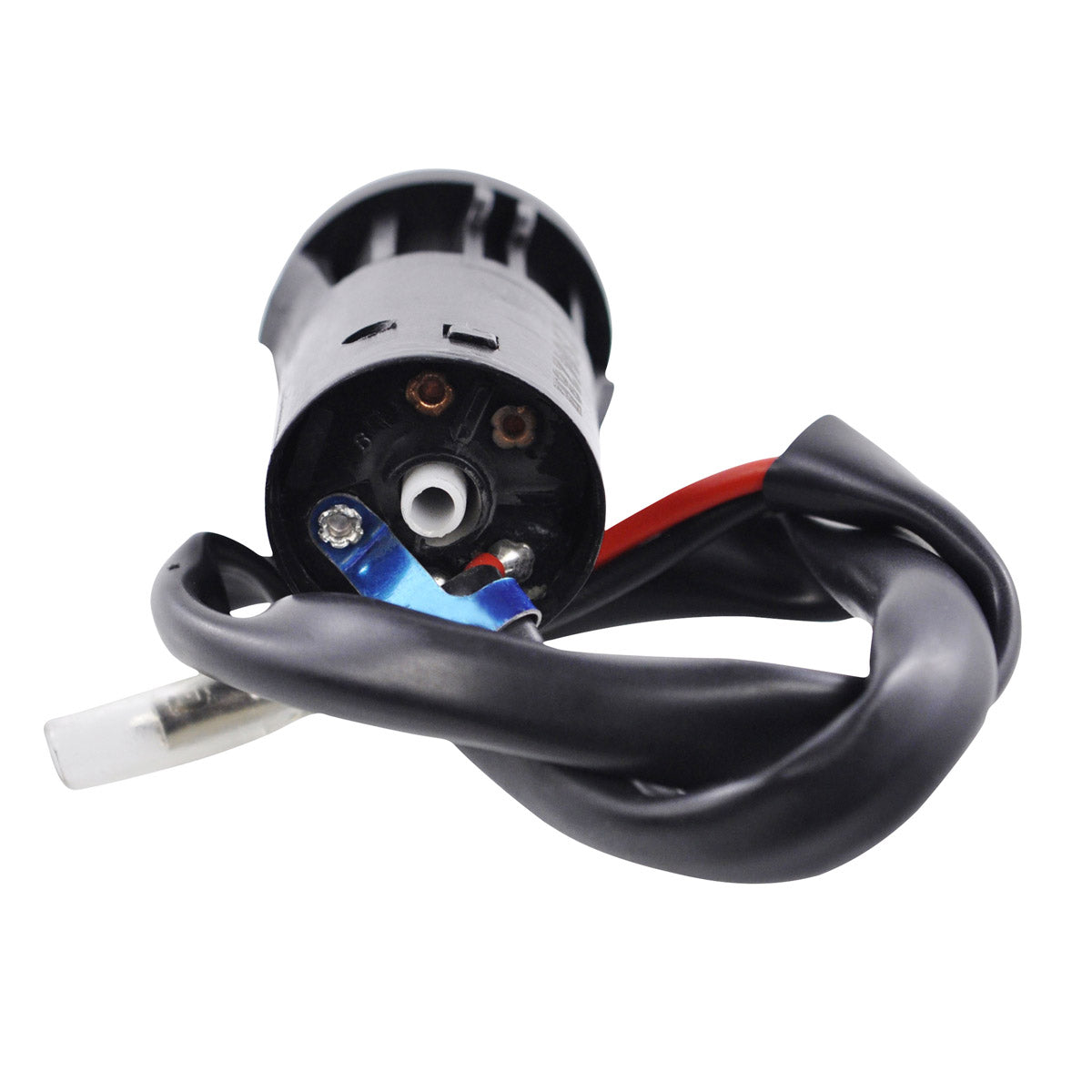

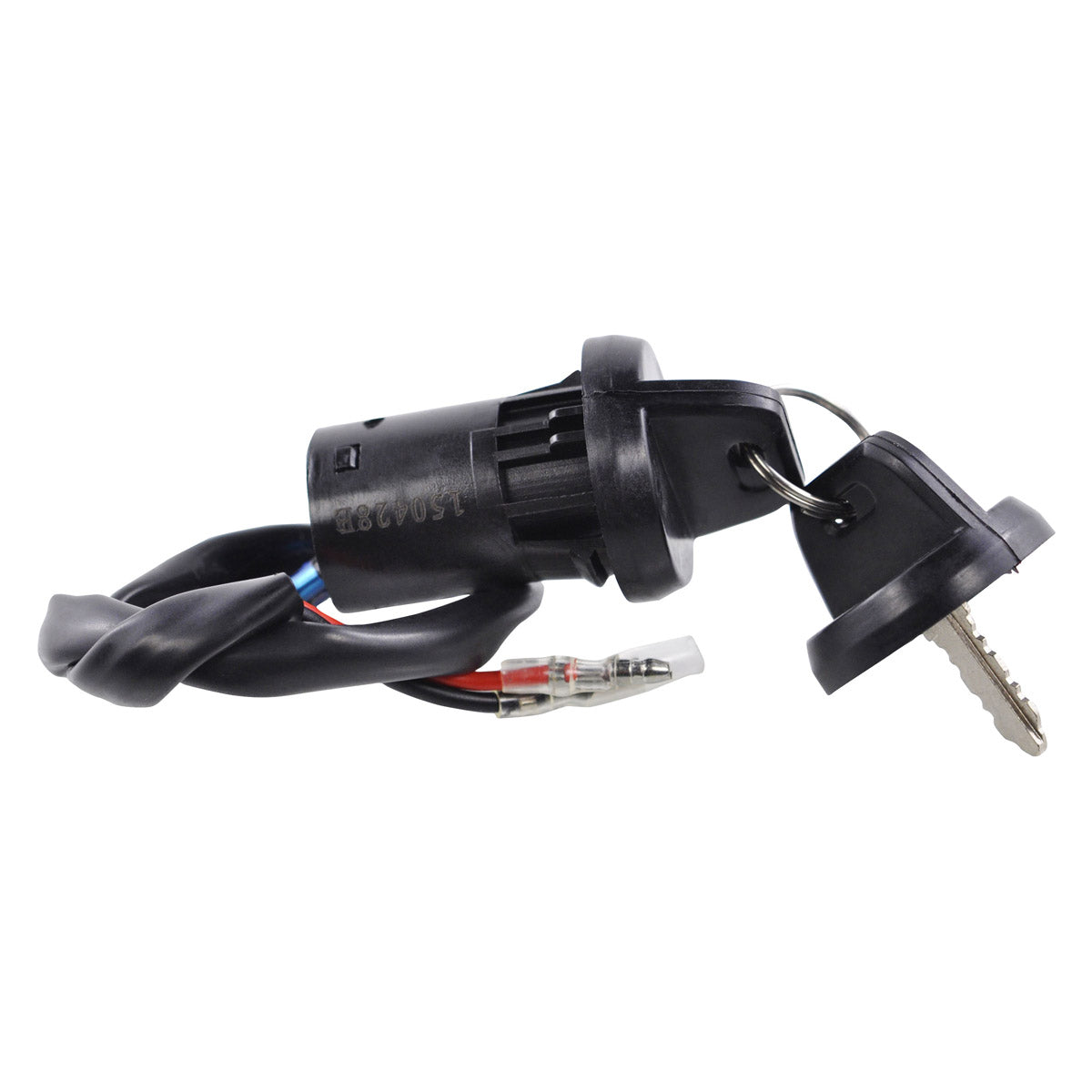

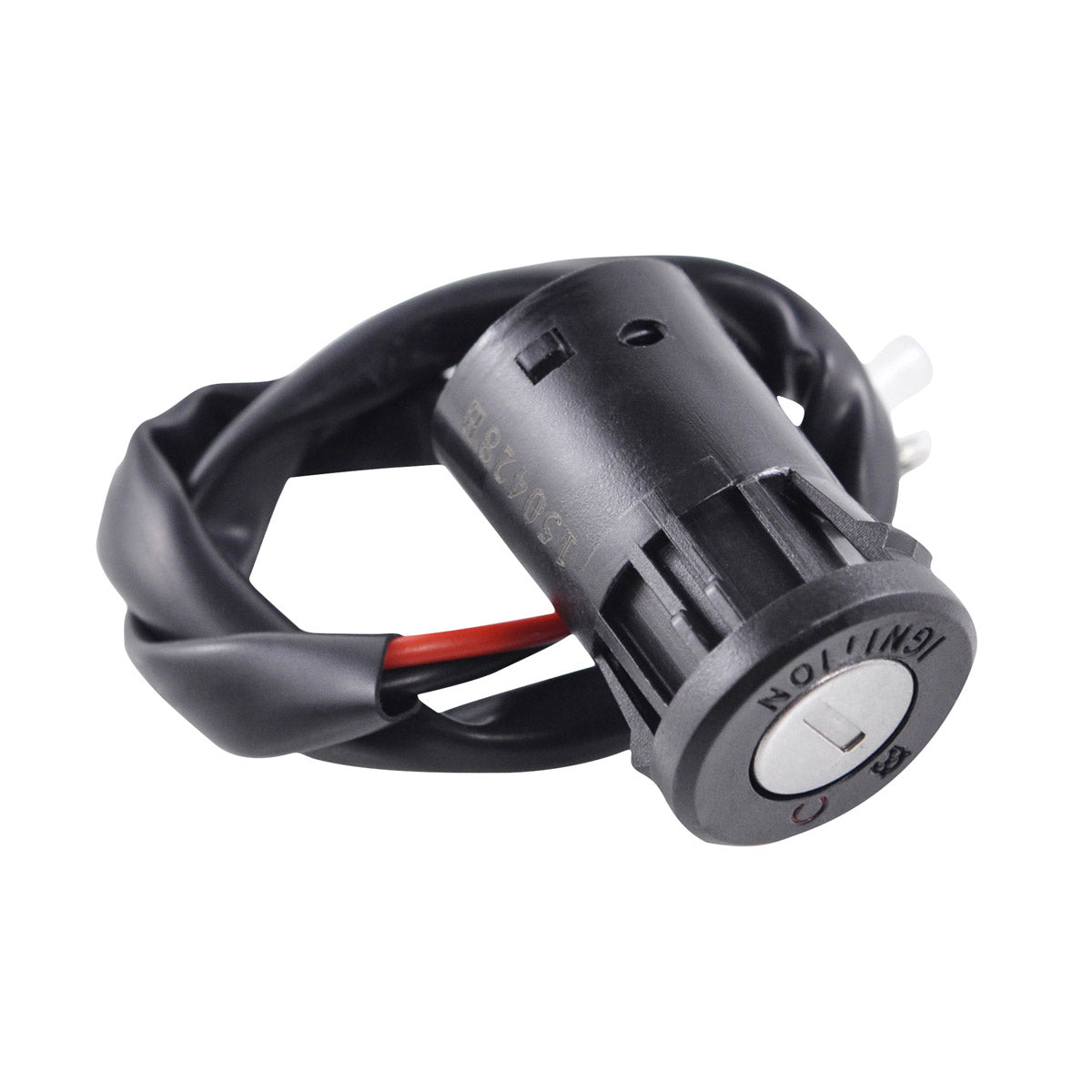

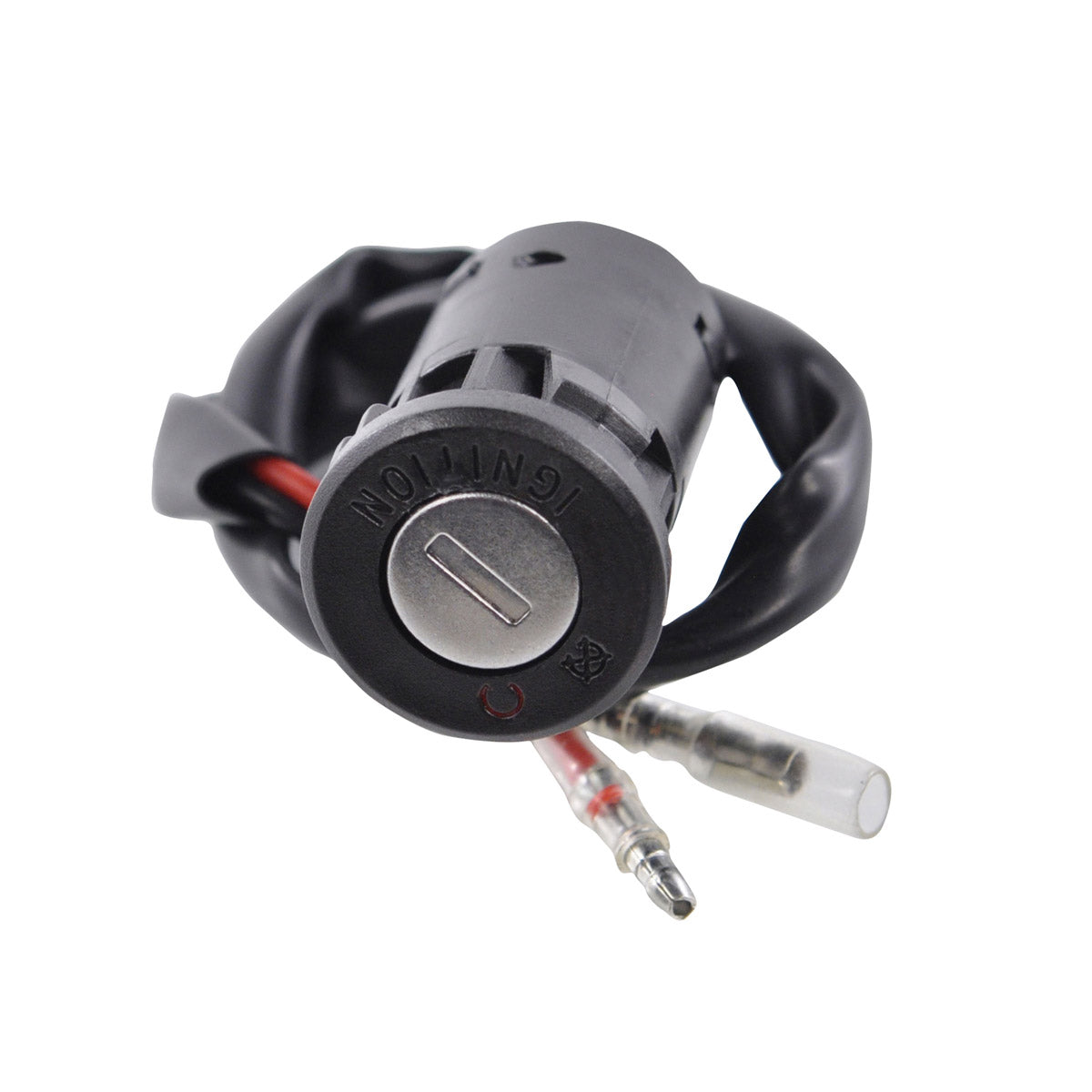

A brand new aftermarket two position ignition key switch supplied under RMSTATOR part number RM05010, built as a direct replacement for the original unit fitted to the Honda TRX 300 EX Sportrax between 1993 and 2006. The key switch makes and breaks the main ignition circuit, so once the contacts inside it wear or corrode the machine develops the classic intermittent faults: it cuts out over rough ground, refuses to fire until the key is wiggled, or dies altogether with no warning.

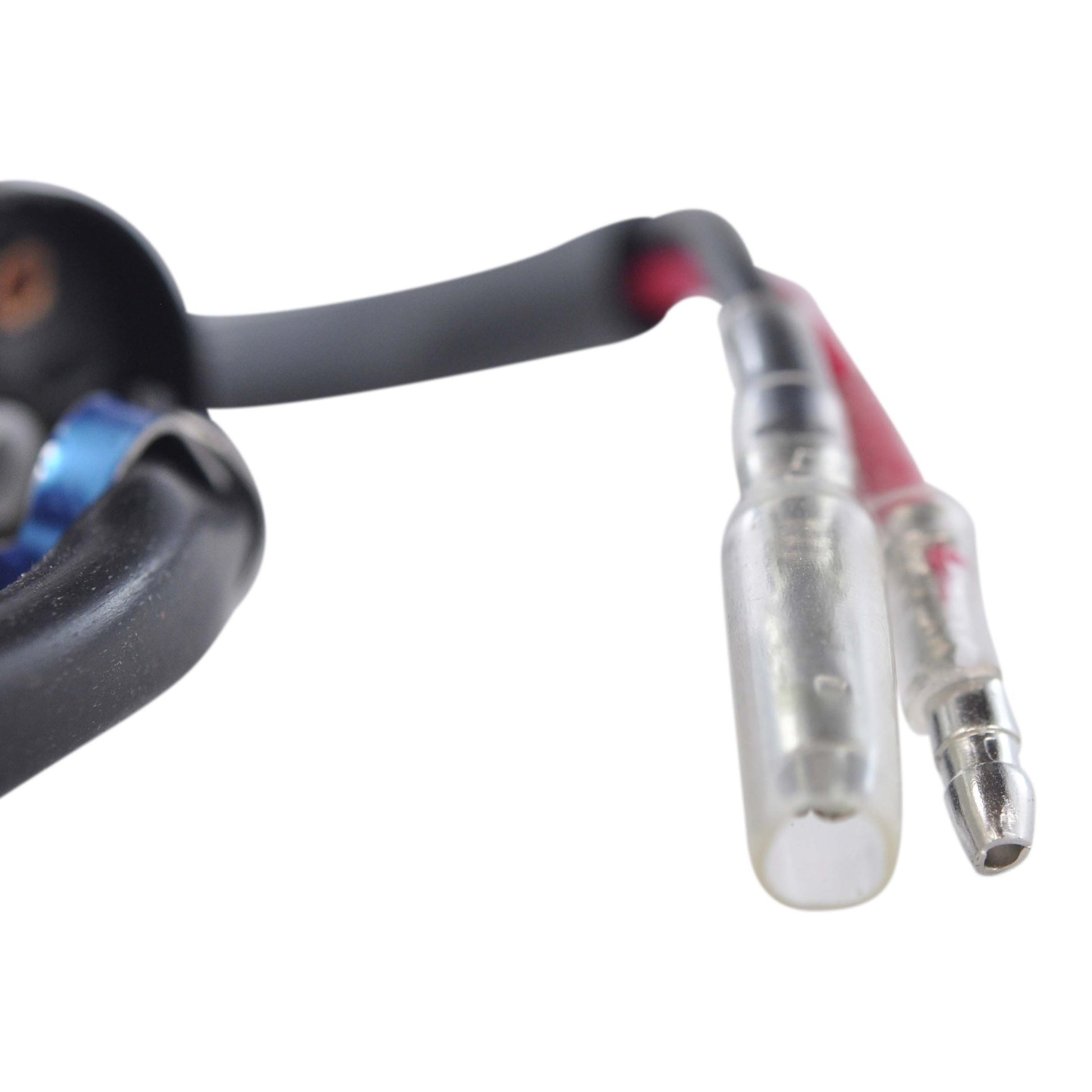

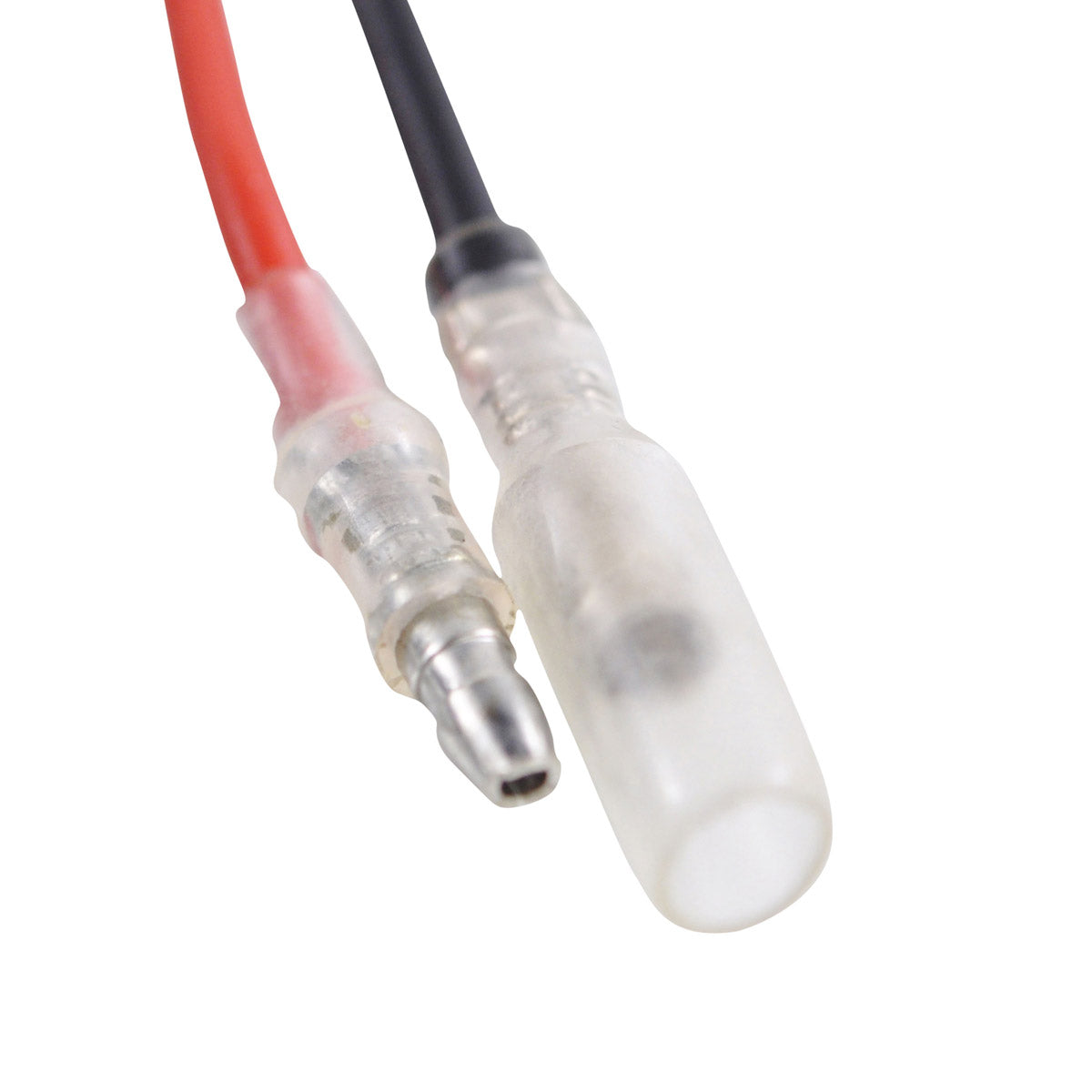

This unit is a plug-and-play, direct fit replacement with a simple two wire, two terminal layout and a two position action marked off and on. It is supplied complete with two keys and a matching connector, so the loom does not need to be cut or spliced to fit it. Every switch is bench tested before it leaves the factory. Disconnect the battery before servicing, and have the switch installed by a qualified technician to avoid malfunction.
Key Features
- Brand new aftermarket two position ignition key switch
- Direct replacement for the original Honda unit
- Plug-and-play, direct fit, easy installation
- Two positions, off and on
- Two keys included
- Connector included
- Every unit is tested before dispatch
Technical Specs
| Specification | Detail |
|---|---|
| Number of wires | 2 |
| Number of terminals | 2 |
| Number of keys | 2 |
| Number of positions | 2 (Off / On) |
| Connector | Included |
| Condition | Brand new aftermarket |
| RMSTATOR part number | RM05010 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Honda TRX 300 EX Sportrax | 1993-2006 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 35010-HM3-000 | Honda |
Frequently Asked Questions
Will this fit without modification?
Yes. It is a plug-and-play direct replacement for the original Honda switch and the connector is supplied, so the loom does not have to be cut or spliced. Check the number on your original switch against the cross reference table above before ordering.
What is included?

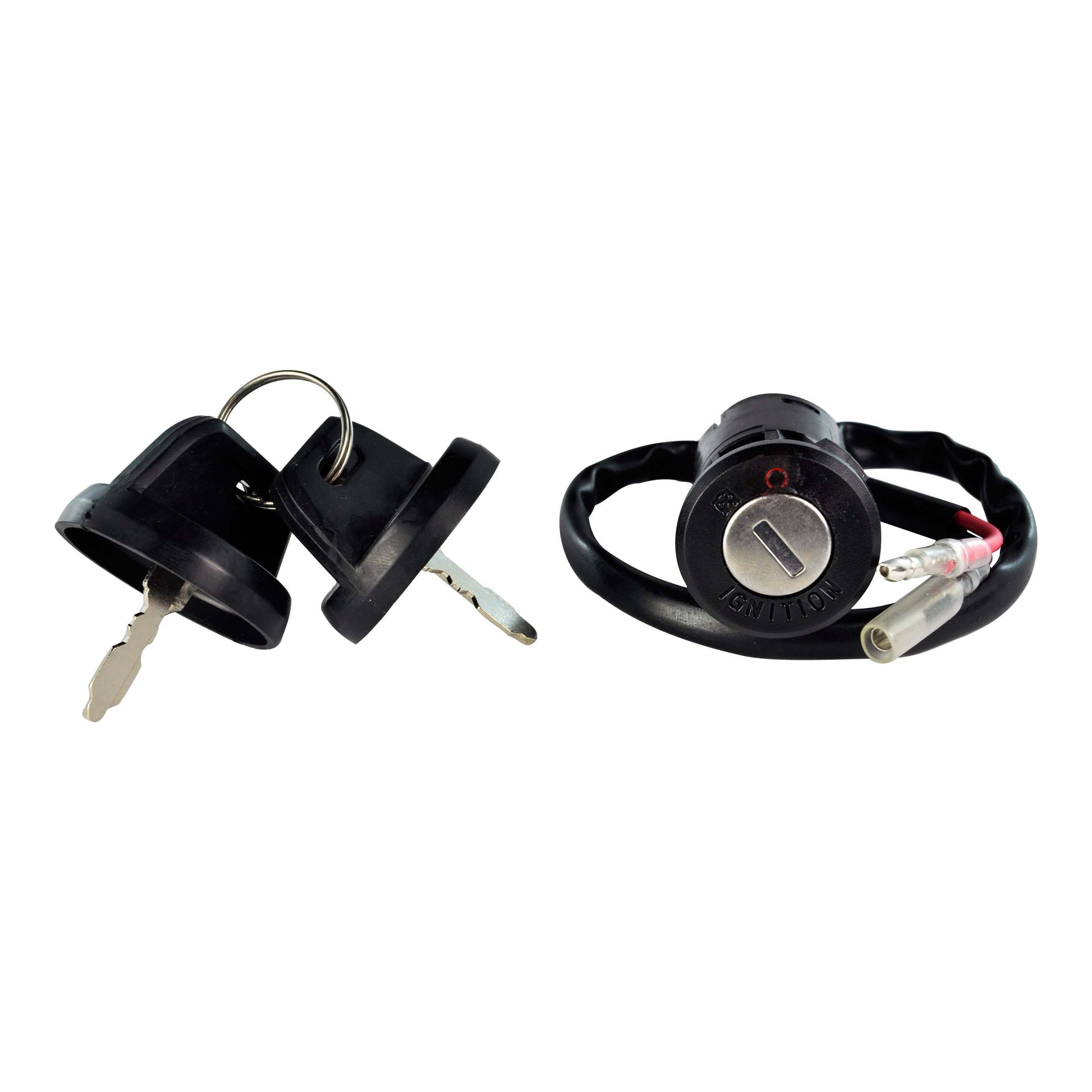

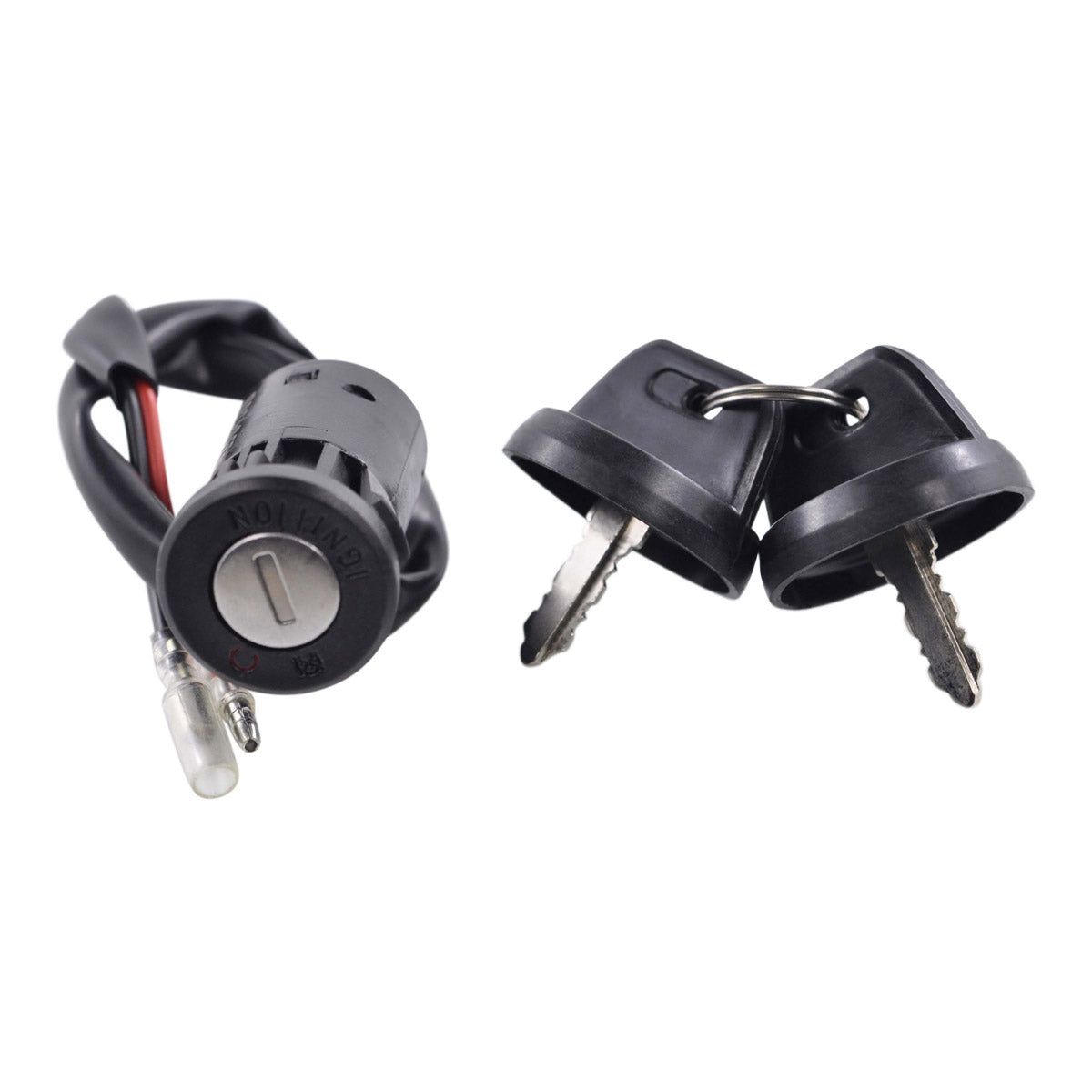

One two position ignition key switch, two keys and a connector. Every item is tested before dispatch.
How do I know my old key switch has failed?

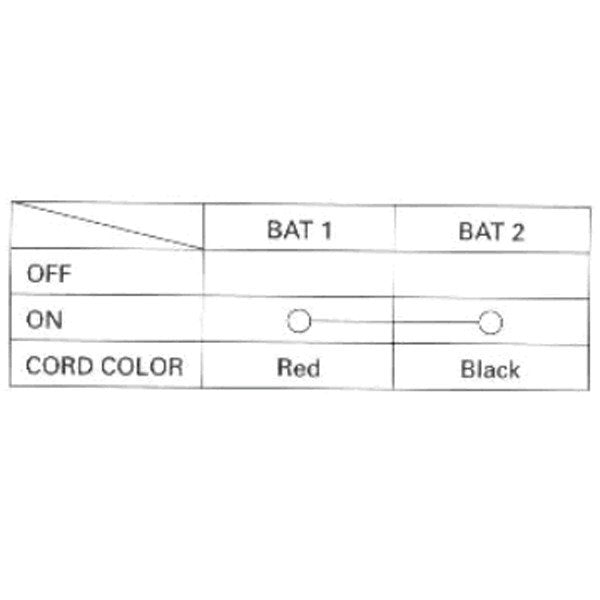

With the battery disconnected, check continuity across the two terminals with the key in each position. A good switch shows a clean circuit in the on position and none in the off position, and the reading should not change when you move the barrel or tug the wiring. Flickering continuity, a switch that only works at a certain key angle, or a barrel that binds all indicate a worn unit.
Will the new keys work in my other locks?

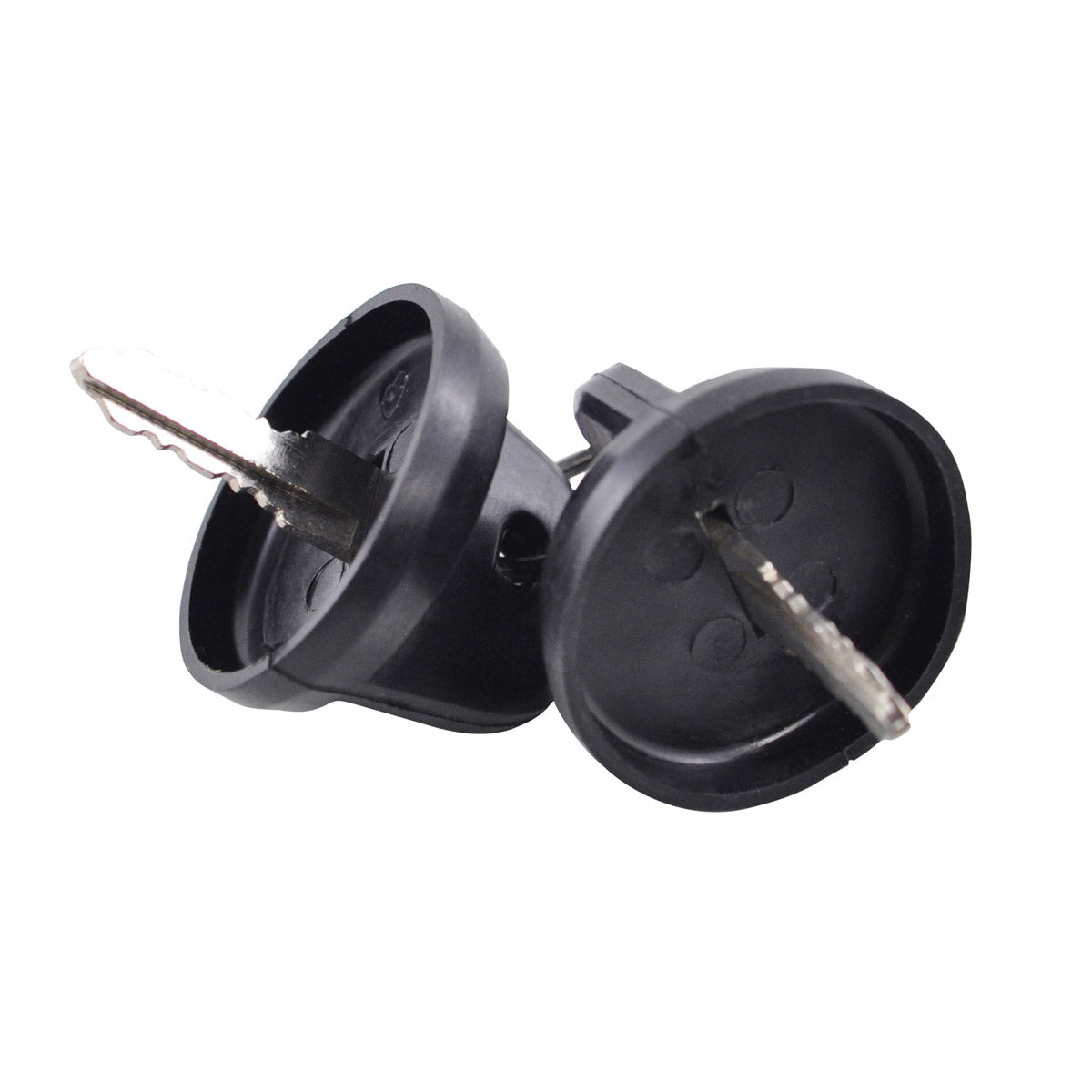

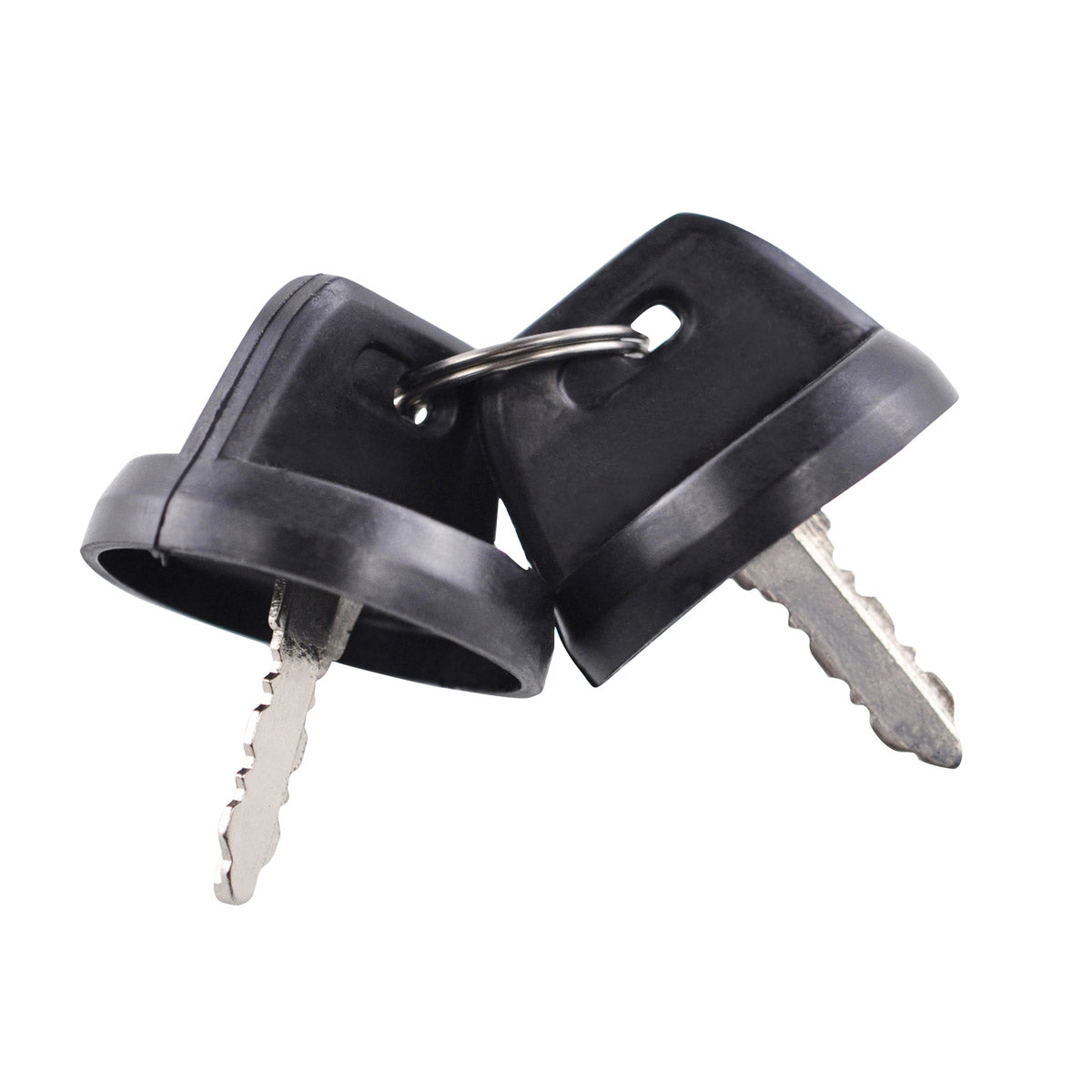

No. The switch comes with its own pair of keys cut to the new barrel, so it will not match a fuel cap or storage lock keyed to your original ignition. Keep the second key somewhere safe as a spare.
