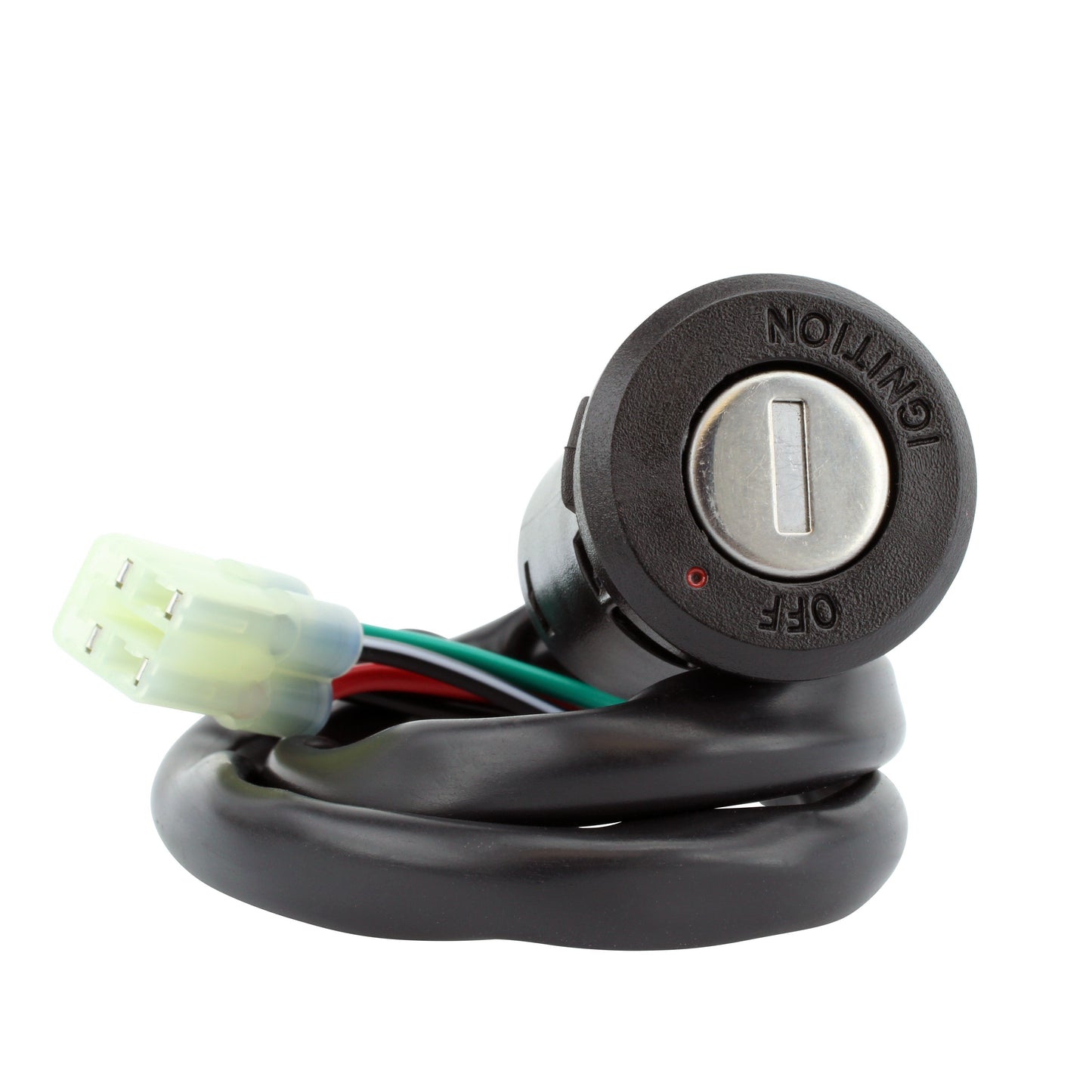

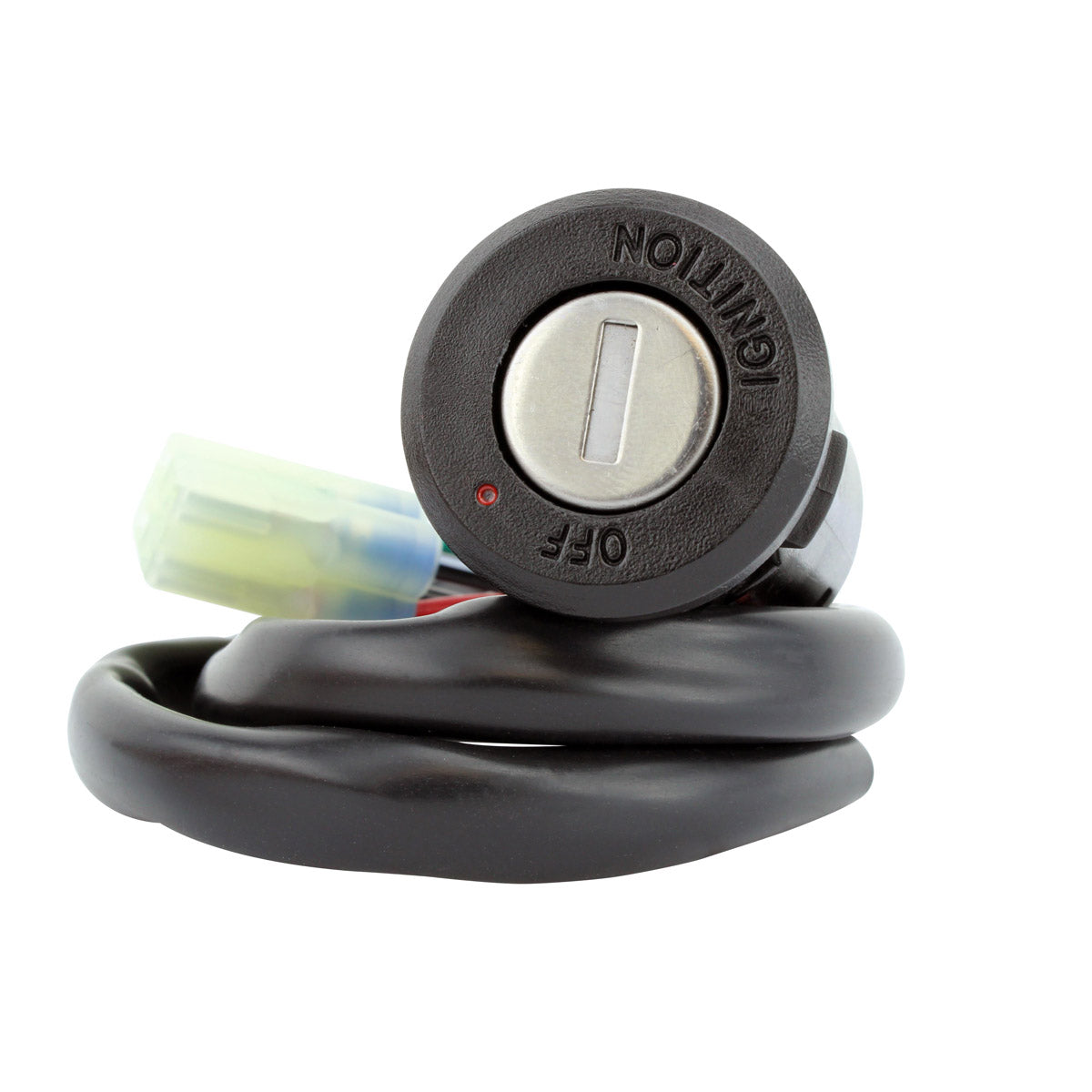

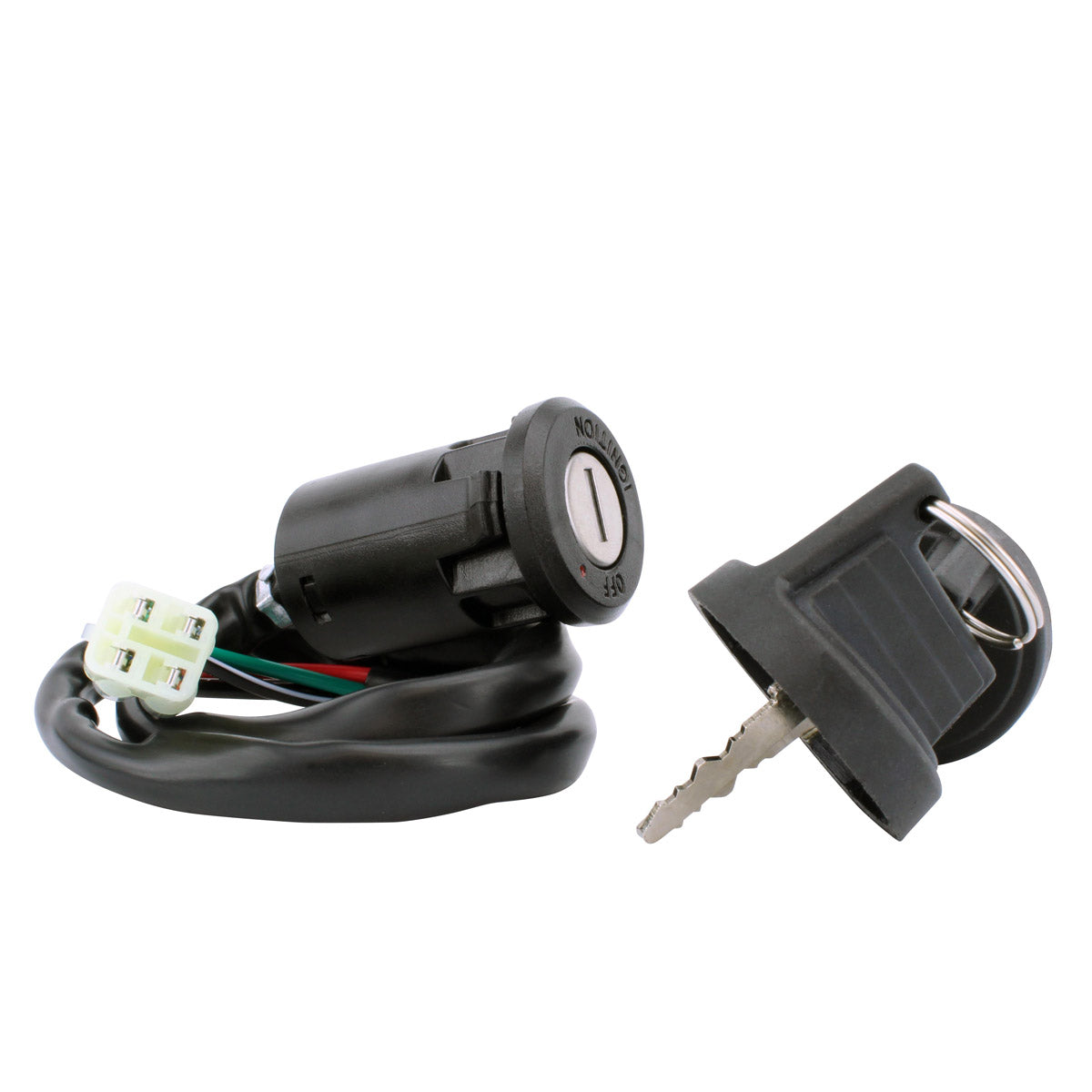

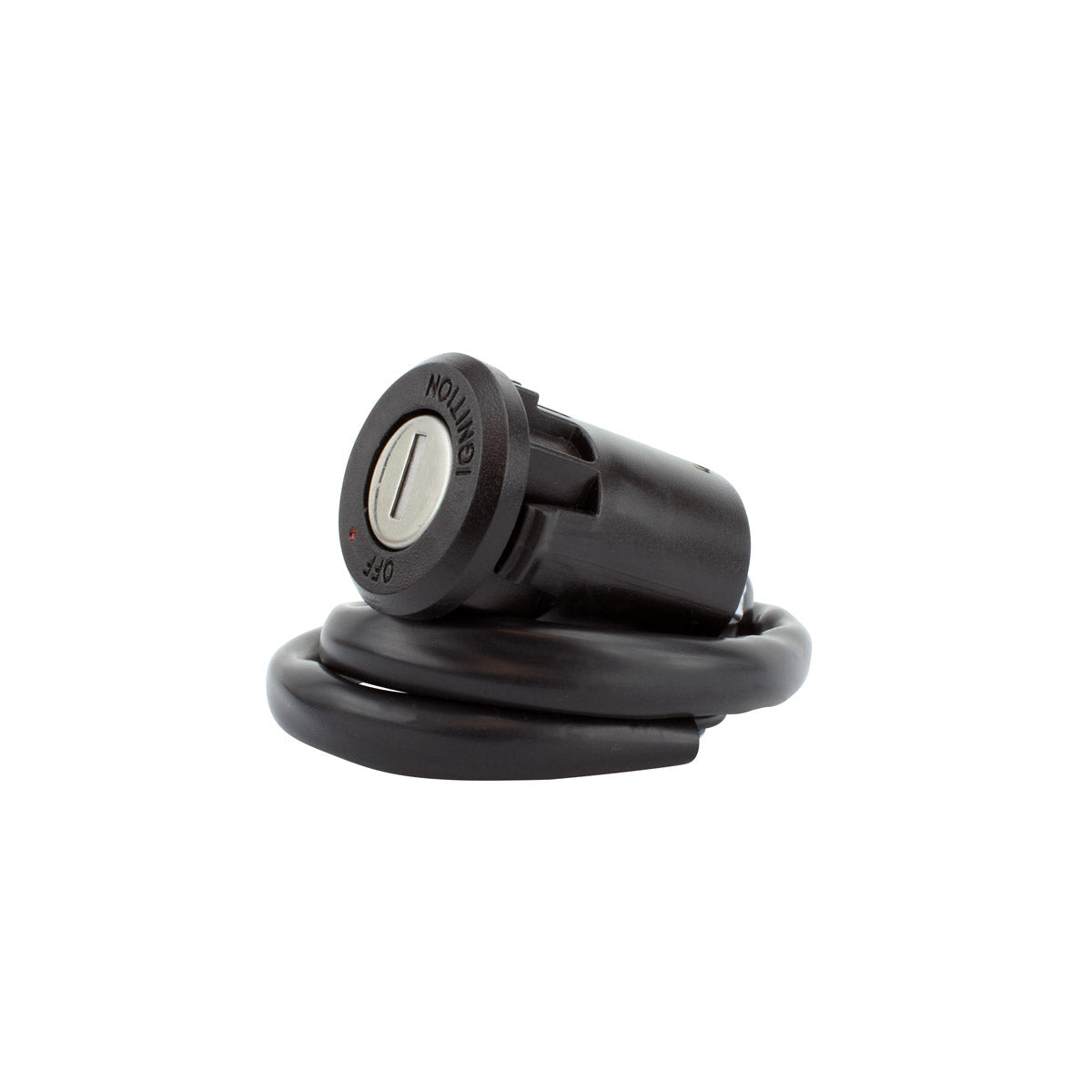

This is a direct aftermarket replacement ignition key switch for the Honda TRX 400 EX Sportrax and the later TRX 400 X. It is a two-position unit, giving a simple off and on selection, and it is built to match the original equipment switch in size, wiring layout and connector so that it drops straight into the standard mounting position on the handlebar cowl without any cutting, splicing or adaptation of the loom.
The ignition switch on a quad lives a hard life. Water, mud, pressure washing and vibration all work their way into the barrel and the contact block behind it, and the usual result is an intermittent start, a machine that cuts out over rough ground, or a key that turns freely without doing anything at all. Replacing the switch as a complete assembly restores a clean, positive contact and removes the guesswork of chasing an intermittent fault around the rest of the wiring. The unit is supplied with two keys and the matching connector already fitted to the 500 mm wire tail.
Key Features
- Plug-and-play direct fit - no modification to the standard loom
- Two-position operation, off and on

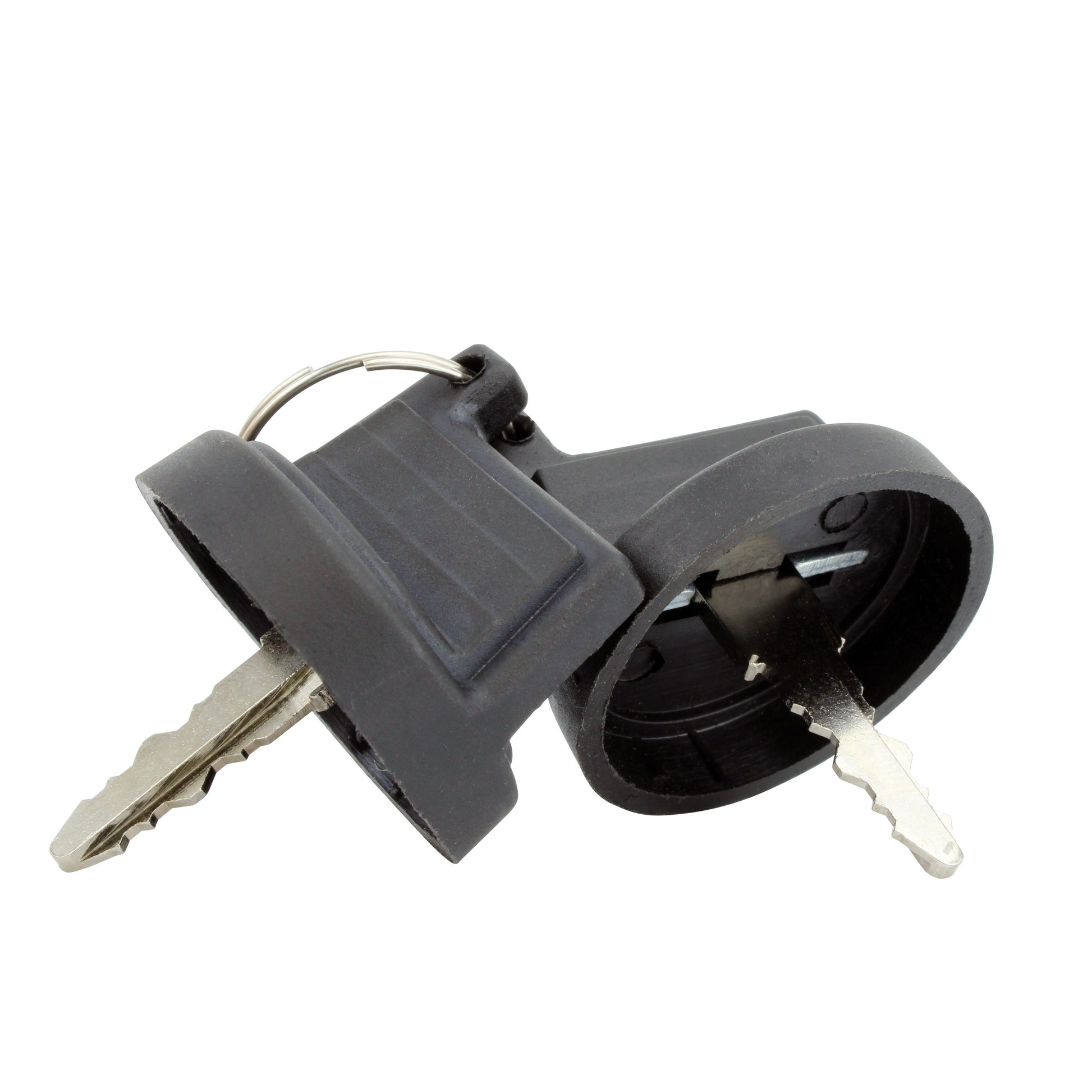

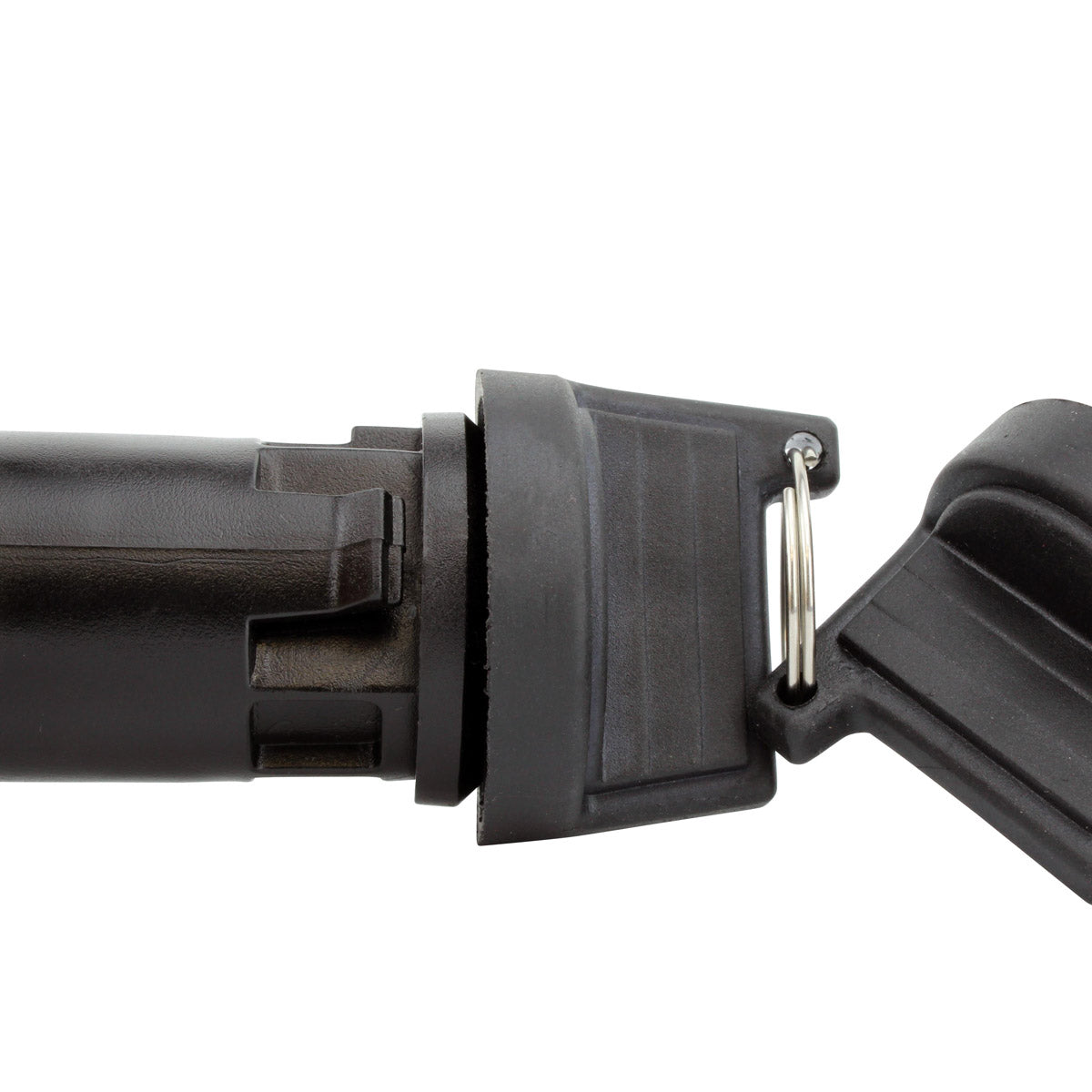

- Two keys supplied with the switch

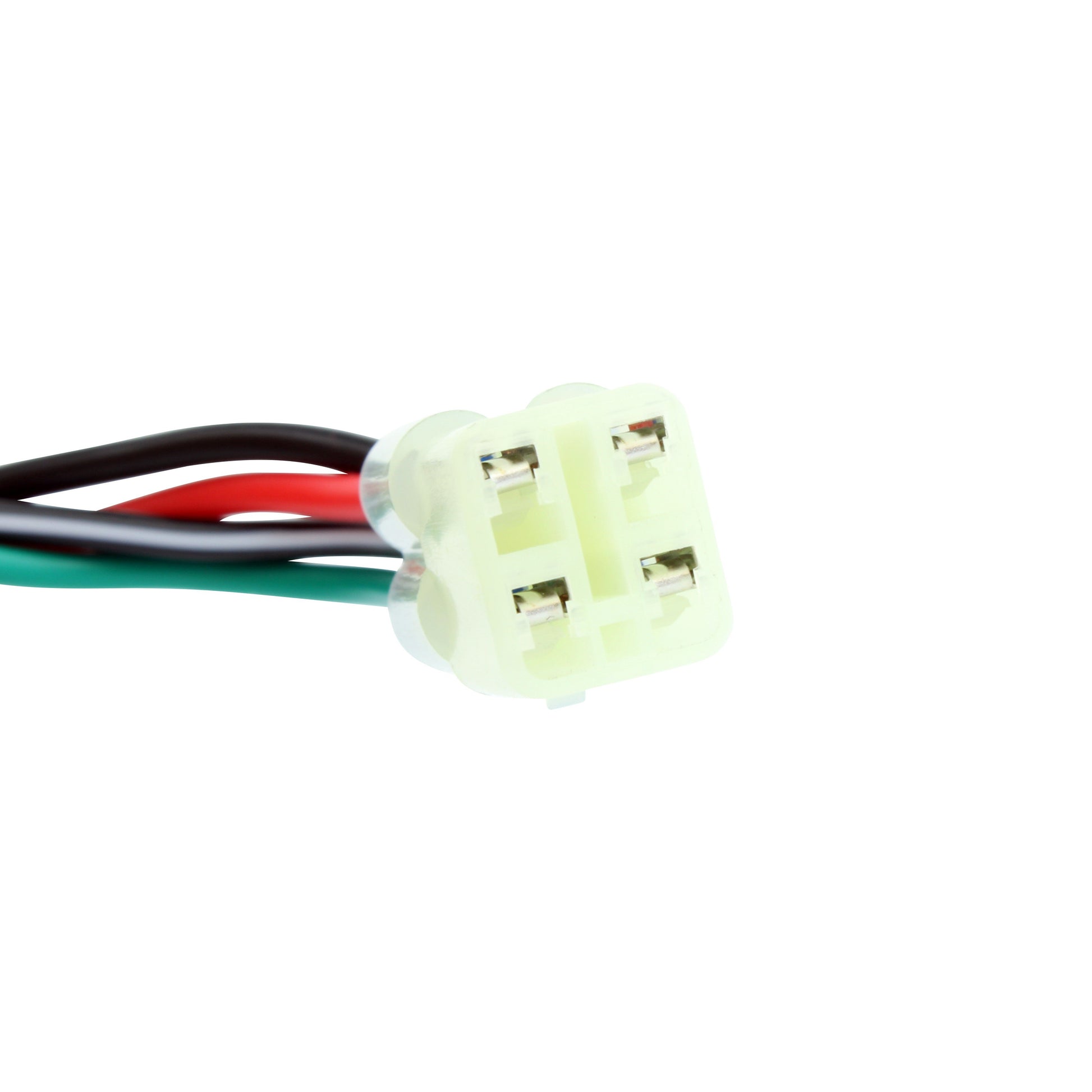

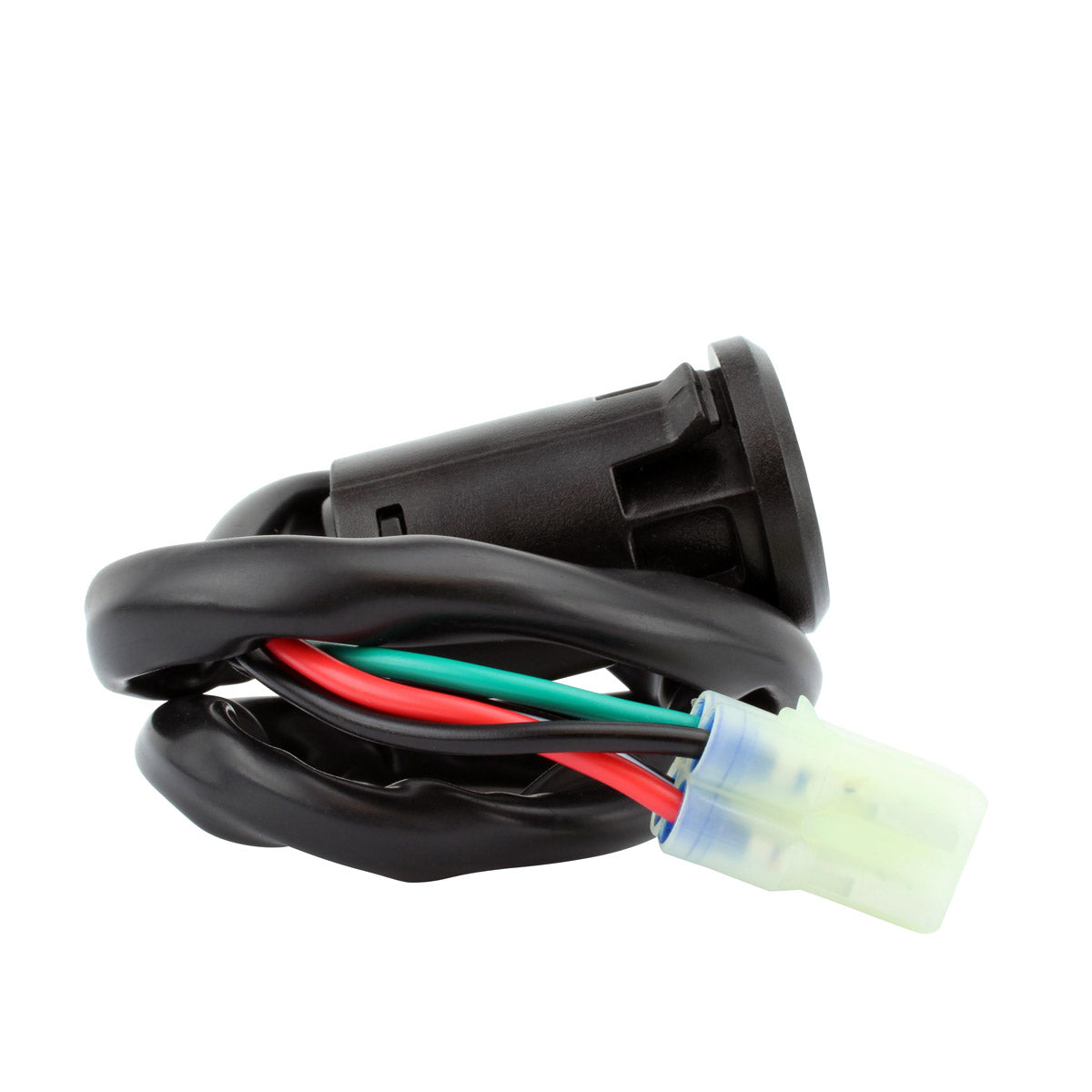

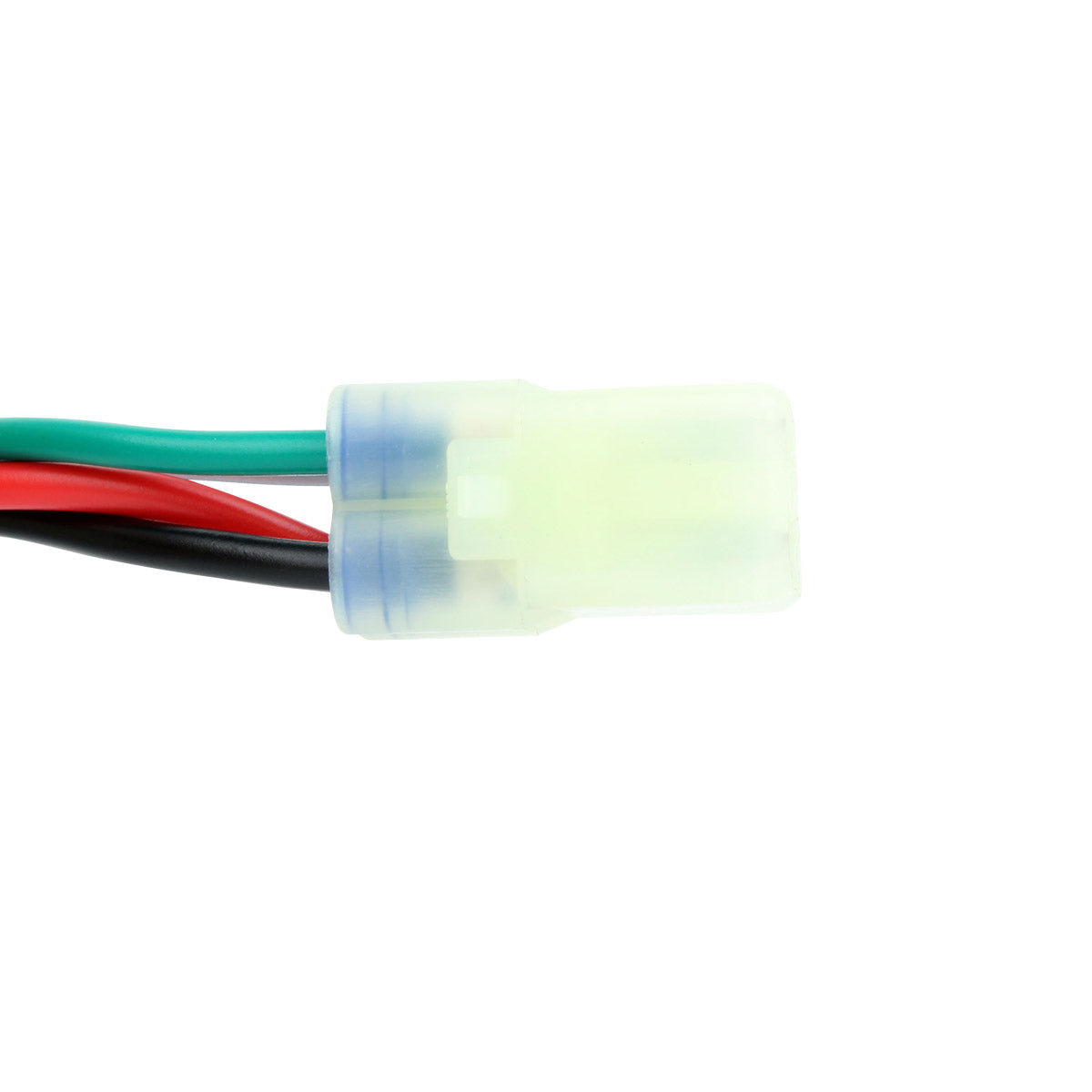

- Four-wire tail with a single factory-pattern plug already fitted
- 500 mm of wire, matching the original harness routing
- Dimensionally matched to the OEM switch body for the standard mounting hole
- Aftermarket replacement for Honda part numbers 35100-HN1-A40 and 35100-HN1-A41
Technical Specs
| Specification |
Detail |
| Part number |
RMS110-104984 |
| Number of positions |
2 (off, on) |
| Number of wires |
4 |
| Number of plugs |
1 |
| Keys included |
2 |
| Wire length |
500 mm |
| Height |
45 mm |
| Length |
26 mm |
| Width |
30 mm |
Vehicle Fitment Guide
| Make & Model |
Years |
| Honda TRX 400 EX Sportrax |
2005-2008 |
| Honda TRX 400 X |
2009, 2012-2014 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 35100-HN1-A40 |
Honda |
| 35100-HN1-A41 |
Honda |
Frequently Asked Questions
Will this fit without modifying my wiring?
Yes. The switch uses the same four-wire layout and the same single plug as the original Honda unit, on a 500 mm tail, so it connects to the standard harness as it comes. No cutting, splicing or adaptor is required on the listed models.
What is included?

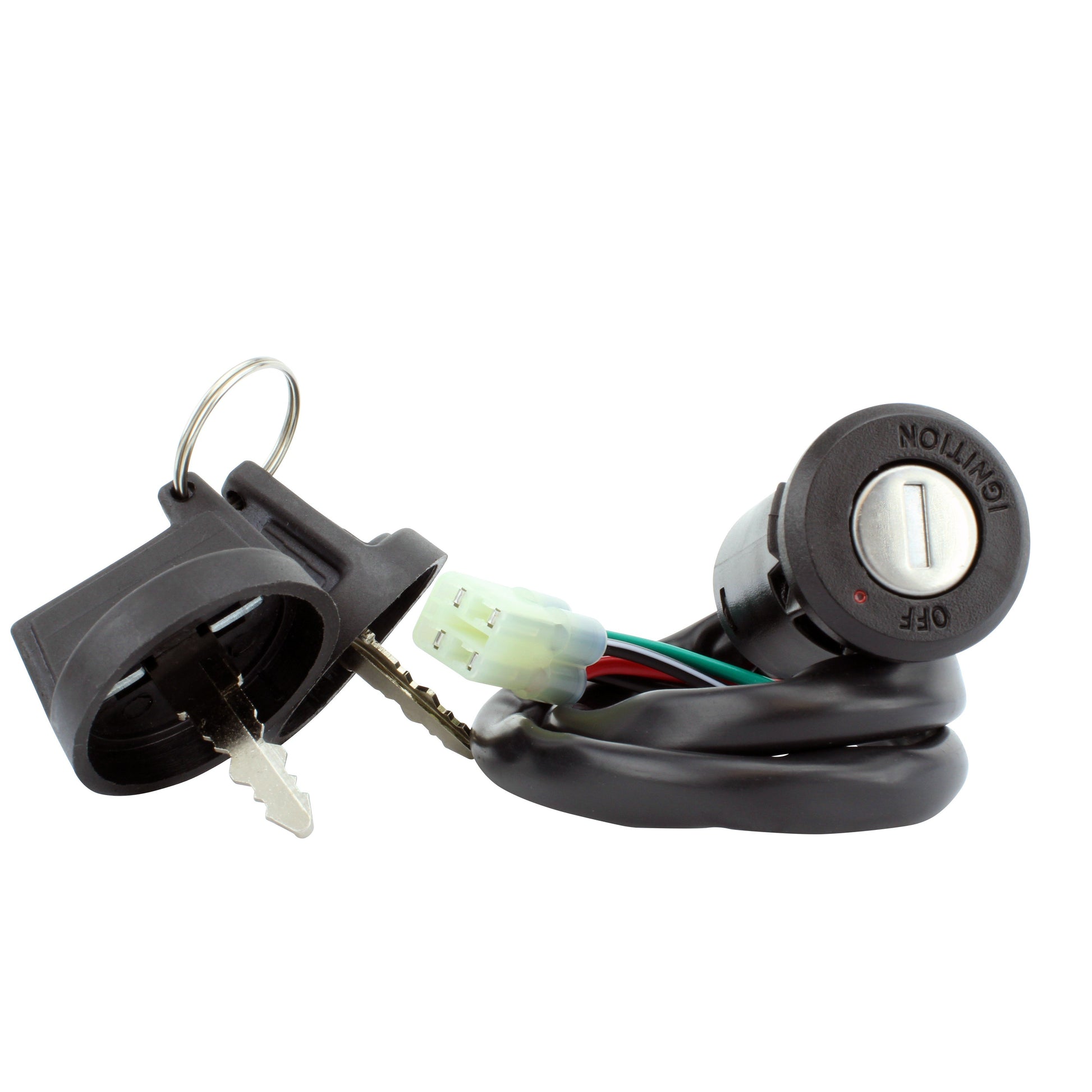

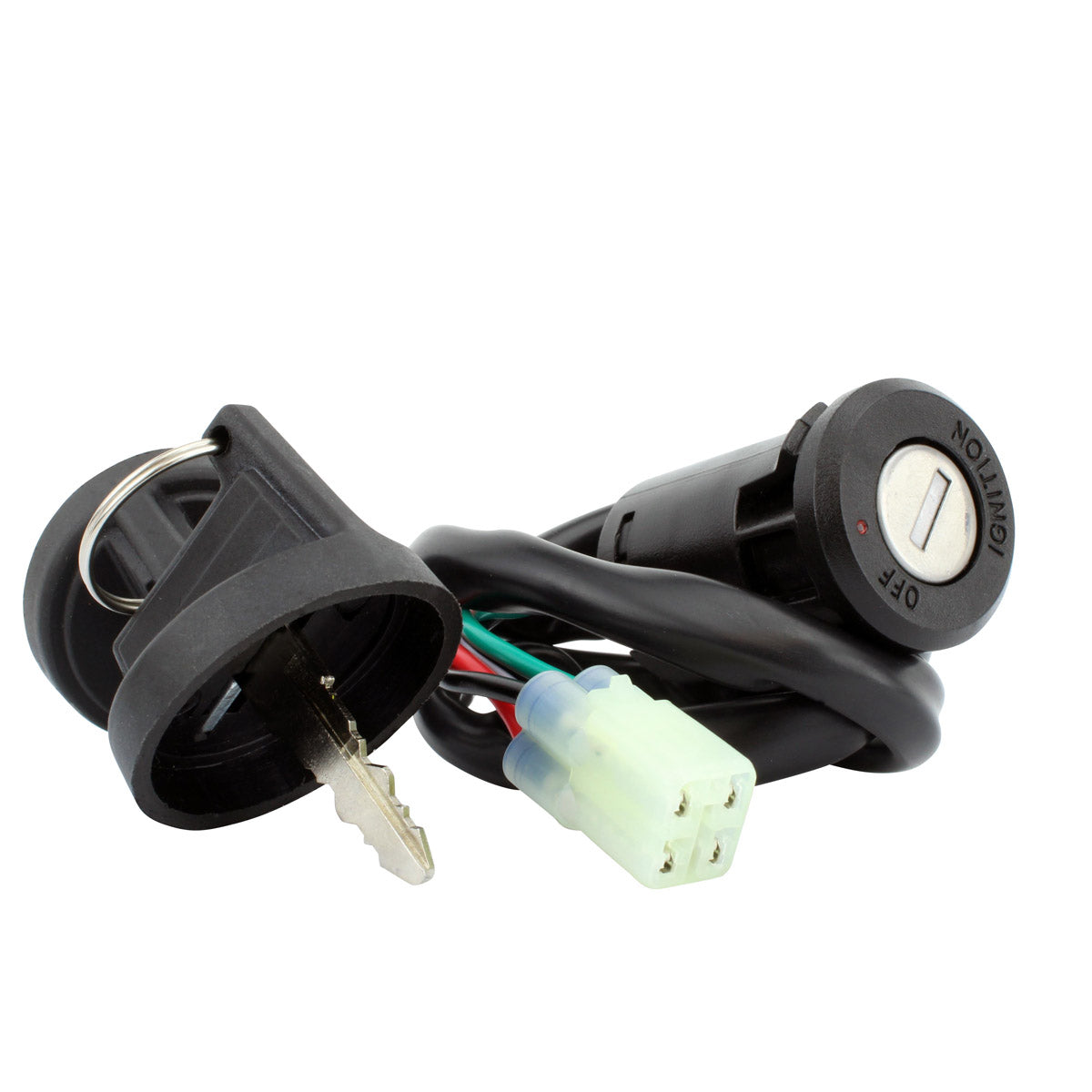

The switch assembly with its 500 mm four-wire tail and connector already fitted, plus two keys.
How do I know the old switch has failed?
Typical symptoms are a machine that will not crank with the key turned on, ignition that cuts out when the bars move or when the quad crosses rough ground, a key that turns but feels loose with no detent, and corrosion or moisture visible in the connector behind the switch. If the fault comes and goes when you wiggle the switch or its plug, the switch itself is the most likely cause.
Does the TRX 400 X use the same switch as the TRX 400 EX?
Yes. This one part covers the TRX 400 EX Sportrax from 2005 to 2008 and the TRX 400 X for 2009 and 2012 to 2014. Earlier TRX 400 EX models are not covered by this listing - check the number moulded or printed on your original switch against the cross reference table above before ordering.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
