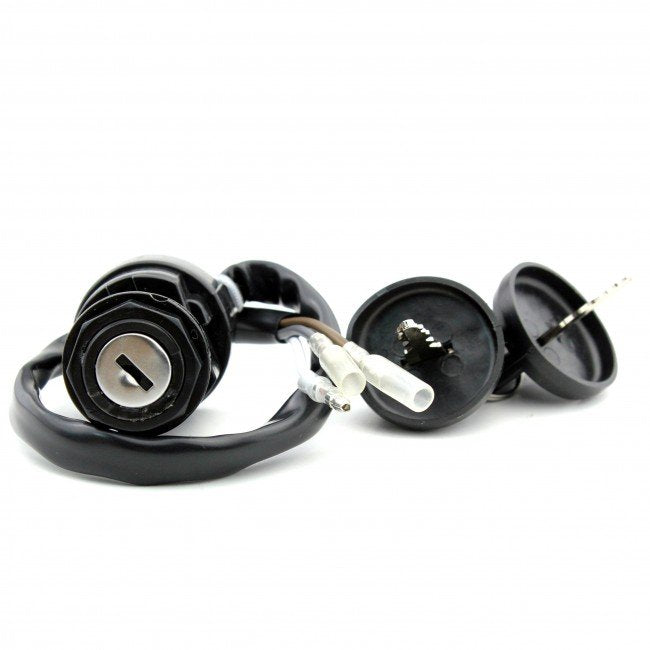

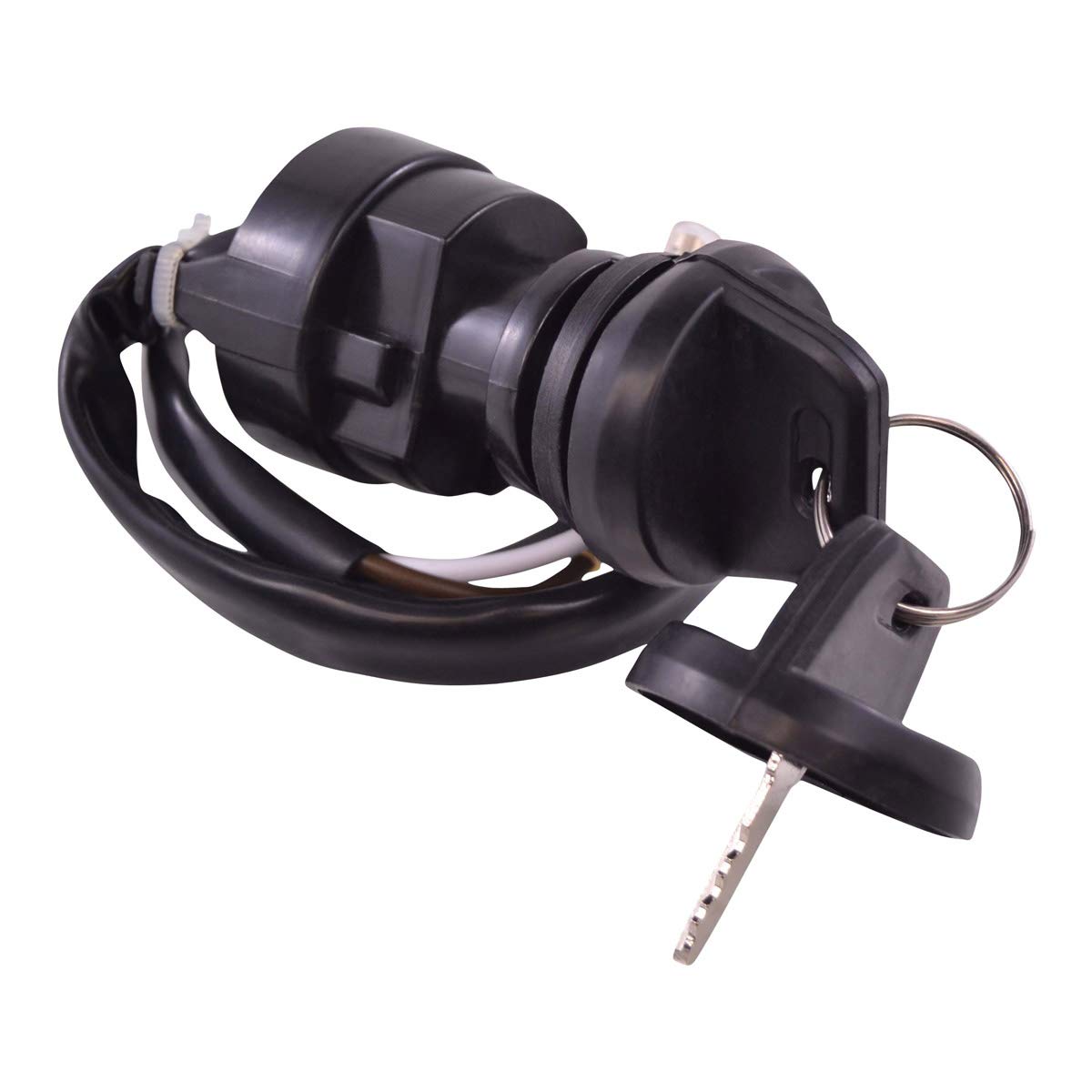

2-Position Ignition Key Switch
Kawasaki KLF 300 Bayou C, European models, 1989-2005 - RMSTATOR RM05026
This is a brand new aftermarket two position ignition key switch from RMSTATOR, part number RM05026, built as a direct replacement for the original unit fitted to European specification Kawasaki KLF 300 Bayou C machines from 1989 to 2005. It replaces Kawasaki part number 27005-1266. The switch is plug-and-play and a direct fit, so installation is straightforward - the original connector is matched by the connector supplied with the switch, and no cutting or splicing of the loom is needed.
The ignition key switch is the part that feeds power from the battery to the ignition and accessory circuits. Because it lives outdoors on a working ATV it takes a hard life: water, mud and vibration eventually wear the contacts, corrode the terminals or damage the barrel, and the result is a machine that cuts out over bumps, will not power up at all, or one where the key will no longer turn cleanly through its two positions. Two keys are supplied with this switch, so the replacement gives you a matched pair rather than a single key. Every unit is tested before it leaves the factory.
Key Features
- Brand new aftermarket two position ignition key switch
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation

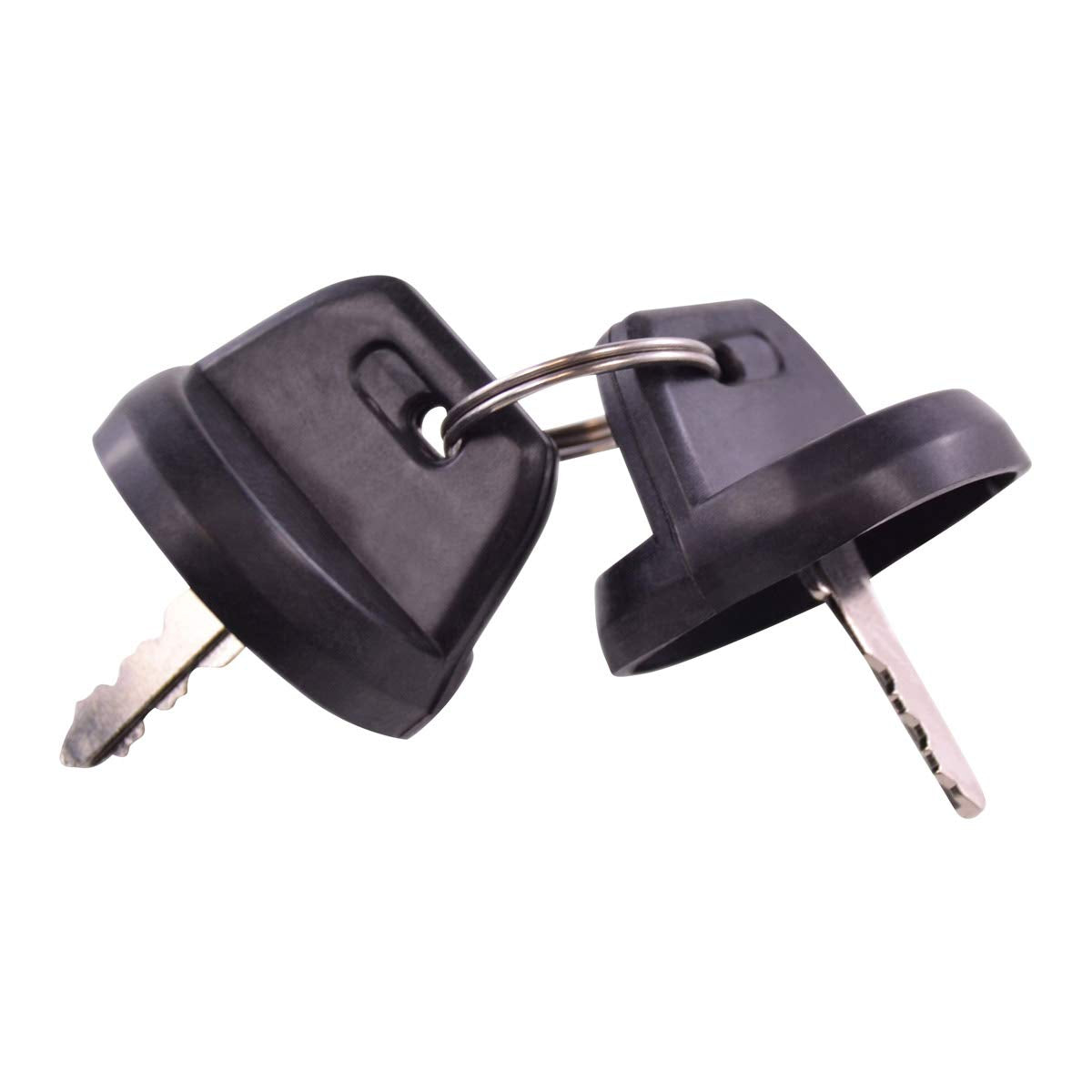

- Two keys included
- Connector included
- Replaces Kawasaki 27005-1266
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part number | RM05026 |
| Component | Ignition key switch |
| Height | 37 mm |
| Length | 50 mm |
| Width | 37 mm |

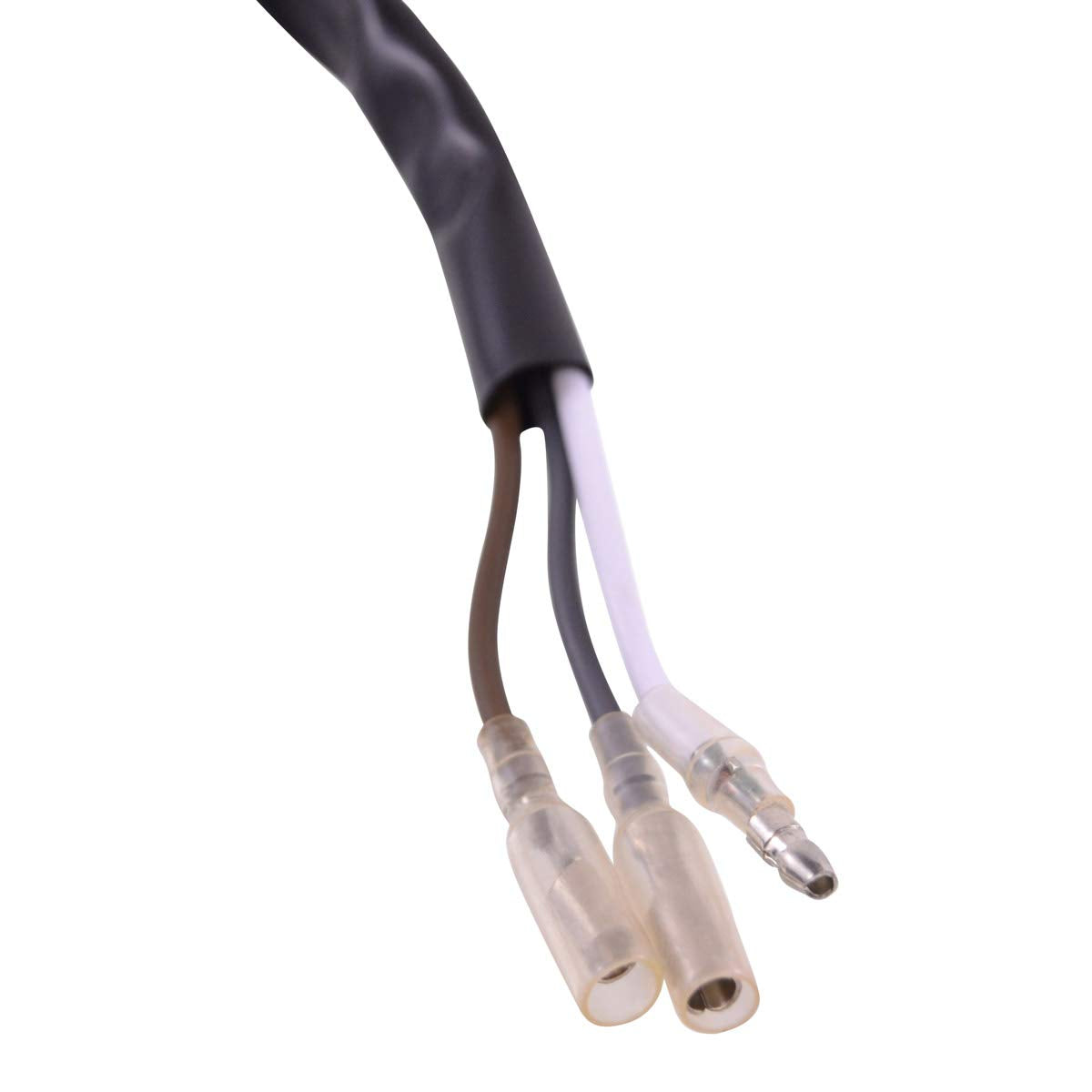

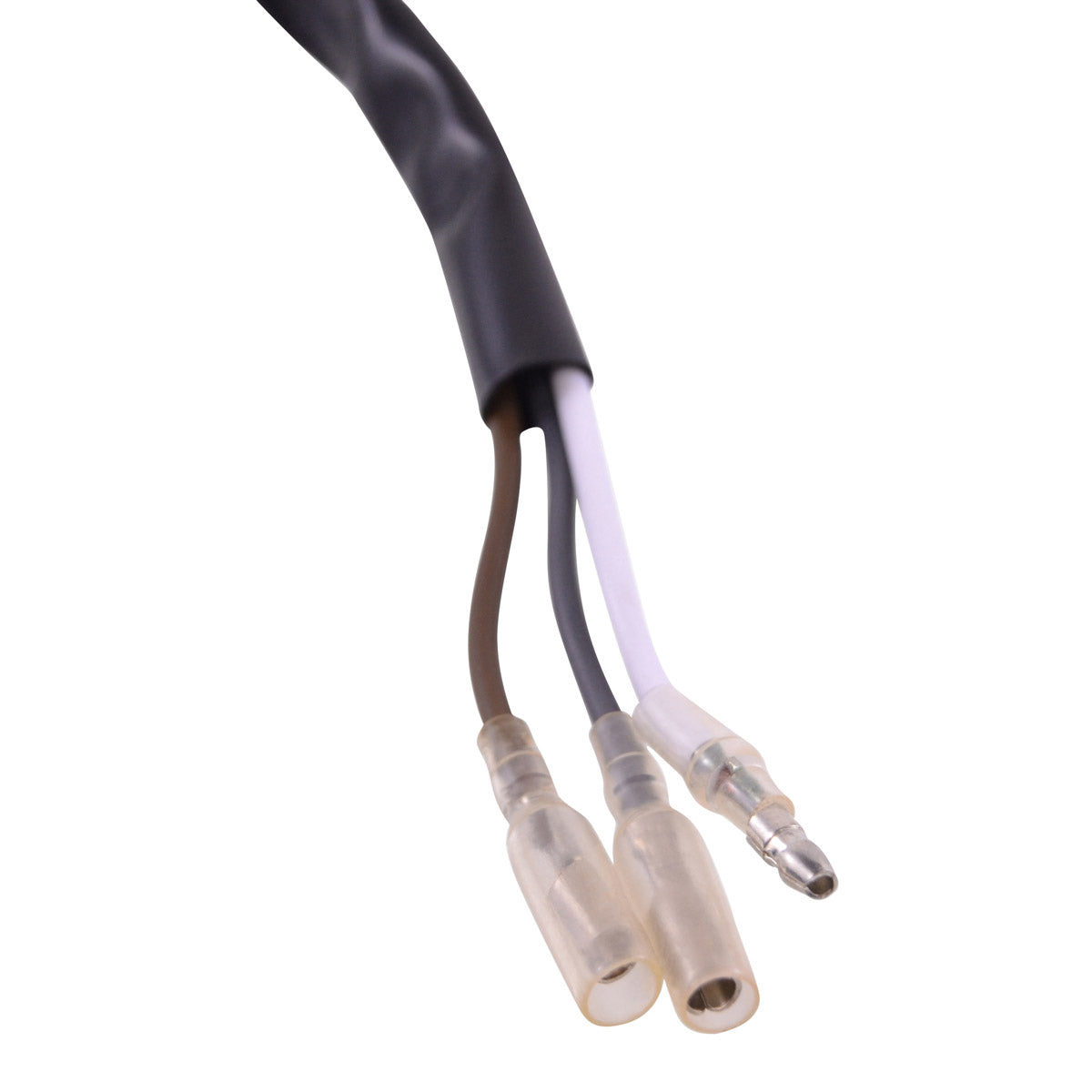

| Number of wires | 3 |
| Number of plugs | 3 |
| Number of keys | 2 |
| Number of positions | 2 (Off / On) |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Kawasaki KLF 300 Bayou C (European models) | 1989-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 27005-1266 | Kawasaki |
Frequently Asked Questions
Does this need any modification to fit?
No. It is a direct replacement for the original unit and is described by the manufacturer as plug-and-play and a direct fit. The matching connector is supplied, so no cutting or splicing of the loom is required. Confirm the OEM number 27005-1266 on your original switch before ordering.
What is included?

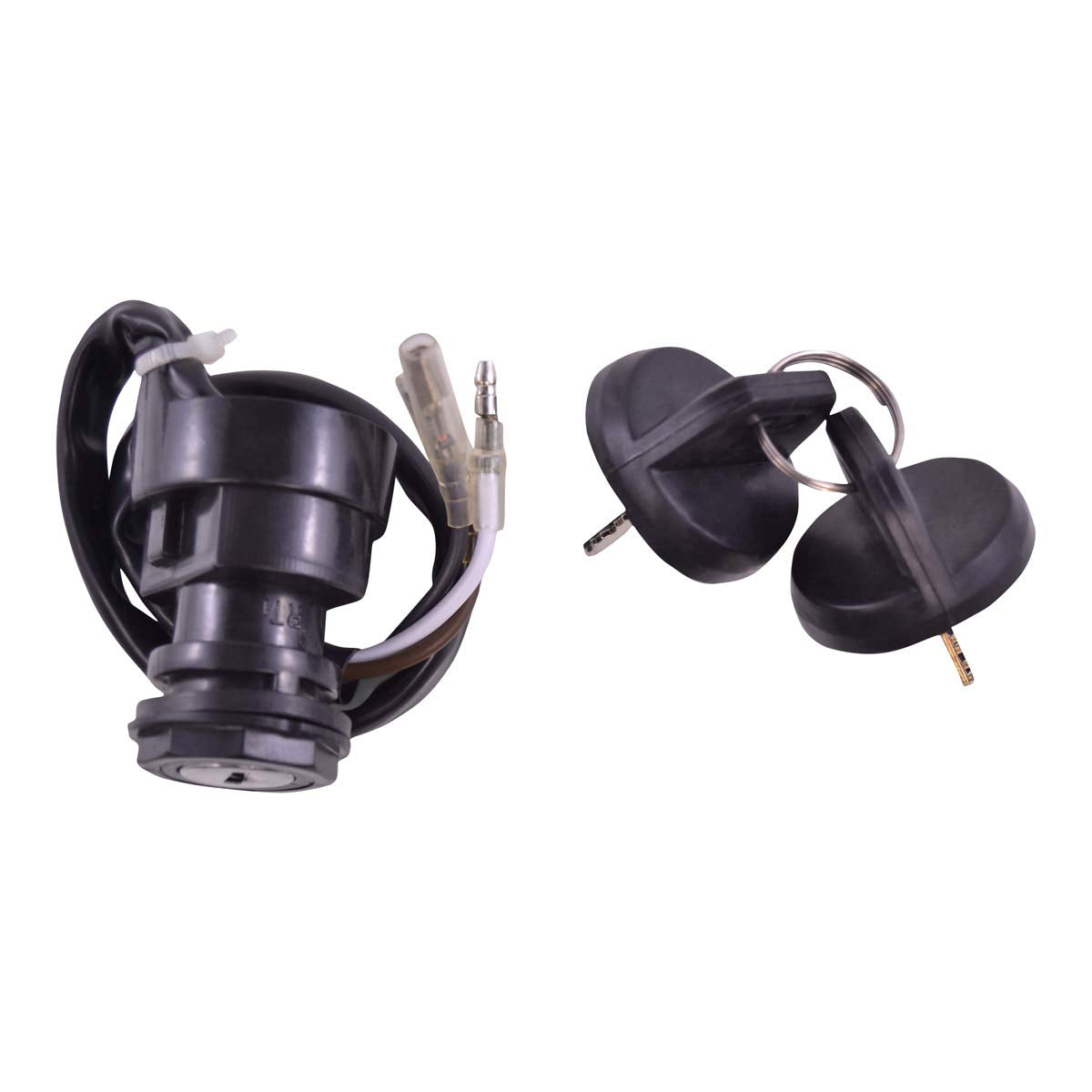

The ignition key switch itself, two keys and the connector.
How do I know the old key switch has failed?
Typical symptoms are no power at all when the key is turned to On, an engine that cuts out when the machine is ridden over rough ground or when the key is nudged, intermittent dash and lighting power, or a barrel that has become stiff, sloppy or will not turn. Check the battery, the main fuse and the earth connections first, then test for continuity across the switch terminals in each position.
How many positions does this switch have?
Two - Off and On. It is the two position switch specified for European specification KLF 300 Bayou C machines, with three wires and three plugs. If your original switch has a third position, it is a different part.
