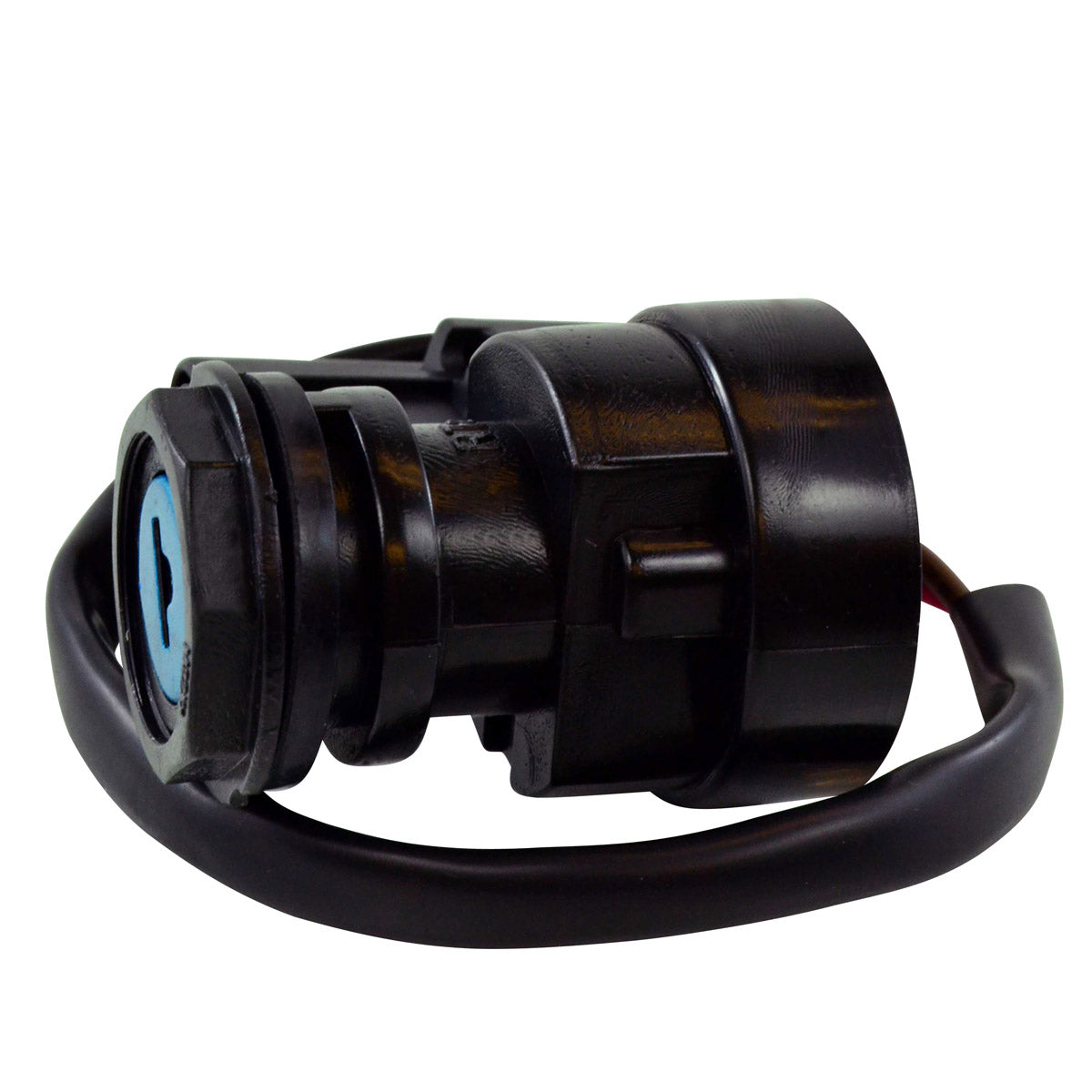

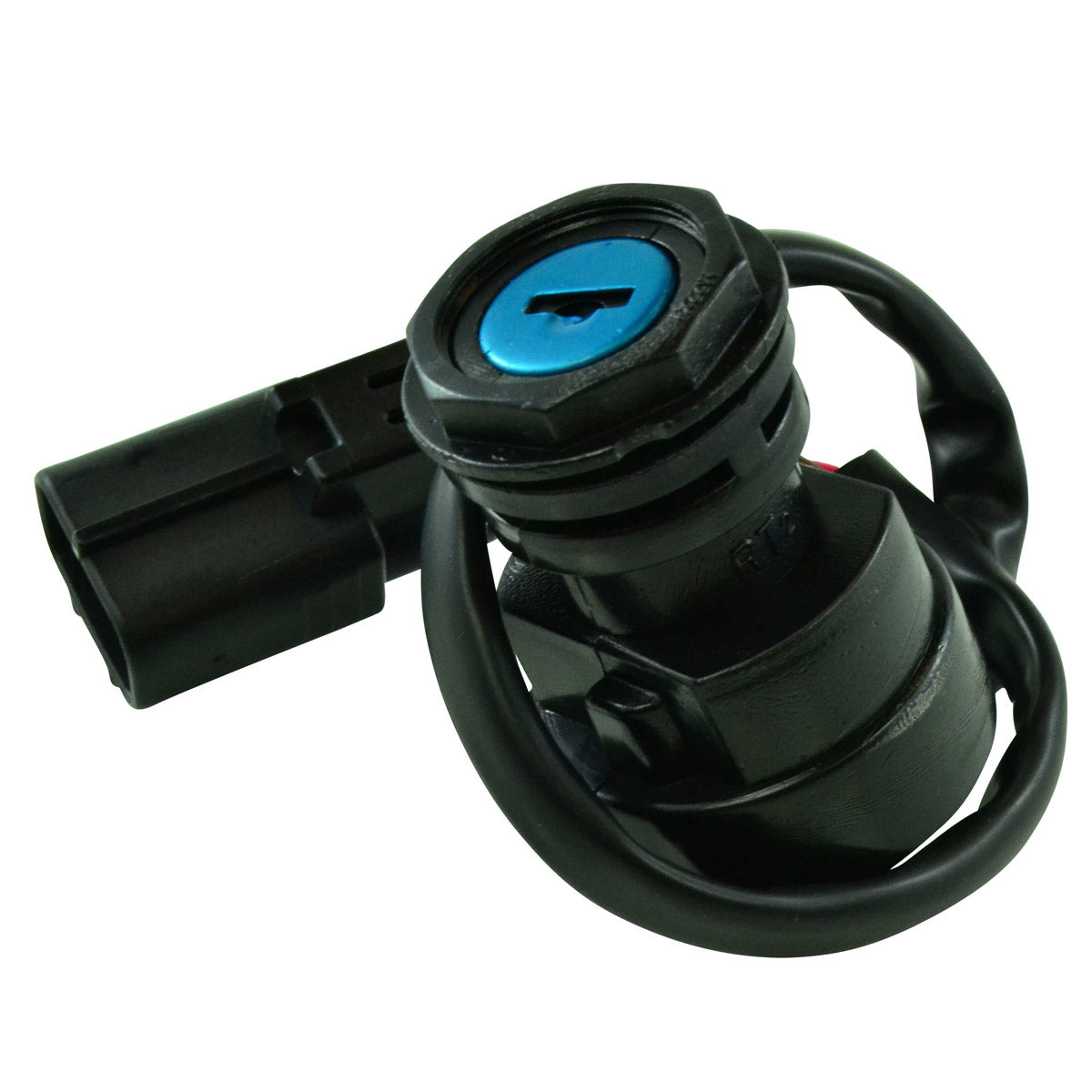

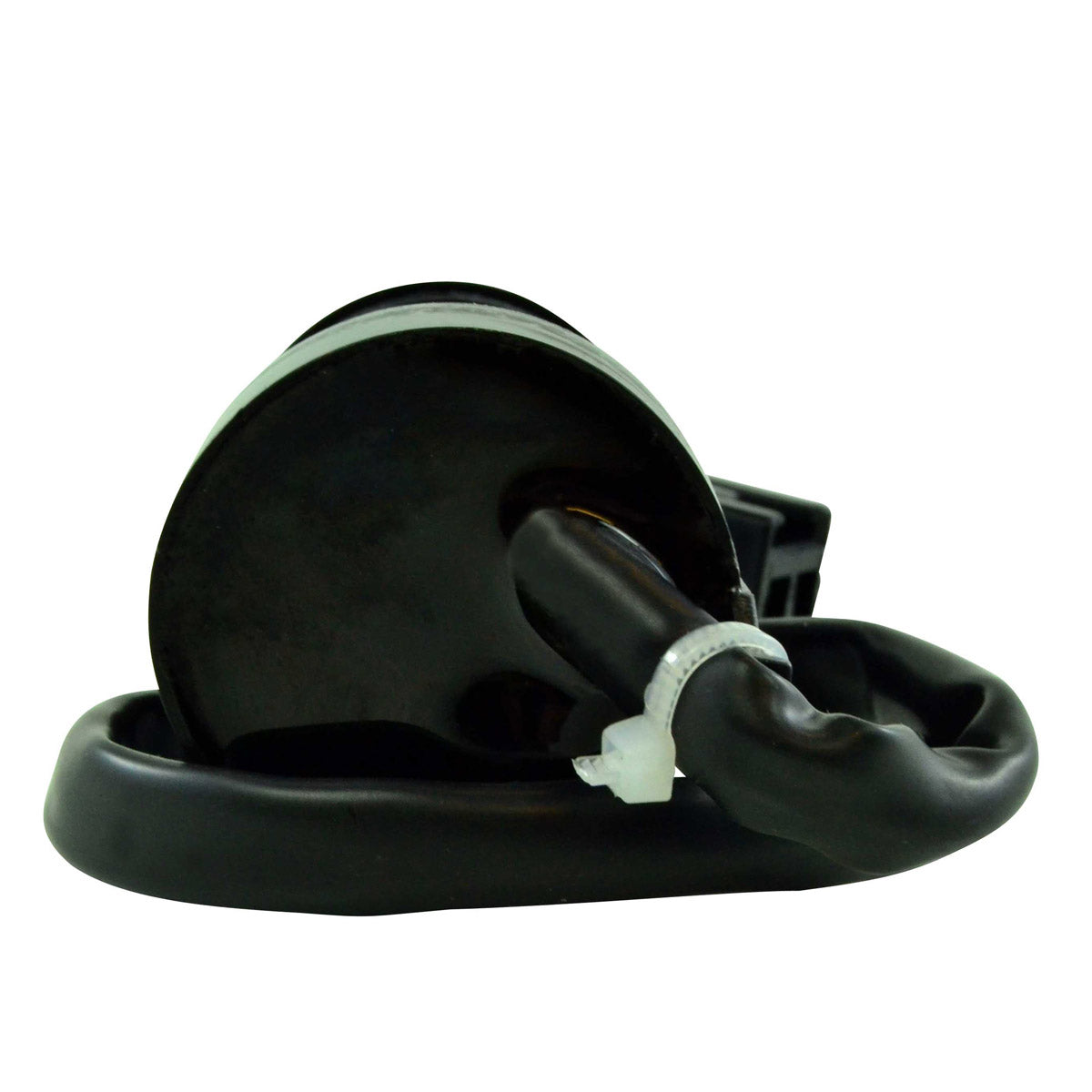

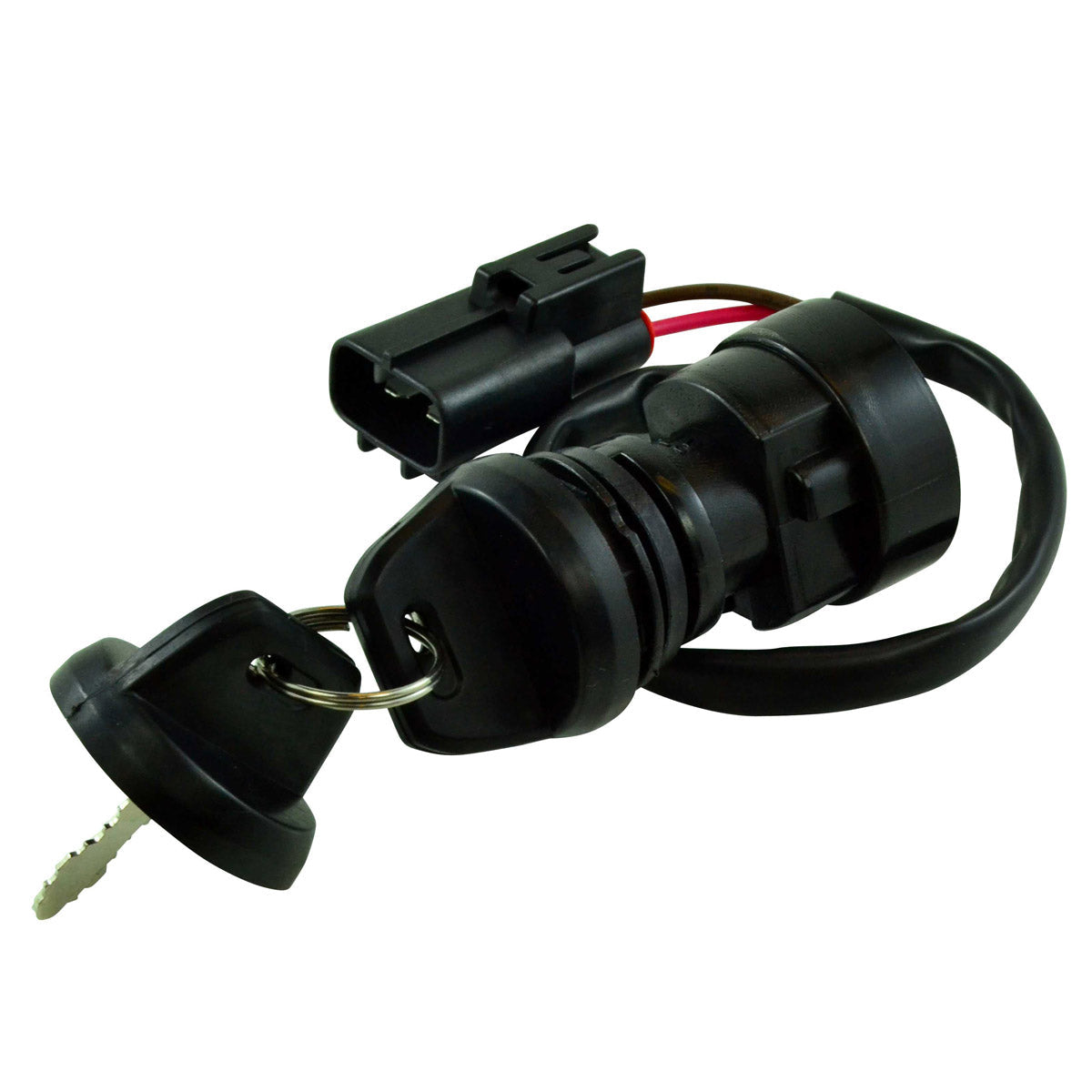

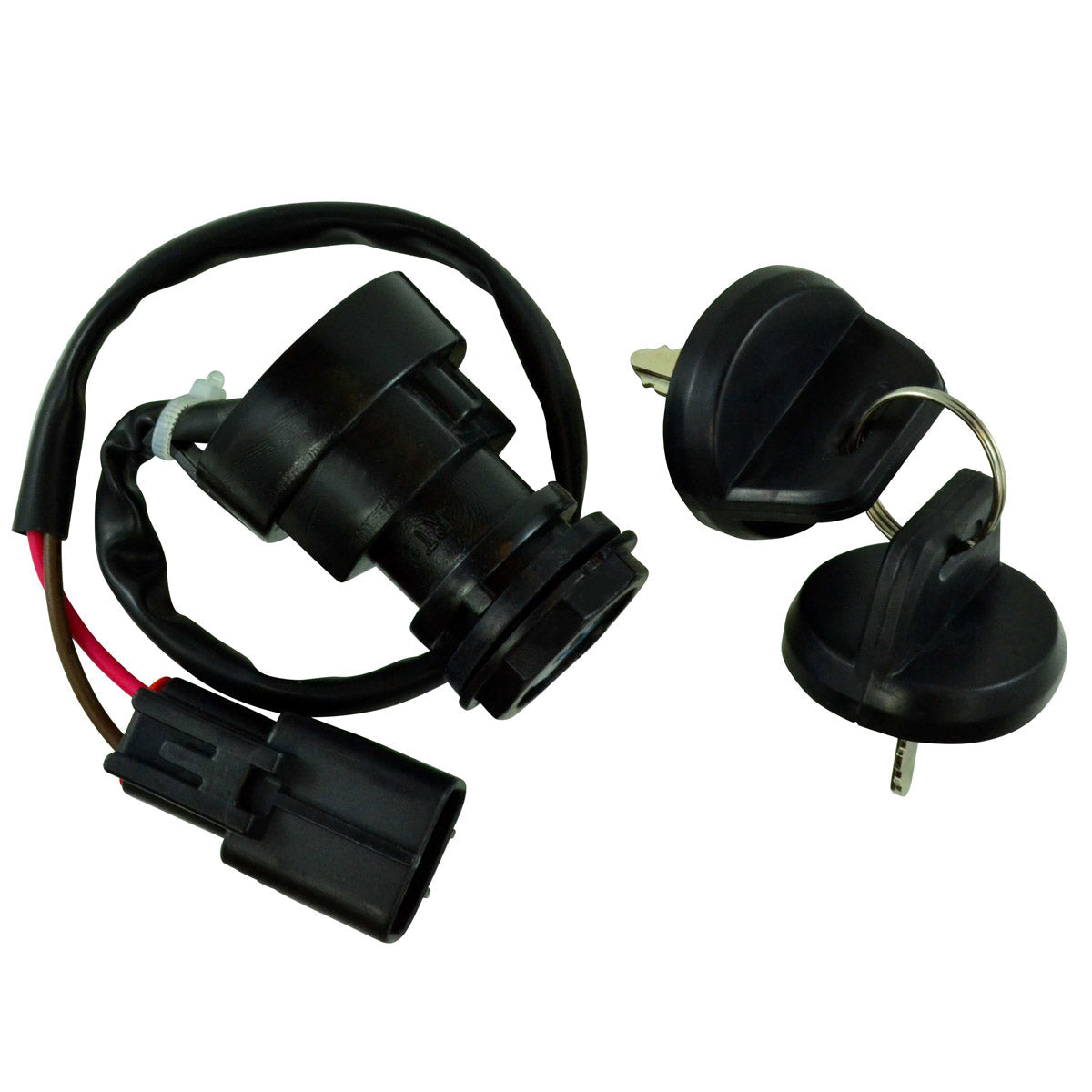

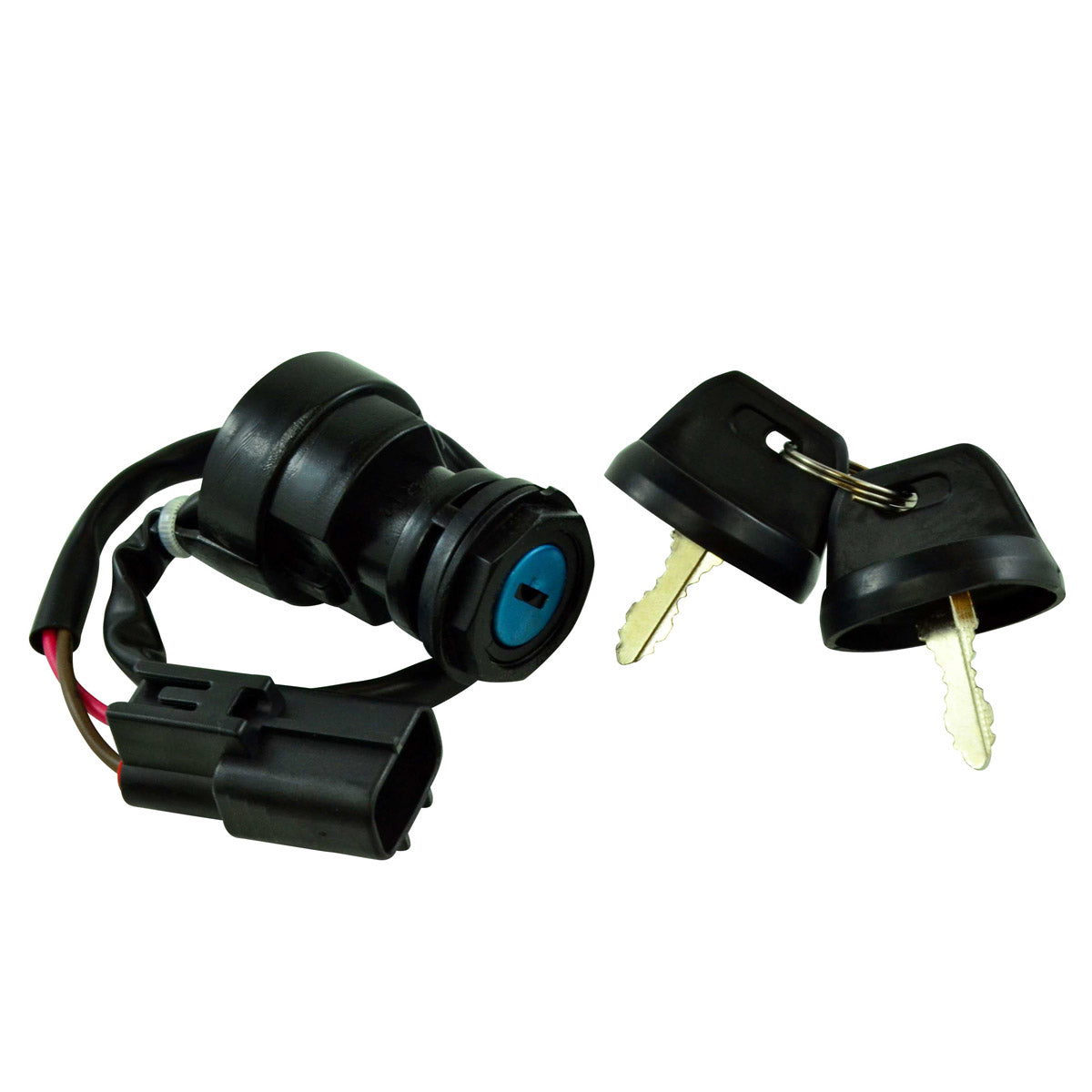

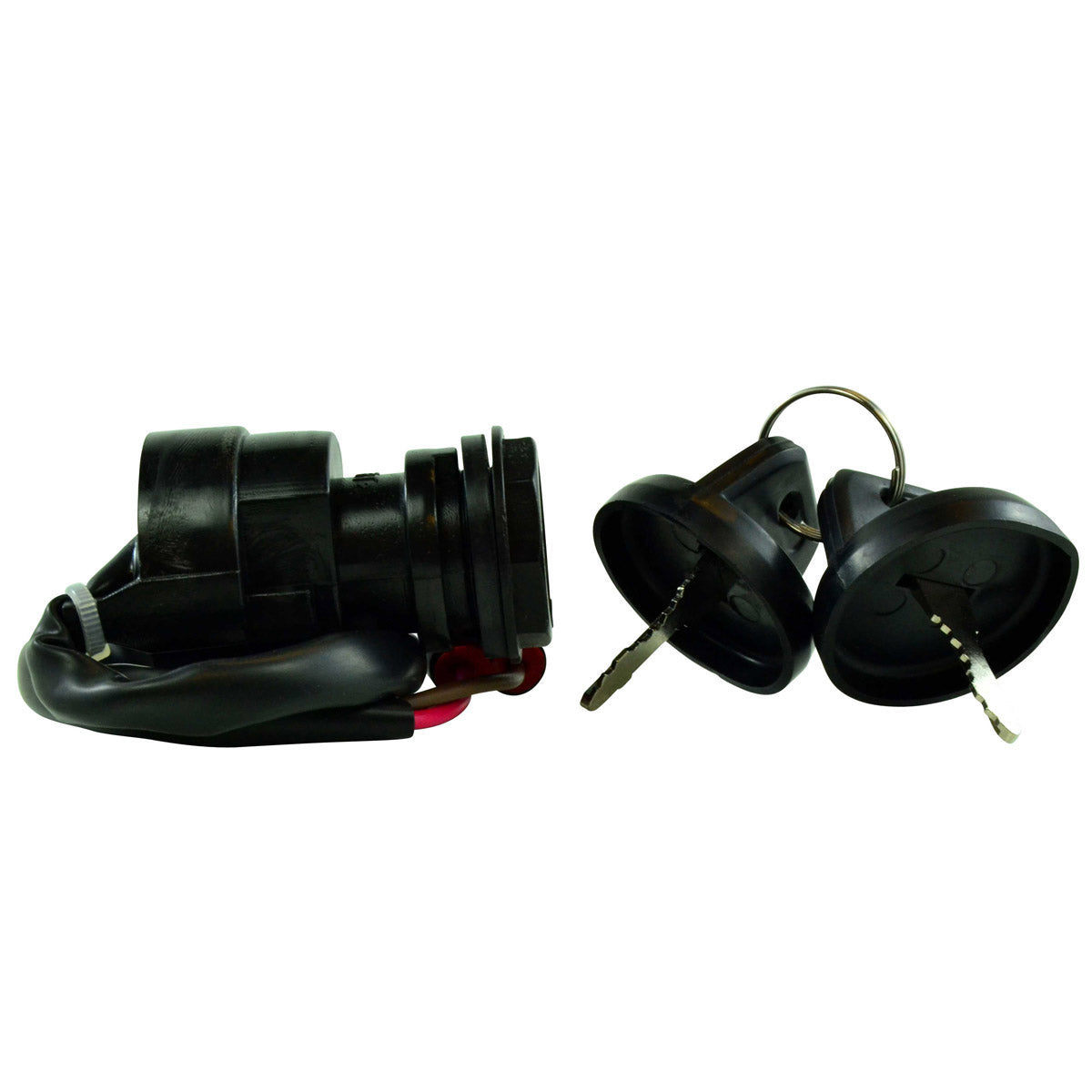

This is a brand new aftermarket two position ignition key switch, supplied as a direct replacement for the original Yamaha unit. It covers a long run of machines, from the YFM 400 Big Bear utility quad through to the YFM 700 Raptor and the YFZ 450R sport models, across the 2002 to 2024 span. The switch has two positions, off and on, with two wires running to a single plug.
Installation is plug-and-play and needs no changes to the harness. The barrel goes into the original mounting position and the supplied connector mates with the existing loom, so there is no splicing, no soldering and no drilling. The wire lead is 300 mm long and two keys are supplied with the switch. On an ATV the ignition switch lives a hard life - washed down, vibrated and occasionally submerged - so an intermittent electrical fault that follows the key rather than the battery usually ends here.
Key Features
- Brand new aftermarket two position ignition key switch
- Direct replacement for the original Yamaha unit
- Plug-and-play, direct fit, easy installation

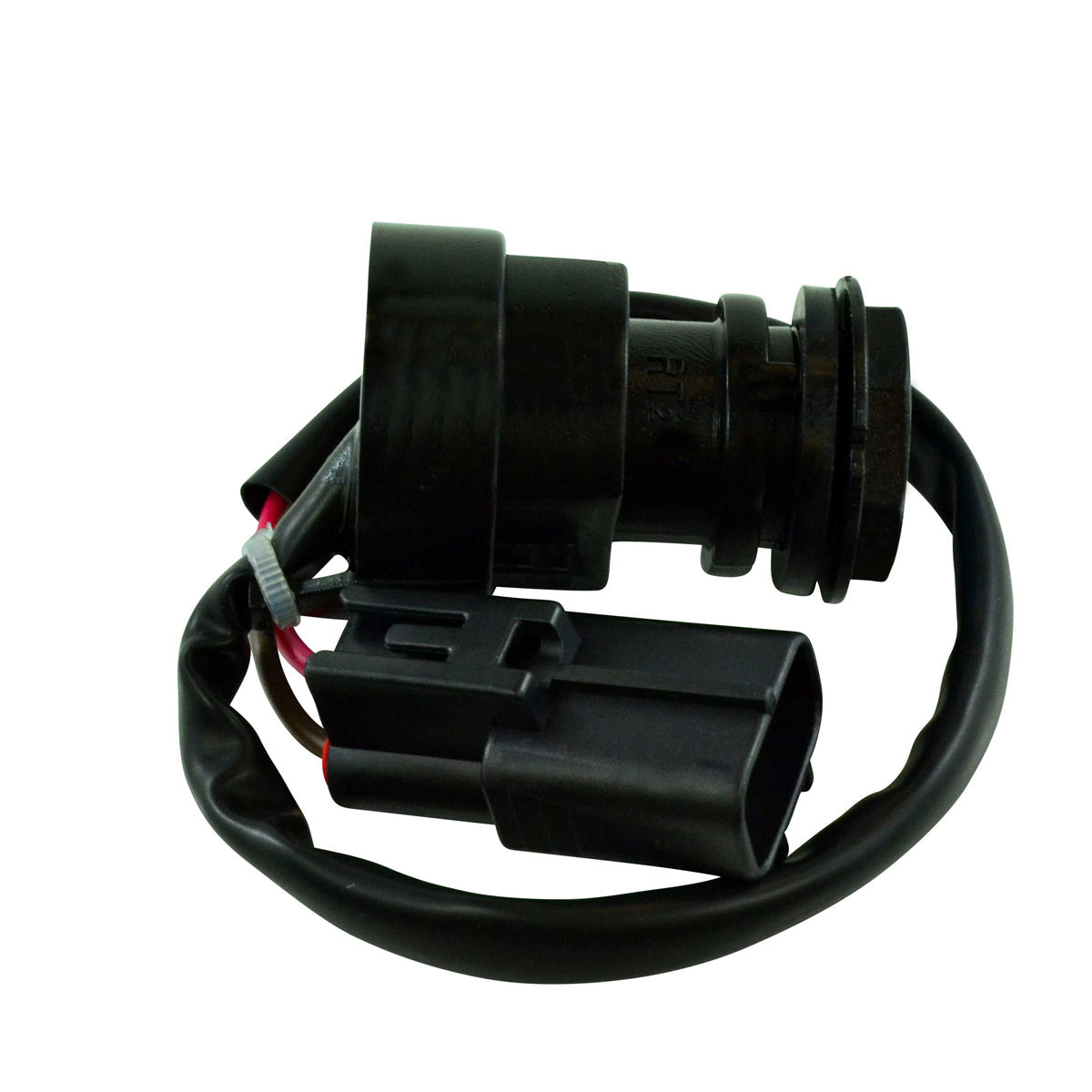

- Two wires to a single plug
- 300 mm wire lead

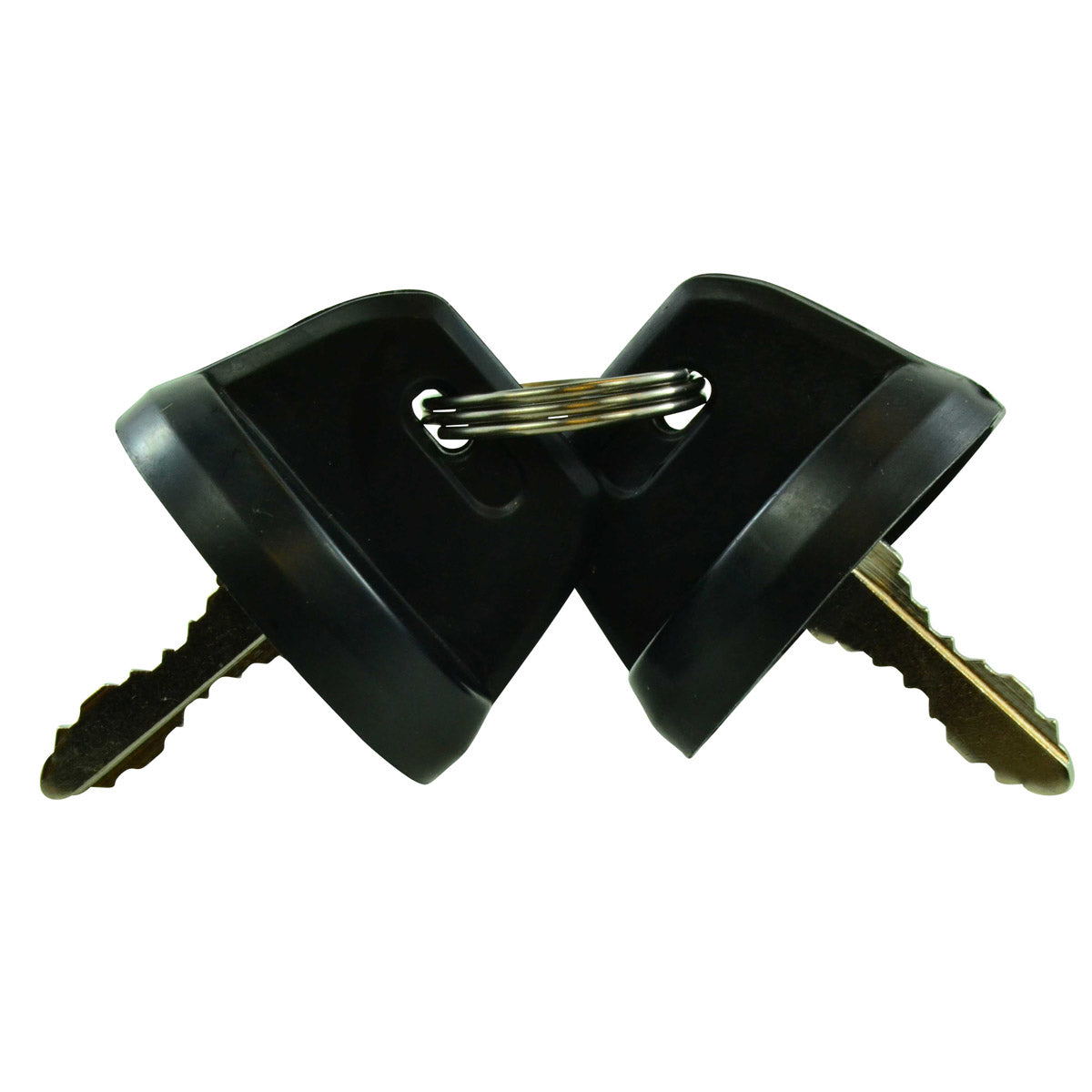

- Two keys included

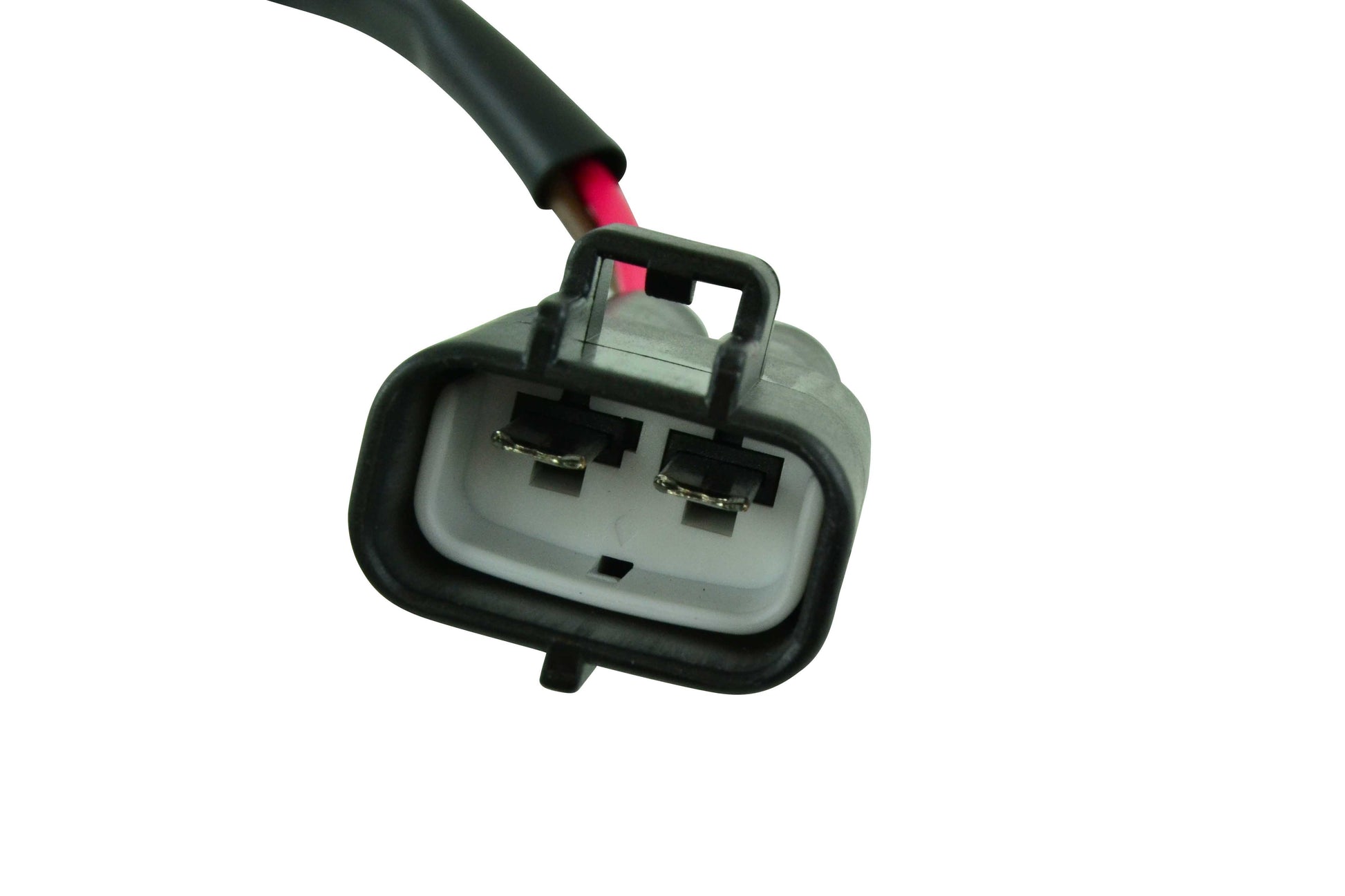

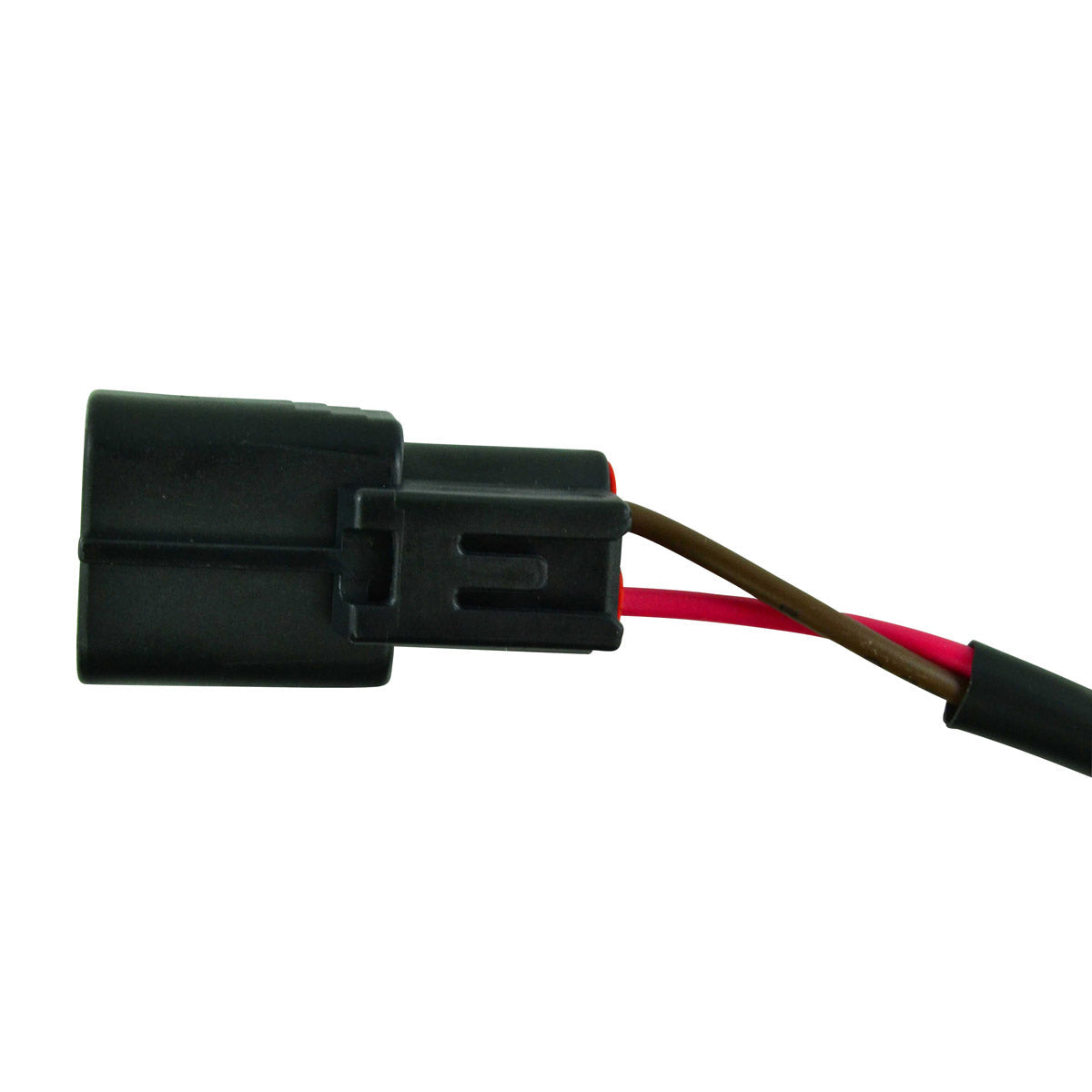

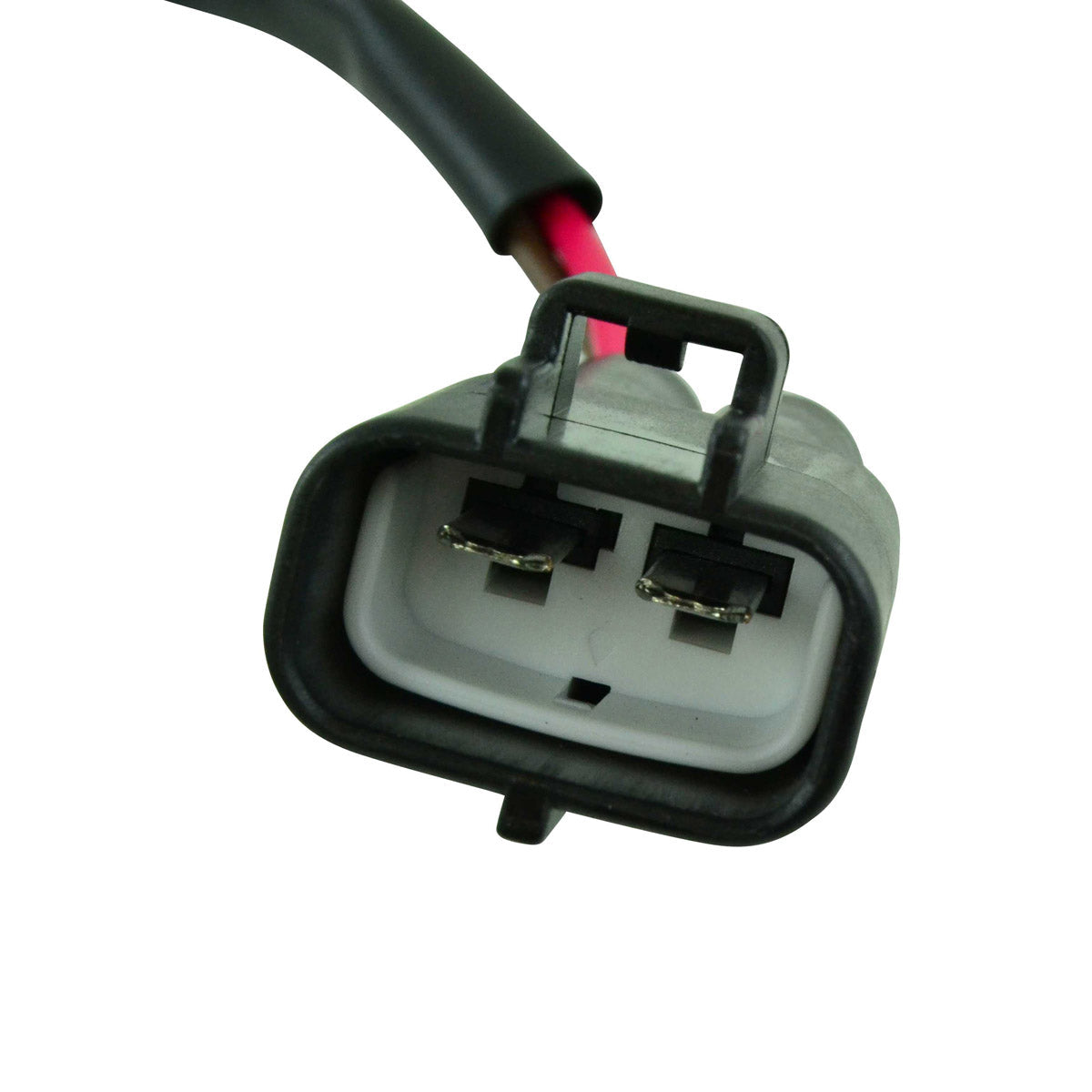

- Connector supplied in the box
- Replaces Yamaha OEM numbers 4SH-82510-00-00 and 4SH-82510-01-00
Technical Specs
| Specification |
Detail |
| Part Number |
RMS110-104612 |
| Component Type |
Ignition key switch |
| Number of Positions |
2 (off, on) |
| Number of Wires |
2 |
| Number of Plugs |
1 |
| Wire Length |
300 mm |
| Keys Included |
2 |
| Connector |
Included |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha YFM 400 Big Bear |
2002-2024 |
| Yamaha YFM 700 Raptor |
2002-2024 |
| Yamaha YFZ 450R |
2002-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 4SH-82510-00-00 |
Yamaha |
| 4SH-82510-01-00 |
Yamaha |
Frequently Asked Questions
Will this fit without modifying my wiring?
Yes. It is a direct fit in the original mounting position and the supplied connector mates with your existing loom, so no cutting, splicing or drilling is needed.
What is included in the box?

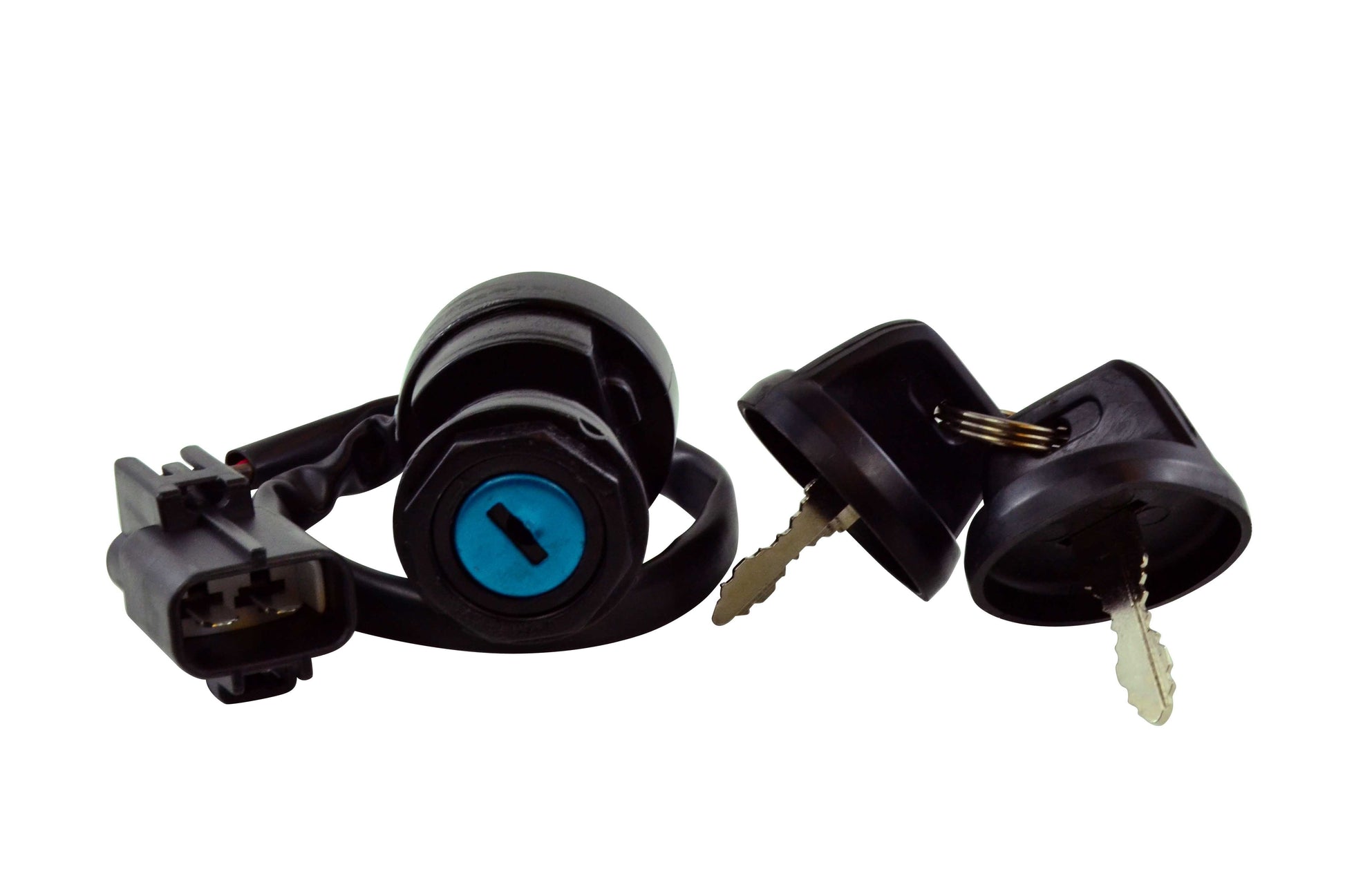

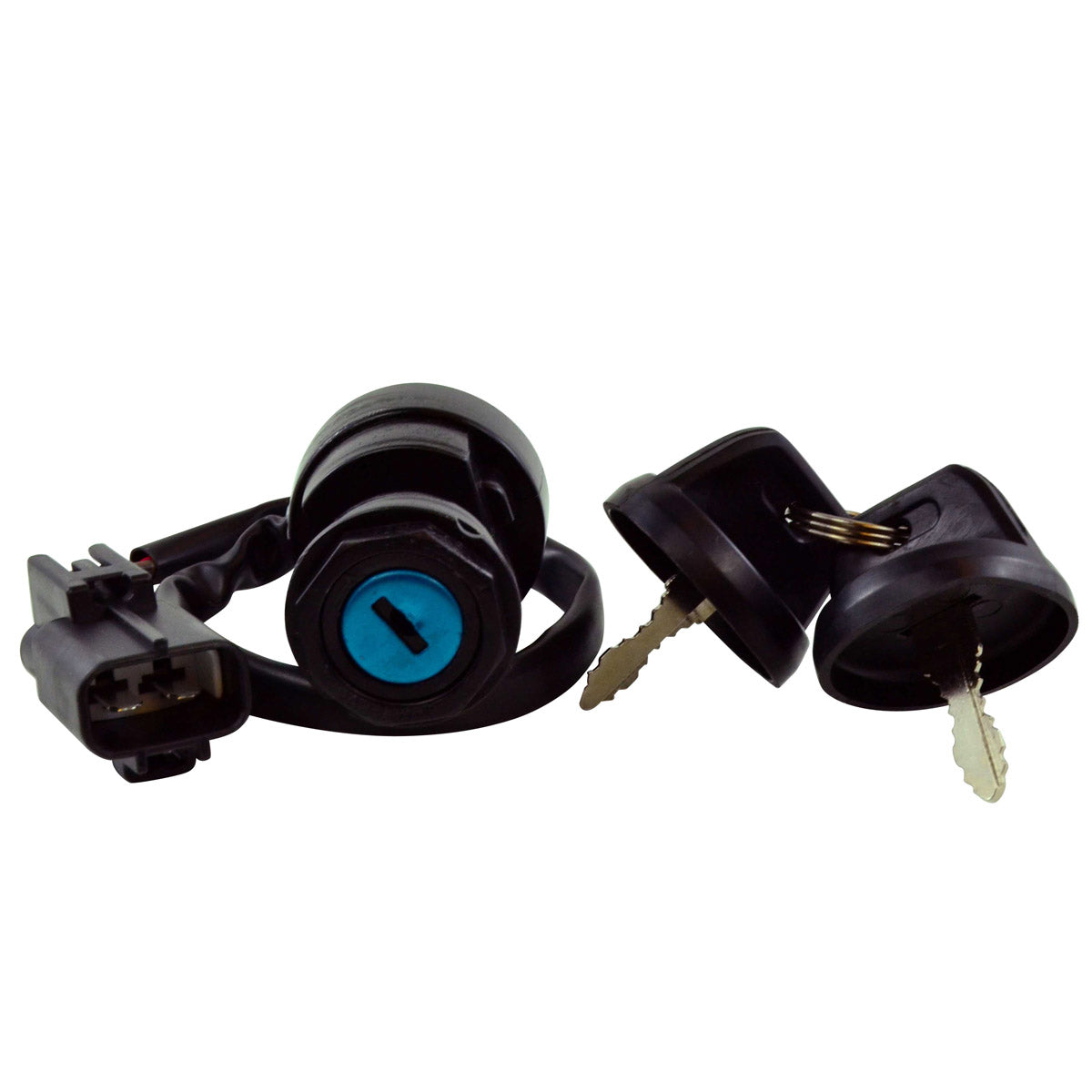

You receive the ignition key switch unit with its 300 mm lead, two keys and the matching connector.
How do I know my old ignition switch has failed?
Watch for no power when the key is turned on, power that flickers when the key or the loom is wiggled, the engine cutting out over bumps, or a barrel worn enough that the key spins freely. Check the battery and the main fuse first, then test continuity across the two switch wires with the key in the on position.
Can I keep using my original Yamaha key?
No. This is a new barrel supplied with its own pair of keys, and those are the keys that will operate it. Keep one with the machine and store the spare somewhere safe.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
