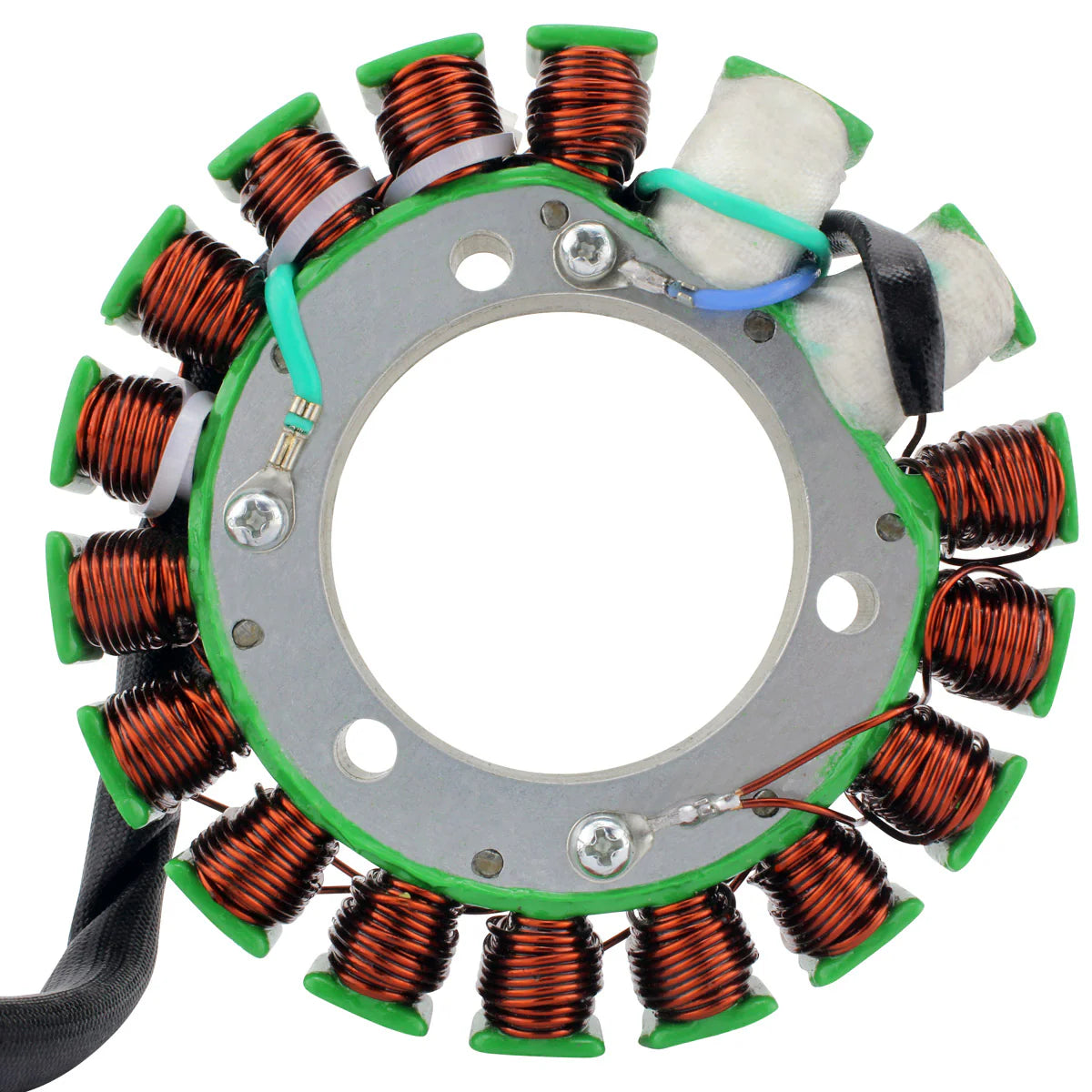

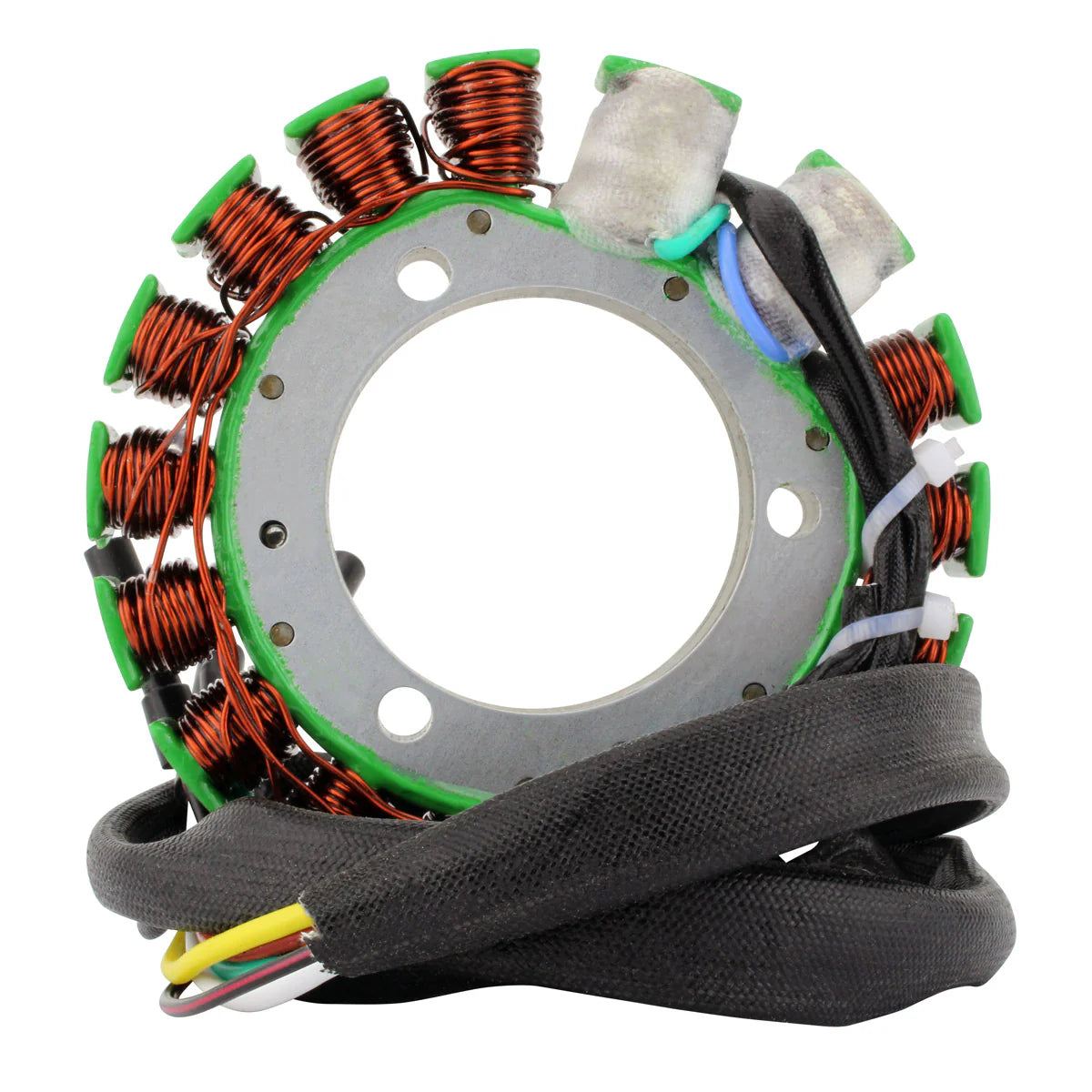

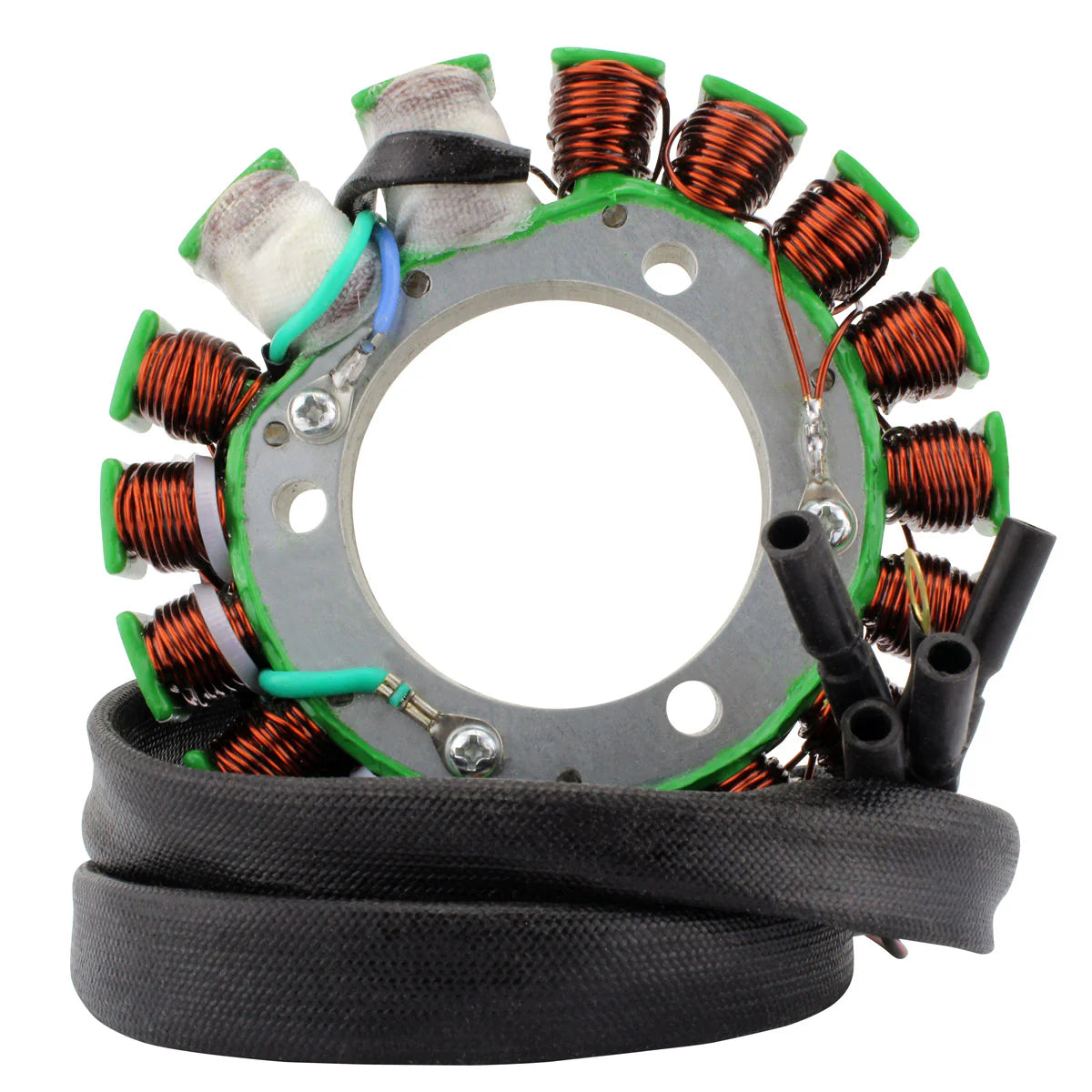

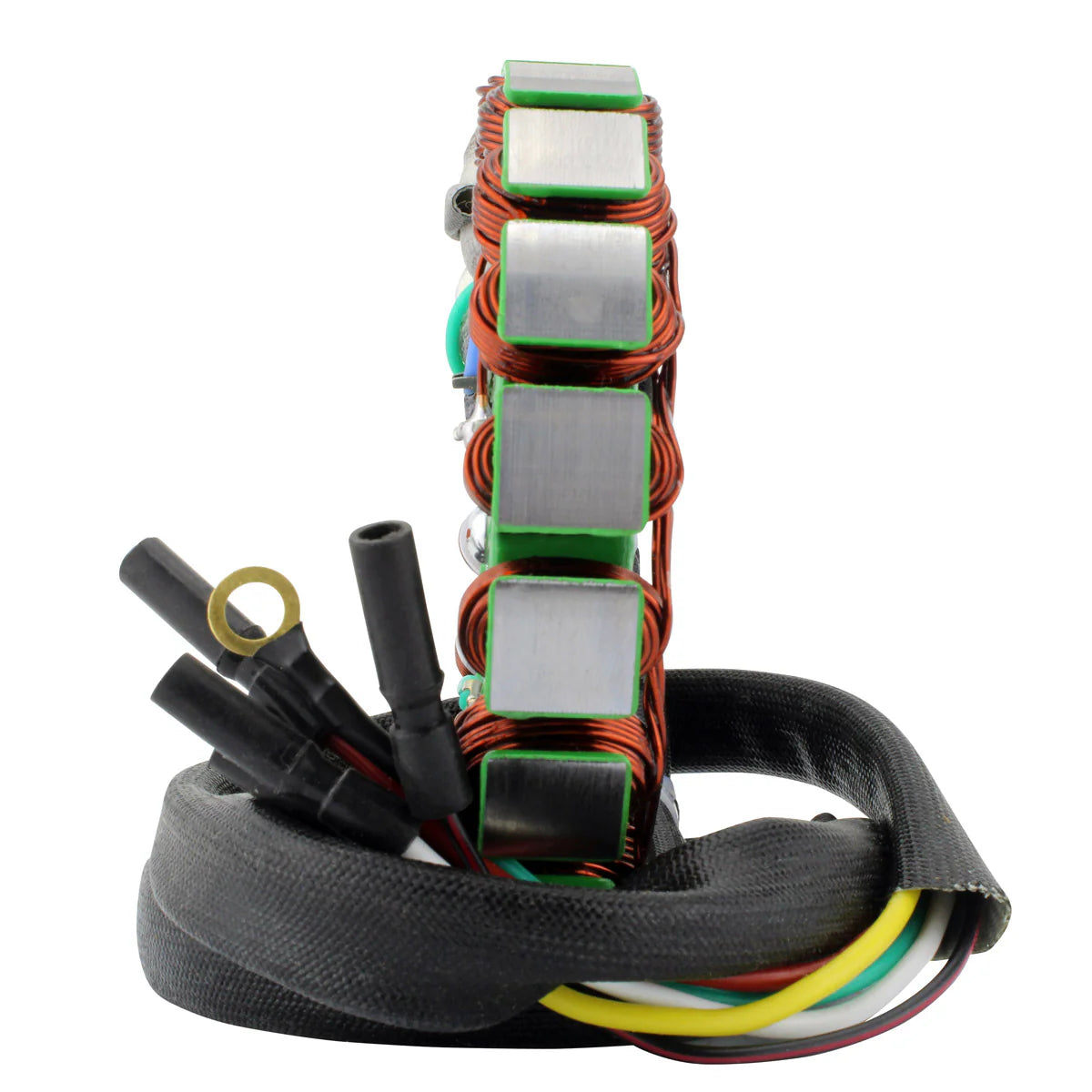

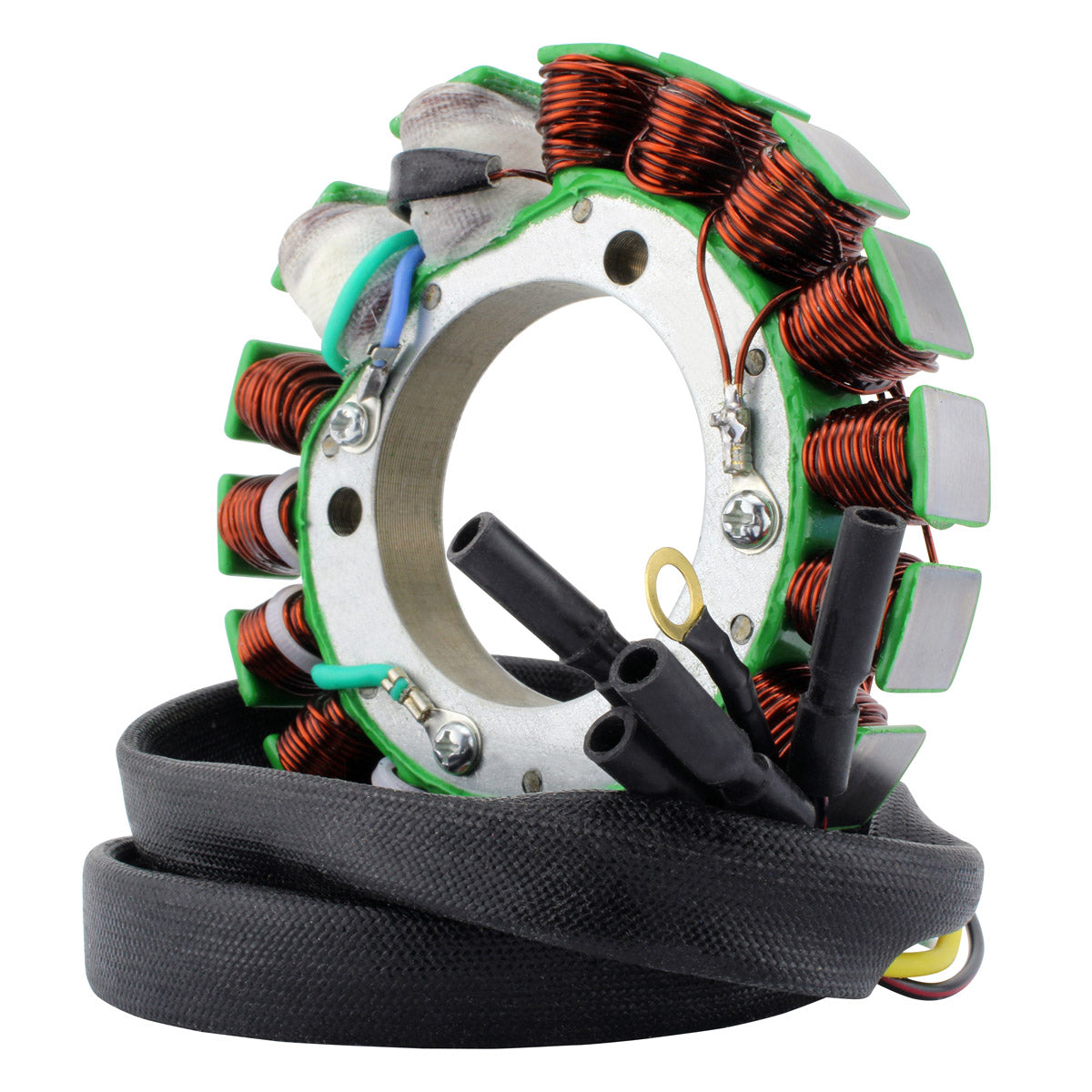

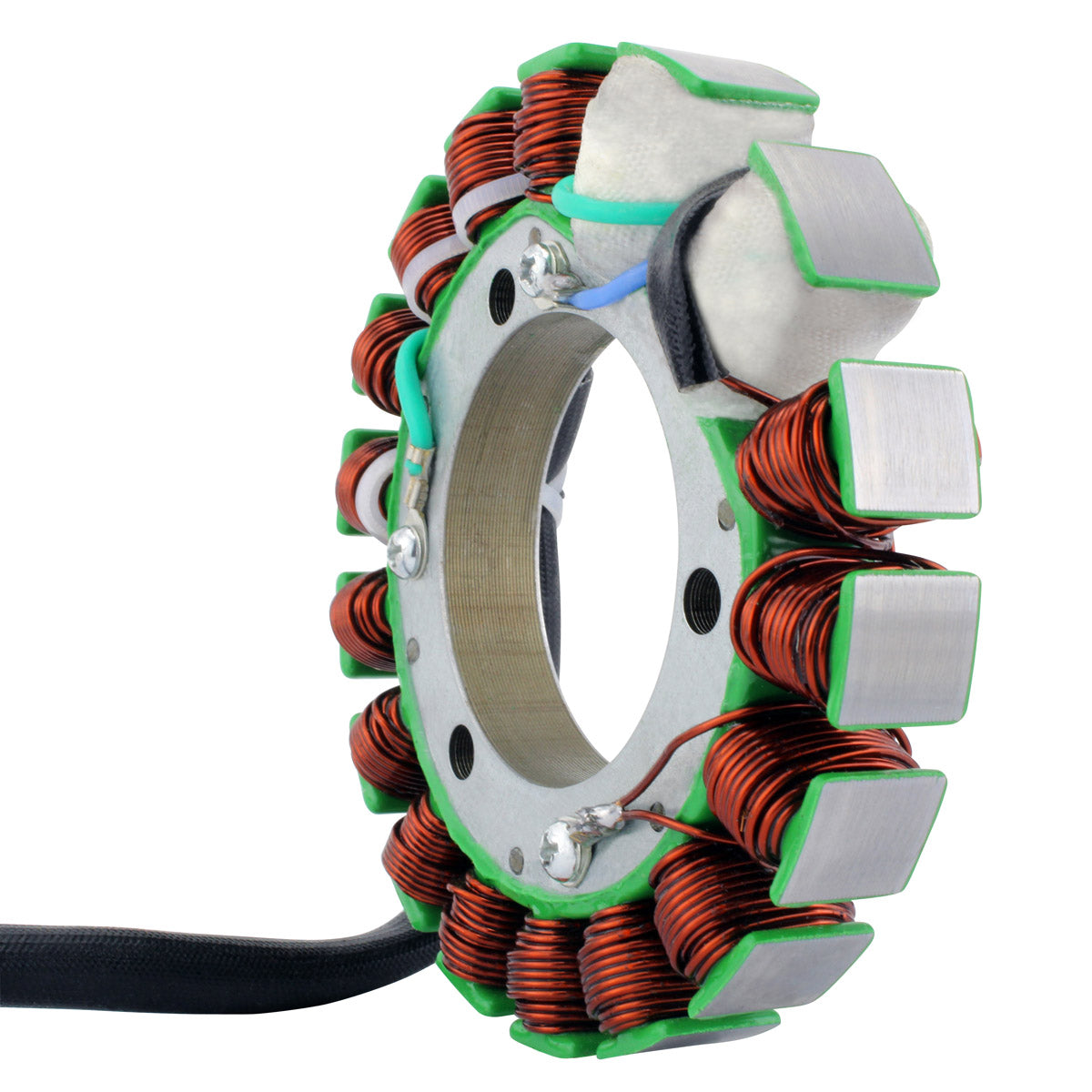

This is a brand new aftermarket high output stator rated at 200W, built as a direct replacement for the original charging unit fitted to the Honda XR 600 R from 1985 to 2000. It is a plug-and-play, direct fit part, so it sits in the original mounting position and connects to the existing wiring without cutting or modification. Output is produced as 2 x 100W, a significant increase over the standard unit, which makes it a practical choice for a machine that has to run lighting or other added electrical load.
The stator is built on the highest grade of lamination materials and wound with the highest grade of copper winding, resistant to 200 degrees Celsius. Connectors and a rubber grommet are supplied with the unit, and the supplied set includes the opposite connector for the main harness side, because that connection is often melted, corroded or defective and is a common cause of repeat electrical faults. All products shipped are tested.
Key Features
- High output 200W total, delivered as 2 x 100W
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation

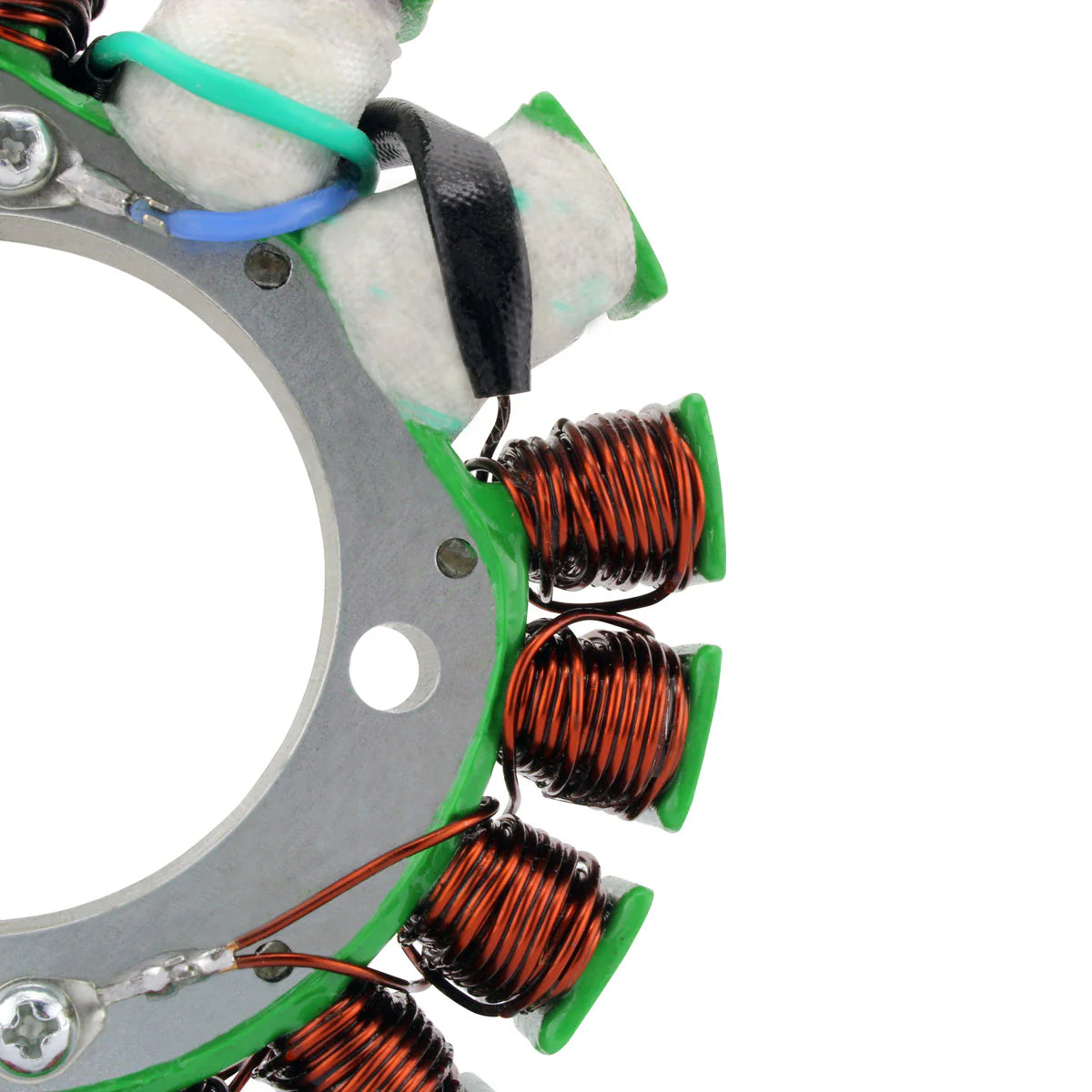

- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

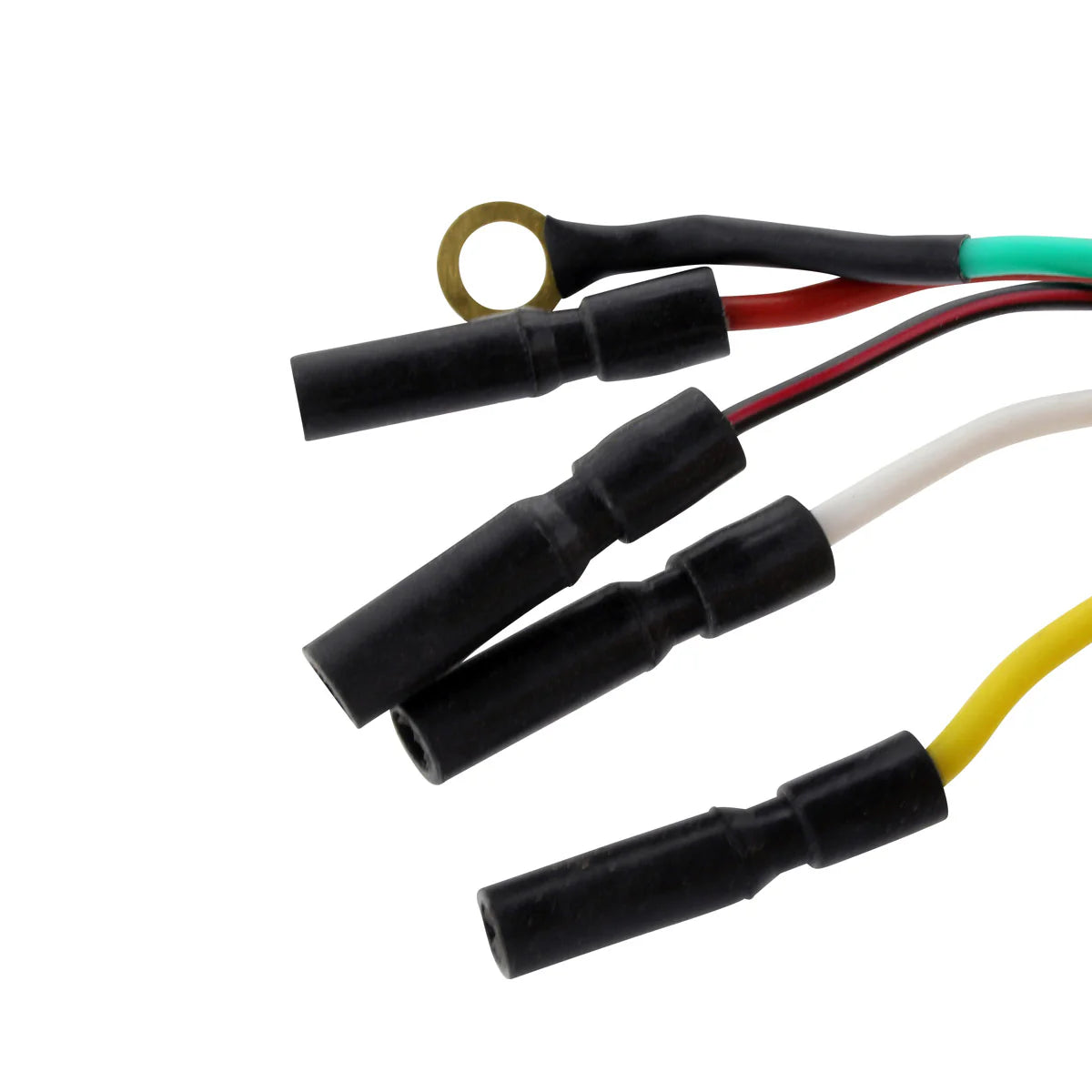

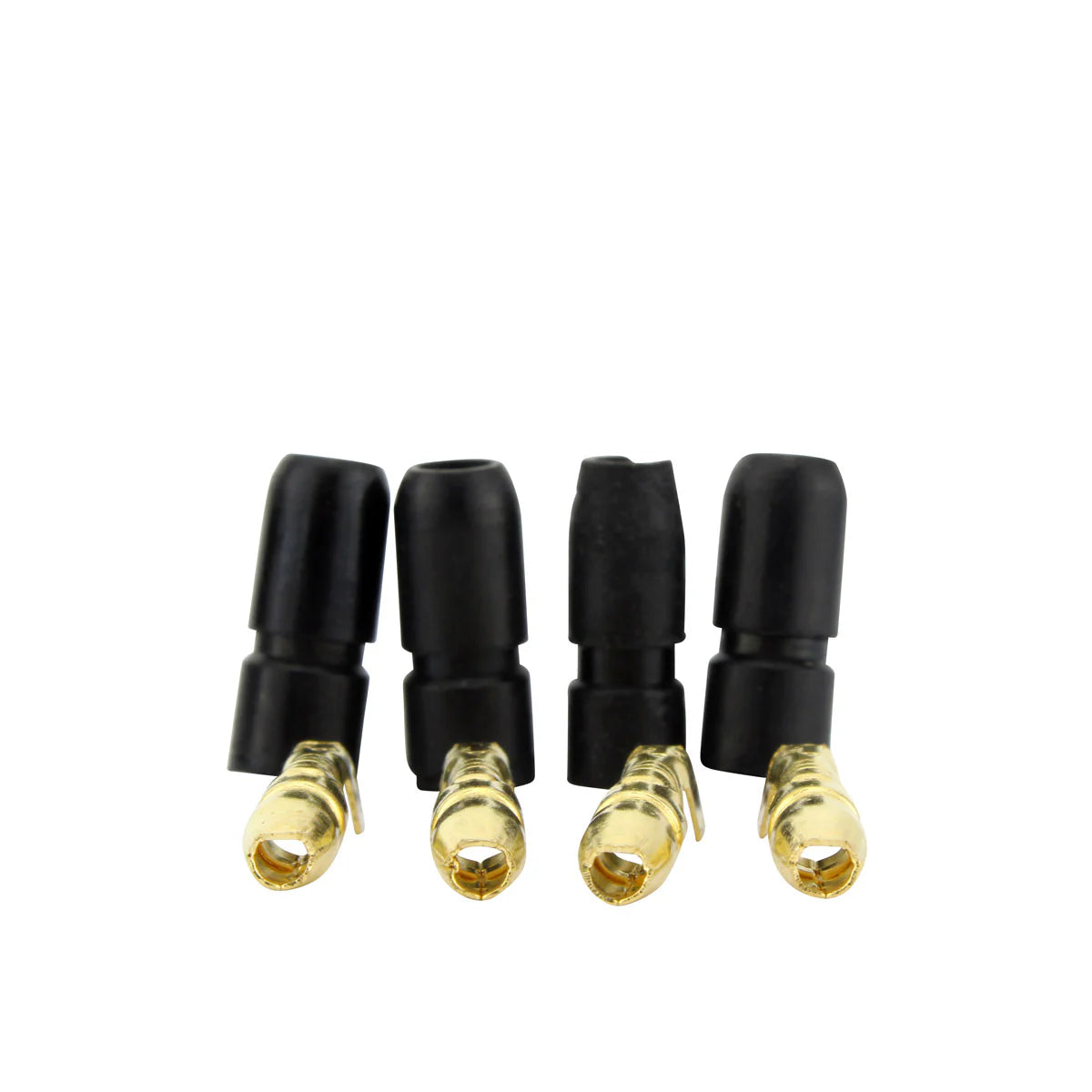

- Connectors included, plus the opposite main harness side connector
- Rubber grommet included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
54 mm |
| Exterior diameter |
115 mm |
| Thickness |
15 mm |
| Wire length, stator to grommet |
200 mm |
| Wire length, grommet to plug |
700 mm |
| Number of wires |
5 |
| Number of plugs |
5 |
| Number of pins |
3 |
| Number of poles |
17 |
| Power output |
2 x 100W, 200W total |
| Alternator resistance, White to Green |
0.4 ohms +/-20% |
| Alternator resistance, Yellow to Red |
0.4 ohms +/-20% |
| Source resistance, Black/Red to Green |
140 ohms +/-20% |
| Temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| Honda XR 600 R |
1985-2000 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 31120-MN1-681 |
Honda |
| 31120-MN1-671 |
Honda |
| 31120-MK2-005 |
Honda |
Frequently Asked Questions
Does this stator need any modification to fit?
No. It is a direct replacement for the original unit and is plug-and-play, so it uses the standard mounting position and the existing wiring. Installation is the same job as refitting the original stator.
What is included in the box?

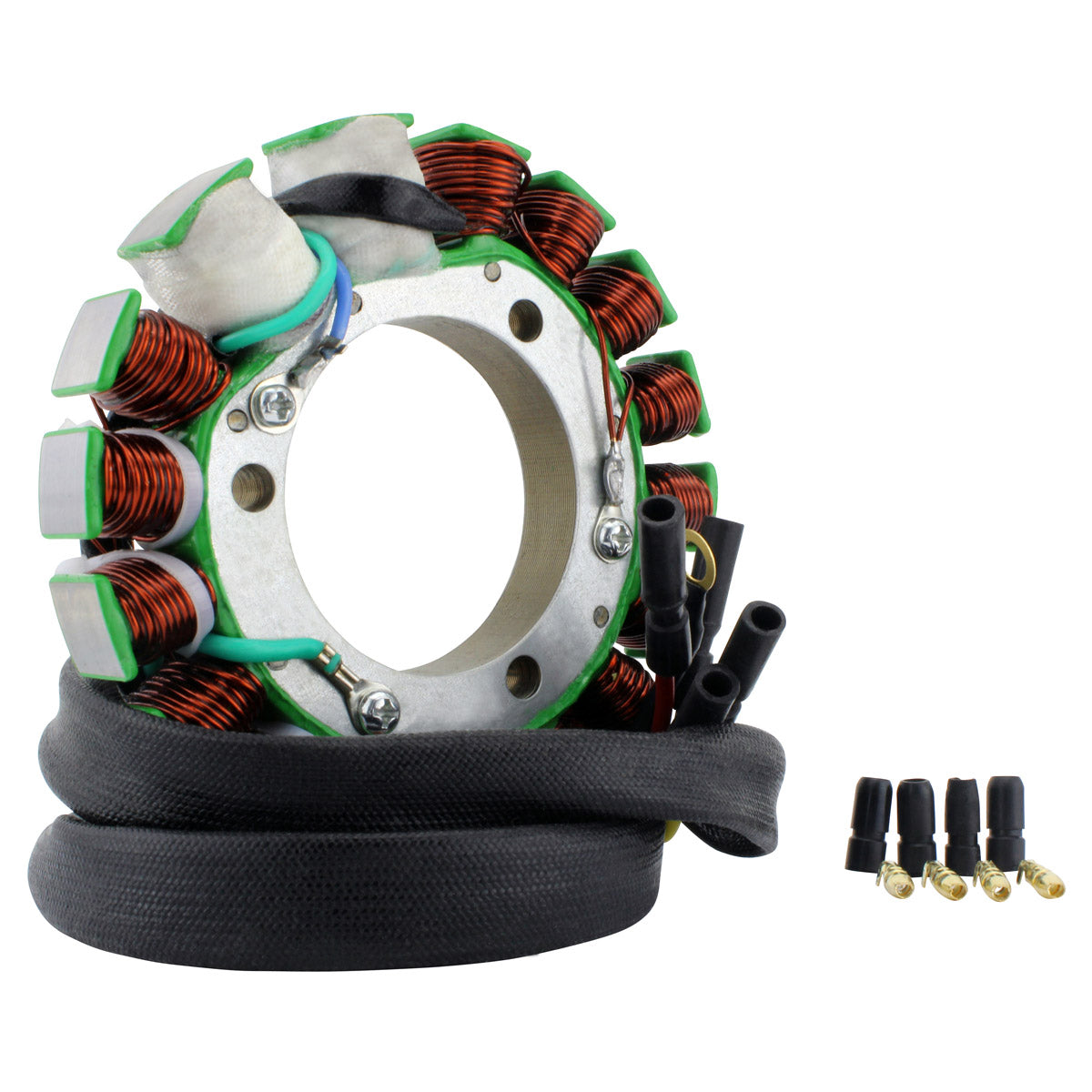

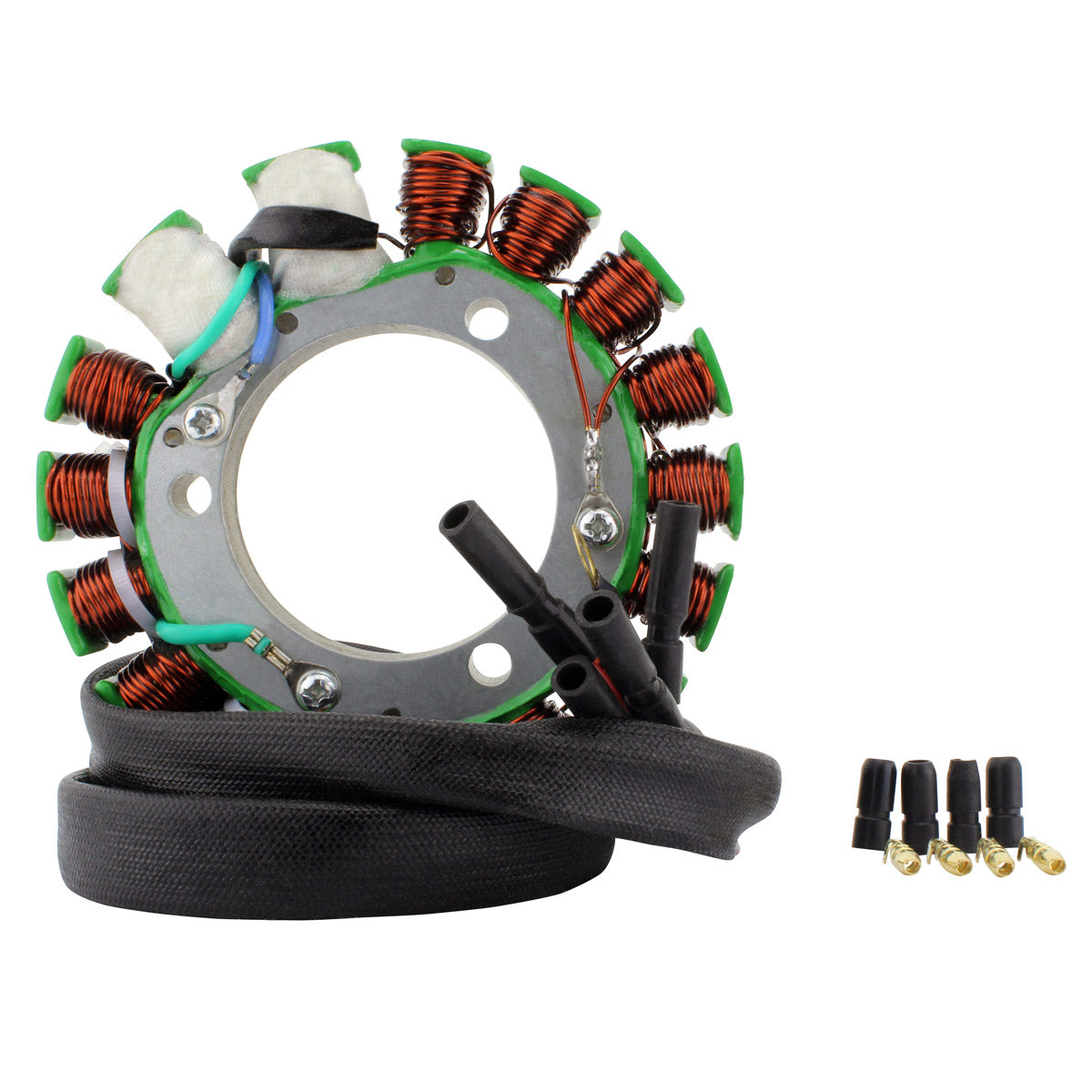

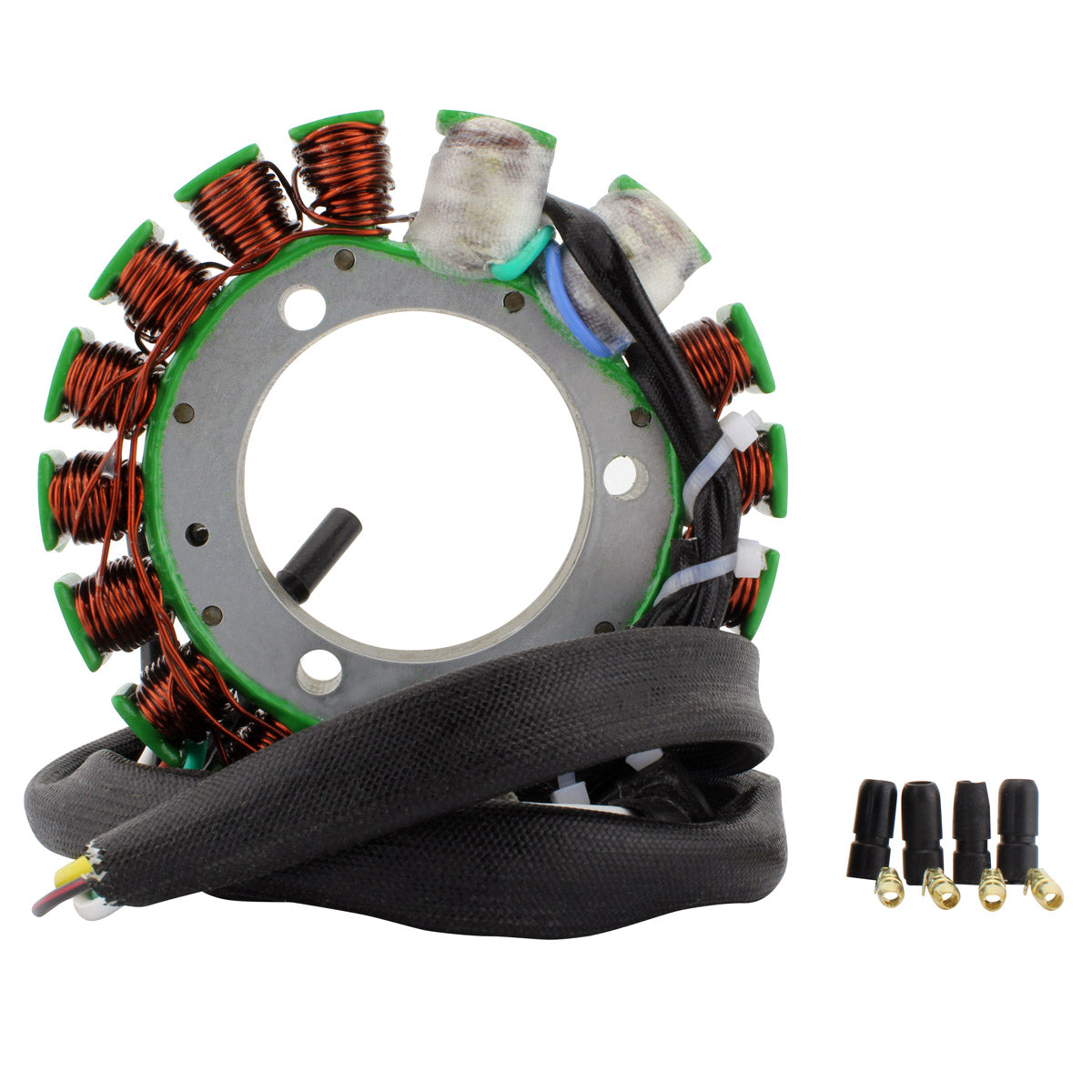

The stator assembly, the connectors including the opposite connector for the main harness side, and the rubber grommet. Every unit is tested before it is shipped.
How can I tell whether my old stator has failed?
Measure the resistance across the windings with a multimeter and compare the readings against the figures in the Technical Specs table above. Alternator readings should be close to 0.4 ohms white to green and yellow to red, and the source coil close to 140 ohms black/red to green, each within 20 per cent. A reading far outside those values, or continuity to the stator body, points to a failed unit.
What does the 200W output mean in practice?
This unit produces 200W in total, arranged as two separate 100W outputs, rather than the standard output of the original stator. That extra headroom is useful where additional electrical load has been added to the machine. It remains a direct fit and works with the existing charging components.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
