3-Pack Ignition Stick Coils
Triumph Speed Triple 900 and 955, Sprint ST and RS 955, Tiger 885i and 955 - 1993-2020 - Part No. RMS260-108533

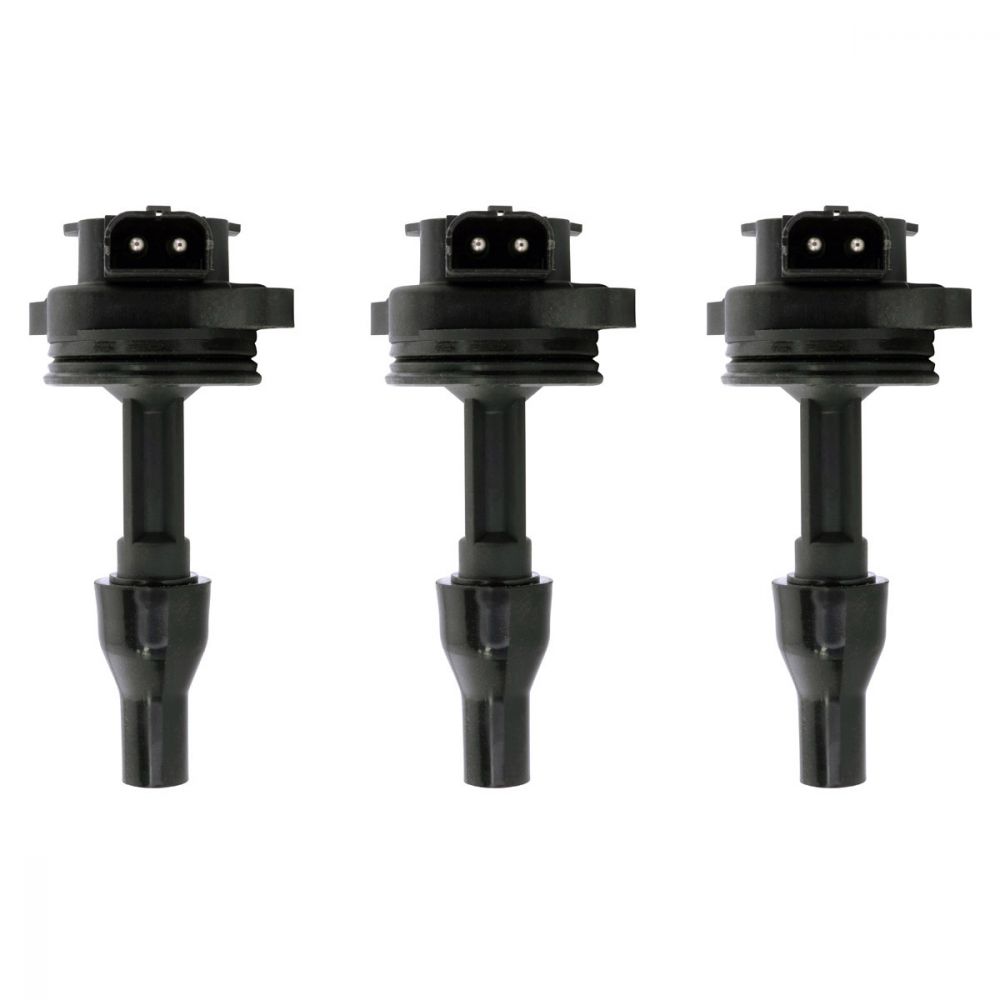

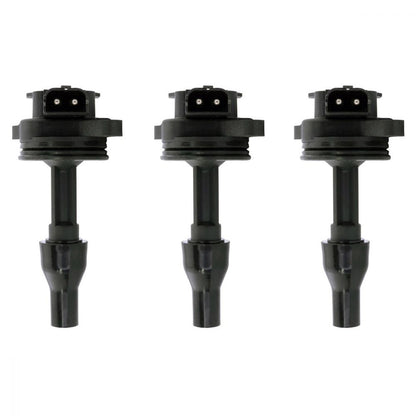

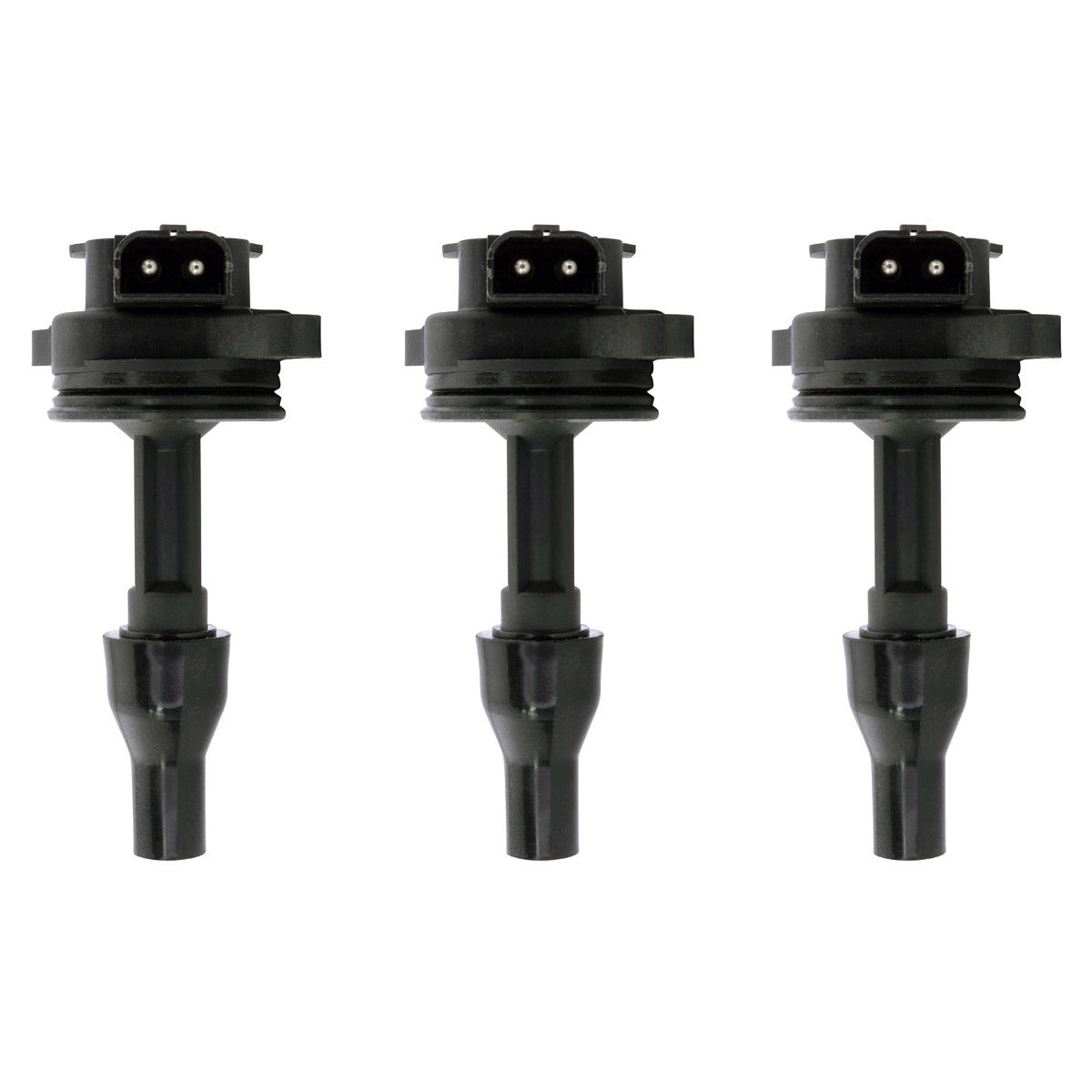

This is a set of three brand new ignition stick coils for the Triumph three-cylinder engine, supplied as a direct replacement for the original units. Because a triple runs one stick coil per cylinder, replacing all three at once restores an even spark across the engine rather than leaving two aged coils working alongside one new one - which is why this part is sold as a matched 3-pack.

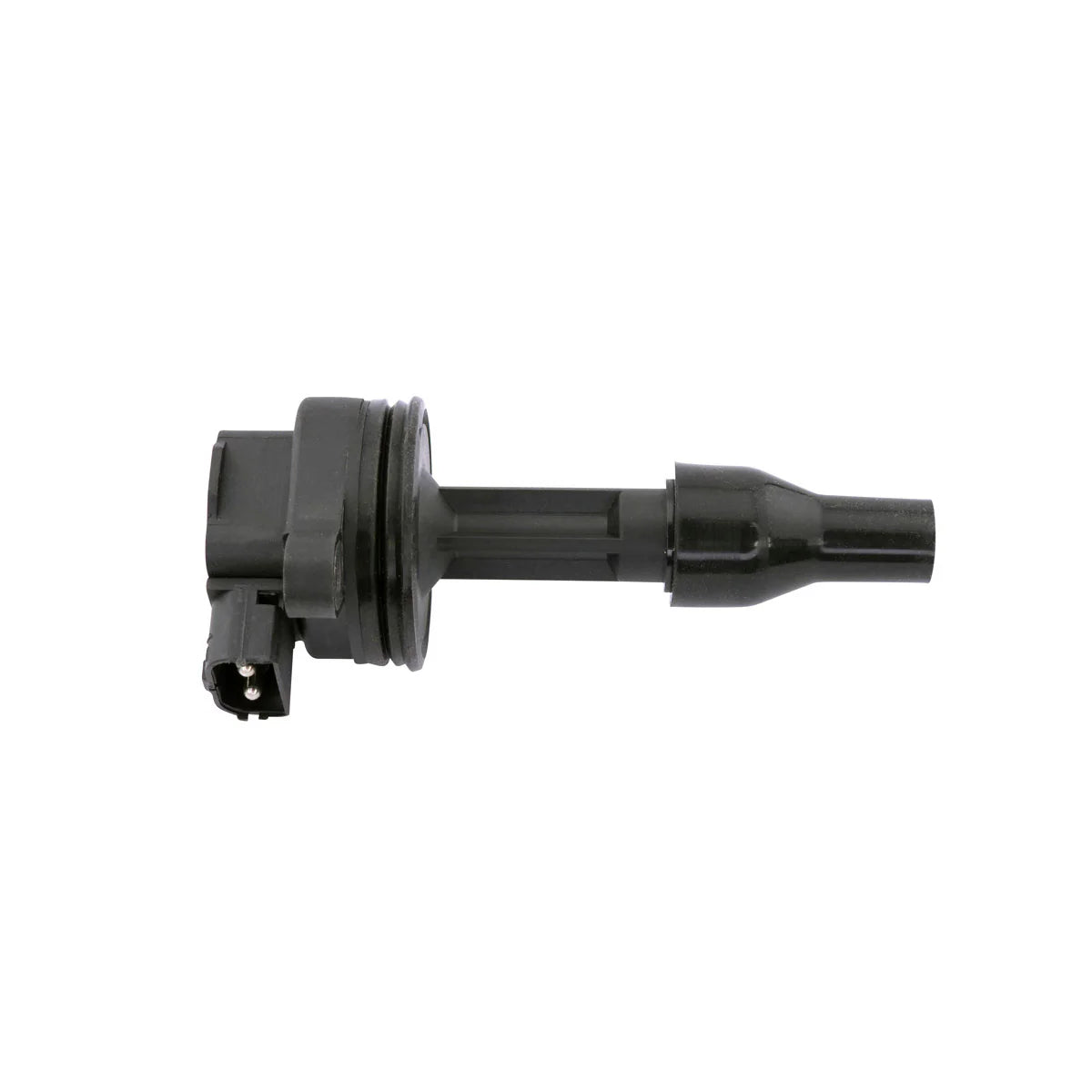

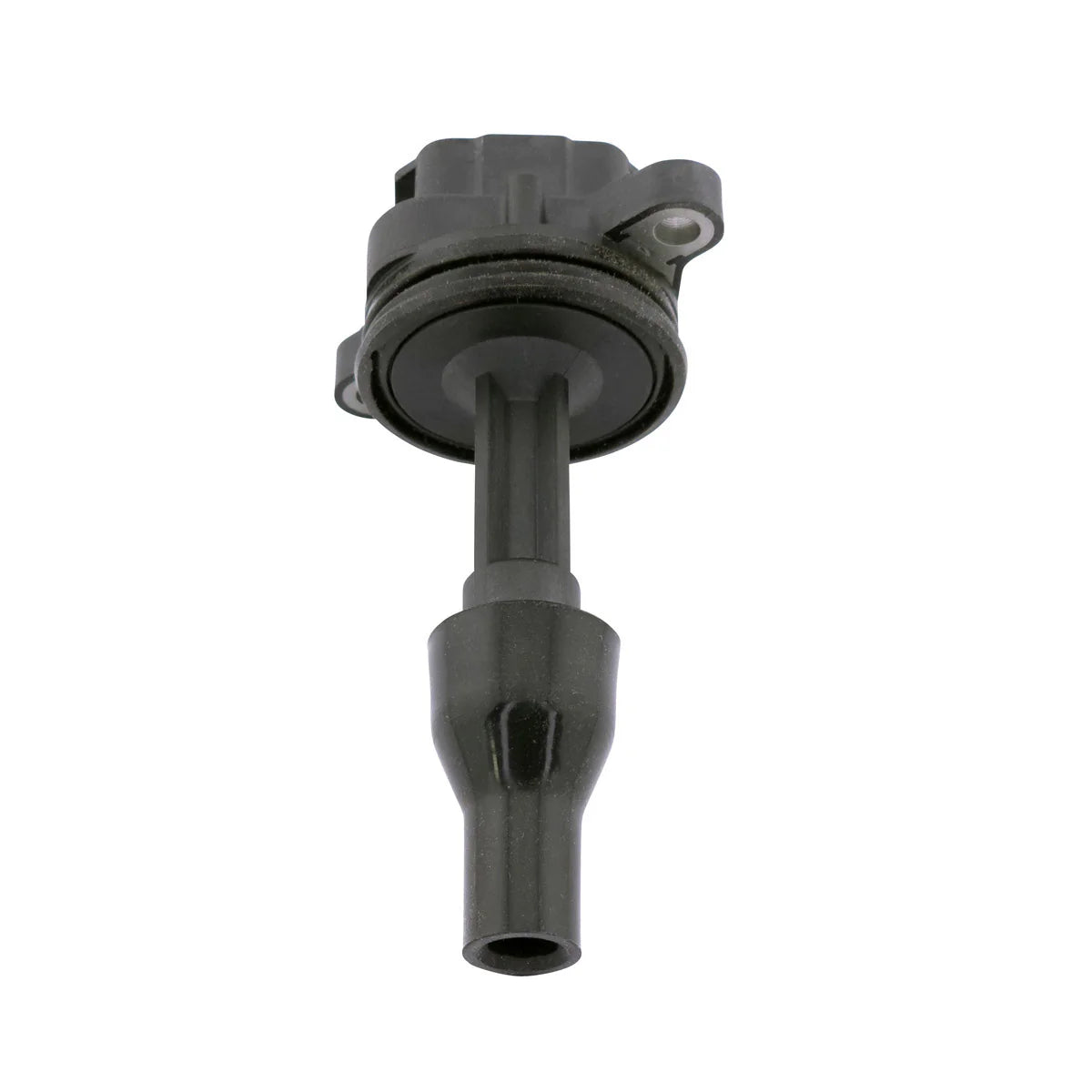

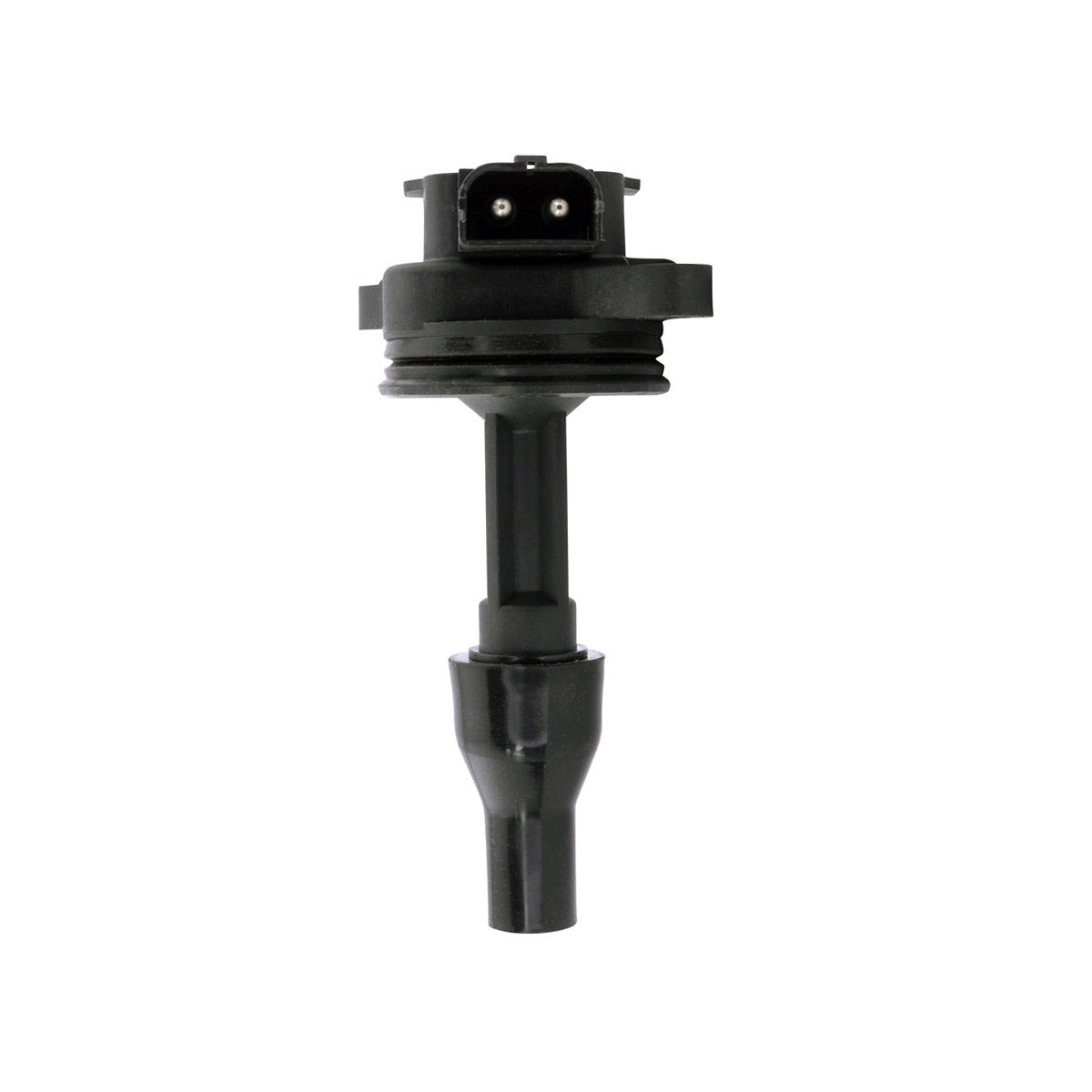

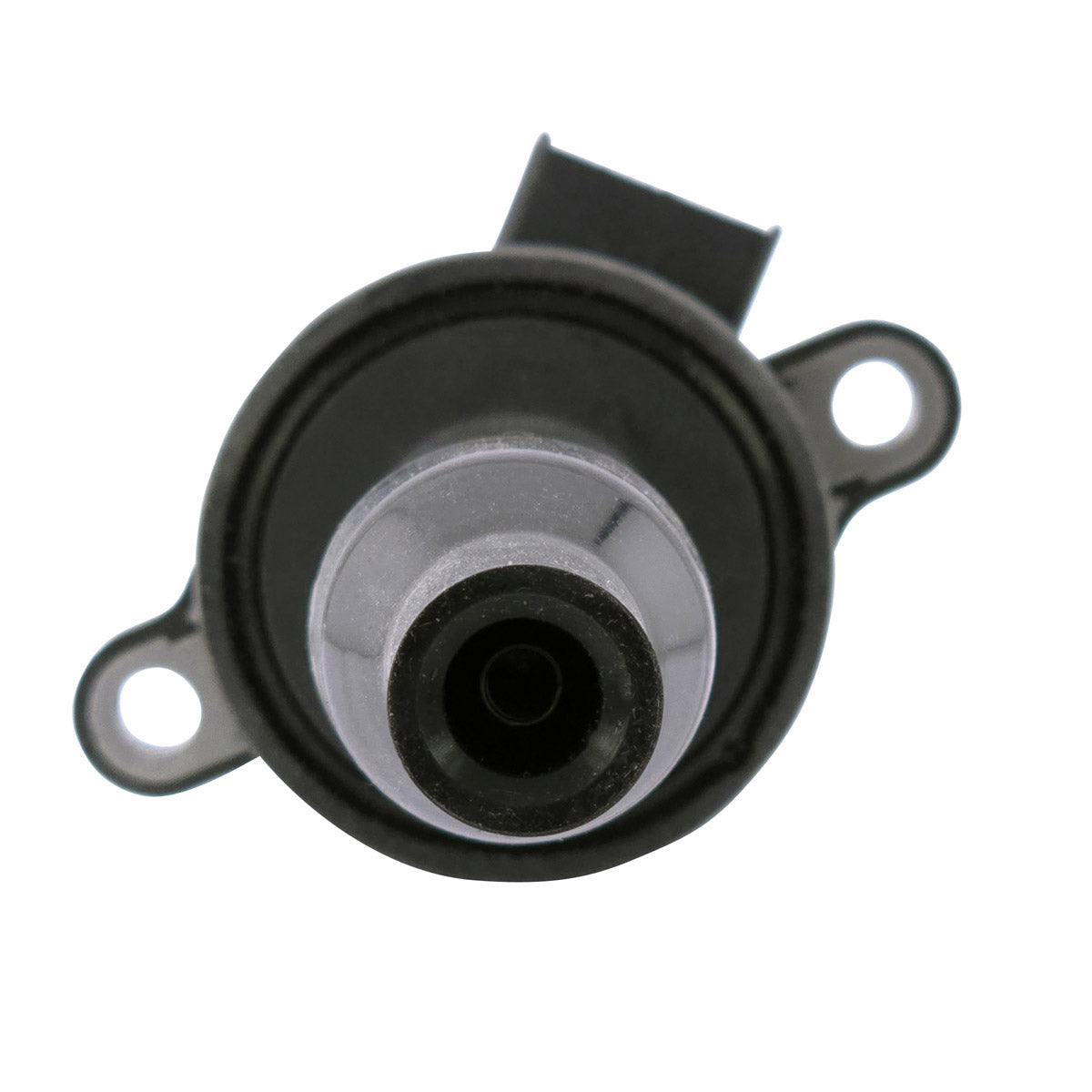

Each coil measures 139 mm long with a 17 mm external tube diameter and a 10 mm internal tube, giving an inside depth of 46 mm over the spark plug. Two sealing sizes are provided at 49 mm and 52 mm, each 12 mm high, and every coil carries a single plug with two terminals. The manufacturer states the quality exceeds the original equipment, and all coils are tested before shipping. The set cross-references to Triumph OEM number T1290006.
Key Features
- Brand new 3-pack of ignition stick coils
- Direct replacement for the original Triumph units
- Quality exceeds the OEM equipment
- Three coils included - one per cylinder on the Triumph triple

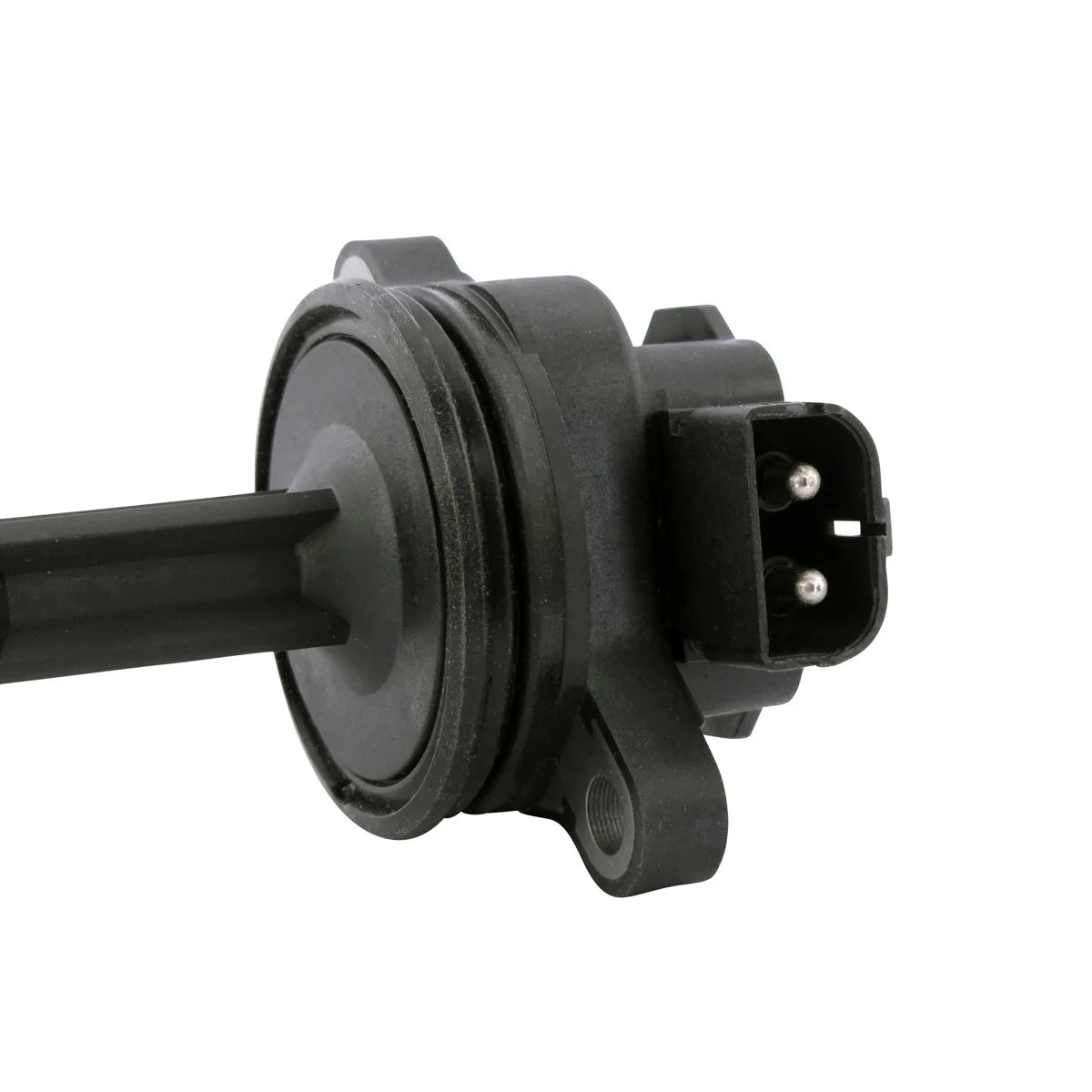

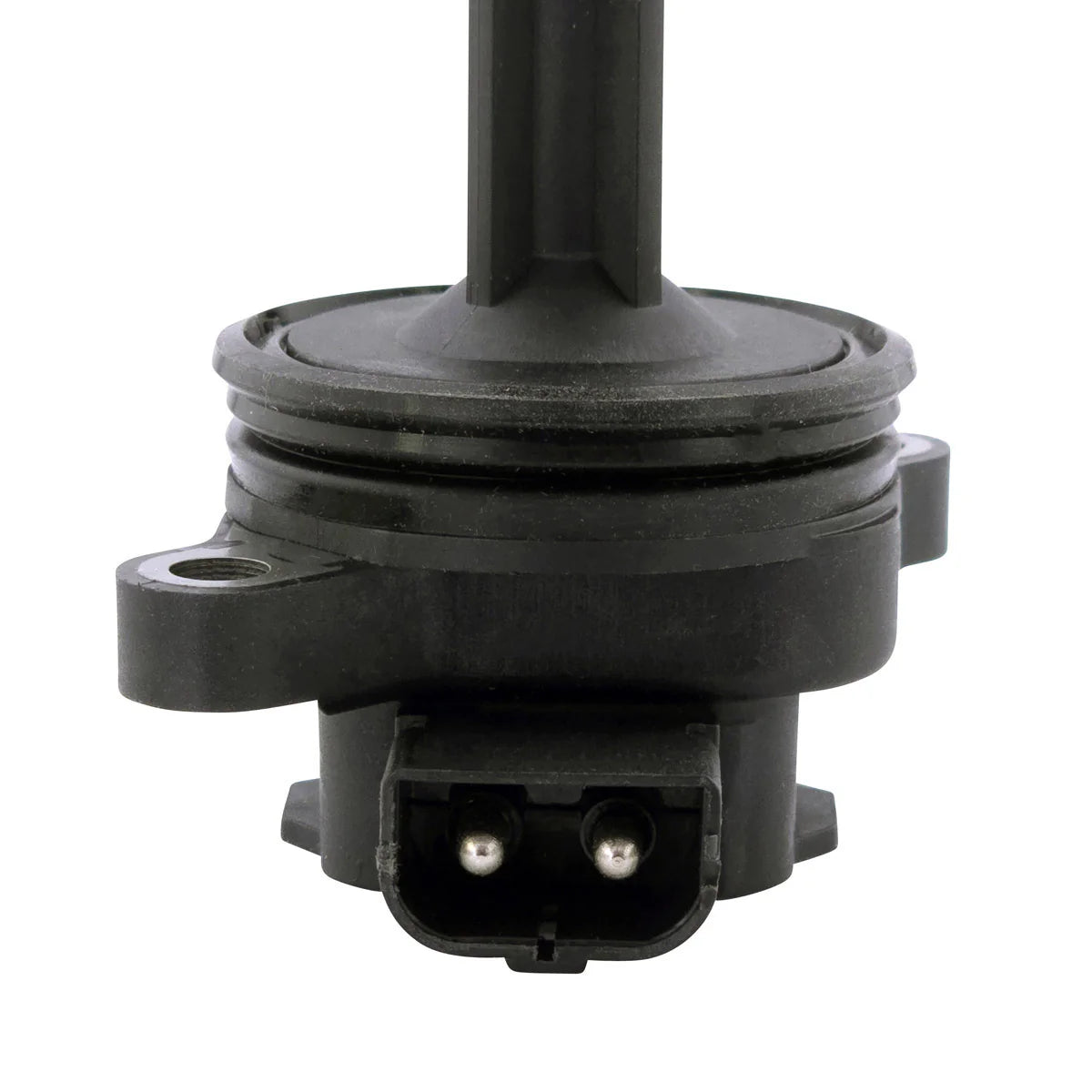

- Single plug with two terminals per coil
- Twin seal sizes at 49 mm and 52 mm
- Every coil tested before shipping
- Far more affordable than three OEM coils
Technical Specs
| Specification |
Detail |
| Internal tube diameter |
10 mm |
| External tube diameter |
17 mm |
| Length |
139 mm |
| Inside depth |
46 mm |
| Seal sizes |
49 mm and 52 mm |
| Seal height |
12 mm |
| Number of plugs |
1 per coil |
| Number of terminals |
2 per coil |
| Coils supplied |
3 |
| Part number |
RMS260-108533 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Triumph Speed Triple 900 |
1993-2020 |
| Triumph Speed Triple 955 |
1993-2020 |
| Triumph Sprint ST 955 |
1993-2020 |
| Triumph Sprint RS 955 |
1993-2020 |
| Triumph Tiger 885i |
1993-2020 |
| Triumph Tiger 955 |
1993-2020 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| T1290006 |
Triumph |
Frequently Asked Questions
Will these fit without modification?
Yes. Each coil is a direct replacement for the original Triumph stick coil, with the same single plug and two terminals, so it drops into the plug well and connects to the existing harness without altering the loom.
What is included?
Three ignition stick coils - enough to replace all three on a Triumph triple. Each has been tested before shipping.
How do I know a stick coil has failed?
A failing stick coil usually shows as a misfire on one cylinder, a rough or lumpy idle, hesitation under load, a cylinder that runs cold, or intermittent running that gets worse once the engine is hot. Check the plug and the coil connector first, as a poor connection produces the same symptoms.
Why replace all three coils at once?
Coils on a triple age together and share the same heat cycles. If one has failed the other two have done the same mileage, so fitting a matched set of three keeps the spark energy even across all cylinders and avoids a second strip-down a few thousand miles later.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
