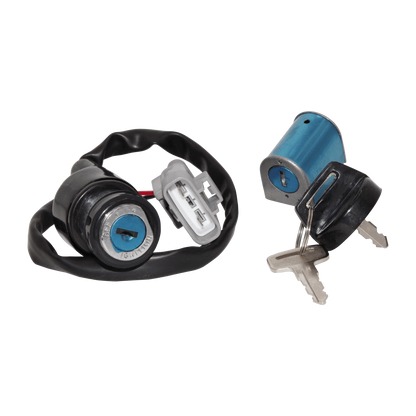

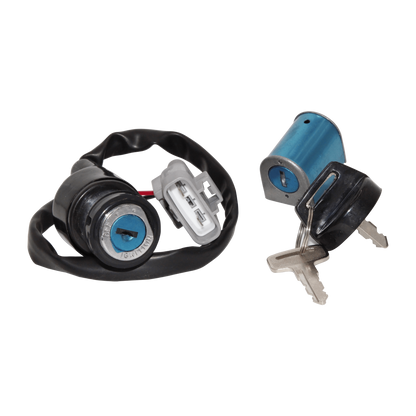

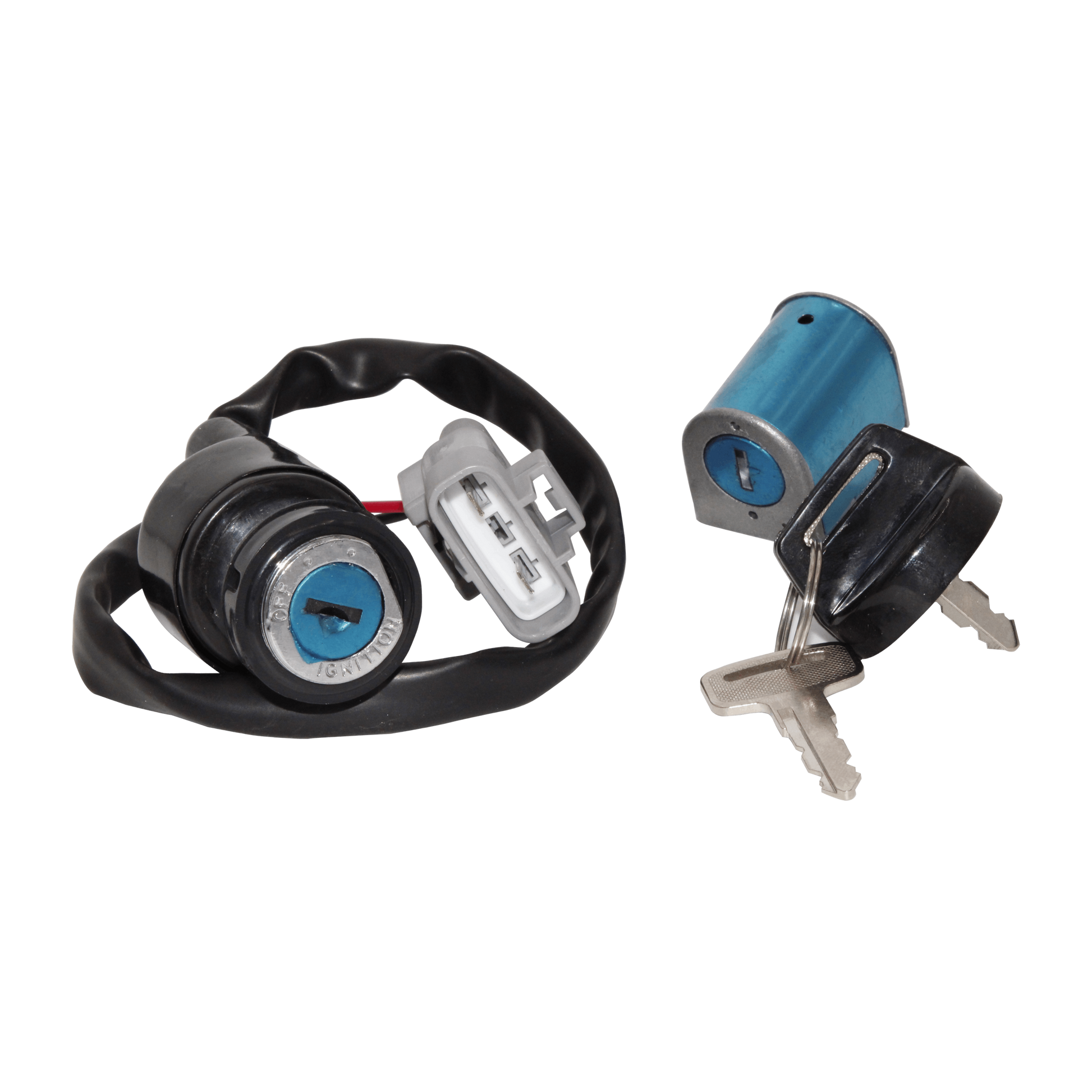

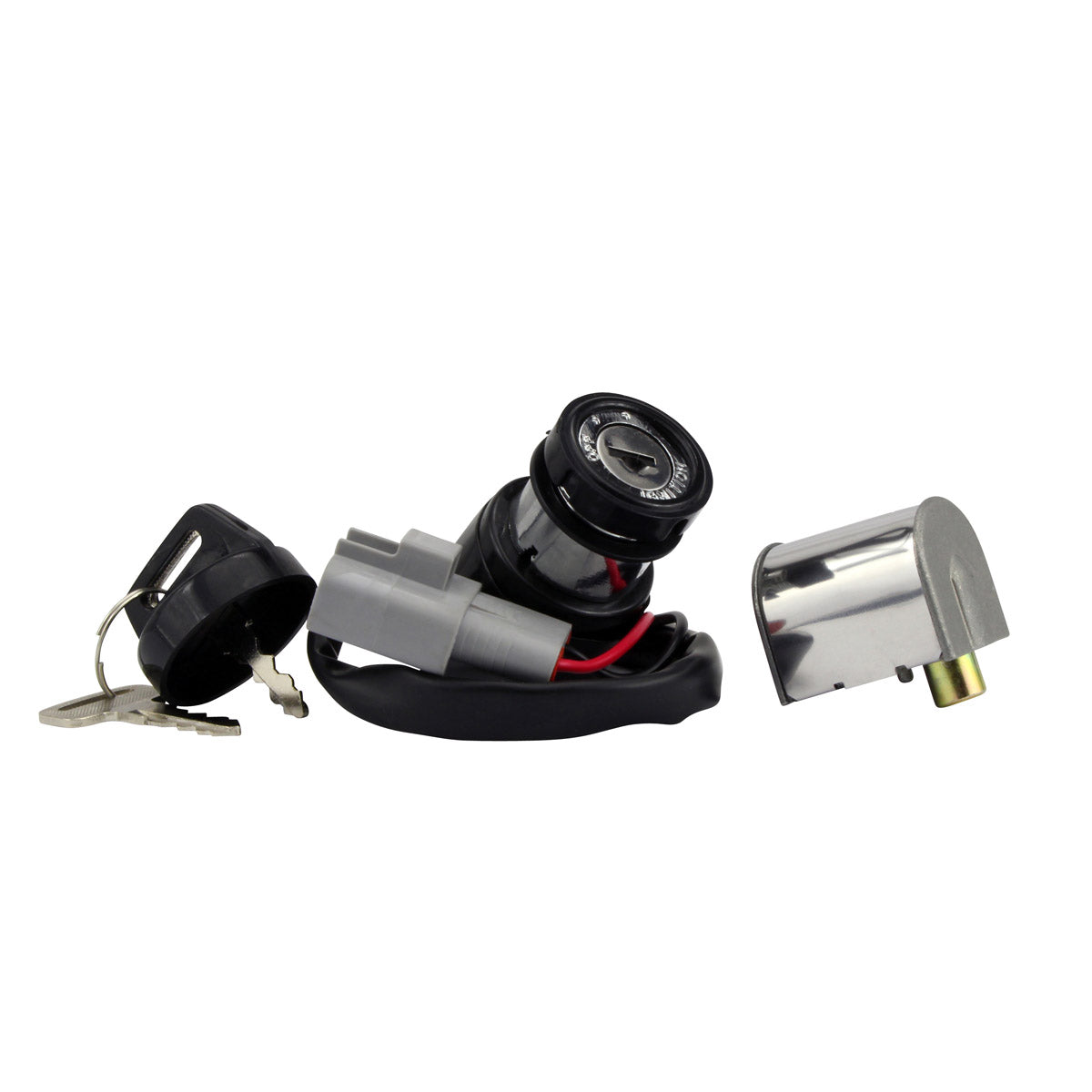

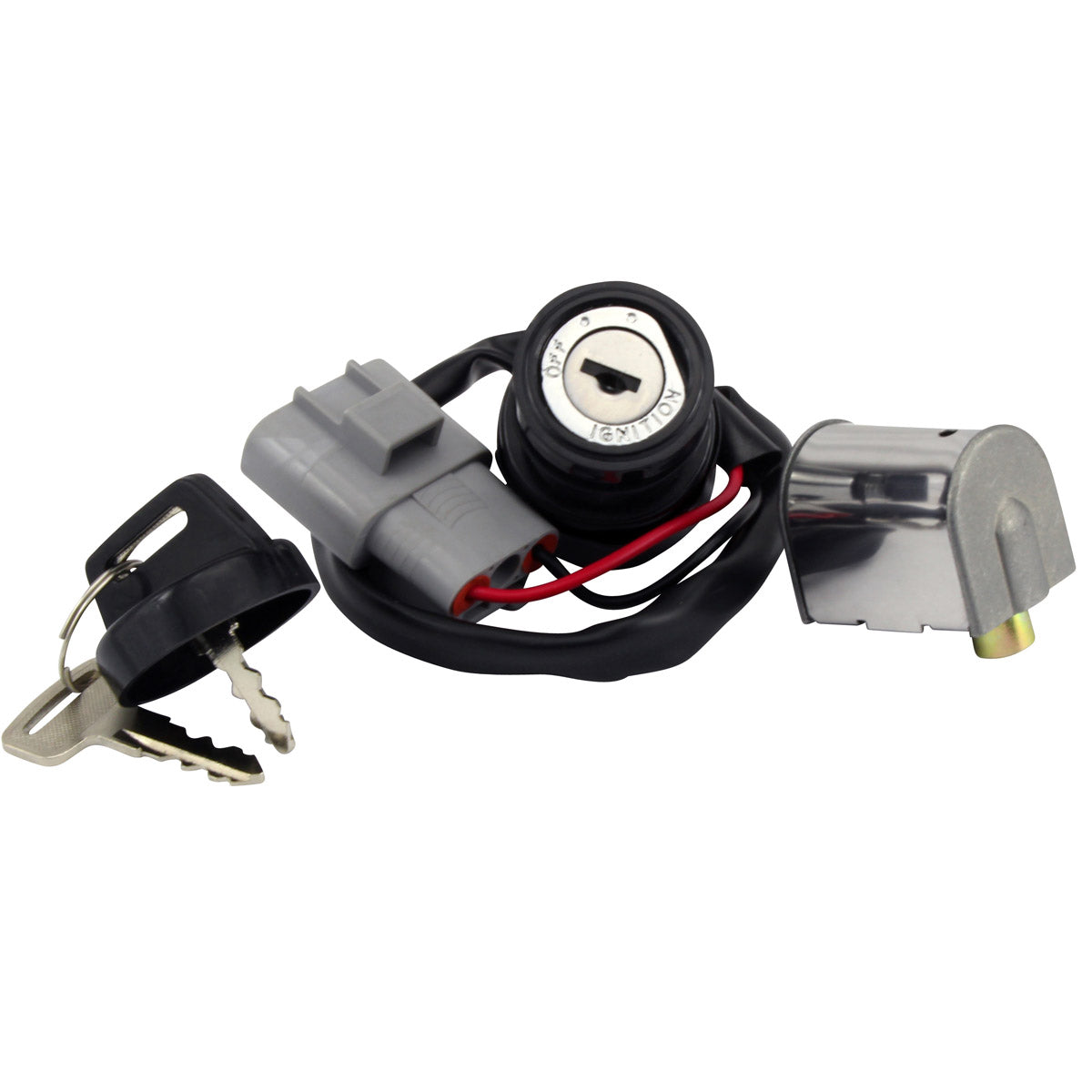

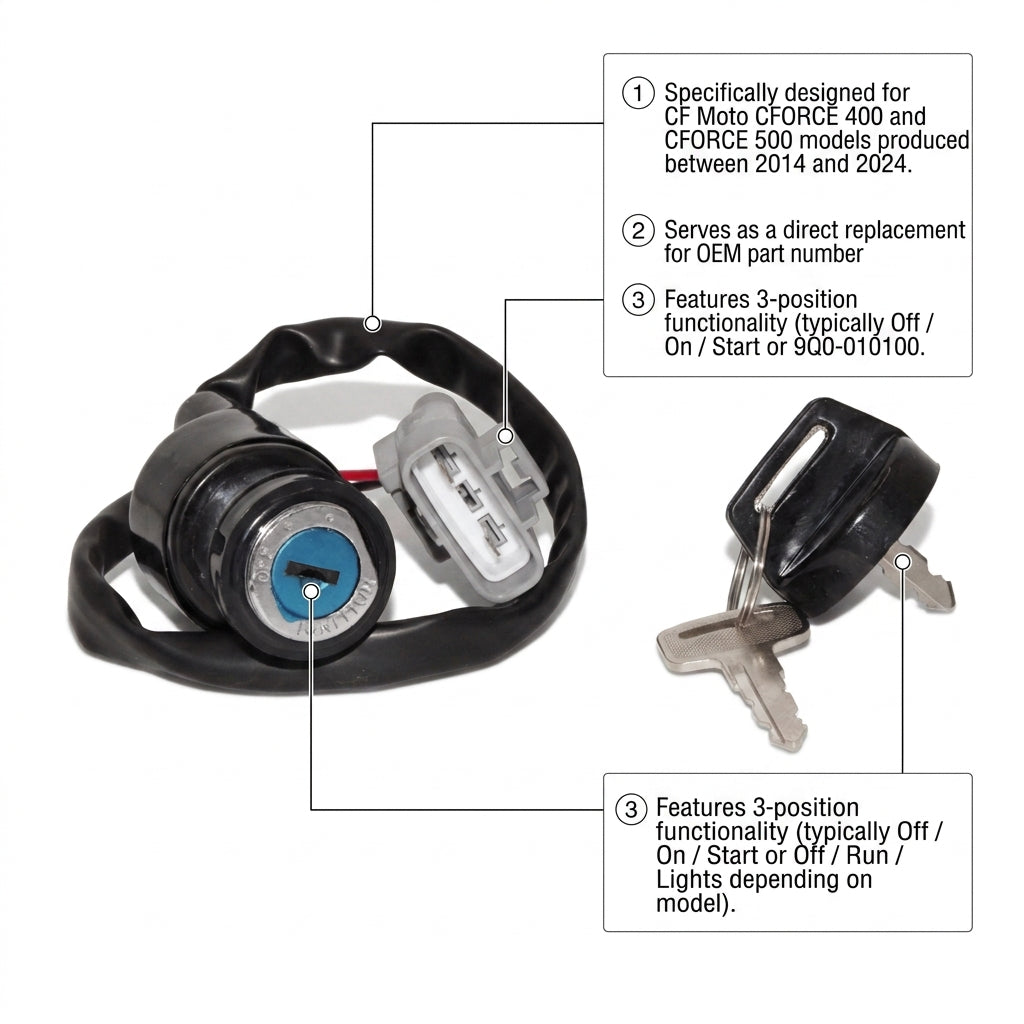

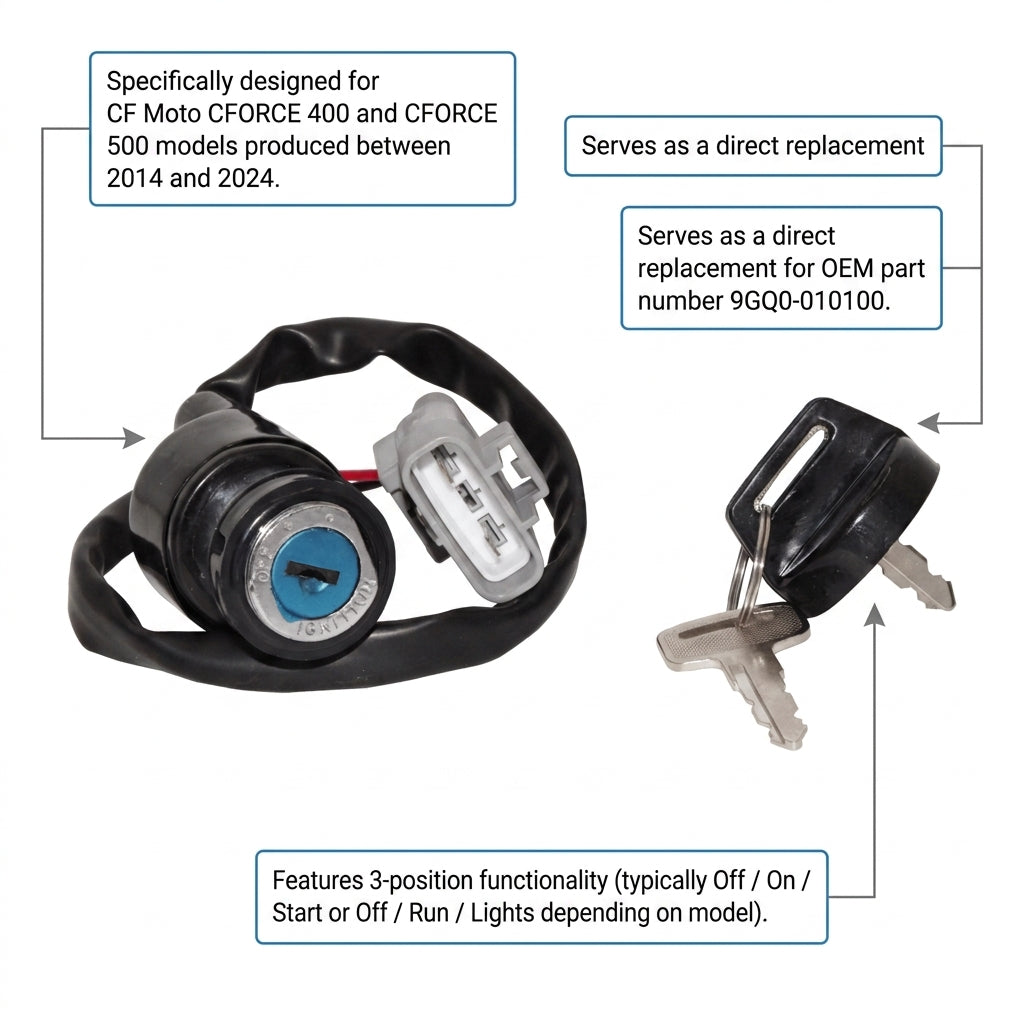

This is a brand new aftermarket 3-position ignition key switch built as a direct replacement for the original unit fitted to the CFMoto CFORCE 400, 450, 500 and 520 quads. The switch turns through three positions - off, accessories and on - and is supplied complete with two keys, the matching gear selector lock and the connectors needed to wire it in, so the whole ignition and selector lock assembly can be renewed in one go rather than sourcing the parts separately.

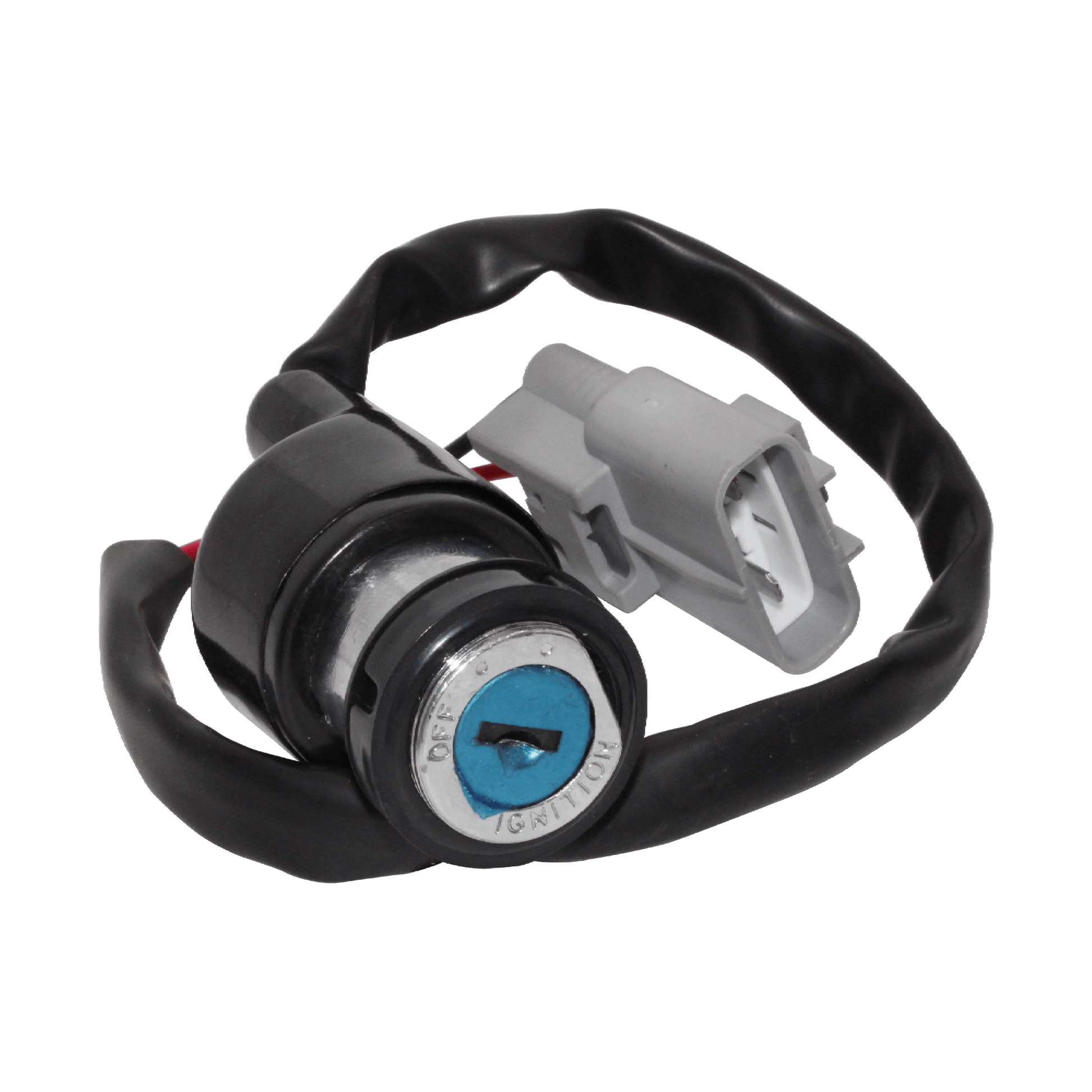

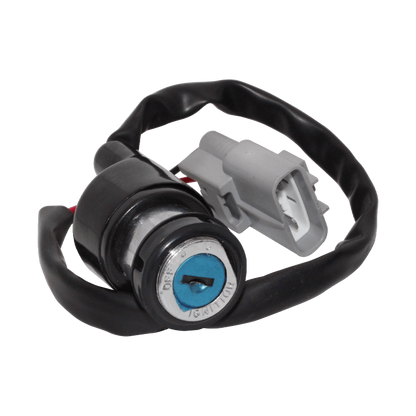

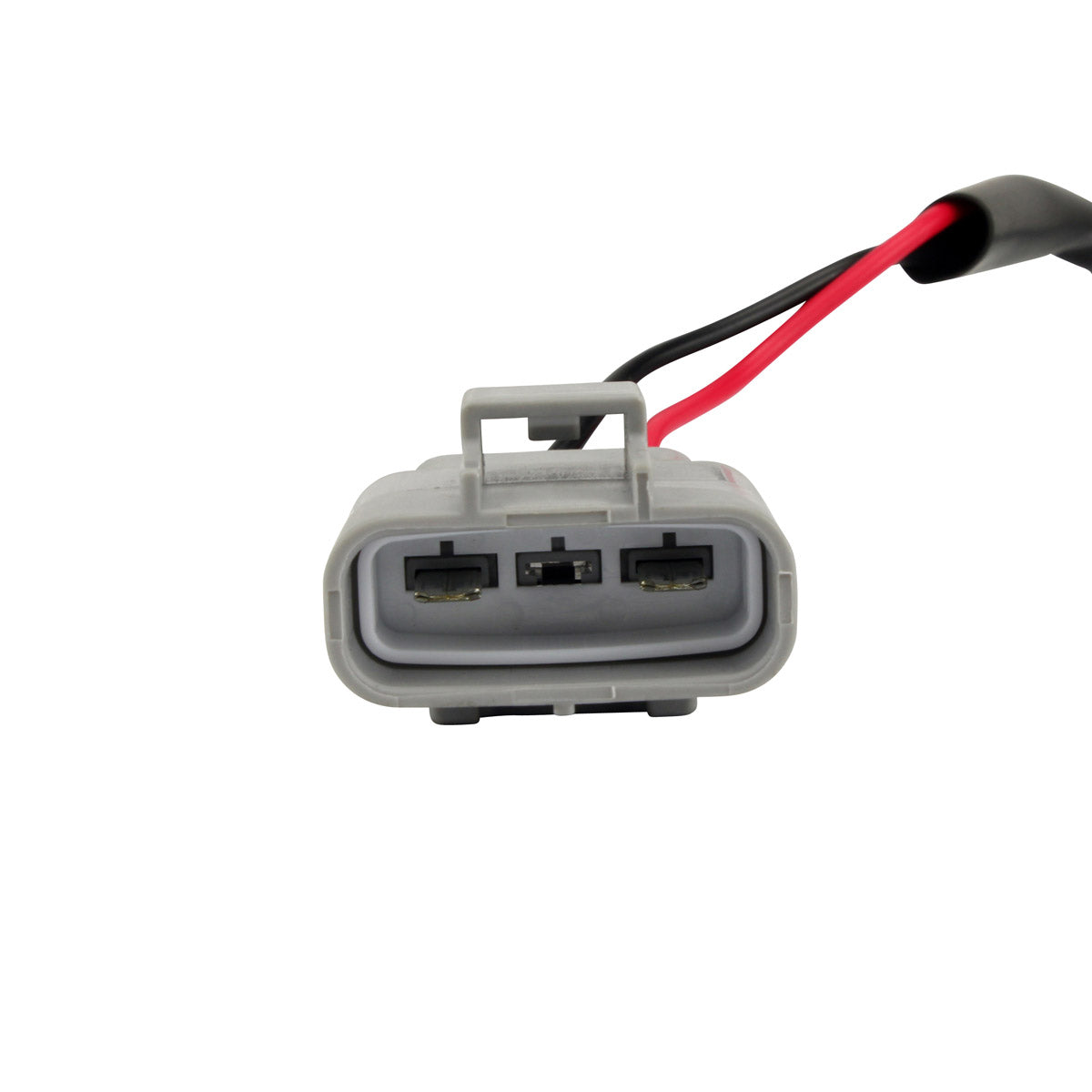

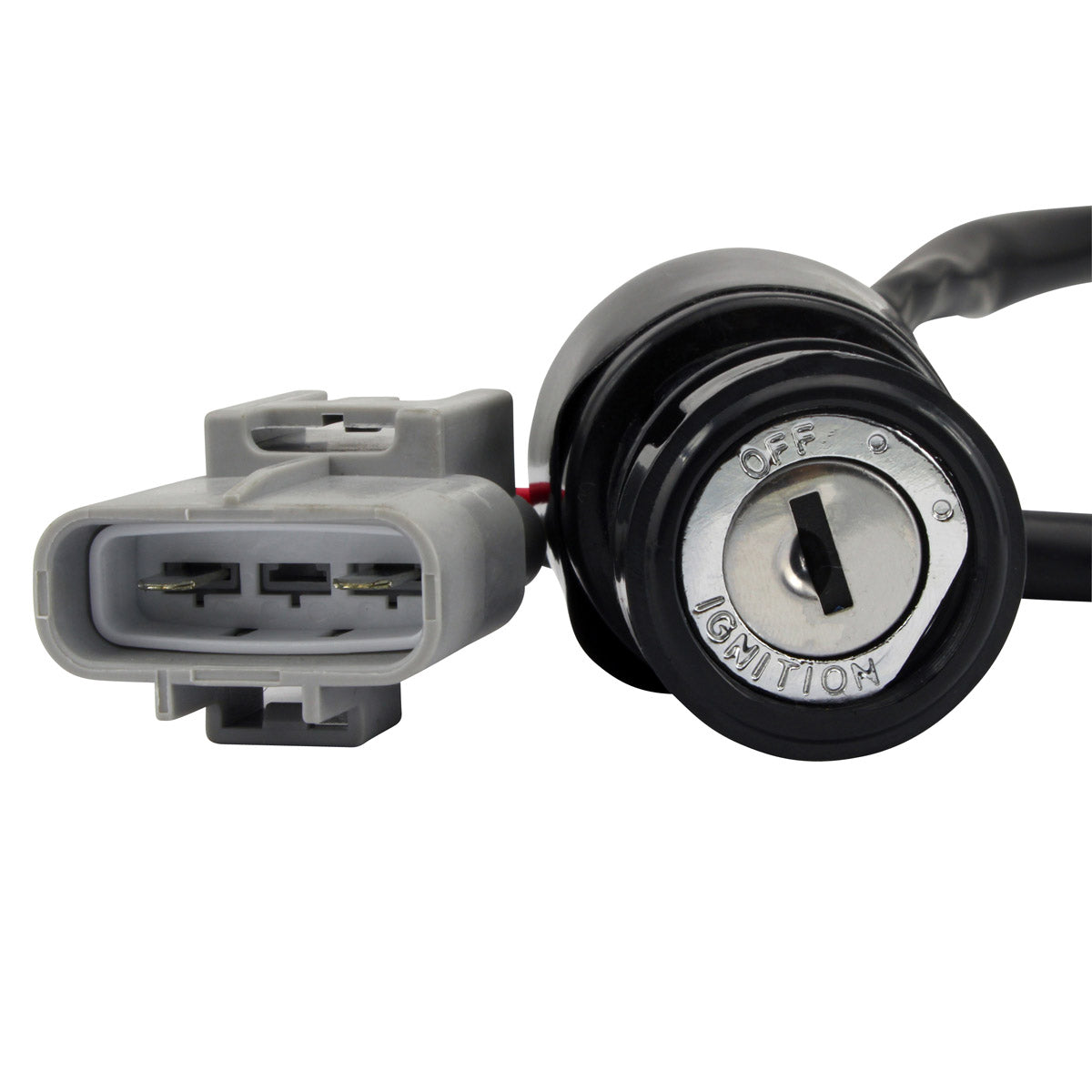

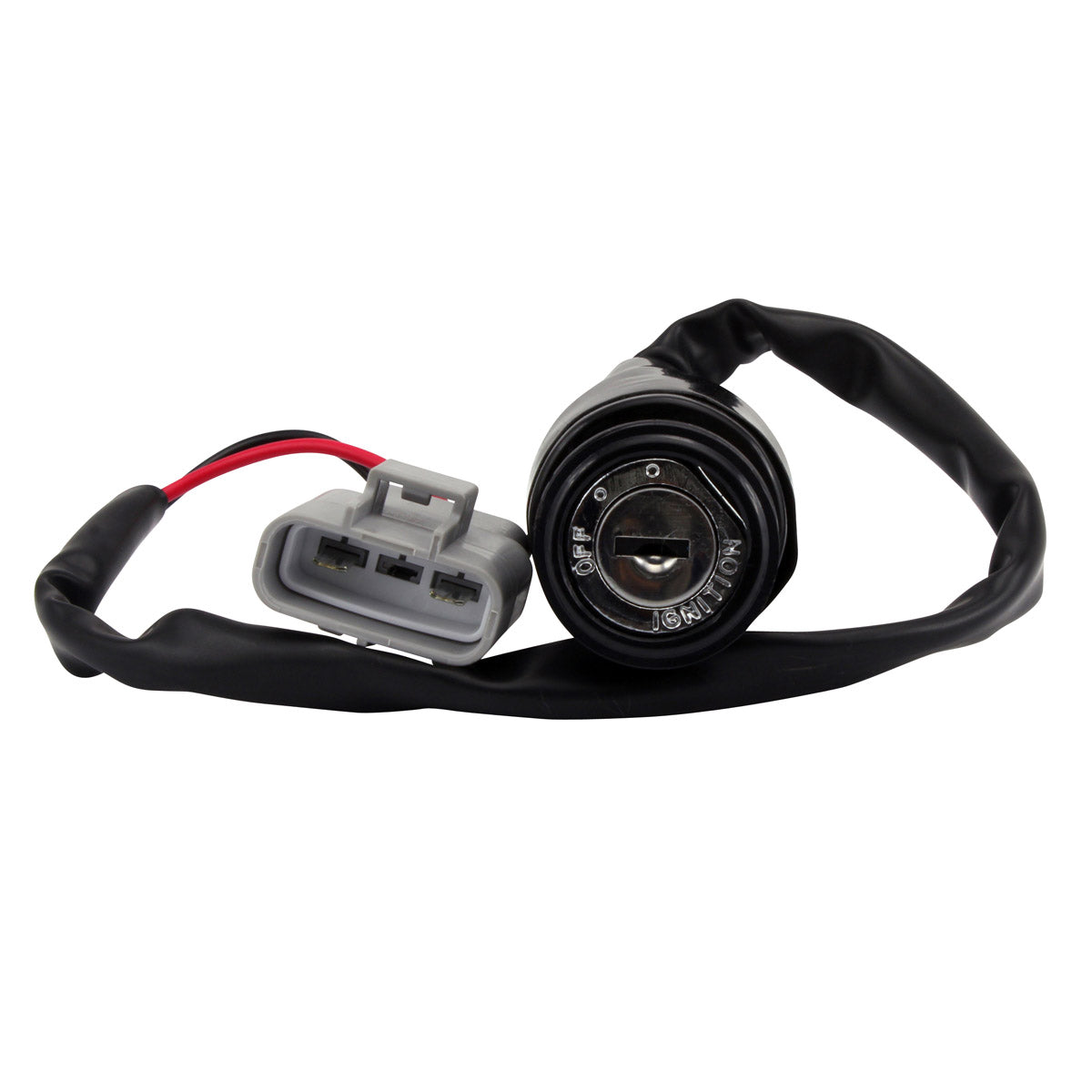

Fitting is plug-and-play. The body measures 46 mm high, 34 mm long and 28 mm wide, and the 420 mm wire loom carries two wires into a single three-pin plug that mates with the original CFMoto harness, so no cutting, splicing or modification of the loom is required. Every switch is tested before it leaves the warehouse. The part cross-references to CFMoto OEM number 9GQ0-010100.
Key Features
- Brand new aftermarket 3-position ignition key switch
- Direct replacement for the original CFMoto unit
- Plug-and-play, direct fit, easy installation

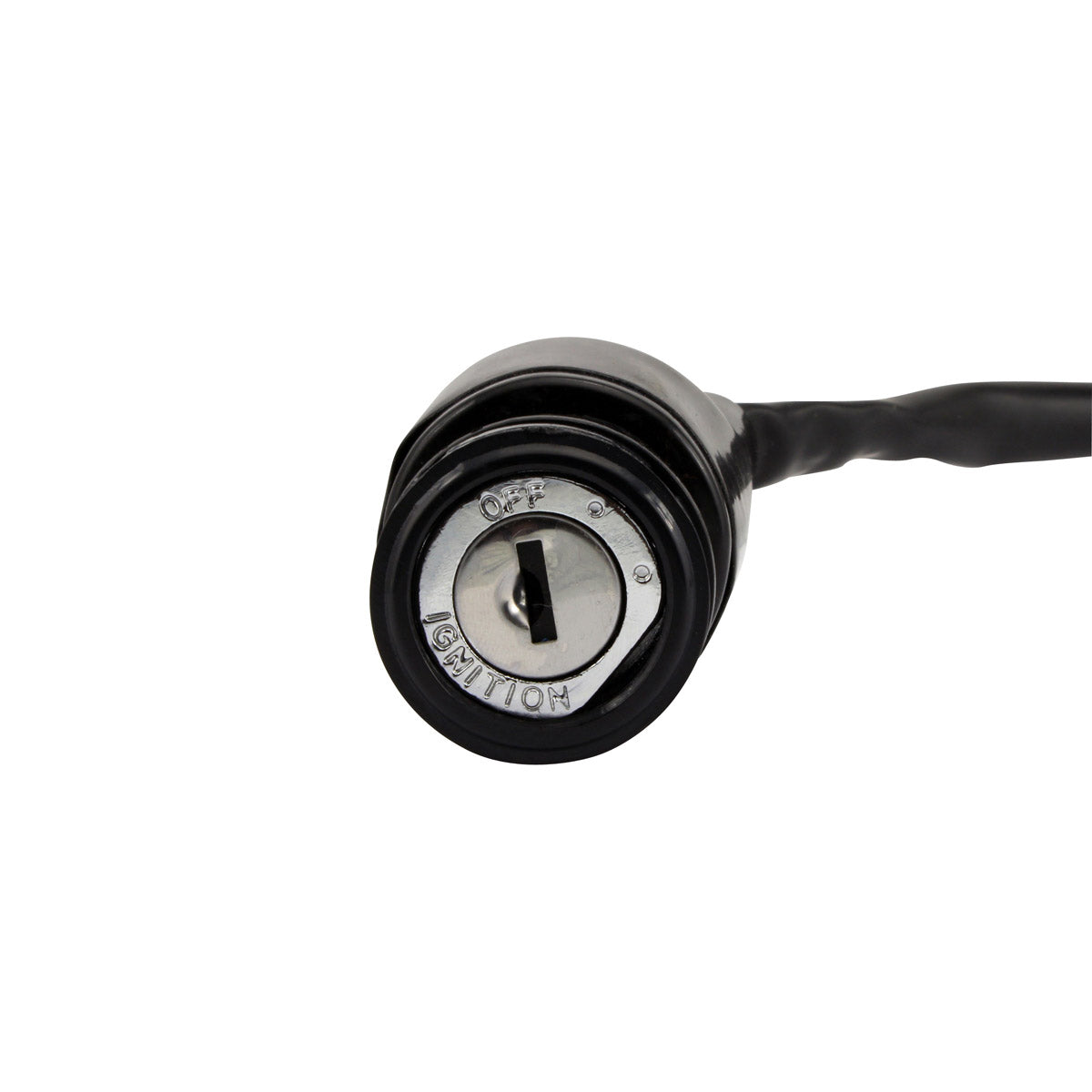

- Three positions - off, accessories and on

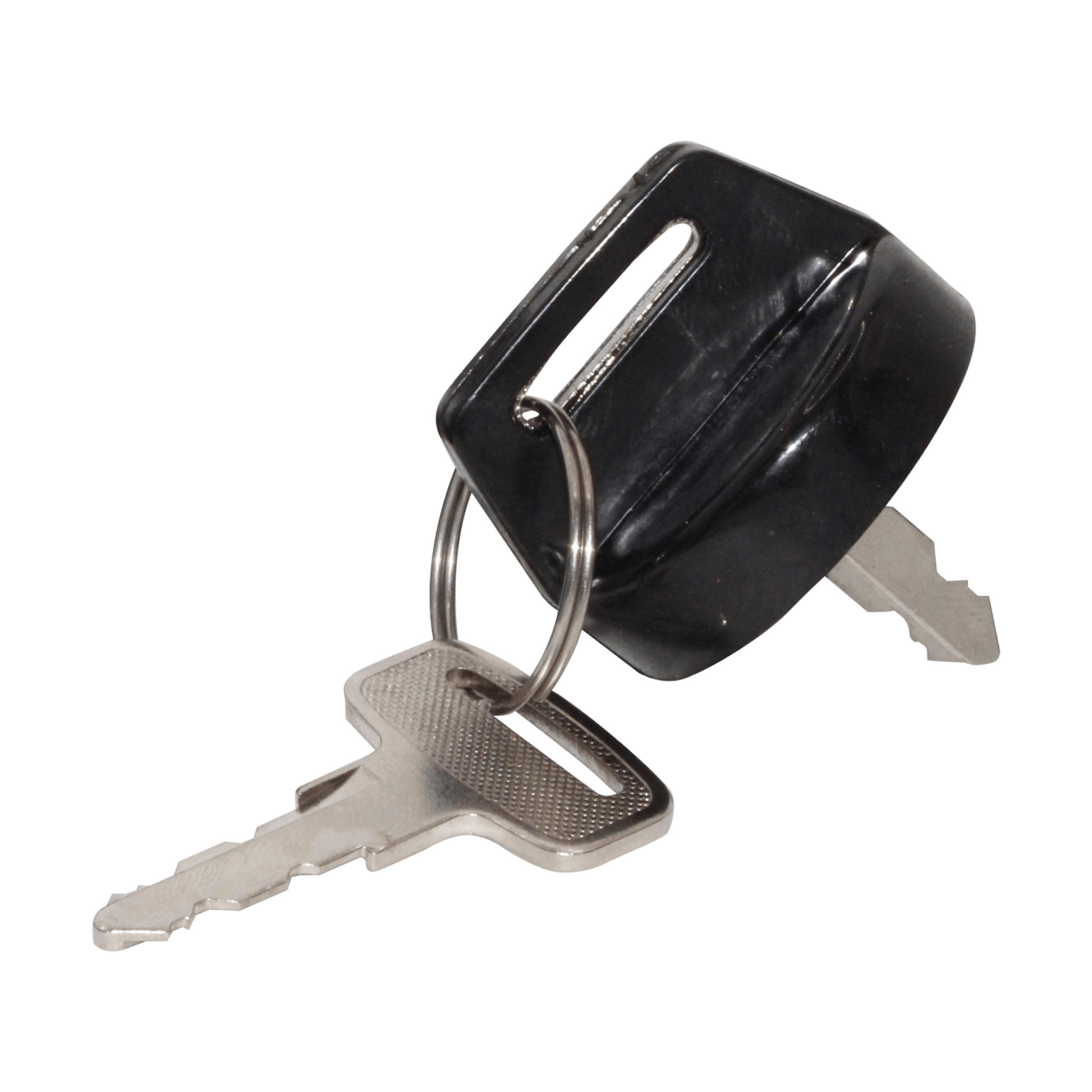

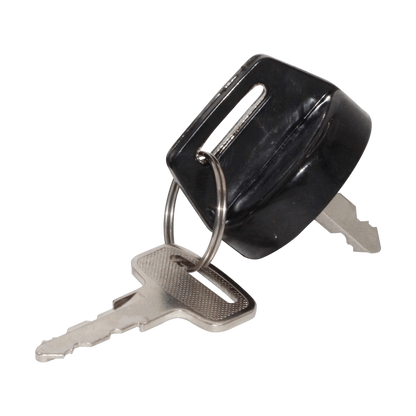

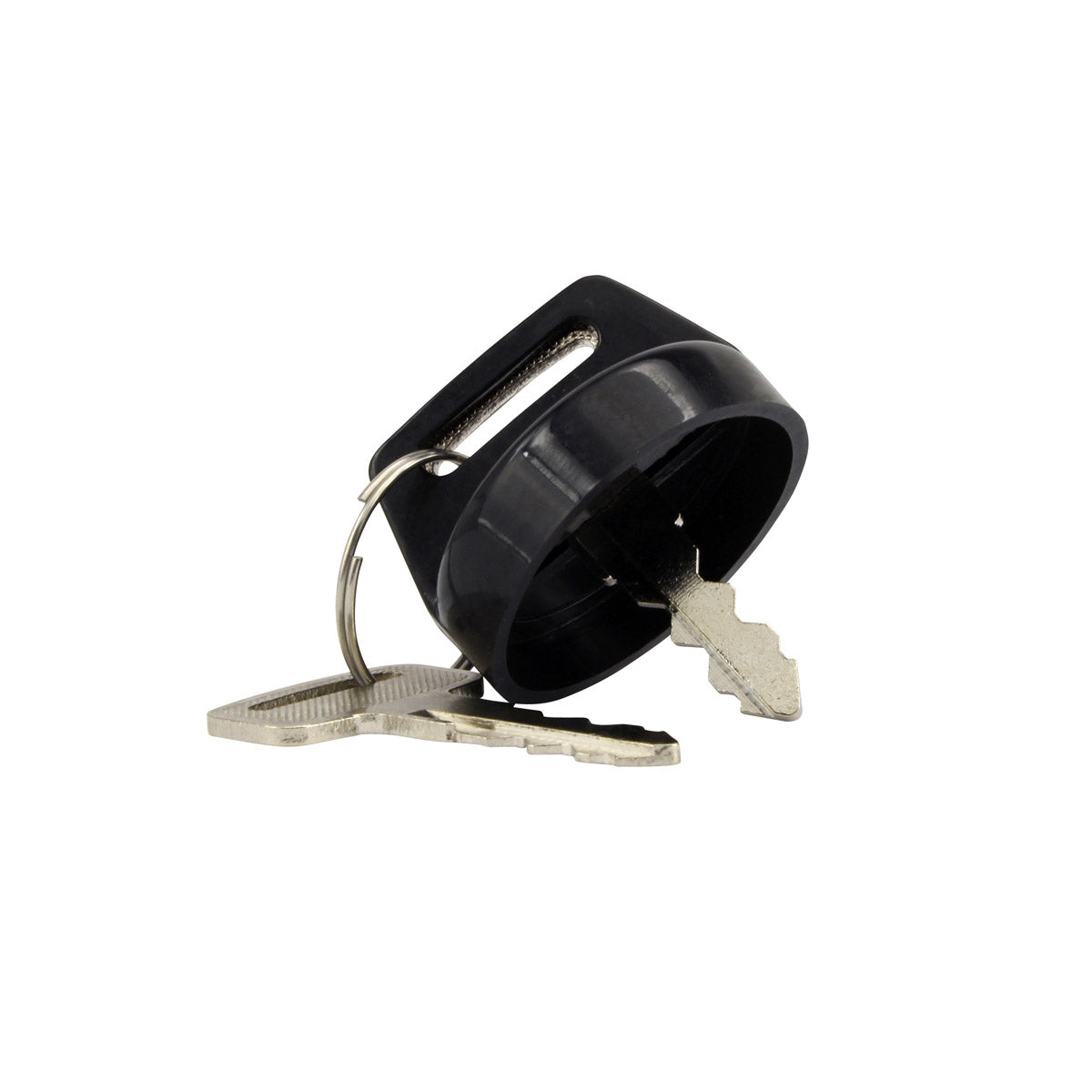

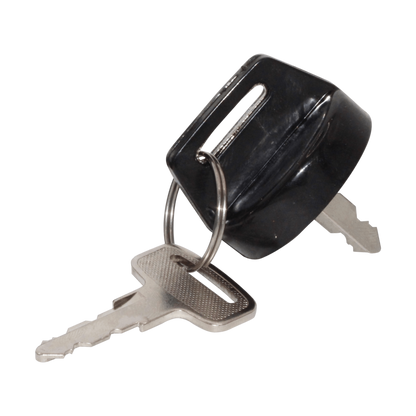

- Two keys supplied with the switch
- Gear selector lock included
- Connectors included
- Every unit tested before shipment
Technical Specs
| Specification |
Detail |
| Height |
46 mm |
| Length |
34 mm |
| Width |
28 mm |
| Wire length |
420 mm |
| Number of wires |
2 |
| Number of pins |
3 |
| Number of plugs |
1 |
| Number of keys |
2 |
| Number of positions |
3 (off, accessories, on) |
| Part number |
RMS110-108410 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| CFMoto CFORCE 400 |
2014-2024 |
| CFMoto CFORCE 450 |
2014-2024 |
| CFMoto CFORCE 500 |
2014-2024 |
| CFMoto CFORCE 520 |
2014-2024 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 9GQ0-010100 |
CFMoto |
Frequently Asked Questions
Do I need to modify the wiring to fit this switch?
No. This is a direct-fit, plug-and-play replacement. The 420 mm loom carries two wires into a single three-pin plug that matches the original CFMoto connector, so the switch wires straight into the existing harness with no cutting or splicing.
What is included in the box?

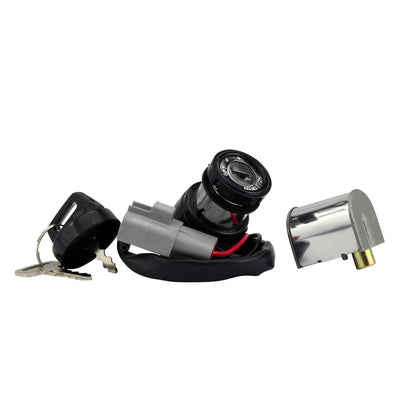

You receive the 3-position ignition key switch, two keys, the gear selector lock and the connectors.
How do I know my original ignition switch has failed?
Typical signs are a key that turns but produces no dash lights or crank, an engine that cuts out when the key or loom is moved, accessories that only work when the key is held at a certain angle, or a barrel that has become stiff, sloppy or will not return from the on position. Check the connector and battery voltage first, as a corroded plug can produce the same symptoms.

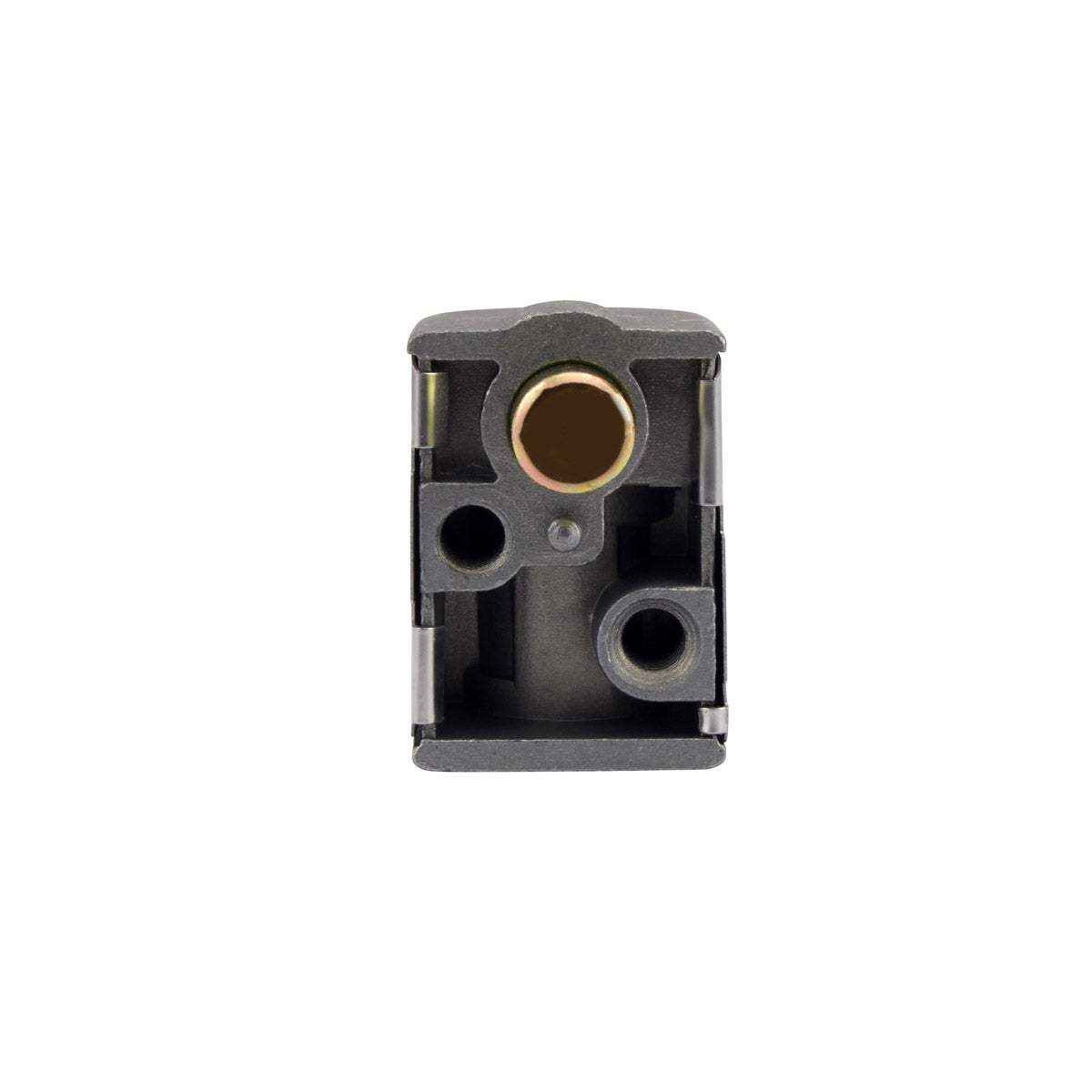

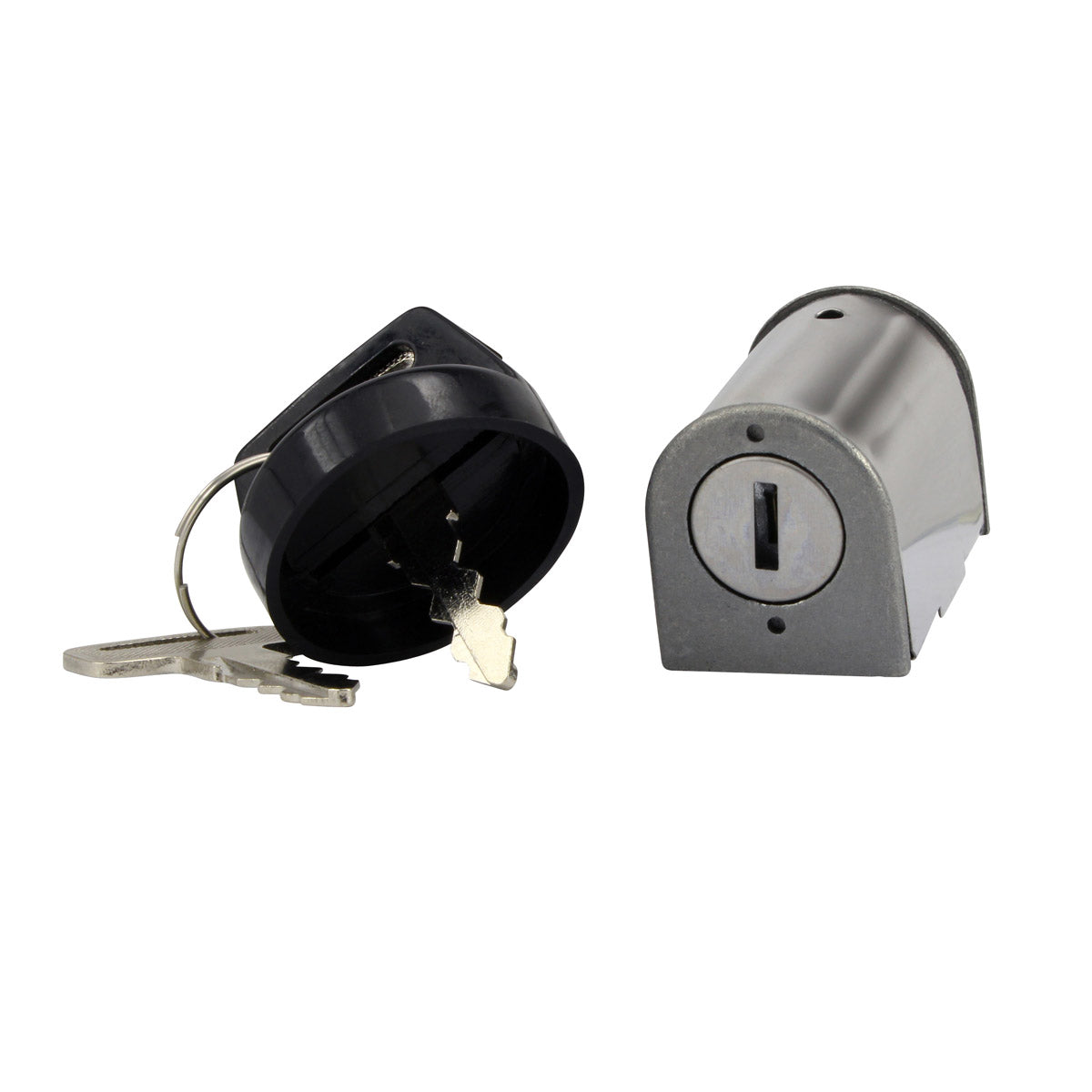

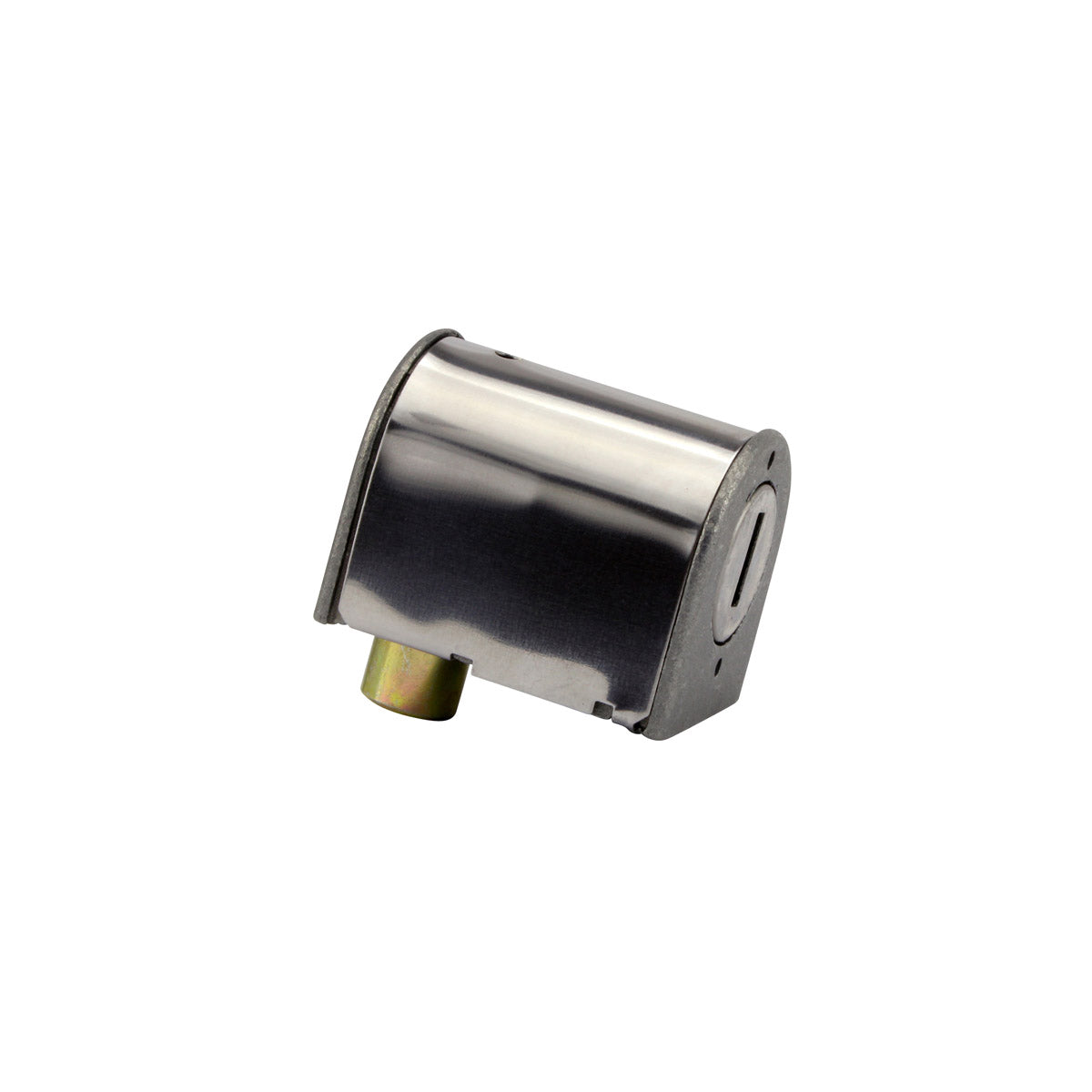

What does the gear selector lock do?

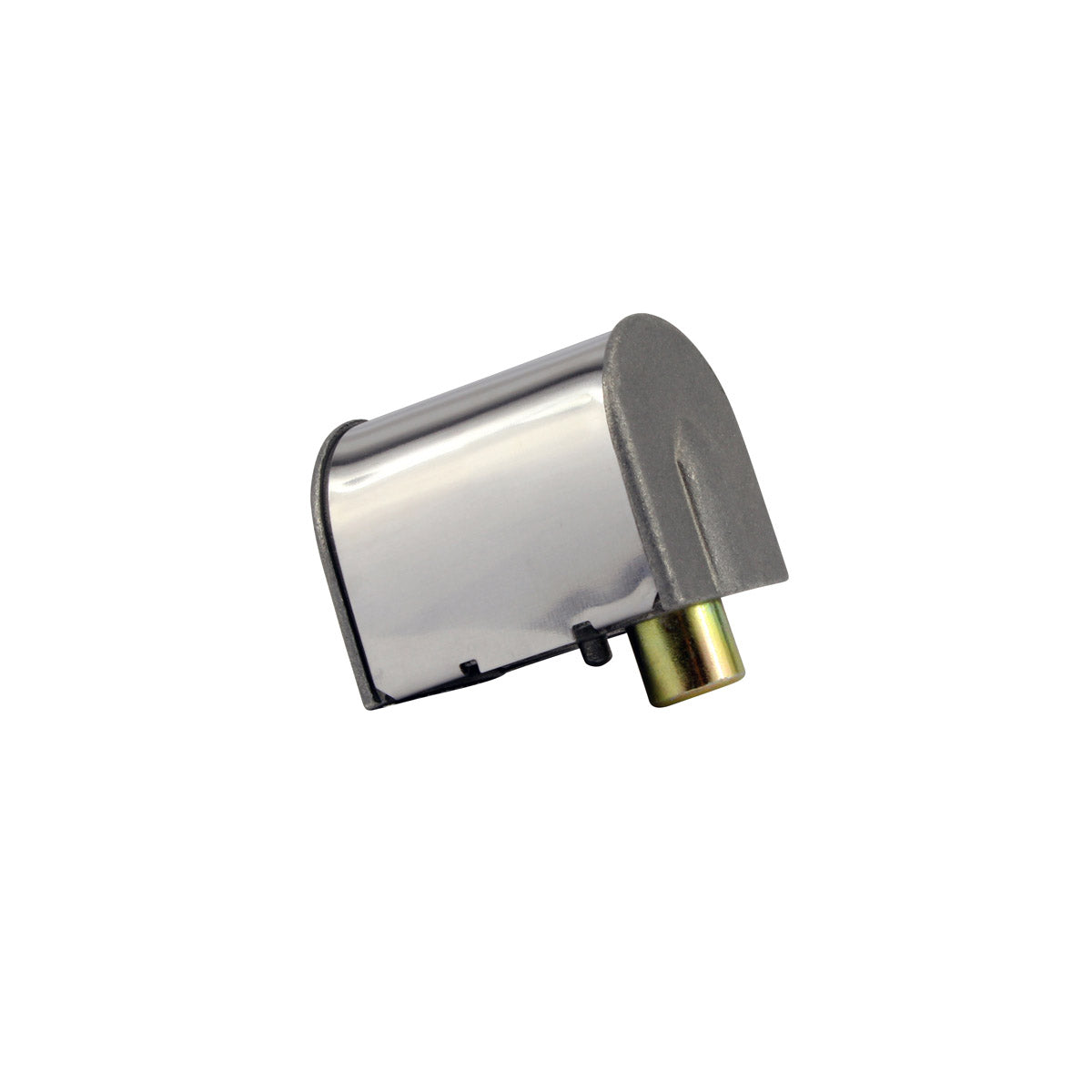

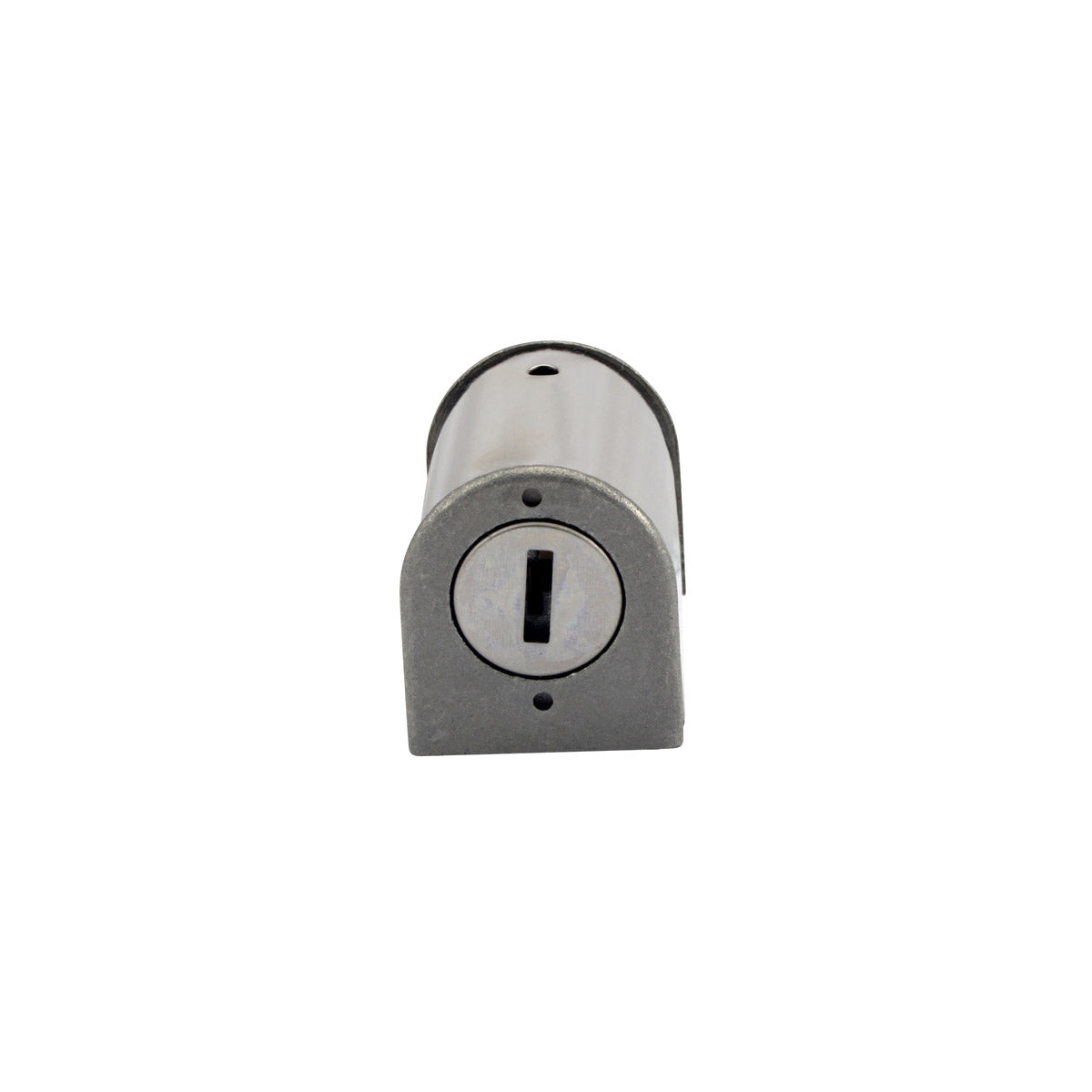

It is the lock element that works with the ignition key on the CFORCE gear selector. It is supplied here with the switch so both parts share the same two keys, which is why the set is sold together rather than as separate items.
