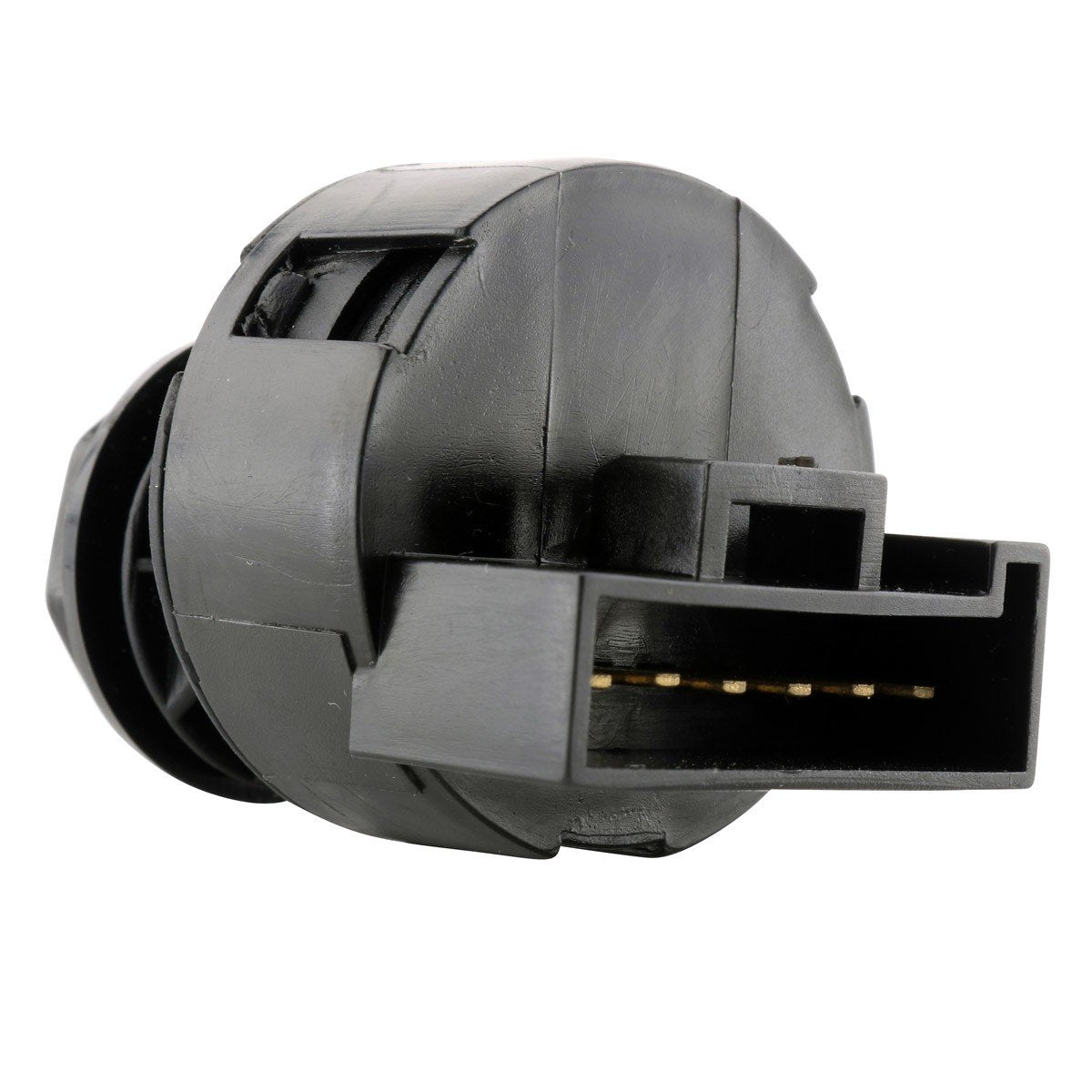

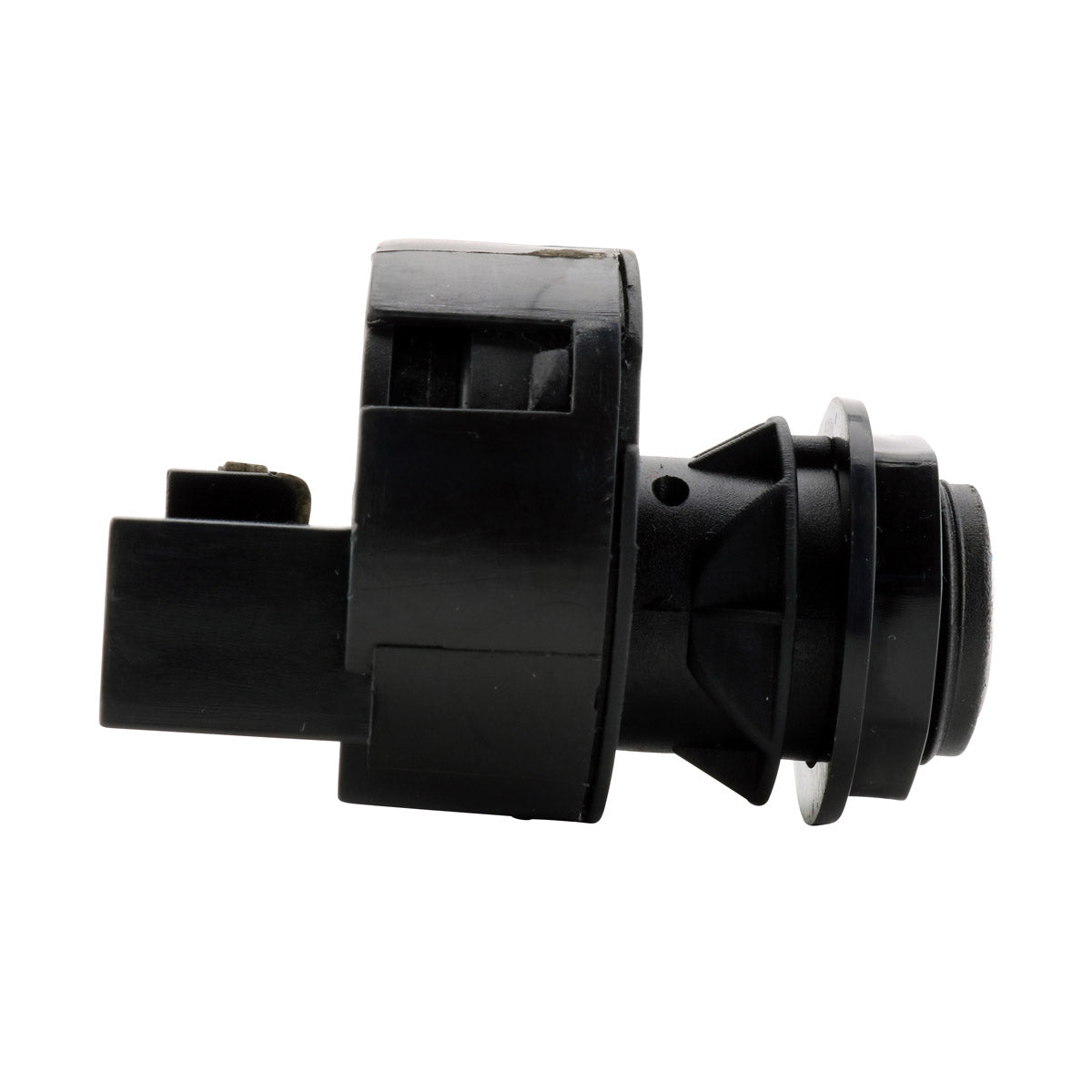

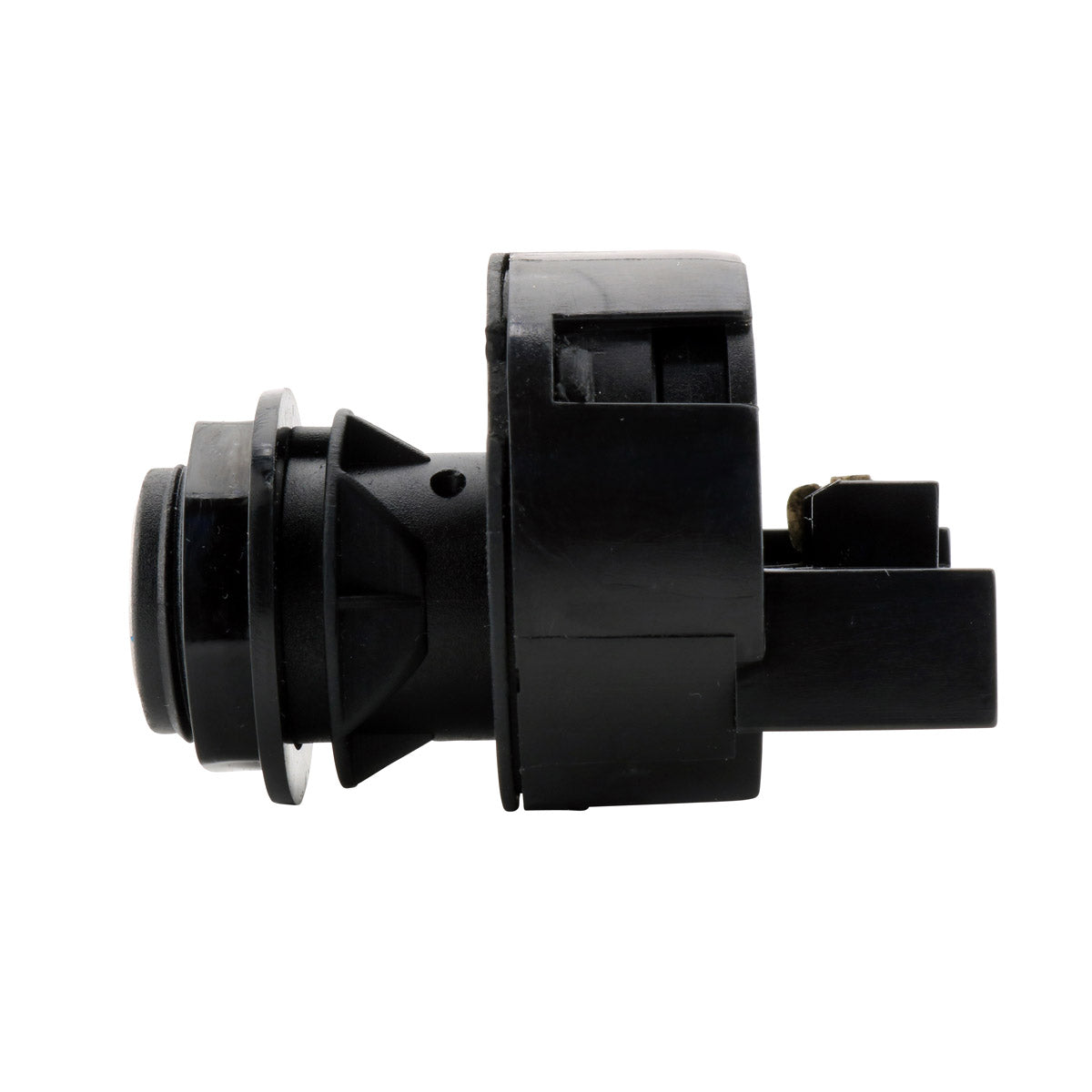

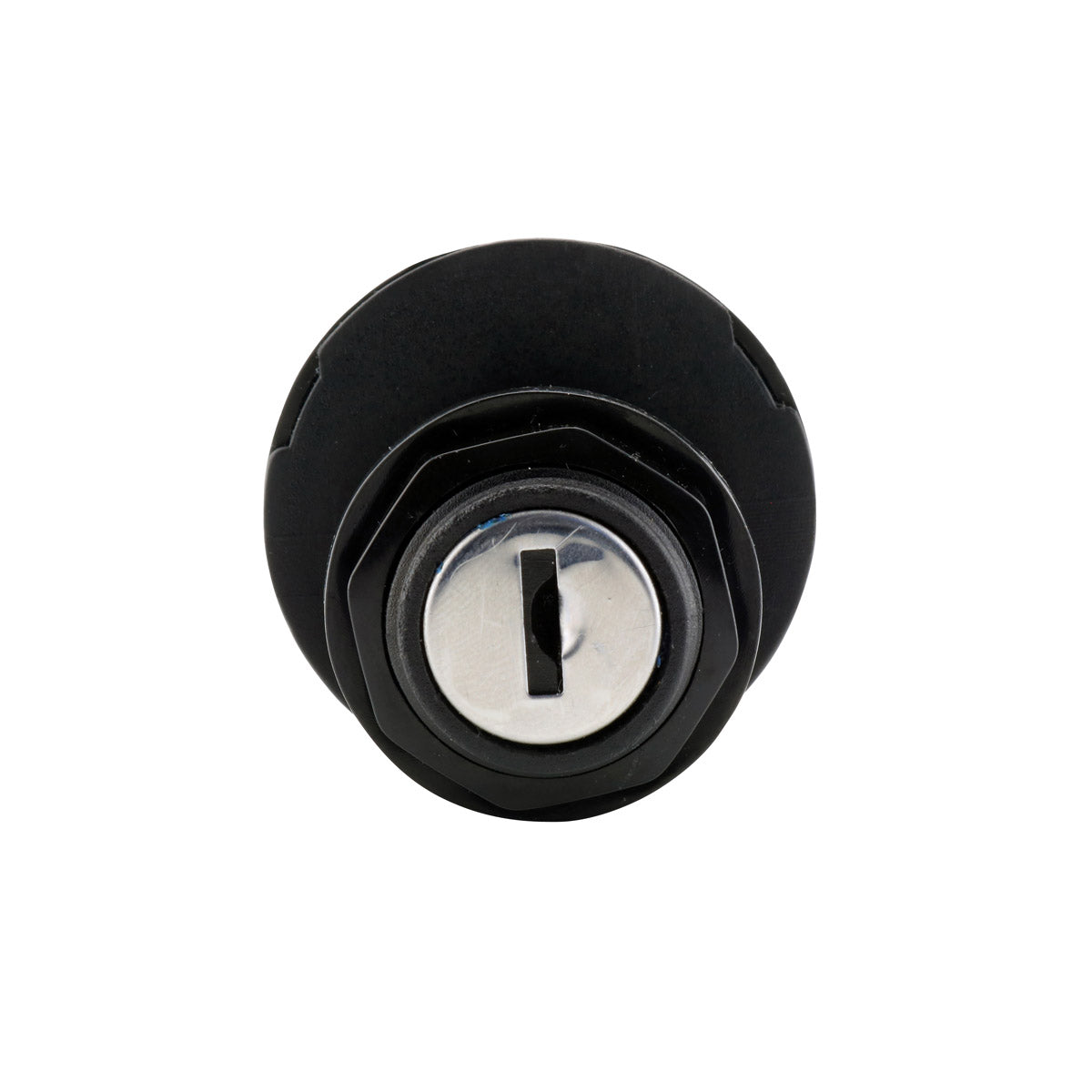

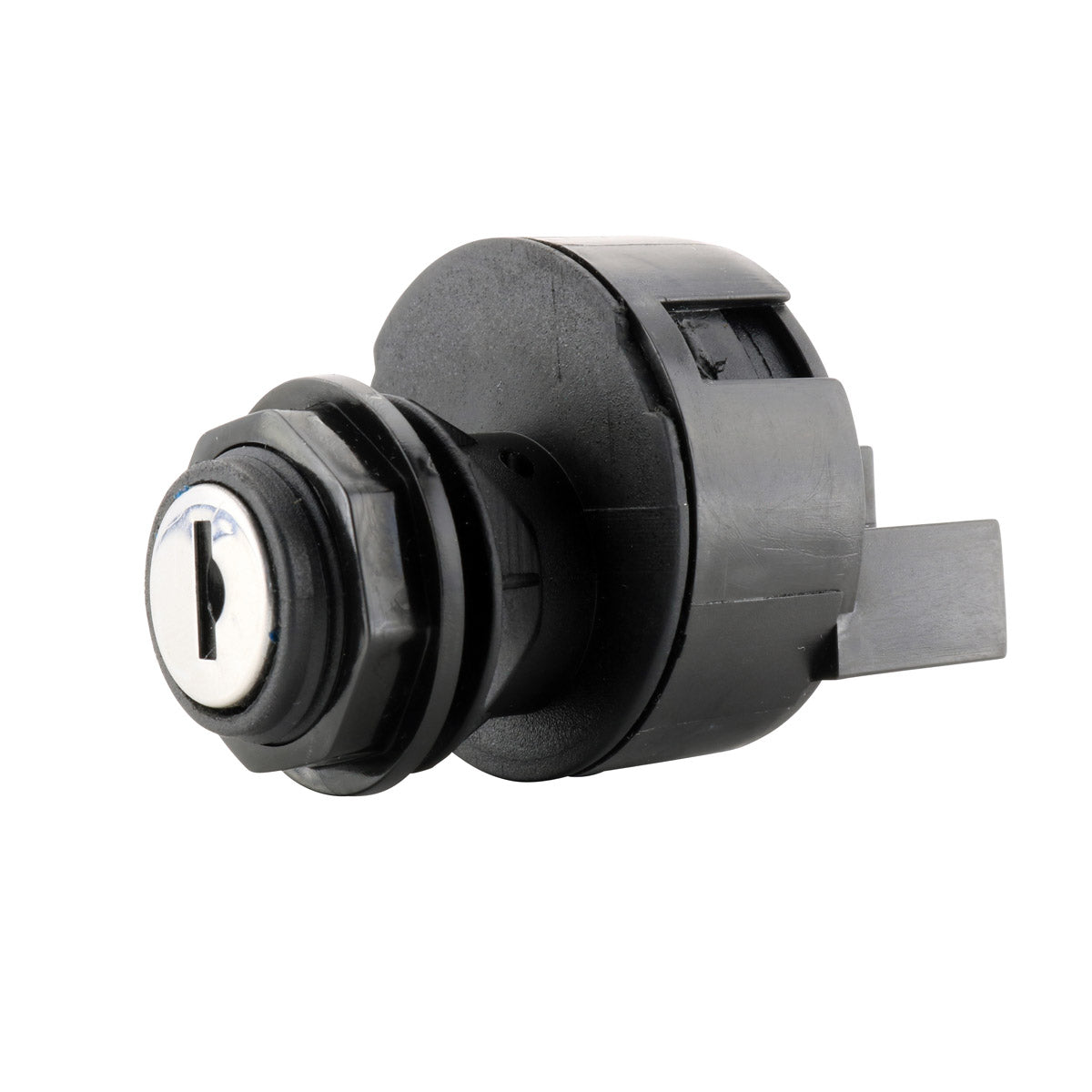

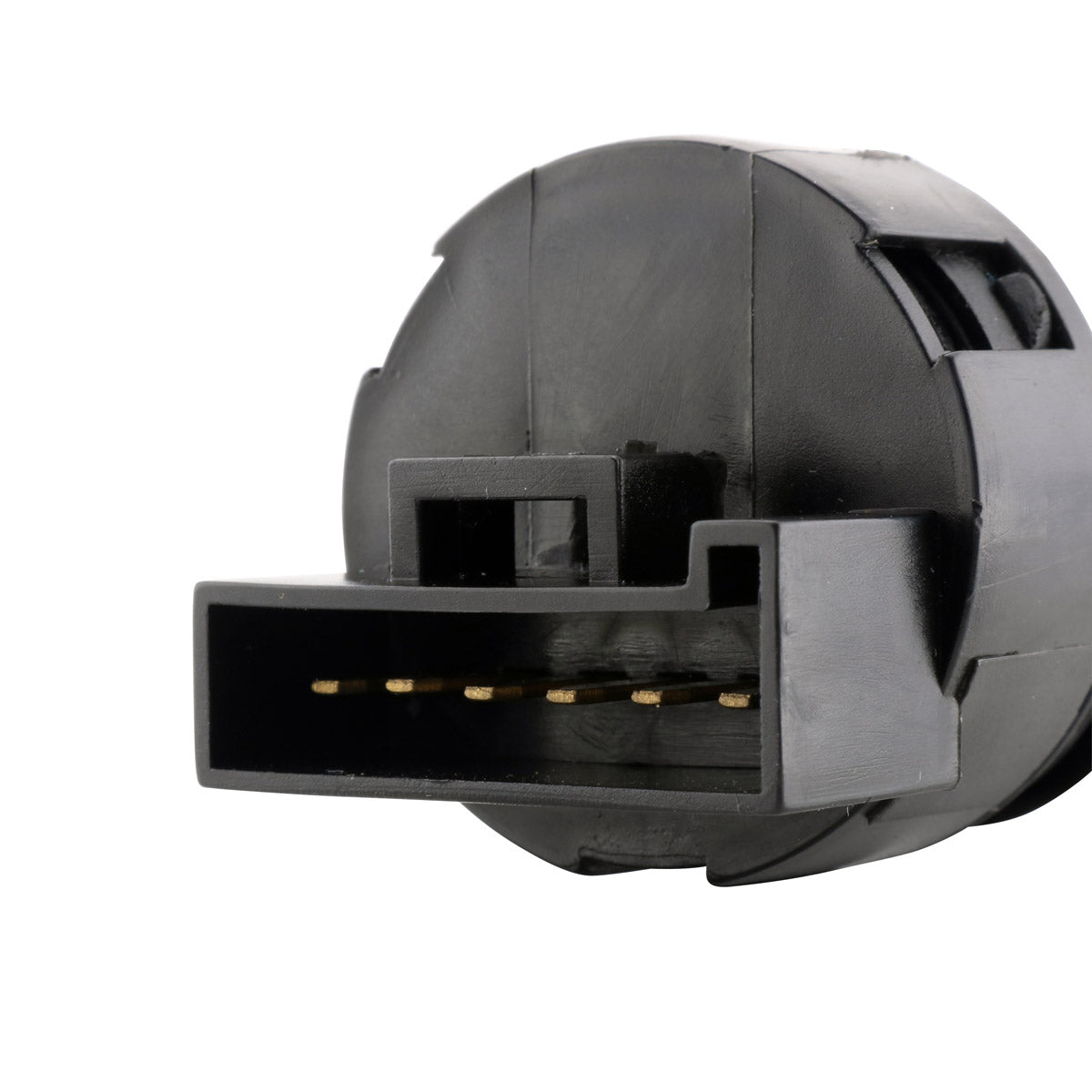

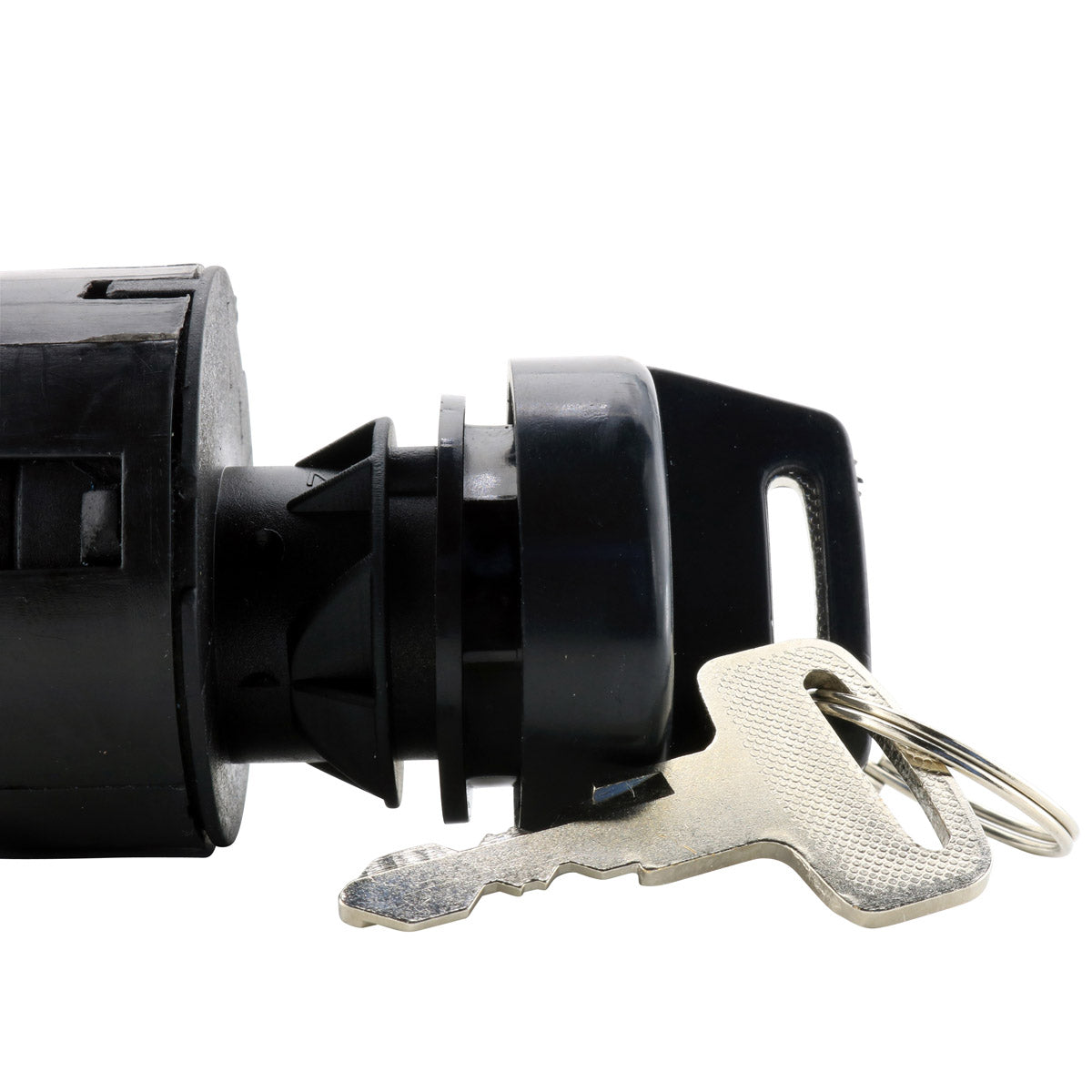

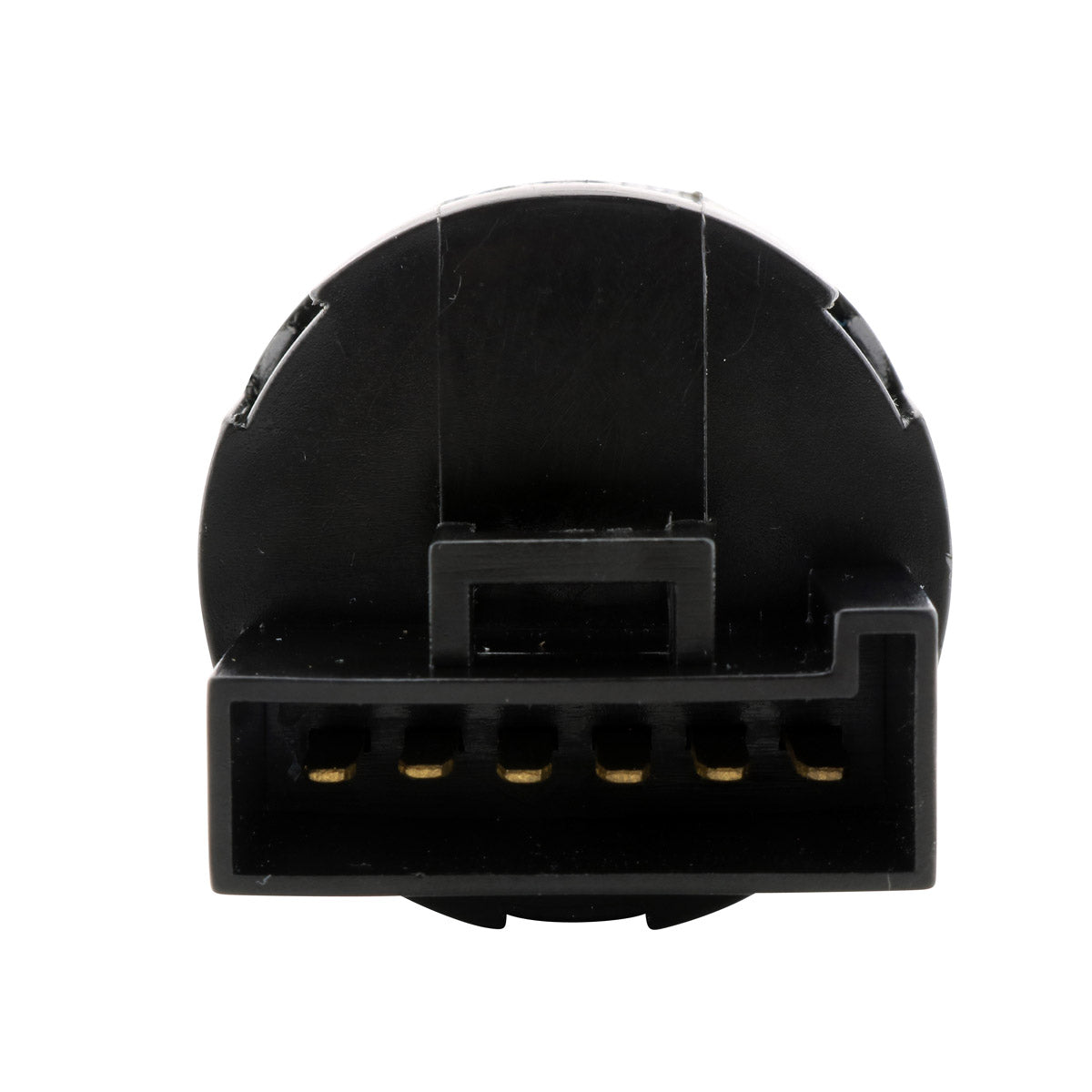

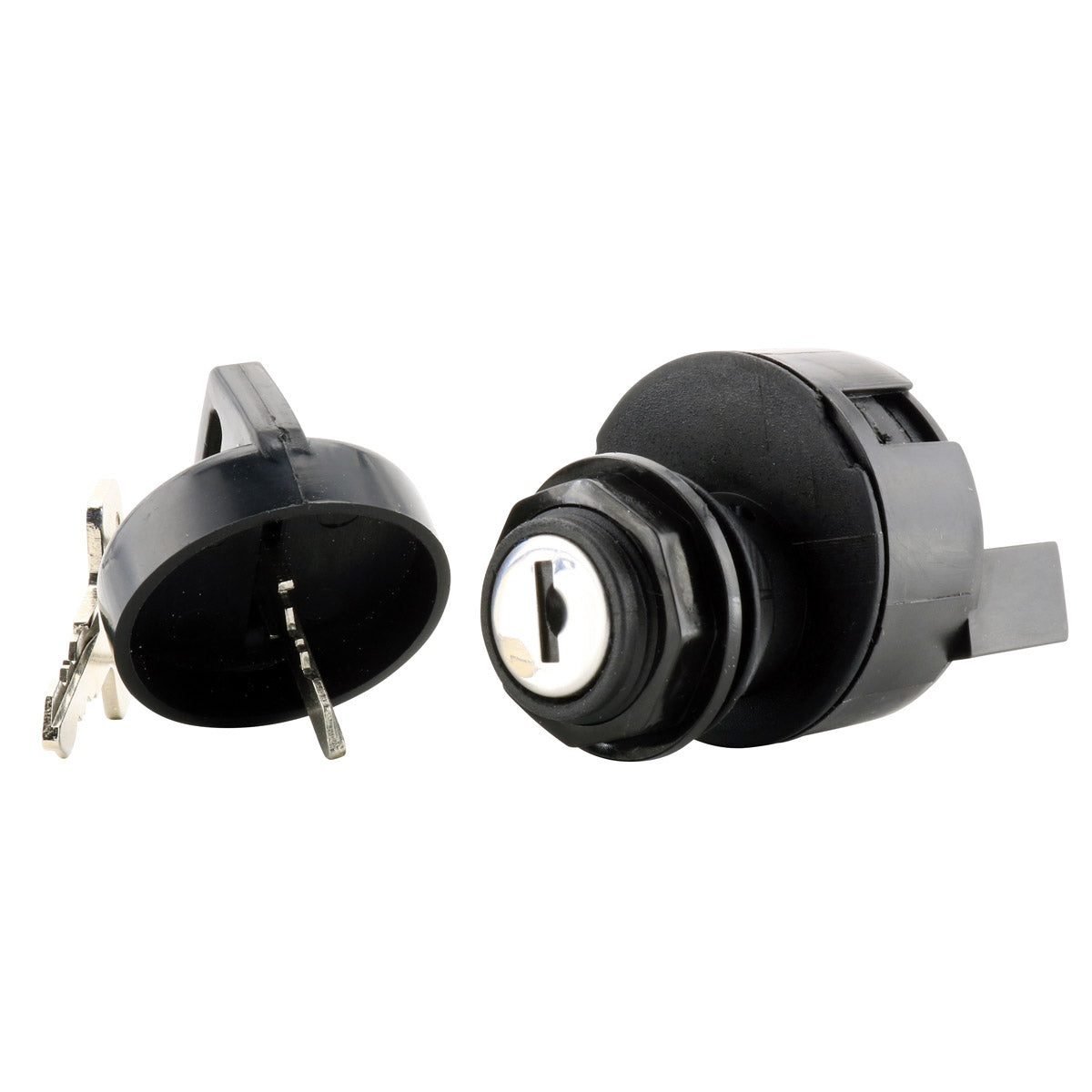

This is a brand new aftermarket 3-position ignition key switch for the Can-Am Outlander 400 and 450 and DS 450 and for the Sea-Doo 210 and 230 Challenger and WAKE 210 and 230, supplied as a direct replacement to your original unit. The key switch is the master control for the whole electrical system: it carries the main battery feed and splits it across three positions - off, accessories and on - so that turning the key energises the ignition, the instruments and the starting circuit in the correct order.
Key switches wear out mechanically rather than electronically. The internal contact discs erode and the detent tumbler loses definition after years of use, and on machines that live outdoors or on the water, moisture works its way into the barrel and corrodes the contacts. The symptoms are a machine that cuts out when the key is nudged or when it hits a bump, a key that turns but nothing comes on, a barrel that will not turn or return, or intermittent instrument and accessory power. This replacement is plug-and-play, a direct fit and easy to install, measuring 65 mm long, 46 mm high and 46 mm wide so it drops straight into the factory aperture. Two keys are included, and all products shipped are tested before dispatch.
Key Features
- Brand new aftermarket 3-position ignition key switch
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Three positions: off, accessories and on
- Two keys included
- All products shipped are tested before dispatch
- 65 mm long, 46 mm high, 46 mm wide
- Cross references 710001207 and 710002323
Technical Specs
| Specification |
Detail |
| Part code |
RMS110-106304 |
| Component type |
Ignition key switch |
| Height |
46 mm |
| Length |
65 mm |
| Width |
46 mm |
| Number of positions |
3 (off, accessories, on) |
| Number of keys |
2 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Can-Am Outlander 400 / 450 |
2008-2016 |
| Can-Am DS 450 |
2008-2016 |
| Sea-Doo 210 / 230 Challenger |
2008-2016 |
| Sea-Doo WAKE 210 / 230 |
2008-2016 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 710001207 |
Can-Am / Sea-Doo |
| 710002323 |
Can-Am / Sea-Doo |
Frequently Asked Questions
Does it need any modification to fit?
No. It is plug-and-play, a direct fit and easy to install. At 65 mm long, 46 mm high and 46 mm wide it matches the original, so it goes into the factory aperture and connects to the existing loom with no cutting, splicing or adapters.
What is included?

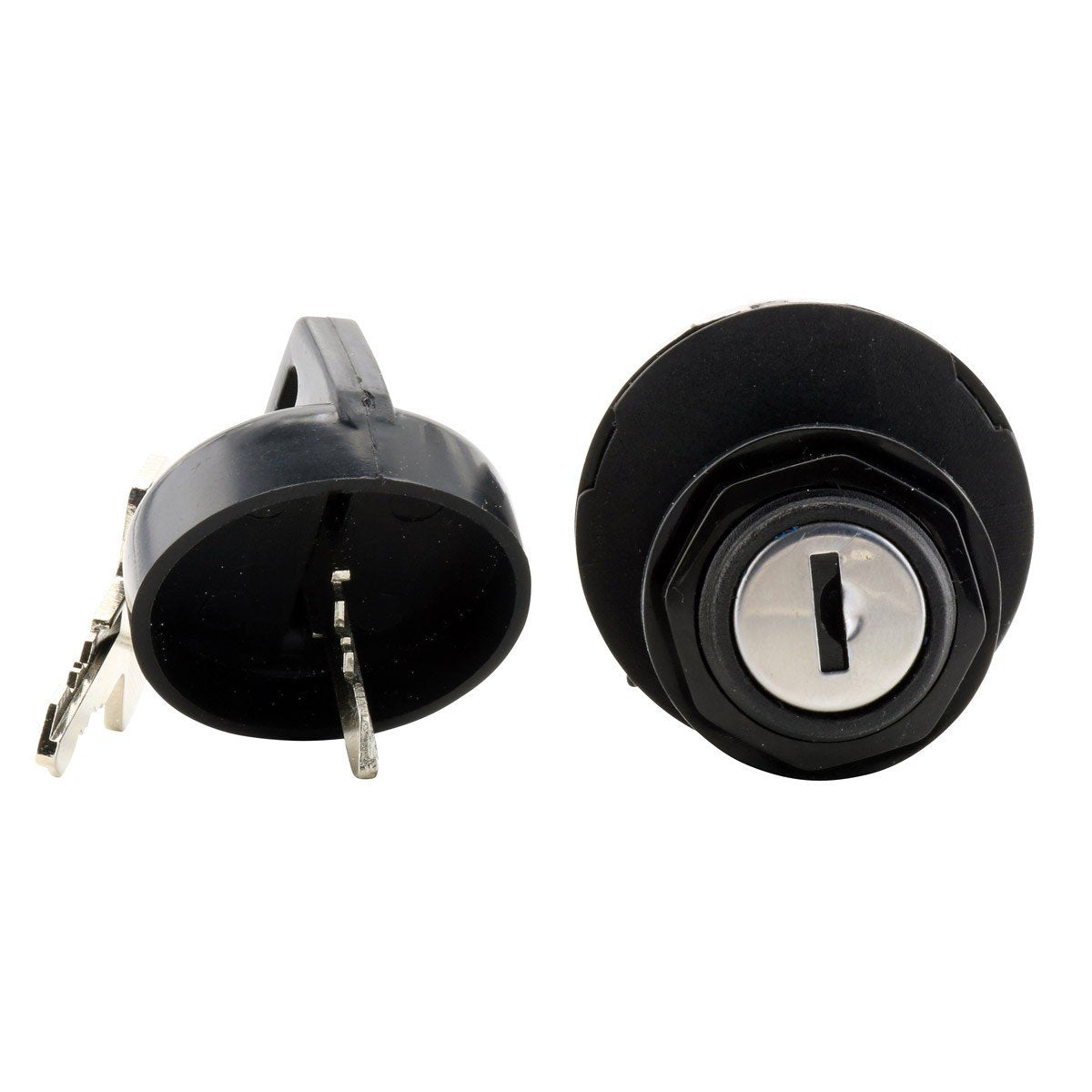

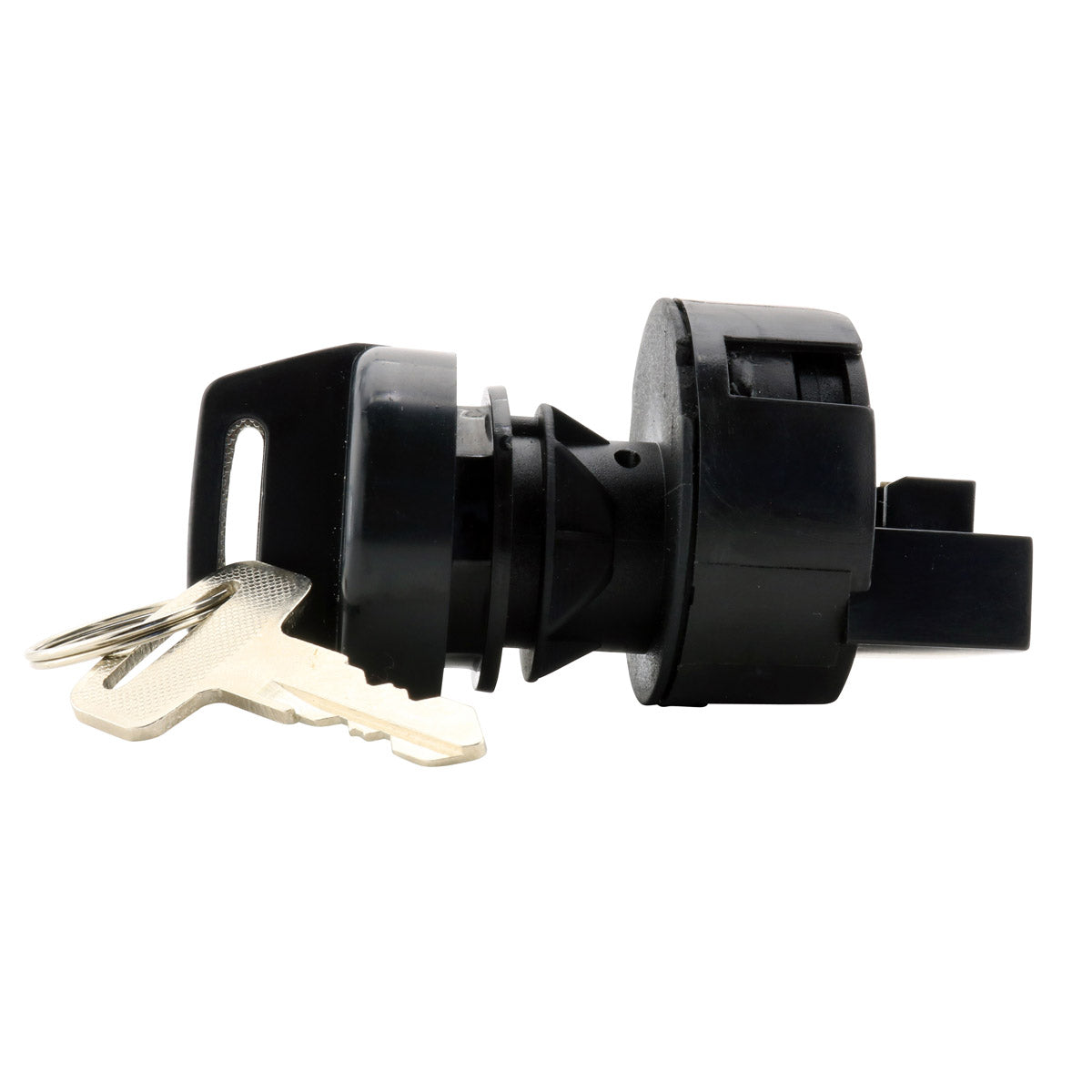

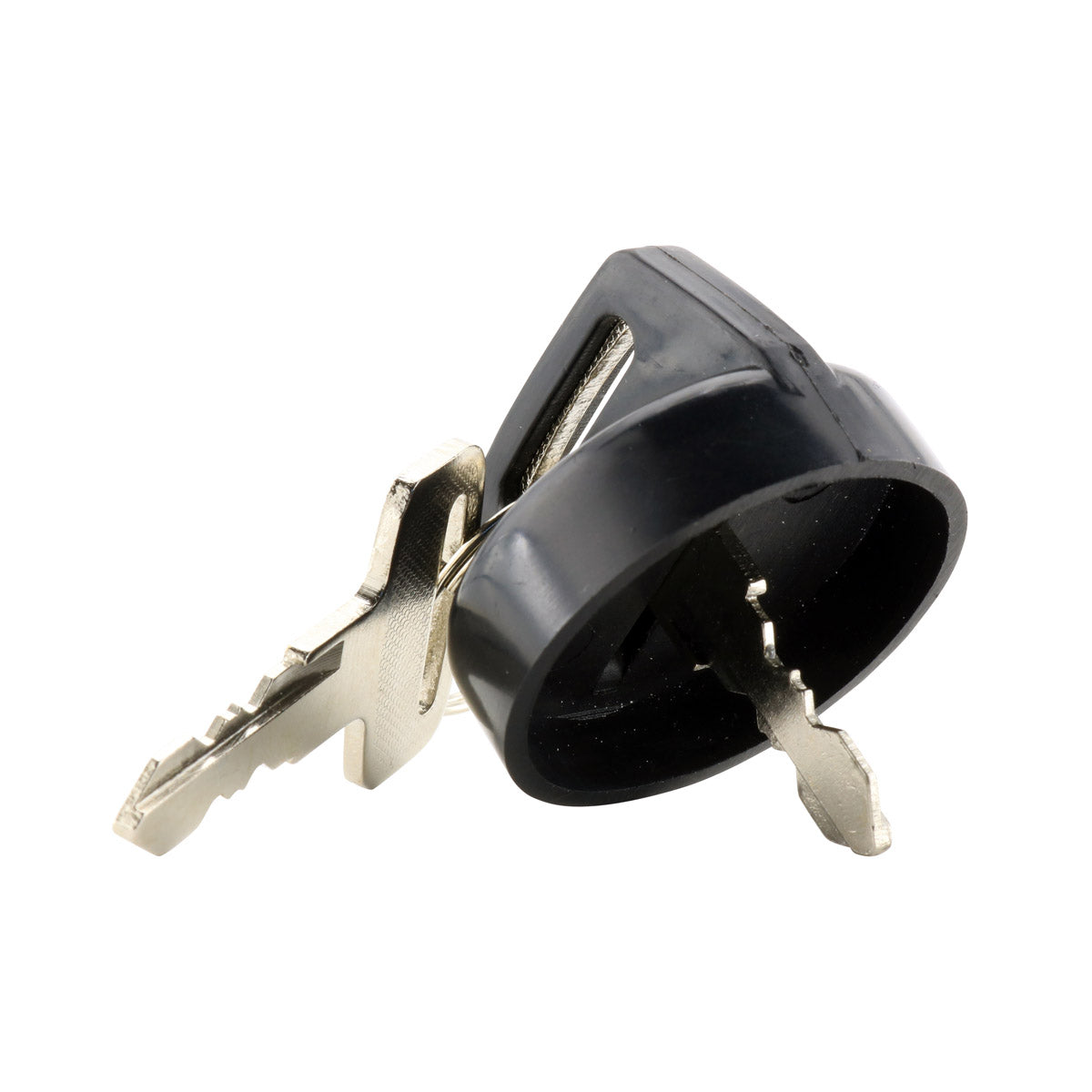

One brand new 3-position ignition key switch and two keys, tested before dispatch. Reuse the original mounting nut or bezel and any trim from your old switch.
How do I know the old key switch has failed?
Typical signs are a machine that cuts out when the key is knocked or over a bump, power that comes and goes as the key is wiggled in a position, a barrel that is stiff or will not return, or a key that turns to on with no instruments and no starting. Corroded internal contacts also warm the switch body and can leave accessories live in the off position.
Will my existing key still work?
No. This is a complete new switch with its own barrel, so it comes with two keys of its own and your original key will not turn it. Keep a spare of the new keys somewhere safe.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
