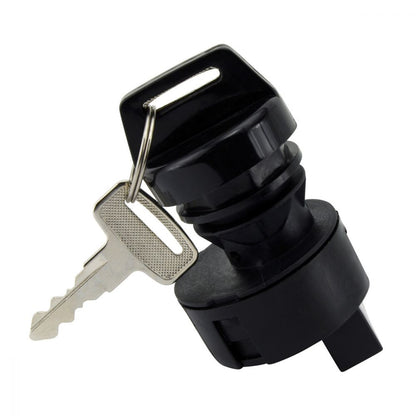

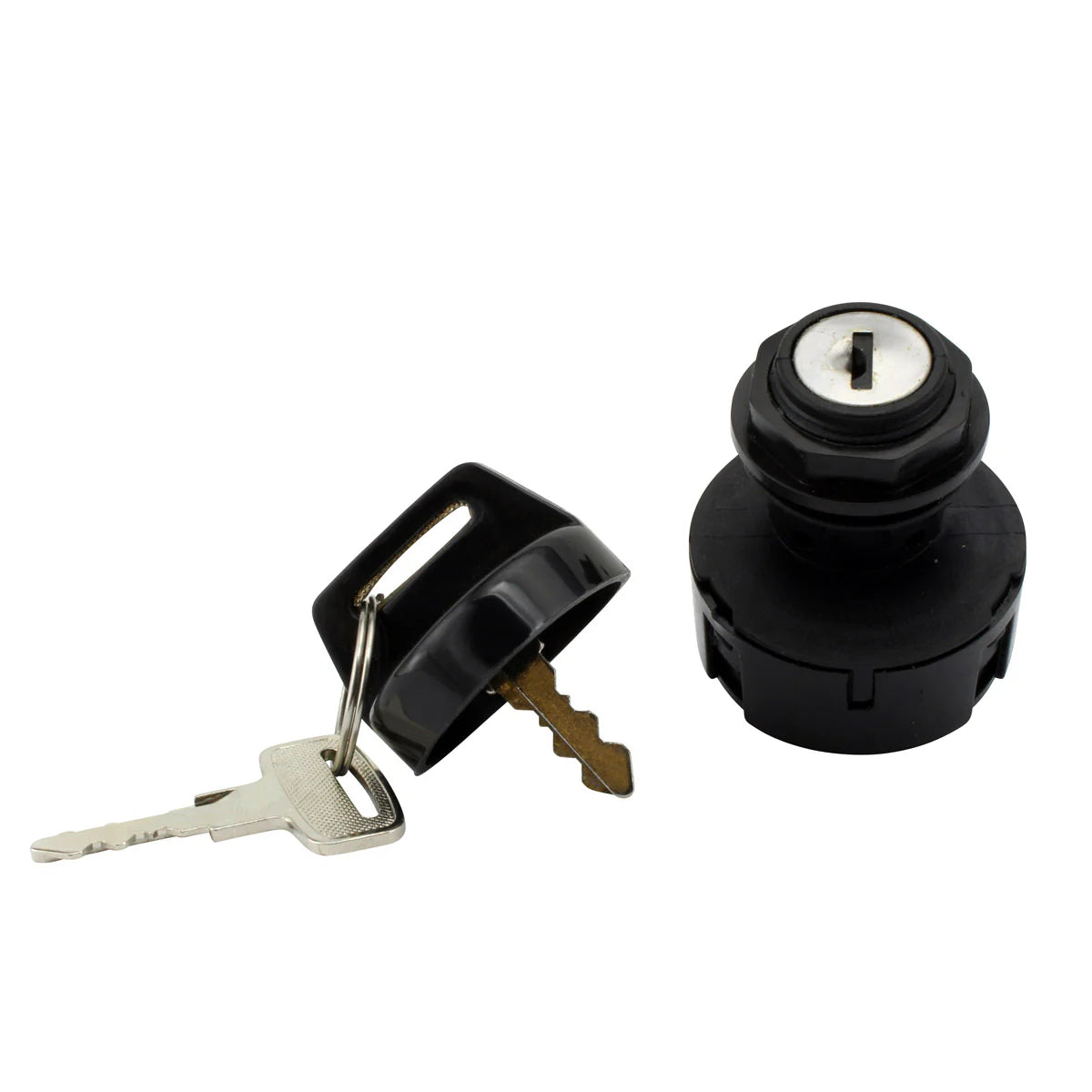

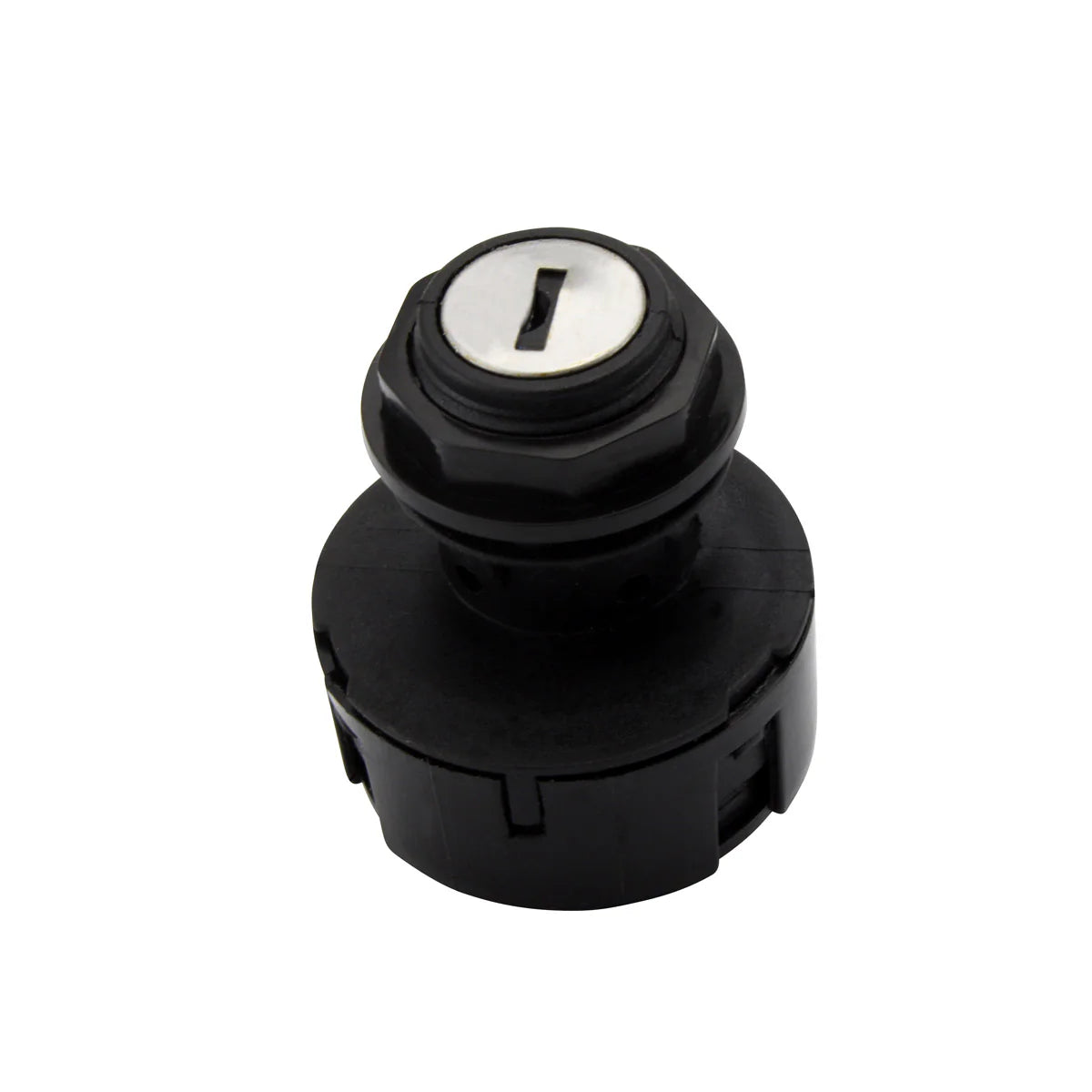

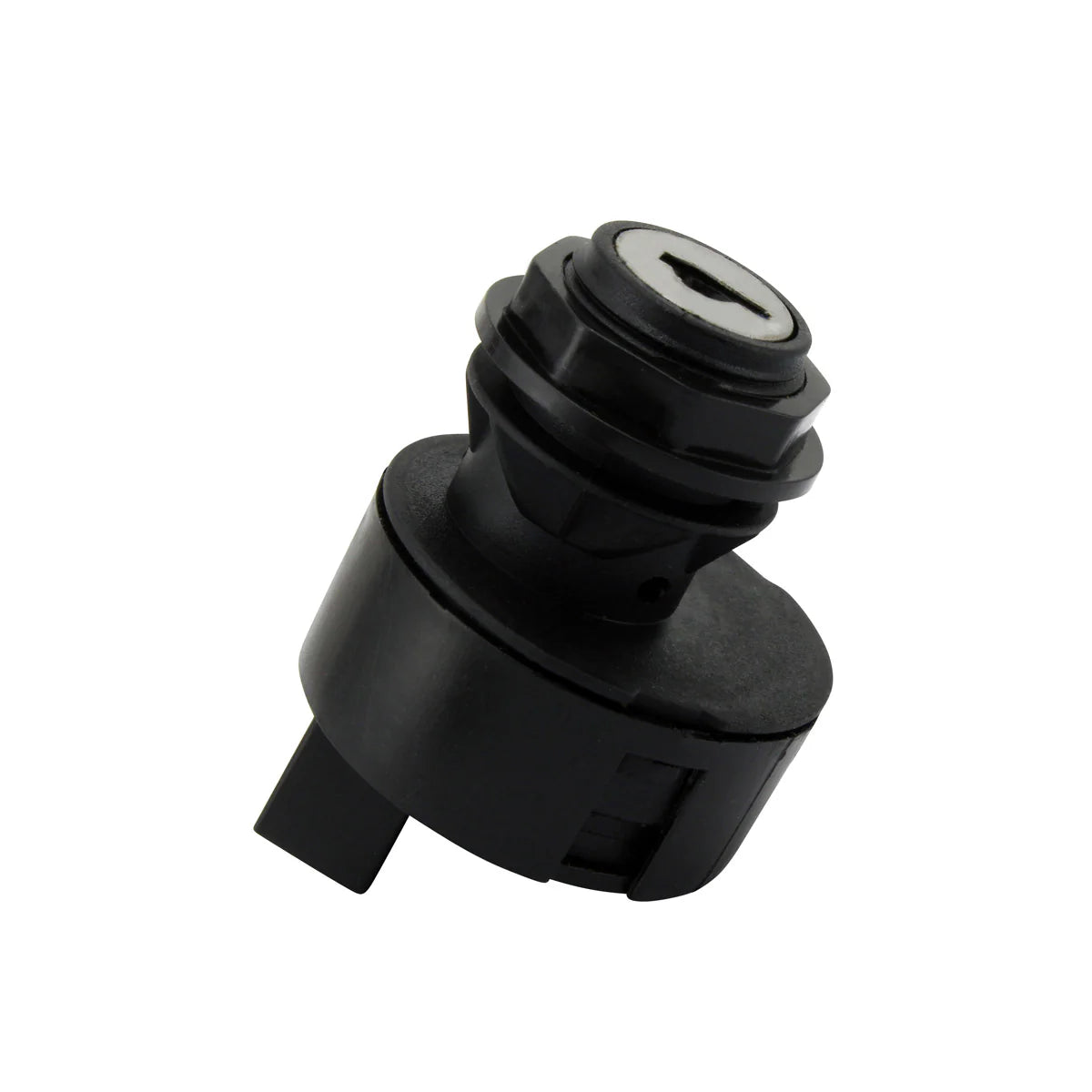

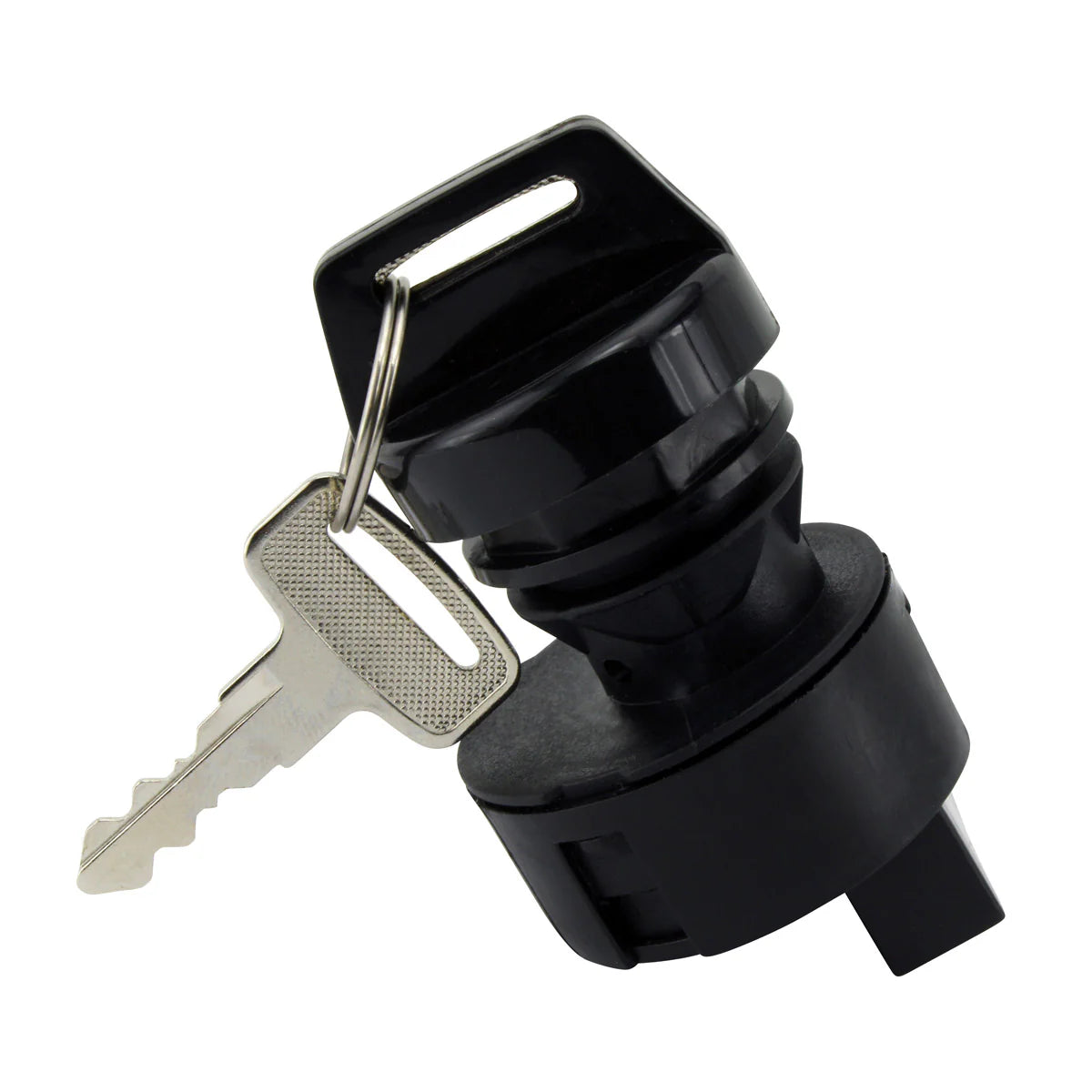

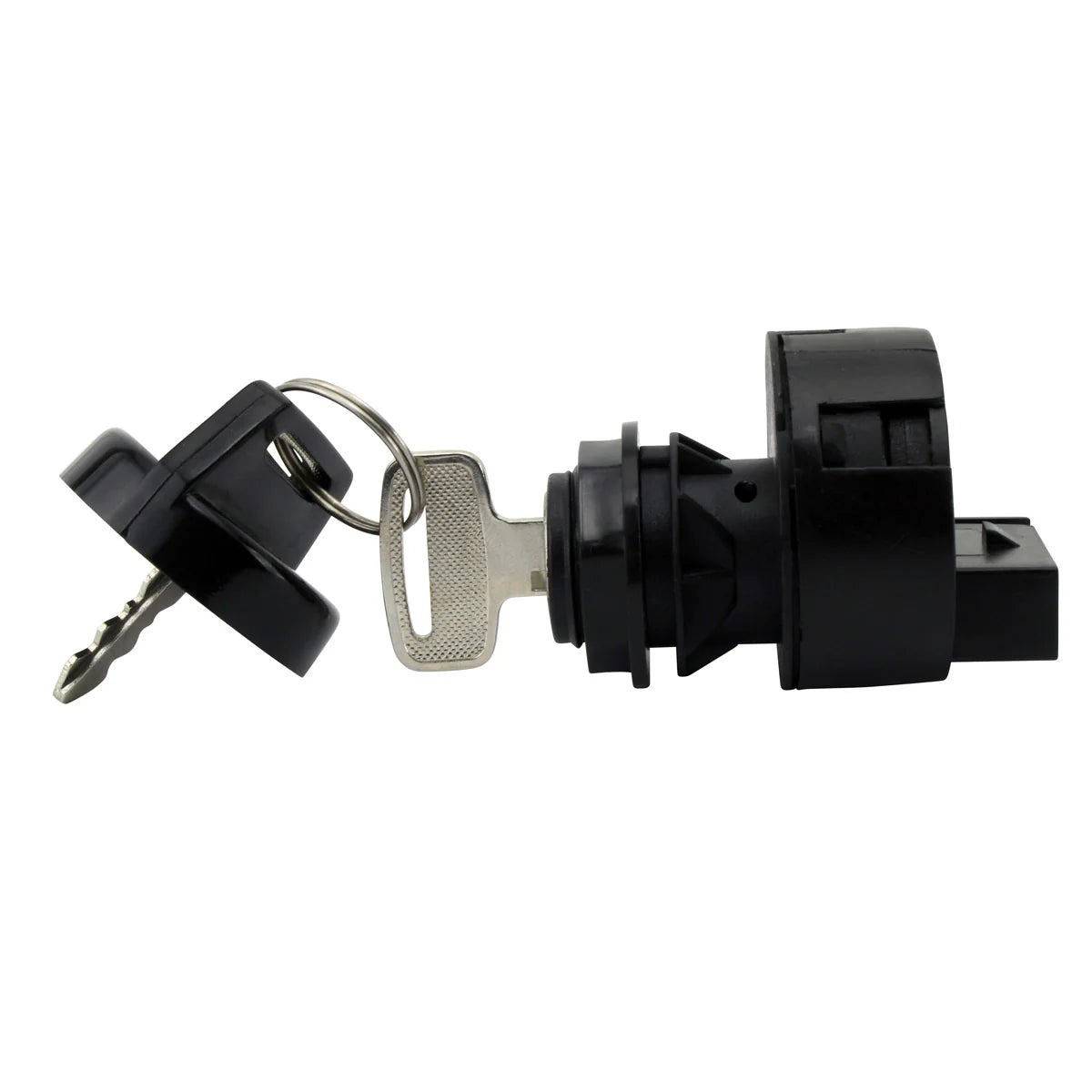

This is a brand new aftermarket 3-position ignition key switch, supplied as a direct replacement for the original unit fitted to the Can-Am Outlander 330 and 400, the Outlander Max 400 and the Rally 175. It is a plug-and-play, direct fit part: it mounts in the original location and mates with the machine's existing plug, so no cutting, splicing or modification of the wiring loom is needed. Two keys are supplied with every switch and the connectors are included.
The switch works over three positions - off, on, and a spring-return start position that springs back to on as soon as the key is released. The body measures 57 mm high by 46 mm long, and the width steps between 40 mm and 31 mm. It connects through a single plug. It replaces Can-Am part numbers 710001030, 710001029, 710000238 and 710007867. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket replacement for the original ignition key switch
- Direct replacement - plug-and-play, direct fit, easy installation
- Three positions: off, on and spring return start

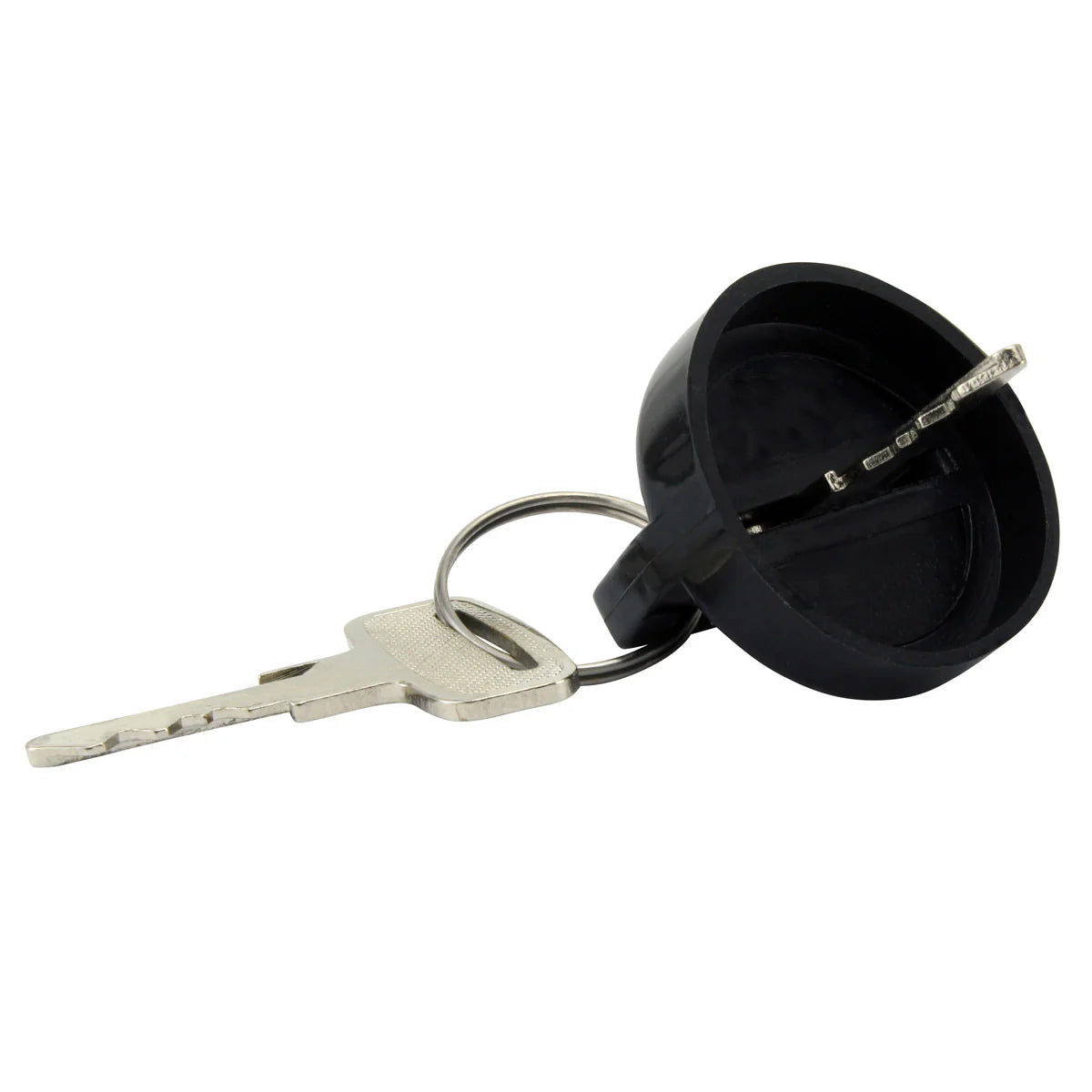

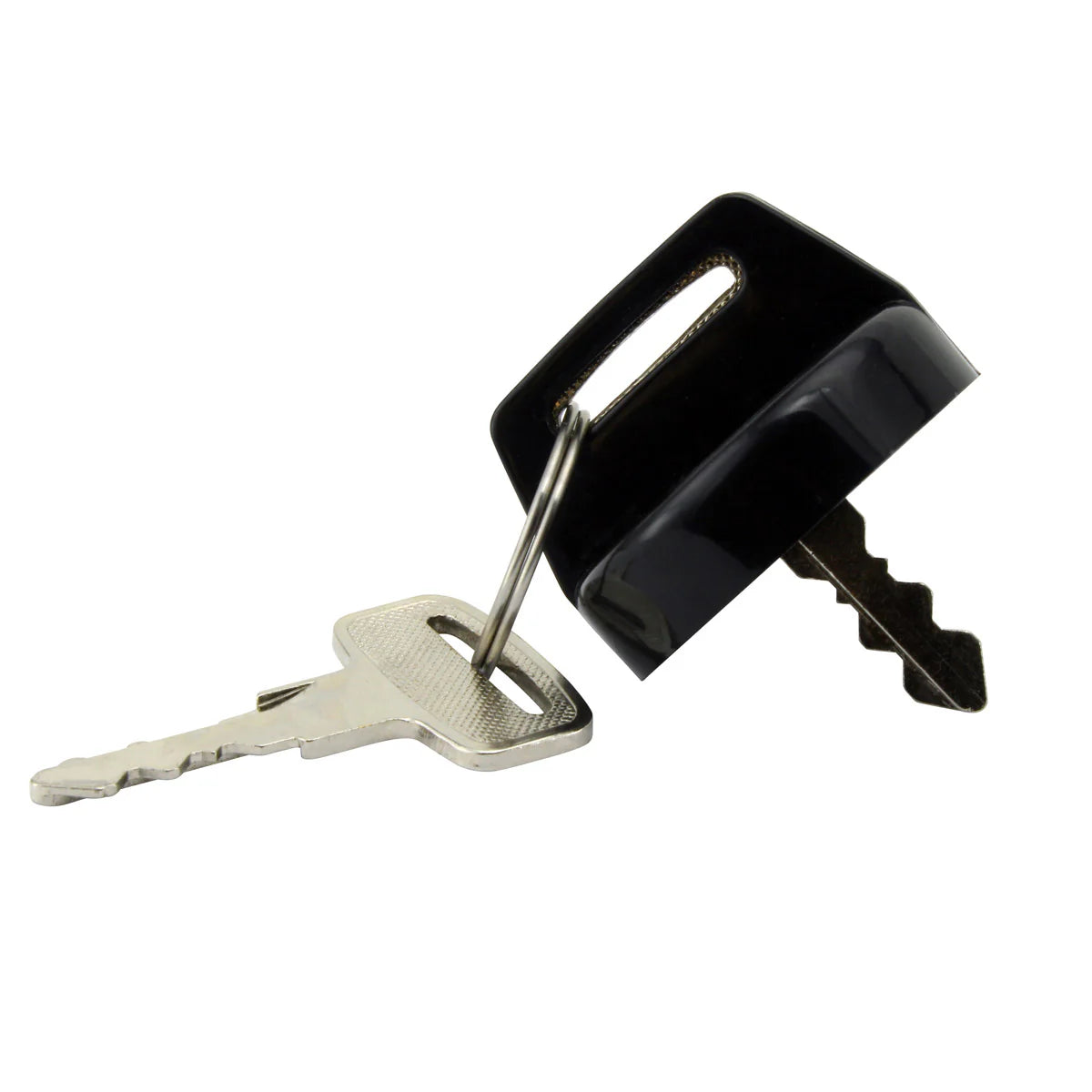

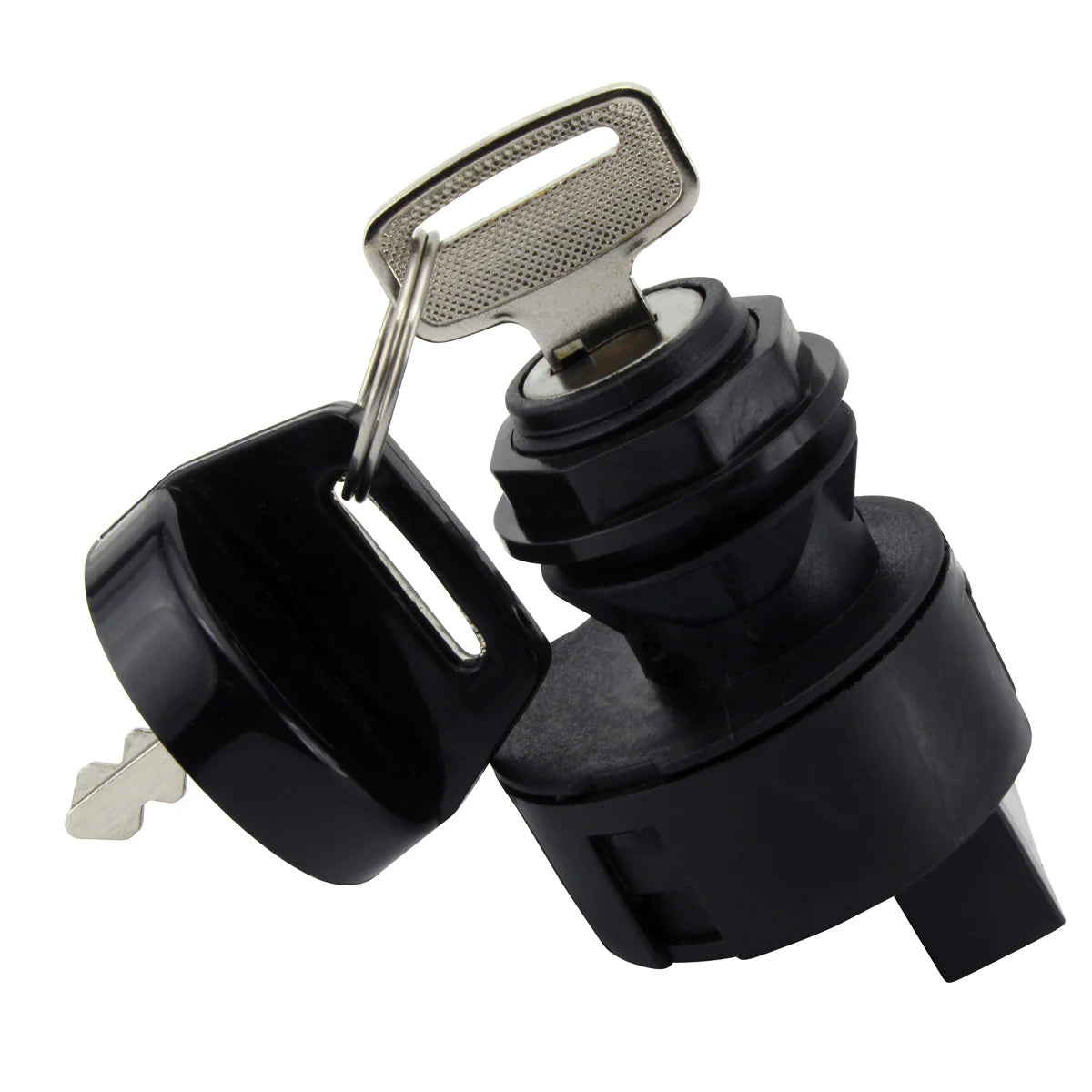

- Two keys included with every switch
- Connectors included

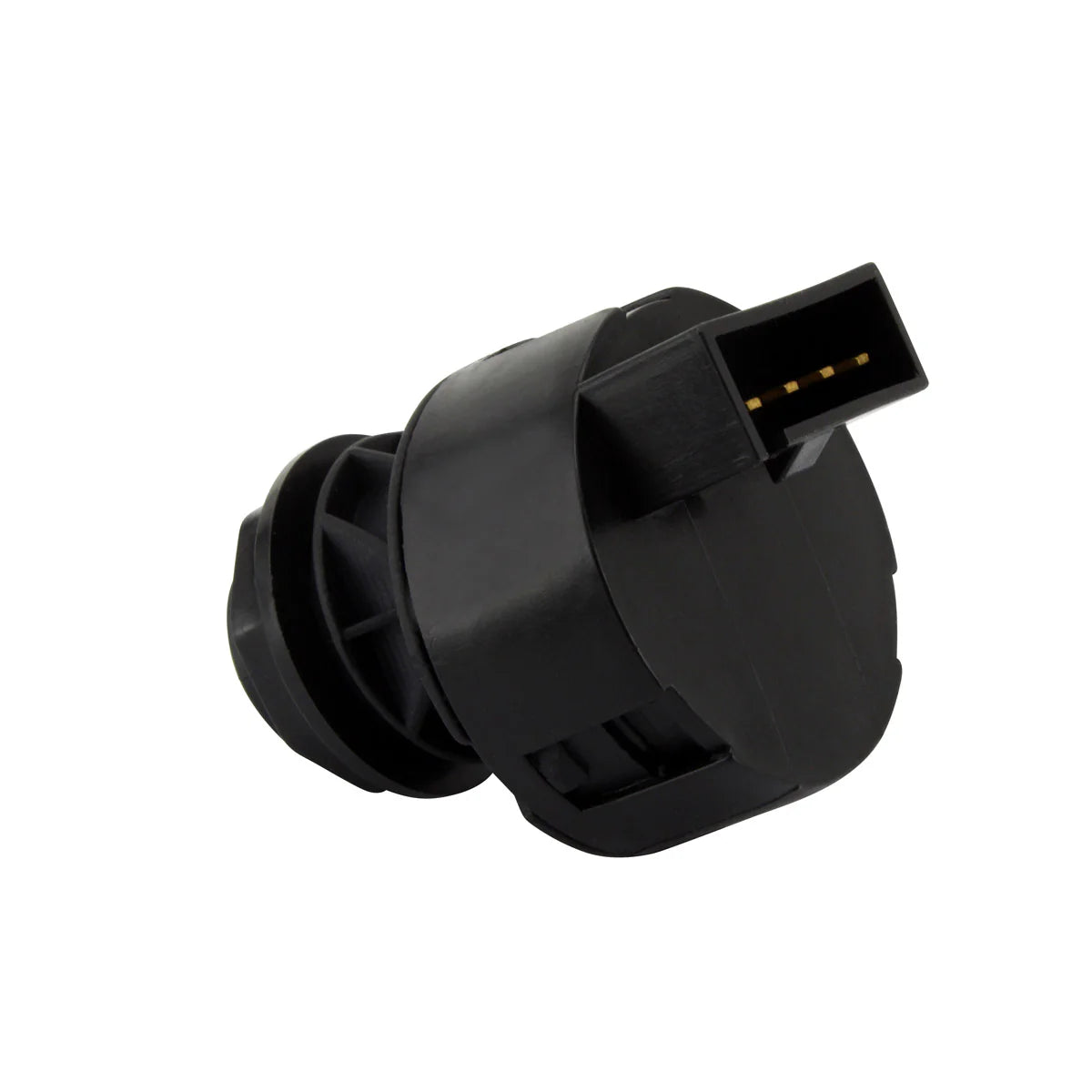

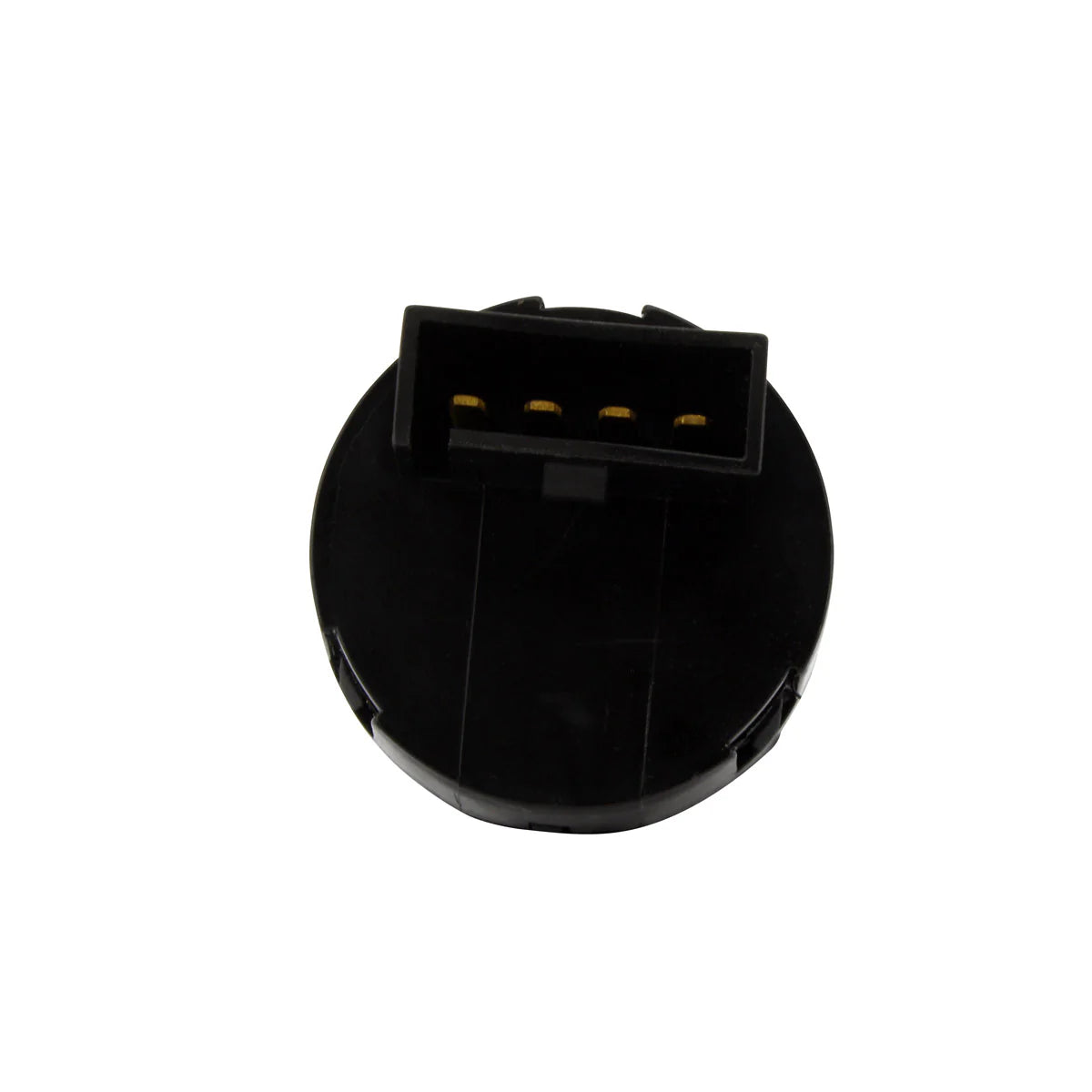

- Single plug connection
- Every unit is tested before dispatch
Technical Specs
| Specification |
Detail |
| Part Number |
RMS110-107614 |
| Number of Positions |
3 (off, on, spring return start) |
| Height |
57 mm |
| Length |
46 mm |
| Width |
40 mm and 31 mm |
| Number of Plugs |
1 |
| Number of Keys |
2 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Can-Am Outlander 330 |
2003-2008 |
| Can-Am Outlander 400 |
2003-2008 |
| Can-Am Outlander Max 400 |
2003-2008 |
| Can-Am Rally 175 |
2003-2008 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 710001030 |
Can-Am |
| 710001029 |
Can-Am |
| 710000238 |
Can-Am |
| 710007867 |
Can-Am |
Frequently Asked Questions
Will this switch fit without modifying my wiring?
Yes. It is a direct replacement for the original unit and is plug-and-play, so it uses the machine's existing connector. No cutting, splicing or loom modification is needed.
What is included in the box?

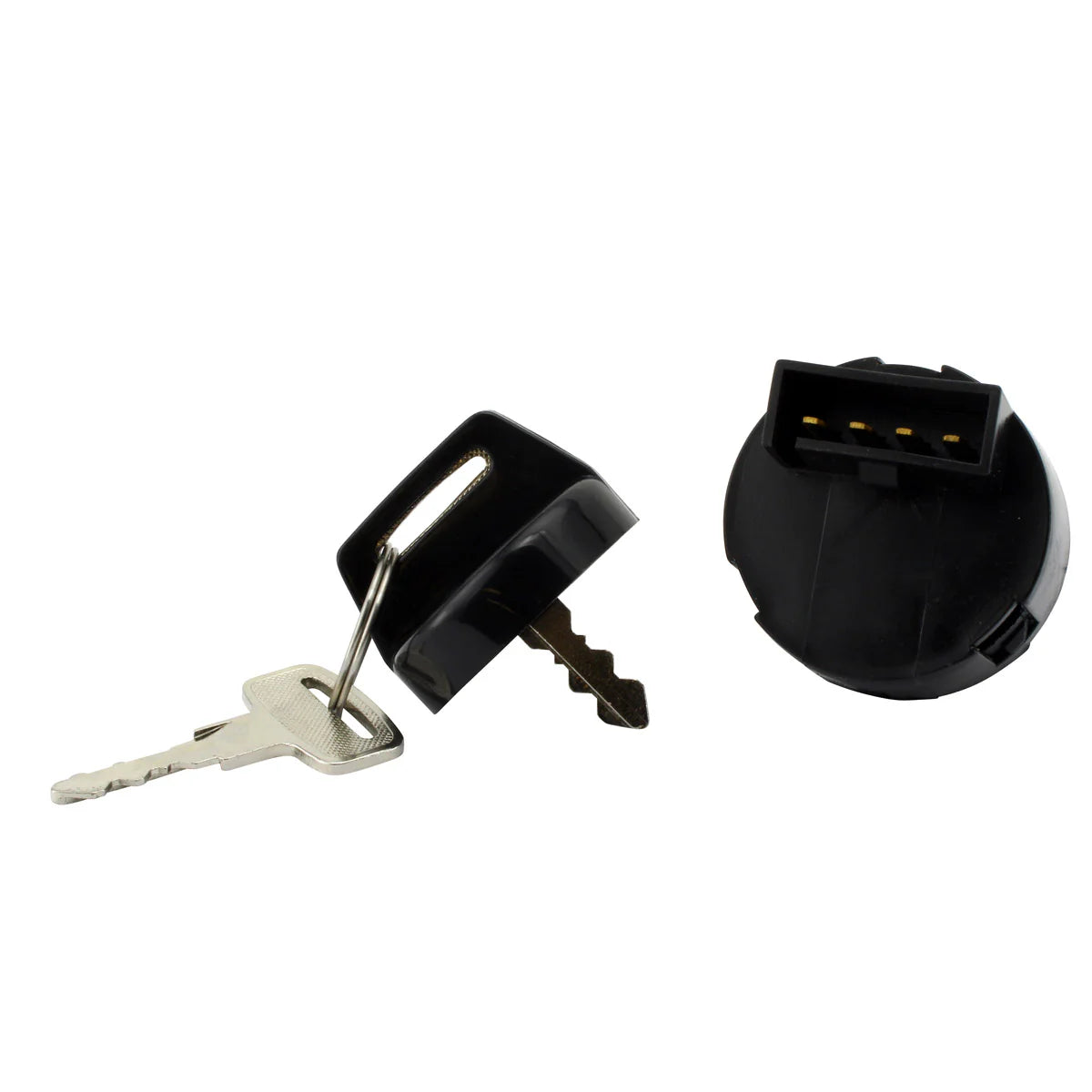

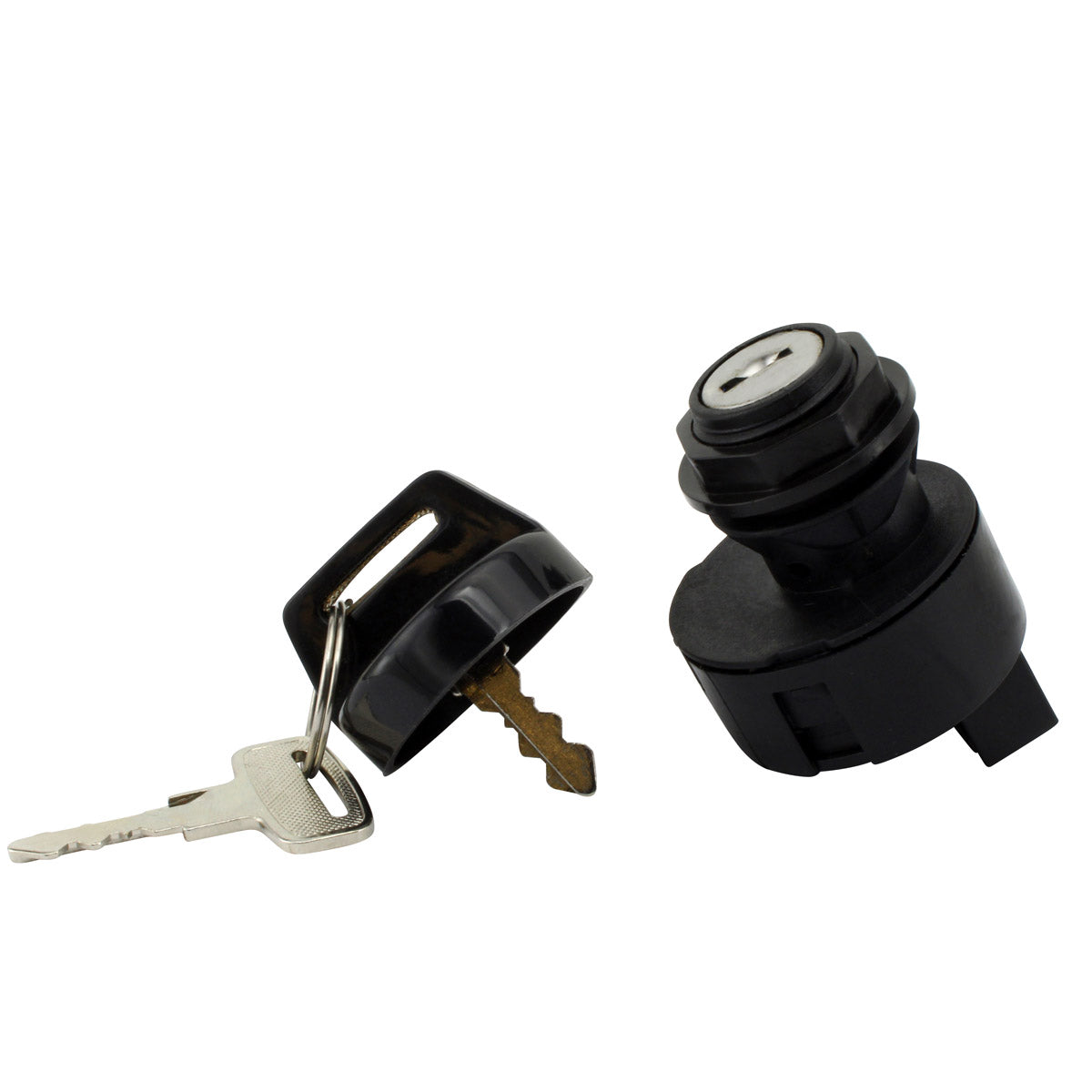

The three-position ignition key switch, two keys and the connectors.
How do I know my old key switch has failed?
Common signs are a quad that will not power up when the key is turned to on, power that drops out when the key or the wiring behind the switch is disturbed, a start position that no longer cranks the engine, a barrel that spins without engaging a detent, or corroded and heat-damaged terminals at the plug. A continuity check across the terminals in each of the three positions will show whether the switch itself is passing current.
Why is the width listed as two measurements?
The switch body is not a plain square. It measures 40 mm across at its widest point and steps in to 31 mm, which is why both figures are given. Compare both against your original unit before ordering.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
