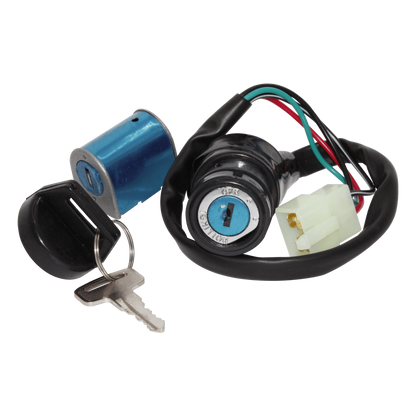

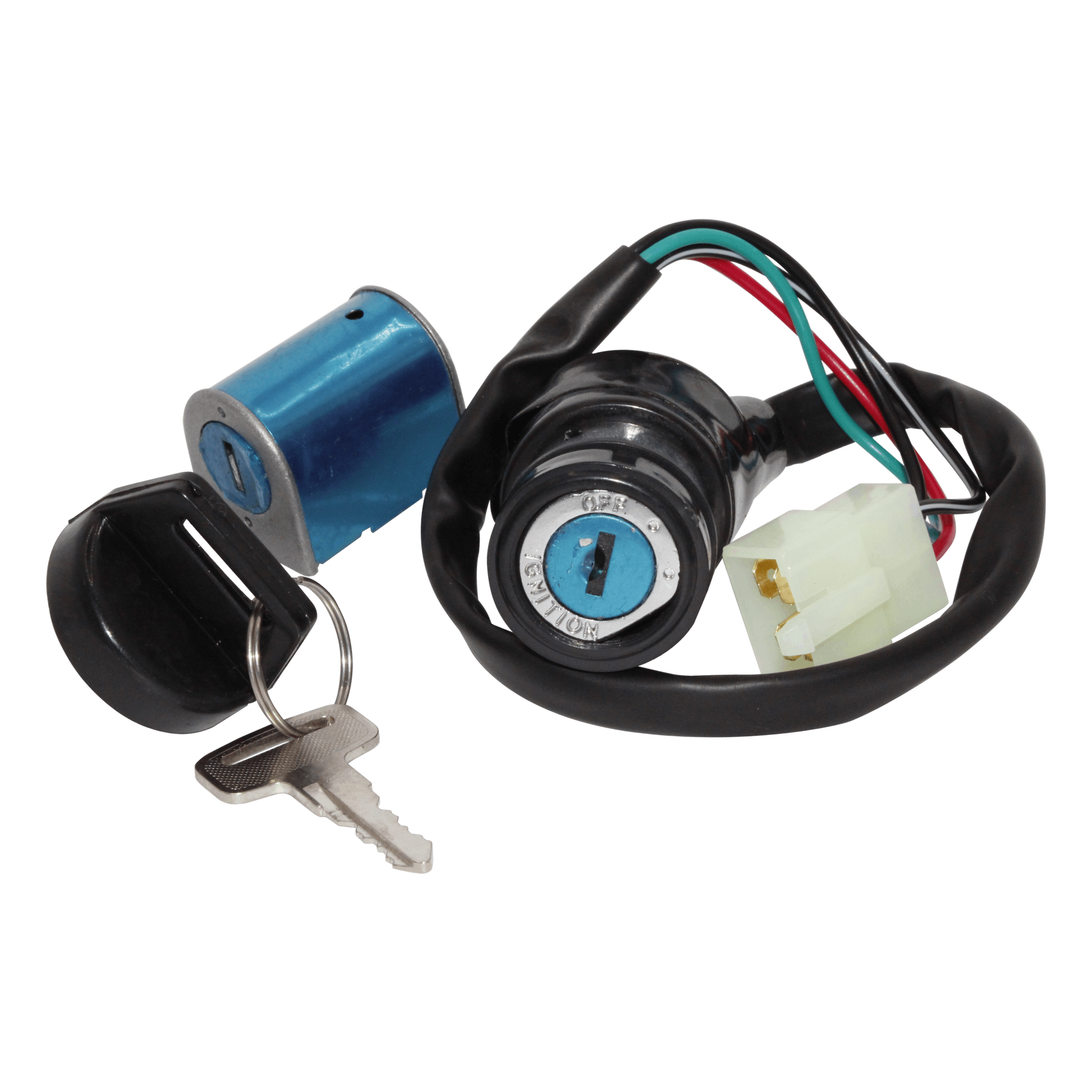

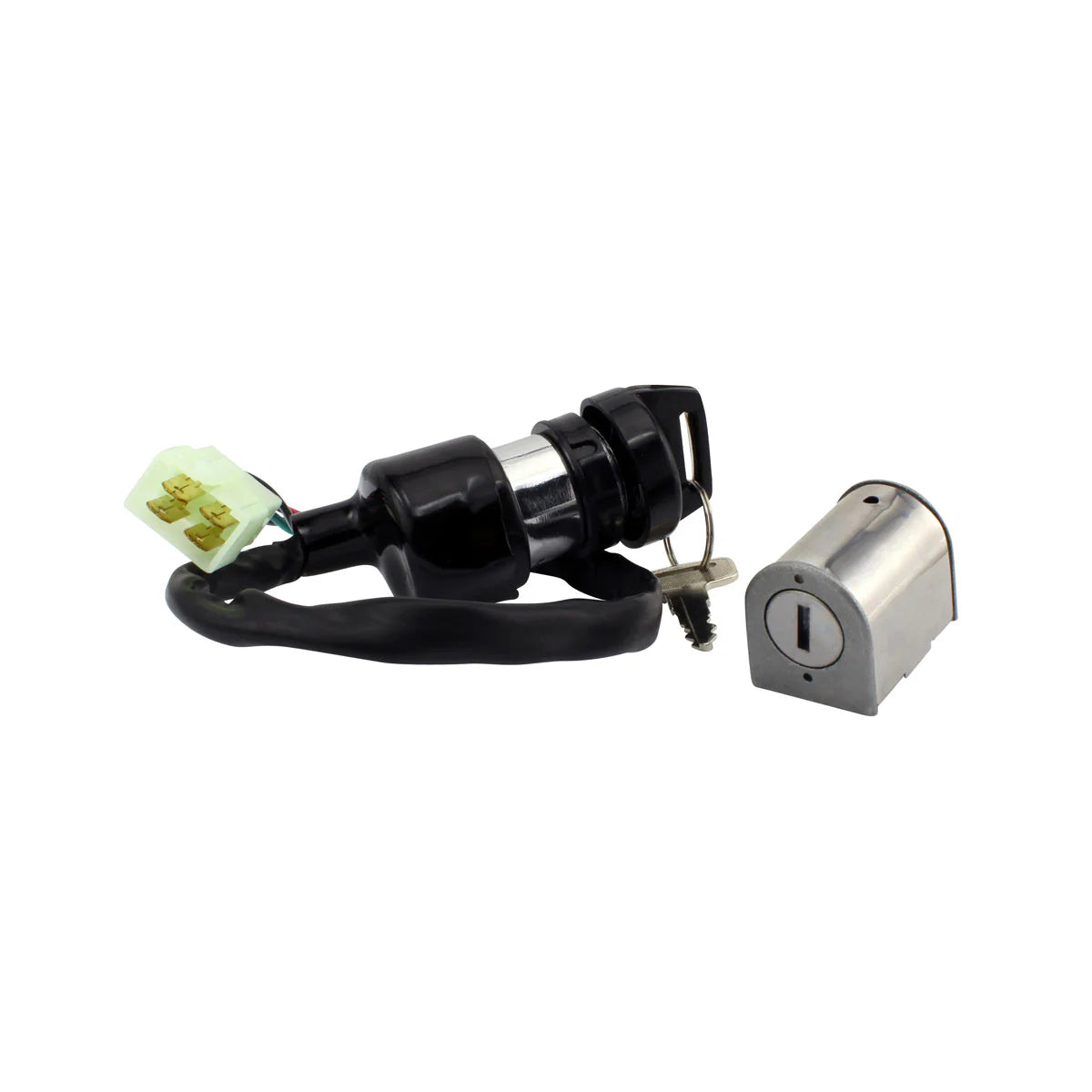

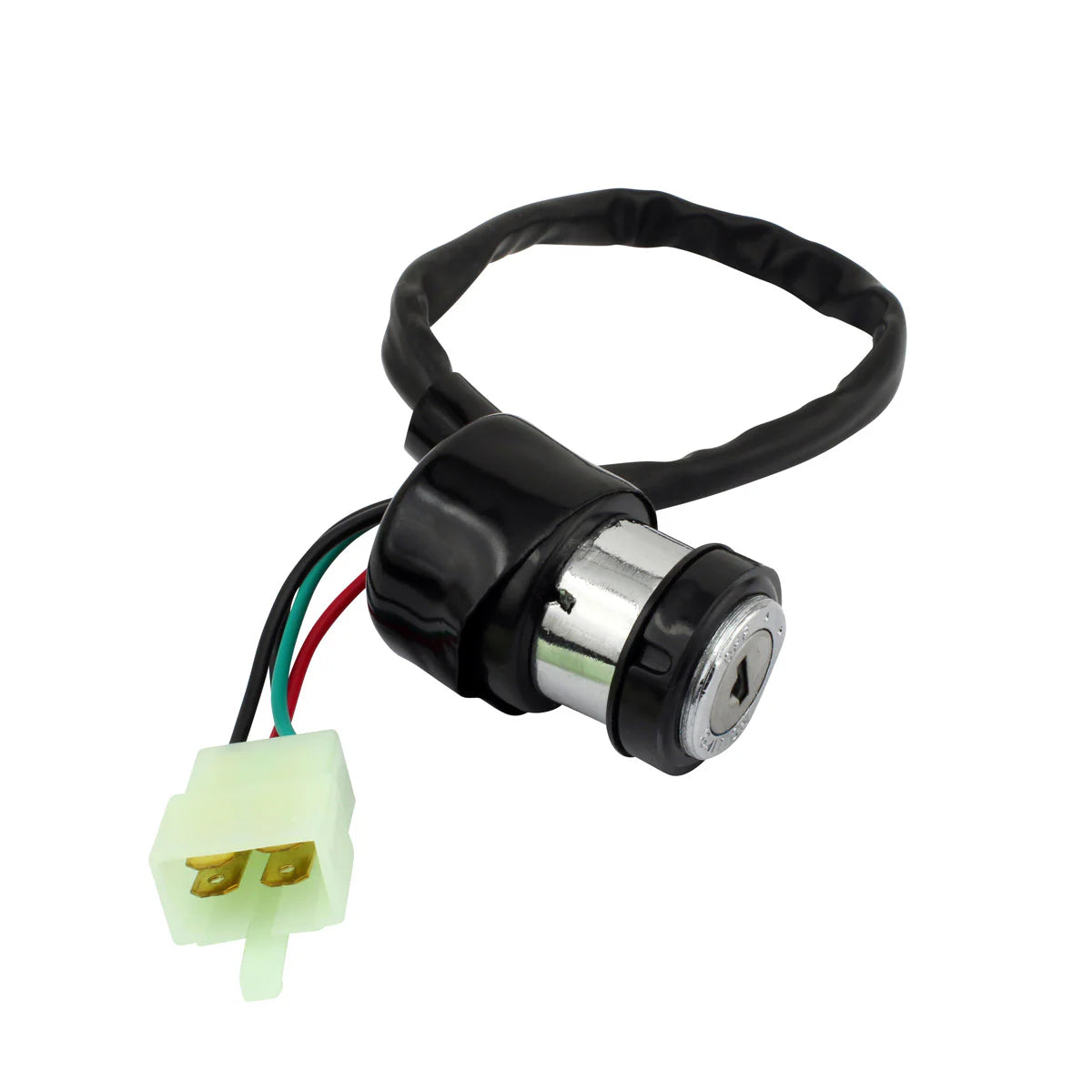

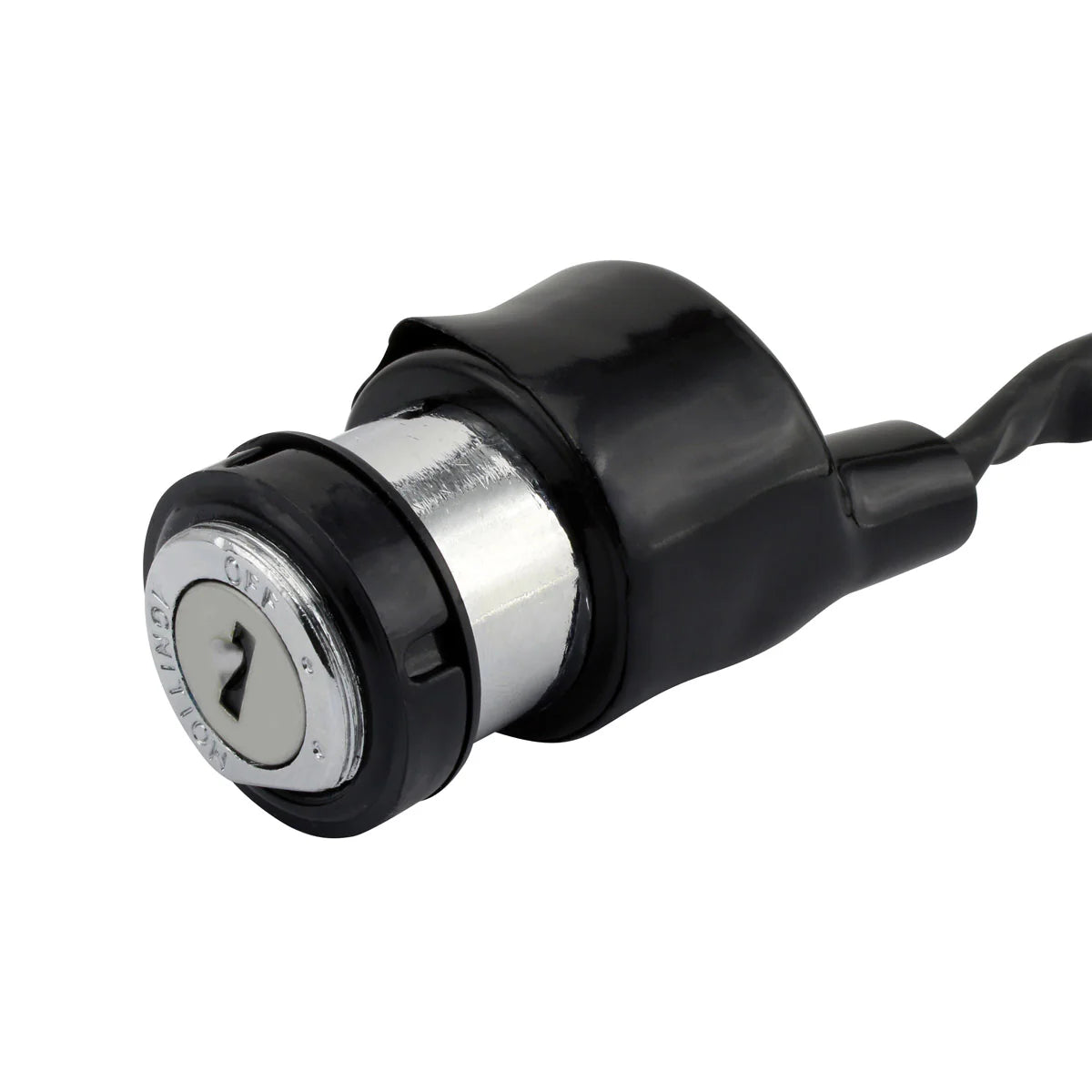

This is a brand new aftermarket 3-position ignition key switch, supplied as a direct replacement for the original unit fitted to the CFMoto CForce 500 X5, 600 X6 and 625 X6 ATVs. It is a plug-and-play, direct fit part: it mounts in the original location and mates with the machine's existing plug, so no cutting, splicing or modification of the wiring loom is required. Two keys are supplied with every switch, a separate lock is included, and the connectors are included.

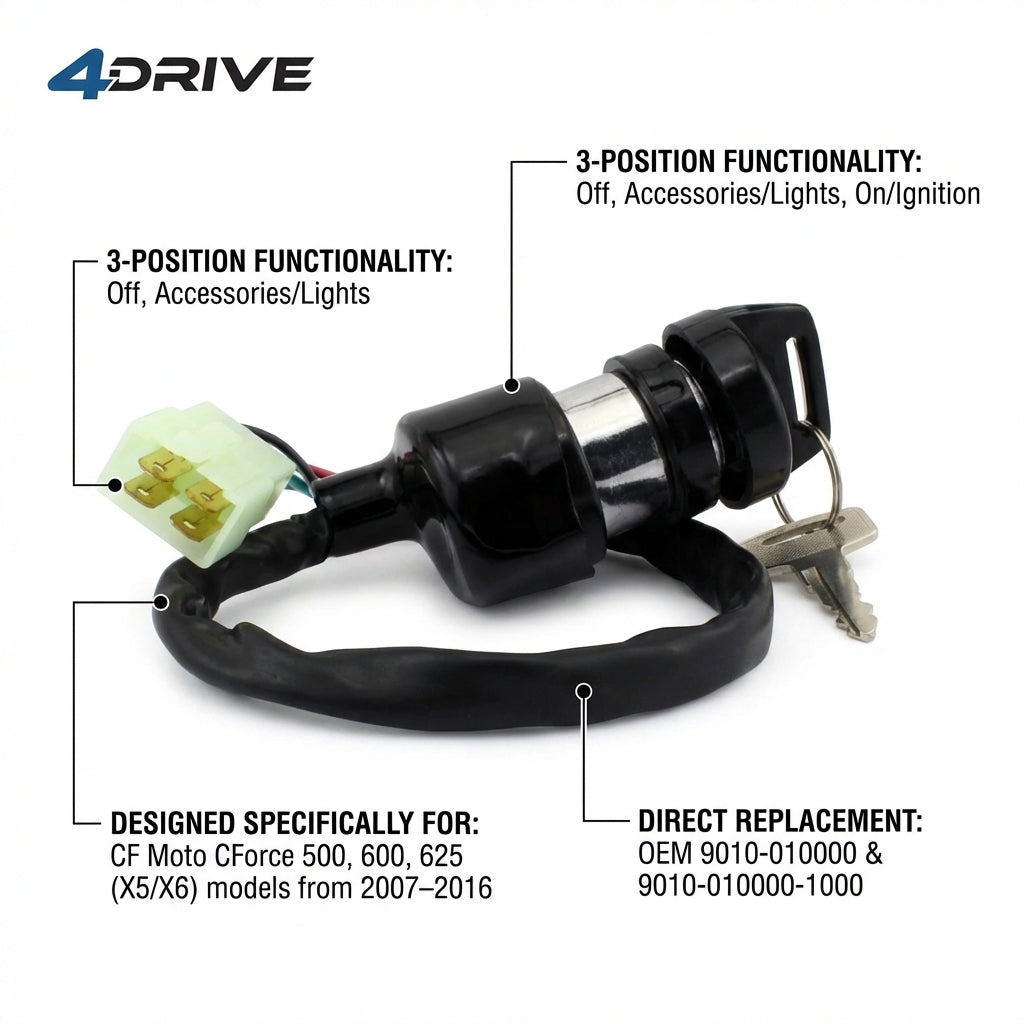

The switch works over three positions - off, accessories and on. It carries four wires and four pins on a generous 400 mm lead terminating in a single plug, and the body measures 46 mm high by 28 mm long by 35 mm wide. It replaces CFMoto part numbers 9010-010000 and 9010-010000-1000. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket replacement for the original ignition key switch
- Direct replacement - plug-and-play, direct fit, easy installation

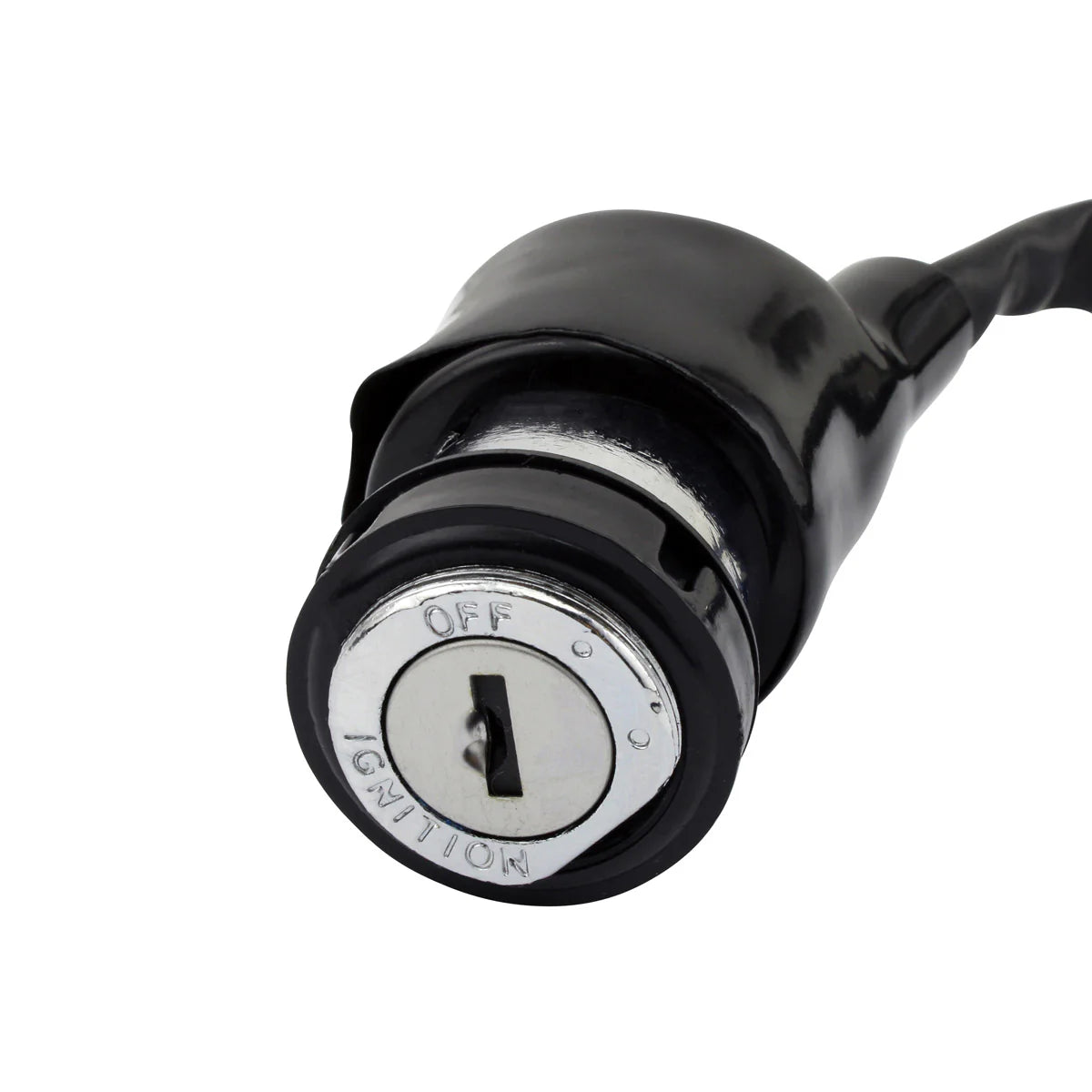

- Three positions: off, accessories and on

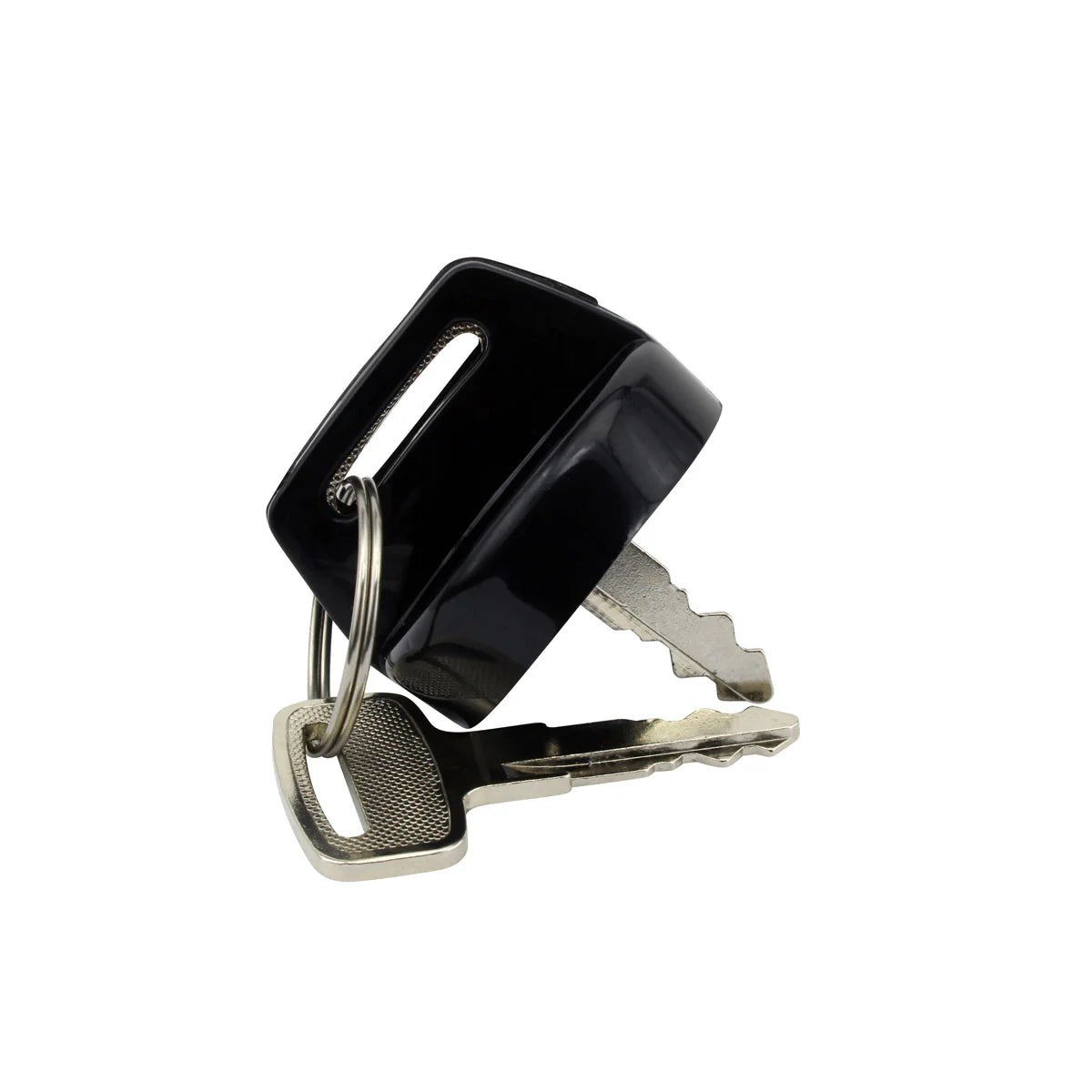

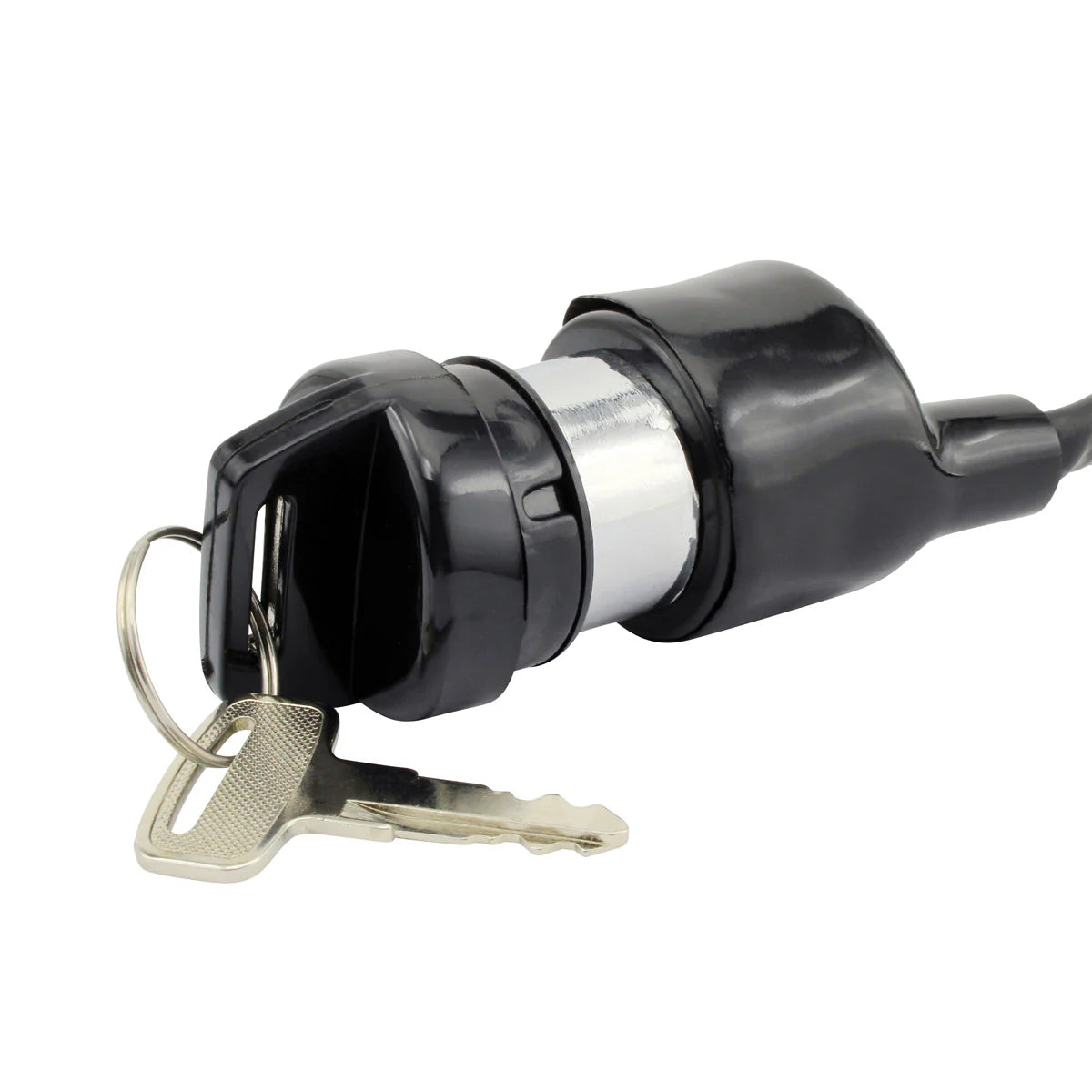

- Two keys included with every switch
- Separate lock included
- Connectors included

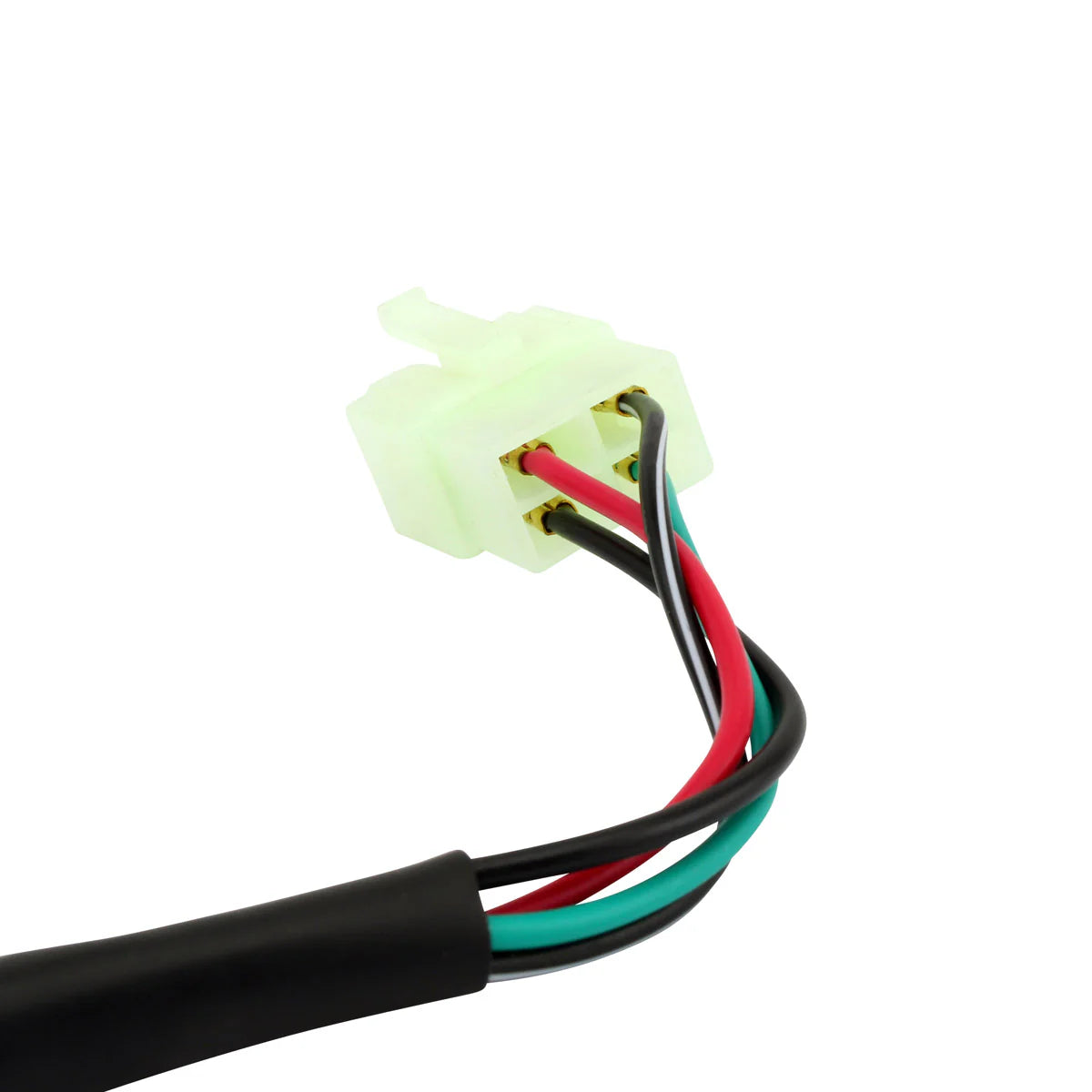

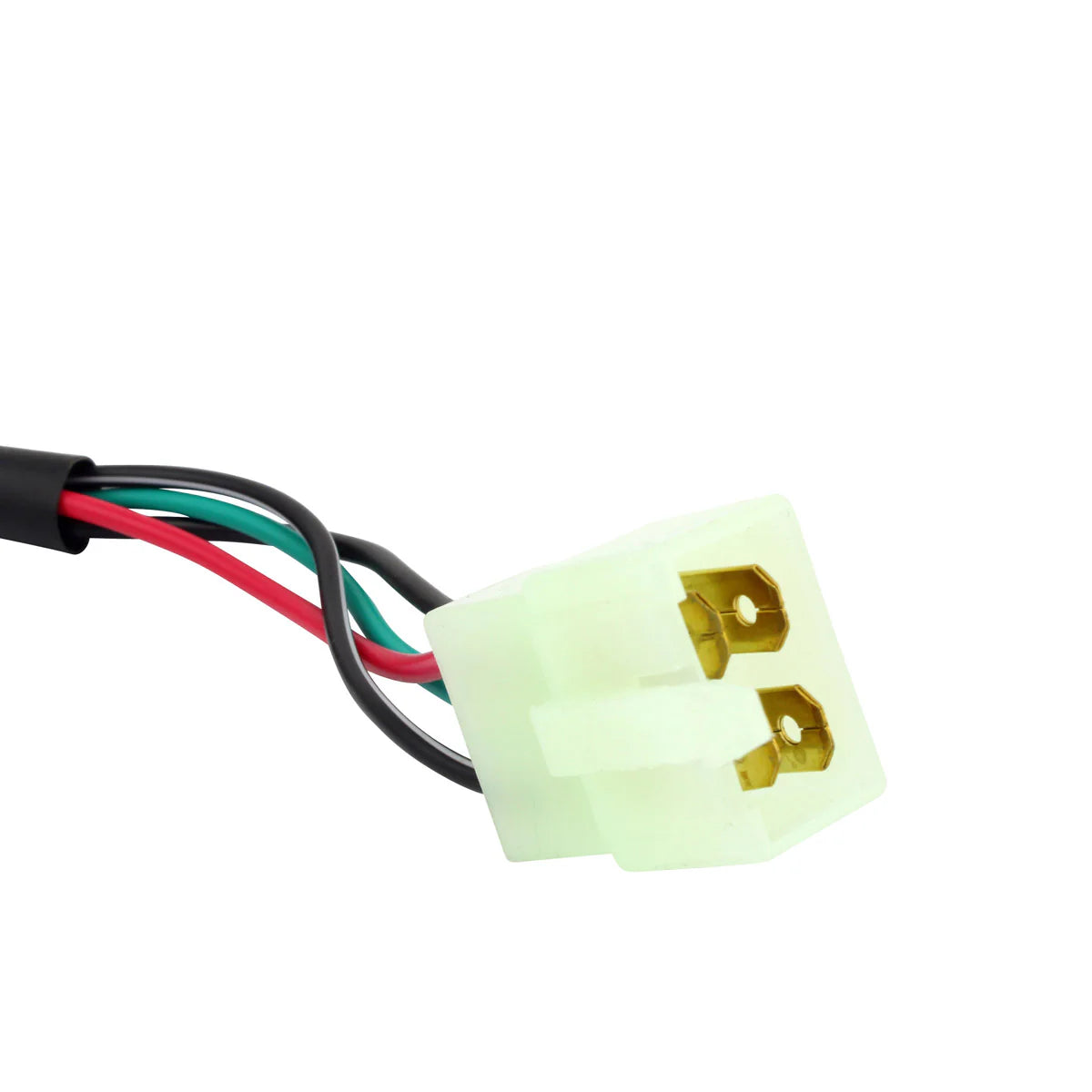

- Four wires and four pins on a 400 mm lead, single plug
- Every unit is tested before dispatch
Technical Specs
| Specification |
Detail |
| Part Number |
RMS110-108337 |
| Number of Positions |
3 (off, accessories, on) |
| Height |
46 mm |
| Length |
28 mm |
| Width |
35 mm |
| Wire Length |
400 mm |
| Number of Wires |
4 |
| Number of Pins |
4 |
| Number of Plugs |
1 |
| Number of Keys |
2 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| CFMoto CForce 500 X5 |
2007-2016 |
| CFMoto CForce 600 X6 |
2007-2016 |
| CFMoto CForce 625 X6 |
2007-2016 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 9010-010000 |
CFMoto |
| 9010-010000-1000 |
CFMoto |
Frequently Asked Questions
Will this switch fit without modifying my wiring?
Yes. It is a direct replacement for the original unit and is plug-and-play, so it uses the machine's existing four-pin connector. No cutting, splicing or loom modification is needed.
What is included in the box?

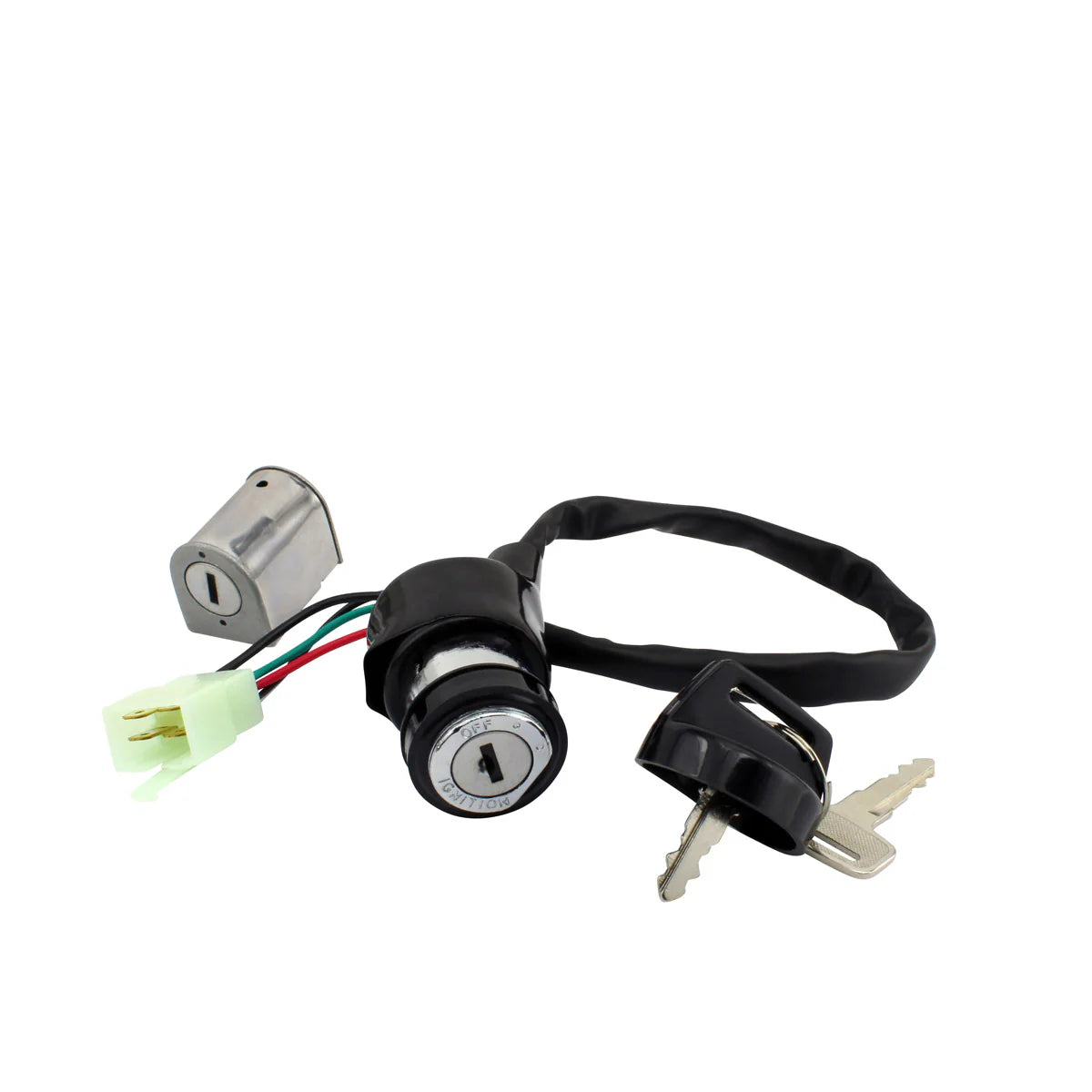

The three-position ignition key switch, two keys, a separate lock and the connectors.
How do I know my old key switch has failed?
Common signs are a machine that stays dead when the key is turned to on, power that cuts in and out when the key or the wiring behind it is disturbed, accessories that will not run in the middle position, a barrel that spins without engaging a detent, or corroded and heat-damaged terminals at the plug. A continuity check across the terminals in each of the three positions will show whether the switch itself is passing current.

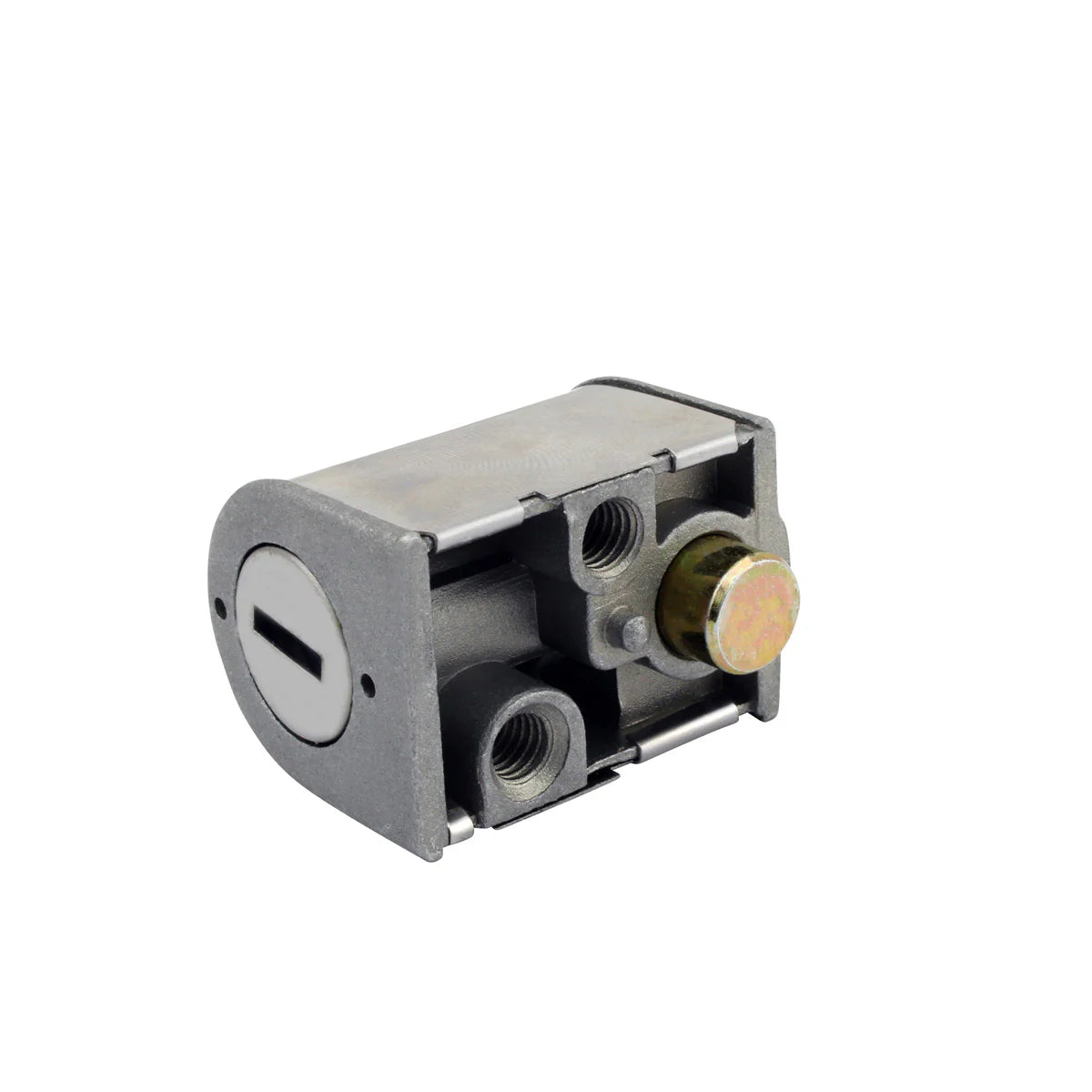

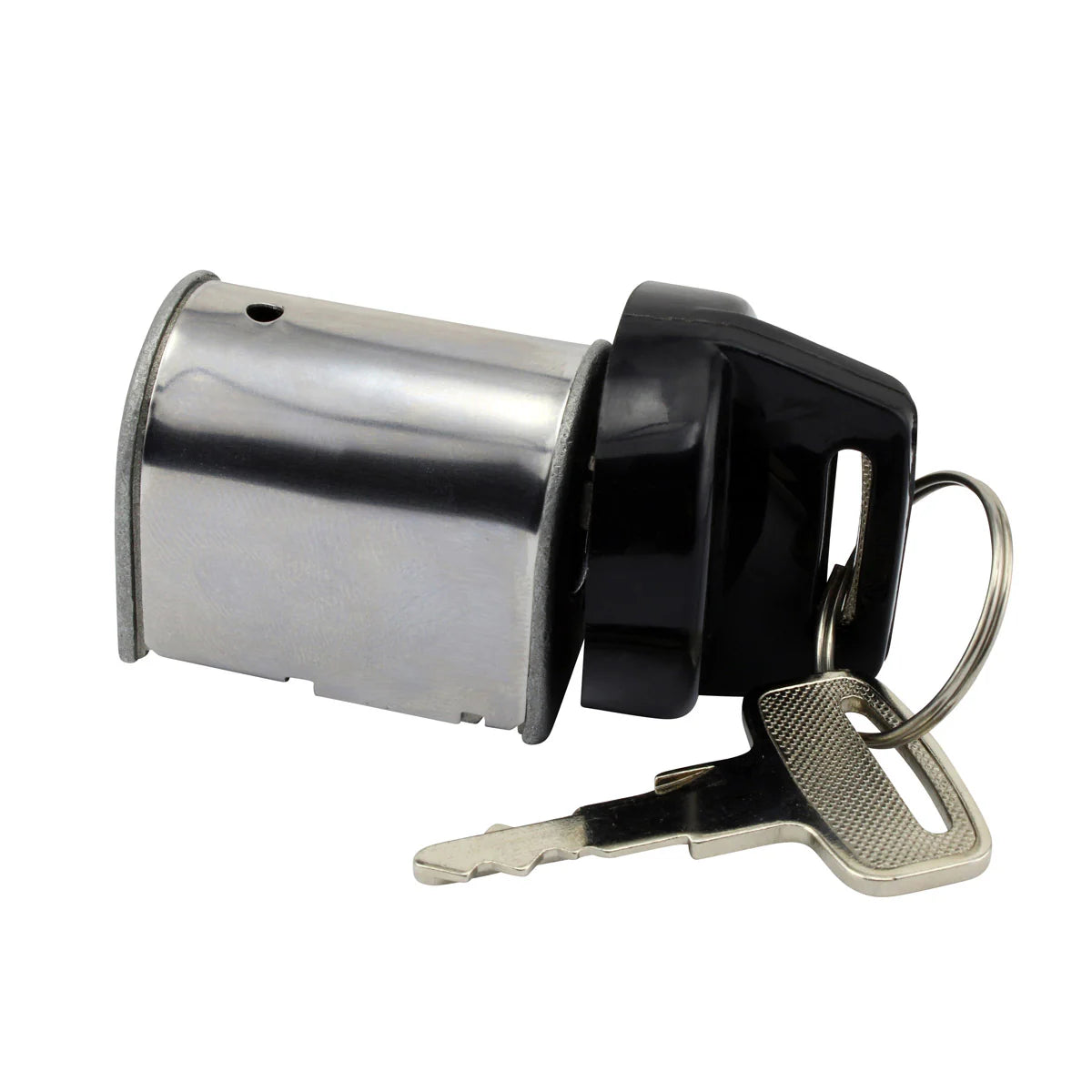

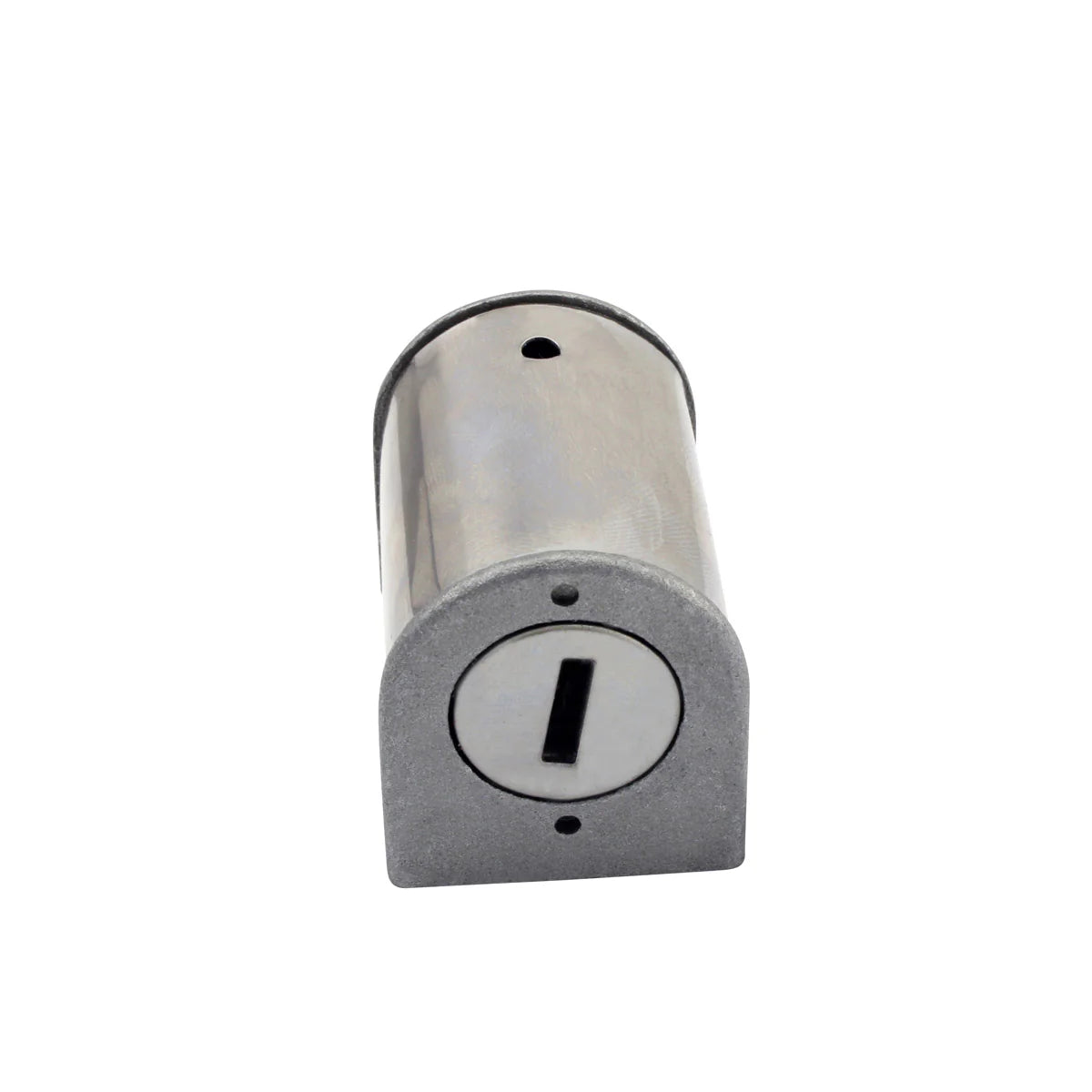

What is the separate lock that comes with it?
A separate lock is supplied alongside the switch so that it can be keyed to the same pair of keys as the ignition, rather than leaving you with two different keys on the machine.
