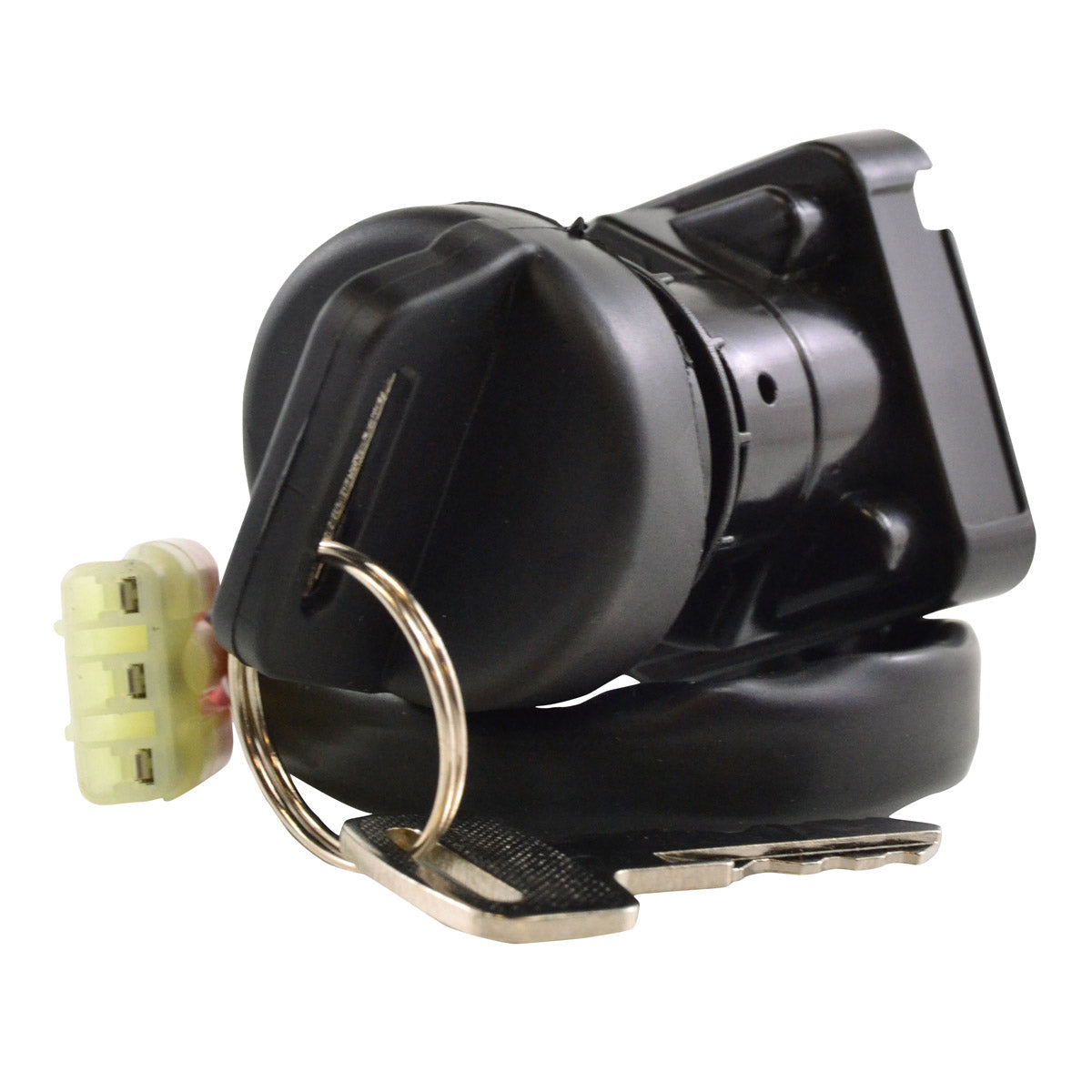

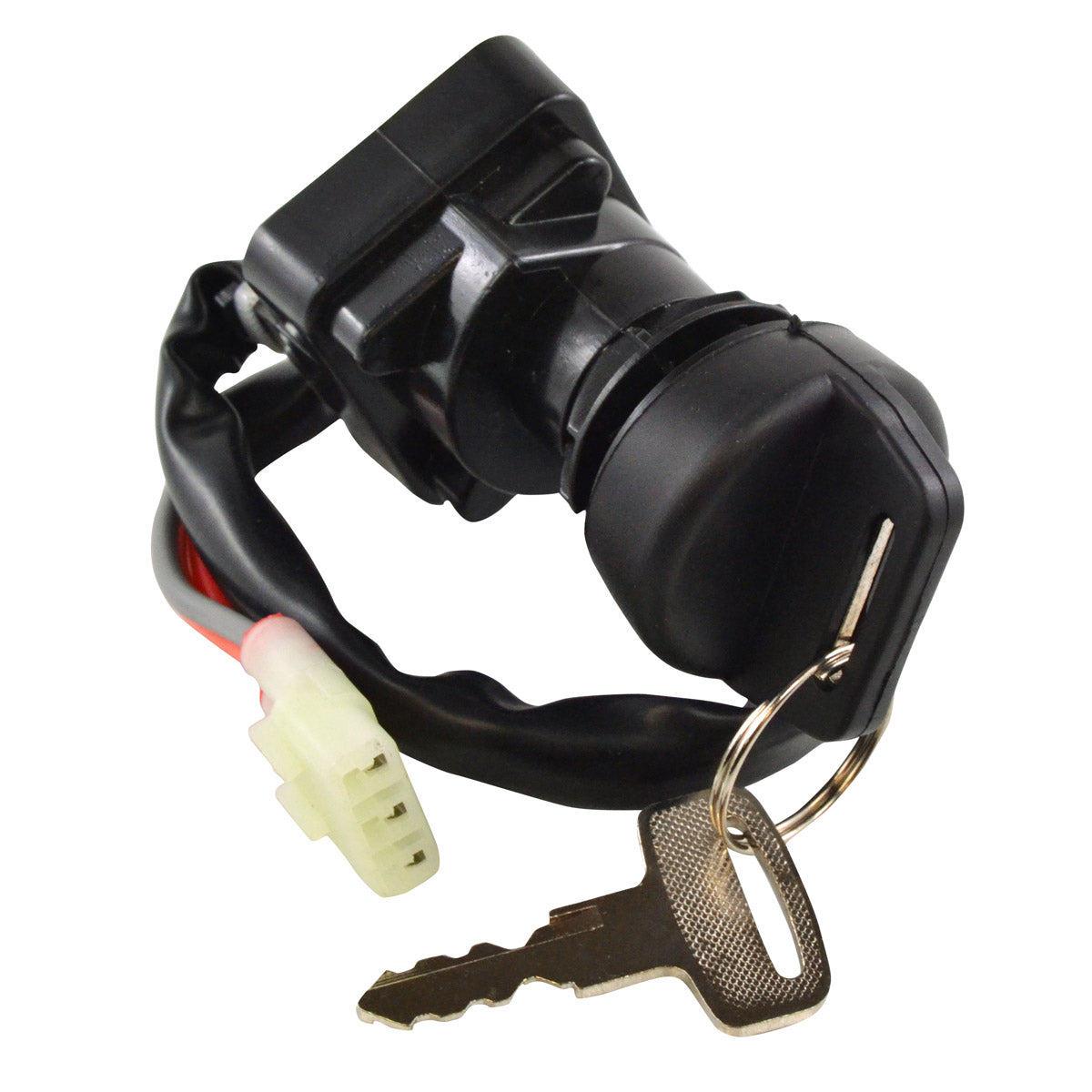

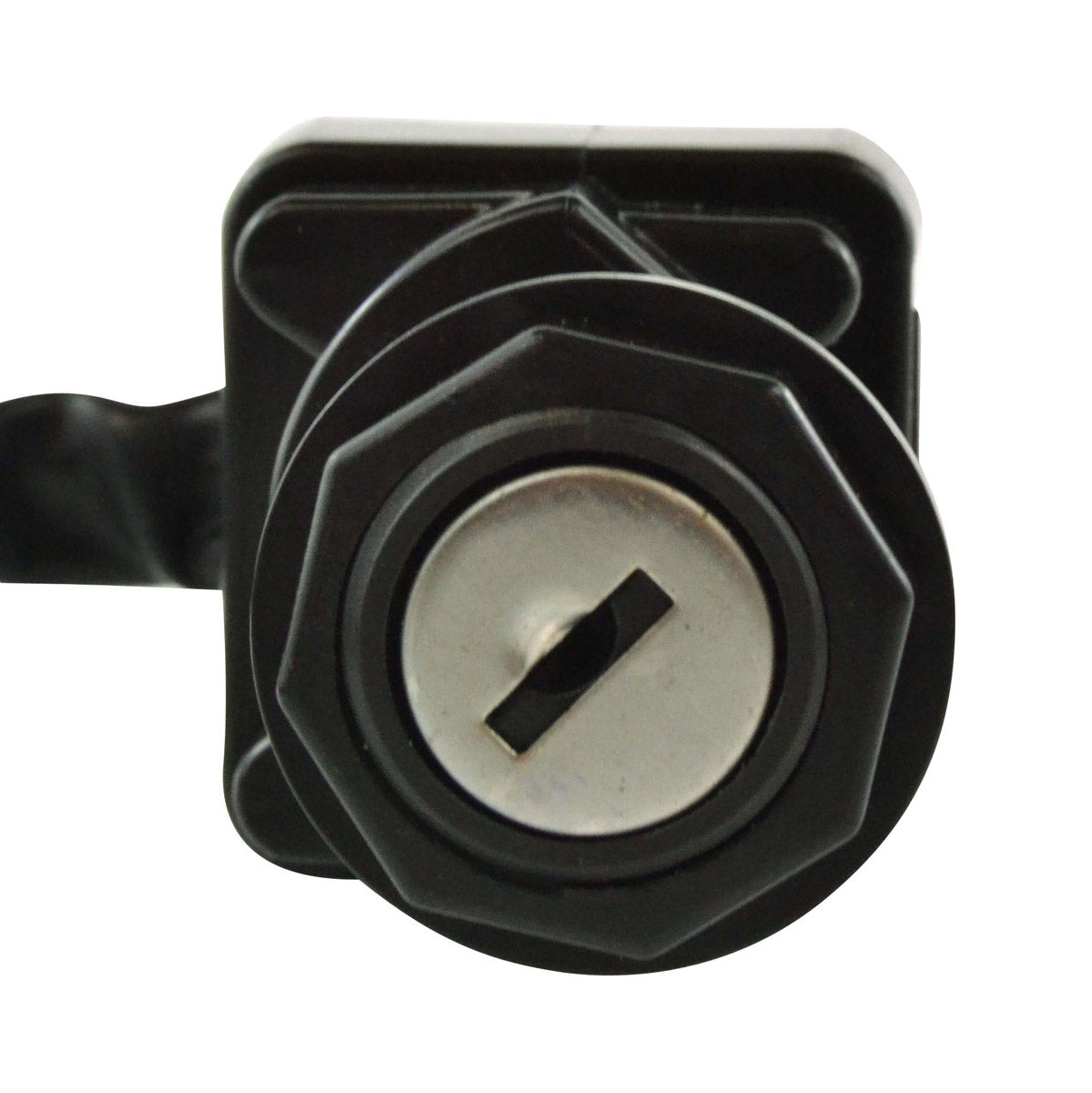

3-Position Ignition Key Switch for Suzuki, Arctic Cat and Kawasaki
Suzuki Quadsport, Ozark and Quadrunner, Arctic Cat 250-500 cc XC and Alterra, Kawasaki, 1998-2017 - Part Number RM05008

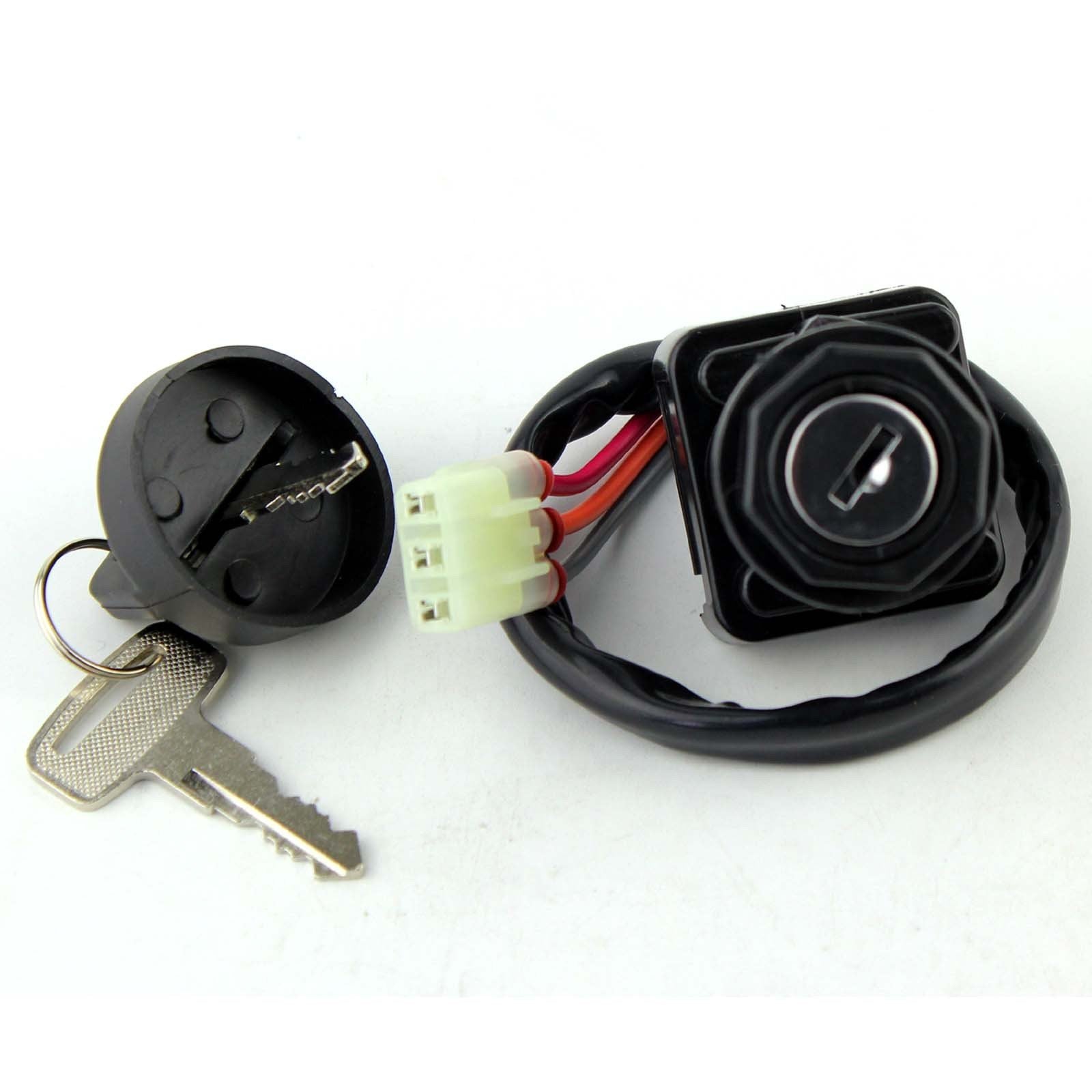

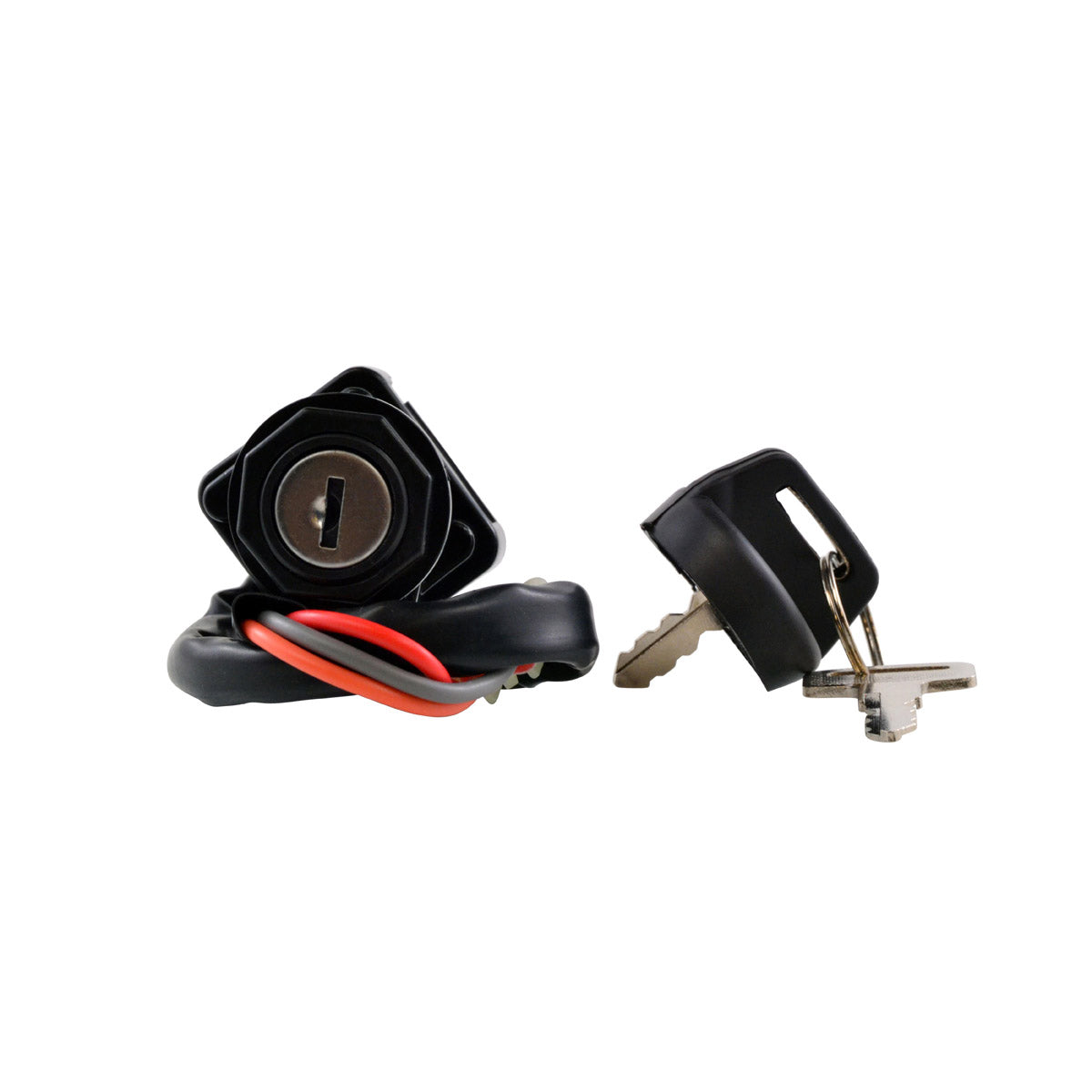

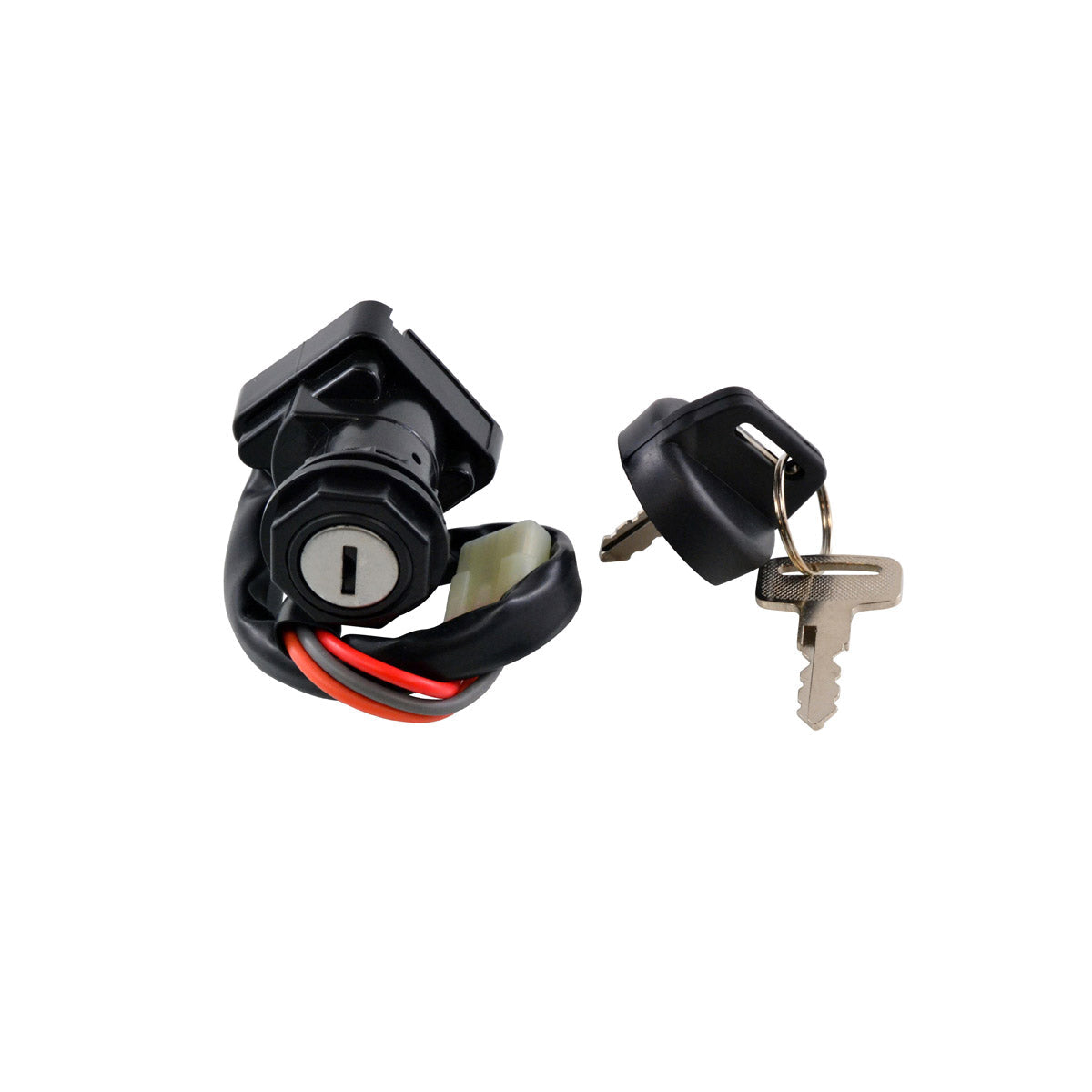

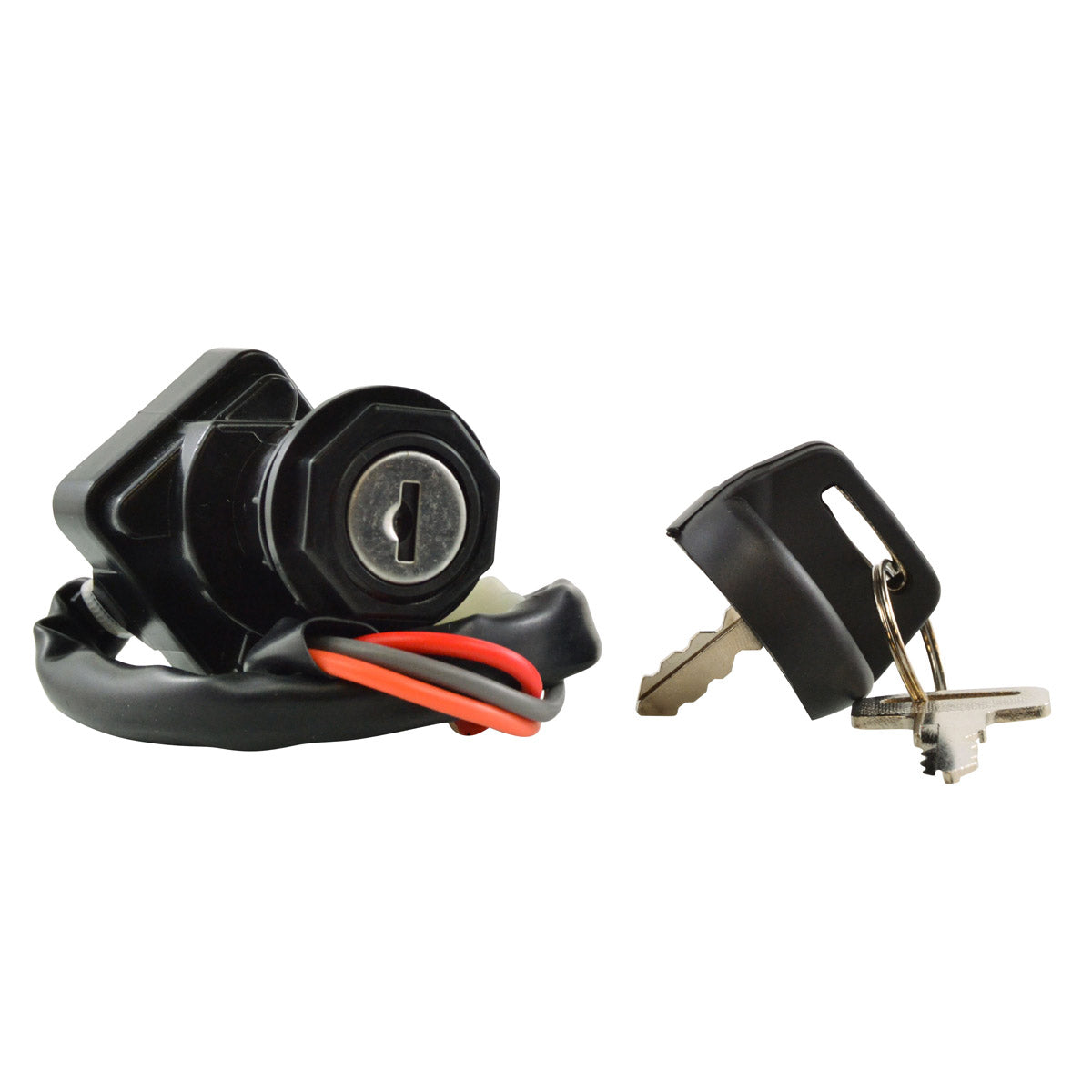

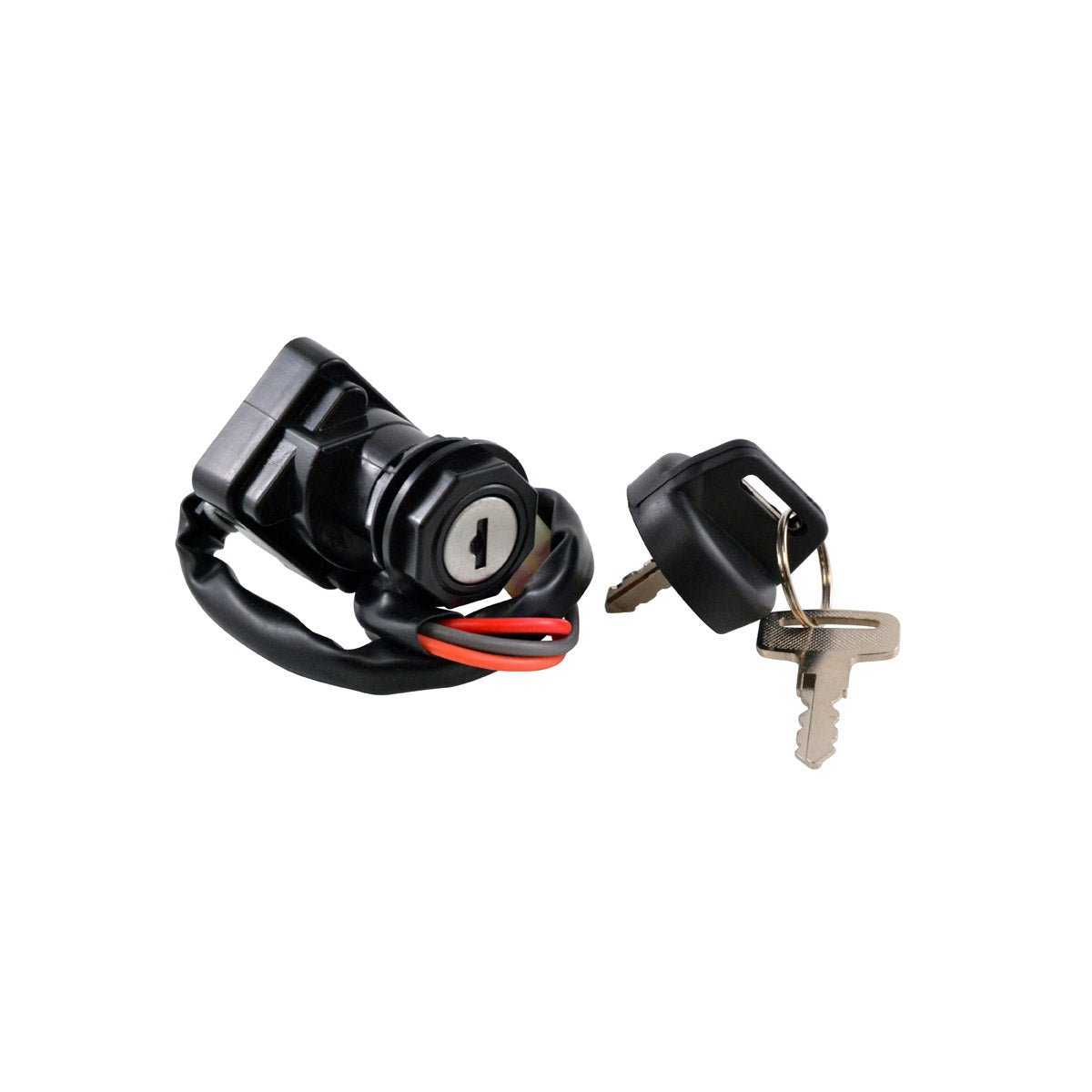

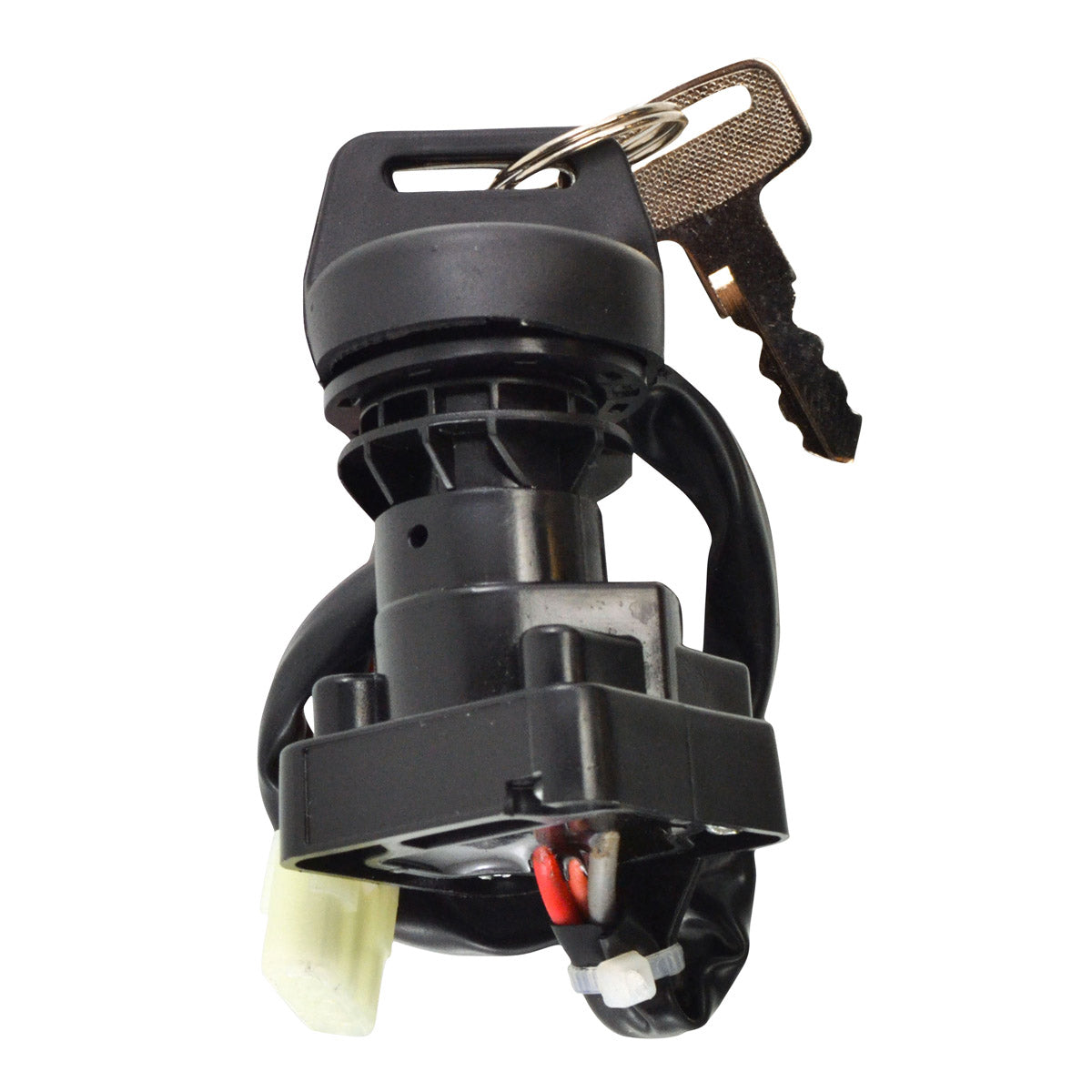

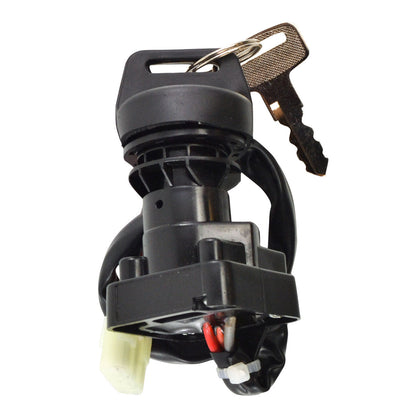

A brand new aftermarket three position ignition key switch covering Suzuki Quadsport, Ozark and Quadrunner models, Arctic Cat 250 to 500 cc XC and Alterra machines, and Kawasaki models built between 1998 and 2017. It is a direct replacement to your original unit - plug-and-play, a direct fit and easy to install, with a compact 36 by 36 mm body standing 47 mm tall.

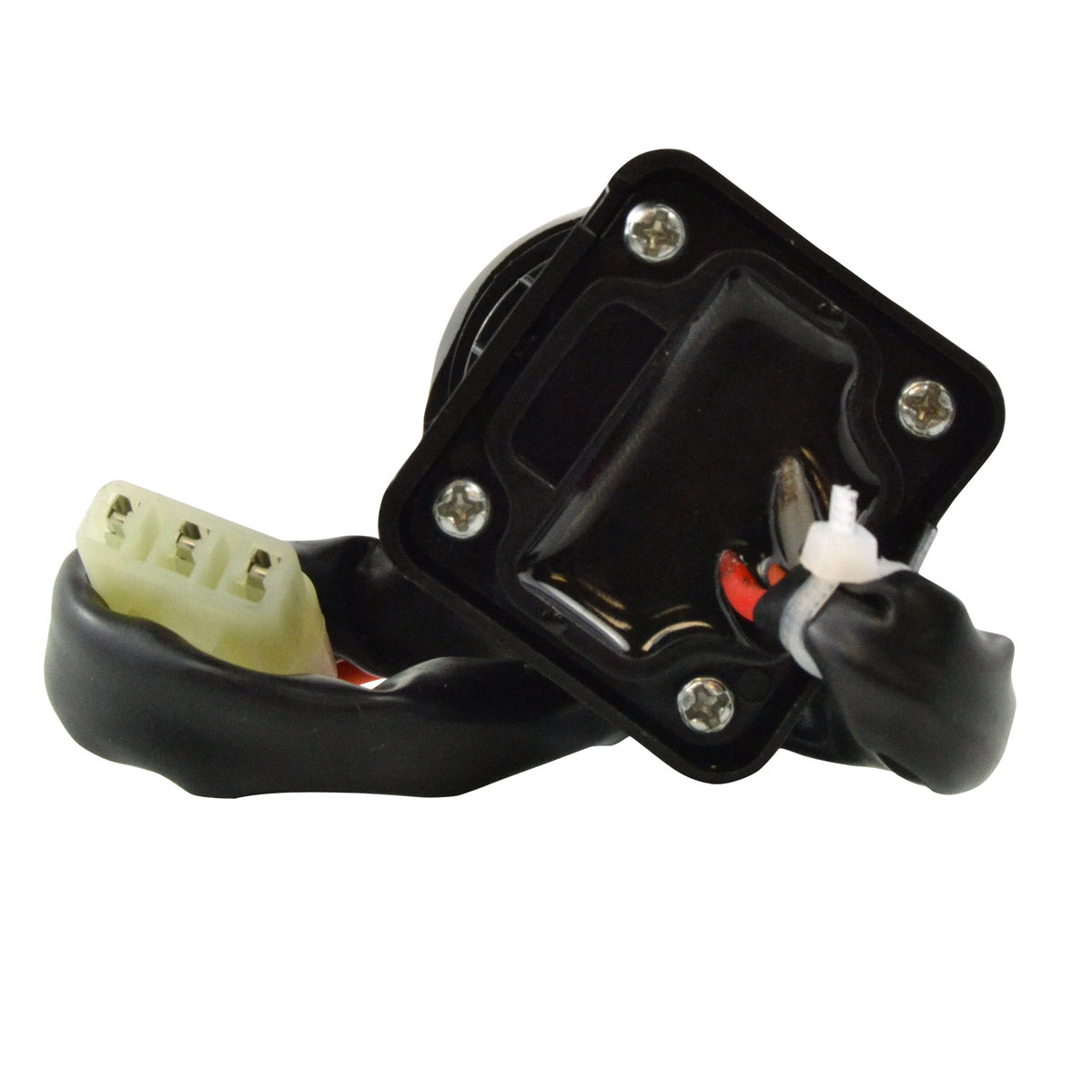

The switch has three positions - off, on, and a spring return start position - with three wires running to three terminals through a single plug. Two keys and a connector are supplied, along with installation instructions, so the plug on the machine side can be renewed at the same time if it has corroded. Ignition switches on utility quads fail from water and vibration rather than mileage, so a machine with an intermittent ignition is often cured by replacing the switch as a complete assembly. All units are tested before shipment.
Key Features
- Brand new aftermarket three position ignition key switch
- Off, on and spring return start positions
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation

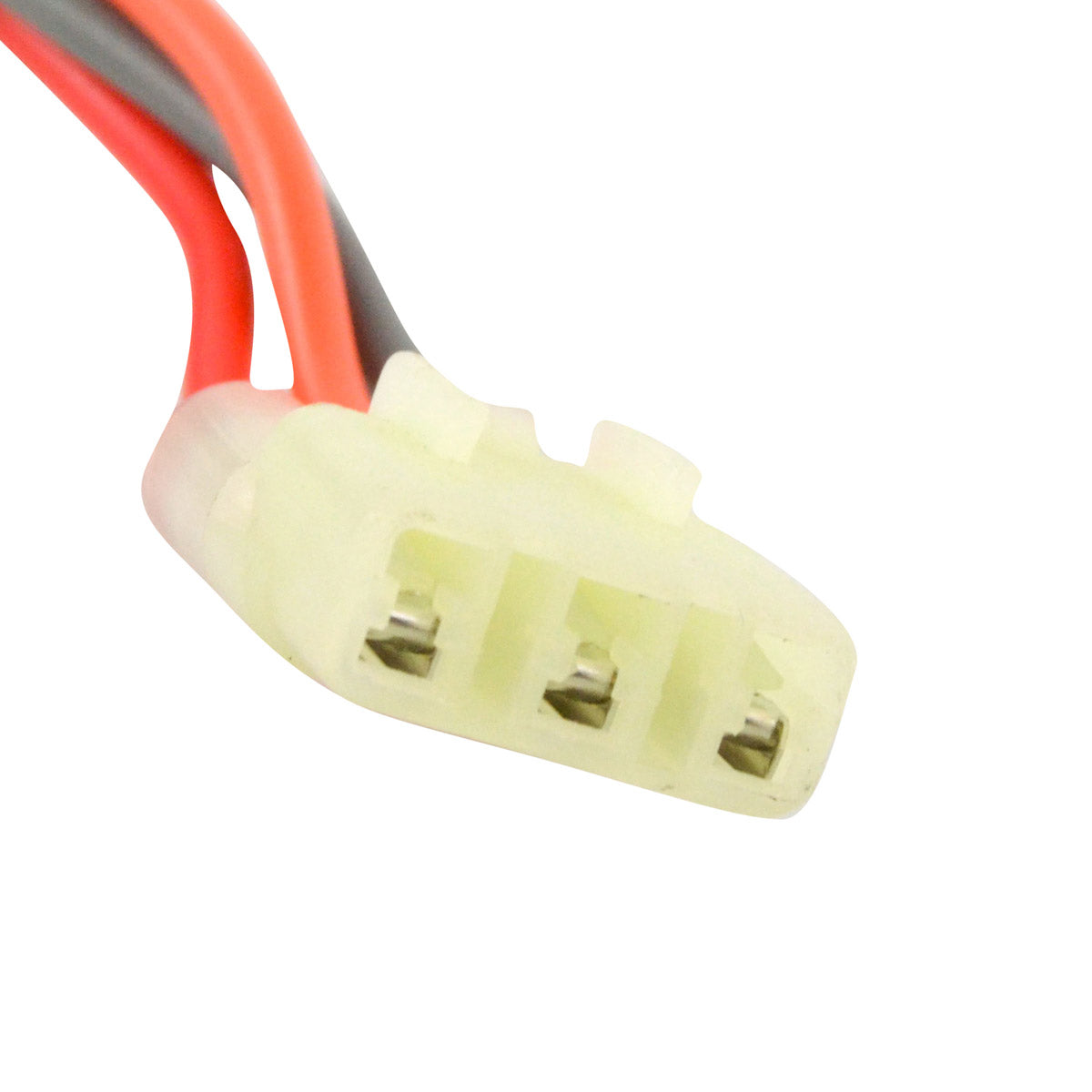

- Three wires and three terminals through a single plug

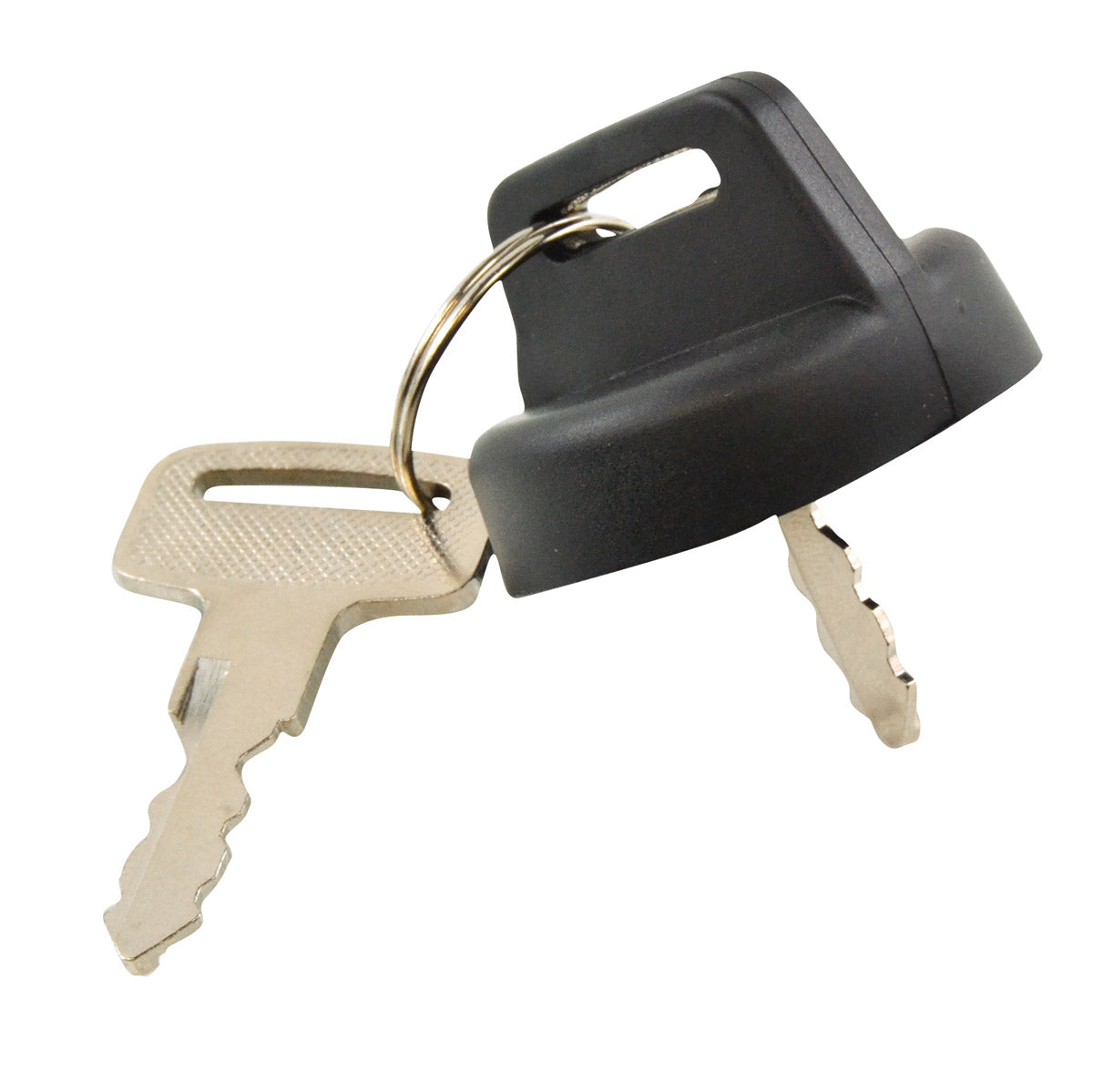

- Two keys included
- Connector and installation instructions included
- All units tested before shipment
Technical Specs
| Specification |
Detail |
| Part Number |
RM05008 |
| Number of Positions |
3 (off, on, spring return start) |
| Number of Wires |
3 |
| Number of Terminals |
3 |
| Number of Plugs |
1 |
| Keys Included |
2 |
| Height |
47 mm |
| Length |
36 mm |
| Width |
36 mm |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Suzuki Quadsport |
1998-2017 |
| Suzuki Ozark |
1998-2017 |
| Suzuki Quadrunner |
1998-2017 |
| Arctic Cat XC 250-500 cc |
1998-2017 |
| Arctic Cat Alterra 250-500 cc |
1998-2017 |
| Kawasaki |
1998-2017 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 37110-07G00 |
Suzuki |
| 37110-07G01 |
Suzuki |
| 37110-05G00 |
Suzuki |
| 37110-05G01 |
Suzuki |
| 37110-09F00 |
Suzuki |
| 3430-040 |
Arctic Cat |
| 3313-439 |
Arctic Cat |
| 3509-004 |
Arctic Cat |
| 27005-S005 |
Kawasaki |
| 27005-S021 |
Kawasaki |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct replacement to your original unit - plug-and-play, direct fit, easy installation. The three wires run to a single plug that matches the harness side, and installation instructions are supplied with the switch.
What is in the box?

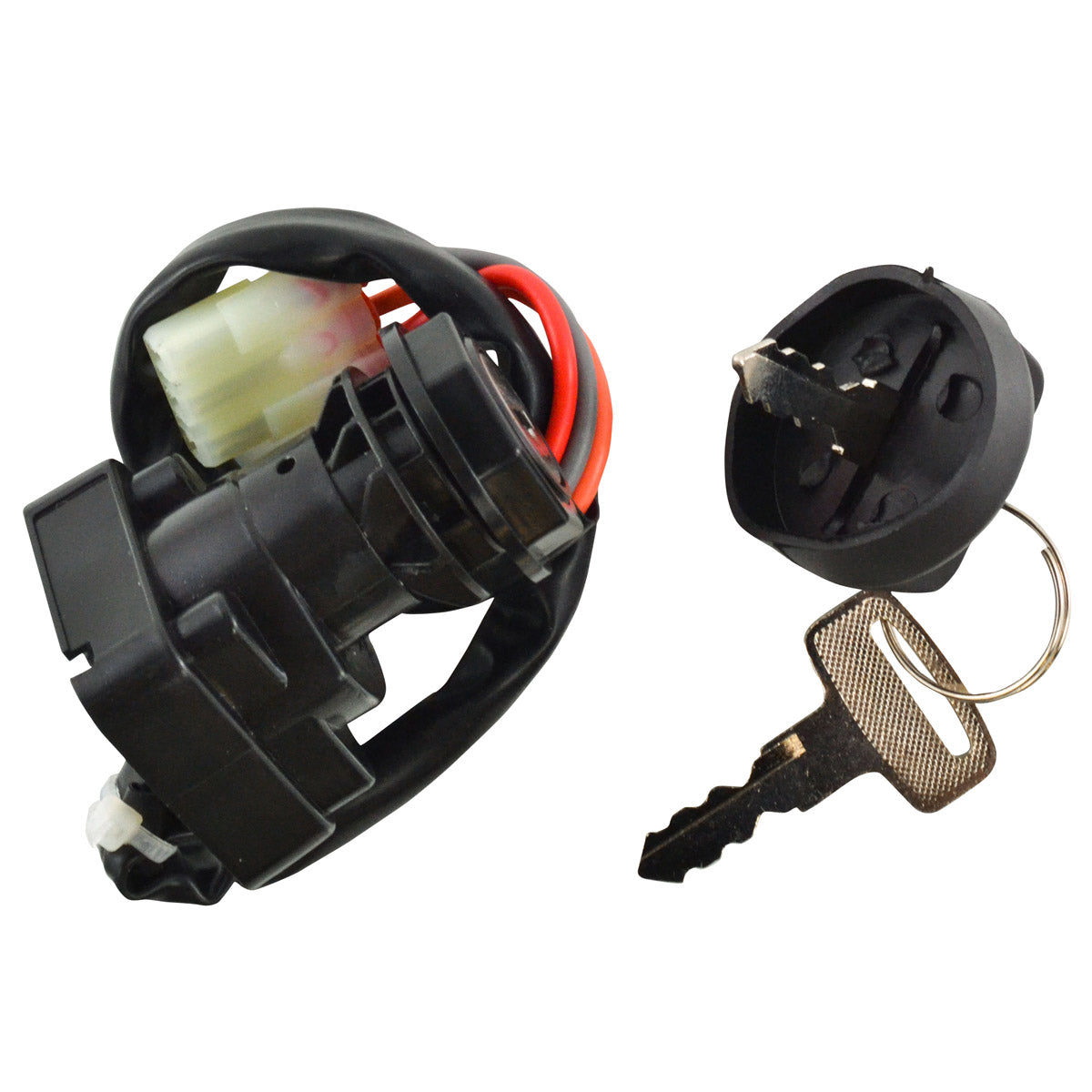

One ignition key switch, two keys, one connector and installation instructions.
How do I know the old switch is at fault?
Look for an engine that cuts out when the key or the bars are moved, a starter that will not turn although the battery is good, or a dash that goes dead intermittently. Testing continuity across the three terminals in the off, on and start positions will show whether the internal contacts are still making cleanly.
Why do Suzuki, Arctic Cat and Kawasaki machines share the same switch?
These utility quads used a common switch design, and each manufacturer catalogued it under its own number. All ten of those numbers are listed in the cross reference table above; if the number on your original appears there, this is the right part.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
