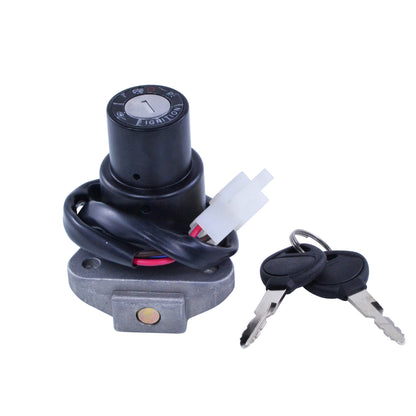

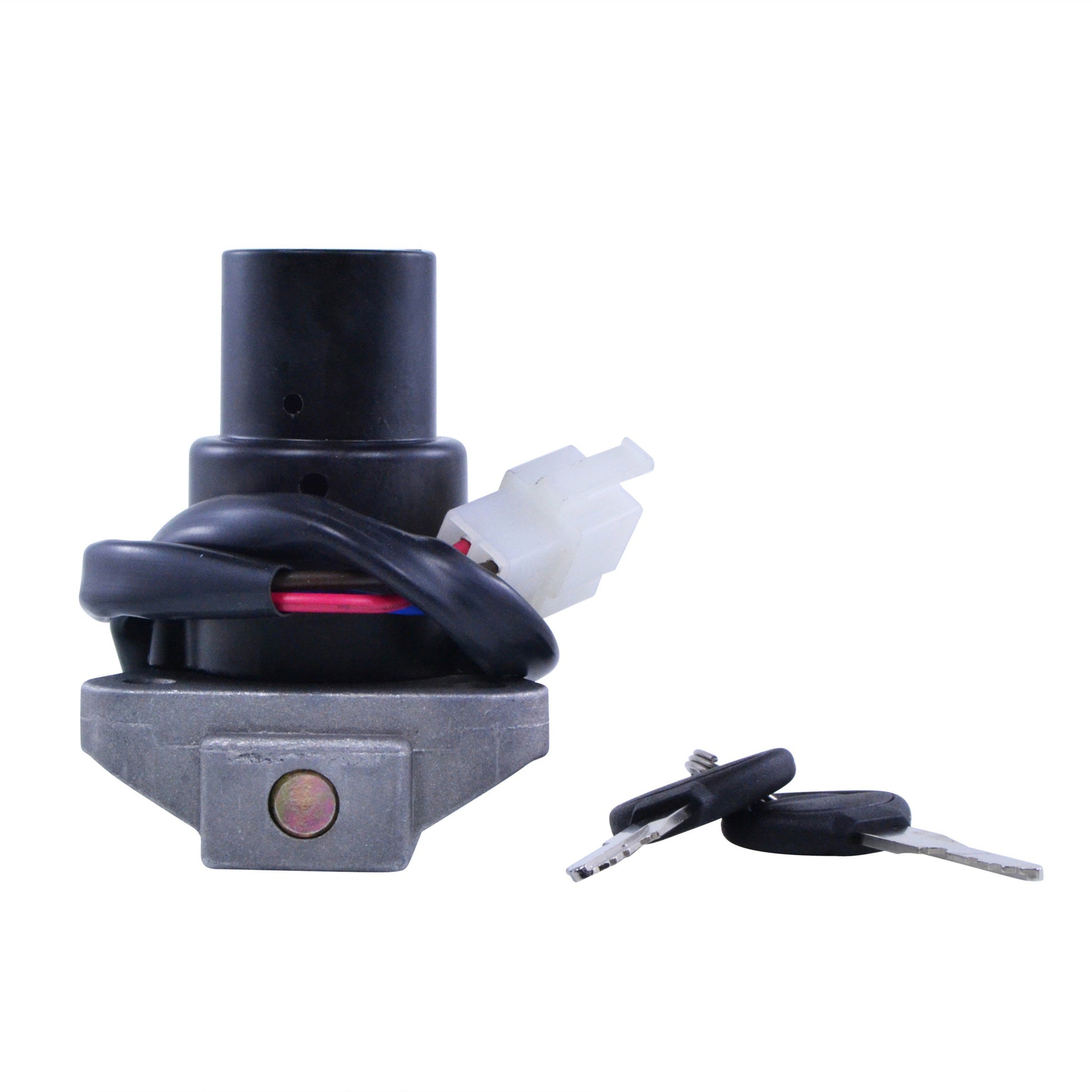

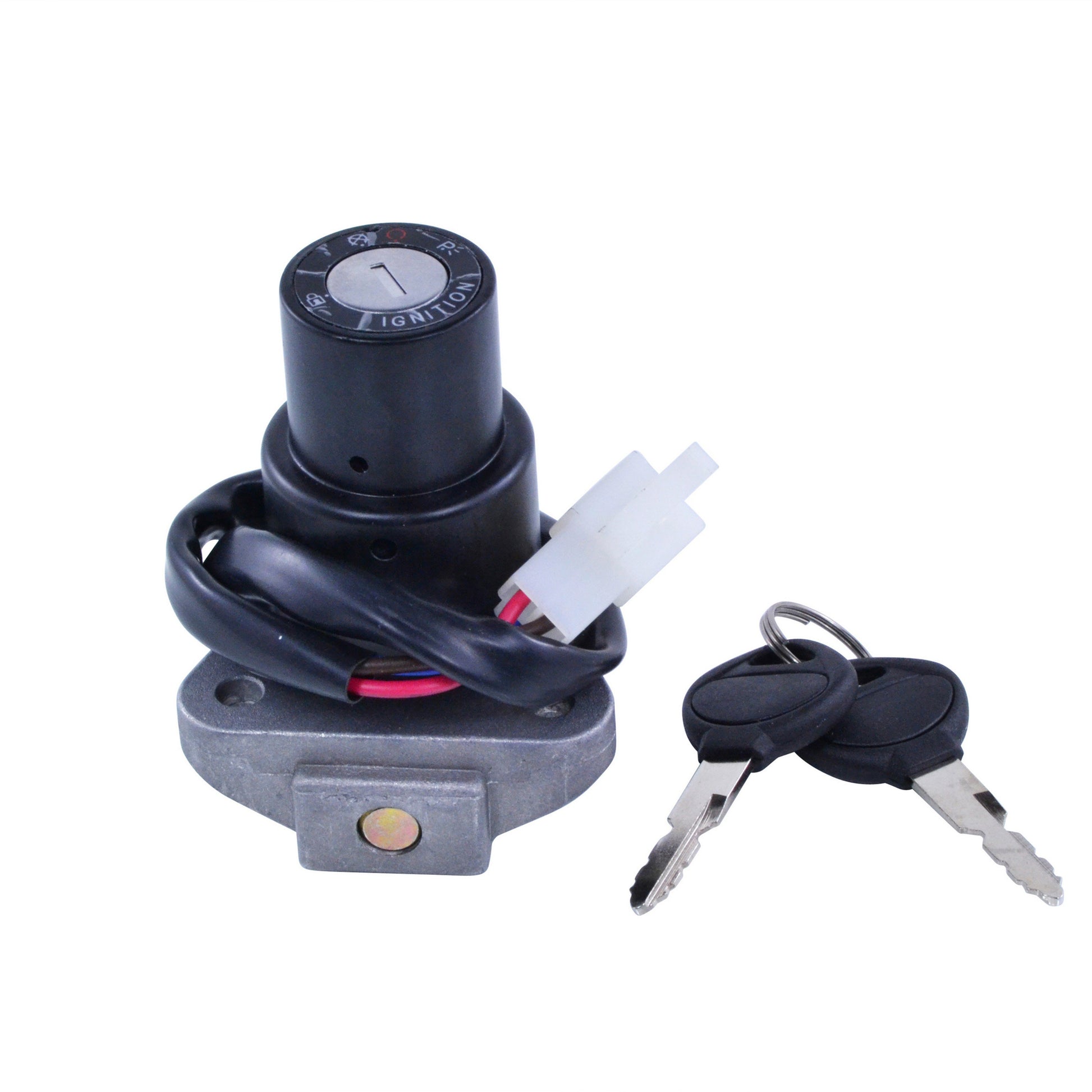

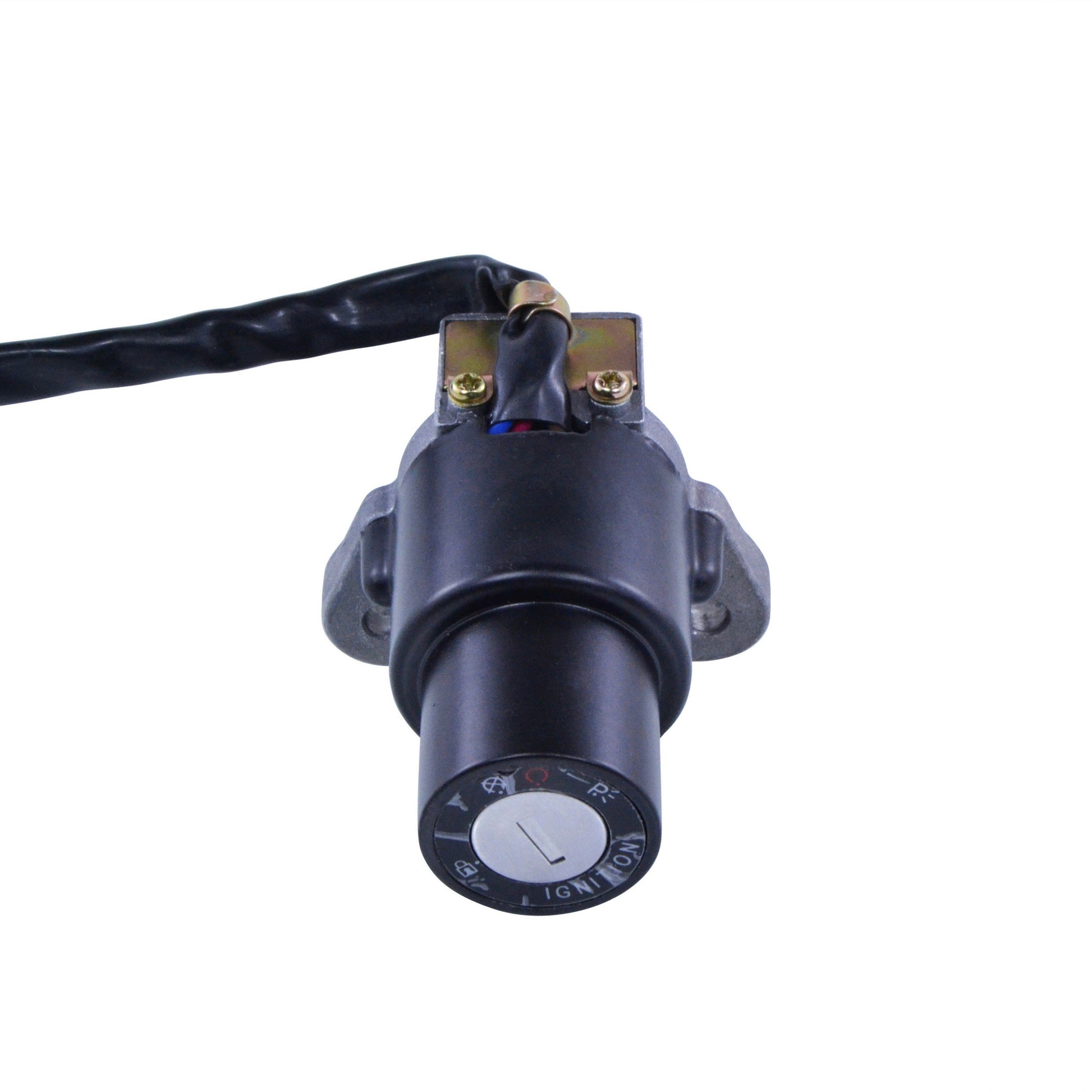

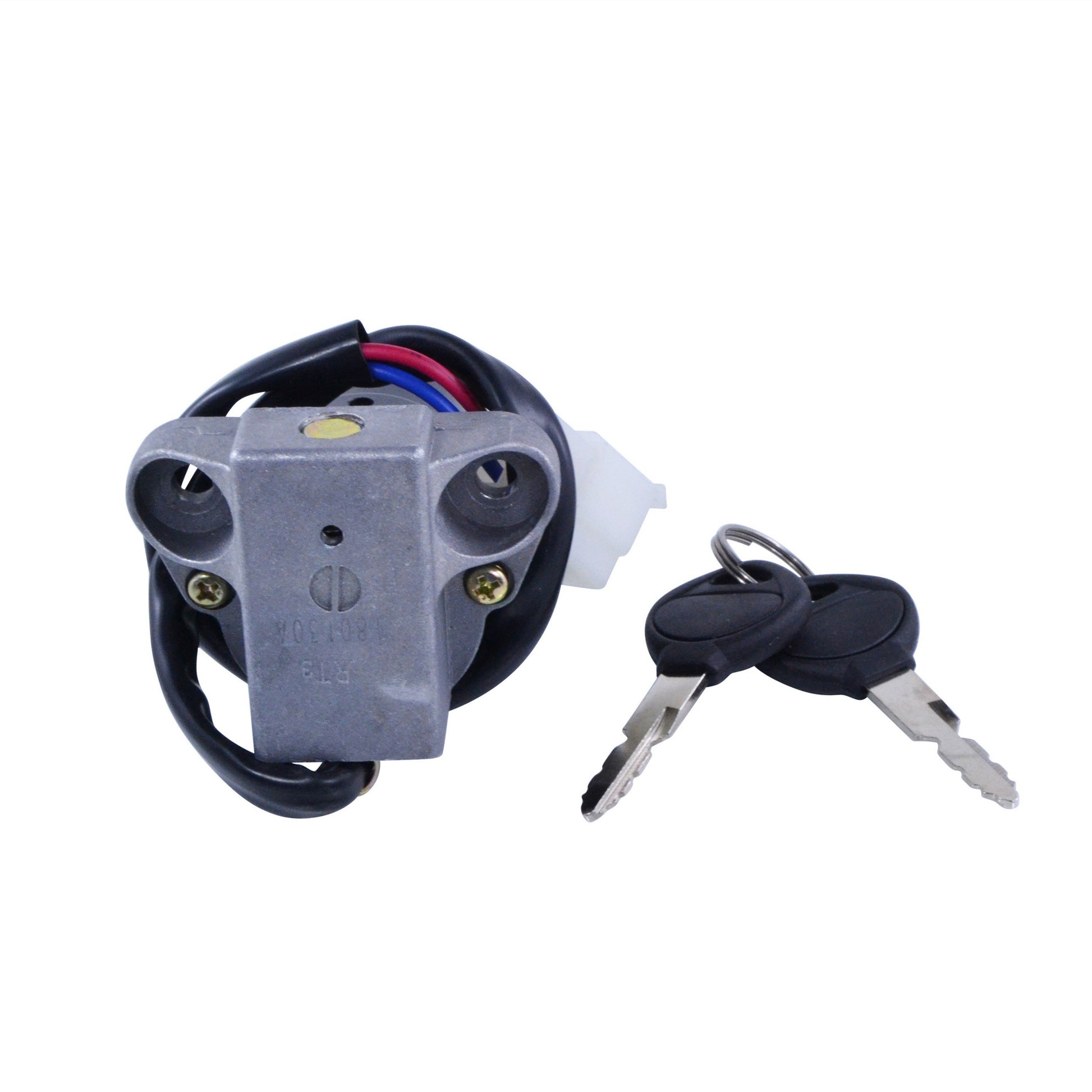

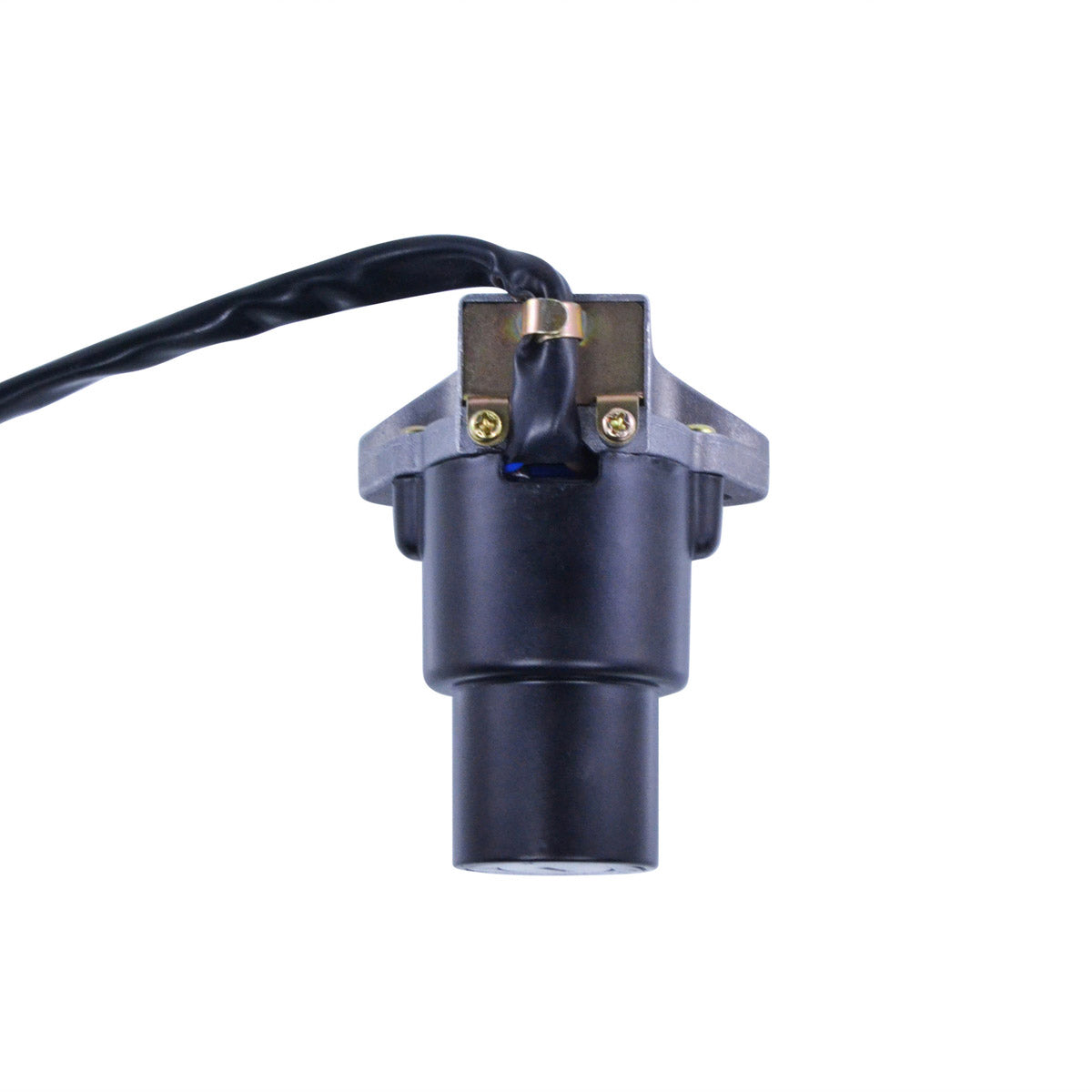

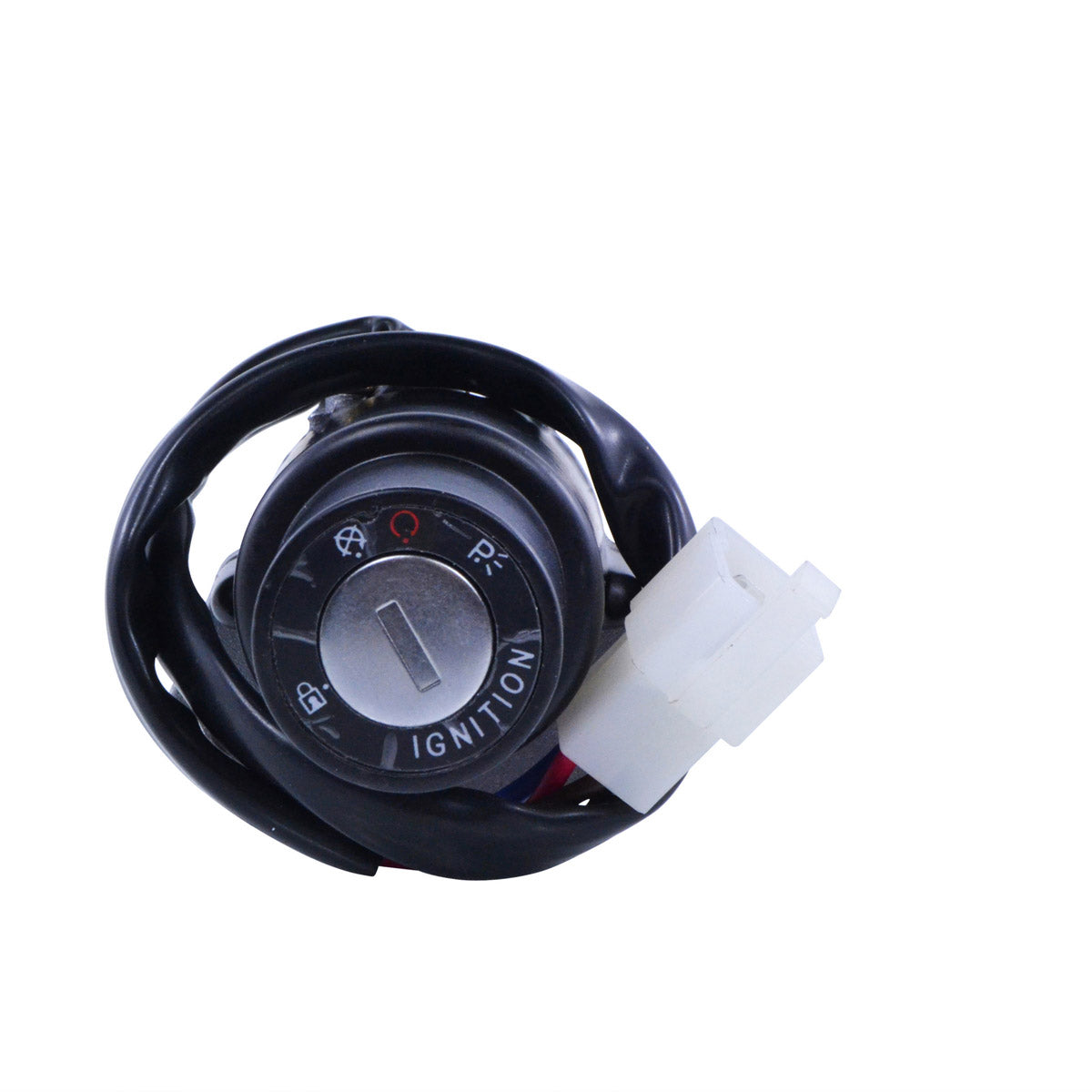

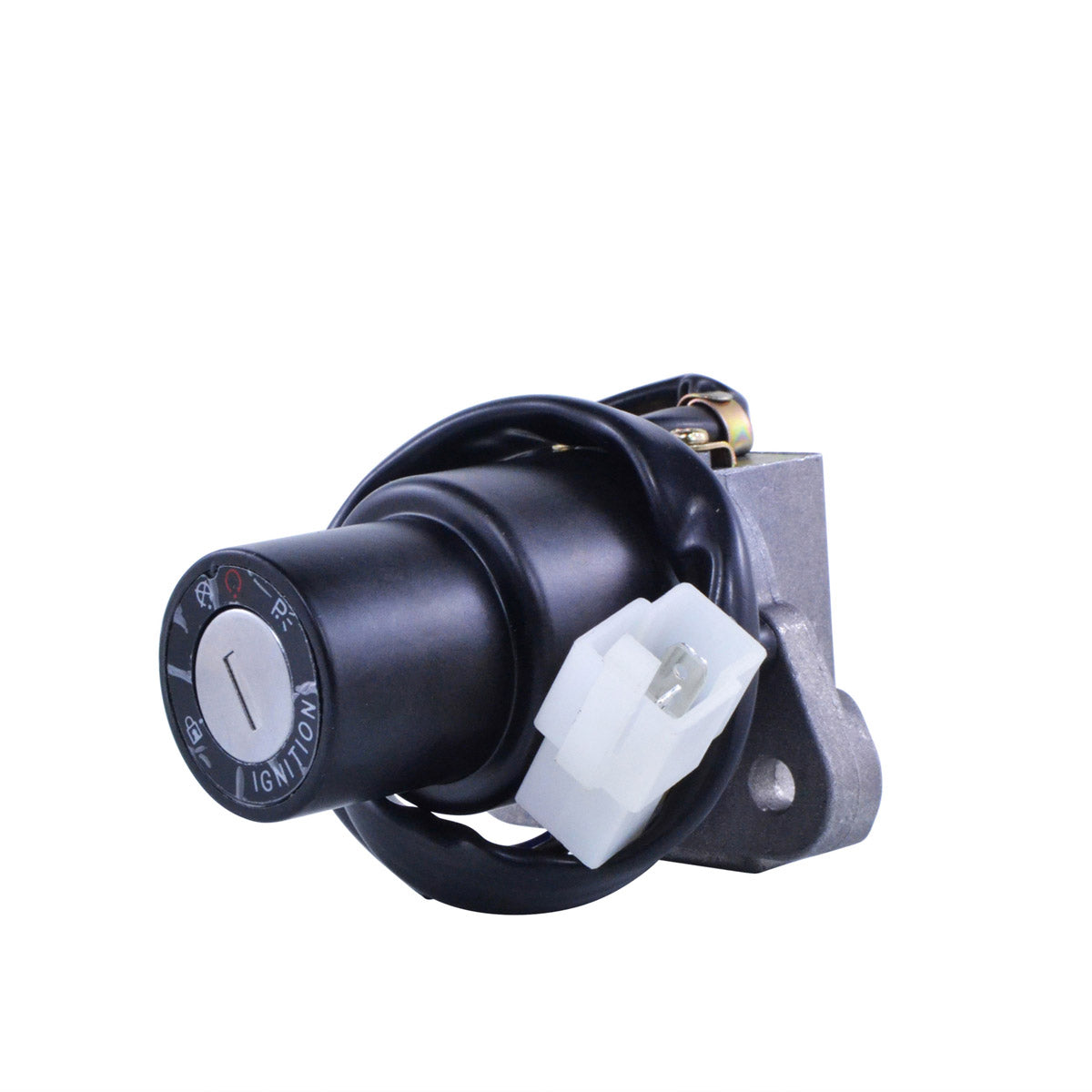

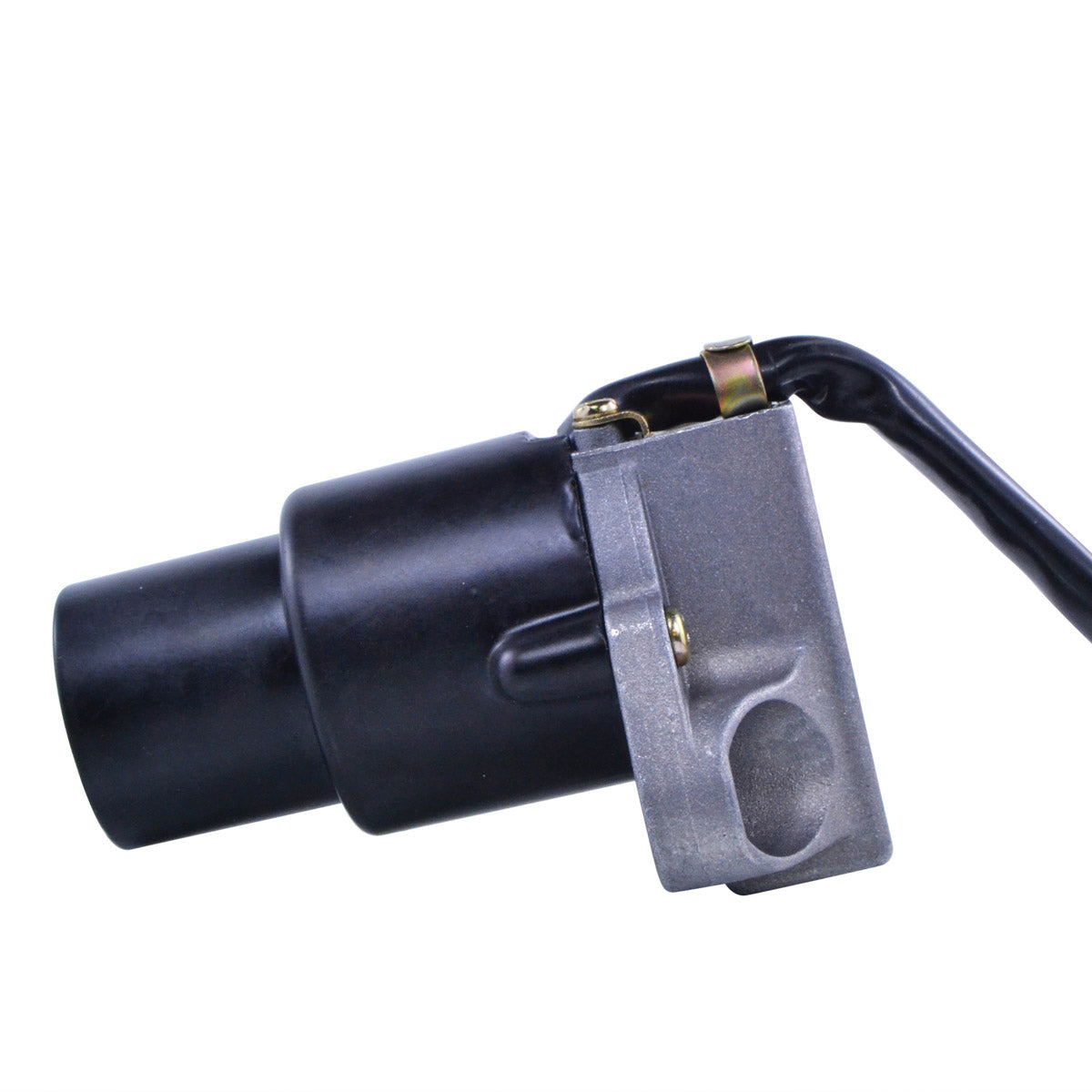

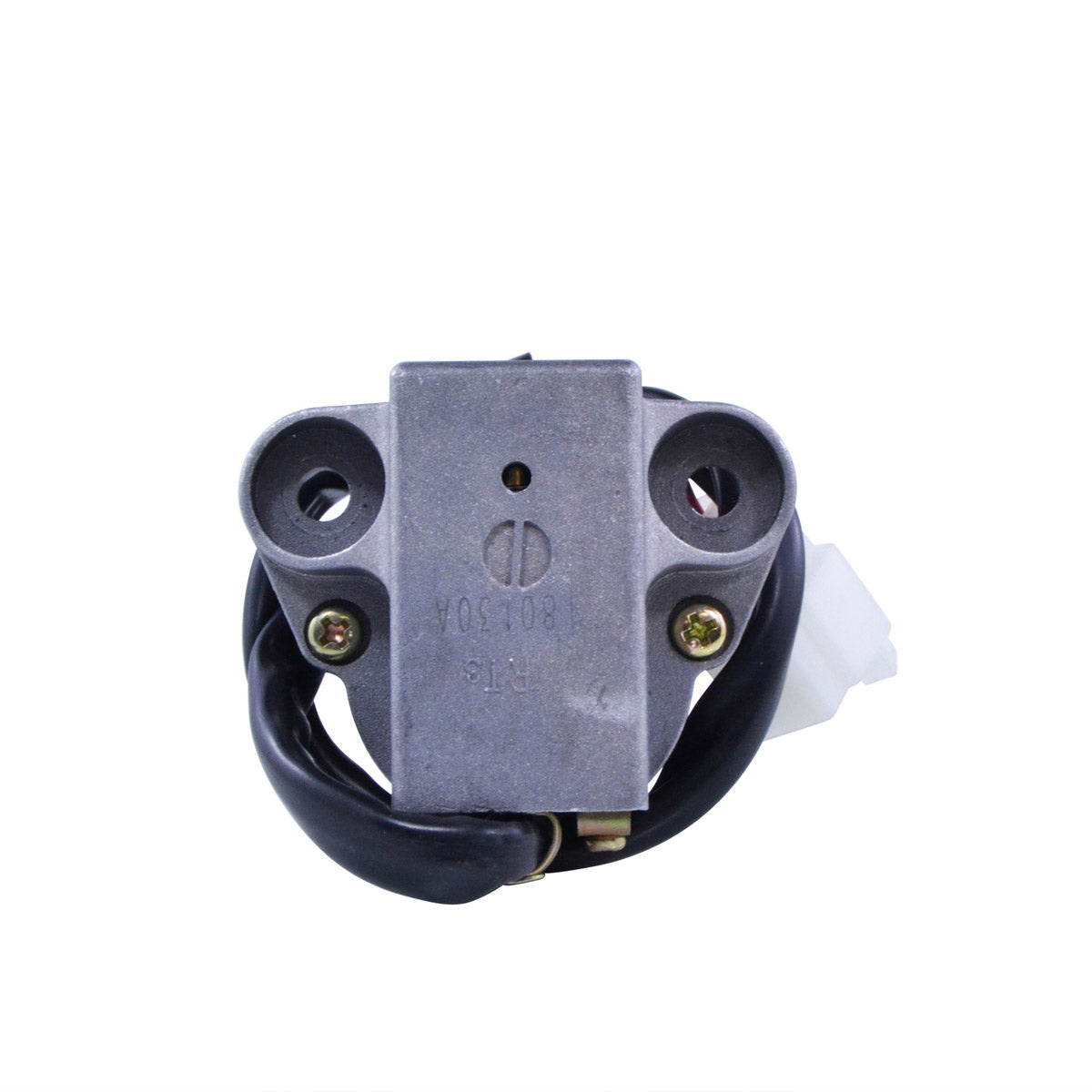

3-Position Ignition Key Switch for Yamaha - RM05039
Yamaha SR 250, XS 400, 650, 750 and 850, XV 750 and 920 Midnight Virago, Seca - 1978-1999
This is a brand new aftermarket three position ignition key switch, supplied as a direct replacement for the original unit on a wide range of Yamaha machines built between 1978 and 1999. It is plug-and-play and a direct fit, with three wires and three plugs matching the original arrangement, so it goes straight in without cutting or splicing the loom.
The switch has three positions - off, on, and a spring return start position - and one lock position, and it is supplied complete with two keys and a connector so the harness side can be renewed at the same time. Ignition switches on machines of this age typically fail through worn tumblers, corroded contacts or heat damage inside the switch body, all of which produce intermittent power. Replacing the switch outright is usually far quicker than trying to rebuild the original. All product shipped are tested.
Key Features
- Brand new aftermarket three position ignition key switch
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Three positions - off, on and spring return start
- One lock position

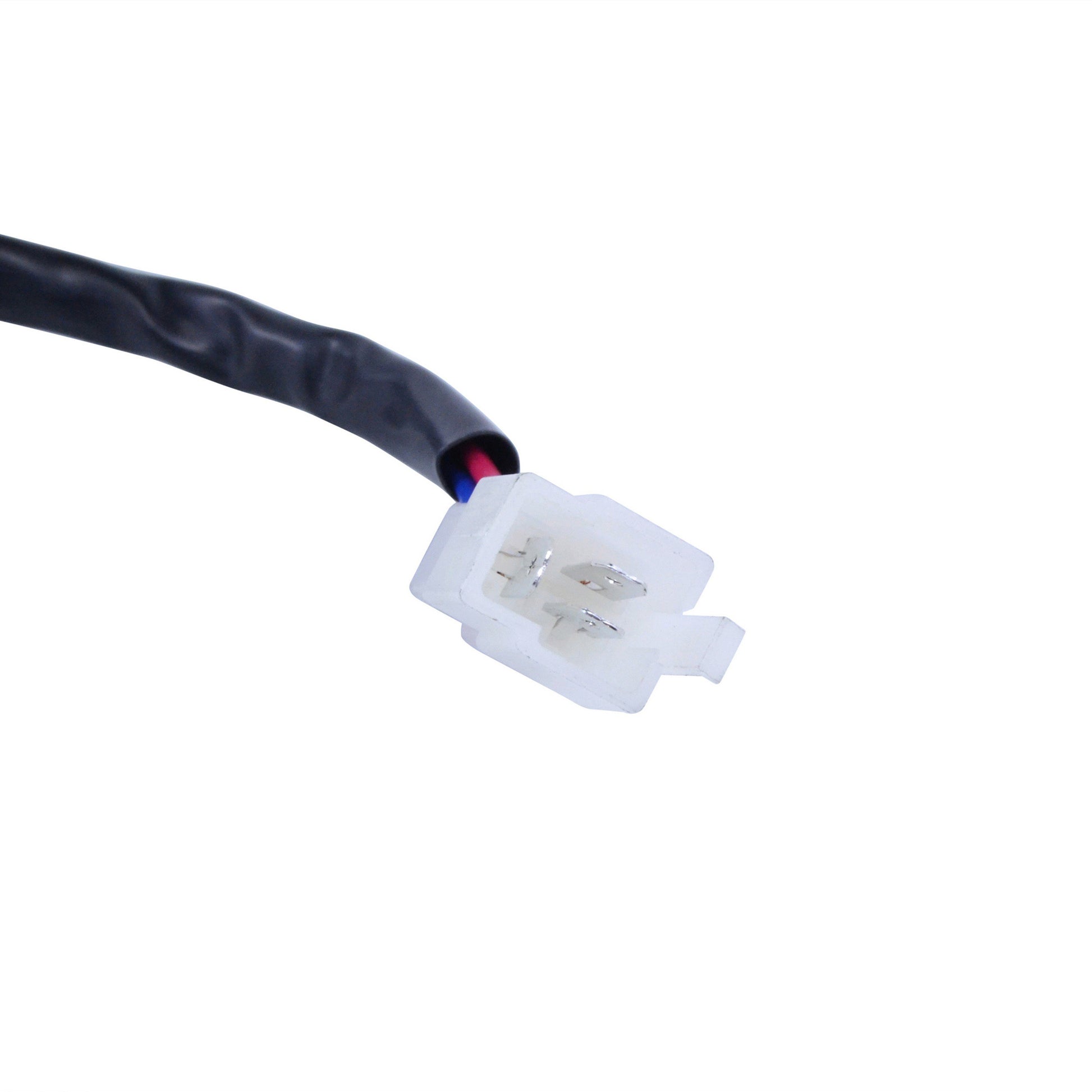

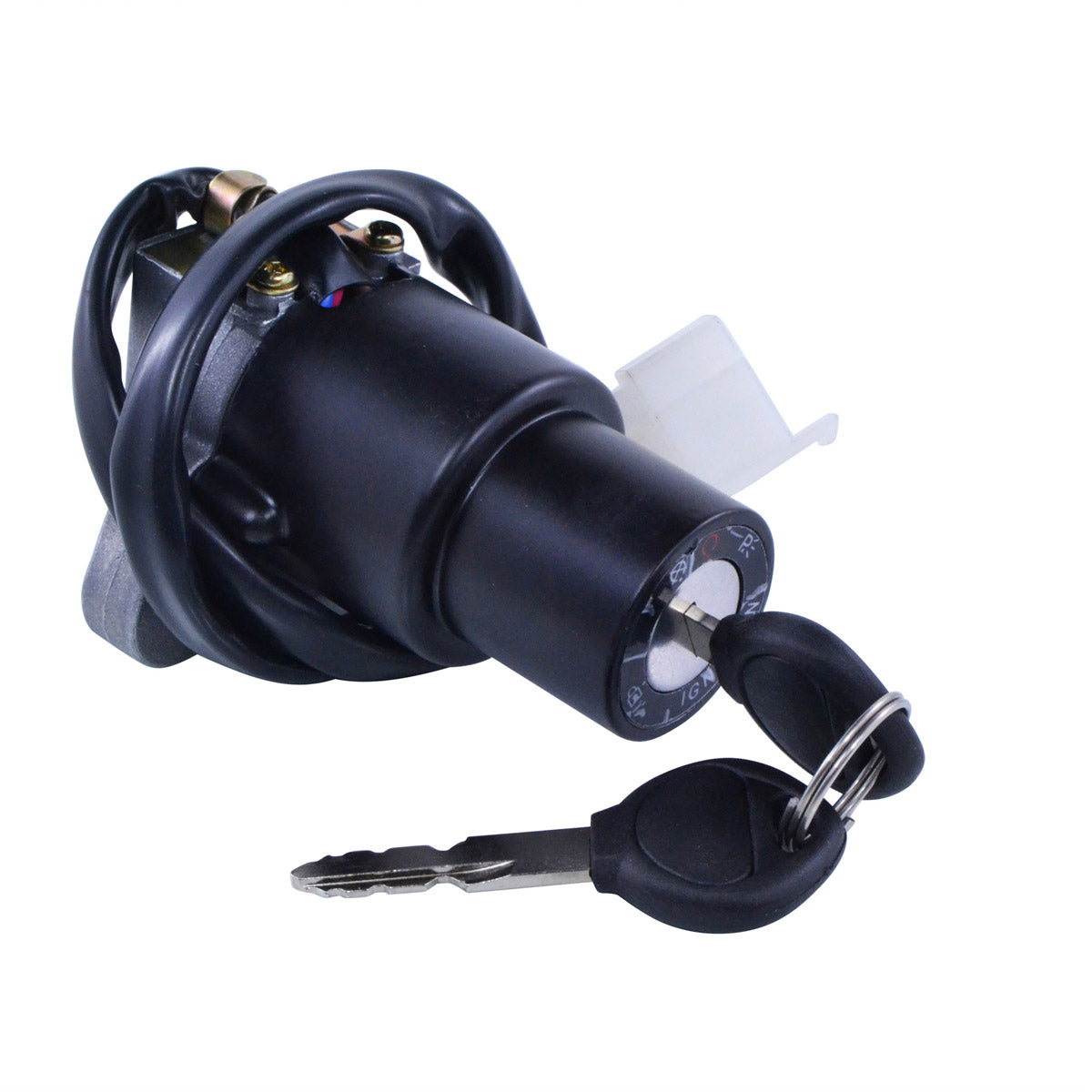

- Supplied with two keys and a connector
- Three wires and three plugs
- All product shipped are tested
Technical Specs
| Specification |
Detail |
| Part number |
RM05039 |
| Height |
63 mm |
| Length |
89 mm |
| Width |
68 mm |
| Number of wires |
3 |
| Number of plugs |
3 |
| Number of keys |
2 |
| Number of positions |
3 (off, on, spring return start) |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha SR 250 |
1978-1999 |
| Yamaha XS 400 |
1978-1999 |
| Yamaha XS 650 |
1978-1999 |
| Yamaha XS 750 |
1978-1999 |
| Yamaha XS 850 |
1978-1999 |
| Yamaha XV 750 |
1978-1999 |
| Yamaha XV 920 Midnight Virago |
1978-1999 |
| Yamaha Seca |
1978-1999 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 3JV-82501-00-00 |
Yamaha |
| 4H7-82508-50-00 |
Yamaha |
| 3LK-82501-10-00 |
Yamaha |
| 3LK-82501-00-00 |
Yamaha |
| 3HH-82501-00-00 |
Yamaha |
Frequently Asked Questions
Does this switch need any modification to fit?
No. It is plug-and-play and a direct fit, with three wires and three plugs matching the original, and a connector is included so the harness side can be renewed at the same time.
What is included in the box?

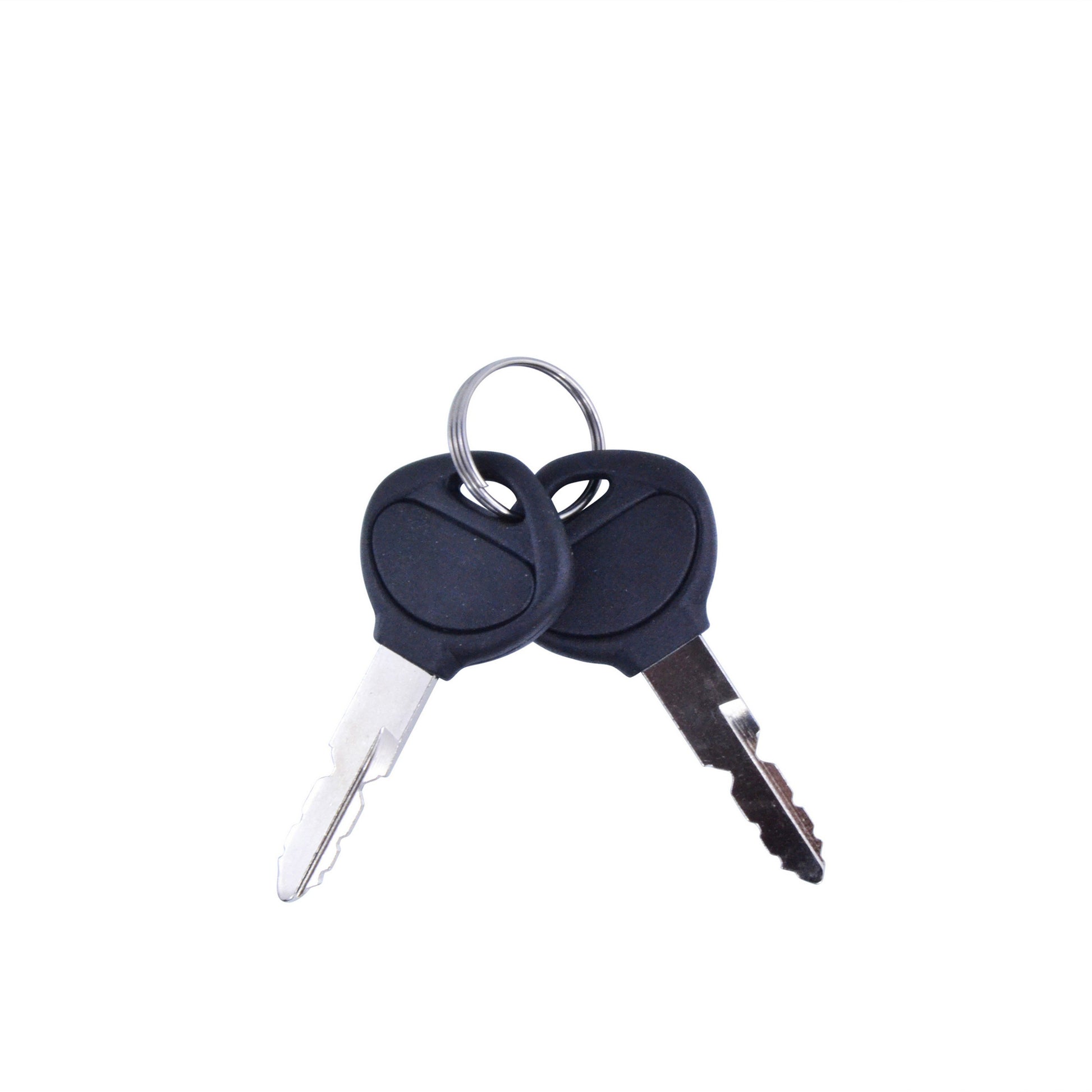

You receive the ignition switch unit, two keys and a connector. Because two keys are supplied, note that this switch will not match your existing key - it comes with its own pair.
How do I know the old switch has failed?
Typical signs are the machine cutting out when the key or the bars are moved, no power at all in the on position, a key that turns freely or will not turn, or having to hold the key at an angle to keep the ignition live. Those symptoms point to worn tumblers or burnt contacts inside the switch.
What do the three positions do?
The switch has an off position, an on position and a spring return start position, plus one lock position. The start position returns under spring pressure as soon as you release the key, which is the normal arrangement for these Yamaha models.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
