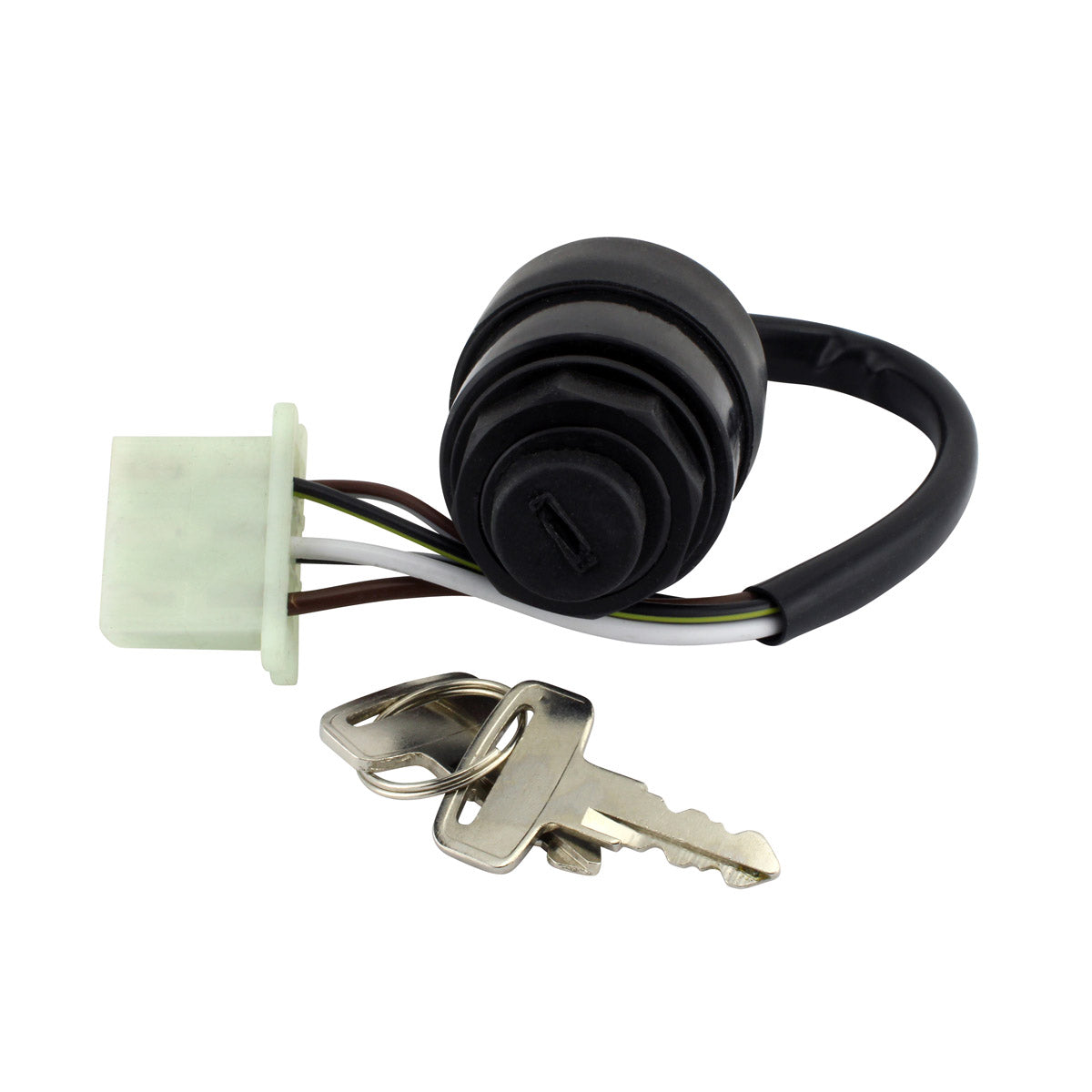

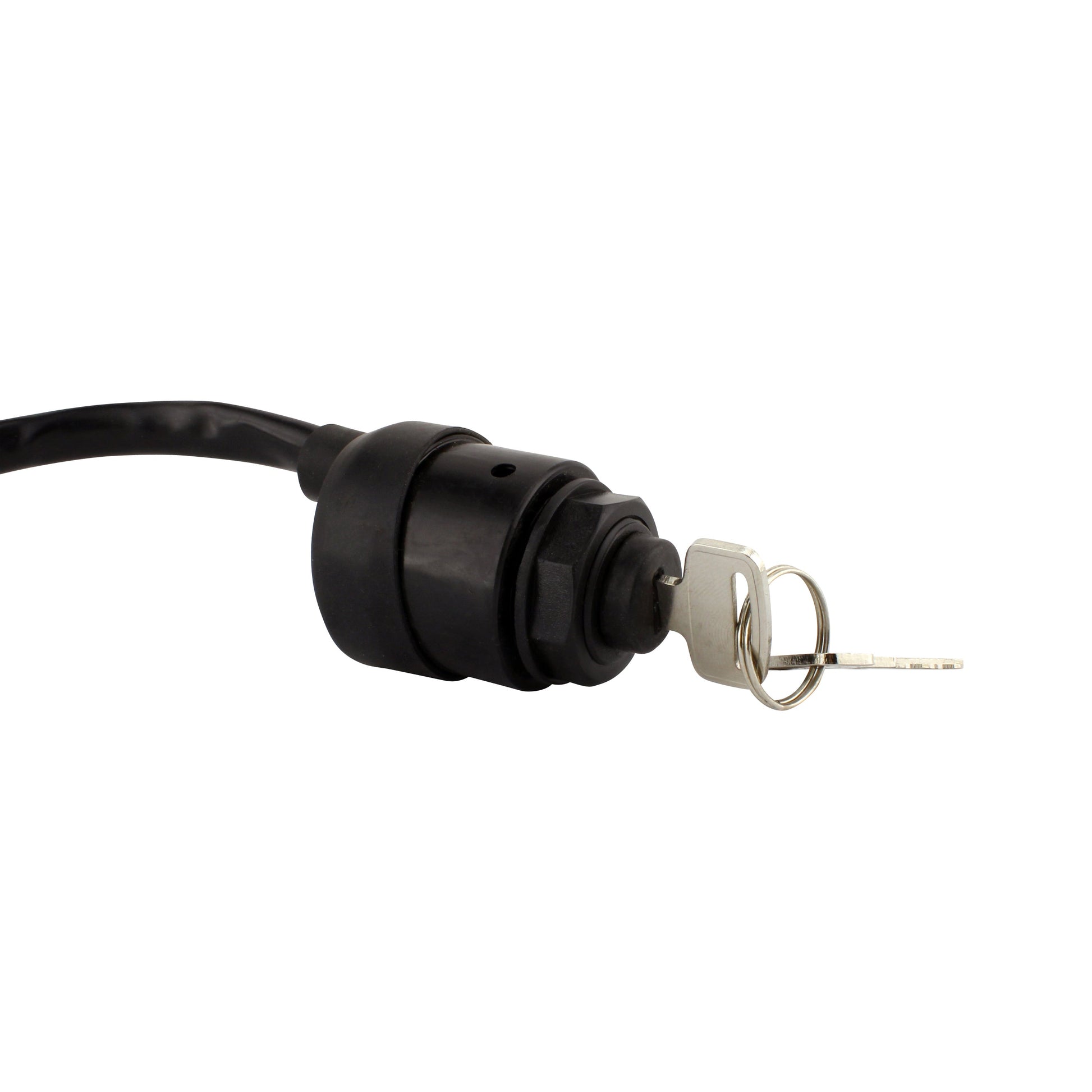

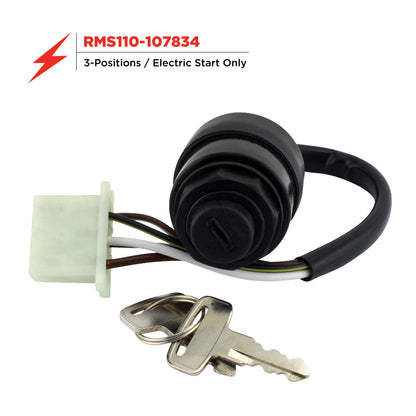

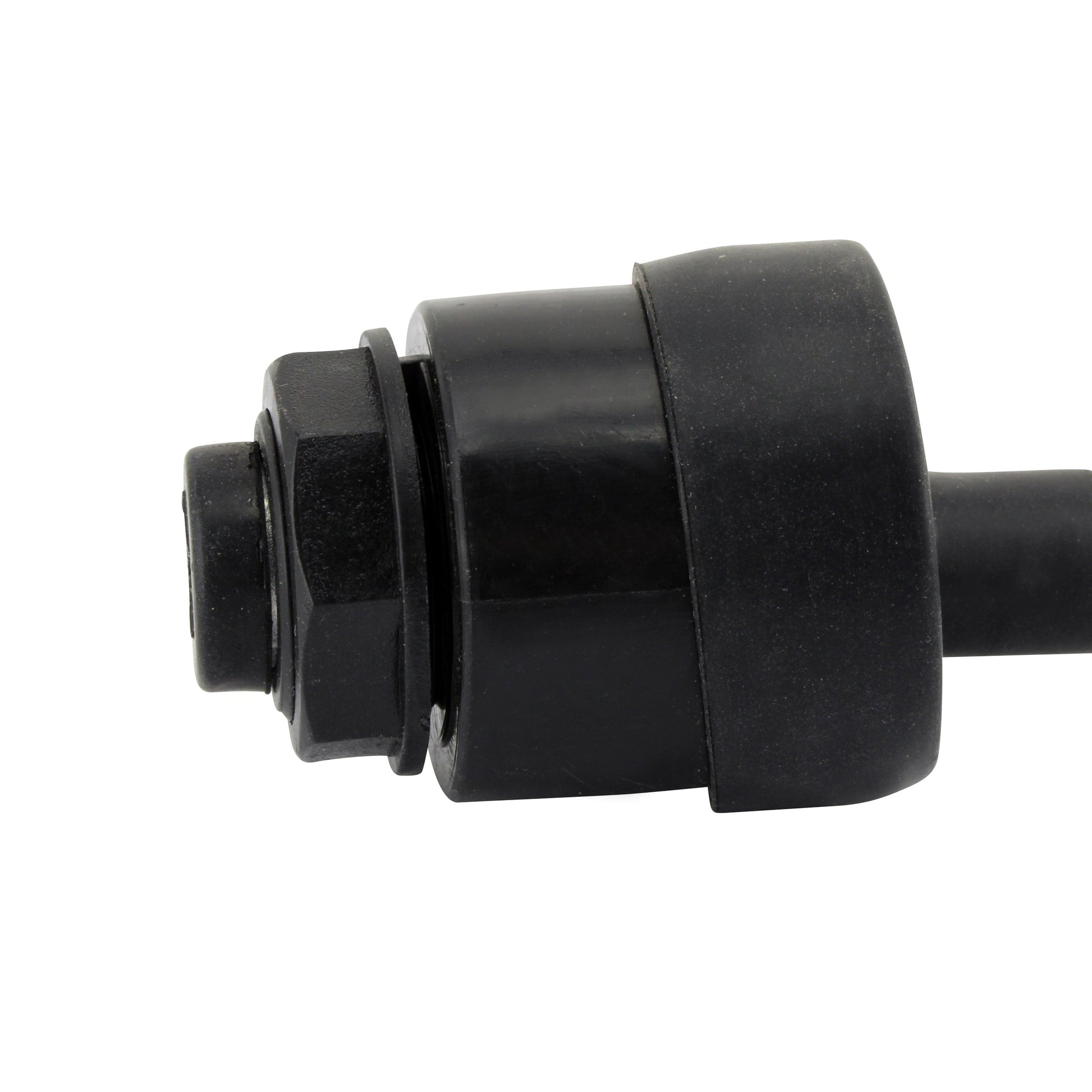

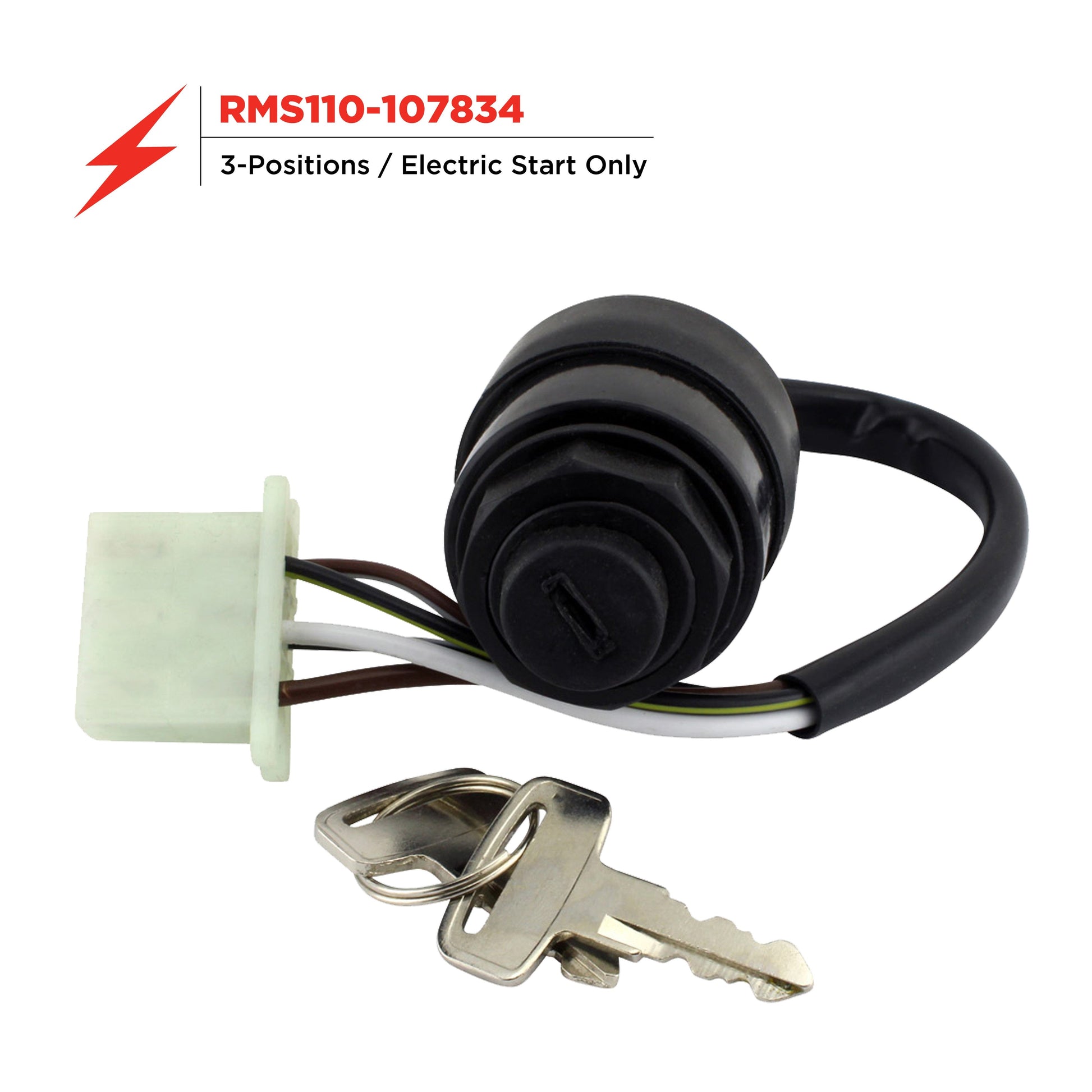

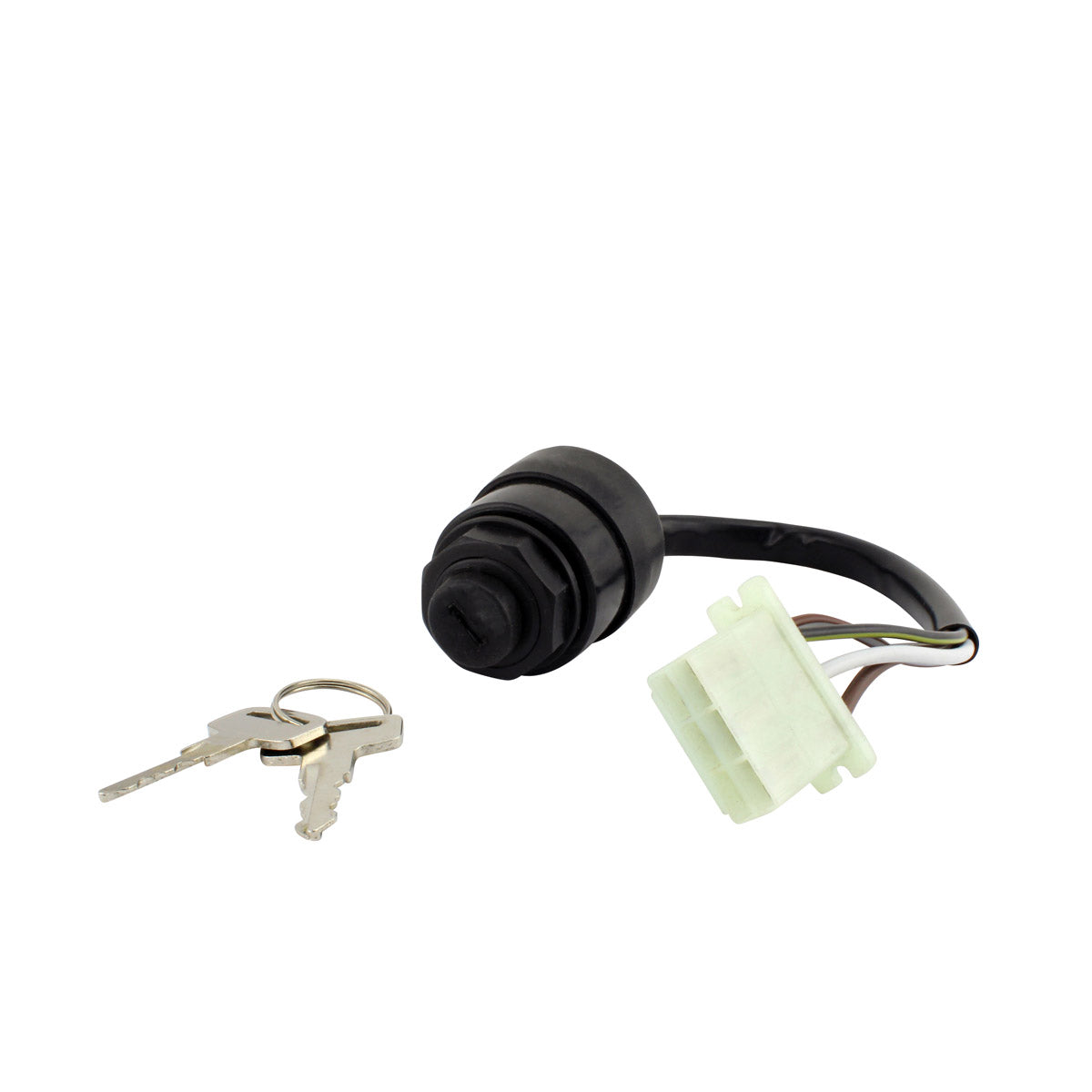

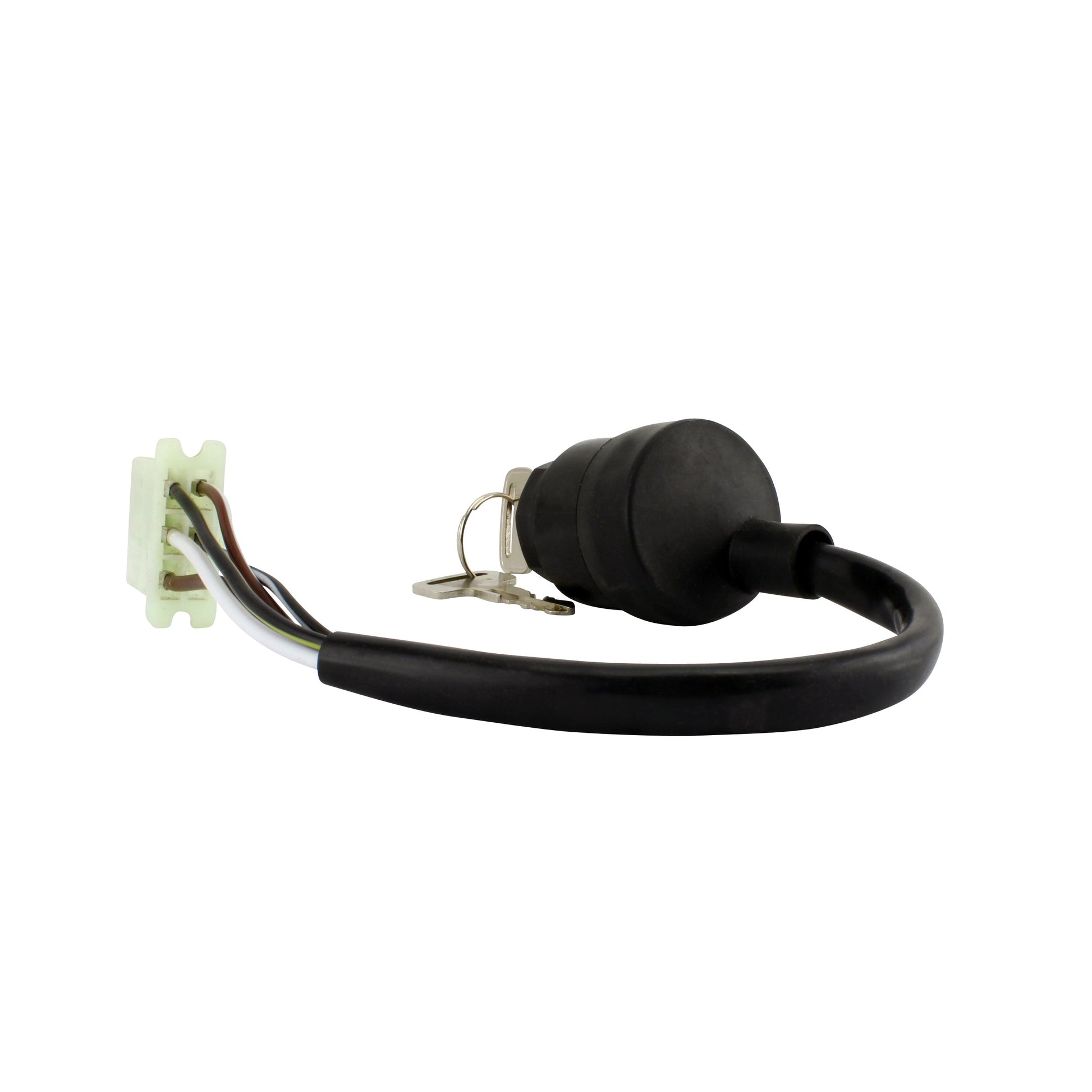

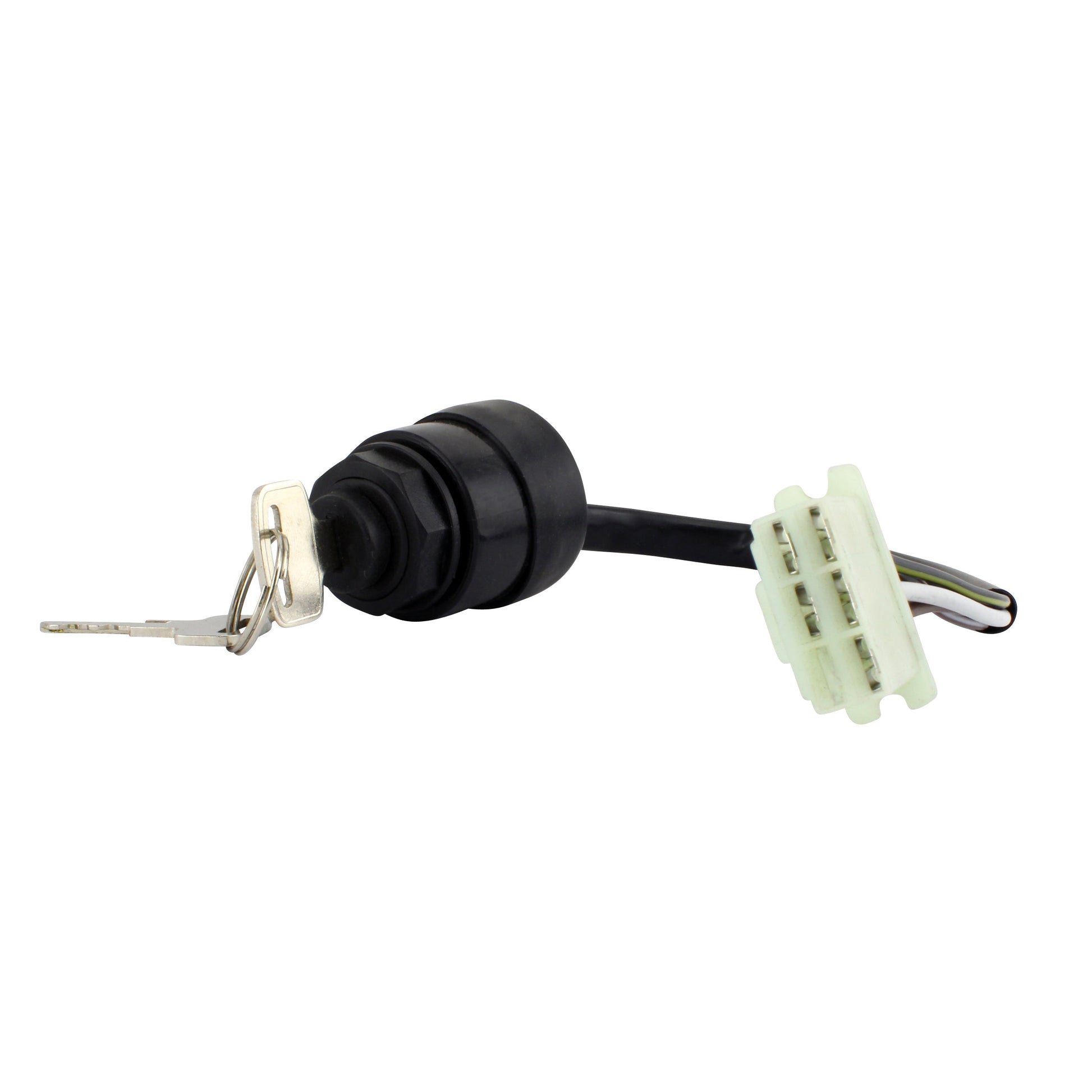

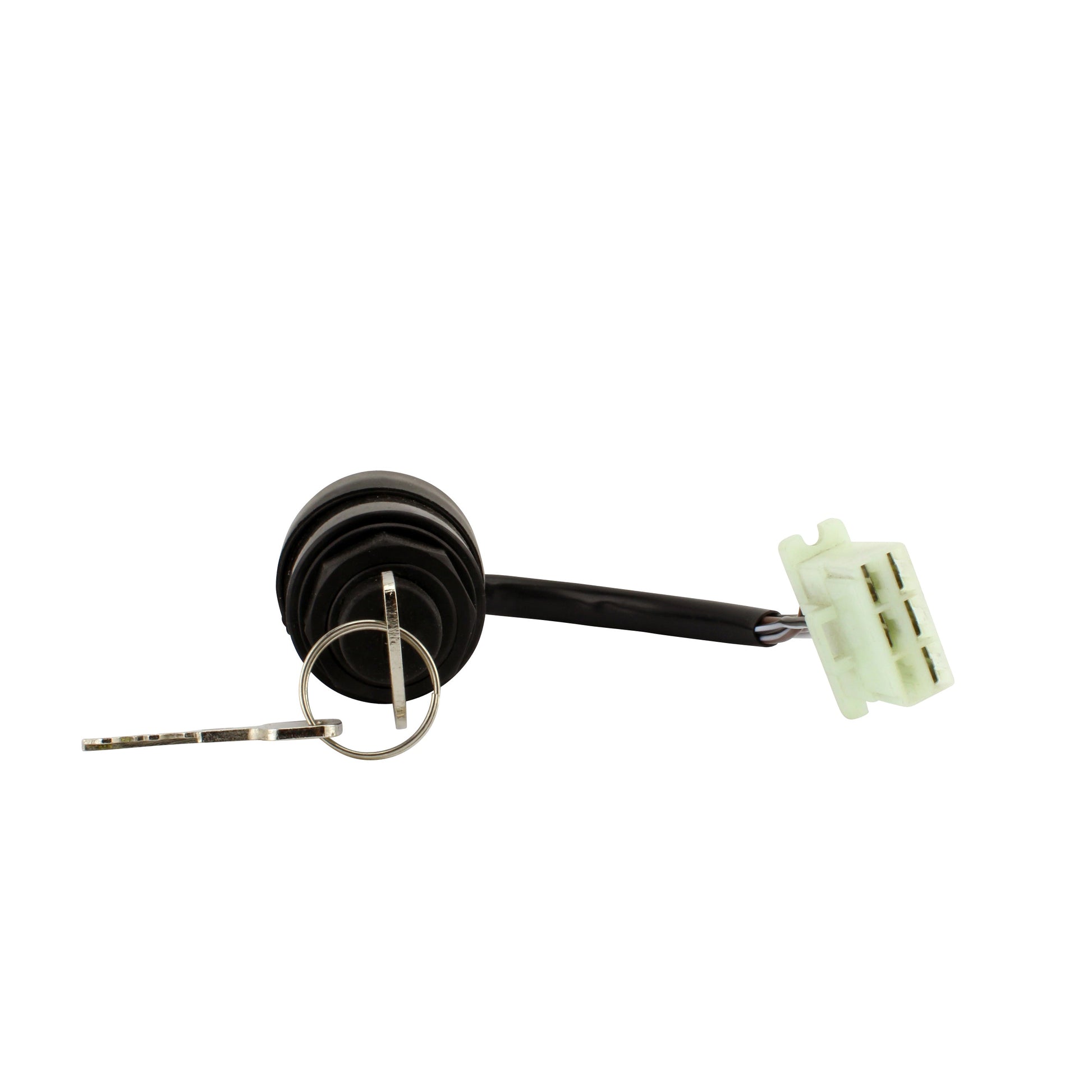

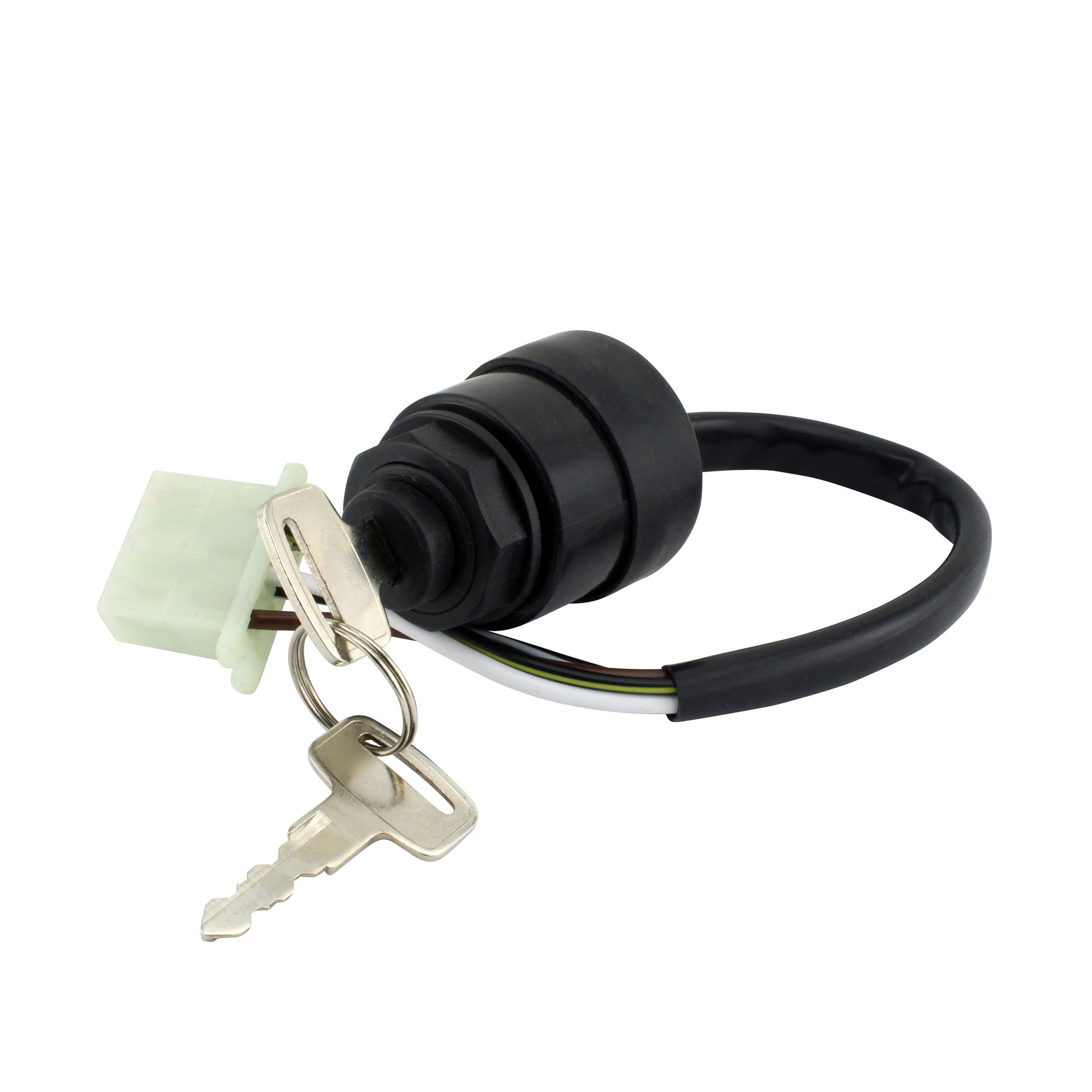

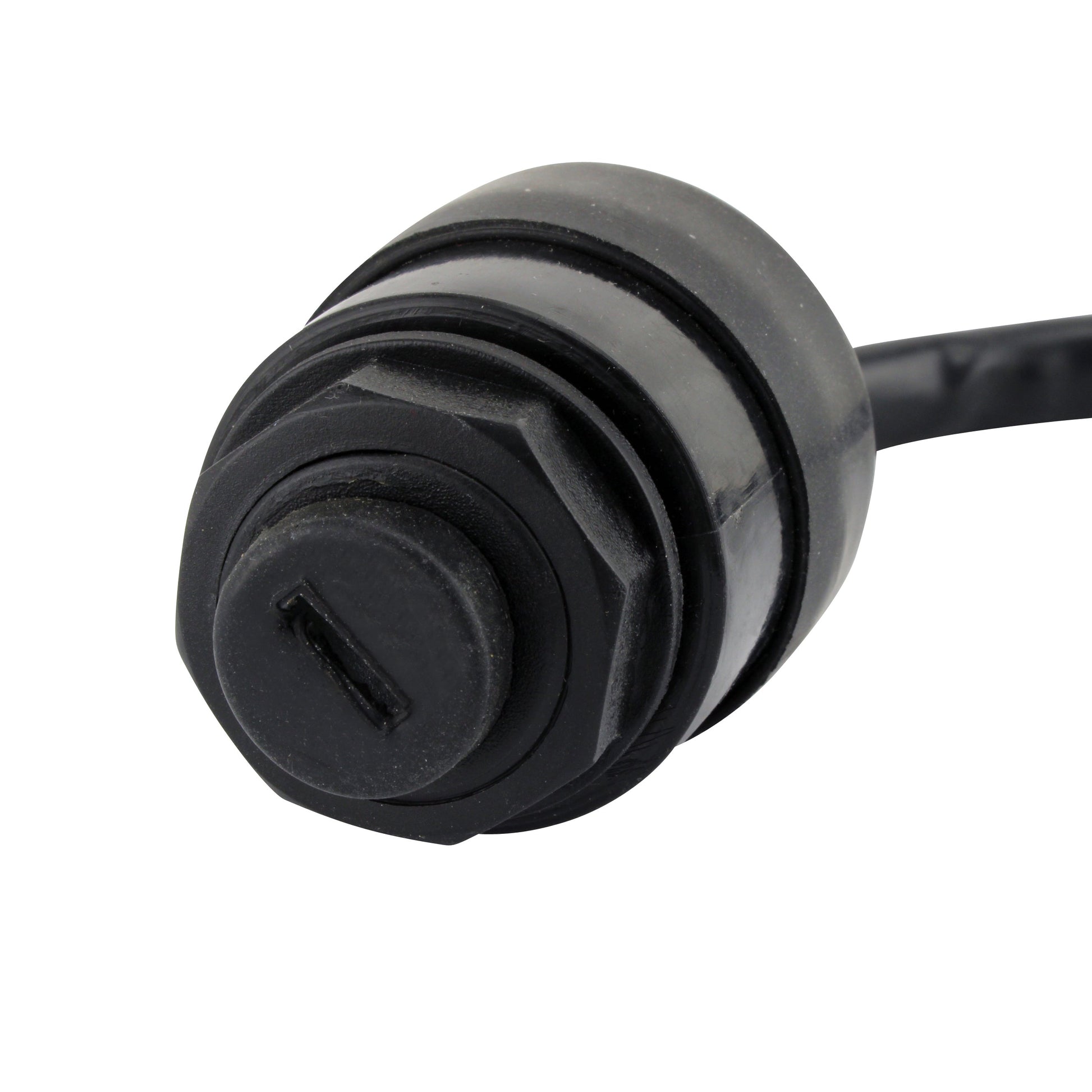

This is a brand new aftermarket 3-position ignition key switch, supplied as a direct replacement for the original unit fitted to the Yamaha Phazer 480, VK 540 and Ovation 340 snowmobiles. It is a plug-and-play, direct fit part: it mounts in the original location and mates with the machine's existing plug, so no cutting, splicing or modification of the wiring loom is needed. Two keys are supplied with every switch and the connectors are included.

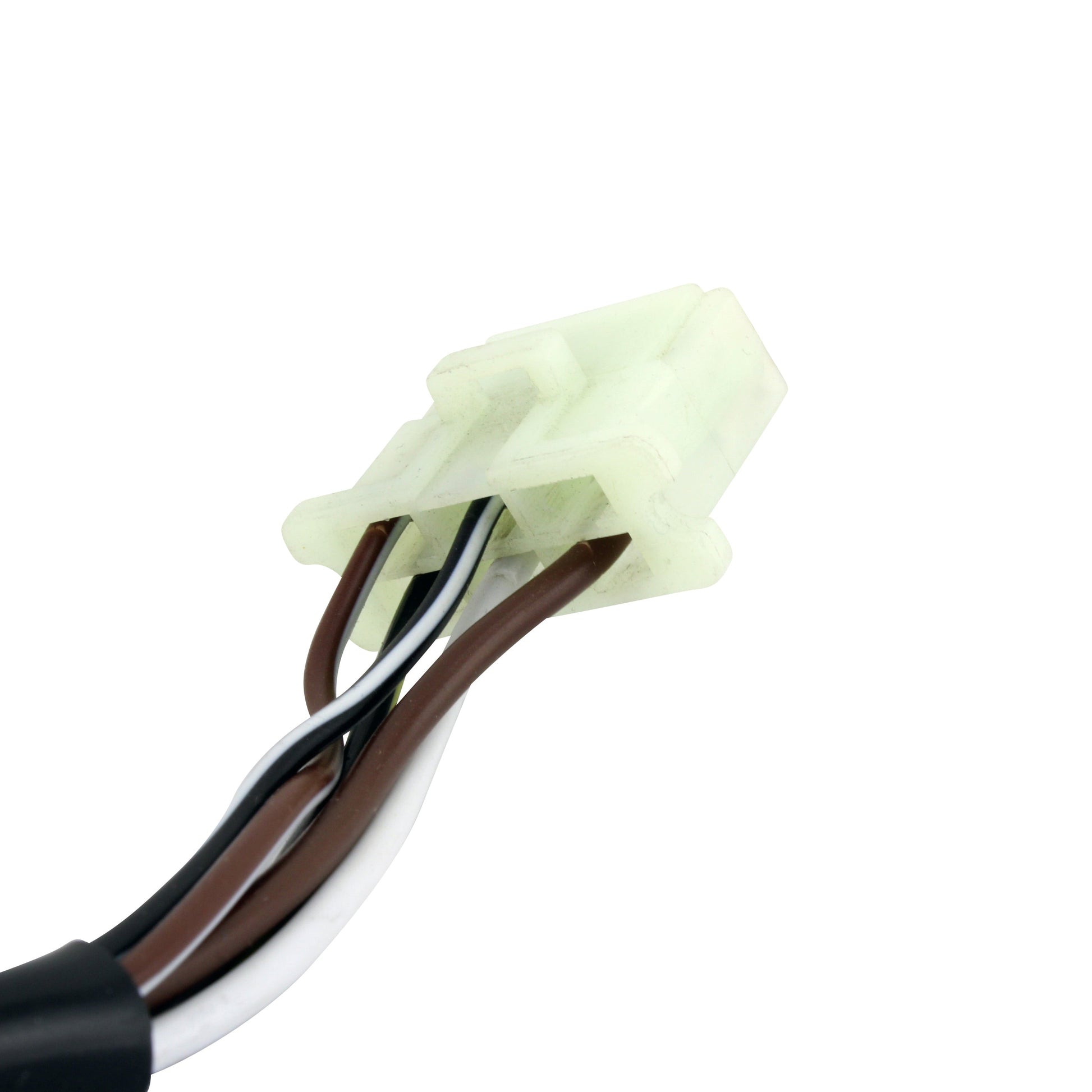

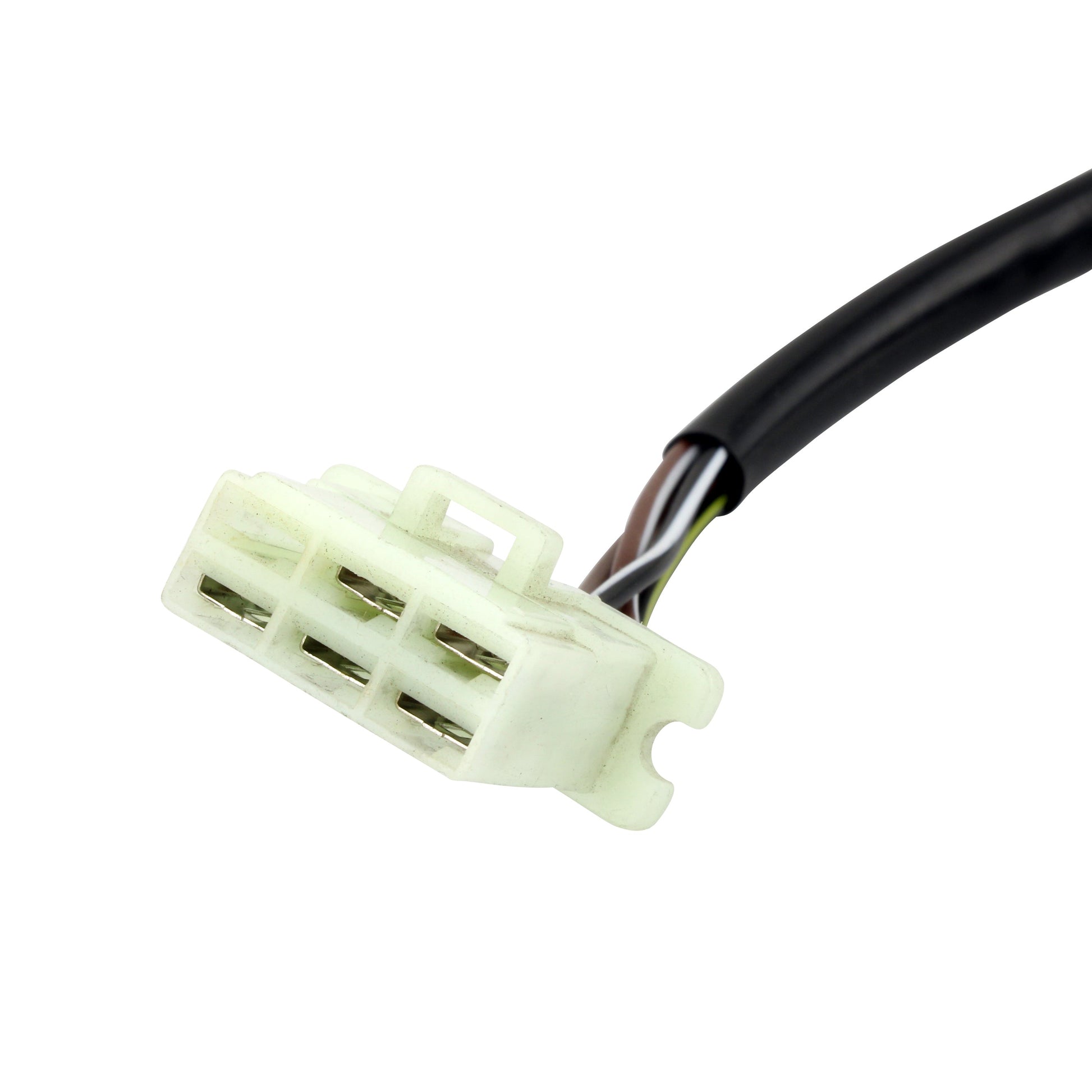

The switch works over three positions - off, on, and a spring-return start position that returns to on when the key is released. It carries five wires and five pins on a 240 mm lead ending in a single plug, and measures 43 mm high by 52 mm long by 43 mm wide. It replaces Yamaha part numbers 8K1-82510-20-00, 8K1-82510-21-00 and 8K1-82508-20-00. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket replacement for the original ignition key switch
- Direct replacement - plug-and-play, direct fit, easy installation
- Three positions: off, on and spring return start

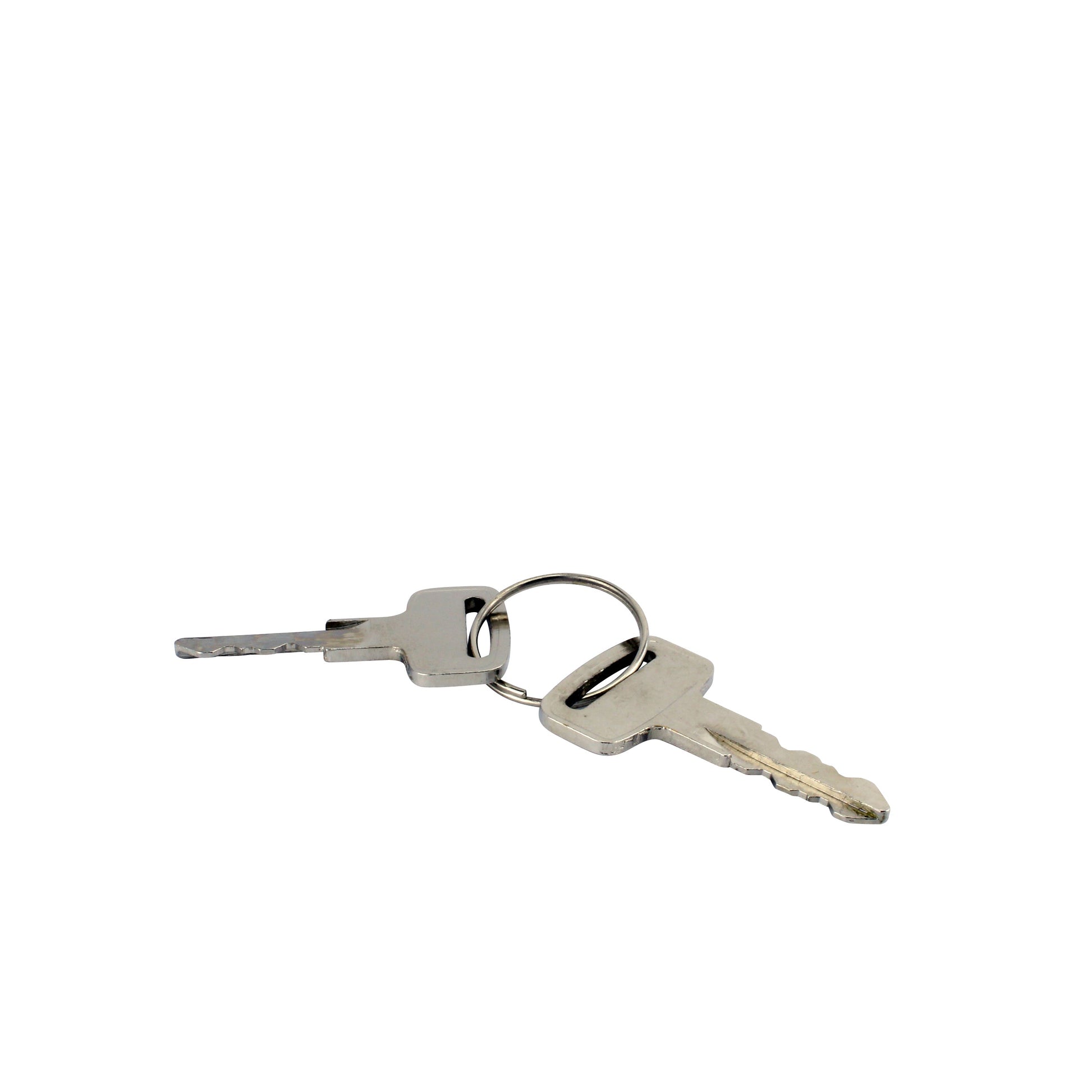

- Two keys included with every switch
- Connectors included
- Five wires and five pins on a 240 mm lead, single plug
- Every unit is tested before dispatch
Technical Specs
| Specification |
Detail |
| Part Number |
RMS110-107834 |
| Number of Positions |
3 (off, on, spring return start) |
| Height |
43 mm |
| Length |
52 mm |
| Width |
43 mm |
| Wire Length |
240 mm |
| Number of Wires |
5 |
| Number of Pins |
5 |
| Number of Plugs |
1 |
| Number of Keys |
2 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Yamaha Phazer 480 |
1984-2005 |
| Yamaha VK 540 |
1984-2005 |
| Yamaha Ovation 340 |
1984-2005 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 8K1-82510-20-00 |
Yamaha |
| 8K1-82510-21-00 |
Yamaha |
| 8K1-82508-20-00 |
Yamaha |
Frequently Asked Questions
Will this switch fit without modifying my wiring?
Yes. It is a direct replacement for the original unit and is plug-and-play, so it uses the machine's existing five-pin connector. No cutting, splicing or loom modification is needed.
What is included in the box?
The three-position ignition key switch, two keys and the connectors.
How do I know my old key switch has failed?
Common signs are a sled that will not come alive when the key is turned to on, power that drops out when the key or the wiring behind the switch is moved, a start position that no longer cranks the engine, a key barrel that spins without engaging a detent, or burnt and corroded terminals at the plug. Checking continuity across the terminals in each of the three positions will show whether the switch itself is passing current.
What does the third position do?
The third position is a spring return start position. It is held against spring pressure to crank the engine and springs back to the on position as soon as the key is released.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
