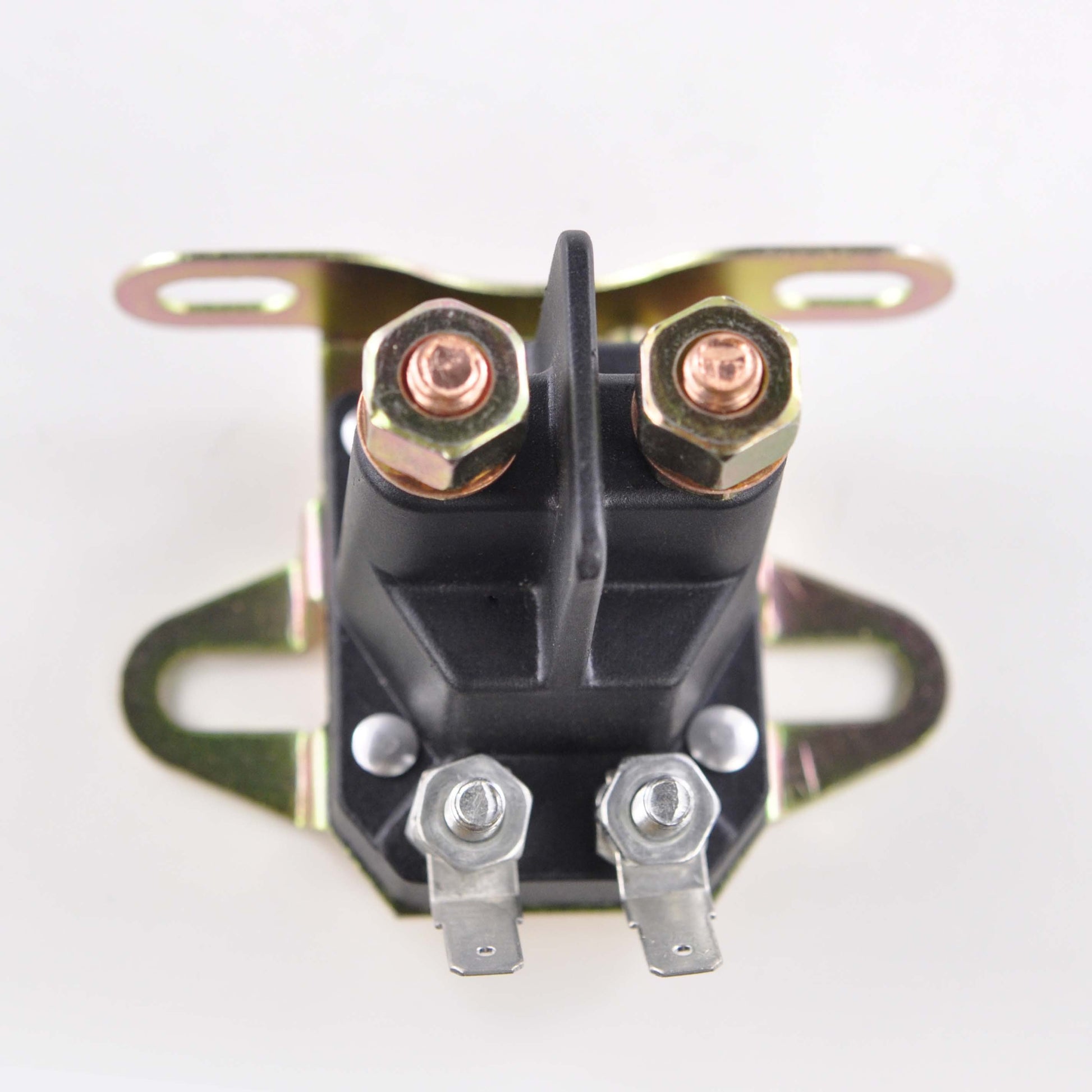

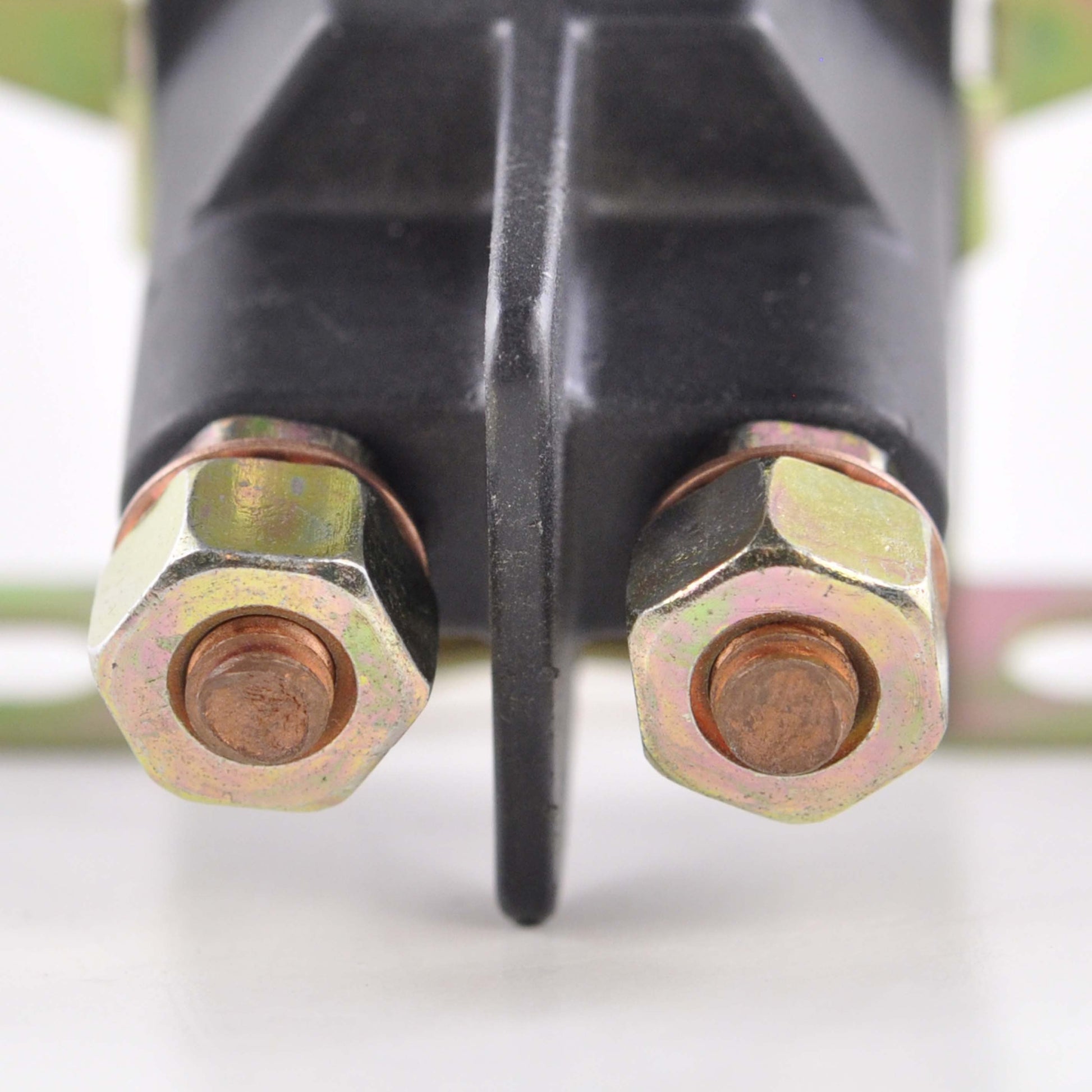

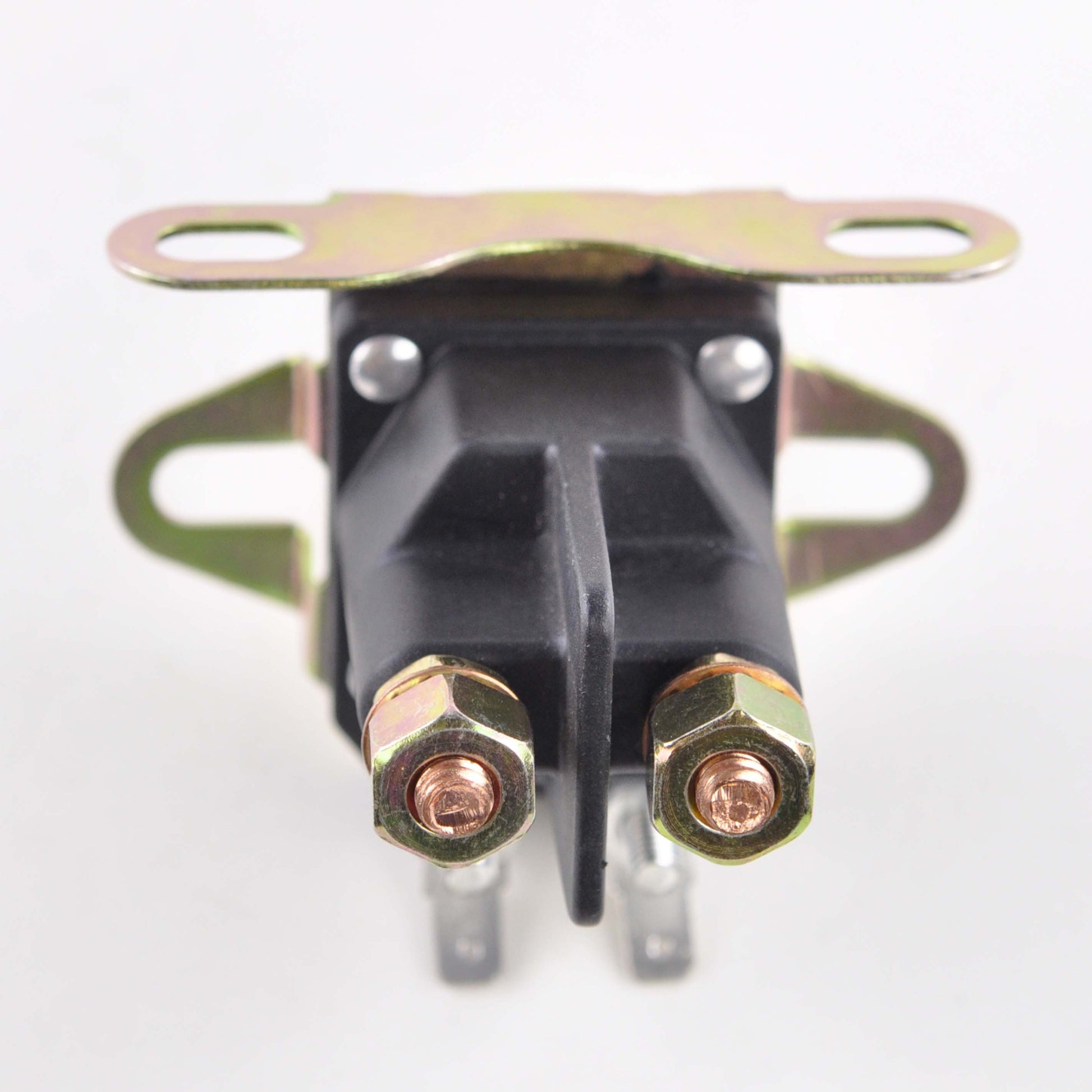

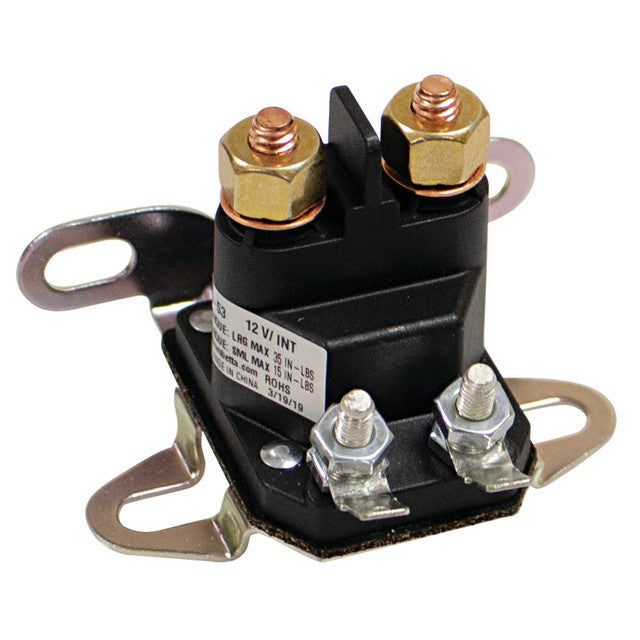

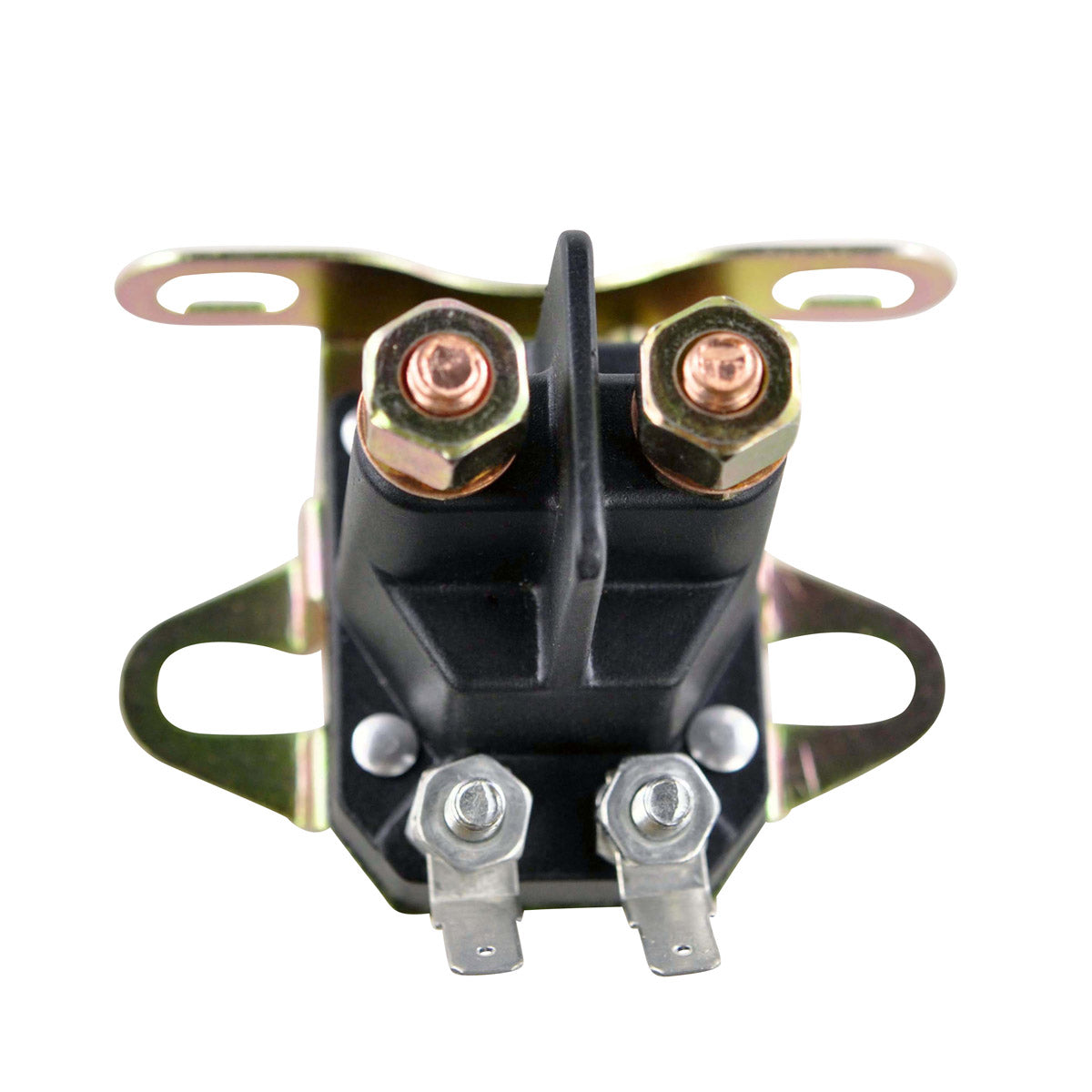

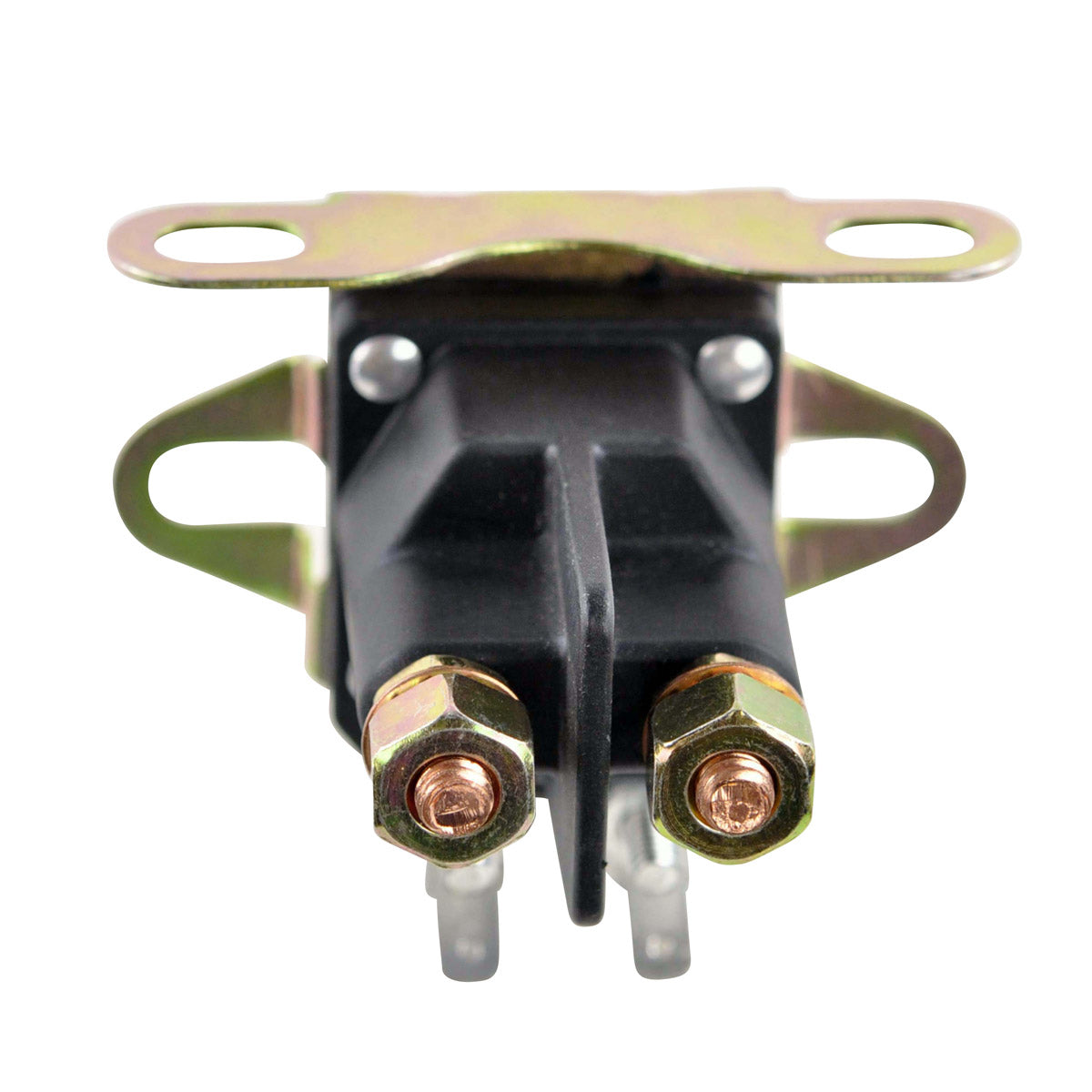

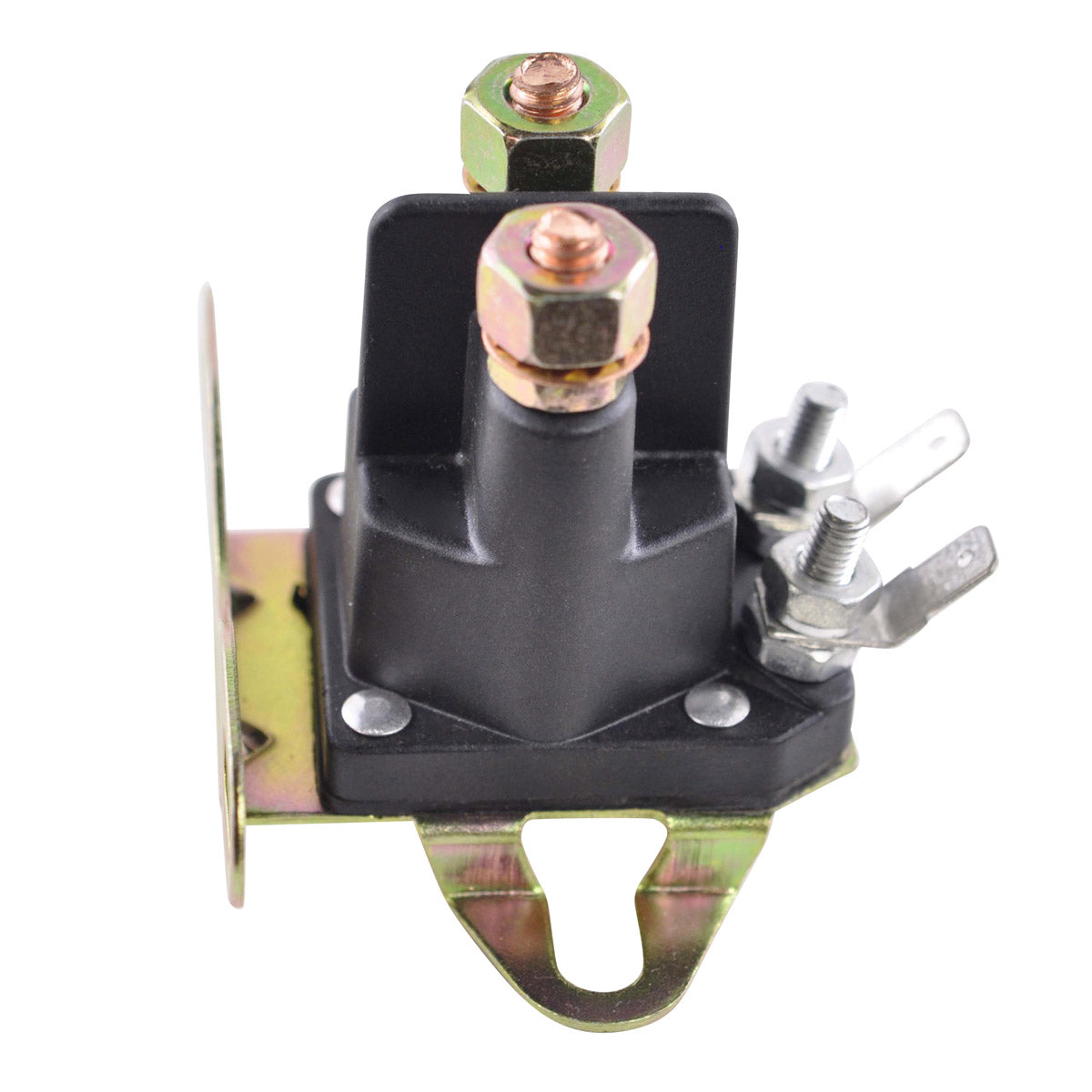

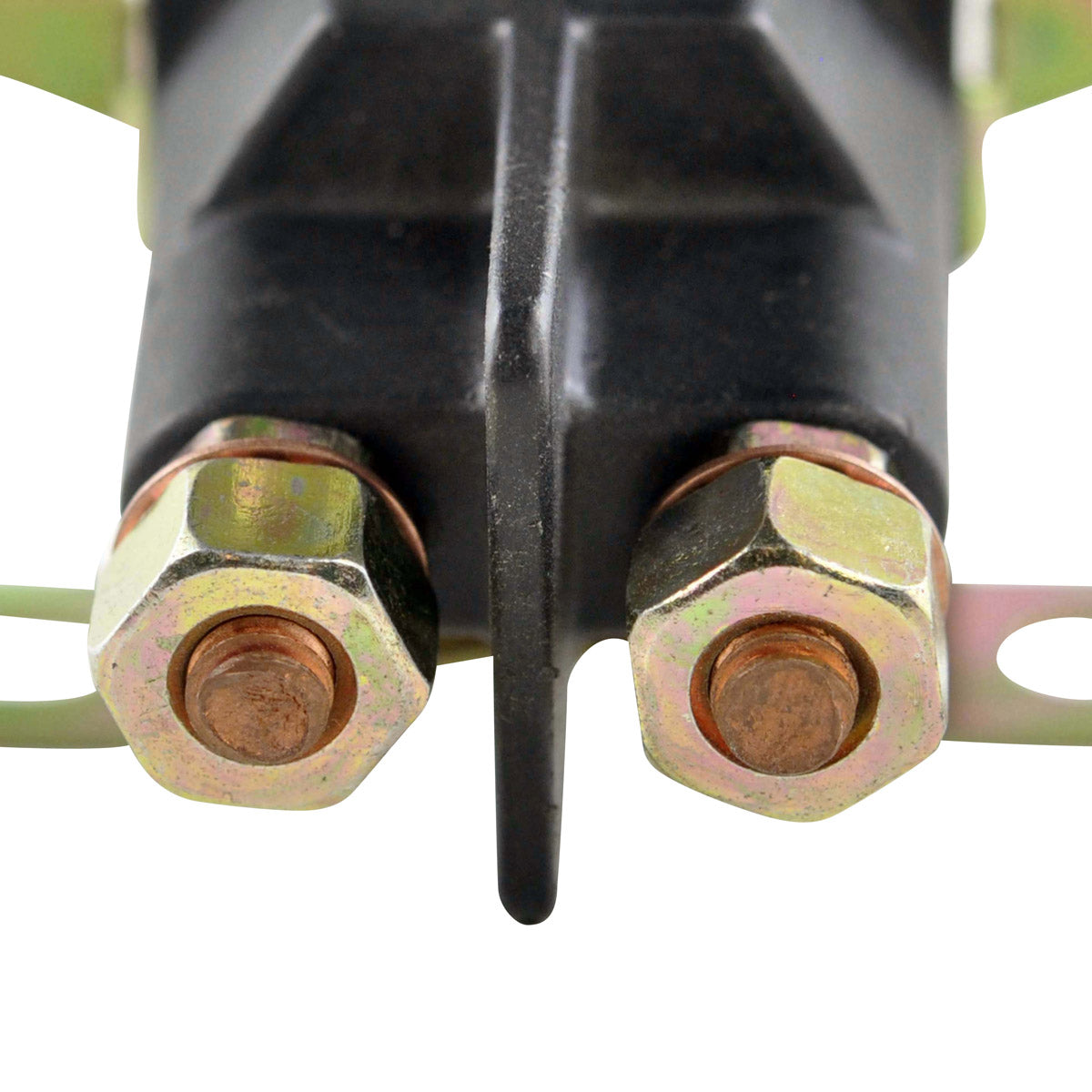

4 Pole Universal Starter Relay Solenoid for Small Engines
Universal 4 terminal solenoid - replaces Briggs & Stratton, MTD, Troy Bilt, John Deere, Husqvarna and more
This is a brand new starter relay solenoid switch supplied under RMSTATOR part number RMS090-102362. It is a universal 4 pole unit for small engine equipment, and it is a direct replacement to your original unit. RMSTATOR states that the quality exceeds the OEM equipment, and that all products shipped are tested.
The starter relay solenoid is the heavy duty switch that carries the full starting current from the battery to the starter motor when the key is turned. Because it is a universal 4 terminal design rather than a model specific one, the way to confirm it will work for you is to compare the dimensions and the terminal count below against the solenoid you are removing. This unit measures 67 mm long, 76 mm wide and 65 mm high, and has four terminals.
Key Features
- Brand new starter relay solenoid switch - not a repaired or reconditioned unit
- Universal 4 pole (4 terminal) configuration
- Direct replacement to your original unit
- Quality exceeds the OEM equipment
- Cross references to a very wide range of small engine and lawn equipment part numbers
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Part Number | RMS090-102362 |
| Component | Starter relay solenoid switch |
| Number of terminals | 4 |
| Length | 67 mm |
| Width | 76 mm |
| Height | 65 mm |
| Fitment type | Universal - not model specific |
Vehicle Fitment Guide
Universal fitment - this part is not model specific. Check the specifications above against the unit you are replacing.
RMSTATOR lists this solenoid as compatible with equipment from the following brands: AYP, Ariens, Bolens, Briggs & Stratton, Case, Catelgarden, Cub Cadet, Exmark, Gilson, Grasshopper, Gravely, Honda, Husqvarna and John Deere. No individual models or year ranges are published for this part, so the terminal count and the dimensions above, together with the cross reference numbers below, are the reliable way to confirm fitment.
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only. RMSTATOR does not publish a brand against each individual number for this universal part, and further variants are listed beyond those shown here.
| Part Number | Manufacturer / Brand |
|---|---|
| CG18736111HO | Not specified |
| 109946 | Not specified |
| 109946X | Not specified |
| 532109081 | Not specified |
| 110167 | Not specified |
| 138406X | Not specified |
| AM132990 | Not specified |
| AM133094 | Not specified |
| AM138497 | Not specified |
| 44429 | Not specified |
| 677A880 | Not specified |
| 7754R | Not specified |
| 035510 | Not specified |
| 03551000 | Not specified |
| 45071 | Not specified |
| AR03551000 | Not specified |
| AR04507100 | Not specified |
| 1752137 | Not specified |
| C-33025 | Not specified |
| 424285 | Not specified |
| 924285 | Not specified |
| 1134-2962-01 | Not specified |
| 117-1197 | Not specified |
| 513075 | Not specified |
| CG18736100HO | Not specified |
| 1530 | Not specified |
| 725-04439A | Not specified |
| 18736111/0 | Not specified |
| 18736110/0 | Not specified |
| C-266525 | Not specified |
Frequently Asked Questions
Will this solenoid fit without modification?
RMSTATOR supplies it as a direct replacement to your original unit. Because it is a universal part rather than a model specific one, the honest answer is that it fits without modification wherever the original solenoid was a 4 terminal unit of the same size. Measure the solenoid you are removing against the 67 mm length, 76 mm width and 65 mm height listed above, count its terminals, and check your original number against the cross reference table before ordering.
What is included?
You receive one brand new 4 pole starter relay solenoid switch, RMSTATOR part number RMS090-102362. No additional contents are published for this part, so reuse the cables, nuts and mounting hardware from your original solenoid.
How do I know my old starter solenoid has failed?
The classic symptom is a single loud click, or rapid clicking, when you turn the key, with the starter motor not turning even though the battery is charged. Other signs are a starter that only engages sometimes, a starter that keeps running after the key is released, or nothing at all happening at the key while the battery, cables and earth all test good.
What is the difference between the 3 pole and the 4 pole version?
The terminal count has to match the wiring on your machine. This is the 4 pole (4 terminal) version. If the solenoid you are removing has three terminals rather than four, order the 3 pole universal version instead - the two are not interchangeable.
