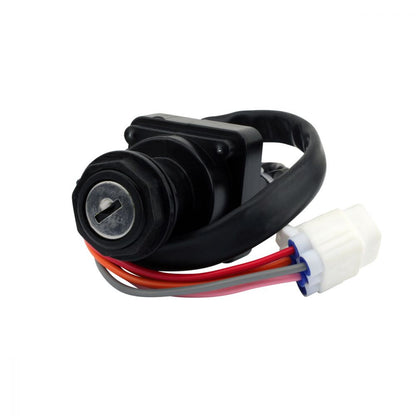

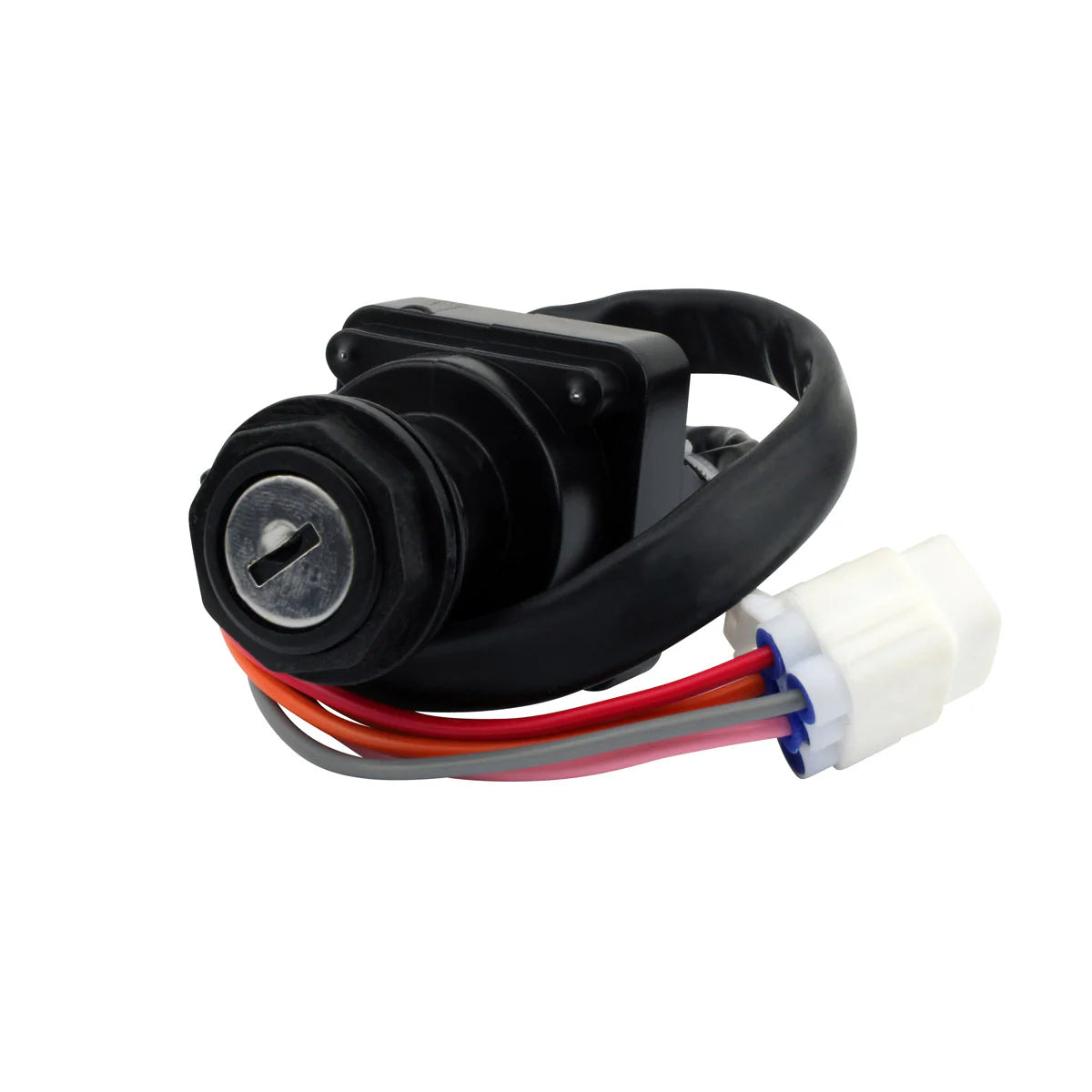

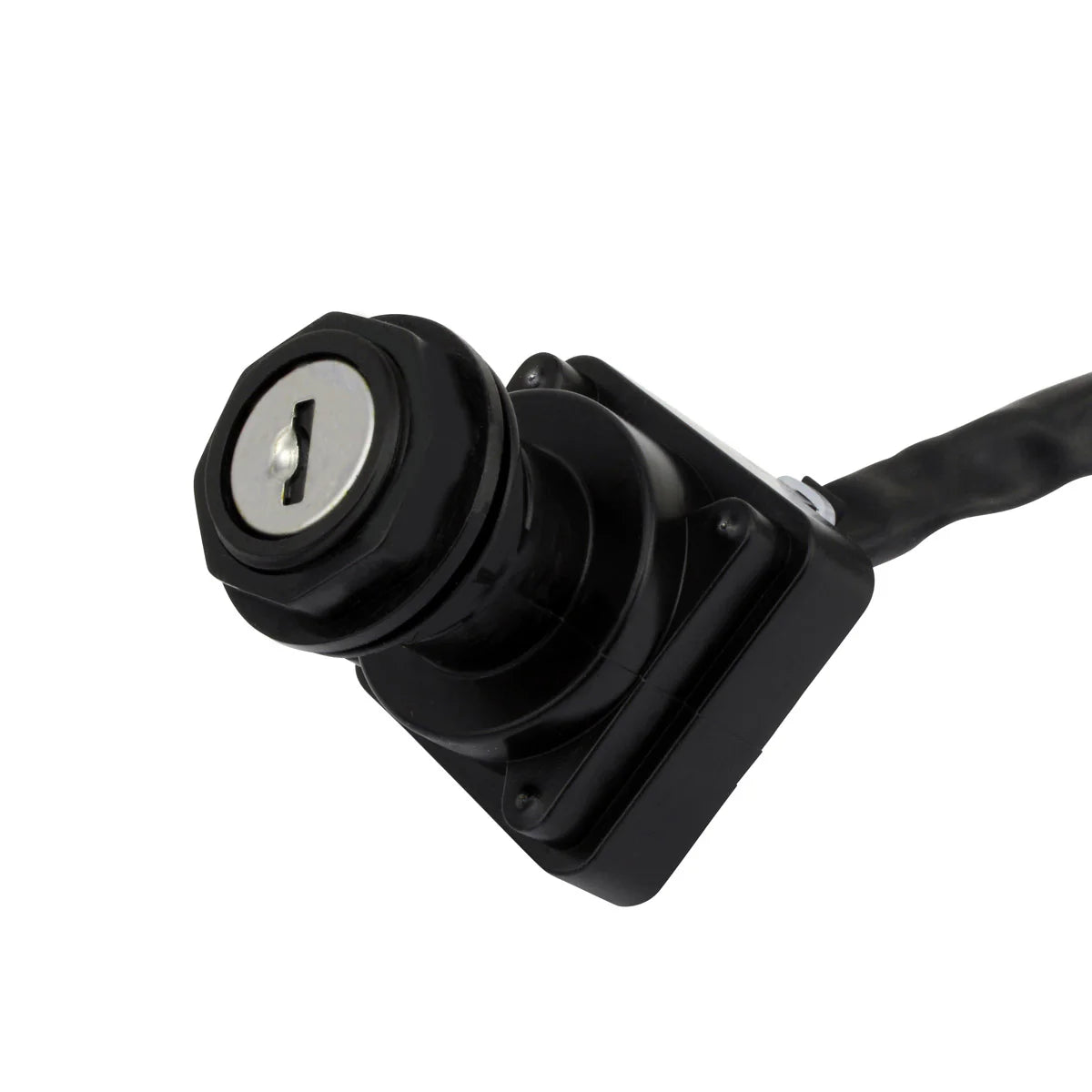

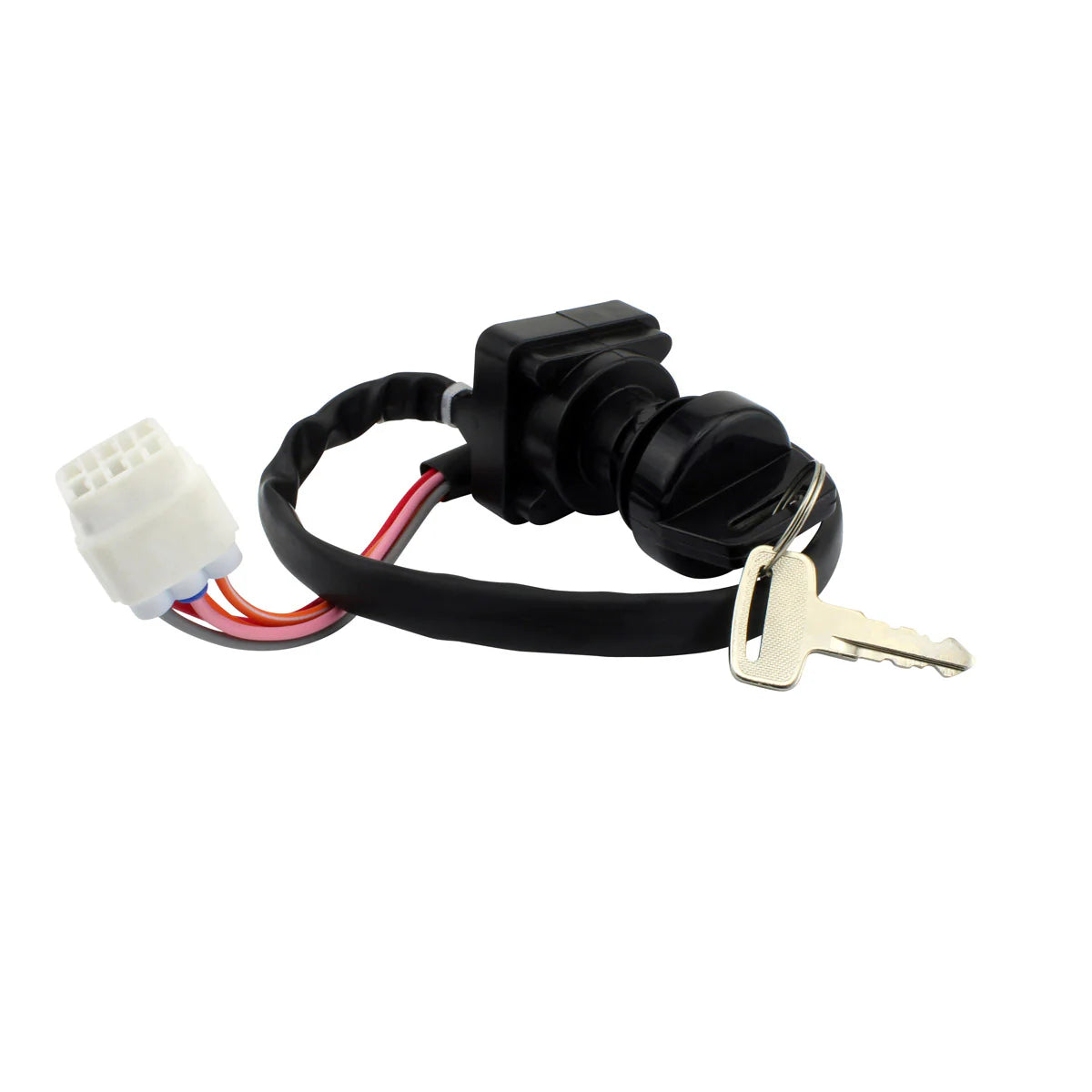

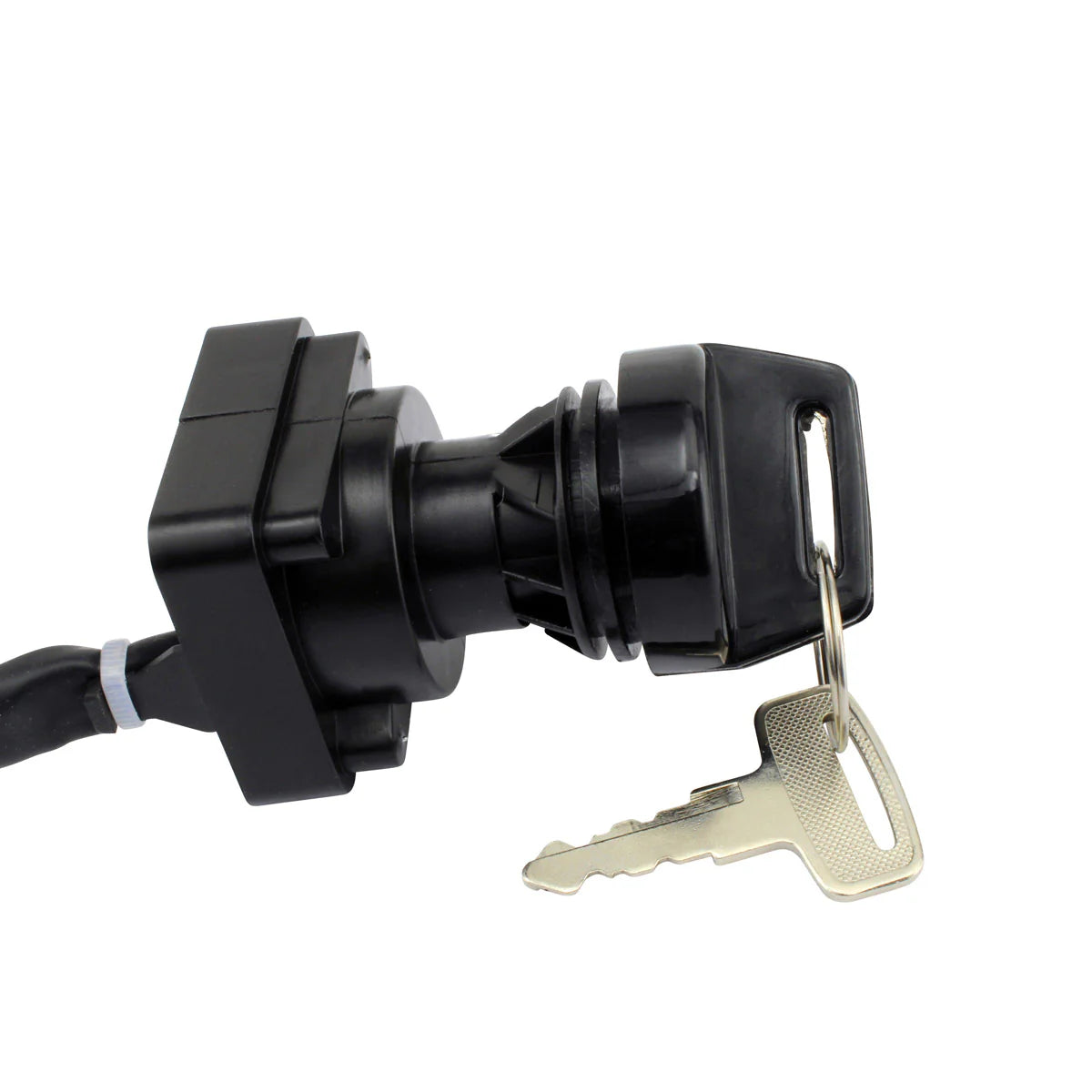

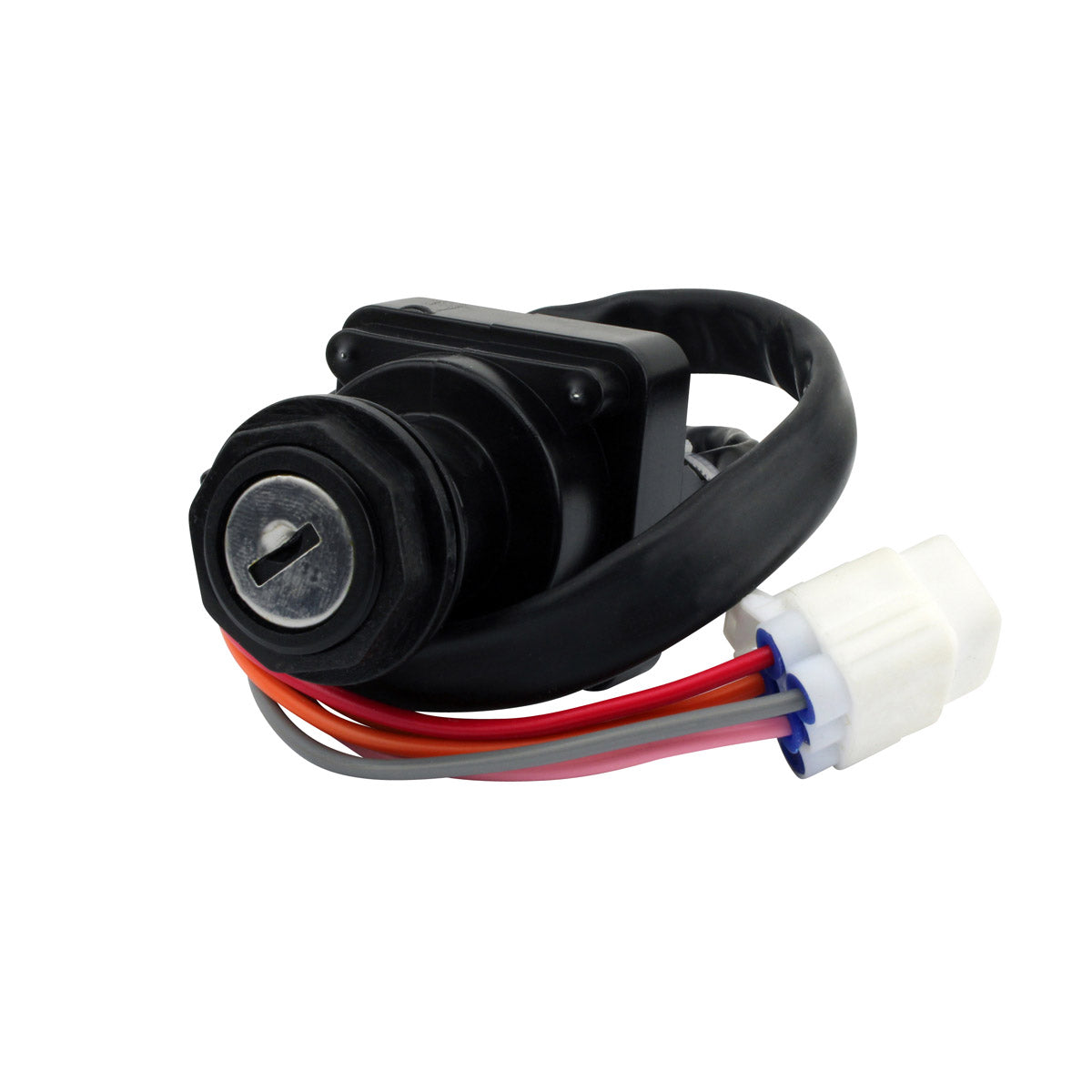

This is a brand new aftermarket 4-position ignition key switch, supplied as a direct replacement for the original unit fitted to the Suzuki LTA 700 X KingQuad and the LTA 500 and 750 KingQuad AXi. It is a plug-and-play, direct fit part: it mounts in the original location and mates with the machine's existing plug, so no cutting, splicing or modification of the wiring loom is required. Two keys are supplied with every switch and the connectors are included.

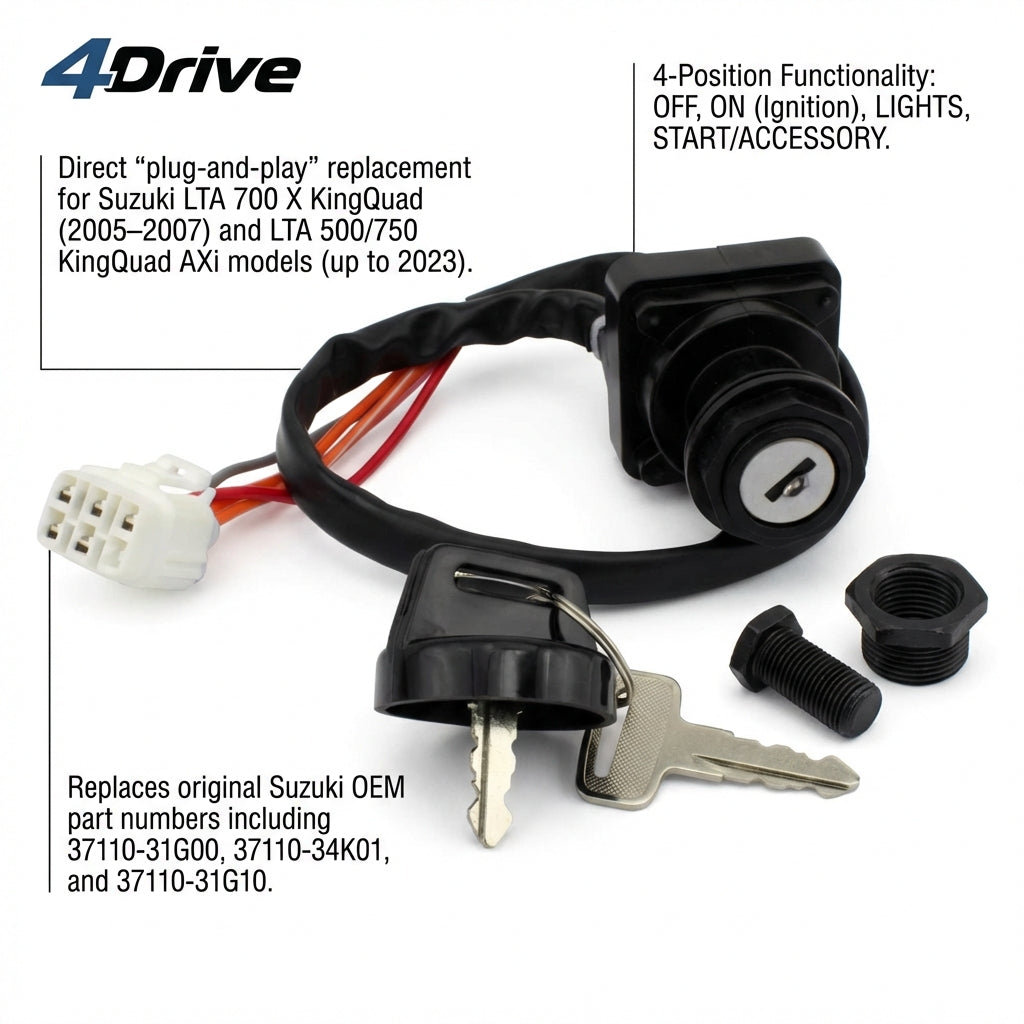

The switch works over four positions - off, ignition with no lights, ignition with lights, and a switched accessory position. It carries five wires and five pins on a long 460 mm lead terminating in a single plug, and the body measures 51 mm high by 41 mm long by 41 mm wide. It replaces Suzuki part numbers 37110-31G00, 37110-31G01, 37110-31G10, 37110-31G20, 37110-34K00, 37110-34K01 and 37110-34K10. Every unit is tested before it is shipped.
Key Features
- Brand new aftermarket replacement for the original ignition key switch
- Direct replacement - plug-and-play, direct fit, easy installation
- Four positions: off, ignition no lights, ignition with lights, switched accessory

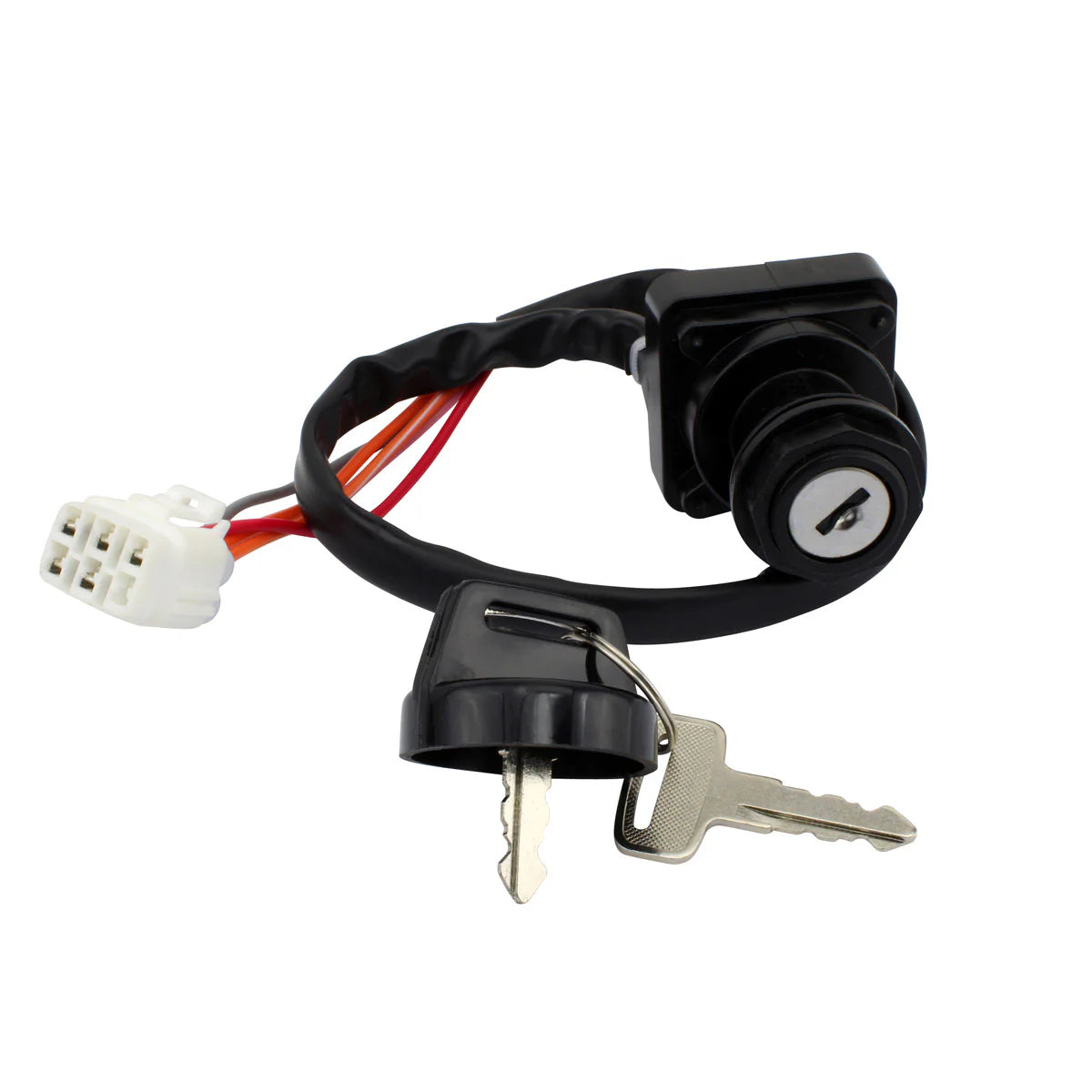

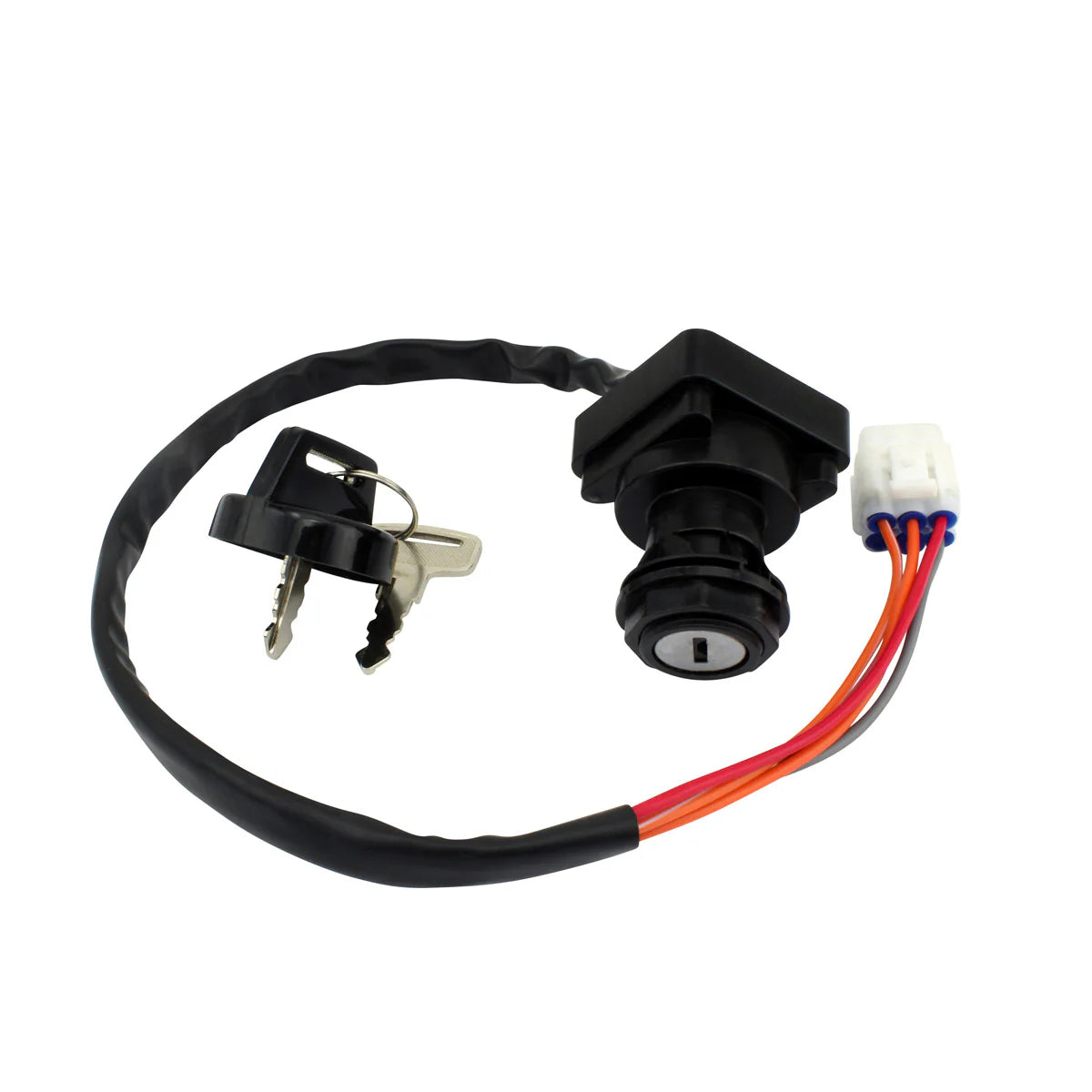

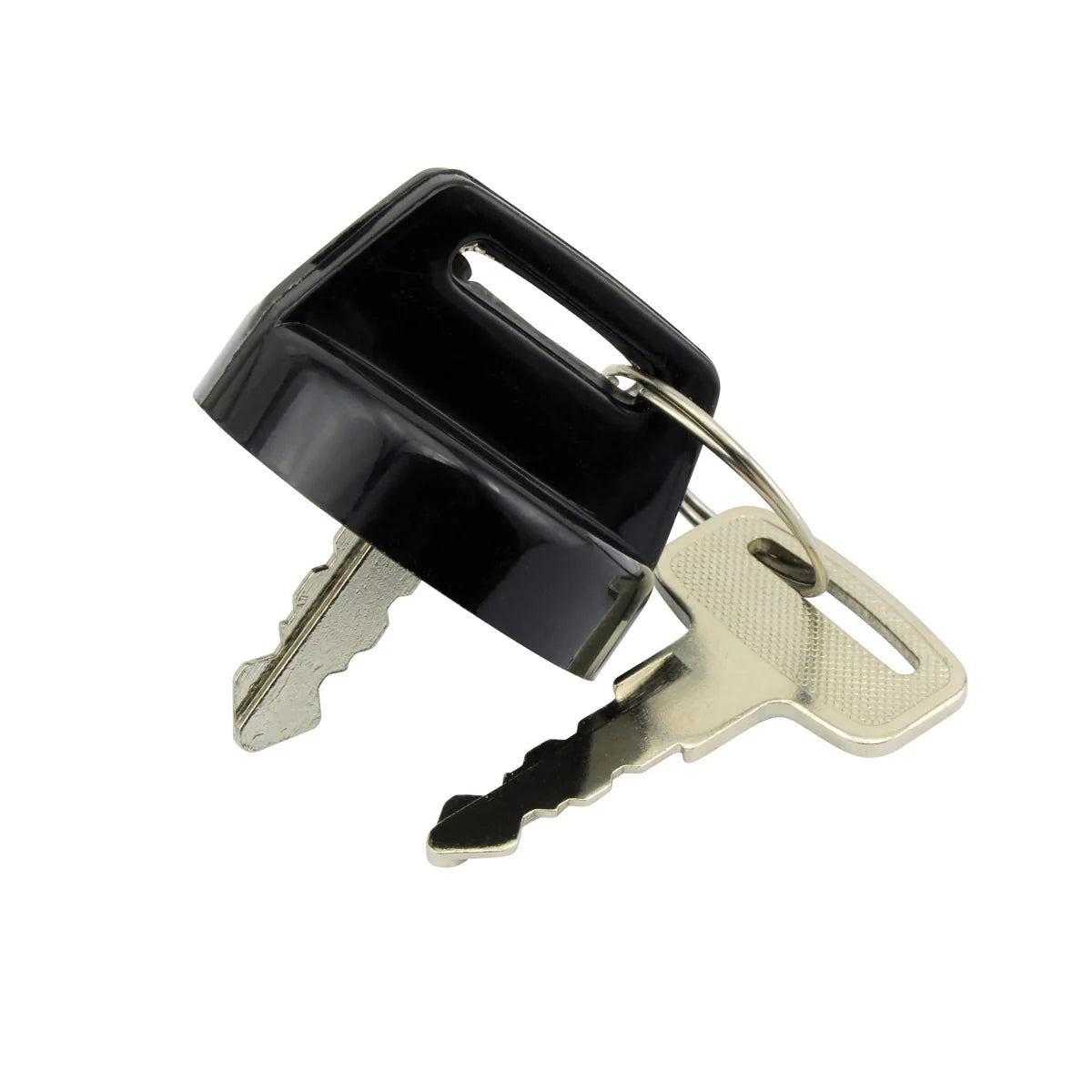

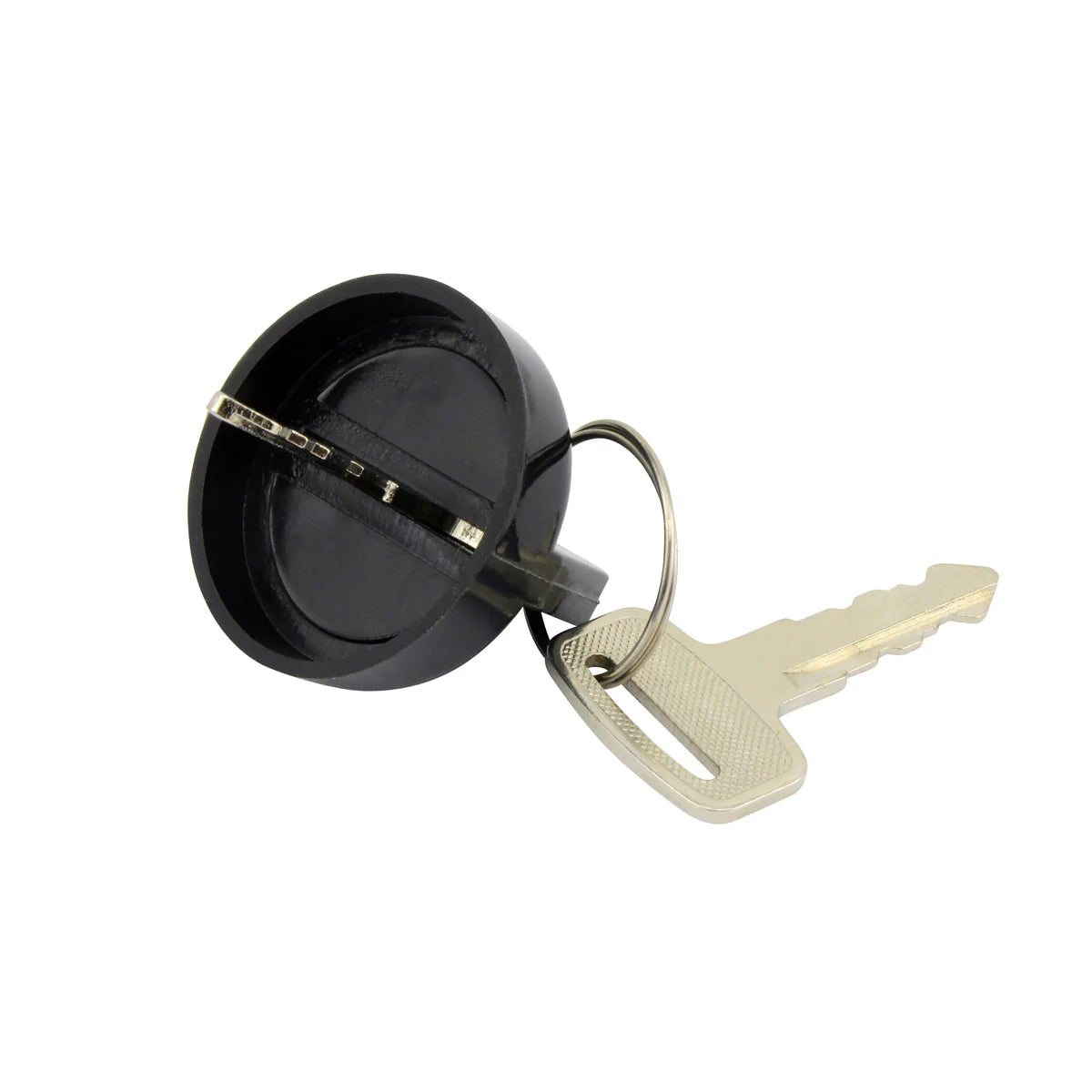

- Two keys included with every switch
- Connectors included

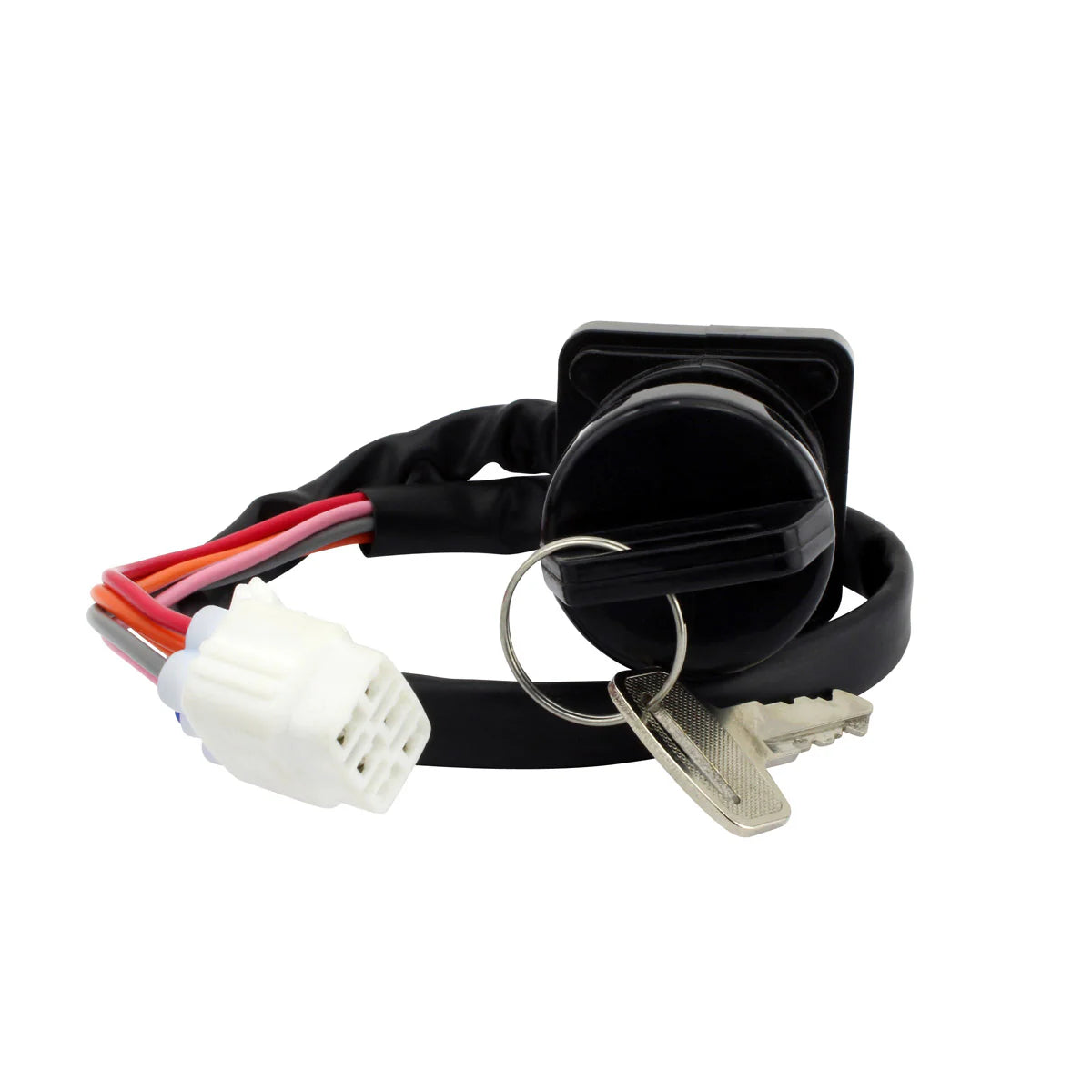

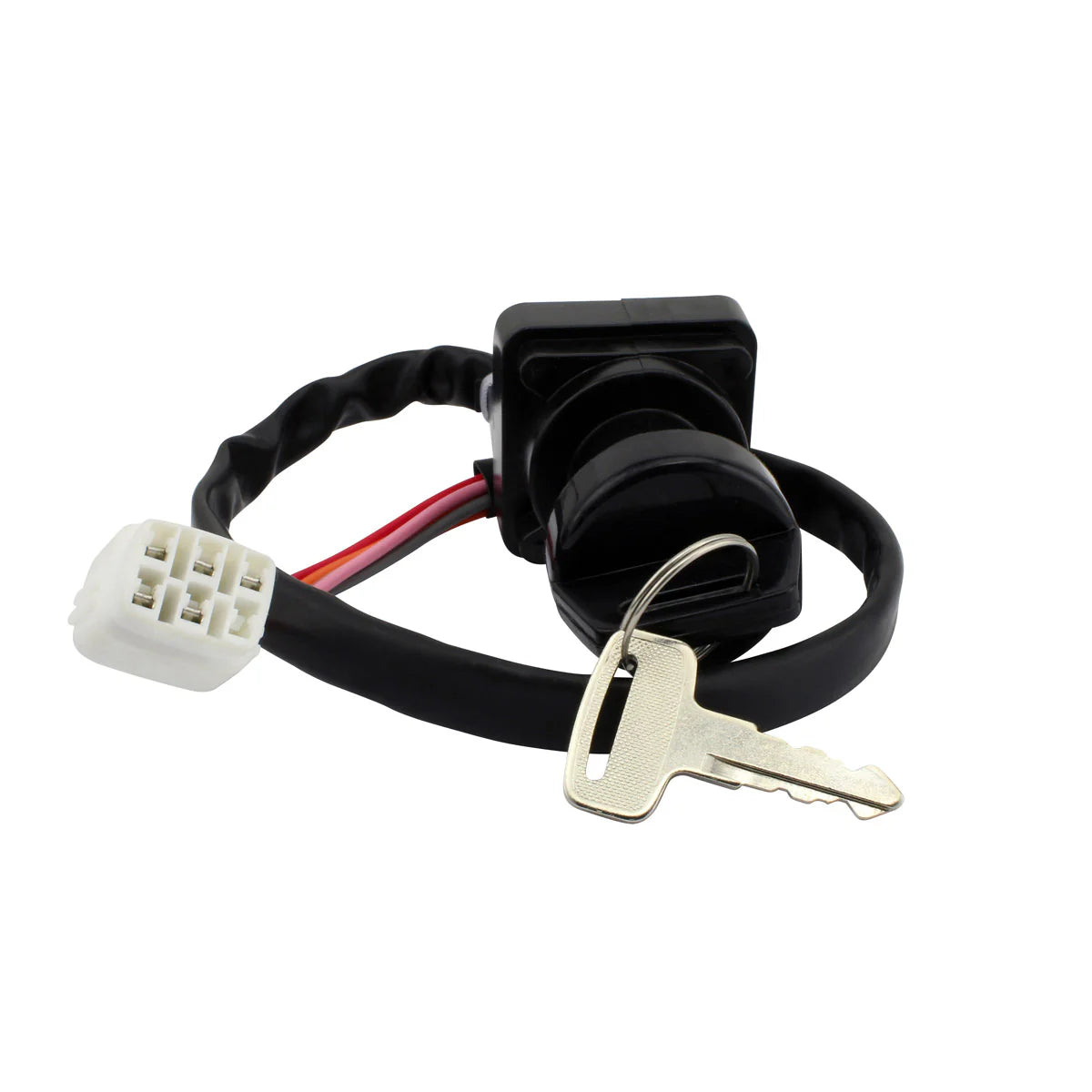

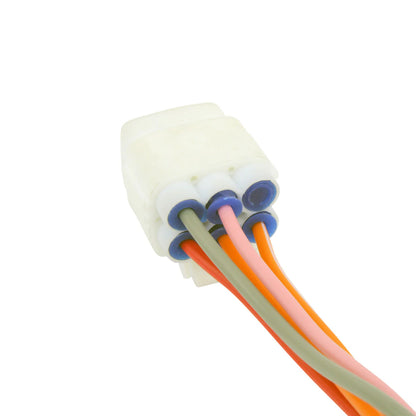

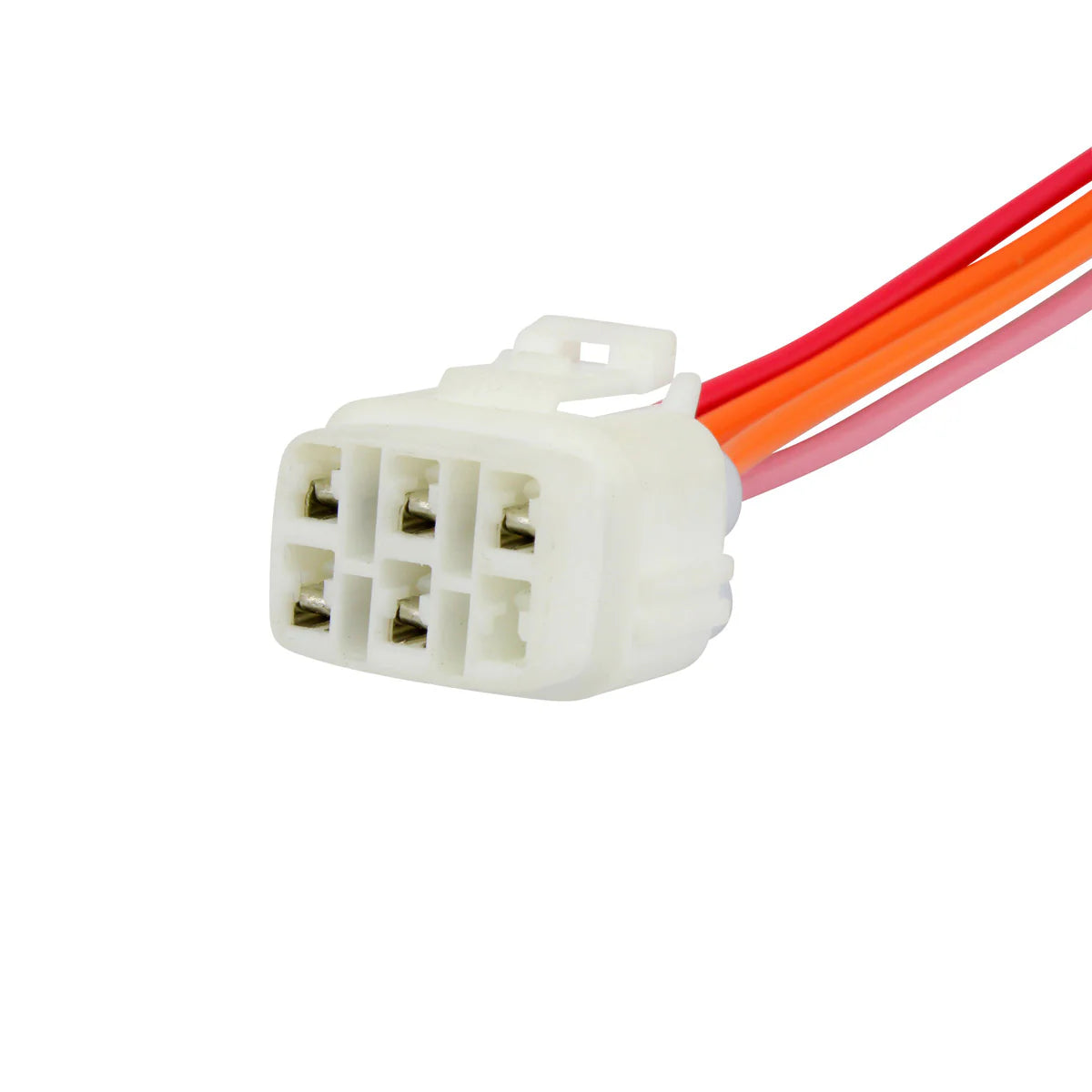

- Five wires and five pins on a 460 mm lead, single plug
- Every unit is tested before dispatch
Technical Specs
| Specification |
Detail |
| Part Number |
RMS110-108335 |
| Number of Positions |
4 (off, ignition no lights, ignition with lights, switched accessory) |
| Height |
51 mm |
| Length |
41 mm |
| Width |
41 mm |
| Wire Length |
460 mm |
| Number of Wires |
5 |
| Number of Pins |
5 |
| Number of Plugs |
1 |
| Number of Keys |
2 |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| Suzuki LTA 700 X KingQuad |
2005-2023 |
| Suzuki LTA 500 KingQuad AXi |
2005-2023 |
| Suzuki LTA 750 KingQuad AXi |
2005-2023 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 37110-31G00 |
Suzuki |
| 37110-31G01 |
Suzuki |
| 37110-31G10 |
Suzuki |
| 37110-31G20 |
Suzuki |
| 37110-34K00 |
Suzuki |
| 37110-34K01 |
Suzuki |
| 37110-34K10 |
Suzuki |
Frequently Asked Questions
Will this switch fit without modifying my wiring?
Yes. It is a direct replacement for the original unit and is plug-and-play, so it uses the machine's existing five-pin connector. No cutting, splicing or loom modification is needed.
What is included in the box?
The four-position ignition key switch, two keys and the connectors.
How do I know my old key switch has failed?
Typical symptoms are a quad that stays dead when the key is turned on, power that cuts in and out when the key or the wiring behind it is disturbed, lights that will not come on in the lights position, a barrel that spins without engaging a detent, or corroded and heat-damaged terminals at the plug. A continuity check across the terminals in each of the four positions will confirm whether the switch itself is passing current.
What do the four positions do?
Position one is off. Position two runs the ignition with the lights off. Position three runs the ignition with the lights on. The fourth is a switched accessory position, which feeds accessories without the ignition circuit live.
