40W AC to DC Lighting Kit with Stator and Regulator Rectifier
Honda CRF 250 X - 2004 to 2017

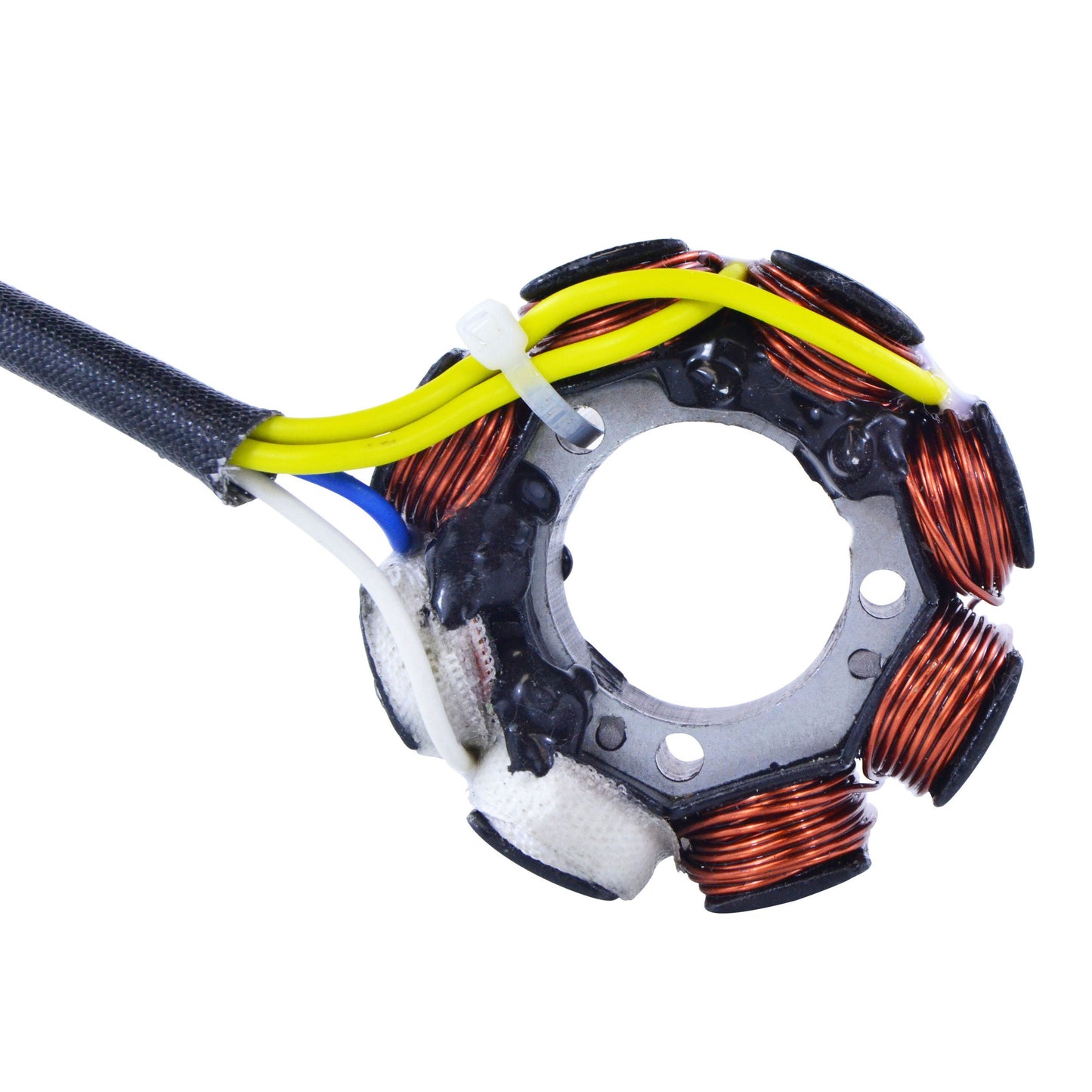

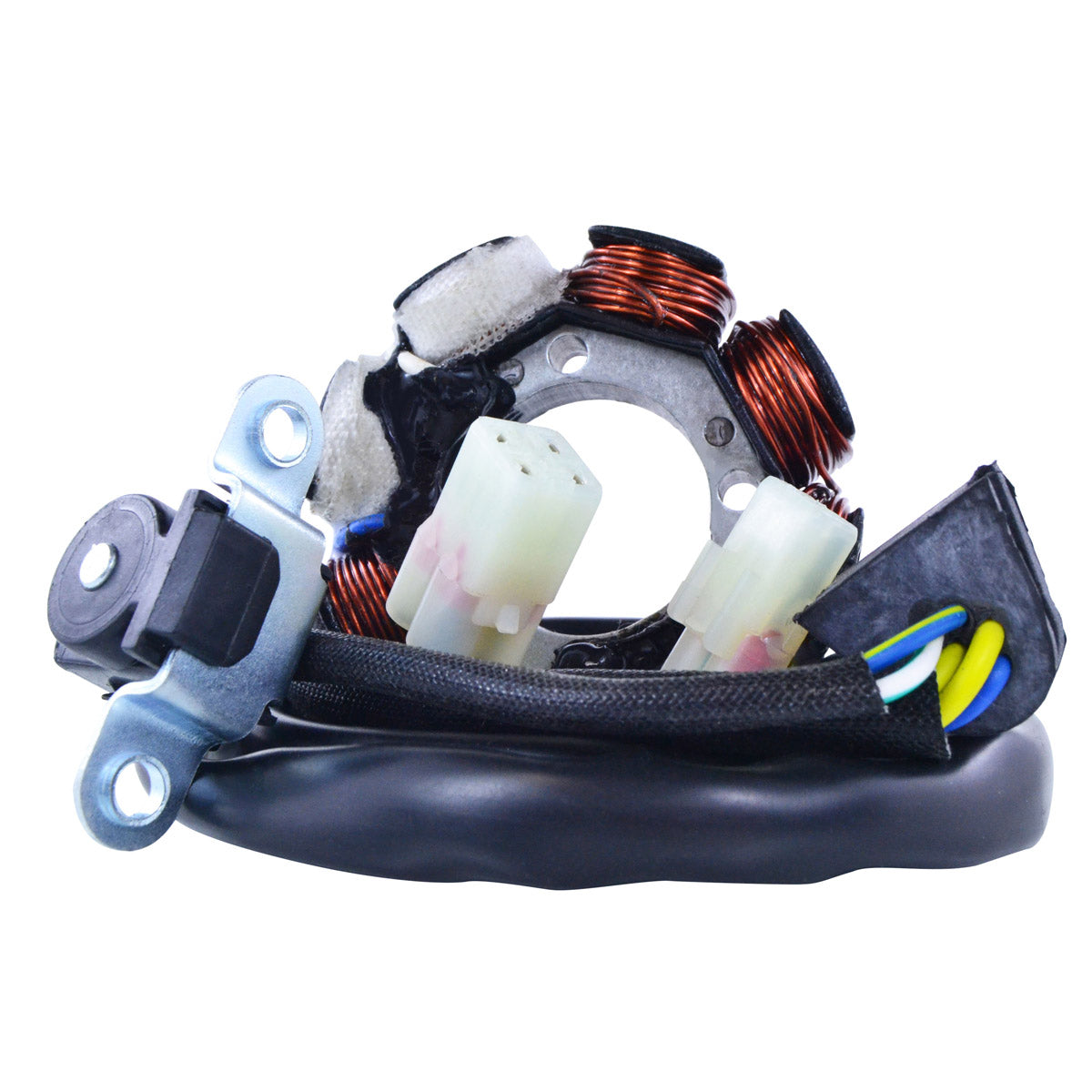

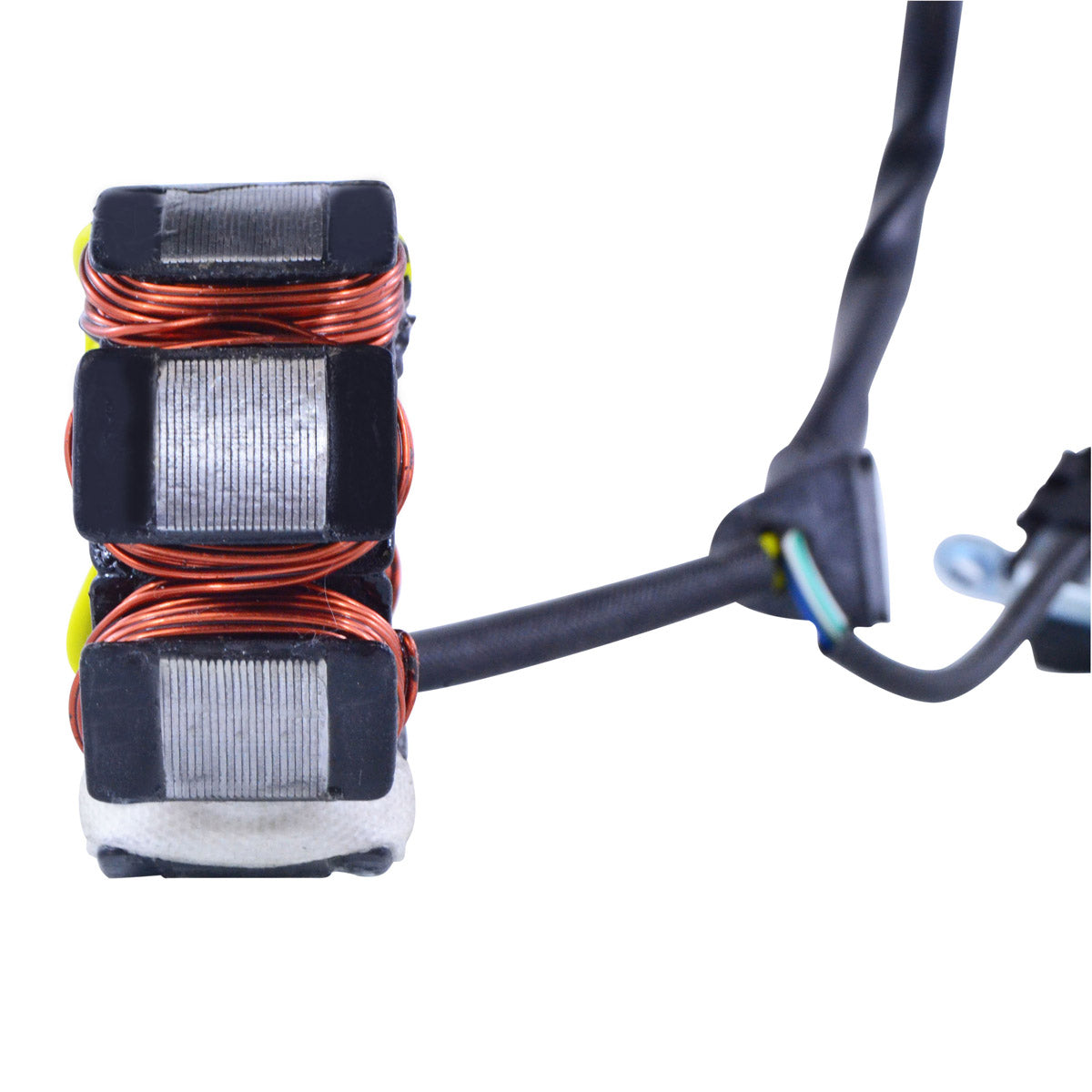

A brand new aftermarket AC to DC 40W stator and voltage regulator rectifier kit, supplied as a direct replacement for the original unit fitted to the Honda CRF 250 X. It is plug-and-play and a direct fit, so installation is straightforward, and the stator is built on the highest grade of lamination materials. Every product we ship is tested before it leaves us, and the kit arrives with the connector, the rubber grommet and printed installation instructions.
Lightweight LED lighting has made night riding far easier, but most motorcycle electrical systems simply do not produce enough power to run it. This RMSTATOR kit provides a stator with the higher power output needed to make starting easier and to run auxiliary lights and other accessories. It is designed to work with a DC system: the parts have built-in relays that energise the switched 12 V DC output line only when the motor is running, and an adjustable shut-off delay turns the lights off automatically afterwards, so a forgotten light switch can no longer flatten the battery.
Key Features
- Brand new aftermarket AC to DC conversion kit rated at 40 W
- Direct replacement for the original unit - plug-and-play, direct fit, easy installation
- Stator built with the highest grade of lamination materials
- Built-in relay energises the switched 12 V DC output line only while the motor is running

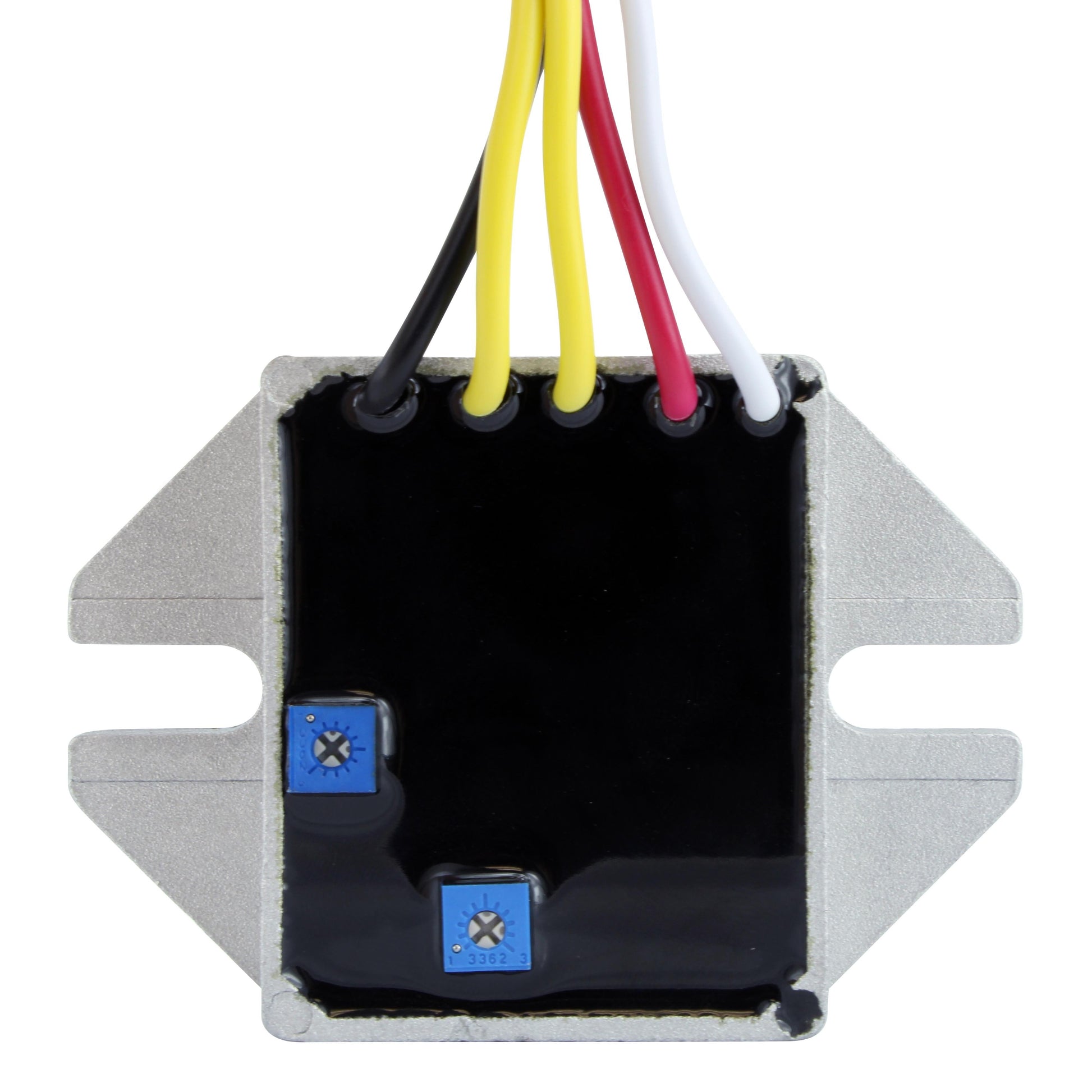

- Adjustable shut-off delay switches the lights off automatically

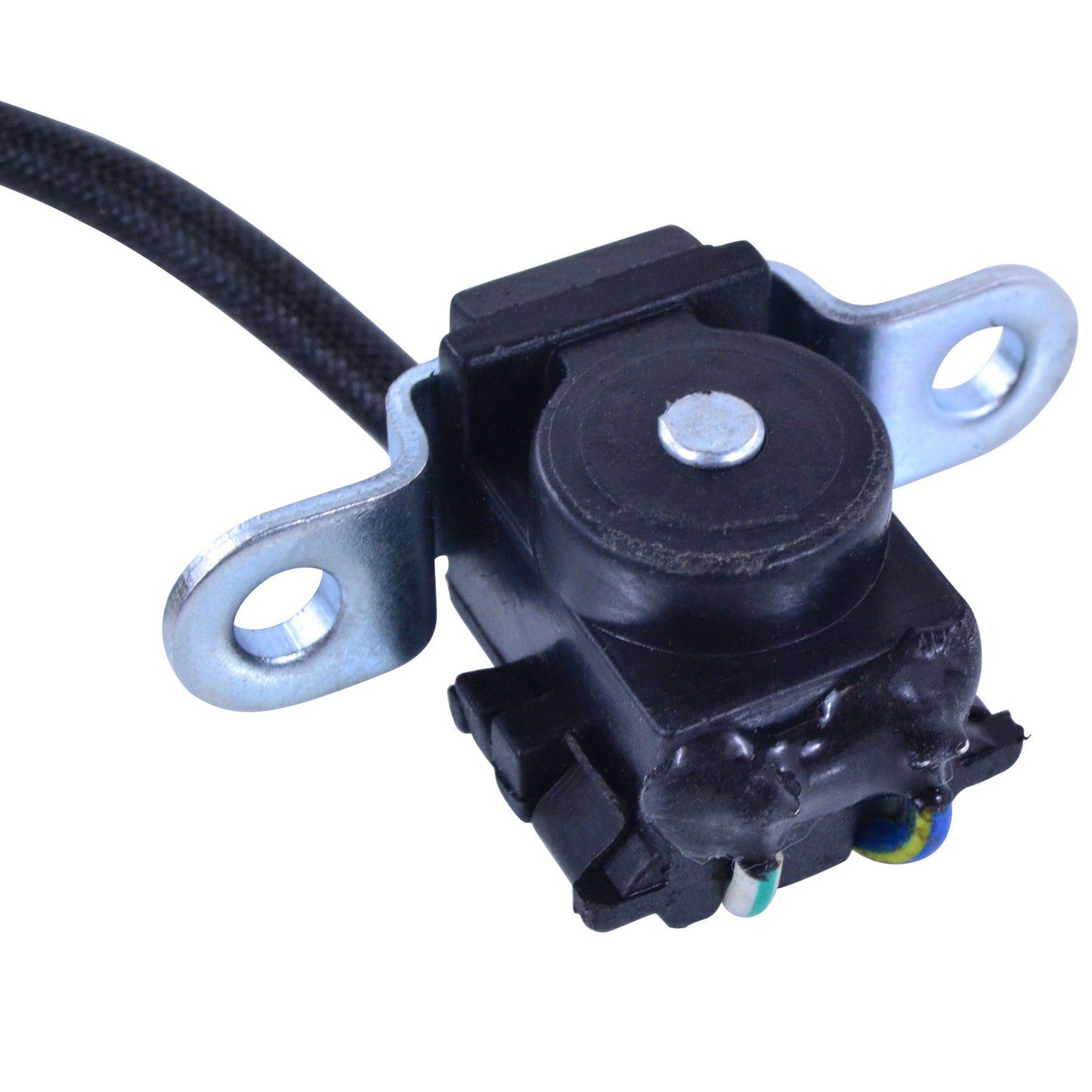

- Stator supplied with its pickup pulsar coil

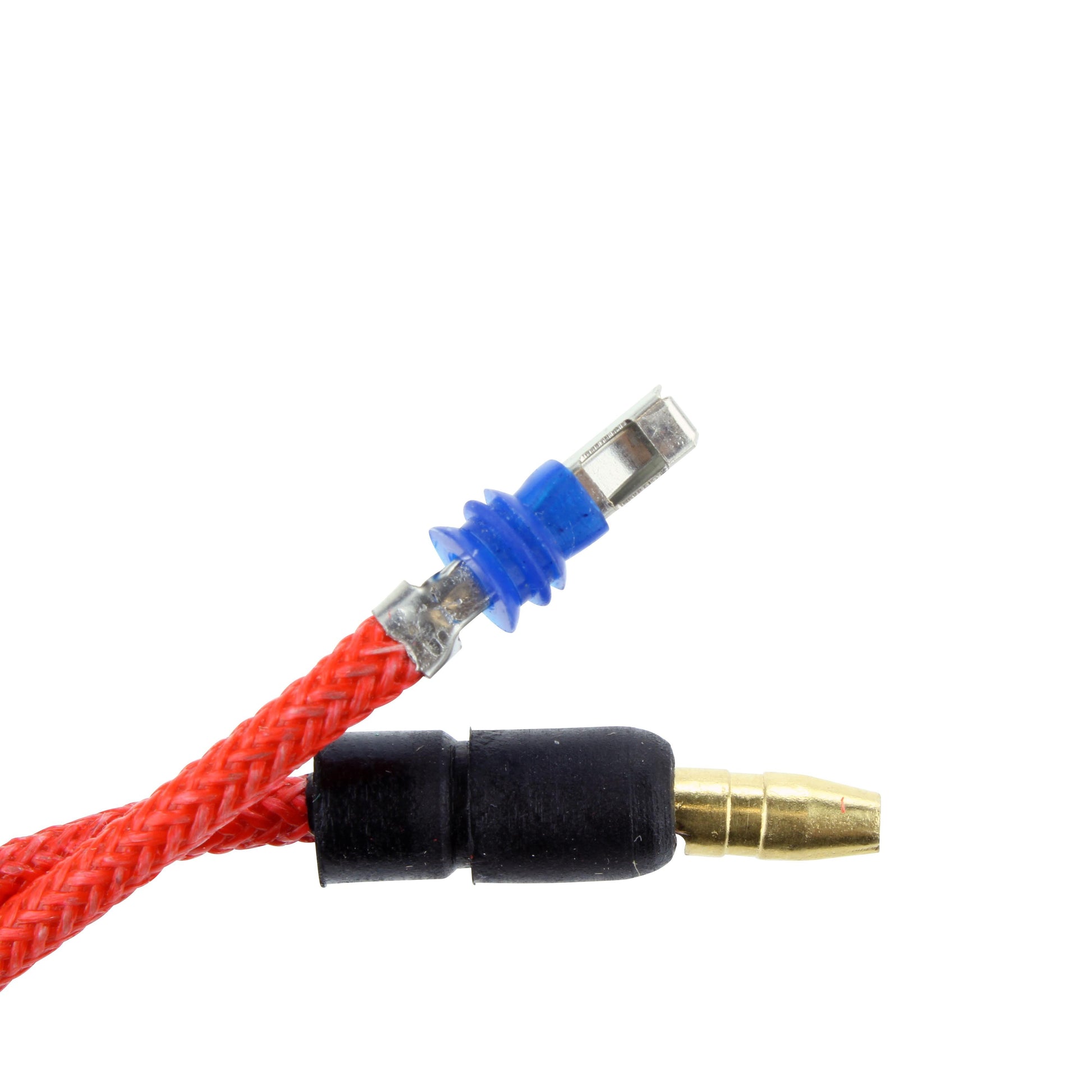

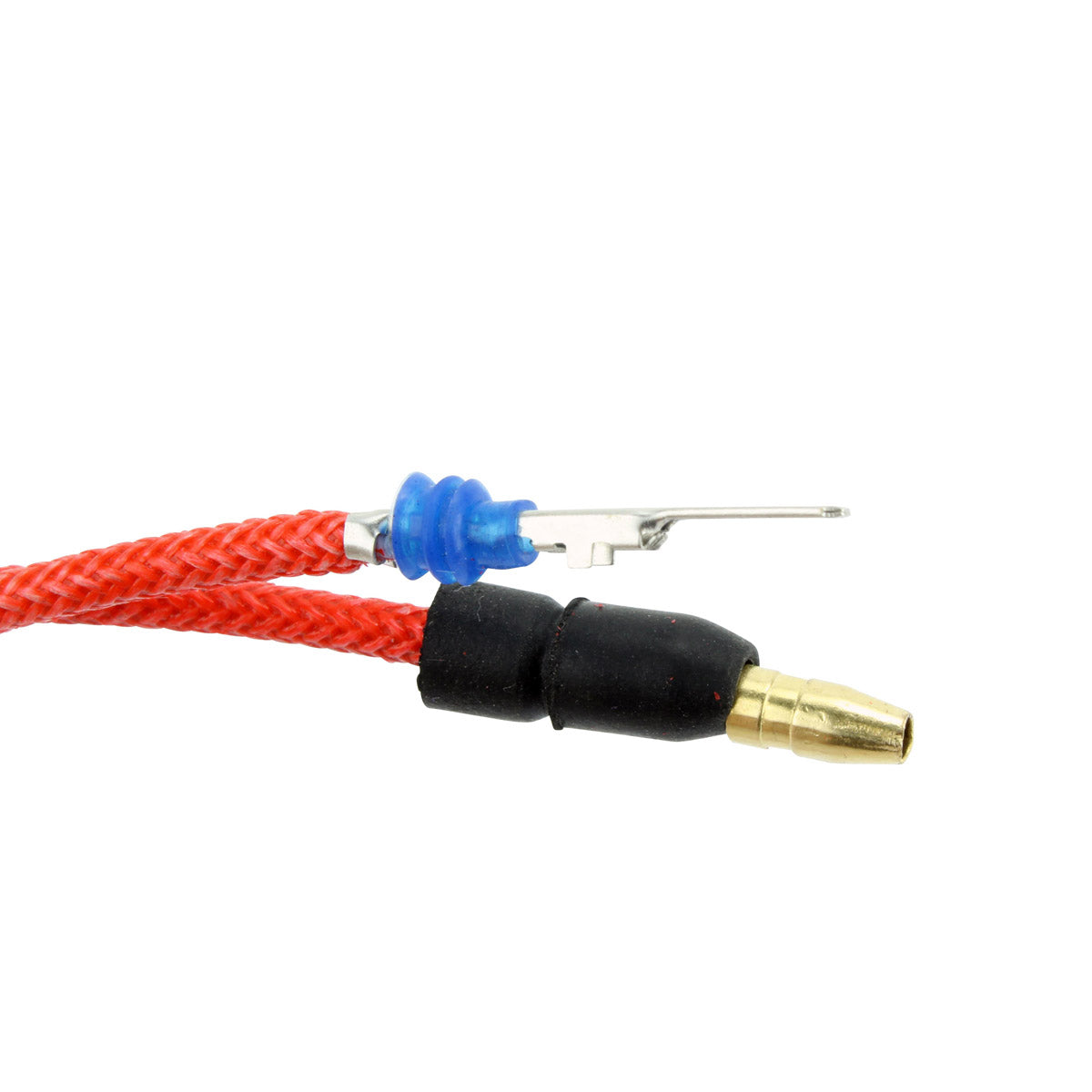

- Connector and rubber grommet included
- Installation instructions included
- All products shipped are tested
Technical Specs
| Specification | Detail |
|---|---|
| Stator interior diameter | 28 mm |
| Stator exterior diameter | 61 mm |
| Stator thickness | 14 mm |

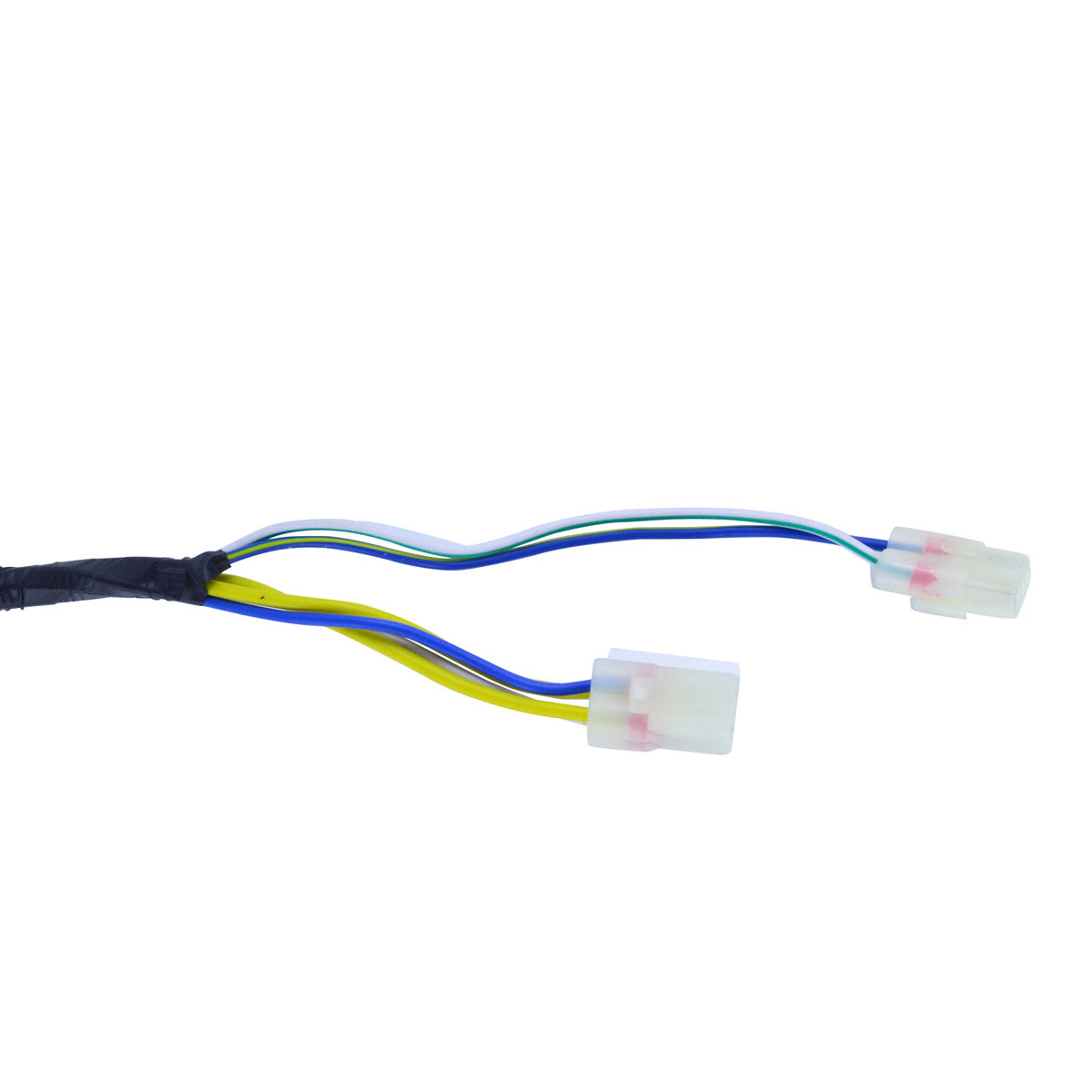

| Wire length, stator to grommet | 100 mm |
| Wire length, grommet to plug | 660 mm |
| Pickup coil wire to grommet | 65 mm |
| Number of wires (stator) | 6 |
| Number of plugs (stator) | 4 |
| Number of pins (stator) | 6 |
| Alternator resistance, yellow to yellow | 0.5 ohms +/- 20% |
| Pickup resistance, blue/yellow to green/white | 267 ohms +/- 20% |
| Source resistance, blue to white | 24 ohms +/- 20% |

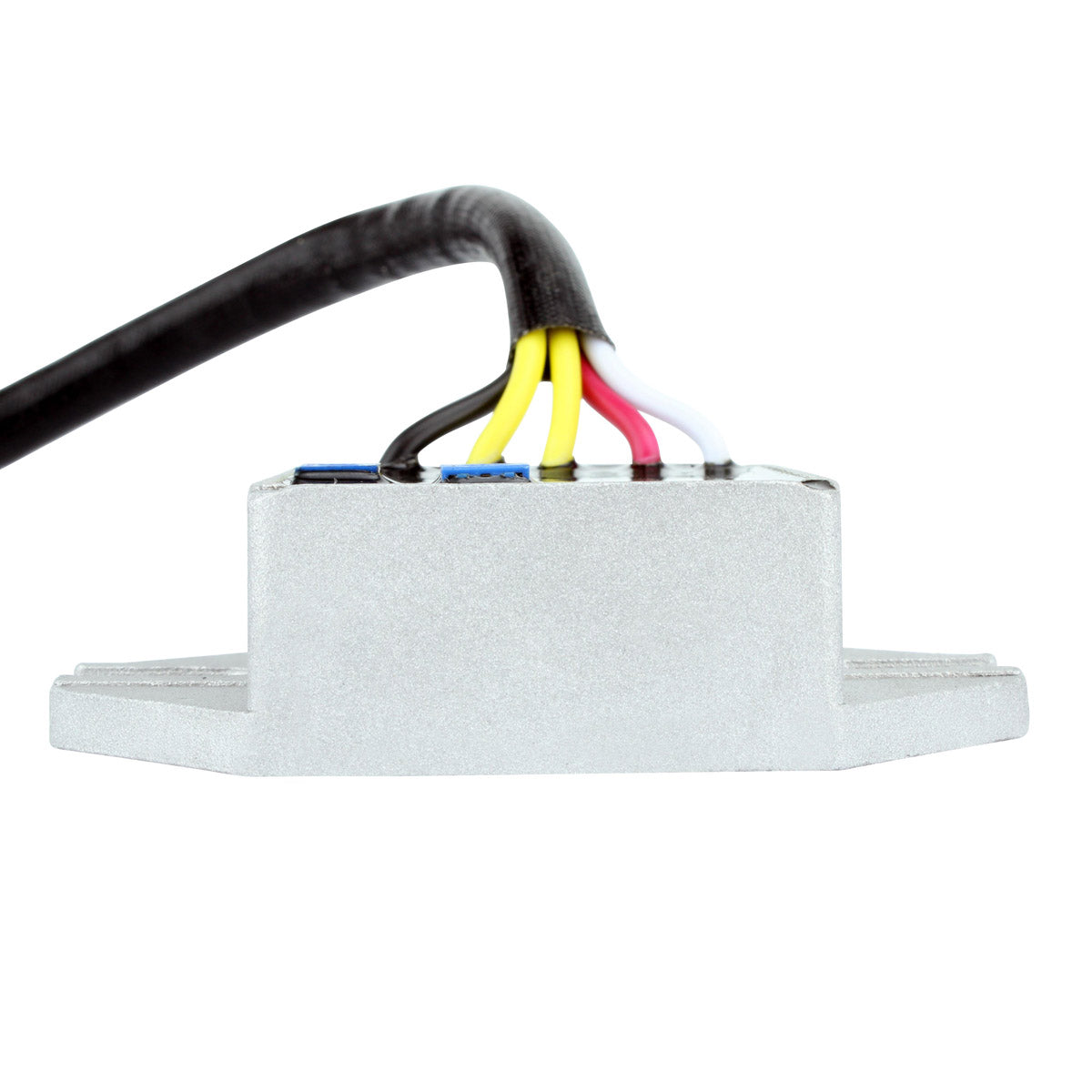

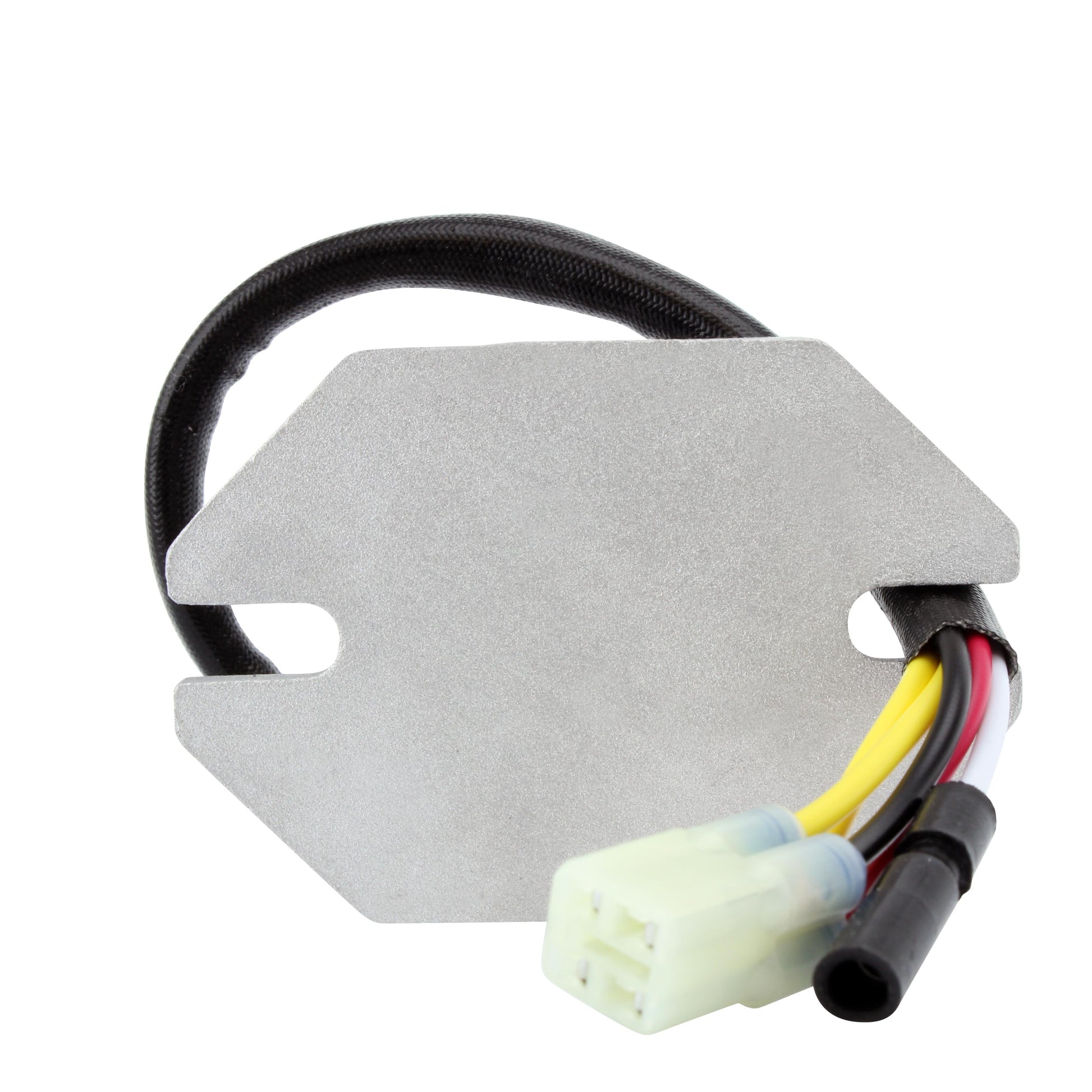

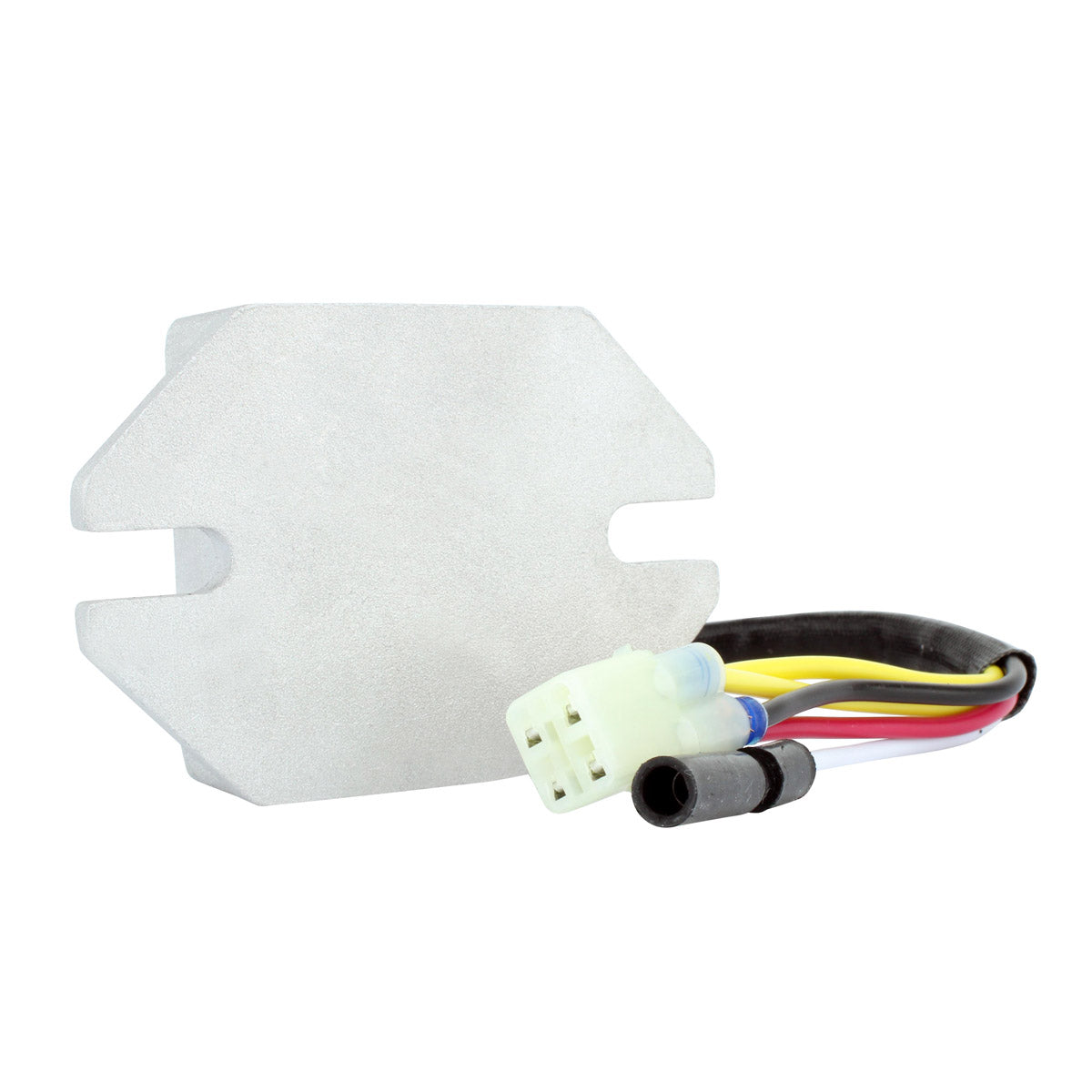

| Regulator width | 44 mm |
| Regulator length | 79 mm |
| Regulator height | 22 mm |
| Regulator wire length | 250 mm |
| Regulator fixing holes, centre to centre | 62 mm |
| Number of wires (regulator) | 5 |
| Minimum charging voltage | 14.5 V +/- 0.5 V |
| Maximum charging current | 50 A / 500 W |
| Open circuit voltage | 15 V |
| Operating temperature | -20 to 85 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Honda CRF 250 X | 2004-2017 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 104238-R00 | RMSTATOR interchange reference |
Frequently Asked Questions
Will this kit fit my CRF 250 X without modification?
The kit is a direct replacement for the original unit on the Honda CRF 250 X built between 2004 and 2017. It is plug-and-play and a direct fit, and the connector and rubber grommet needed are supplied, along with printed installation instructions covering the AC to DC conversion wiring.
What is included in the box?

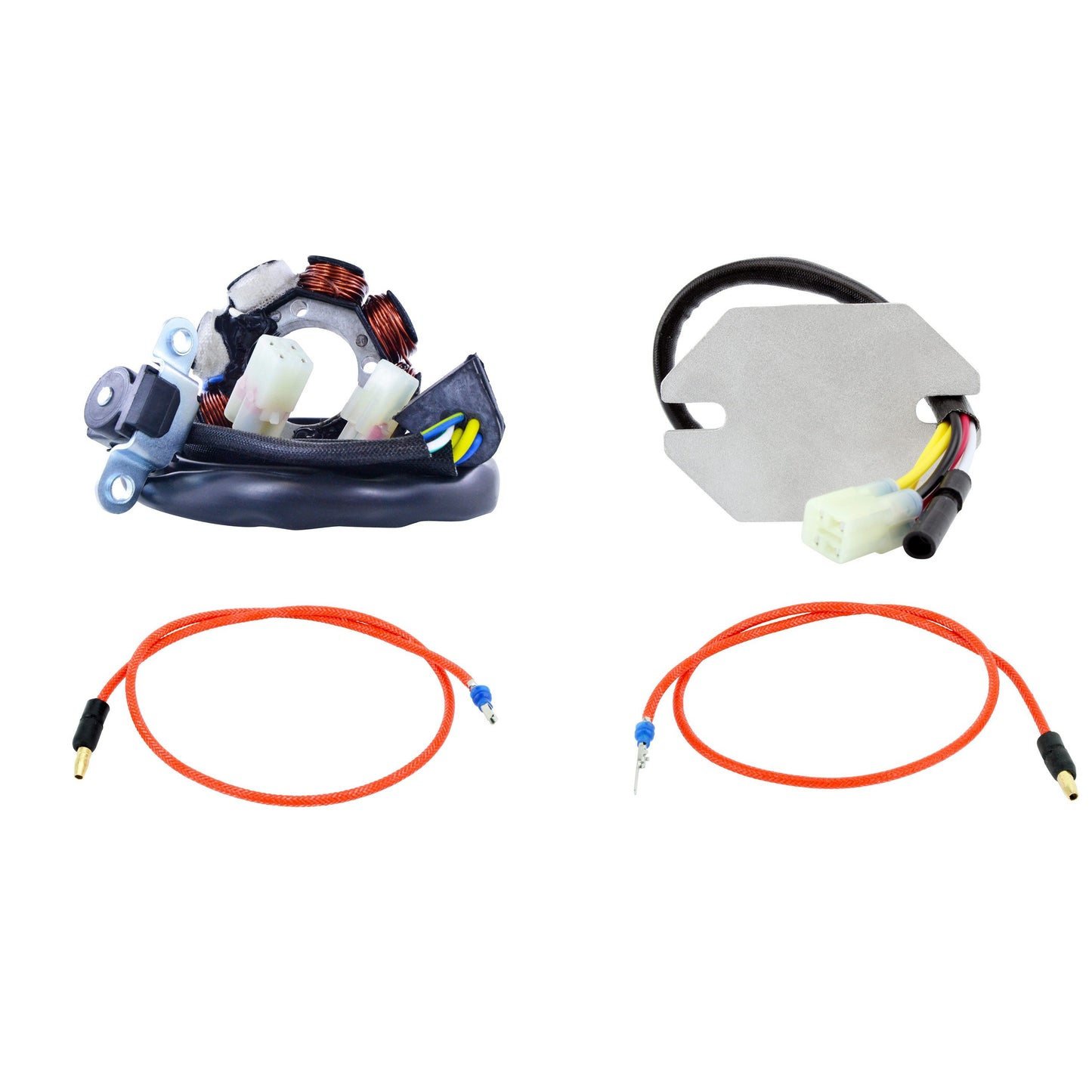

You receive the stator with its pickup pulsar coil, the voltage regulator rectifier, the connector, the rubber grommet and the installation instructions.
How can I tell that my old stator has failed?
A flat or persistently under-charged battery, dim or flickering lights and hard starting are the usual signs. With the engine off and the connectors unplugged, measure the resistance figures listed in the specification table above: 0.5 ohms +/- 20% between the yellow alternator wires, 267 ohms +/- 20% across the pickup, and 24 ohms +/- 20% across the source coil. A reading well outside those values, or continuity to the stator body, points to a failed winding.
How much power does the kit provide?
The stator is rated at 40 W for the AC to DC lighting conversion. The regulator rectifier holds a minimum charging voltage of 14.5 V +/- 0.5 V, has an open circuit voltage of 15 V and a maximum charging current of 50 A / 500 W, and it operates from -20 to 85 degrees Celsius.
