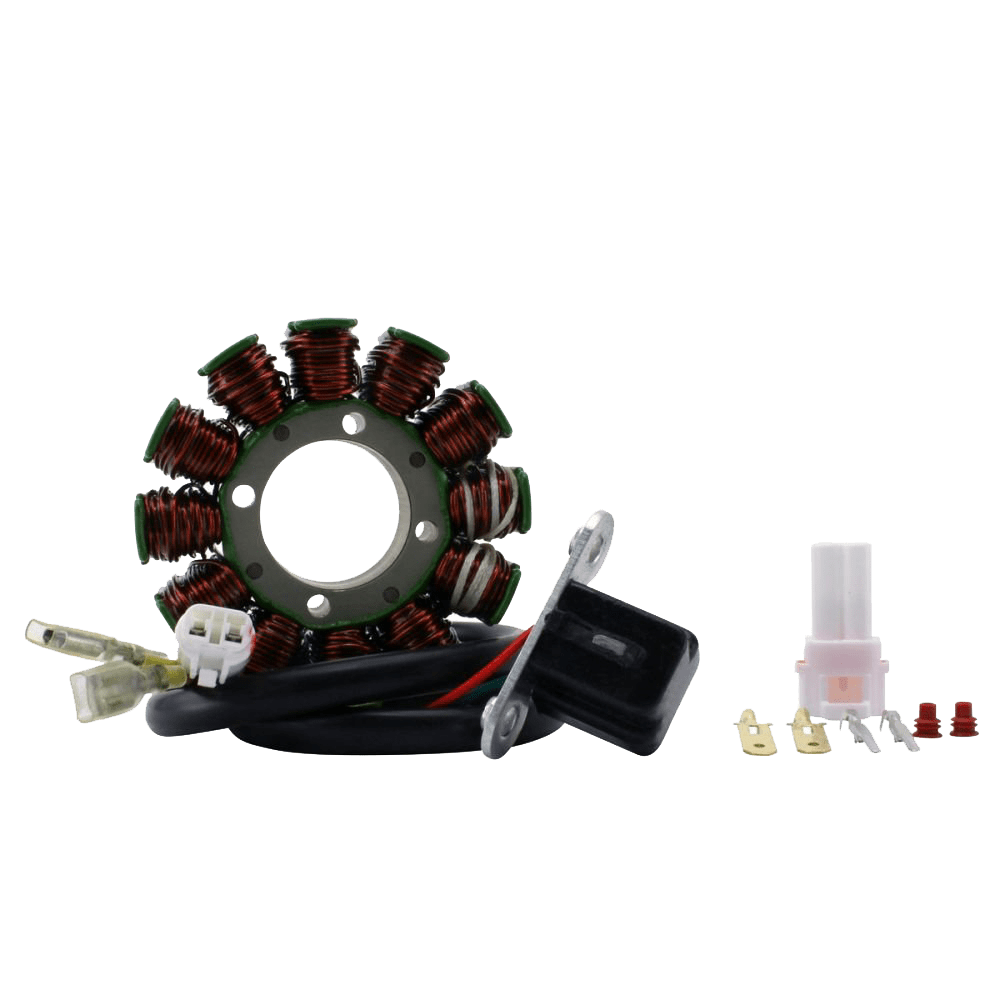

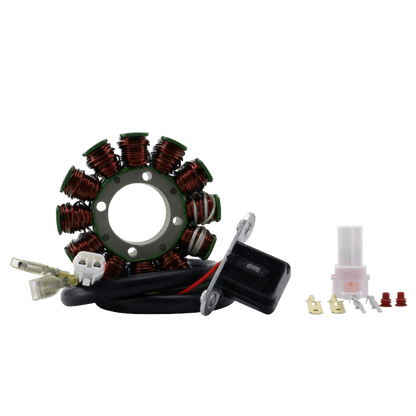

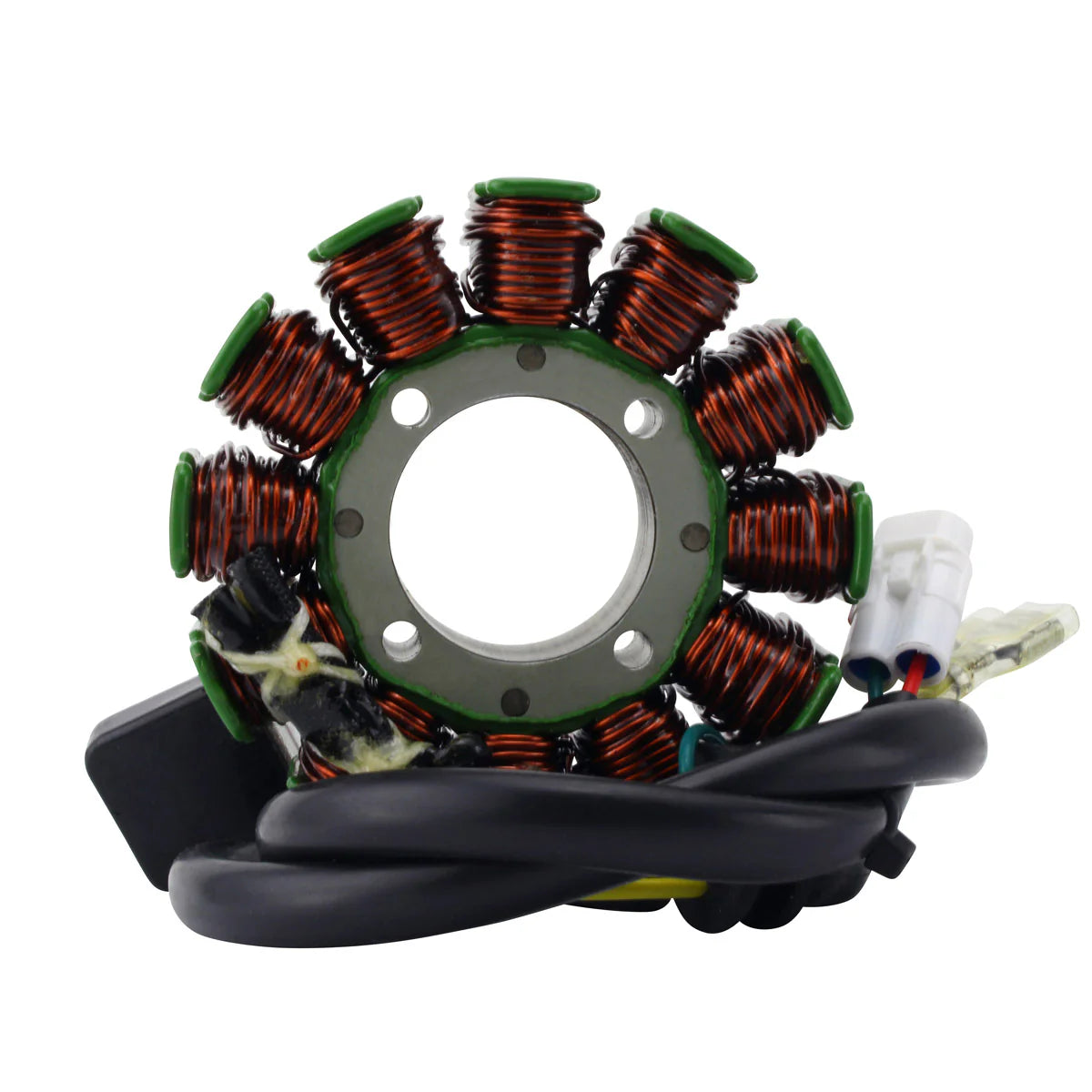

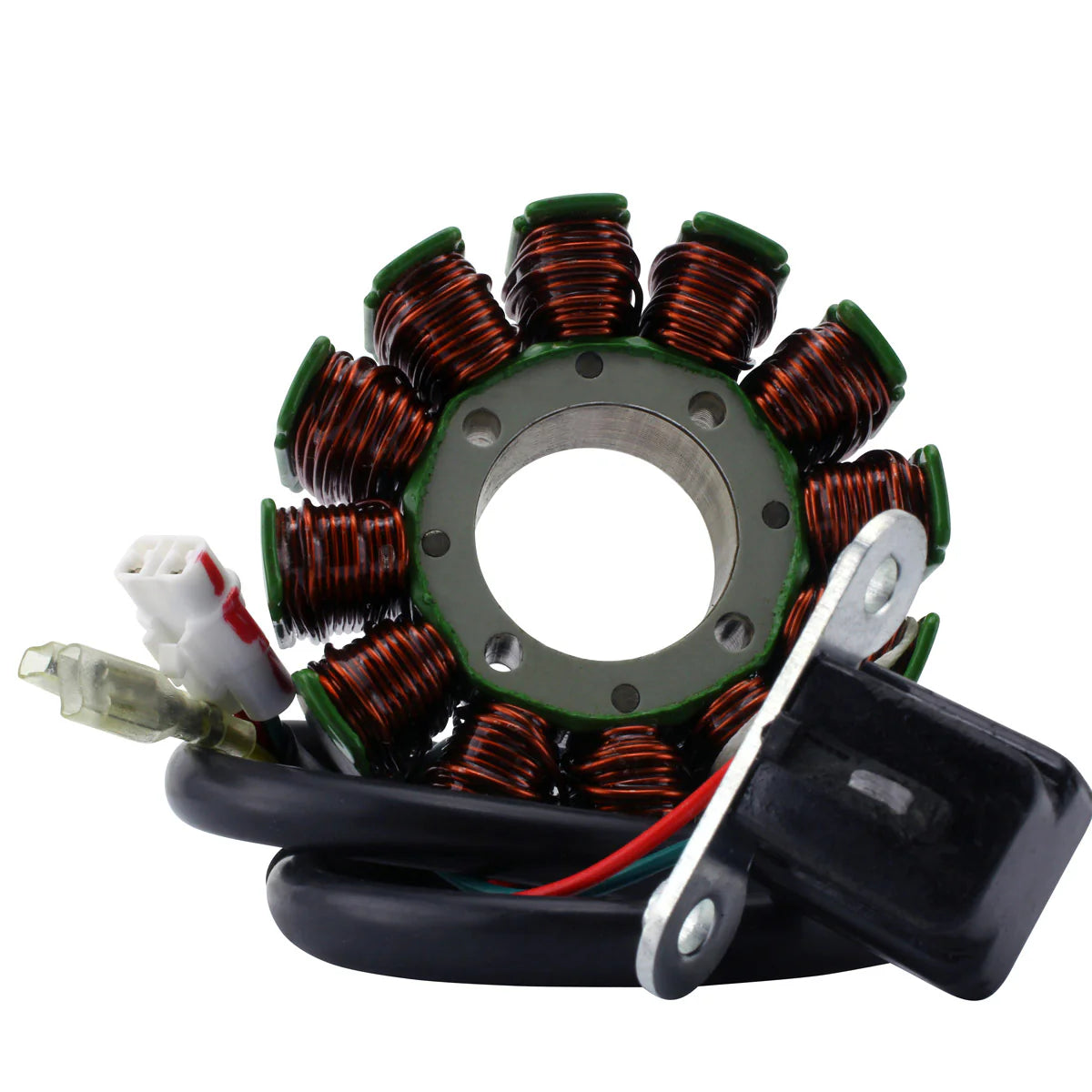

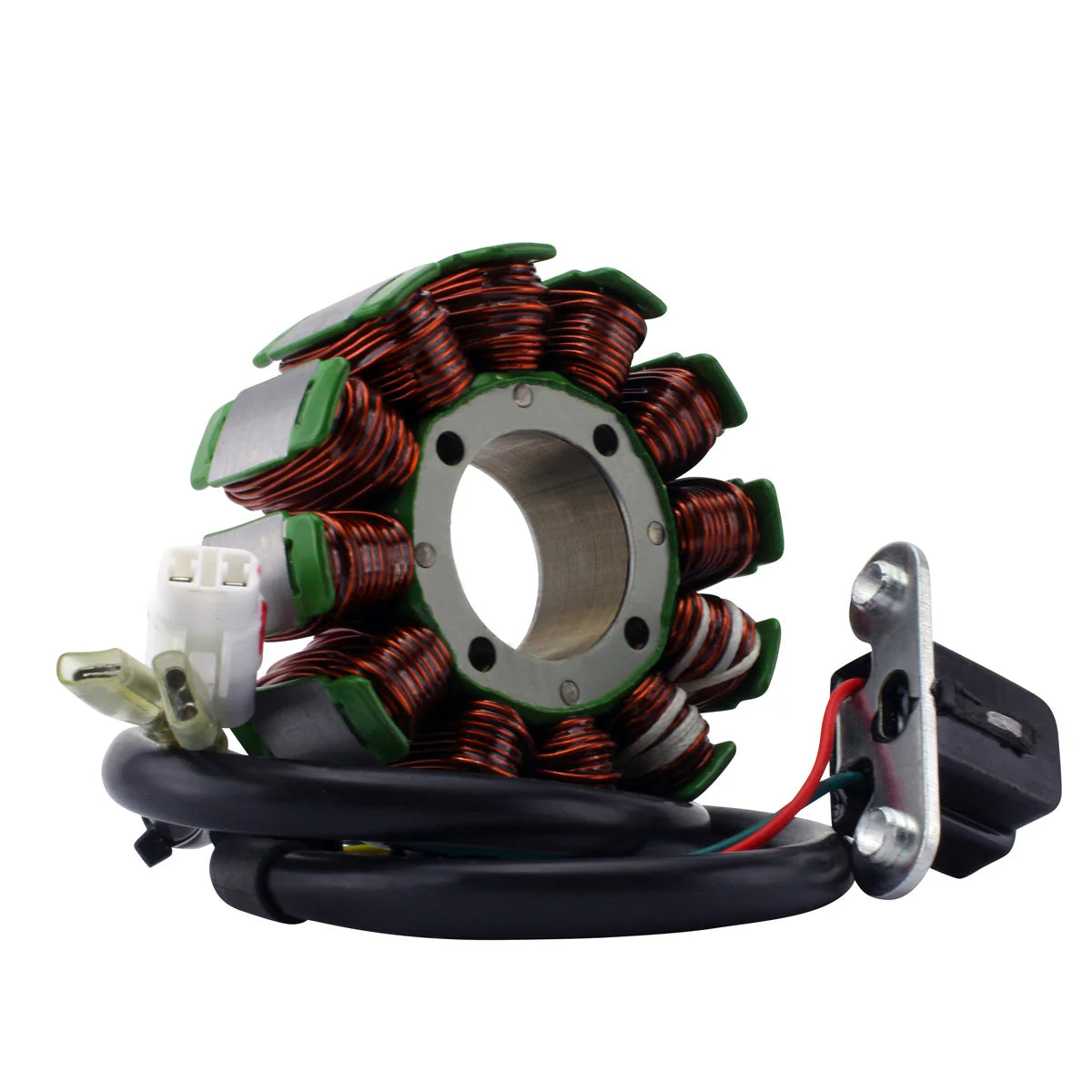

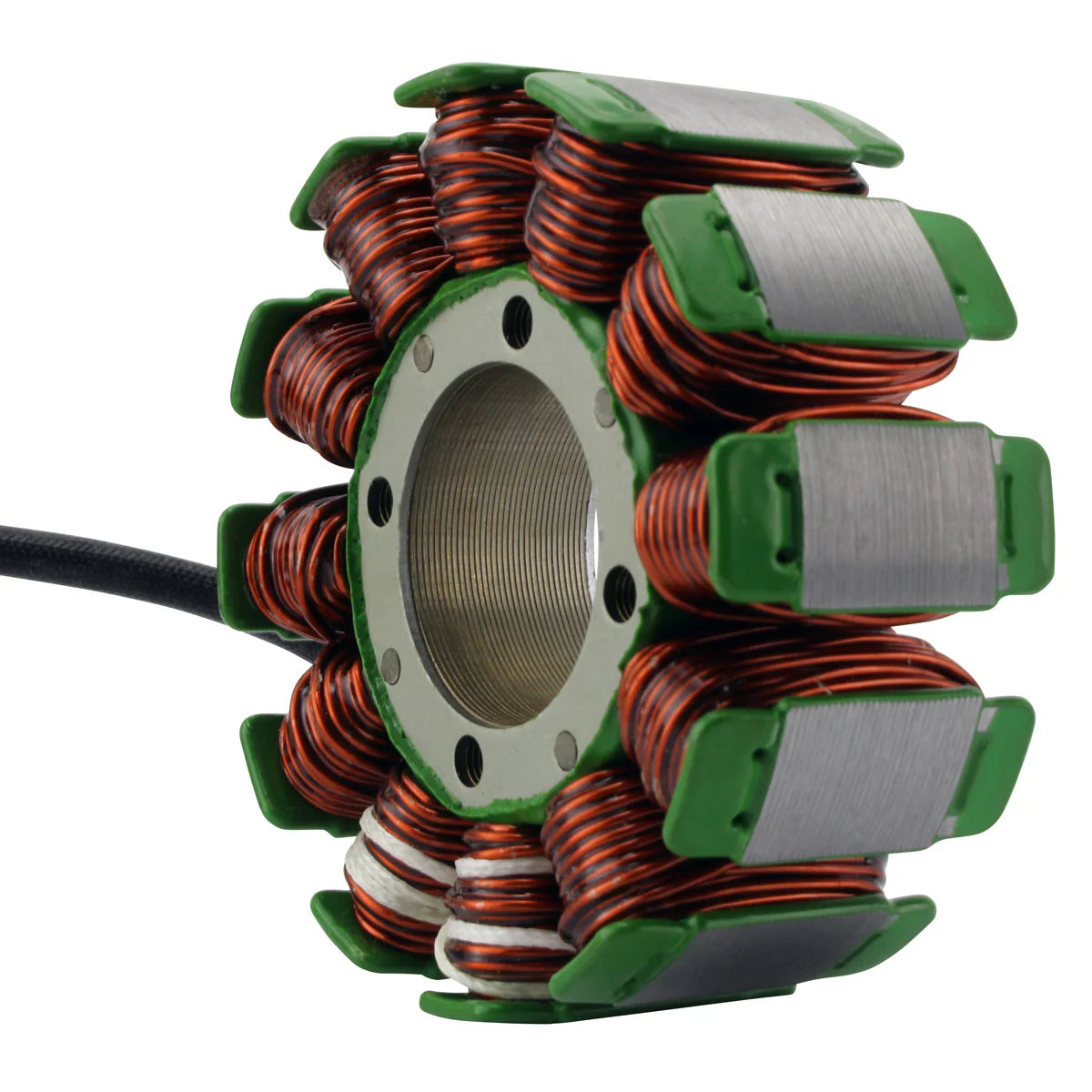

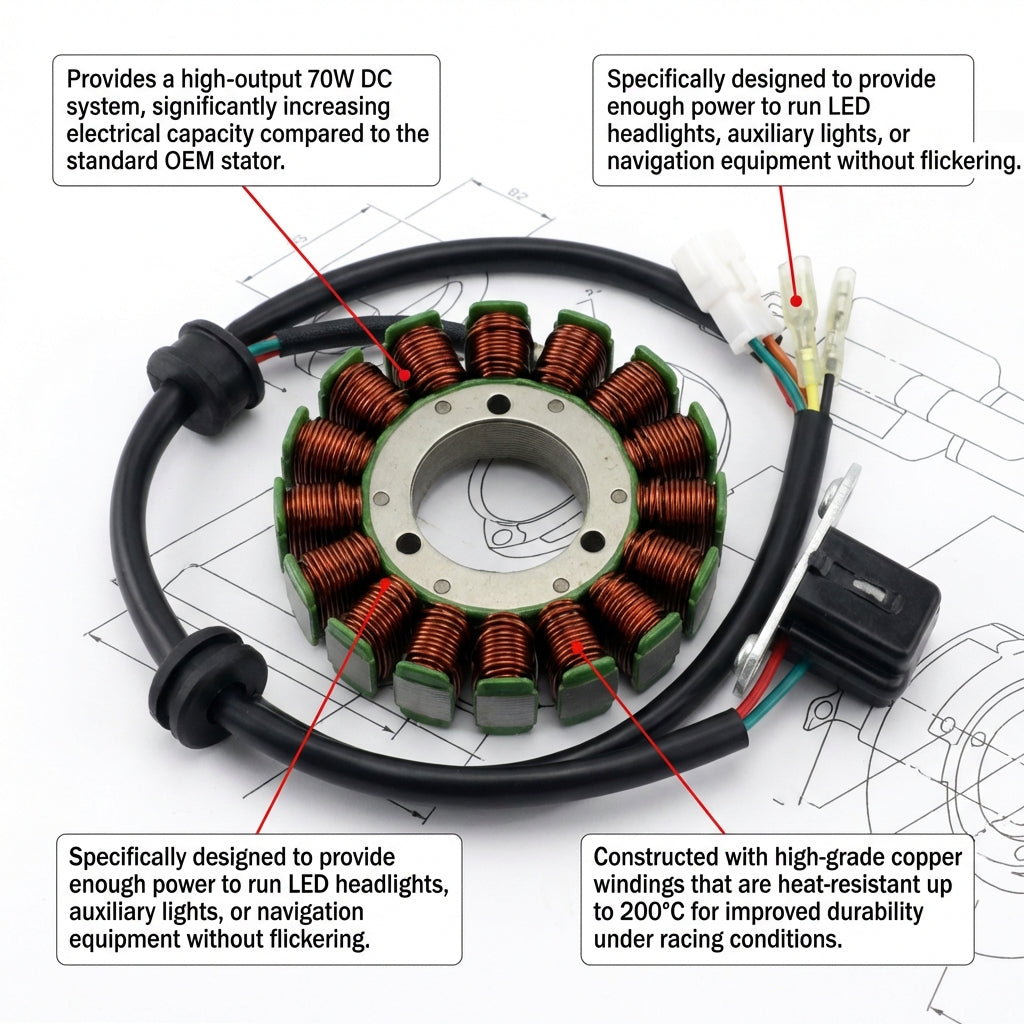

This is a brand new aftermarket high output stator rated at 80 Watt DC, built as a direct replacement for the original unit fitted to the KTM 250 and 350 SX-F and XC-F and to the Husqvarna FC 250 and 350. RMSTATOR state that this stator increases power output significantly, giving 20 per cent more output over stock while working with all other OEM components. It is plug-and-play and a direct fit, so it mounts in the standard position and connects to the existing loom without cutting or modification.

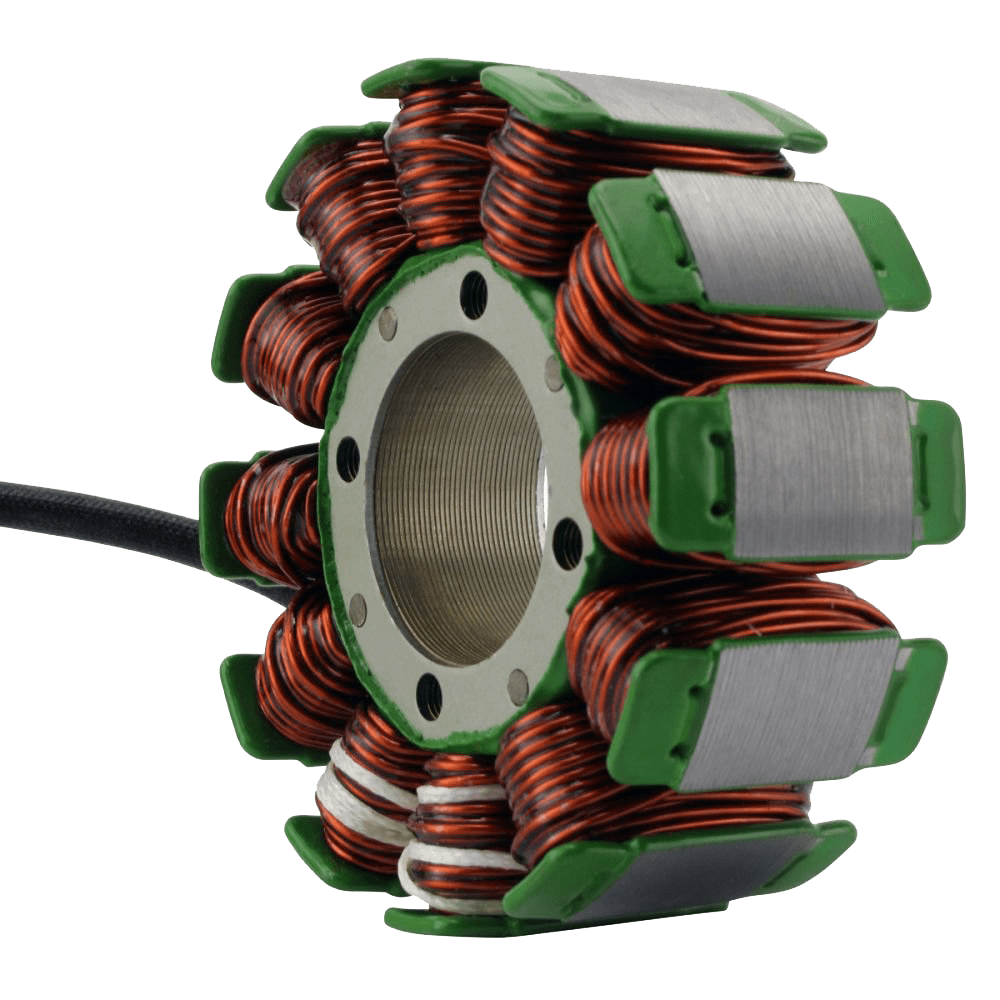

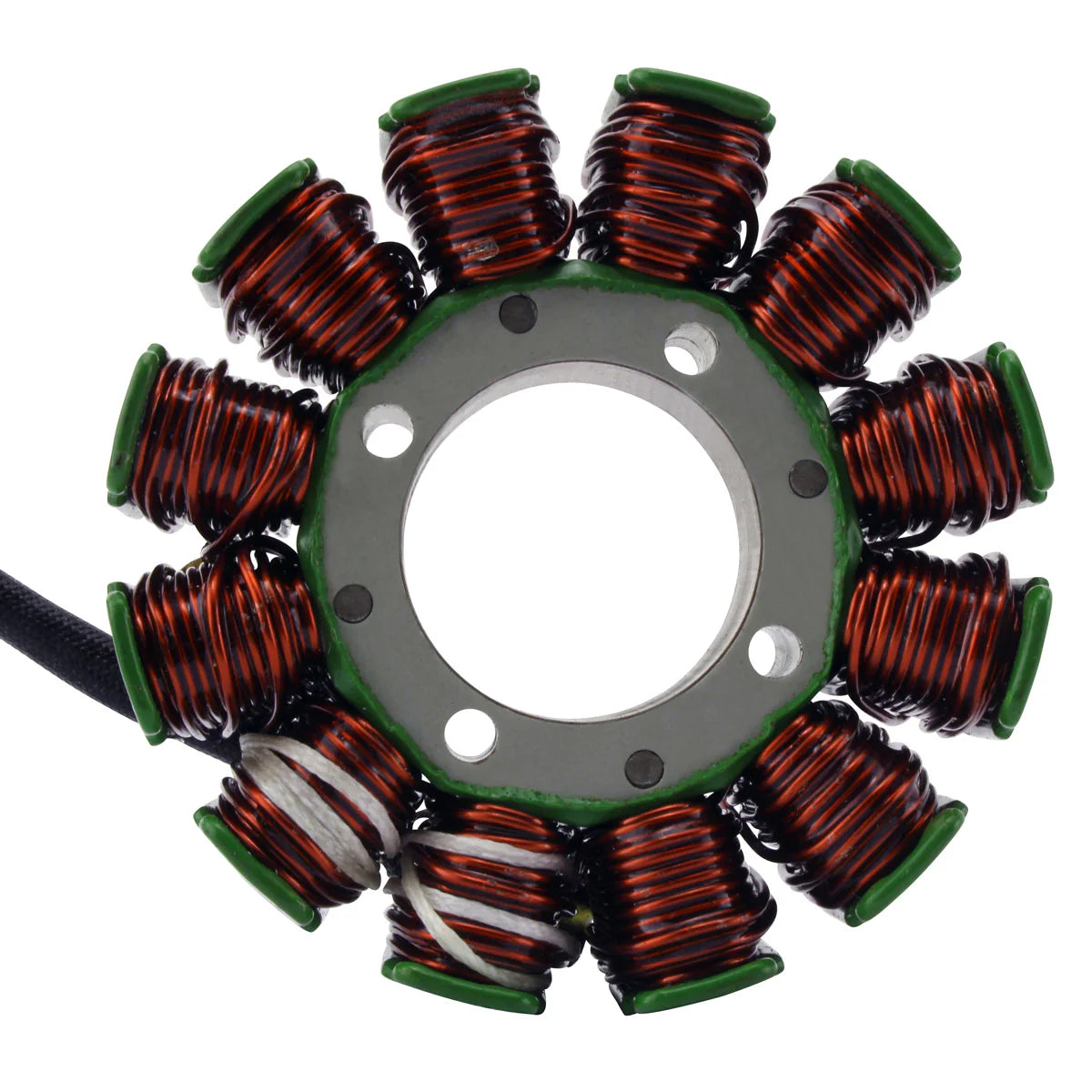

The pick-up pulsar coil is supplied on the assembly, so the ignition trigger is renewed at the same time as the charging winding. The unit is built on the highest grade of lamination materials and wound with the highest grade of copper winding, resistant to 200 degrees Celsius. Connectors and a rubber grommet are included. The extra output is useful on a competition four stroke that has to carry lighting, a fan or other added electrical load without flattening the battery.
Key Features
- 80 Watt DC high output, 20 per cent more output over stock
- Works with all other OEM components
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation

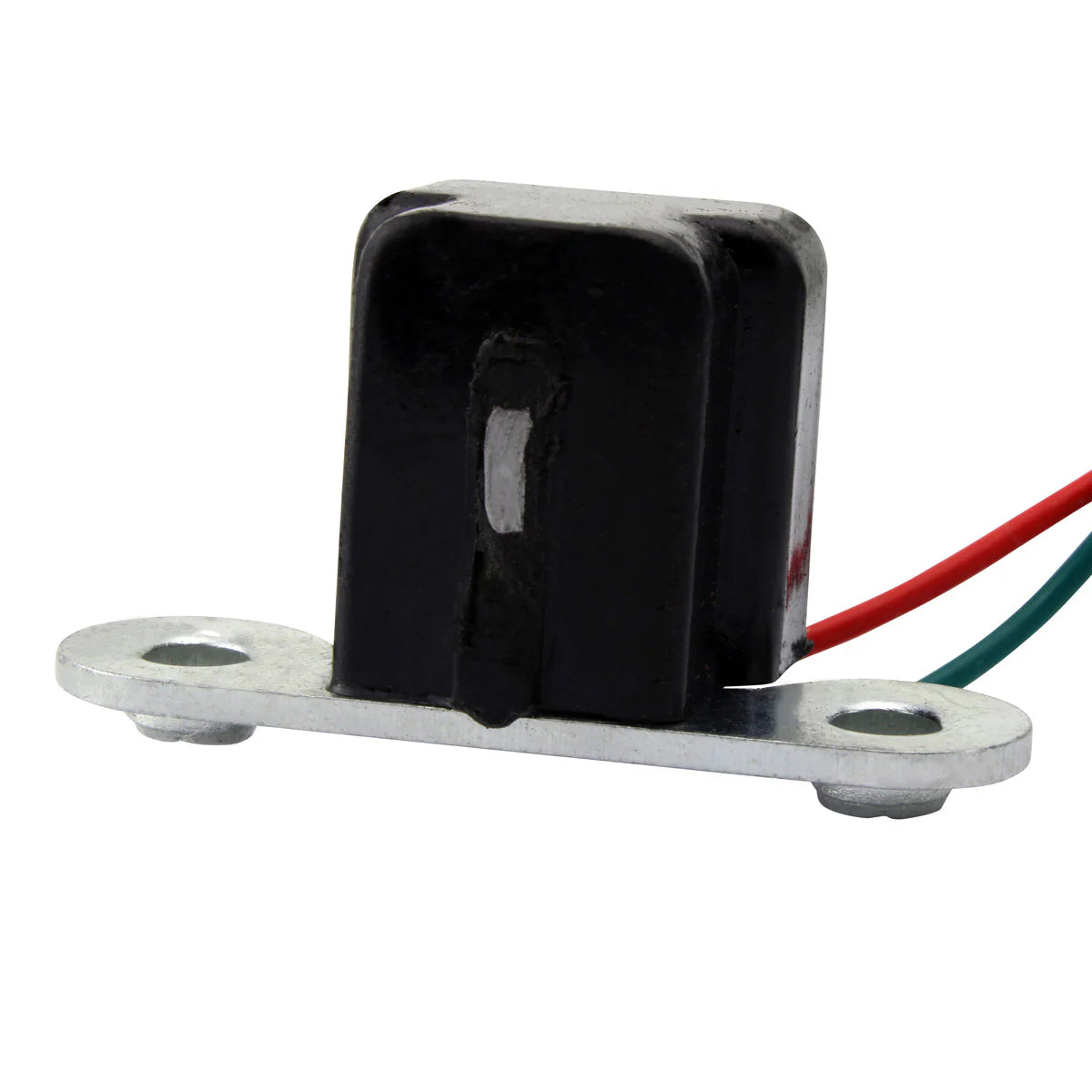

- Pick-up pulsar coil included on the assembly
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

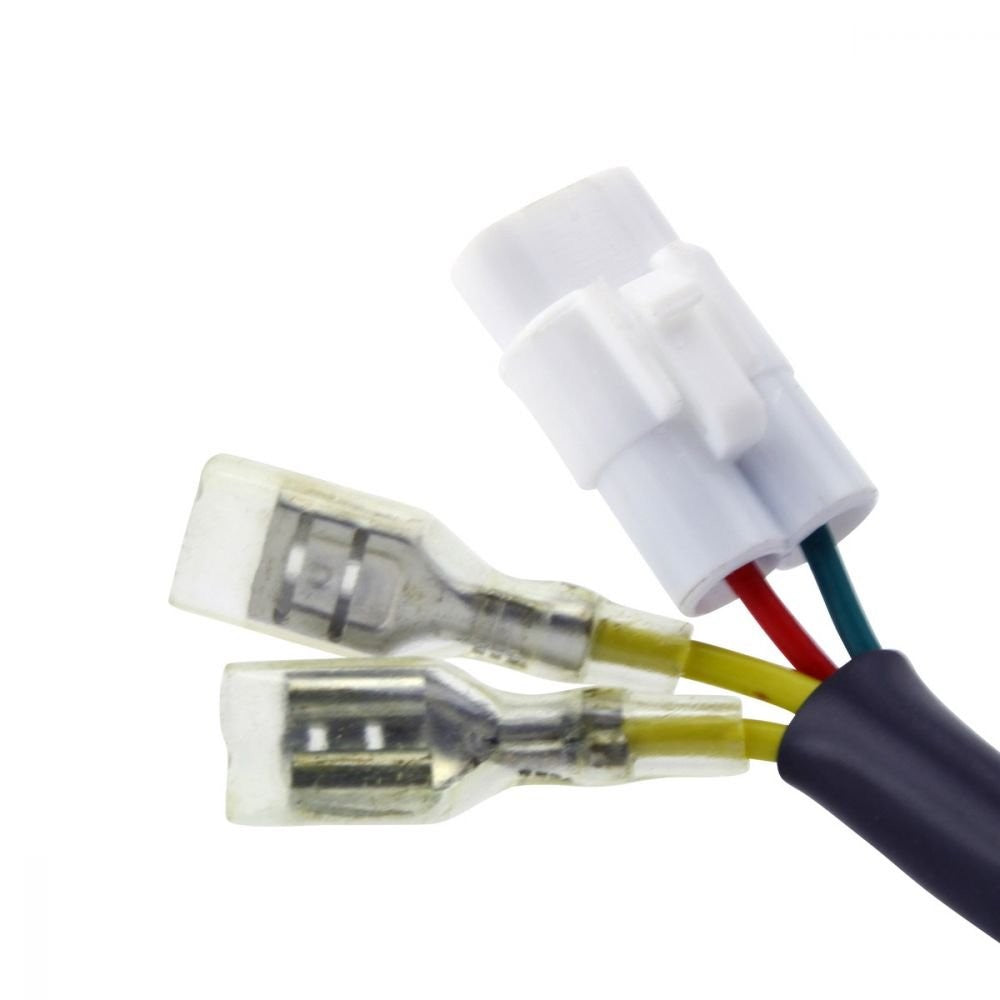

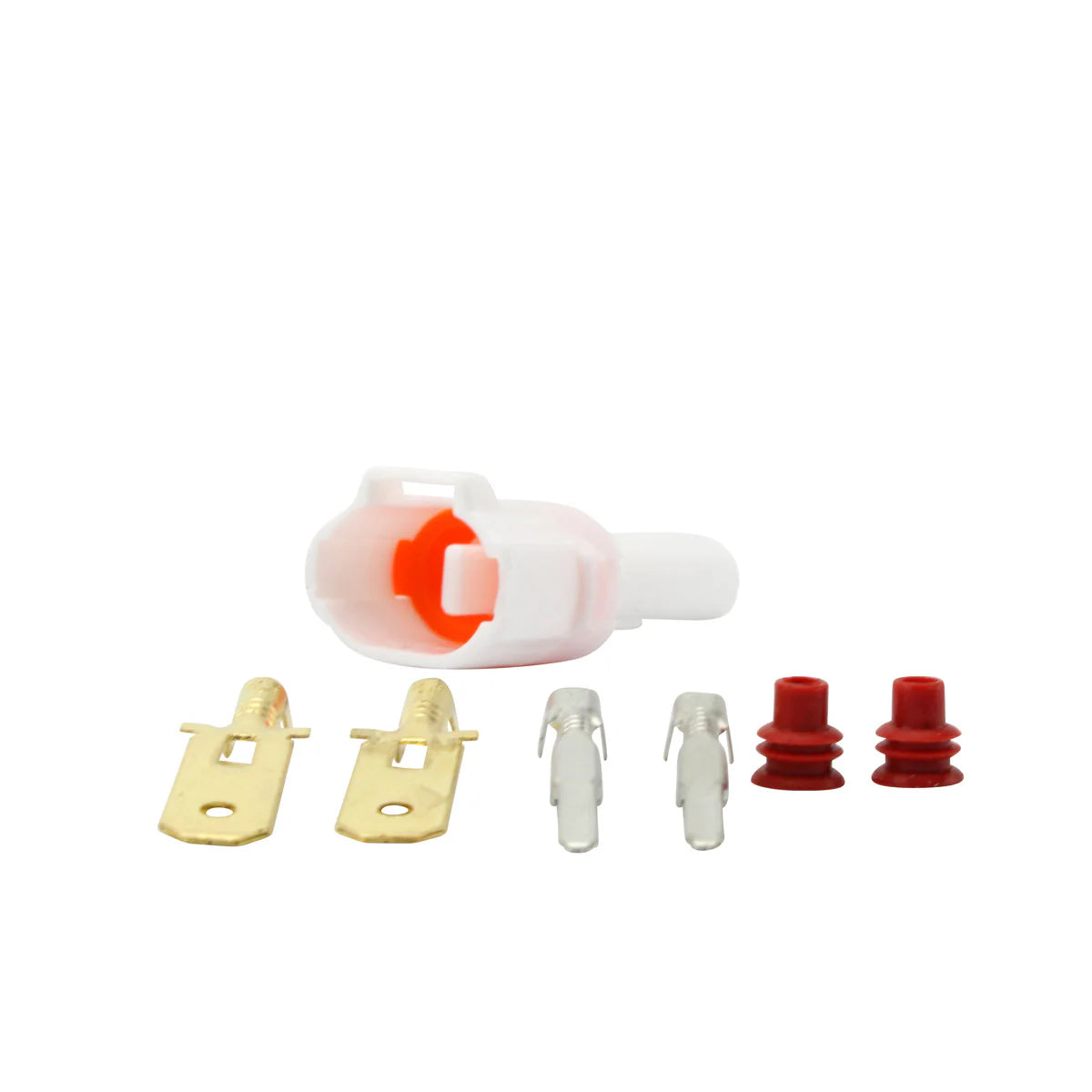

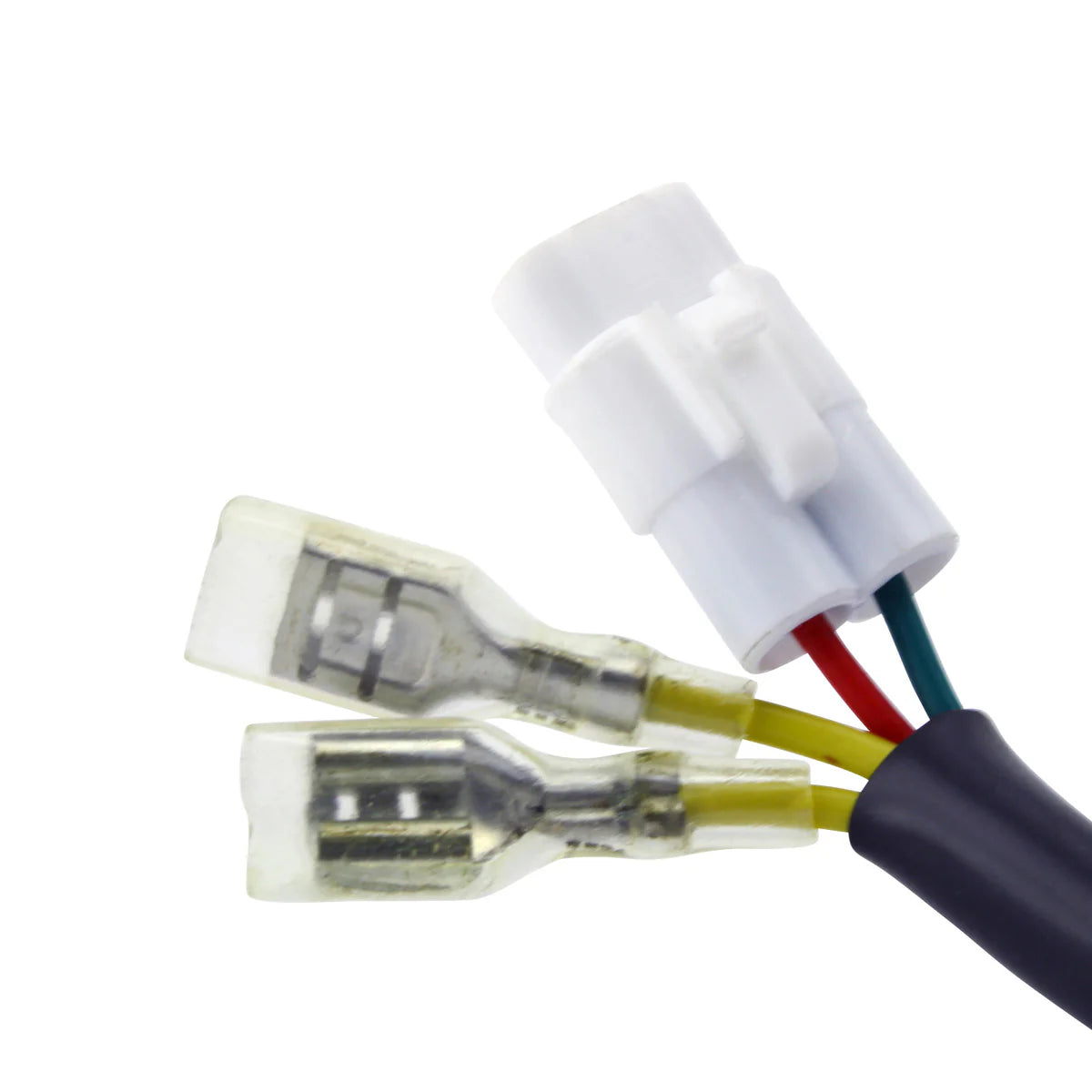

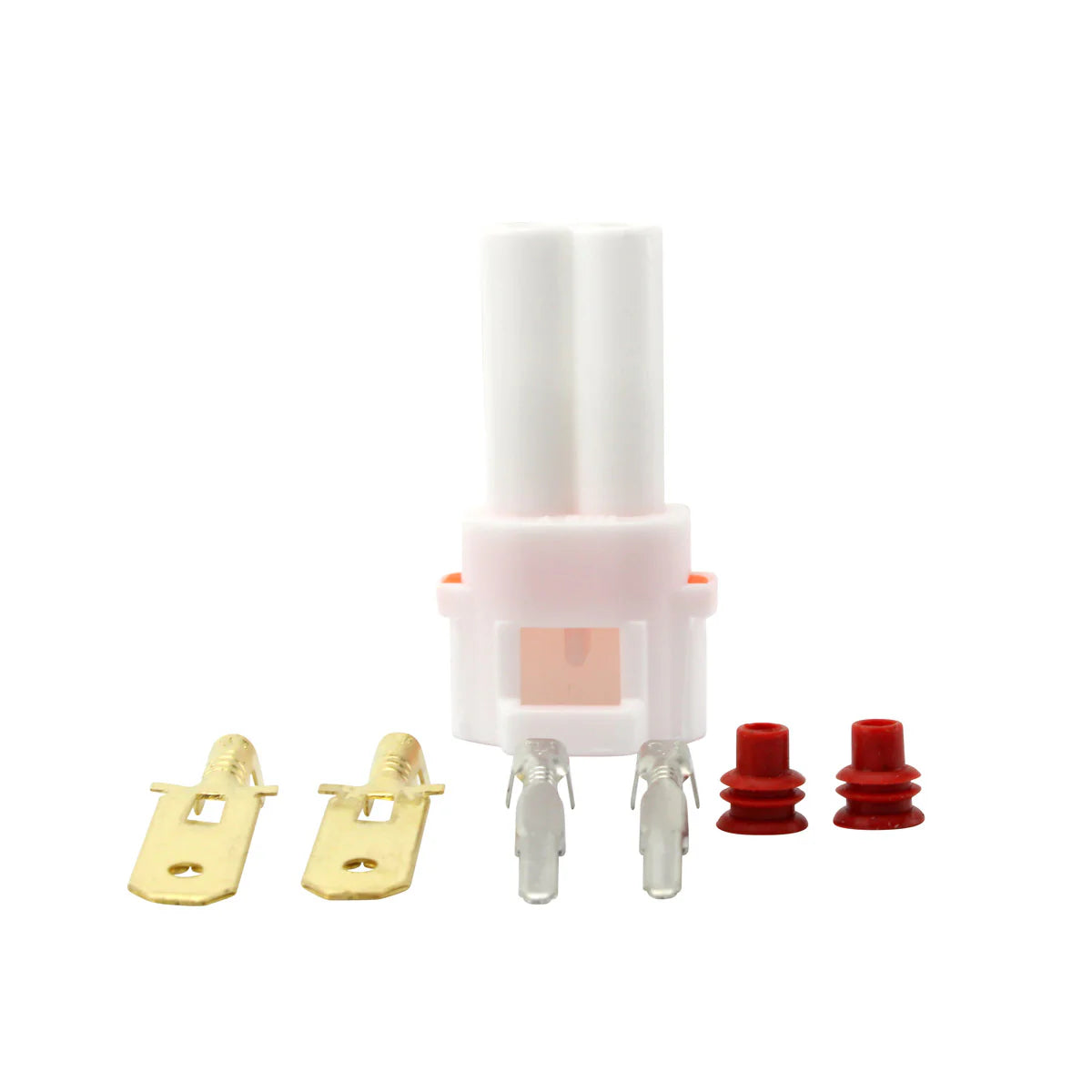

- Connectors and rubber grommet included
Technical Specs
| Specification |
Detail |
| Interior diameter |
29 mm |
| Exterior diameter |
77 mm |
| Thickness |
21 mm |
| Wire length, stator to grommet |
120 mm |
| Wire length, grommet to plug |
520 mm |
| Pick-up coil wire length |
90 mm |
| Number of wires |
4 |
| Number of plugs |
1 |
| Number of pins |
4 |
| Number of poles |
12 |
| Power output |
80W DC |
| Resistance, Yellow to Yellow |
0.4 ohms +/-20% |
| Resistance, Yellow to ground |
O.L (open line) |
| Pick-up resistance, Red to Green |
130 ohms +/-20% |
| Copper winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
| Make & Model |
Years |
| KTM 250 SX-F / XC-F |
2011-2015 |
| KTM 350 SX-F / XC-F |
2011-2015 |
| Husqvarna FC 250 |
2014-2015 |
| Husqvarna FC 350 |
2014-2015 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 77139004000 |
KTM / Husqvarna |
| 77239004000 |
KTM / Husqvarna |
Frequently Asked Questions
Does the higher output require any modification?
No. It is a direct replacement for the original unit and plug-and-play, and RMSTATOR state that it works with all other OEM components, so the standard regulator rectifier and wiring are retained.
What is included in the box?

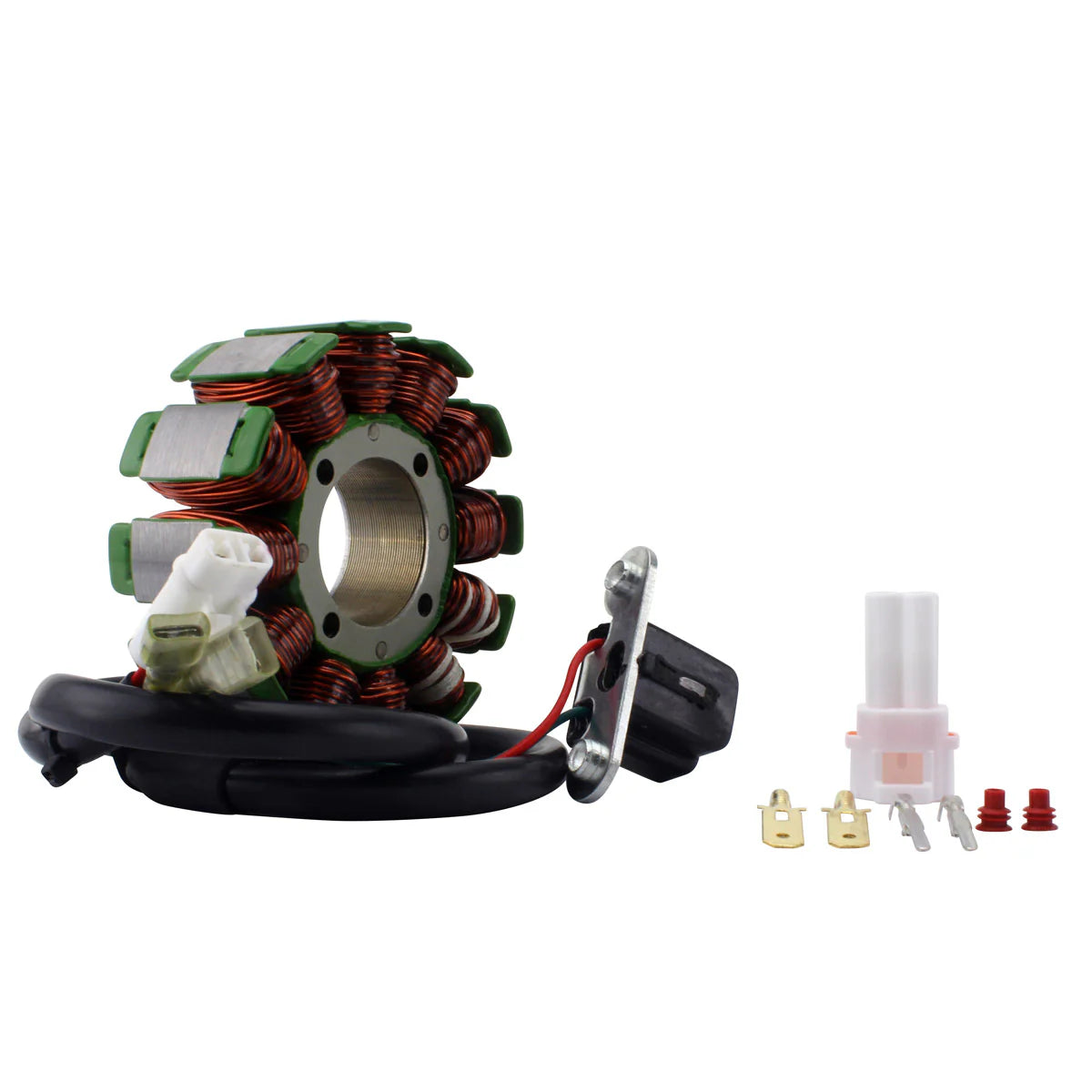

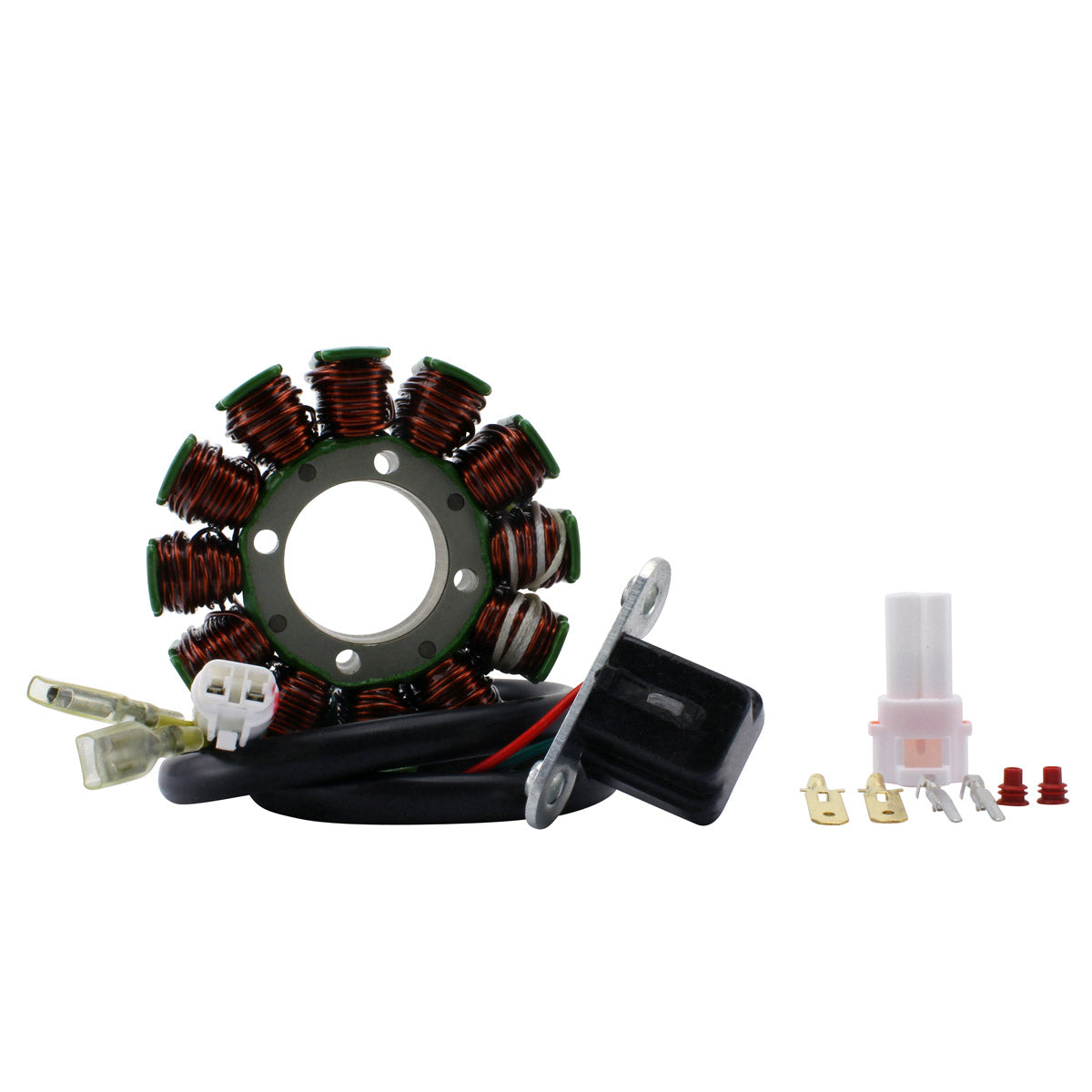

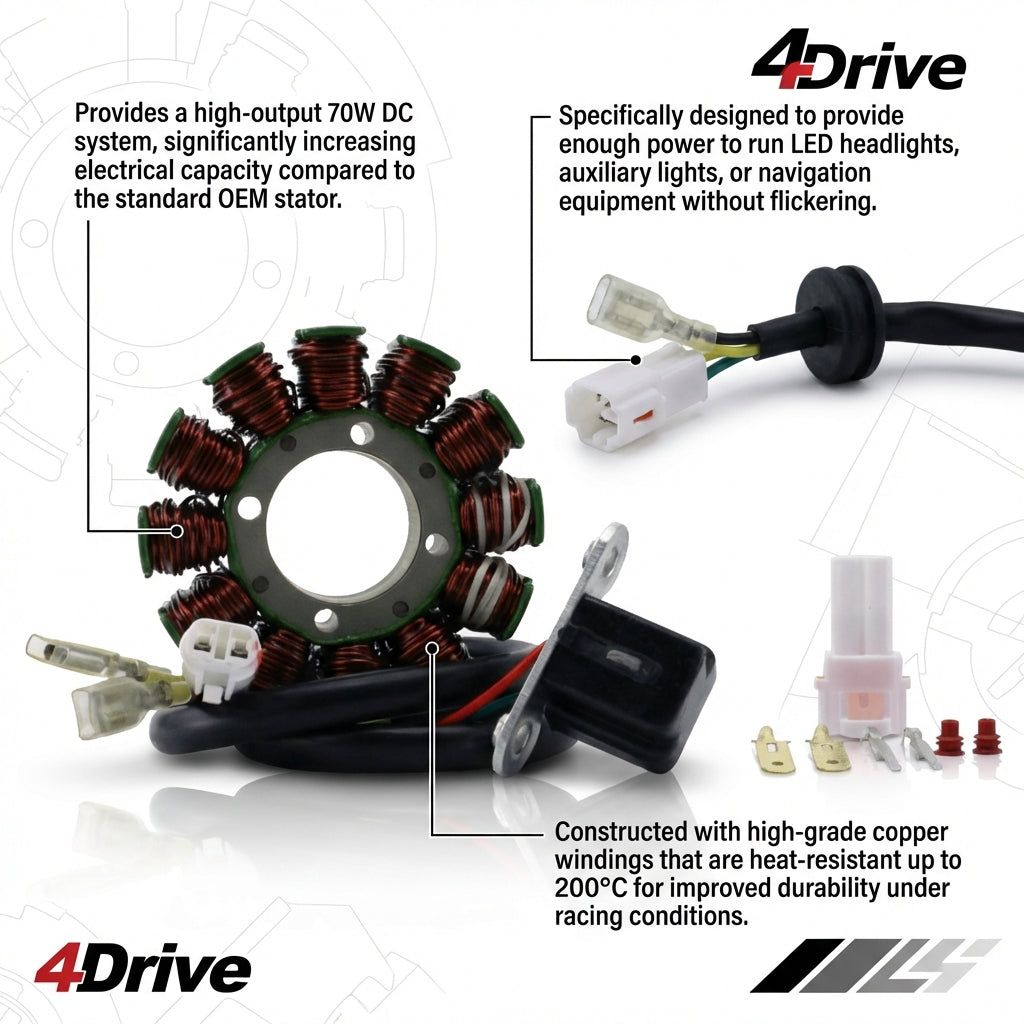

The stator with the pick-up pulsar coil fitted, the connectors and the rubber grommet.
How do I tell whether my old stator has failed?
Compare your multimeter readings with the Technical Specs table above. The charging winding should read about 0.4 ohms yellow to yellow and an open line from yellow to ground, and the pick-up about 130 ohms red to green, each within 20 per cent. Continuity to ground or a badly out of specification reading indicates a failed unit.
Why fit an 80W unit rather than a standard one?
The standard stator on these models has little spare capacity. At 80 Watt DC this unit gives roughly 20 per cent more output over stock, which provides headroom for lights, a cooling fan or other added electrical load while still charging the battery properly.
Dispatched from the UK · 12-month warranty · Fitment support from our technical team
