80W High Output Stator for KTM, Husqvarna and GasGas Four Strokes
KTM 250 350 450 SX-F / XC-F, Husqvarna 250 350 450 FC and GasGas EX 250, 2015-2026 - Part reference RMS010-107562

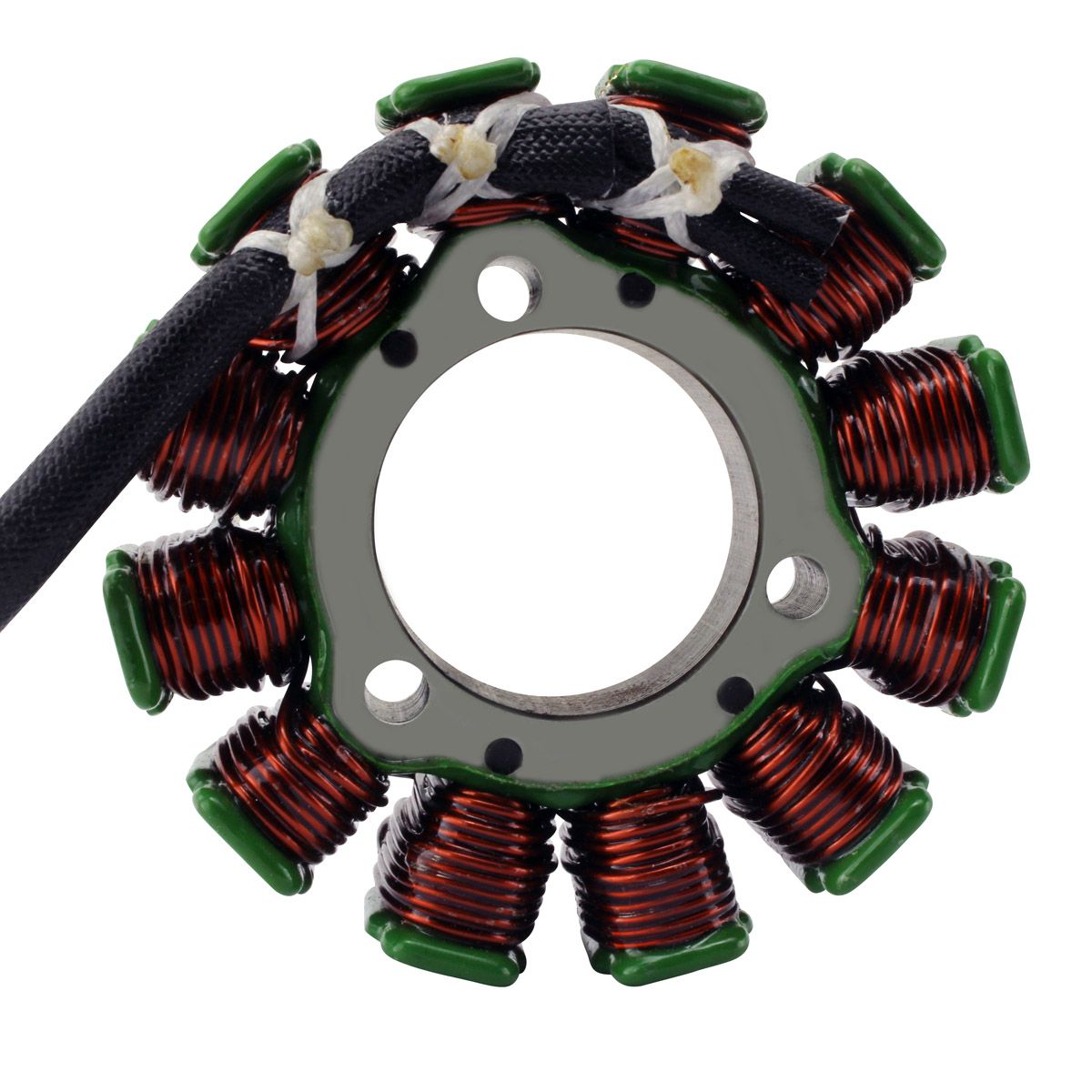

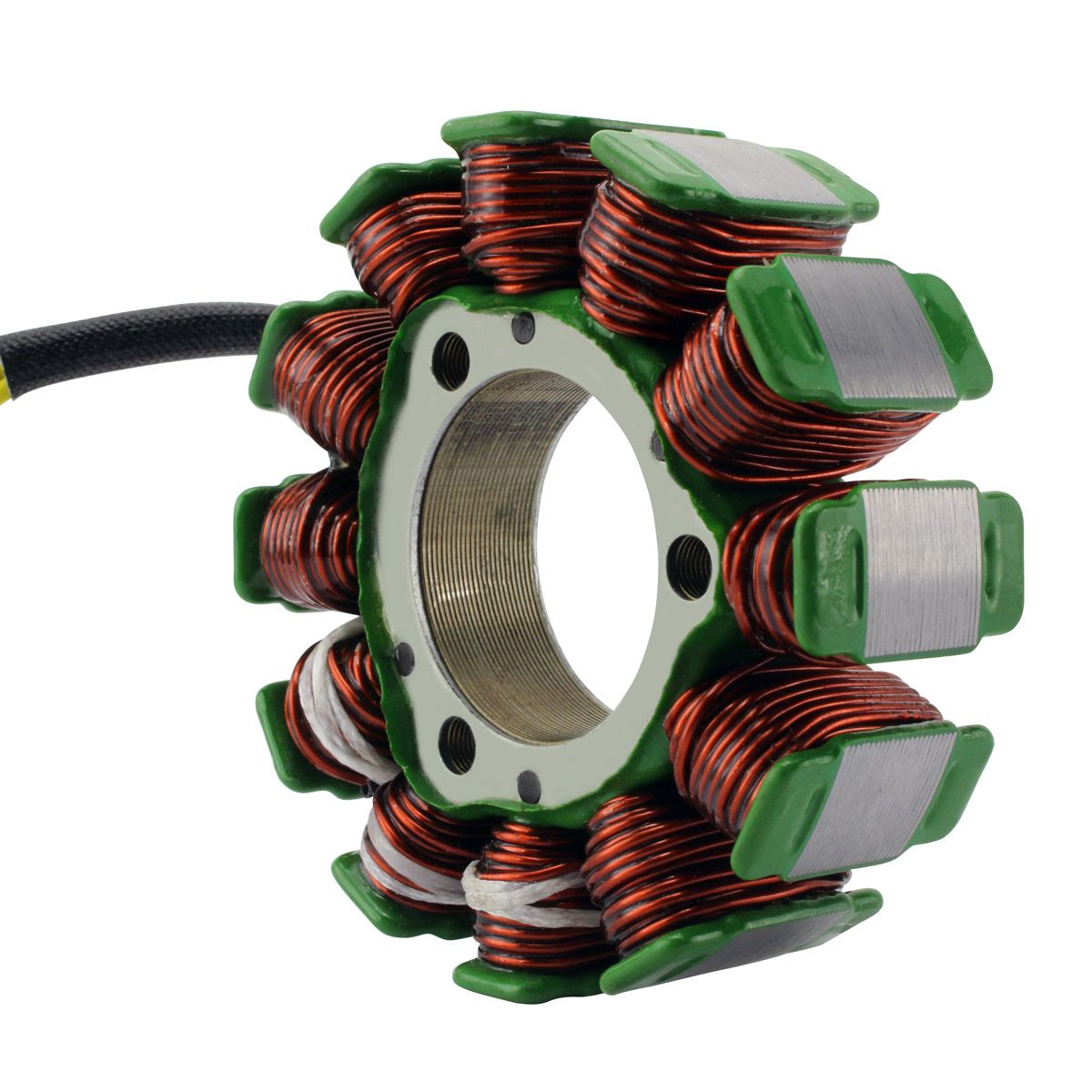

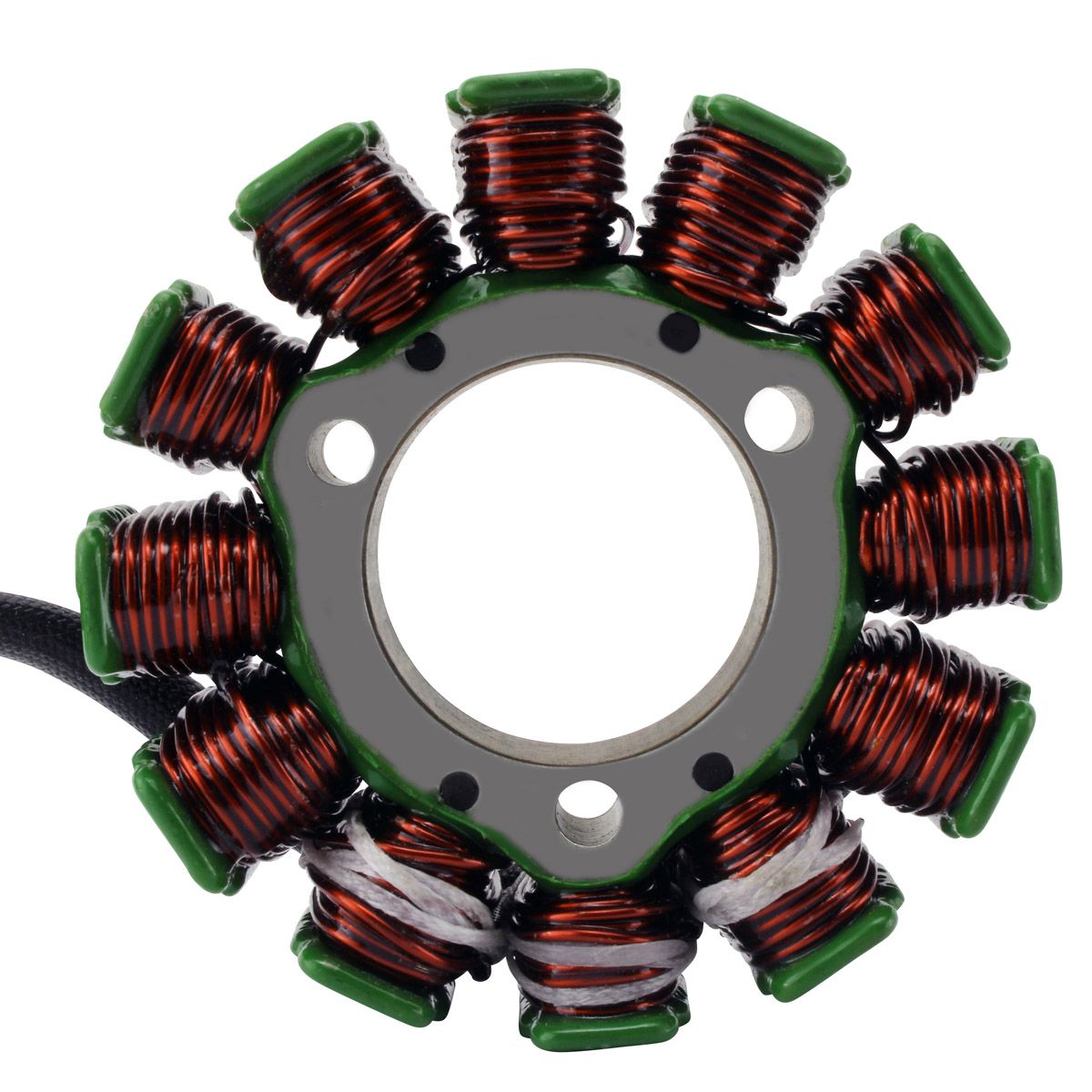

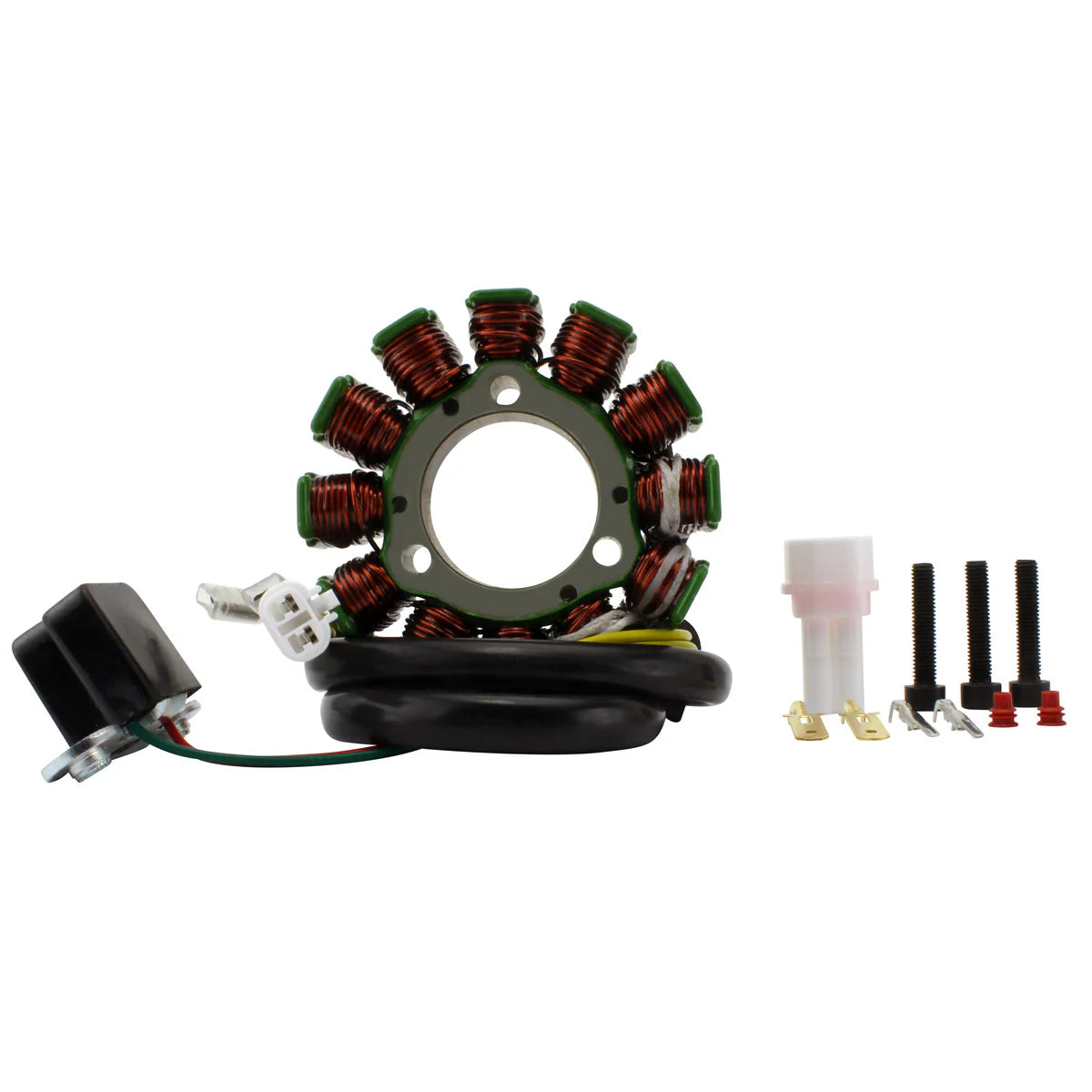

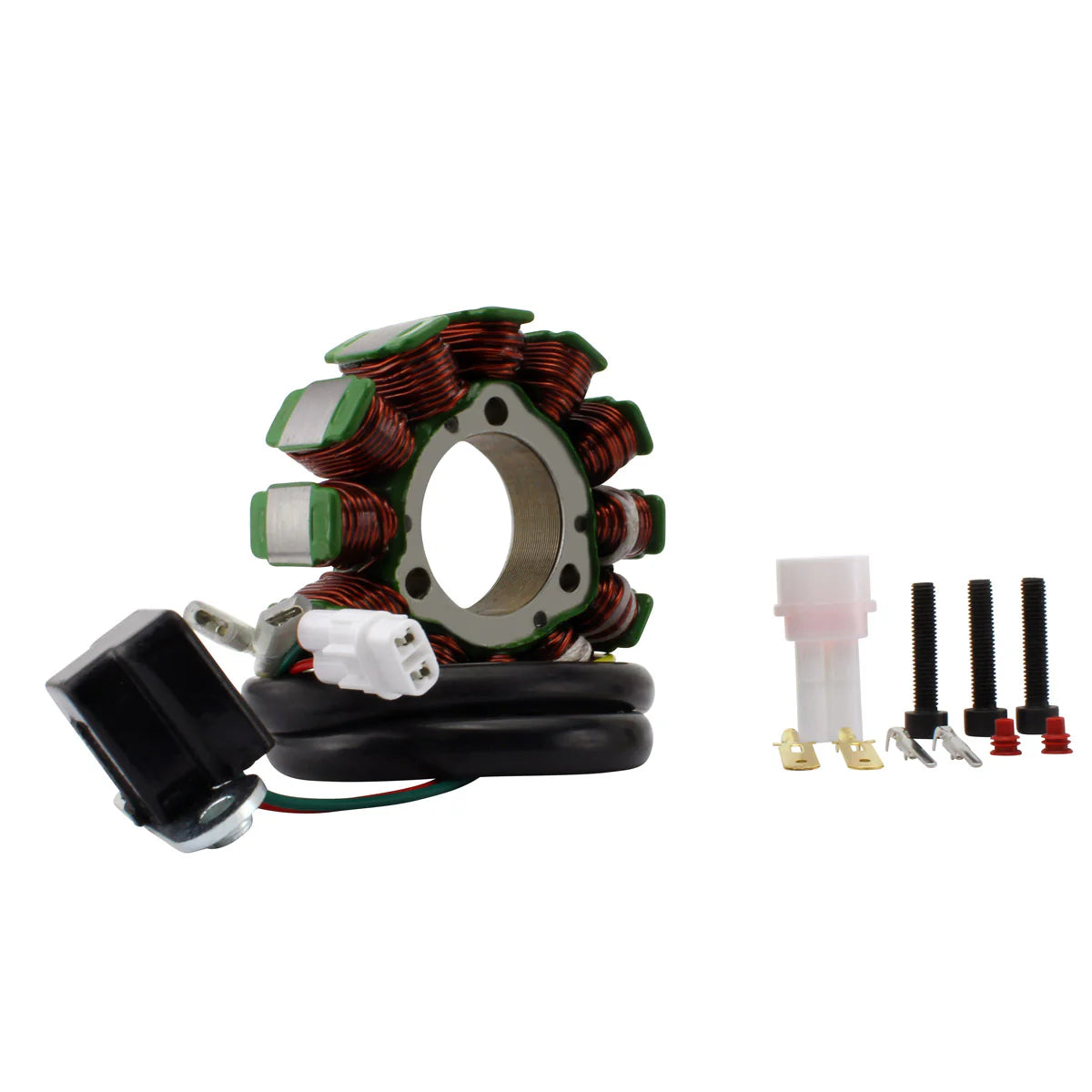

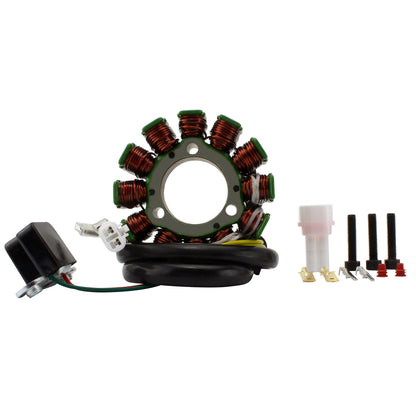

This is a brand new aftermarket high output stator rated at 80 Watt DC, built as a direct replacement for the original unit used across the KTM 250, 350 and 450 SX-F and XC-F, the Husqvarna 250, 350 and 450 FC, and the GasGas EX 250. RMSTATOR state that this stator increases power output significantly over the standard unit. It is plug-and-play and a direct fit, so it mounts in the original position and connects to the existing loom with no cutting and no modification.

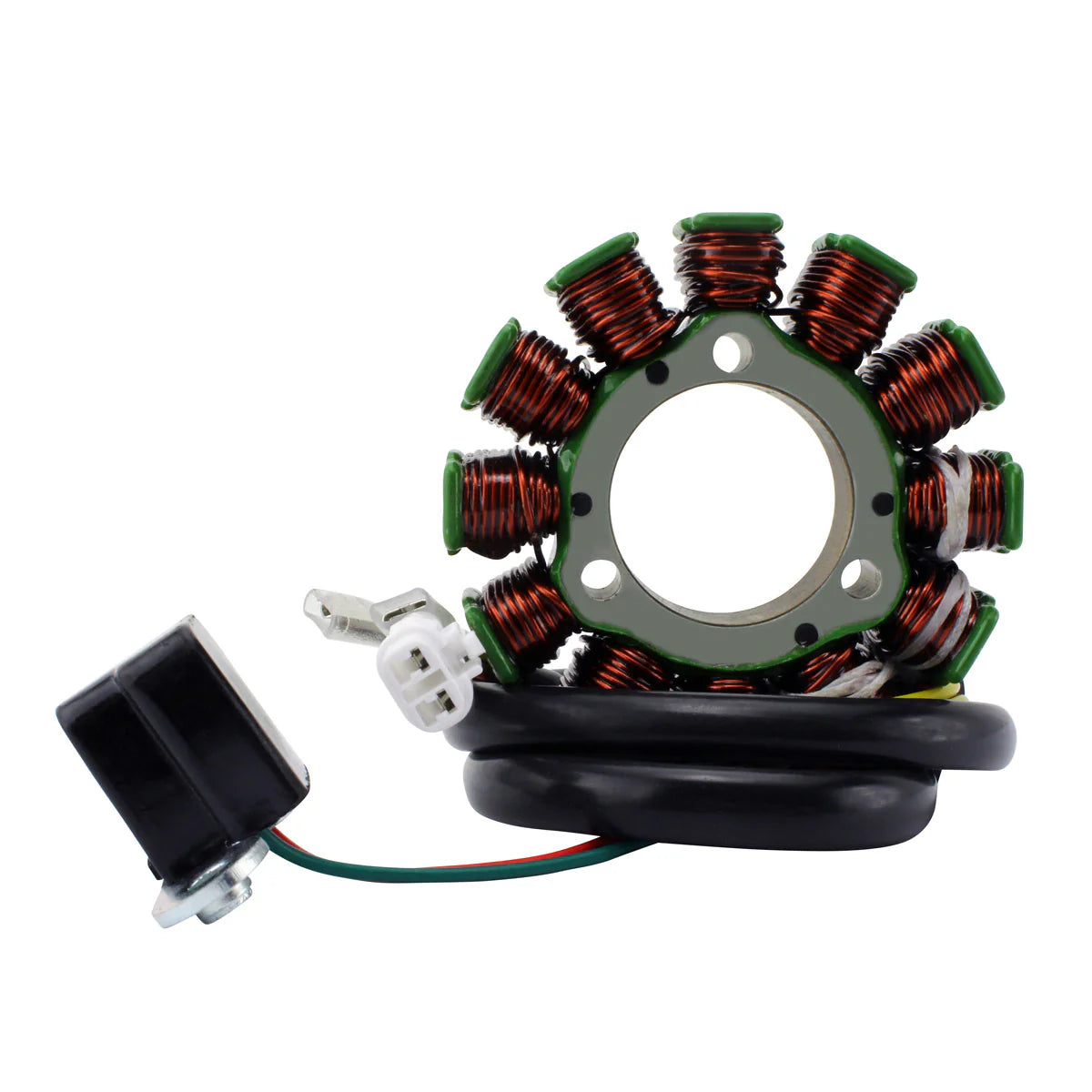

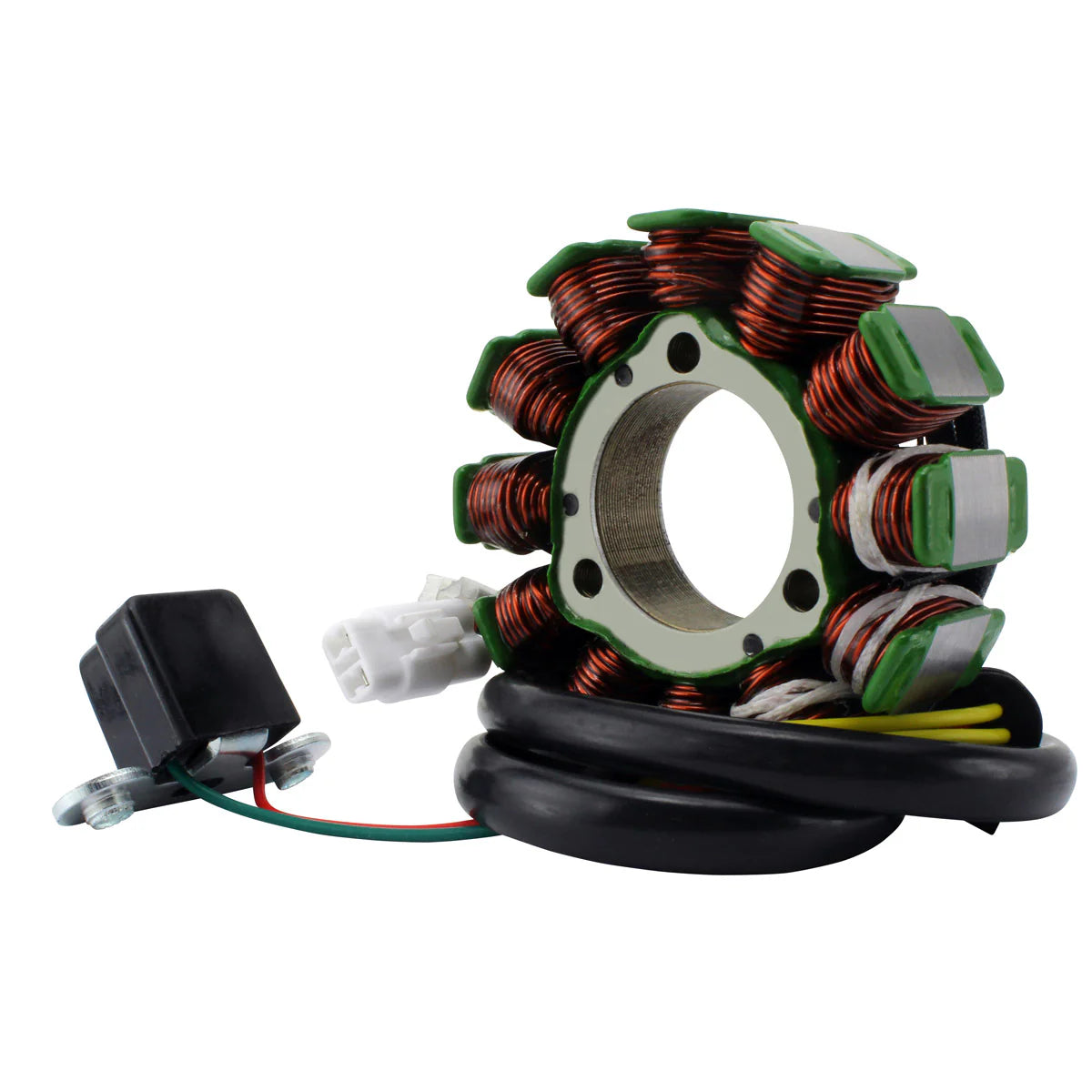

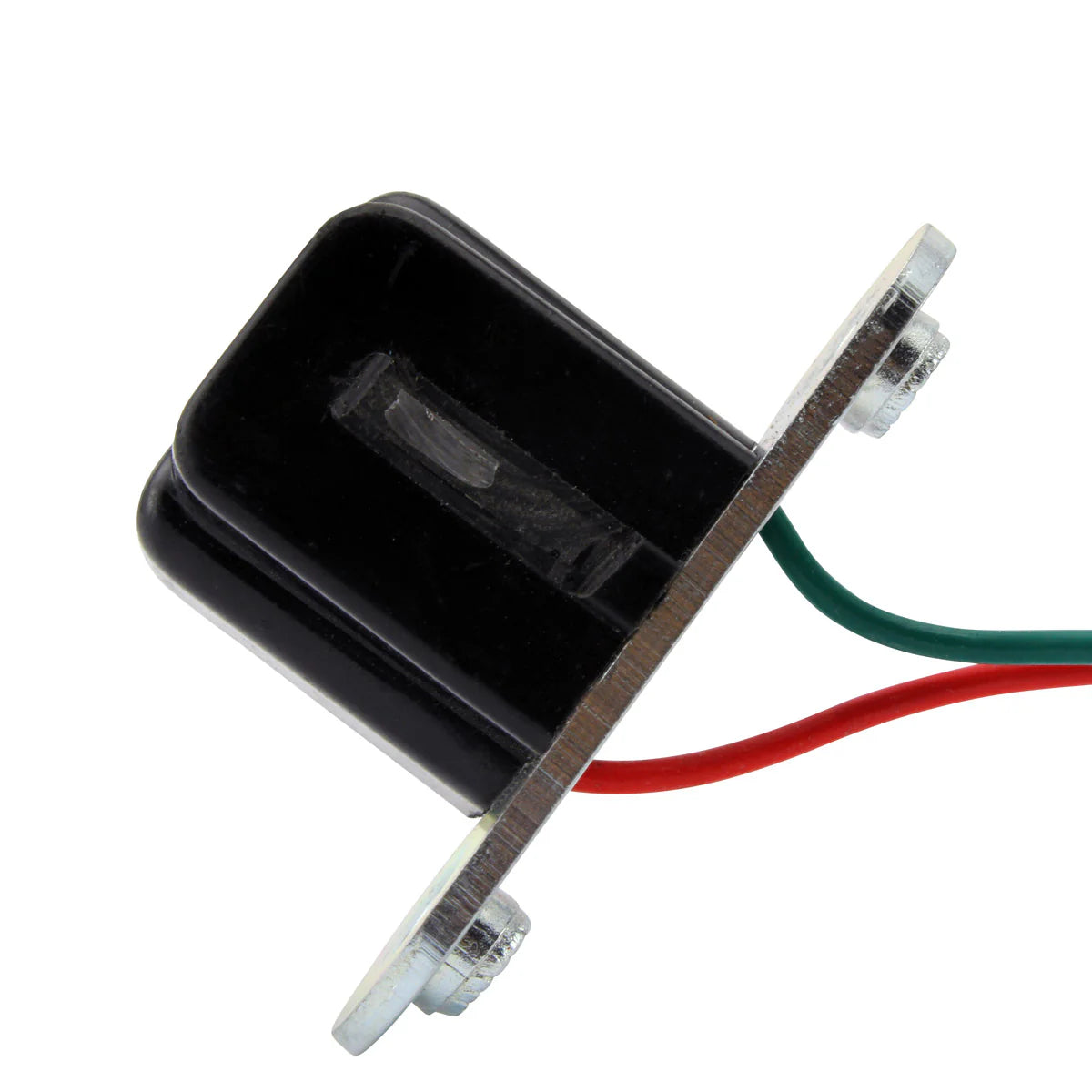

The pick-up pulsar coil is supplied on the assembly, which means the ignition trigger is renewed at the same time as the charging winding. The unit is built on the highest grade of lamination materials and wound with the highest grade of copper winding, resistant to 200 degrees Celsius. Connectors and a rubber grommet are included and all products shipped are tested. The extra output suits a competition four stroke that has to carry lighting, a fan or other added electrical load.
Key Features

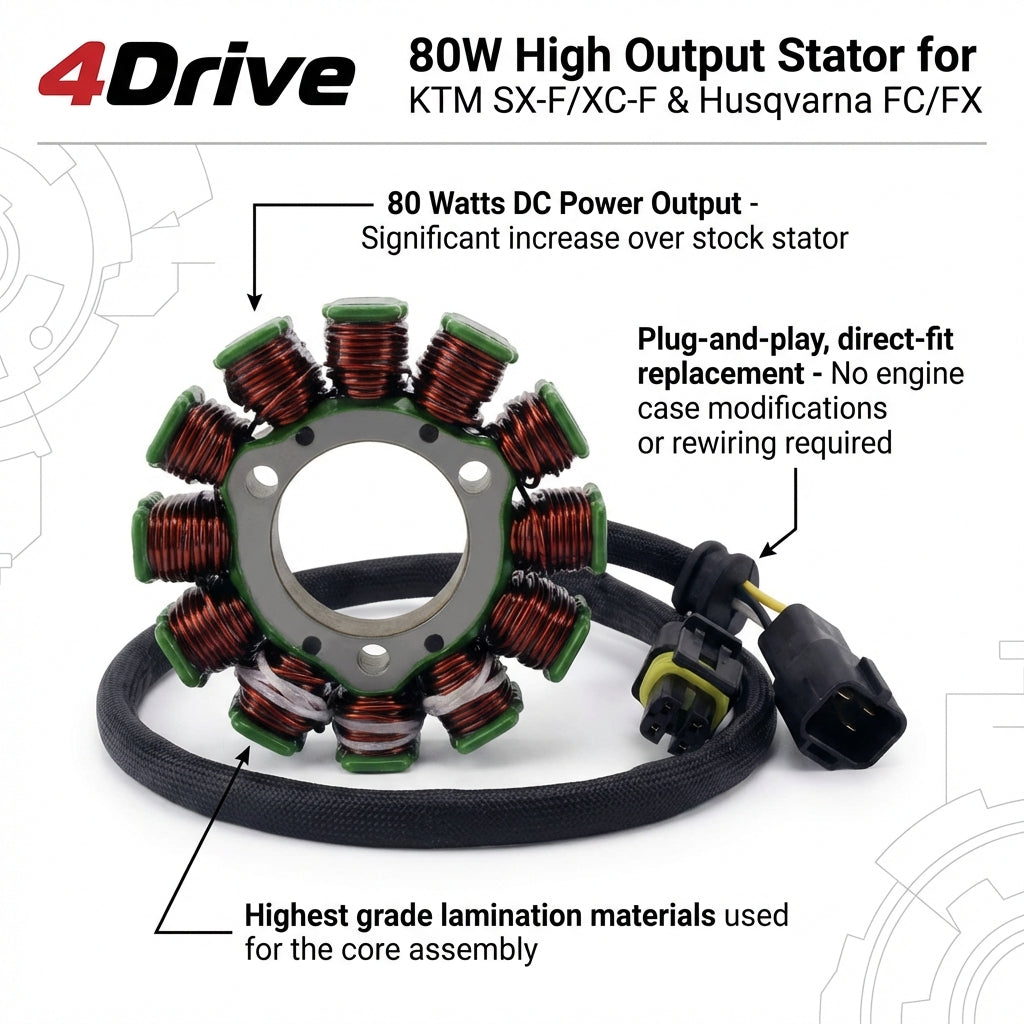

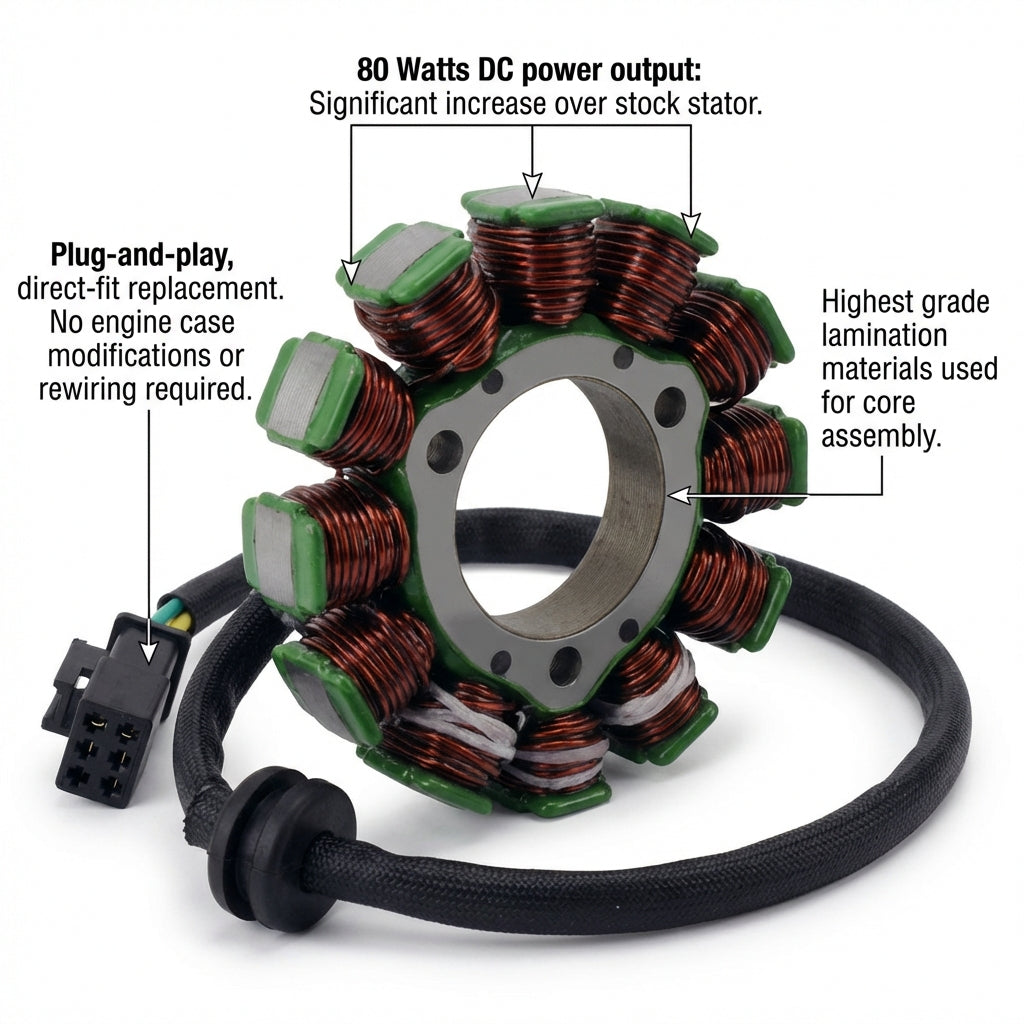

- 80 Watt DC output, a significant increase over the standard unit
- Direct replacement for the original unit
- Plug-and-play, direct fit, easy installation
- Pick-up pulsar coil included on the assembly
- Highest grade of lamination materials

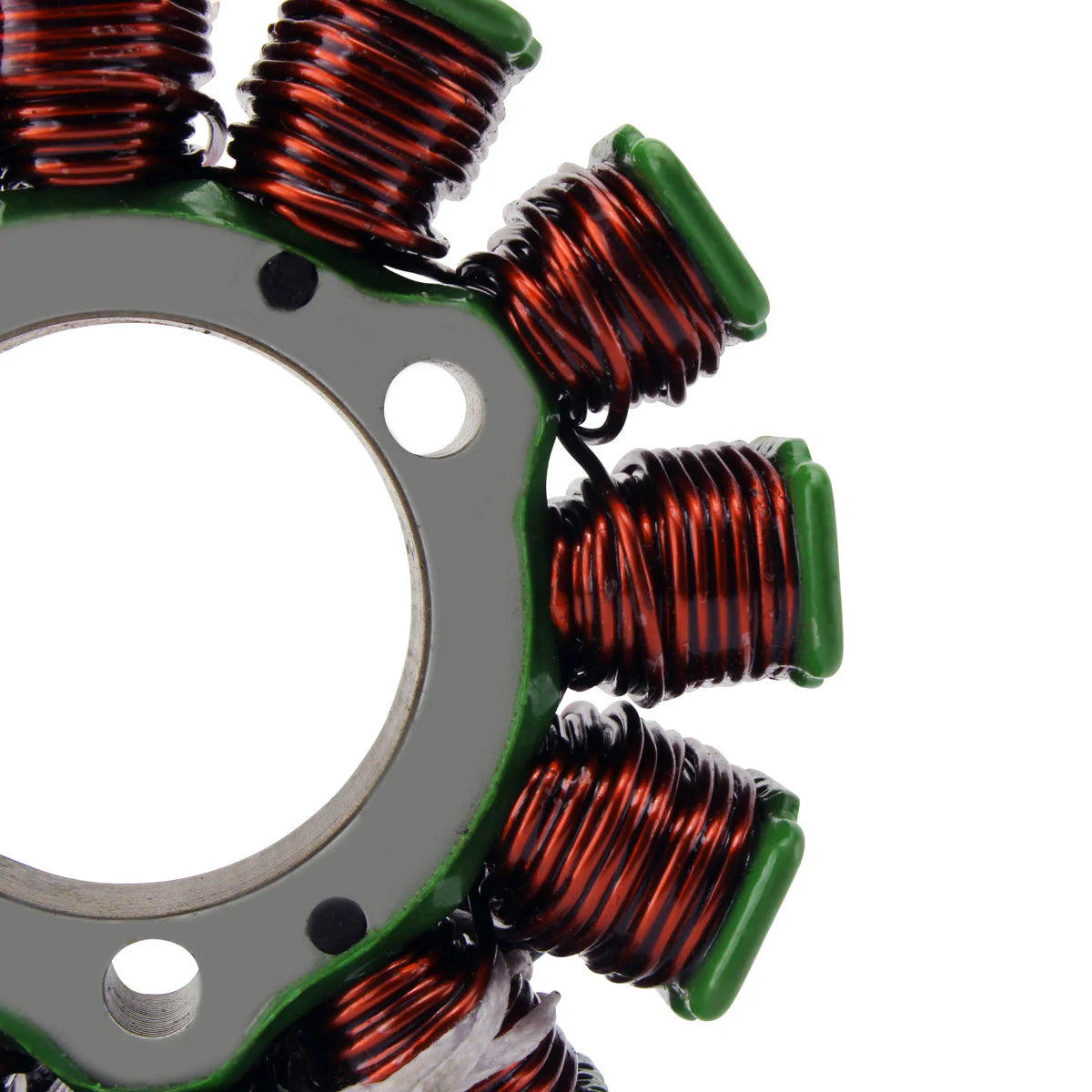

- Highest grade of copper winding, resistant to 200 degrees Celsius

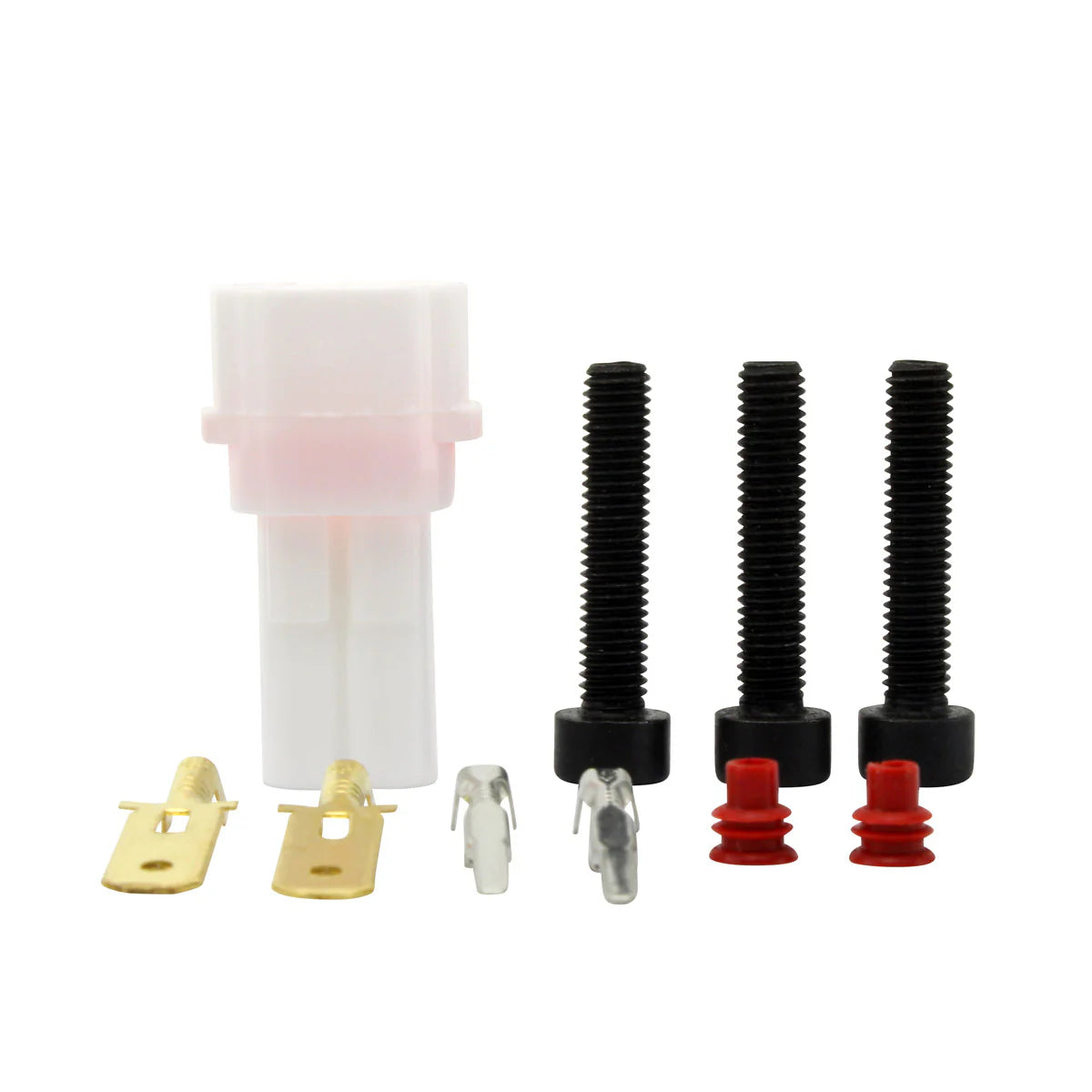

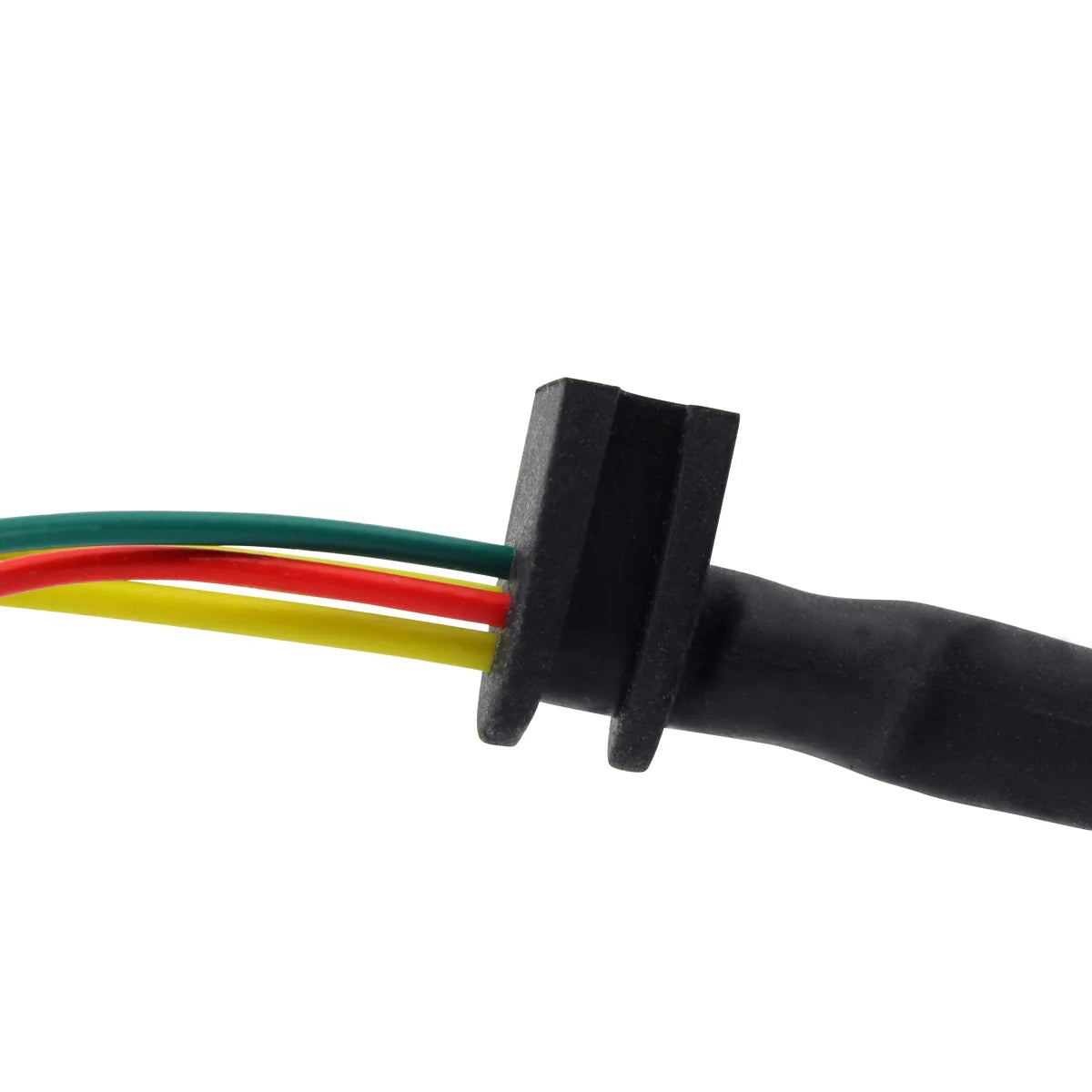

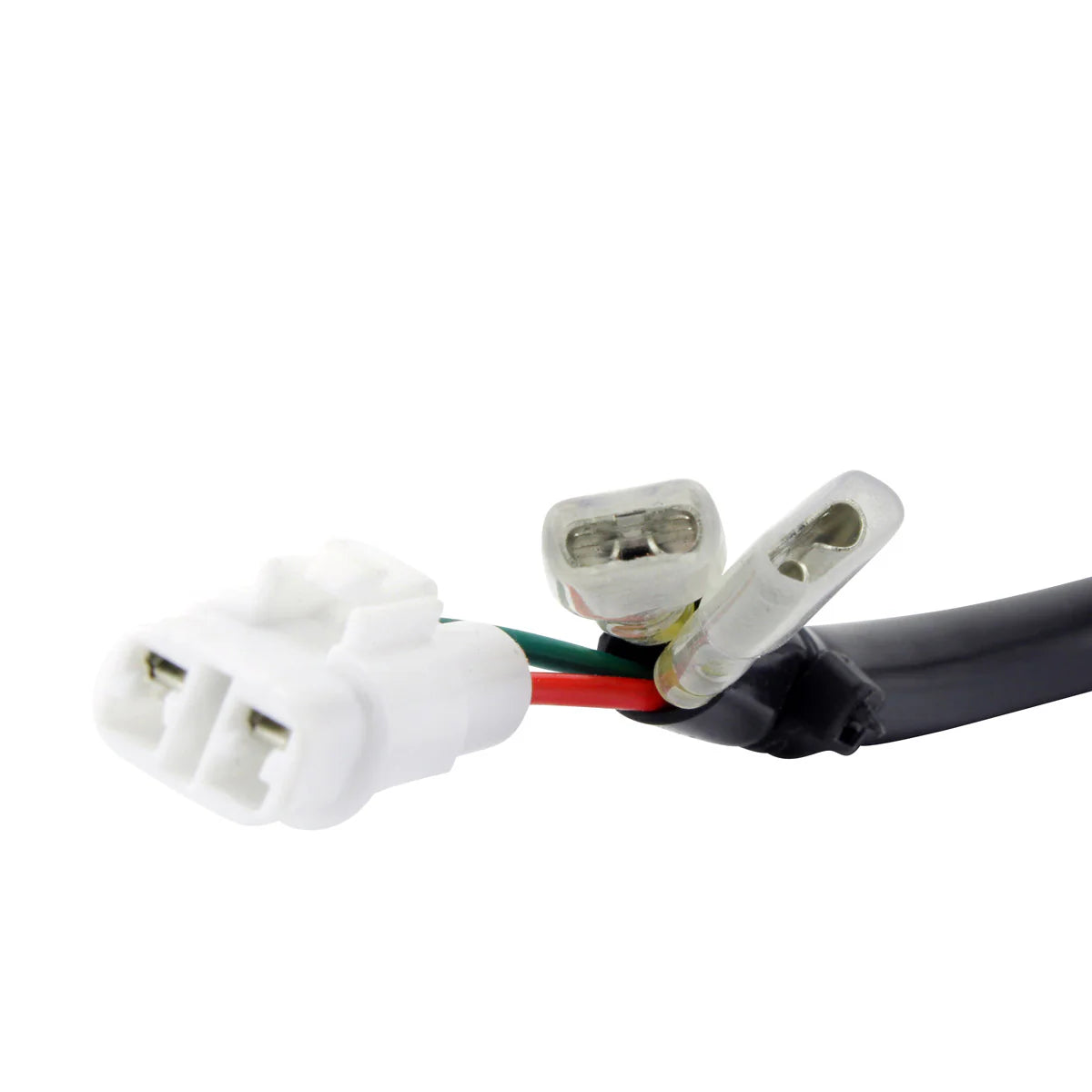

- Connectors and rubber grommet included
- All products shipped are tested
Technical Specs
| Specification |
Detail |
| Interior diameter |
32 mm |
| Exterior diameter |
76 mm |
| Thickness |
17 mm |
| Wire length, stator to grommet |
125 mm |
| Wire length, grommet to plug |
510 mm |
| Pick-up coil wire length to grommet |
100 mm |
| Number of wires |
4 |
| Number of plugs |
1 |
| Number of pins |
4 |
| Number of poles |
12 |
| Power output |
80 Watt DC |
| Wire resistance, Yellow to Yellow |
0.4 ohms +/-20% |
| Pick-up coil resistance, Green to Red |
133 ohms +/-20% |
| Copper winding temperature rating |
200 degrees Celsius |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model |
Years |
| KTM 250 SX-F / XC-F |
2015-2026 |
| KTM 350 SX-F / XC-F |
2015-2026 |
| KTM 450 SX-F / XC-F |
2015-2026 |
| Husqvarna FC 250 |
2015-2026 |
| Husqvarna FC 350 |
2015-2026 |
| Husqvarna FC 450 |
2015-2026 |
| GasGas EX 250 |
2015-2026 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number |
Manufacturer / Brand |
| 79239004000 |
KTM / Husqvarna / GasGas |
| 79239004100 |
KTM / Husqvarna / GasGas |
| 79239004200 |
KTM / Husqvarna / GasGas |
Frequently Asked Questions
Will it fit without modification?
Yes. It is a direct replacement for the original unit and plug-and-play, so it uses the standard mounting position and the existing connector. No cutting or splicing of the loom is required.
What is included in the box?
The stator with the pick-up pulsar coil fitted, the connectors and the rubber grommet. Every unit is tested before it is shipped.
How can I tell whether my old stator has failed?
Compare your multimeter readings with the Technical Specs table above. The charging winding should read about 0.4 ohms yellow to yellow and the pick-up coil about 133 ohms green to red, each within 20 per cent. A reading far outside those figures, or continuity between a winding and the stator body, indicates a failed unit.
One unit covers three different makes - how do I confirm it is right for my bike?
KTM, Husqvarna and GasGas share this stator across the listed models. The safest check is the part number stamped on your original unit: if it appears in the OEM cross reference table above, this is the correct replacement.
