Johnson/Evinrude 90-250 HP Power Trim Motor 5035513
Johnson/Evinrude 90-250 HP Power Trim Motor 5035513
SKU:rec38100-96J00a
Free shipping over £150. Terms apply
Couldn't load pickup availability

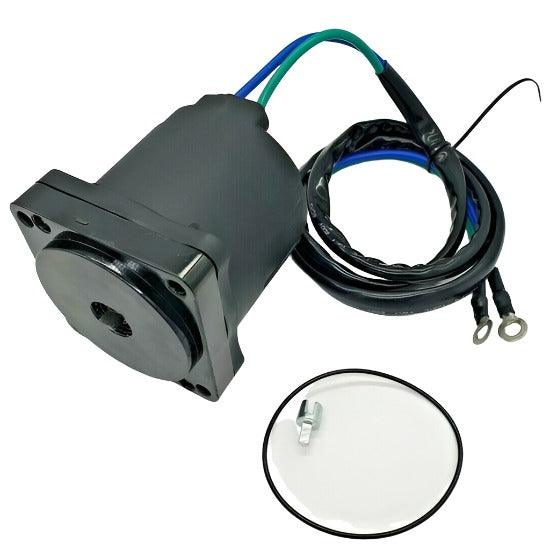

Power Trim Motor 5035513 / 5035113
For Johnson 90-115HP & 200-250HP 4-Stroke Outboards
This premium quality aftermarket power trim and tilt motor is a direct replacement for Johnson 4-stroke outboard engines manufactured between 2001 and 2011. Engineered to meet or exceed OEM specifications, this unit provides smooth, reliable operation for your vessel's tilt and trim system.
Key Features
- ✔ Direct fit for 4-stroke Suzuki-based models

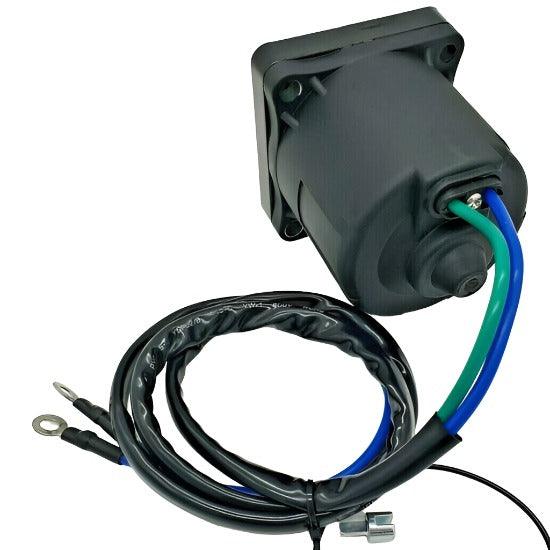

- ✔ Durable 2-wire connection (Blue/Green)
- ✔ Stable 4-bolt mounting configuration
- ✔ High-grade O-ring seal included

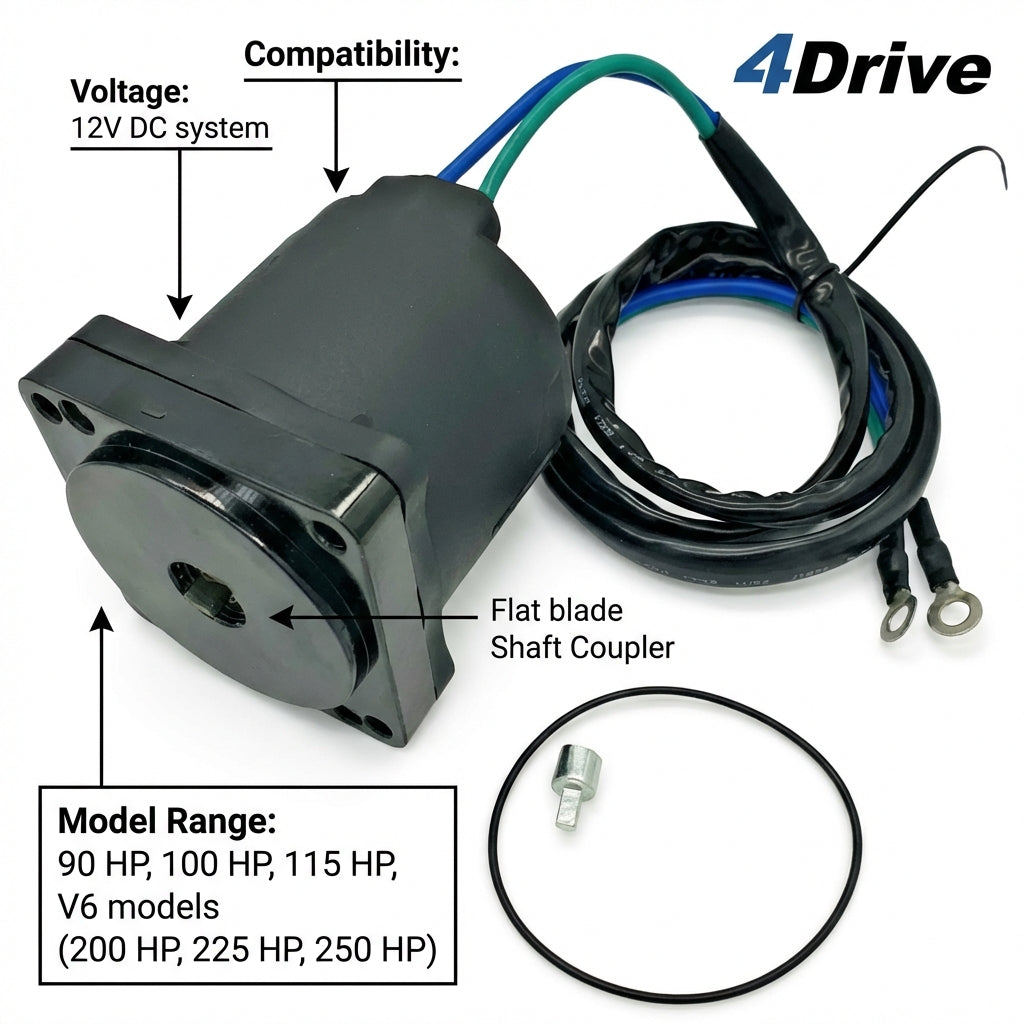

Technical Specs
| Voltage: | 12V DC |
| Rotation: | Reversible |
| Wire Count: | 2-Wire |
| Mount Type: | 4-Bolt |
| Shaft Design: | Tanged (Flat Blade) |
Compatibility / Fitment Guide
| Make | Model / Horsepower | Year Range |
|---|---|---|
| Johnson | 90HP, 100HP, 115HP, 140HP (4-Stroke) | 2001 - 2011 |
| Johnson | 200HP, 225HP, 250HP (4-Stroke) | 2004 - 2011 |
| Suzuki Cross | DF90, DF100, DF115, DF140 | 2001 - 2011 |
OEM Cross Reference
| Johnson/Evinrude: | 5035513, 5035113, 5034627, 5034526, 5034525, 5033925, 5033838, 5032636 |
| Suzuki: | 38100-92J00, 38100-93J00 |
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part from 4Drive, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible with my motor?
This motor is specifically for the 4-stroke Johnson engines (which were often based on Suzuki DF models). Check your original motor for a 4-bolt mount and a 2-wire connection. If your part number matches any in our cross-reference list, it will fit.
What are the wire colors on this unit?
This unit features the standard marine 2-wire setup: Blue (for Up) and Green (for Down).
Note: Please verify your original part number against the references above before purchasing. Part numbers are provided for identification purposes only. 4drive.co.uk
