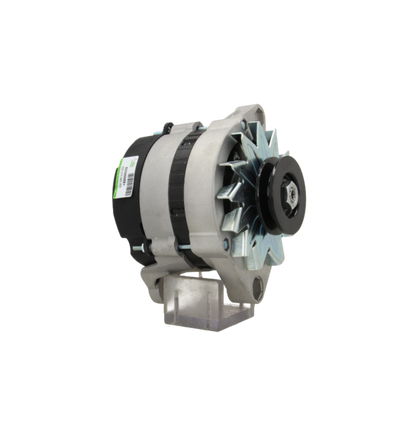

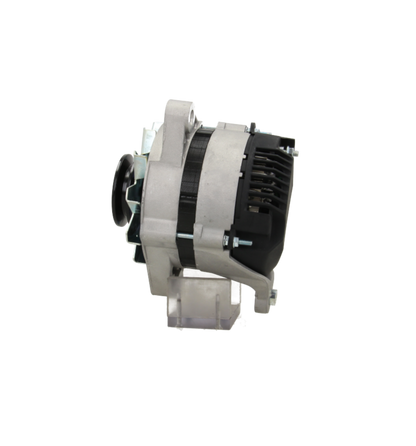

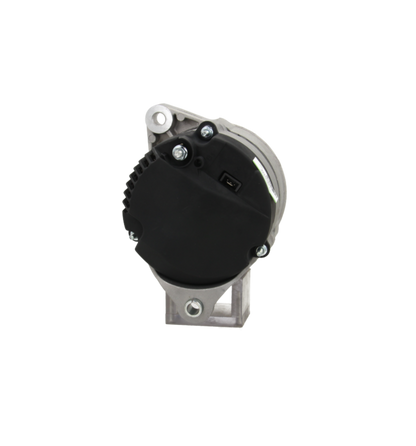

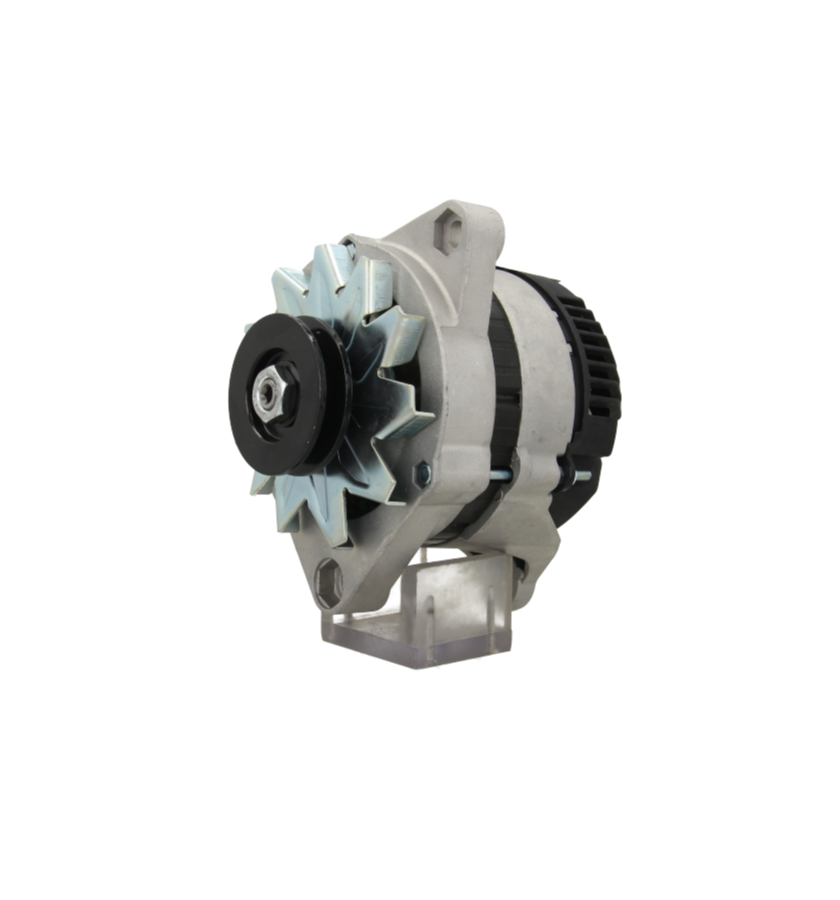

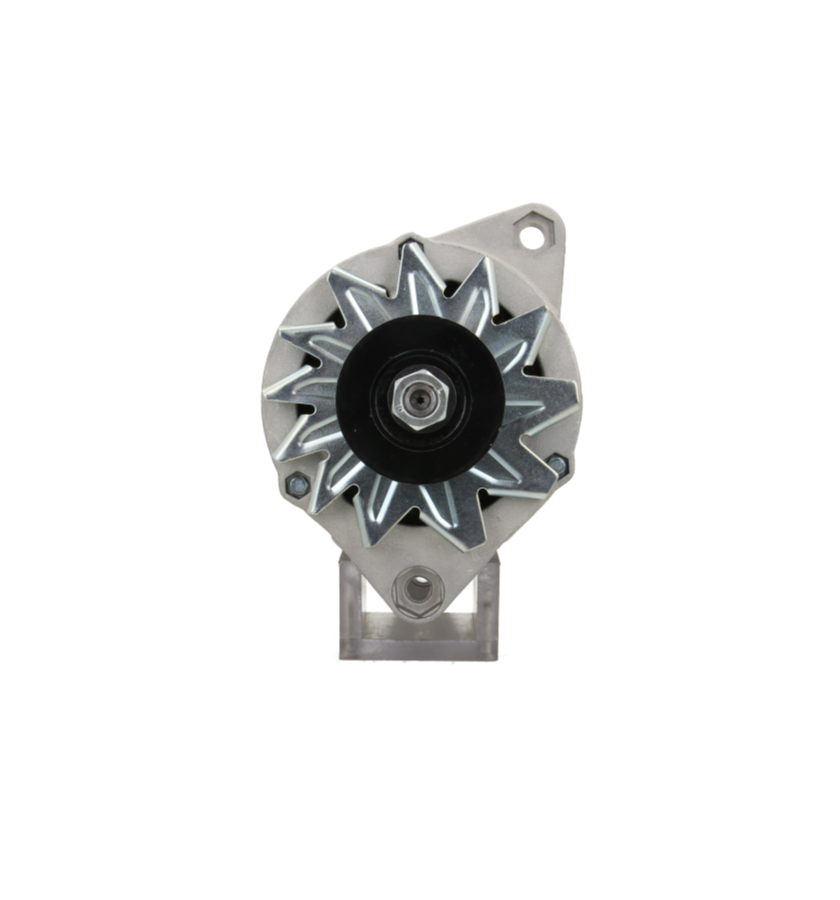

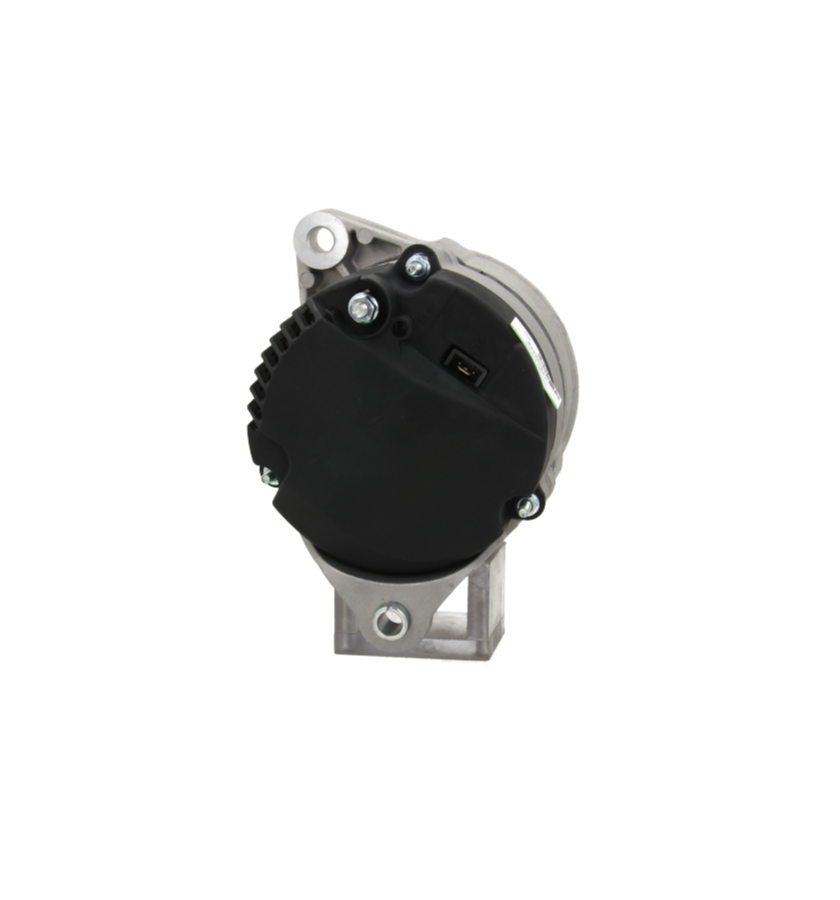

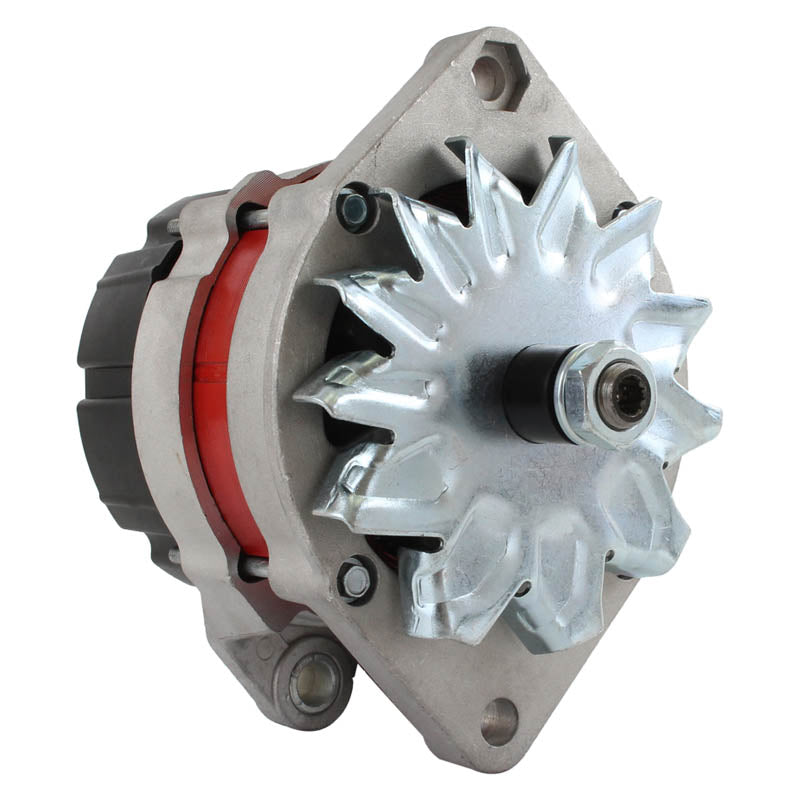

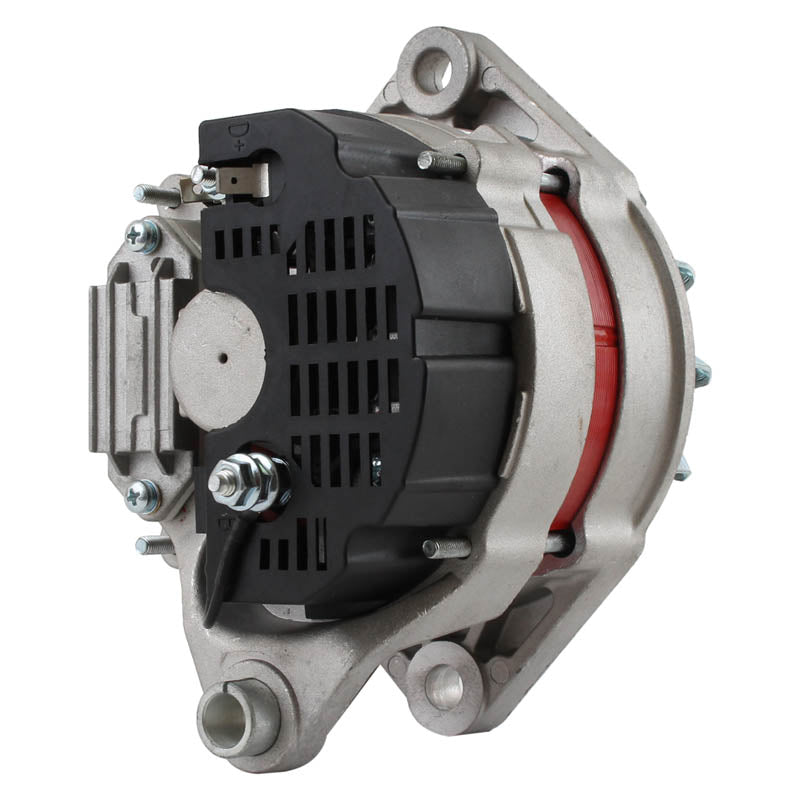

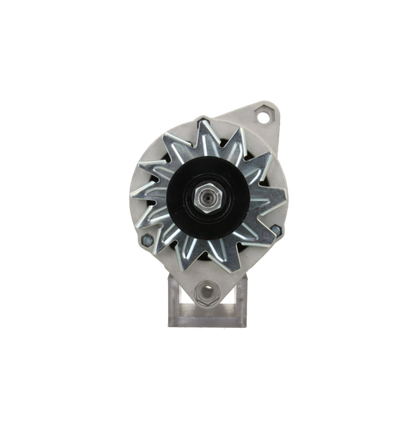

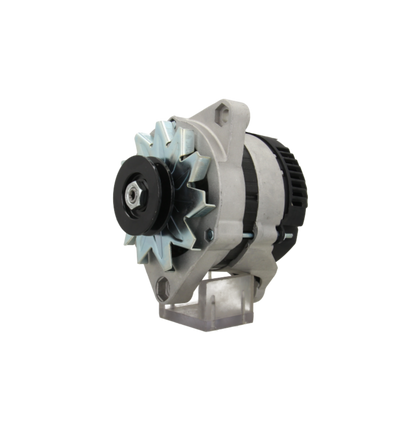

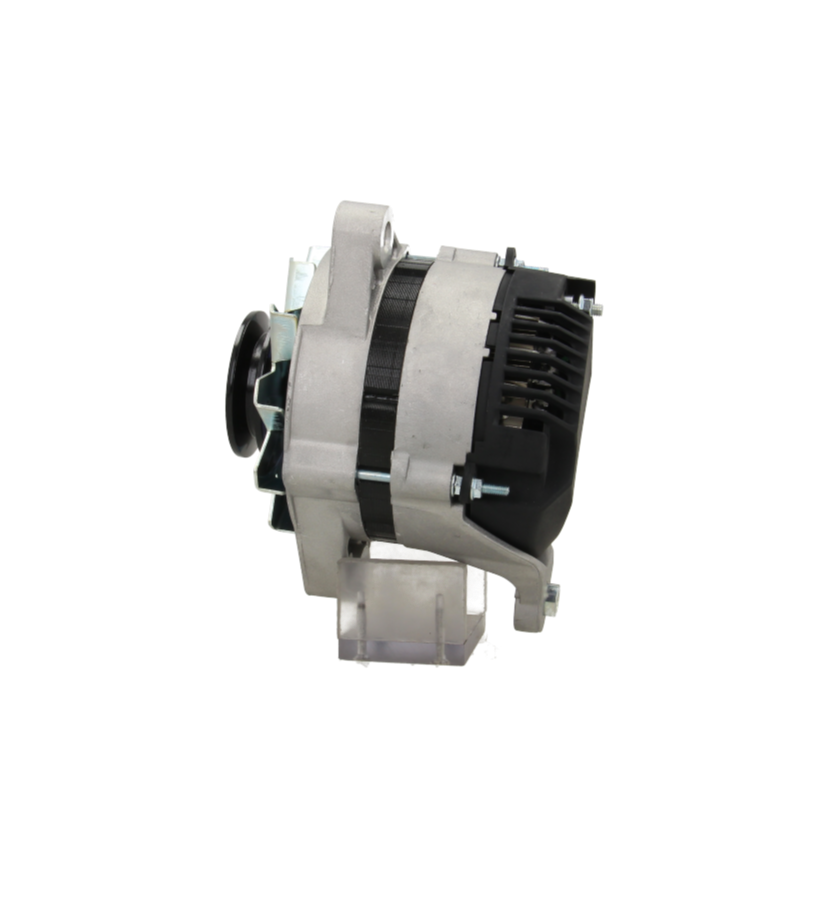

Alternator AGCO Allis New Holland TL TN TD Case IH JX Fiat F Series 12V 55A 63321180

Alternator AGCO Allis New Holland TL TN TD Case IH JX Fiat F Series 12V 55A 63321180

400-29012

£192.30 GBP
£230.76 GBP £192.30 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Free shipping over £150. Terms apply



Agricultural Tractor Alternator

Fits AGCO Allis, New Holland, Case IH & Fiat (55 Amp)

Keep your tractor powered through the toughest jobs with this high-quality **55 Amp Alternator**. Designed to fit a wide variety of agricultural machinery, this unit is a direct replacement for **AGCO Allis, New Holland, Case IH, and Fiat** models equipped with Marelli electrical systems.

This **Marelli Style** alternator features a robust dust-sealed housing and an external cooling fan. It comes ready to install with a **2-Groove (V2) Pulley**, ensuring compatibility with your existing belt drive system.

VERSATILE FITMENT: A perfect match for popular utility tractors like the New Holland TN/TL series and Case IH JX series.

Key Features

  • ✔ Marelli Style: Reliable IR/EF design.
  • ✔ Direct Fit: Replaces multiple OEM numbers.
  • ✔ Includes Pulley: V2 Double Groove (88mm).
  • ✔ Durability: Built for farm environments.

Technical Specs

Voltage: 12 Volts
Amperage: 55 Amps
Rotation: CW (Clockwise)
Pulley: V2 (2-Groove)
Fan Type: External (EF)
Regulator: Internal (IR)

Vehicle Fitment Guide

Make Model Series Specific Models
AGCO Allis 4000/5000/6000 Series 4650, 4660, 5650, 5660, 5670, 5680, 6680, 6690
New Holland TL / TN / TD Series TL70-100, TN65-95, TD55-90
Case IH JX Series JX55, JX60, JX65, JX70, JX75, JX80, JX85, JX90, JX95
Fiat F Series & 90 Series F100, F110, F115, F120, F130, F140, 160-90, 180-90
White 6000 Series 6045, 6065, 6085, 6090, 6105

OEM Part Number Cross Reference

AGCO / Allis 72272430, 72275034, 72269301, 72277319
New Holland / Ford 500322762, 500322763, 500322764, 99478834, 84522025
Marelli 63321180, 63320100, 63320124, 63321042, 63320020
Fiat 4841776, 4808503, 4808504, 7552382
Iskra / Letrika 11.201.462, 11.201.463, AAK4102, AAK3563

Frequently Asked Questions

Does this have a tachometer terminal?

Yes, this Marelli-style alternator typically includes a W-terminal for the tachometer signal, which is standard for these tractor applications.

Will it fit my Case JX90?

Yes, this alternator is compatible with the Case IH JX90 and other JX series tractors that use the Marelli 63321180 type unit.

What is the pulley size?

This unit comes with a **2-Groove (V2) Pulley** with an outer diameter of approximately 88mm, suitable for a 10mm belt width.

Note: Please verify your existing alternator's pulley type and mounting points.
