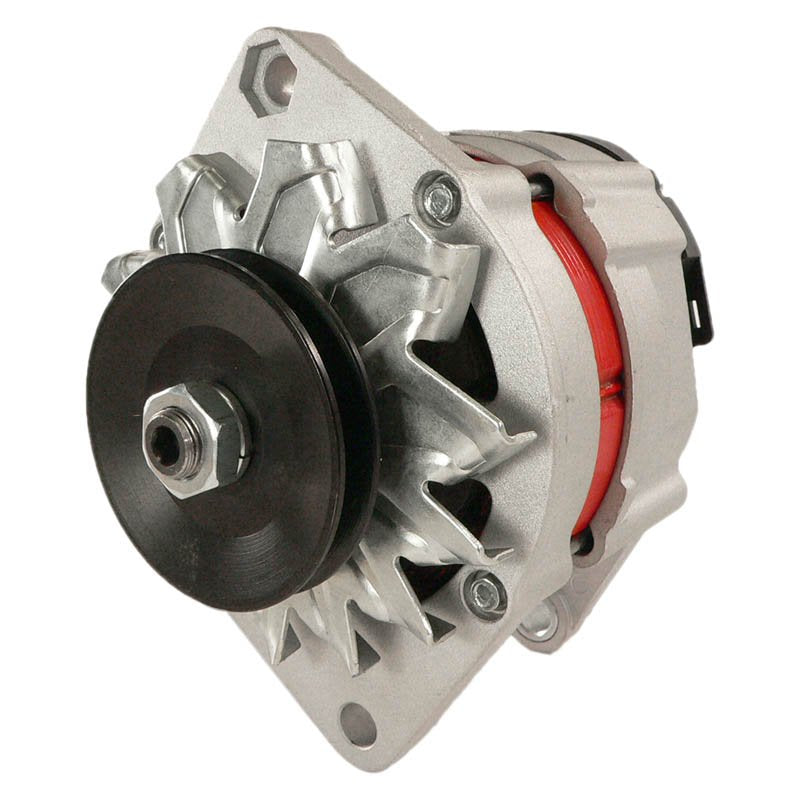

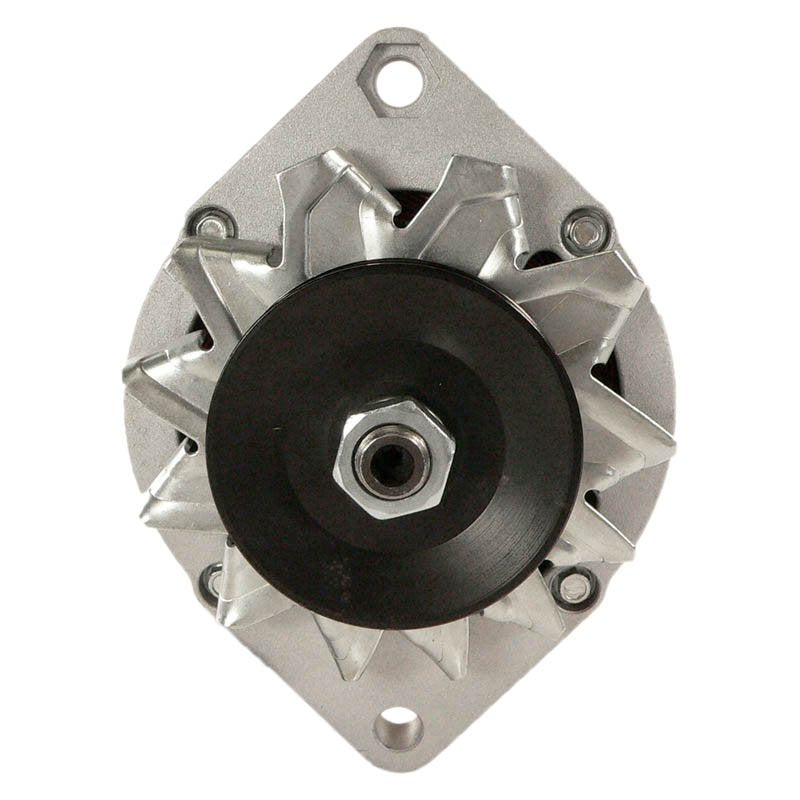

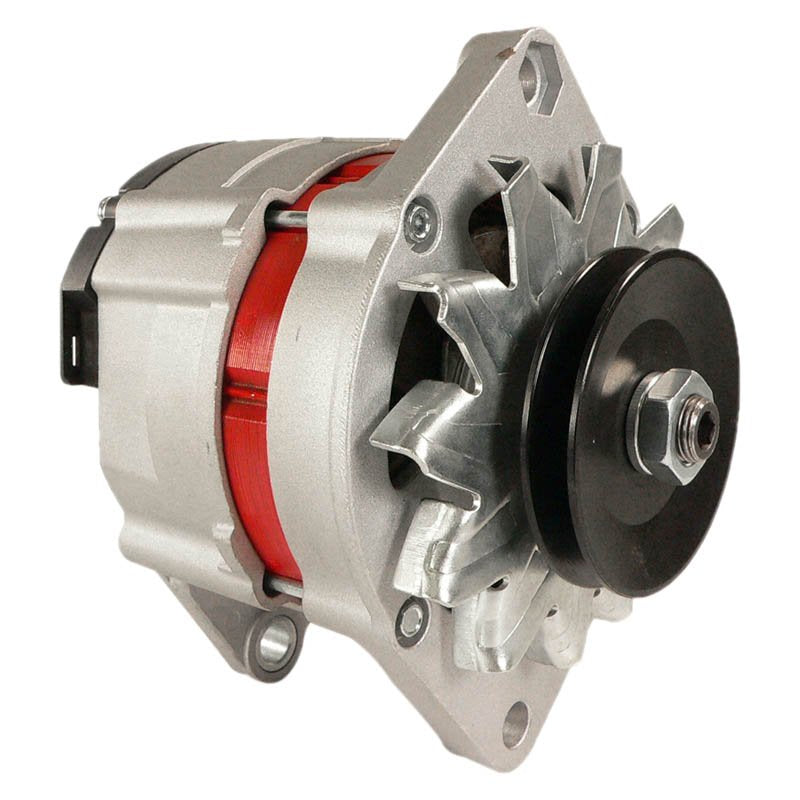

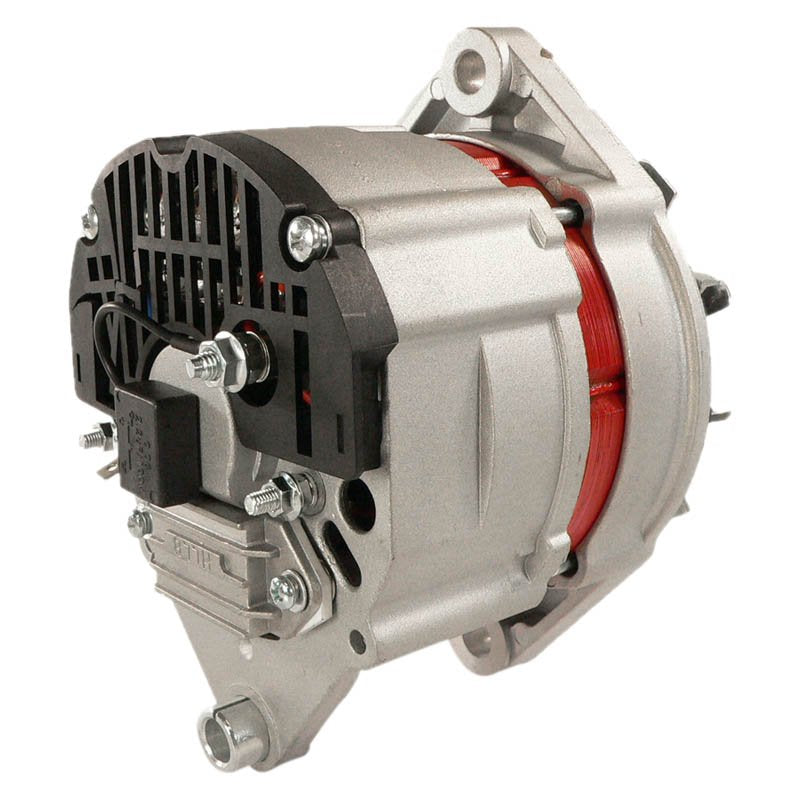

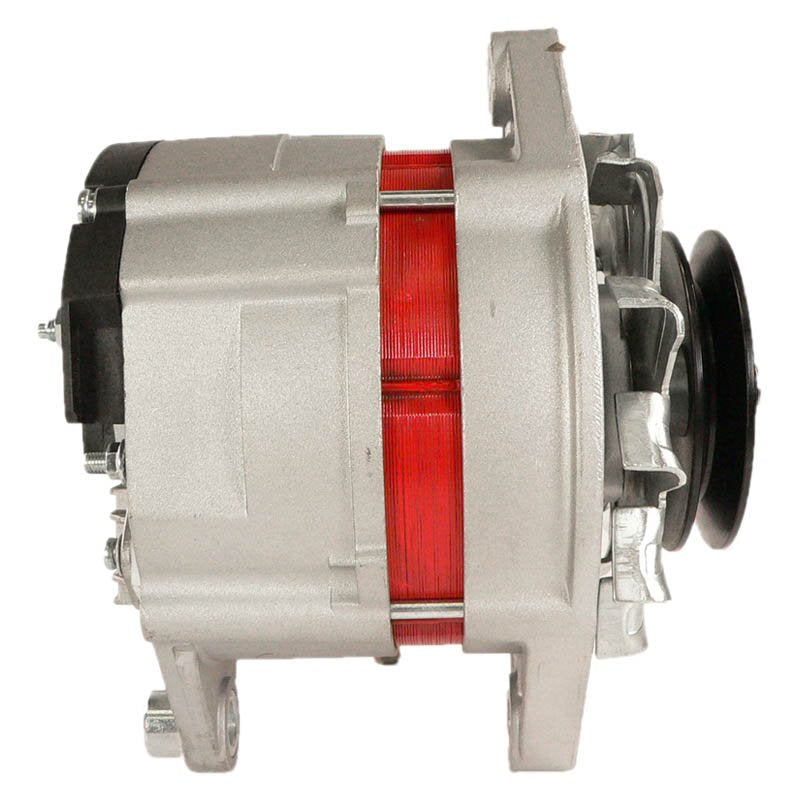

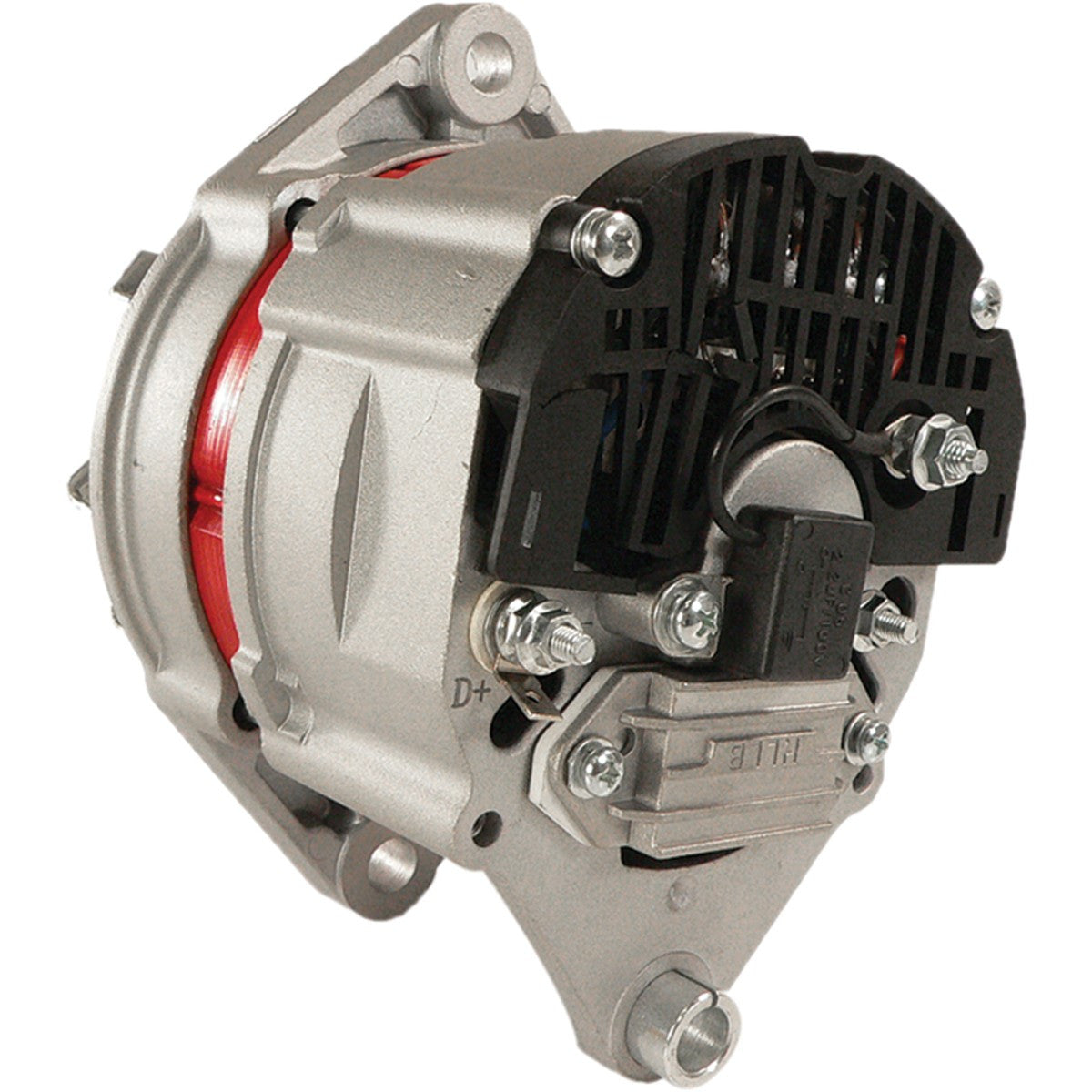

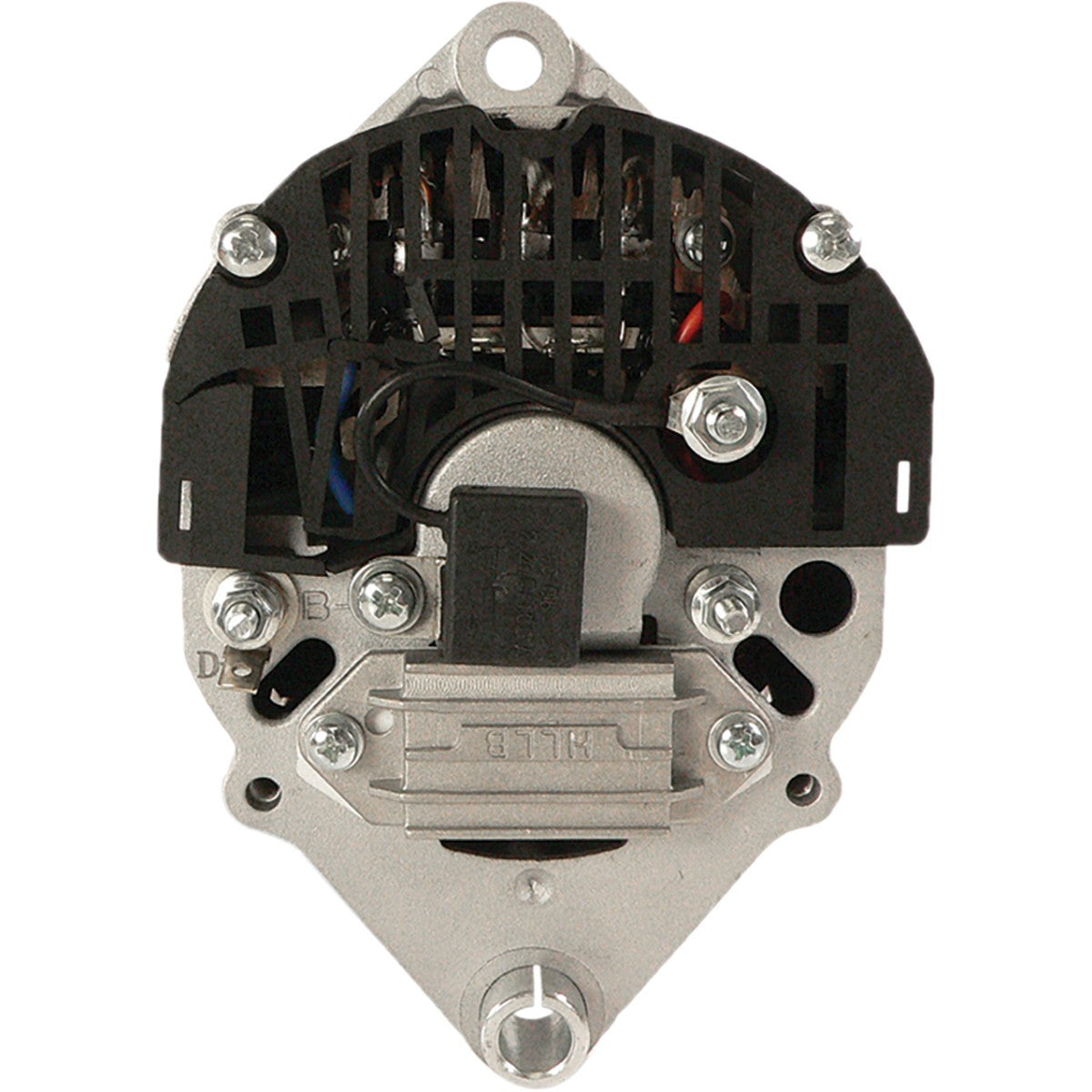

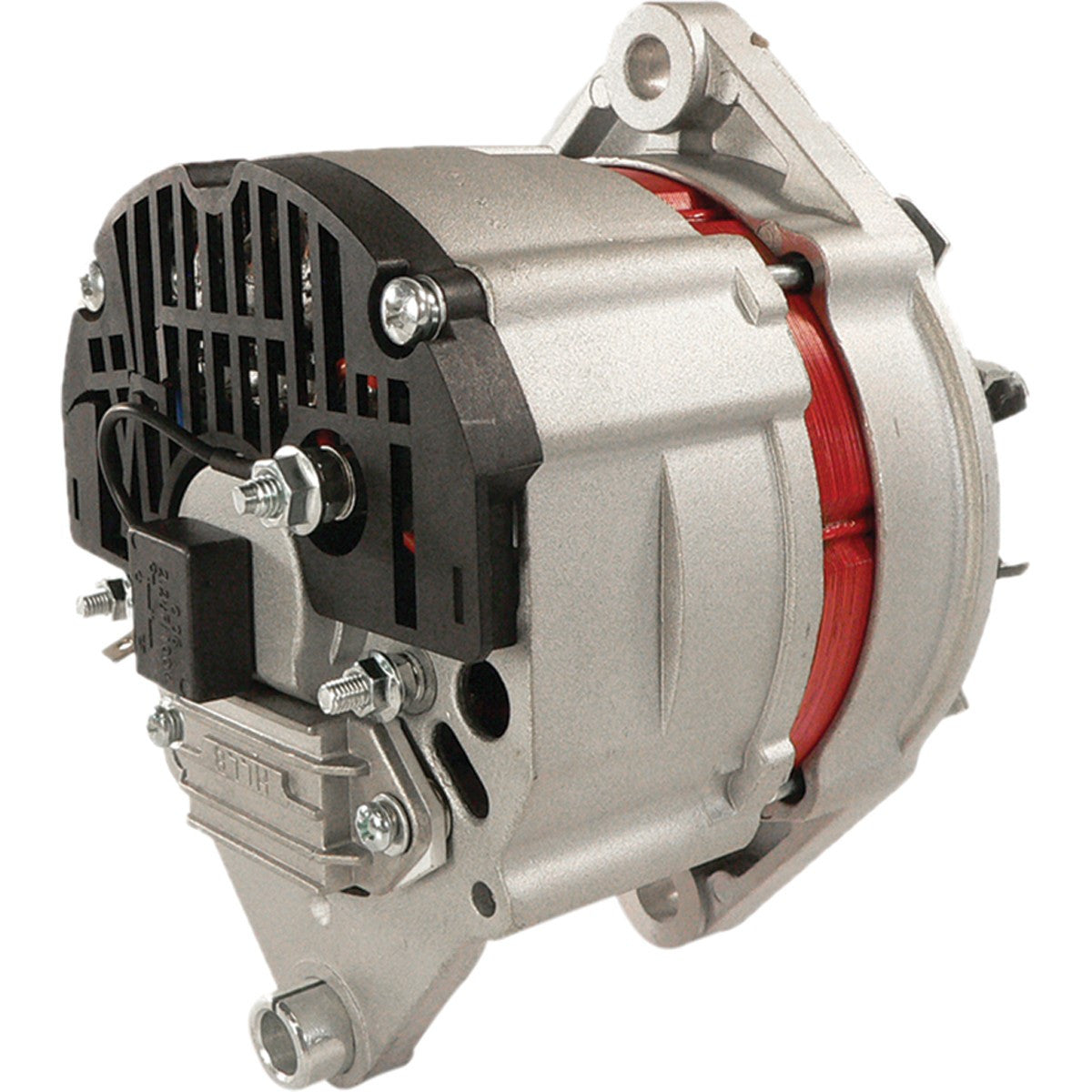

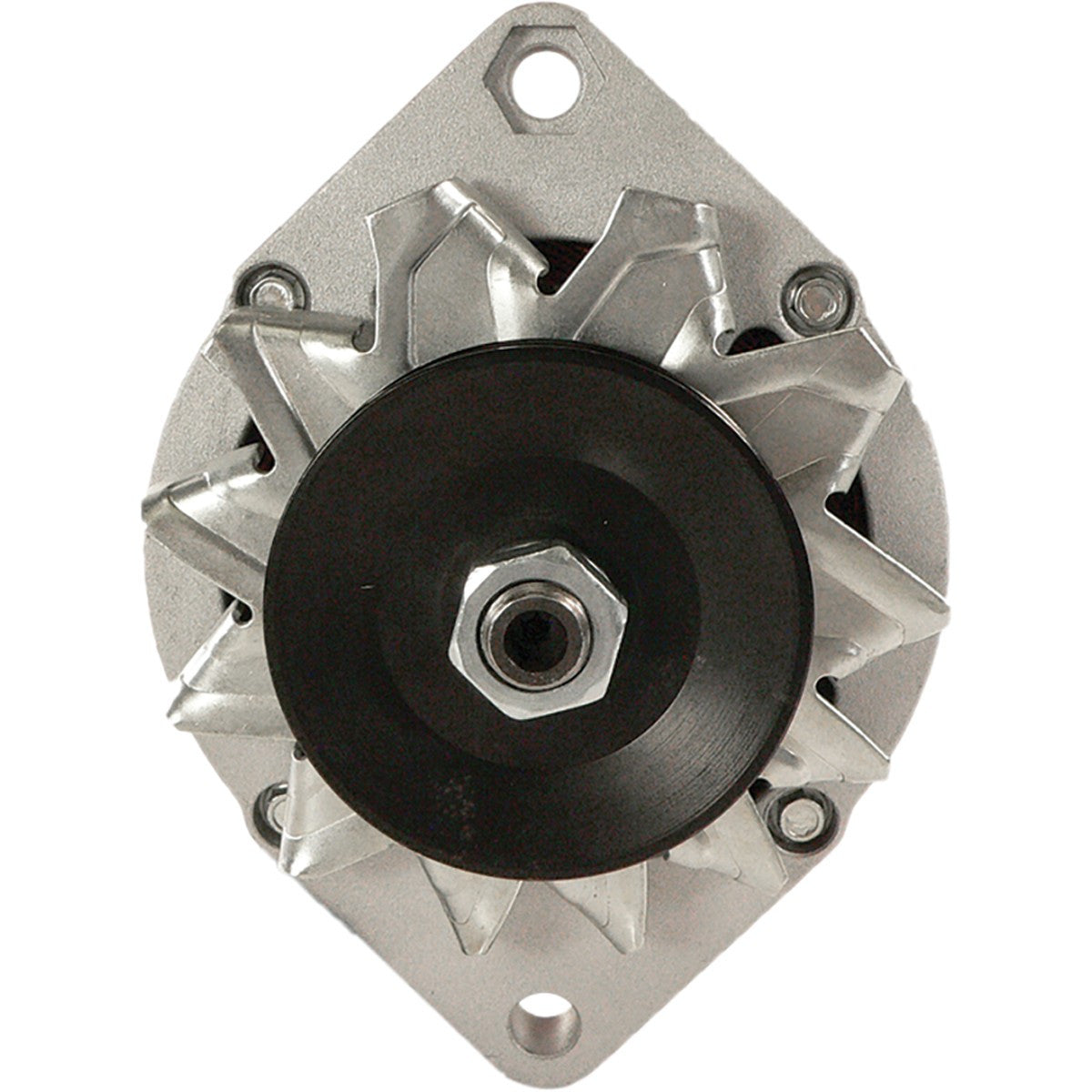

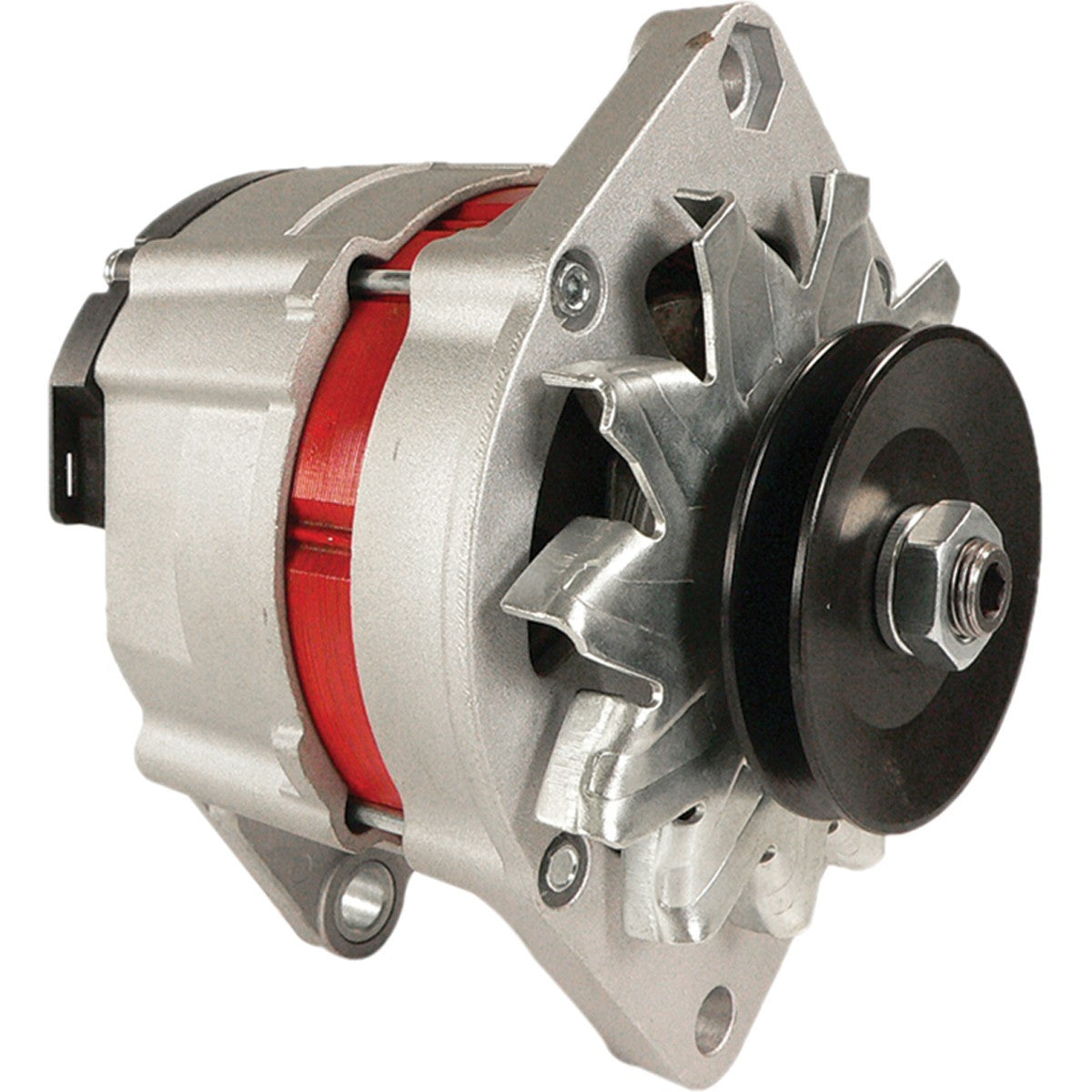

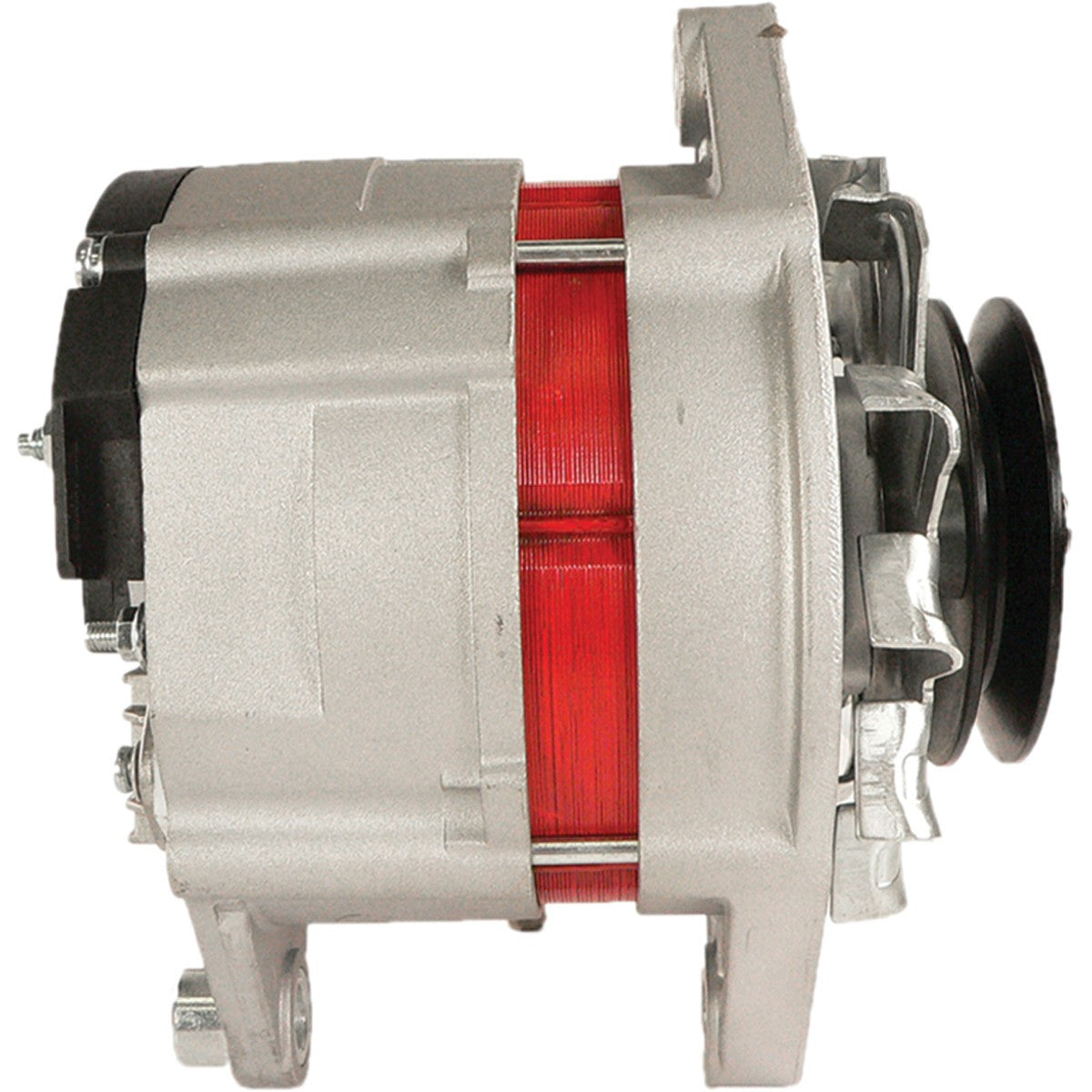

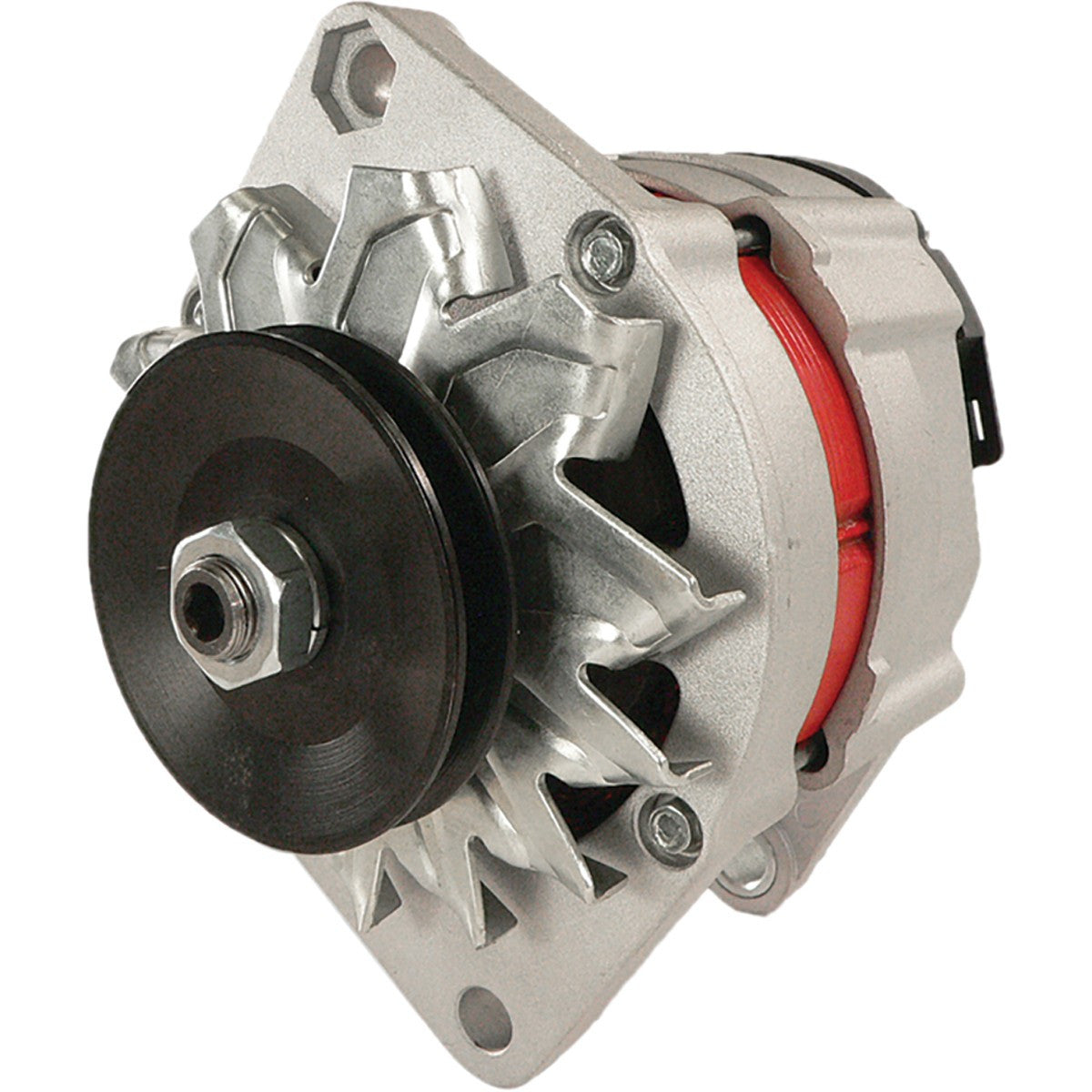

Alternator for AGCO White Allis Case IH Ford New Holland Fiat 12V 65A Marelli
Alternator for AGCO White Allis Case IH Ford New Holland Fiat 12V 65A Marelli
SKU:400-29031
Free shipping over £150. Terms apply
Couldn't load pickup availability
Mercedes-Benz Alternator
Fits 8610, 124 (EXC SPIDER), 124 SPIDER, 131 & More (45 Amp)
Keep your Mercedes-Benz running with this 45 Amp 12V replacement alternator. Designed as a direct-fit replacement for the tractor, auto and light truck listed below, it delivers reliable charging for standard and accessory electrical loads.
This unit features an external fan (EF) and an internal regulator (IR), and is supplied with a V1 pulley already fitted.
Key Features
- ✔High Capacity: 45 Amps of charging output.
- ✔Direct Replacement: Replaces Alfa Romeo 116760506100.
- ✔Pulley Fitted: V1 pulley installed and ready to fit.
- ✔Robust Design: EF fan. IR regulator.
- ✔Quality Assured: New aftermarket unit, 12 month warranty.
Technical Specs
| Voltage: | 12 Volts |
| Amperage: | 45 Amps |
| Rotation: | CW (Clockwise) |
| Pulley: | V1 (Single Groove) |
| Regulator: | Internal (IR) |
| Fan Type: | External (EF) |
| SKU Reference: | 400-29031 |
Vehicle Fitment Guide
| Make | Equipment Type | Models | Years |
|---|---|---|---|
| Agco | Tractor | 8610 | |
| Fiat | Auto And Light Truck | 124 (EXC SPIDER), 124 SPIDER, 131, BRAVA | 1968–1982 |
| Ford/New Holland | Tractor | 3830 | 1999 |
| Iveco | Medium-Duty Truck | Euro Series | 1987–1991 |
| Lancia | Auto And Light Truck | BETA, ZAGATO | 1975–1982 |
| Mercedes-Benz | Auto And Light Truck | 240D, 260E, 280CE, 280E, 280SE, 300CD, 300D, 300SD, 300TD | 1979–1989 |
| Same | Tractor | Explorer 55, Explorer 65, Frutteto II 85, Hercules 160, Leopard 85, Leopard 90, Mercury 75, Solar 50, Solar 60, Tiger Six 105 | 1985–1997 |
| Same | Crawler | Explorer 65C, Explorer 75C, Explorer 85C | 1986–1987 |
OEM Part Number Cross Reference
| Alfa Romeo | 116760506100, AT050600108 |
| Arrowhead | AIA0008, 400-29031, IA0071, IA0327, IA0329, IA0336, MG156, MG191, MG43, MG521, MG524 |
| Bosch | 0-120-488-225, 0-120-488-251, 0-120-489-018, 0-120-489-106, 0-120-489-107, 0-120-489-144, 0-120-489-145, 0-120-489-146, 0-120-489-147, 0-120-489-152, 0-120-489-153, 0-120-489-212, 0-120-489-219, 0-120-489-338, 0-120-489-761, 0-120-489-762, 0-120-489-763, 0-120-489-765, 0-120-489-770, 9-120-144-215 |
| Cargo | 110882, 110890, 111686 |
| Case | 4242730, 4772683, 4787598, 4808498, 4808498R |
| Fiat | 4711700, 4720501, 4720502, 4721587, 4721588, 4721589, 4721591, 4721592, 4731648, 4731649, 4731652, 4731839, 4731841, 4746400, 4746401, 4750583, 4769910, 4769911, 4772668, 4787596, 4787597, 4787598, 4787663, 4787665, 4787668, 4808497, 4808498, 4808499, 4808510, 4808517, 4808518, 4818513, 4849157, 77028550 |
| Intl Harvester | 1530354C1 |
| Iveco | 4242730, 4772683, 4798447 |
| J&N Electrical Products | 400-29018 |
| KHD | 473-1651 |
| Lester | 12048, 12580, 12583, 12584, 13204, 13205, 13206, 12034 |
| Letrika (iskra) Aftermarket IA | 0071, IA 0327, IA 0329, IA 0330, IA 0336 |
| Letrika (iskra) Description | AAK4153, AAK4155, AAK4162 |
| Letrika (iskra) OEM | 11.201.327, 11.201.329, 11.201.336 |
| Magirus-deutz | 473-1651, 4763249 |
| Magneton | 9516761 |
| Mahle | MG156, MG191, MG43, MG521, MG524 |
| Marelli | 63305206, 63305226, 63305236, 63305246, 63305256, 63305506, 63305526, 63305536, 63305556, 63305566, 63305802, 63305832, 63305842, 63307206, 63307236, 63307246, 63307256, 63307506, 63307526, 63307536, 63307556, 63307566, 63307802, 63307832, 63320015, 63320021, 63320049, 63321019, 63321020, 63321035, 63321036, 63321037, 63321078, 63321099, MAN260, MAN274, MAN771 |
| NEW Holland | 4242730, 4711700, 4762563, 4772683, 4787594, 4787598, 4808498, 4808498R, 4808511, 4808516 |
| Same | 294391300, 29439150, 294392000, 294392400 |
| Sparex | S-35958, S-35962, S-35963, S-62412 |
| Valeo | 432868 |
Frequently Asked Questions
Will this fit my Mercedes-Benz 8610?
Yes — the 8610 appears in the fitment guide above. Check your existing part number against the cross reference table to confirm.
Is this a 45 Amp alternator?
Yes, this is a 45 Amp 12V unit with an IR regulator.
Is the pulley included?
Yes, a V1 pulley is pre-installed.
Is this new or remanufactured?
This is a brand new aftermarket unit — not a remanufactured core.
Note: Please verify your machine's serial number or existing part number to ensure compatibility.
