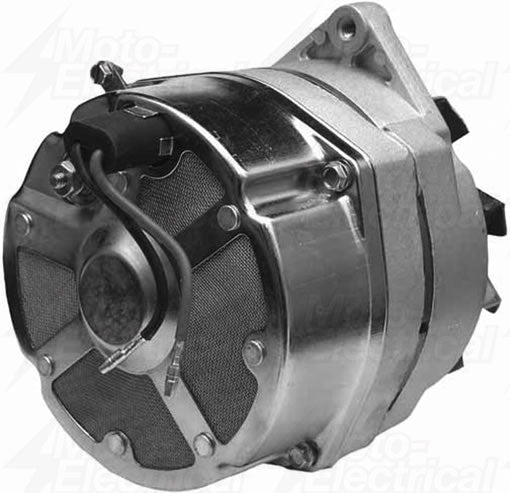

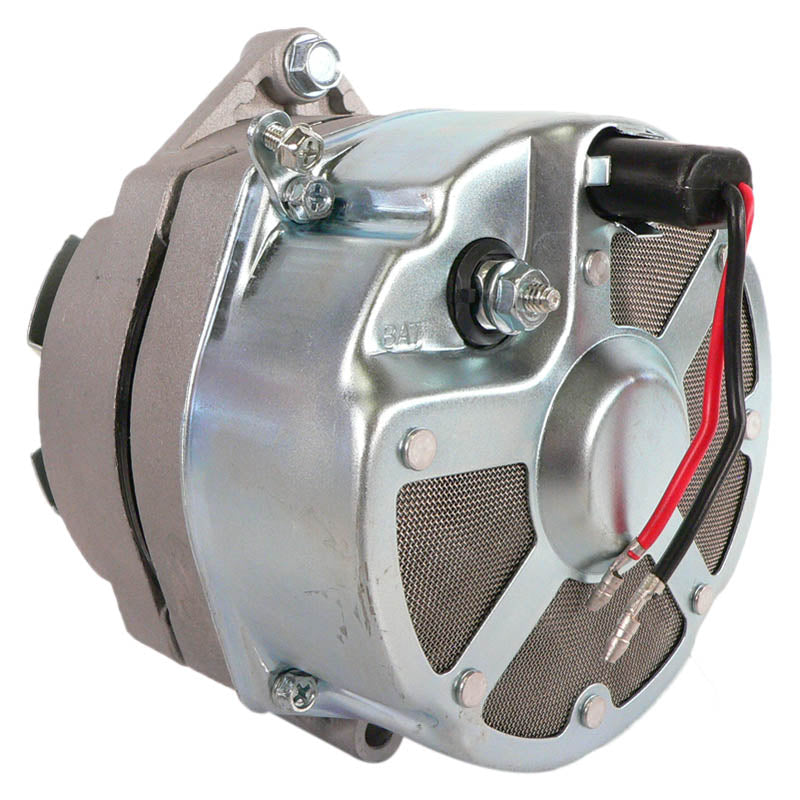

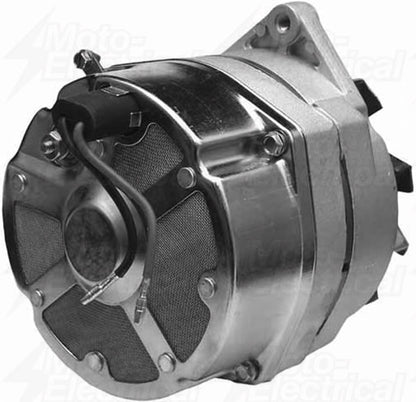

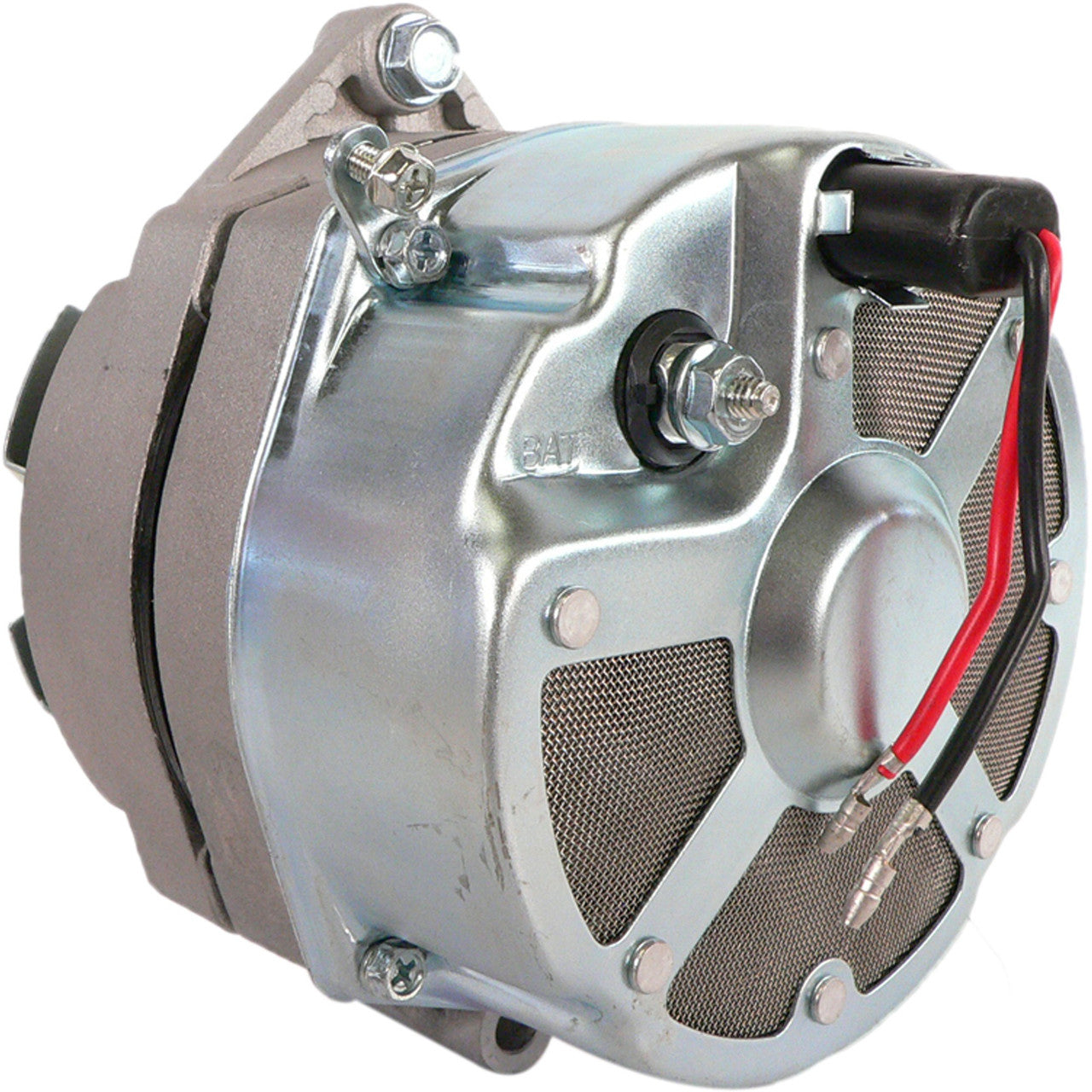

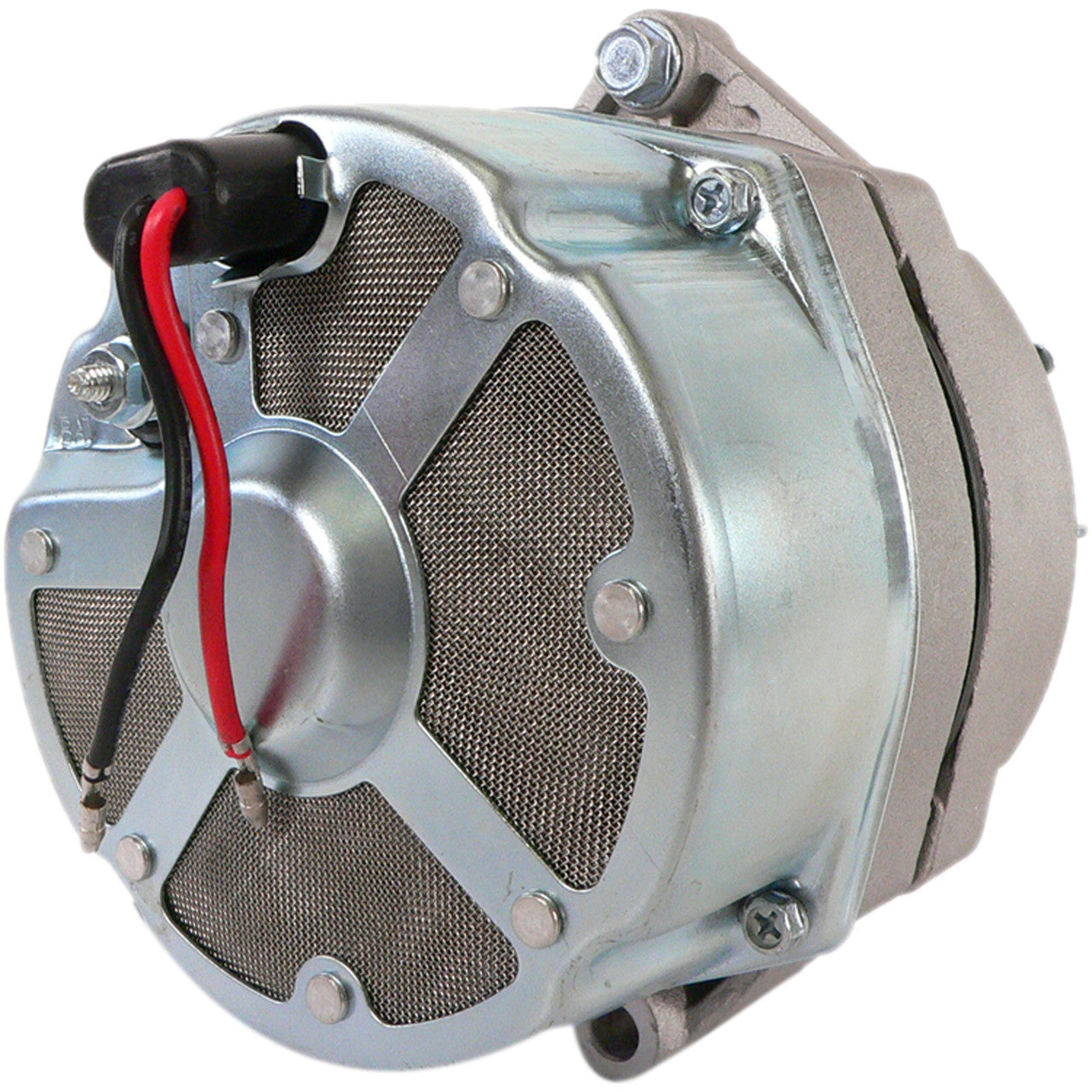

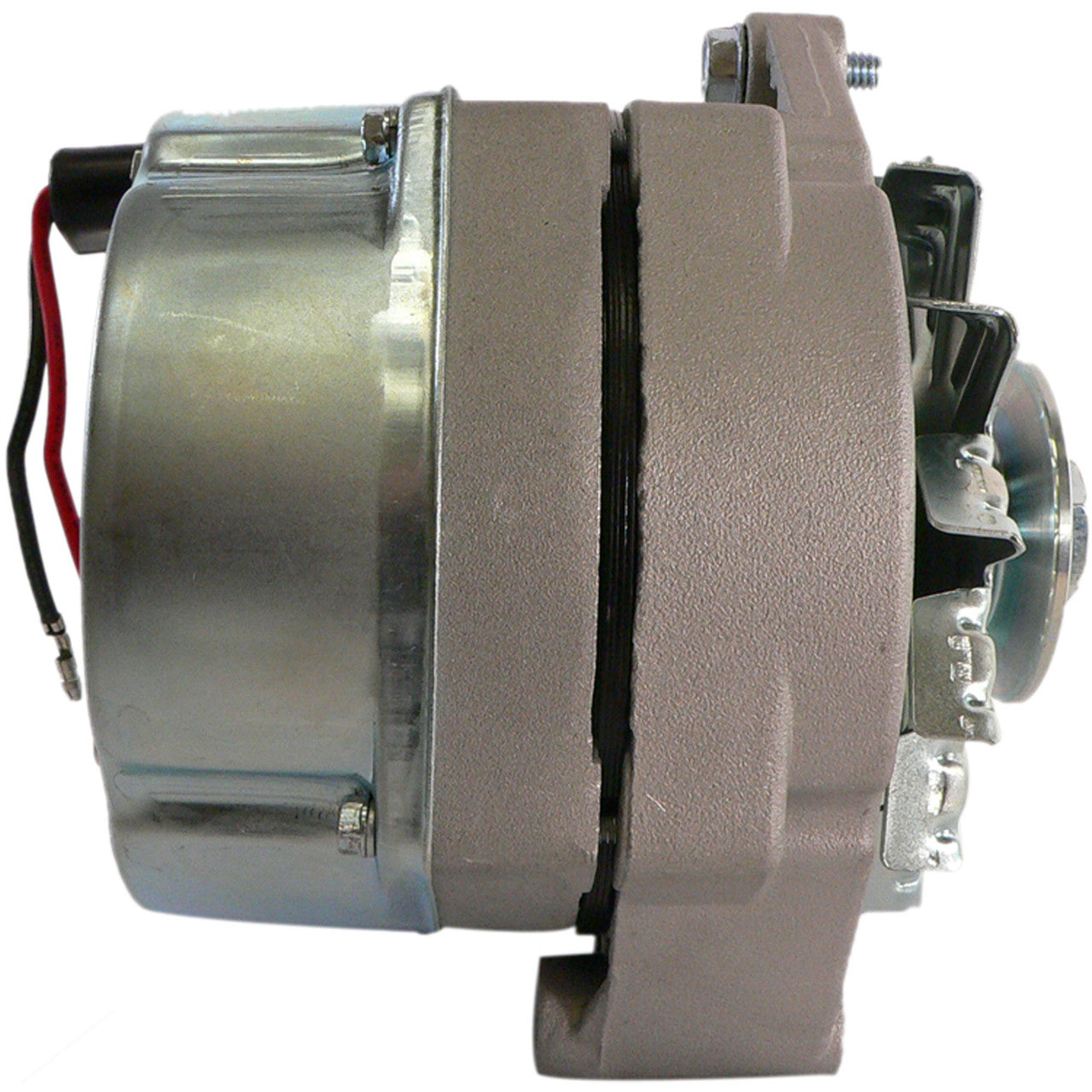

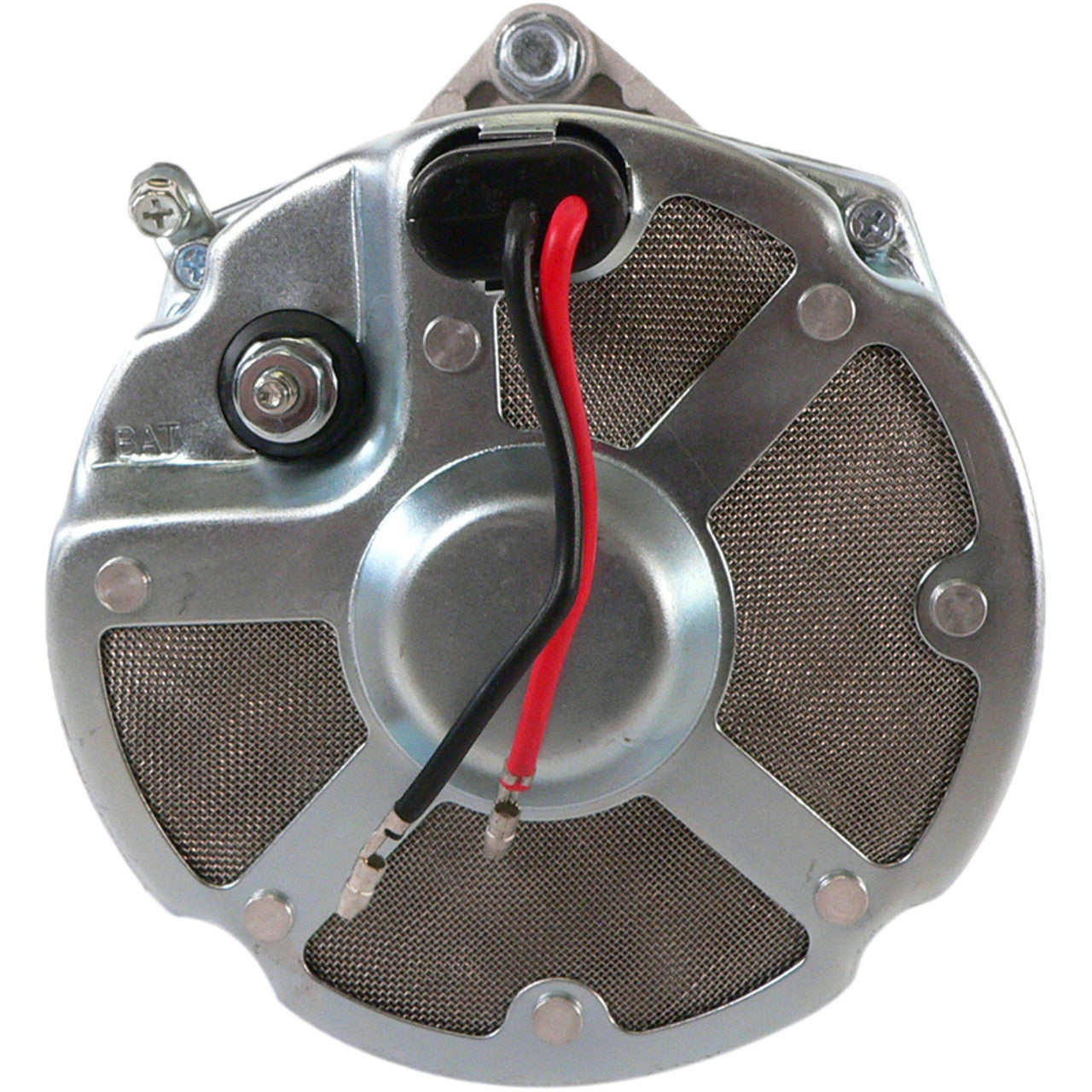

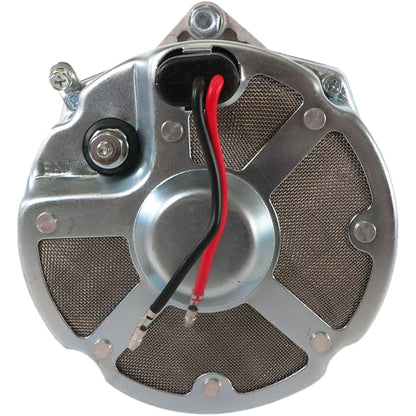

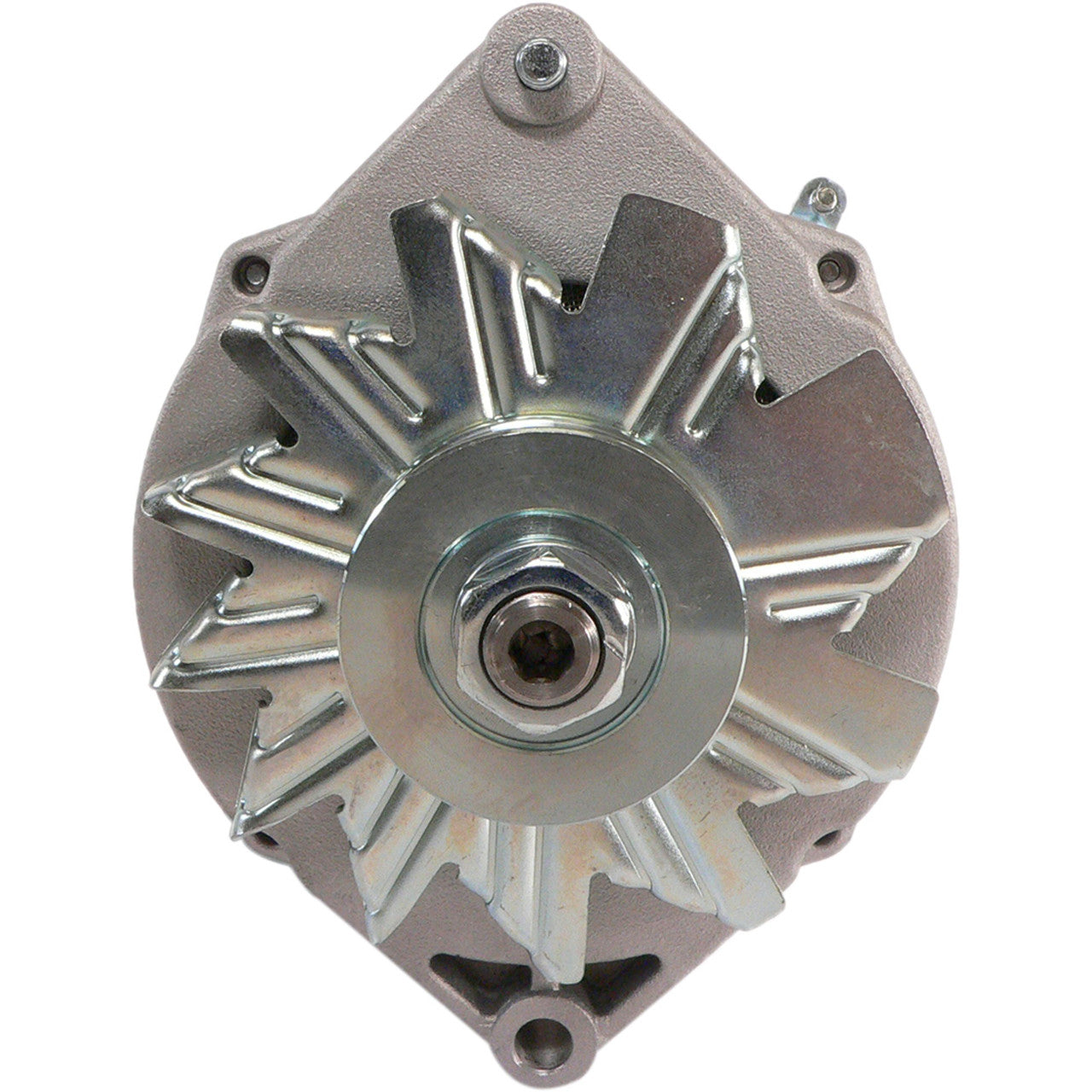

Alternator for Allis Chalmers Lift Truck 12V - Replaces 1103114

Alternator for Allis Chalmers Lift Truck 12V - Replaces 1103114

SKU:400-12089

Regular price £197.10 GBP
Regular price £236.52 GBP Sale price £197.10 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Free shipping over £150. Terms apply

International Alternator

Fits AC-C 55, AC-C 60, AC-P 80, APOLLO & More (63 Amp)

Keep your International running with this 63 Amp 12V replacement alternator. Designed as a direct-fit replacement for the lift truck, auto and light truck listed below, it delivers reliable charging for standard and accessory electrical loads.

This unit features an external fan (EF) and an internal regulator (IR), and is supplied with a V1 pulley already fitted.

DIRECT FIT: Replaces Arco Marine 20104 — no modification required on the machines listed below.

Key Features

  • High Capacity: 63 Amps of charging output.
  • Direct Replacement: Replaces Arco Marine 20104.

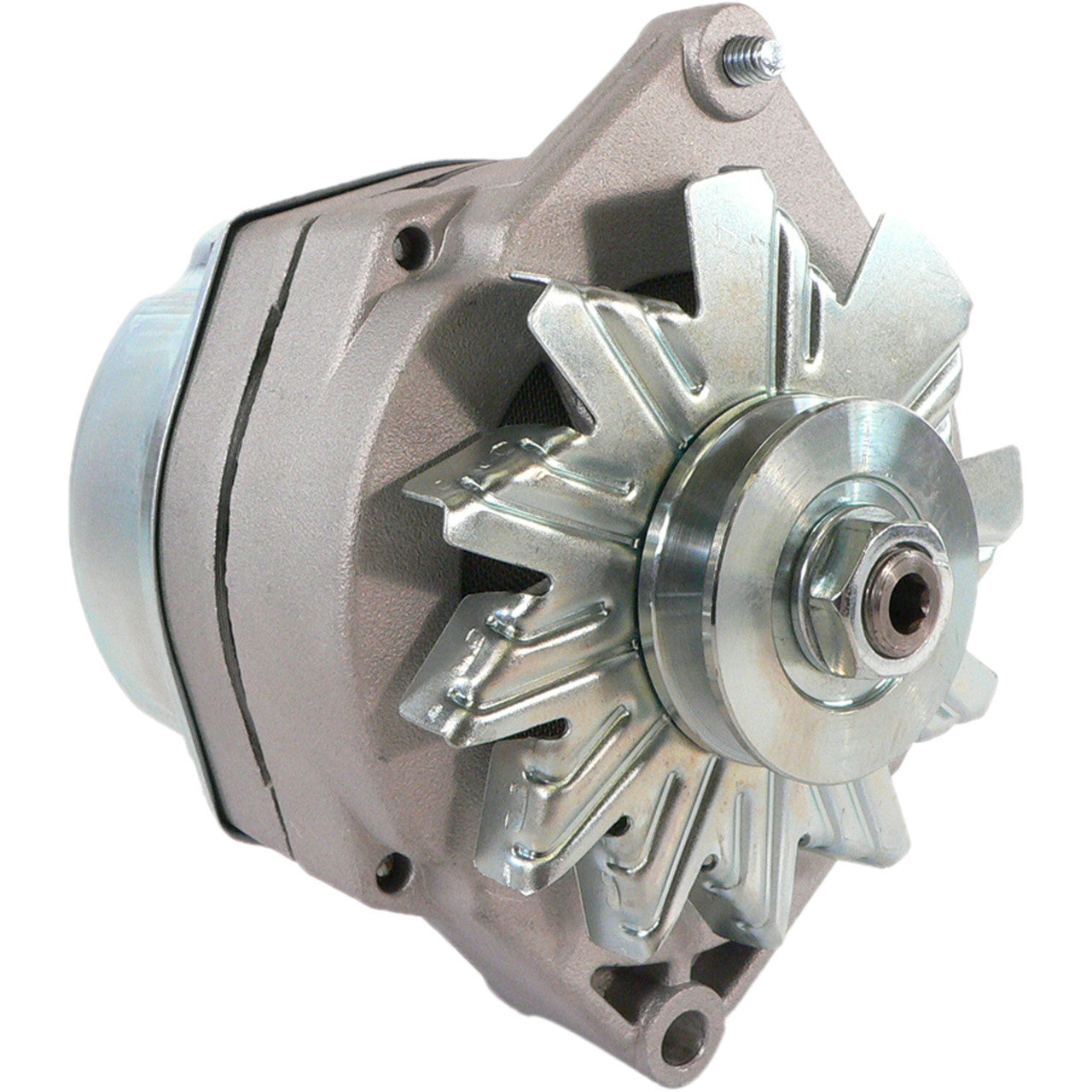

  • Pulley Fitted: V1 pulley installed and ready to fit.
  • Robust Design: EF fan. IR regulator.
  • Quality Assured: New aftermarket unit, 12 month warranty.

Technical Specs

Voltage: 12 Volts
Amperage: 63 Amps
Rotation: CW (Clockwise)
Pulley: V1 (Single Groove)
Regulator: Internal (IR)
Fan Type: External (EF)
Clock: 12
SKU Reference: 400-12089

Vehicle Fitment Guide

Make Equipment Type Models Years
Allis Chalmers Lift Truck AC-C 55, AC-C 60, AC-P 80 1981–1985
Buick Auto And Light Truck APOLLO, CENTURION, CENTURY, ELECTRA, ESTATE WAGON, LESABRE, REGAL, RIVIERA, SKYLARK 1970–1979
Cadillac Auto And Light Truck CALAIS, DEVILLE, FLEETWOOD 1972–1974
Chevrolet Auto And Light Truck BEL AIR, C / K / R / V SERIES PICKUPS, CAPRICE, CORVETTE, EL CAMINO, IMPALA, MALIBU, MONTE CARLO, MONZA, S10 BLAZER, S10 PICKUP, VEGA 1969–1985
GMC Auto And Light Truck C / K / R / V SERIES PICKUPS, CABALLERO, JIMMY, S-15 JIMMY, S-15 PICKUP 1978–1985
Hyster Lift Truck H10-150F, H-150-275F, H-150-275H, H-160-110E, H40-60JS 1986
International Medium & Heavy-Duty Truck All Models (By Engine) - Prior to 1971, Cargostar, Fleetstar 1971–1979
International Auto And Light Truck LIGHT TRUCKS (EXC SCOUT) 1971–1976

OEM Part Number Cross Reference

Arco Marine 20104
Arrowhead ADR0106
Cargo 110505
Delco 1100186, 1102938, 1102939, 1103113, 1103114, 1103193, 1105064, 1105065, 1105078, 1105088, 1105097
EMP Parts 4-5957
Hyster 3042505, 341675
J&N Electrical Products 400-12089, 400-12089R
Lester 7195
Sierra Marine 18-5951 (BLACK), 18-5957 (UNPAINTED)
WAI 7466N

Frequently Asked Questions

Will this fit my International AC-C 55?

Yes — the AC-C 55 appears in the fitment guide above. Check your existing part number against the cross reference table to confirm.

Is this a 63 Amp alternator?

Yes, this is a 63 Amp 12V unit with an IR regulator.

Is the pulley included?

Yes, a V1 pulley is pre-installed.

Is this new or remanufactured?

This is a brand new aftermarket unit — not a remanufactured core.

Note: Please verify your machine's serial number or existing part number to ensure compatibility.
