Alternator for Austin, MG, Triumph & Ford Tractor Applications 34 Amp
Austin, MG, Triumph, Capri & Ford Tractor - 12-Volt 34 Amp
This alternator is built to OEM specifications as a direct fit and function replacement for Austin, MG, Triumph, Capri and Ford Tractor applications fitted with a 12-volt IR/EF charging system. It uses the original single-groove V-belt pulley with a 15mm bore and the same mounting arrangement, so no modification is required.
Rated at 34 amps with an internally regulated (IR), externally fan-cooled (EF) design and clockwise rotation, it is built to the same output and specification as the original unit it replaces.
Key Features
- 12-volt, 34-amp output
- Internally regulated (IR), externally fan-cooled (EF) design
- Clockwise (CW) rotation to match the original unit

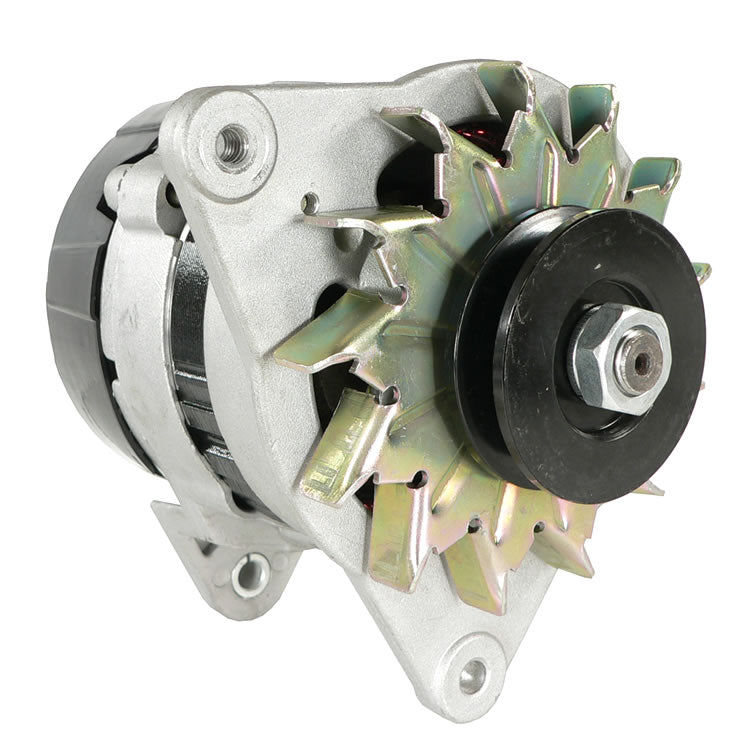

- Single-groove V1 pulley, 15mm bore
- Direct OEM fit and finish
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Rotation | Clockwise (CW) |
| Amperage | 34A |
| Pulley Type | Single-Groove V1, 15mm ID |
| Fan Type | Externally Fan-Cooled (EF) |
| Regulator | Internally Regulated (IR) |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Austin, MG, Triumph, Capri & Ford Tractor | Not specified - confirm against your OEM part number |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 23713 / 23737 / 23769 / 23843 / 23844 | Lucas Electric |
| AL297X / AL298X / AL300X | Bosch |
| 10464215 / 10464217 / DRA0940 | Delco |
| 14028 / 14029 / 14037 | Lester |
| IA0067 / IA0531 | Letrika/Iskra |
| VA100 / VA112 | Valeo |
Frequently Asked Questions
Will this alternator fit without modification?
Yes. It uses the same mounting, connector and pulley arrangement as the original alternator, so no drilling or wiring changes are needed.
What's included when I order this part?
You receive one fully assembled replacement alternator, ready to bolt on and wire in place of your existing unit.
How can I tell my alternator has failed?
Common signs are a battery warning light on the dash, dimming or flickering lights, a battery that won't hold charge, or a whining/grinding noise from the alternator itself.
Will the pulley match my original unit?
This alternator uses a single-groove V1 pulley with a 15mm bore. Compare this against your original alternator's pulley before ordering to confirm a correct match.
