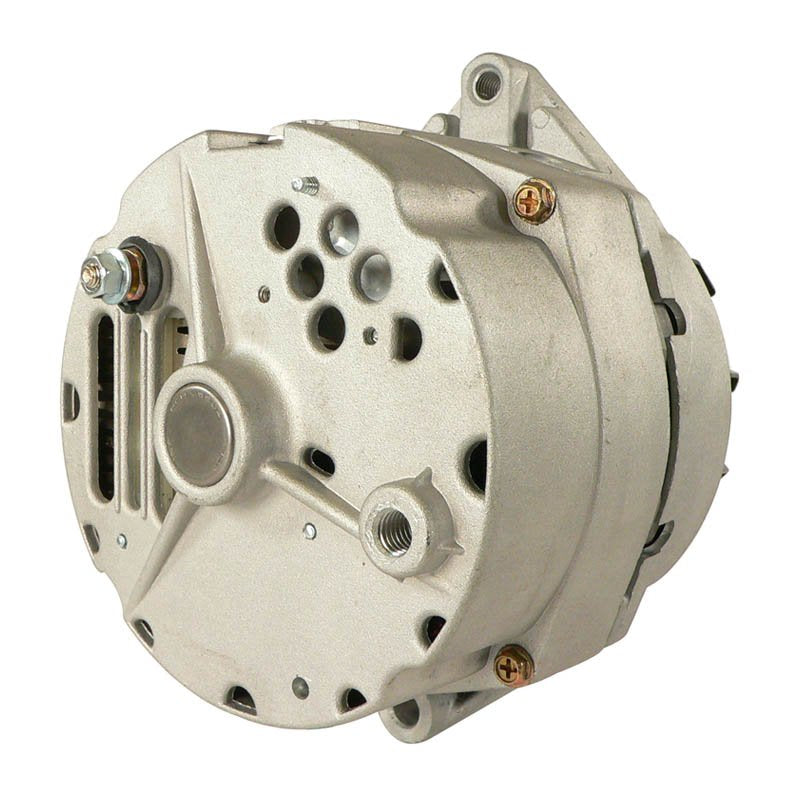

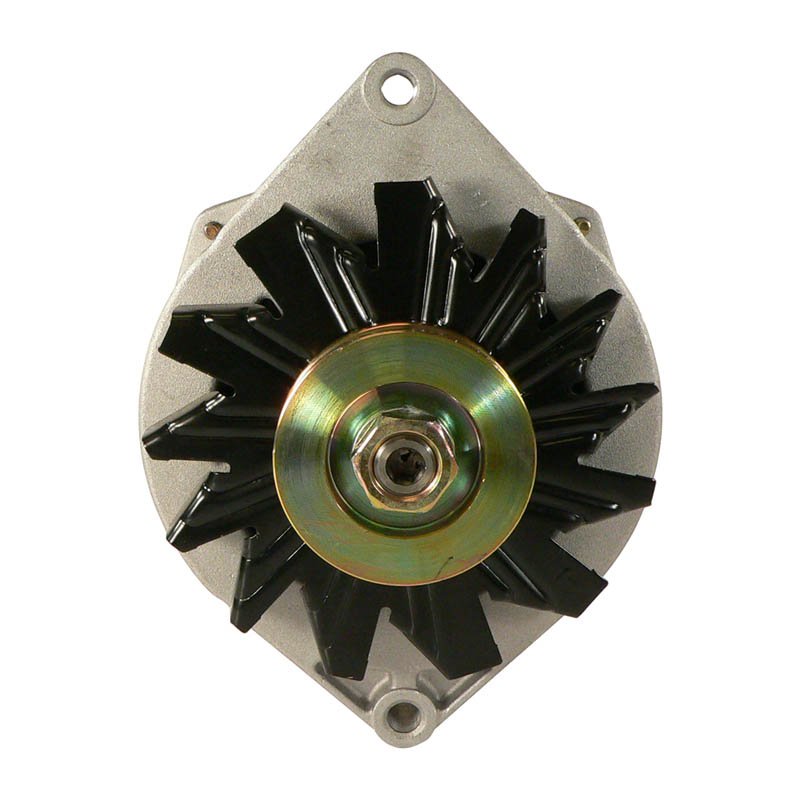

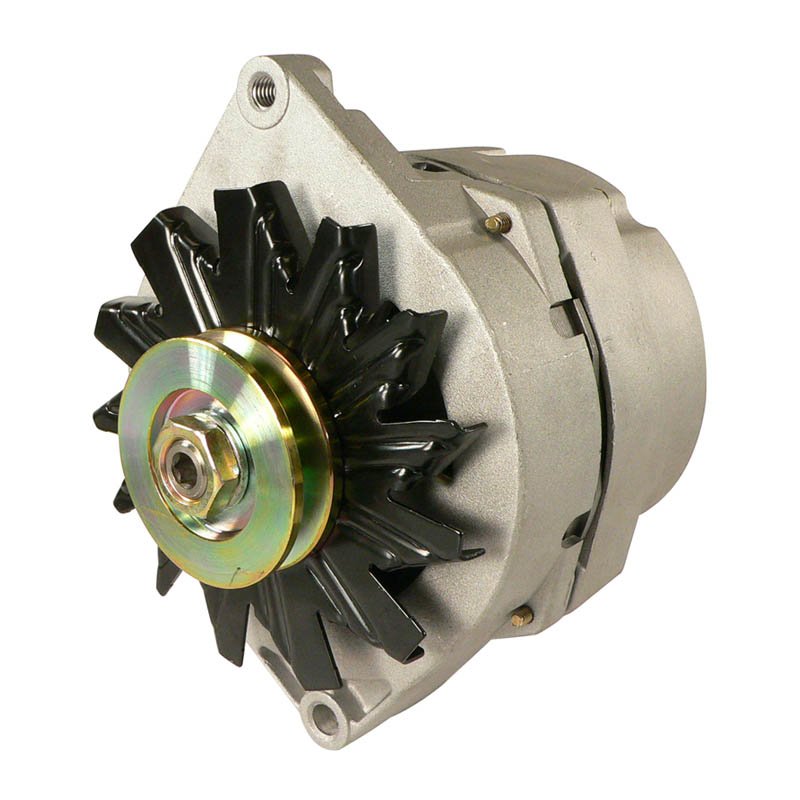

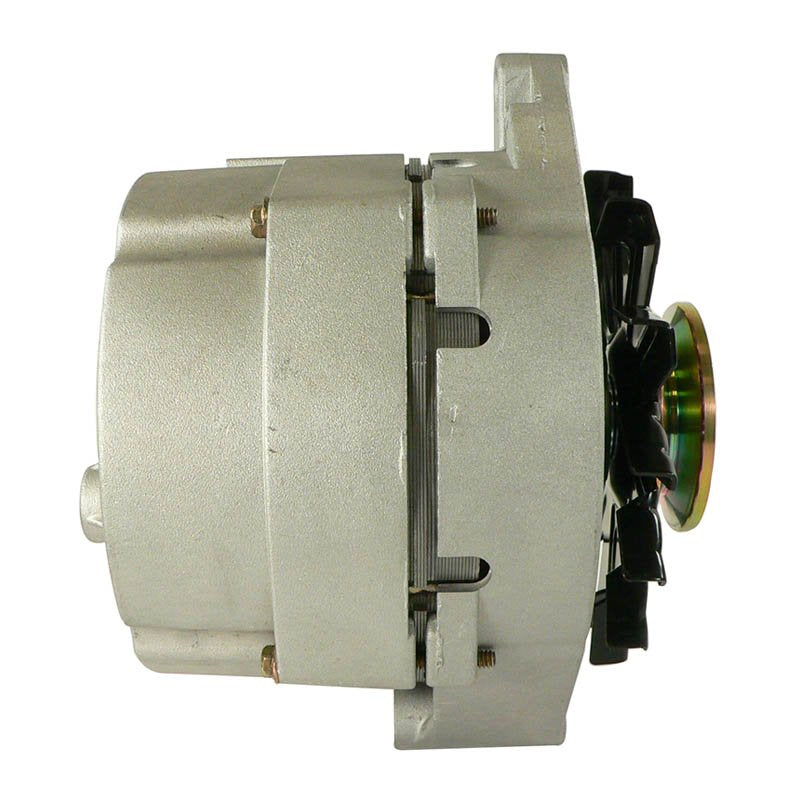

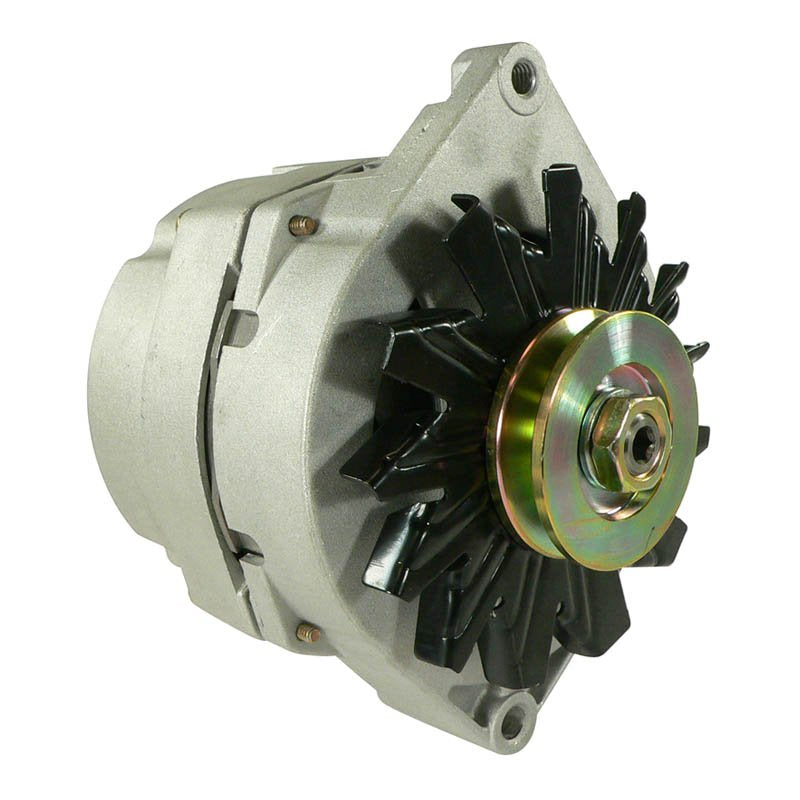

Alternator for Case IH Tractors & Industrial Equipment - 12 Volt
12V, 105A farm and industrial alternator, externally fan-cooled
This 12-volt, 105-amp alternator is built to OEM specification as a direct replacement for the unit fitted to a range of Case IH tractors and farm and industrial equipment. It also directly cross-references to units used on John Deere, Cummins, AGCO, Allis Chalmers and White farm and industrial machinery of the same period.
It is an externally fan-cooled, internally regulated design with a 6 o'clock plug position, supplied to fit and function exactly like the original alternator it replaces - various pulleys were used across these applications, so check the pulley on your original unit before ordering.
Key Features
- Direct OEM fit and function for Case IH, John Deere & industrial applications
- 12-volt, 105-amp operation
- Externally fan-cooled, internally regulated
- 6 o'clock plug position
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 105A |
| Rotation | Clockwise (CW) |
| Fan Type | External (EF) |
| Regulator | Internal (IR) |
| Plug Position | 6 O'Clock |
Vehicle Fitment Guide
| Make & Model | Years |
|---|---|
| Case IH Tractors & Industrial Equipment | Not specified by manufacturer |
| John Deere Tractors & Industrial Equipment | Not specified by manufacturer |
| AGCO / Allis Chalmers / White Farm & Industrial Equipment | Not specified by manufacturer |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 103807A1R, 103808A1, 103808A1R, A130665Z, A130672Z, A163085, A181766, 146487C91 | Case IH |
| AT117390, RE501112, SE501376, TY6751 | John Deere |
| 3603231, 3604474-6RX, 3604474RX, 3909981 | Cummins |
| AL9970X | Bosch |
| 7130, 7853, 7853-6 | Lester |
| 1101194-1105609 (range) | Delco |
Frequently Asked Questions
Will this fit without modification?
Yes, it is a direct replacement for the alternator fitted to these Case IH, John Deere and AGCO/Allis Chalmers/White farm and industrial applications - note that various pulleys were used, so check your original pulley before ordering.
What's included?
One alternator, ready to fit in place of the original unit.
How do I know my old alternator has failed?
Common signs include a charge warning light staying on, a flat or slowly discharging battery, or dimming electrical accessories at idle.
Is the pulley included?
This unit is supplied without a specific pulley fitted as standard, since various pulleys were used across these applications - transfer your original pulley if it is in good condition.
