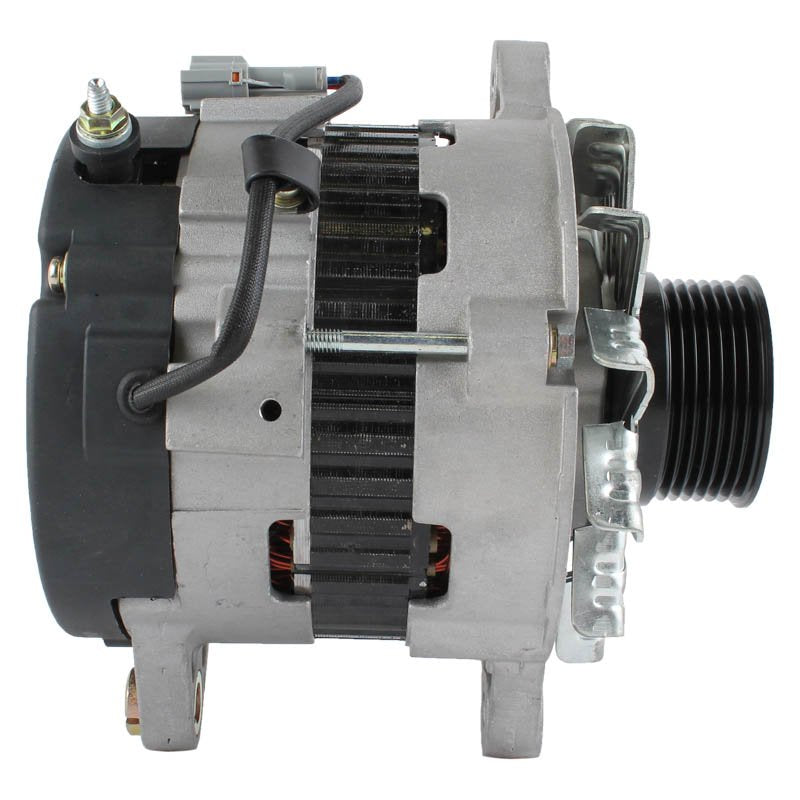

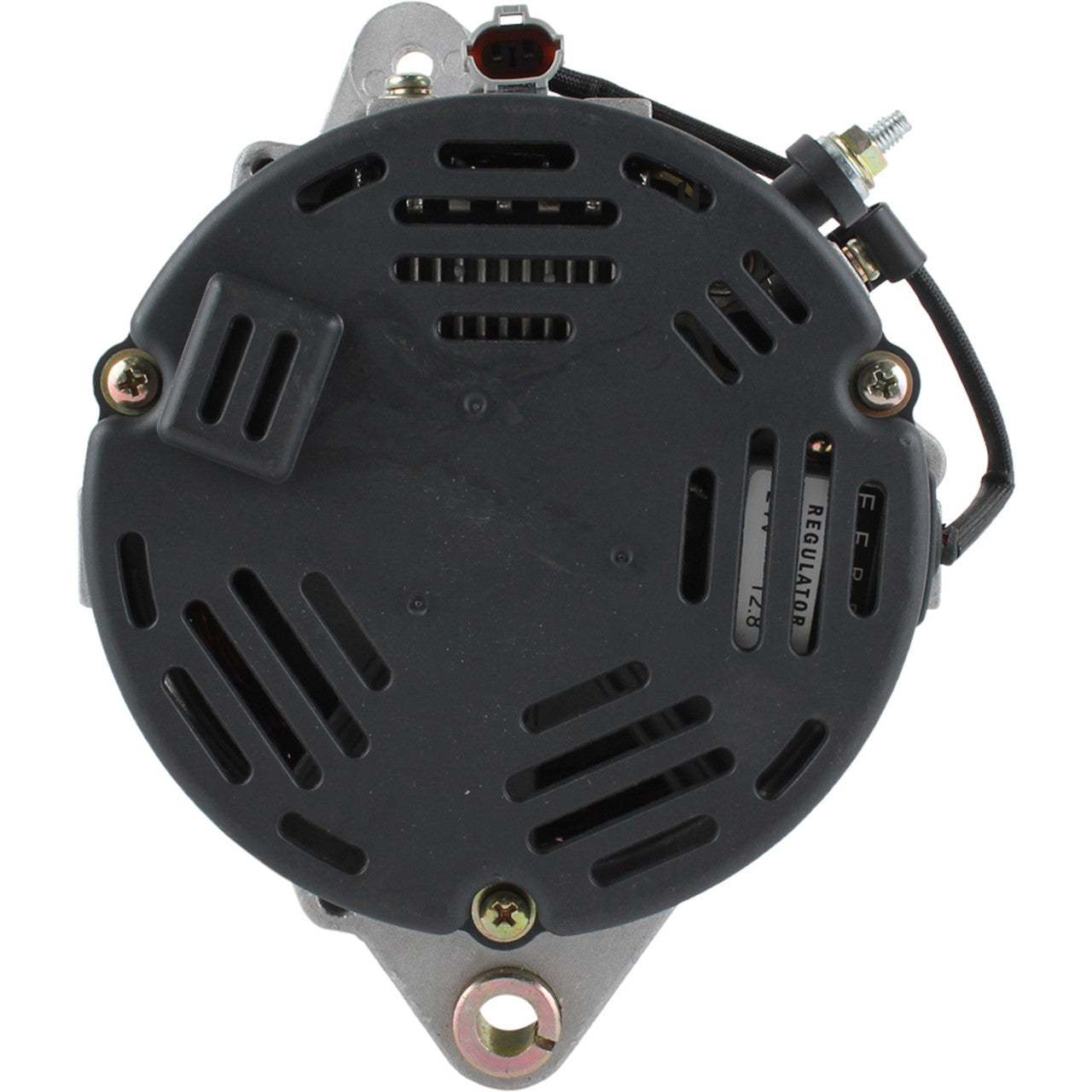

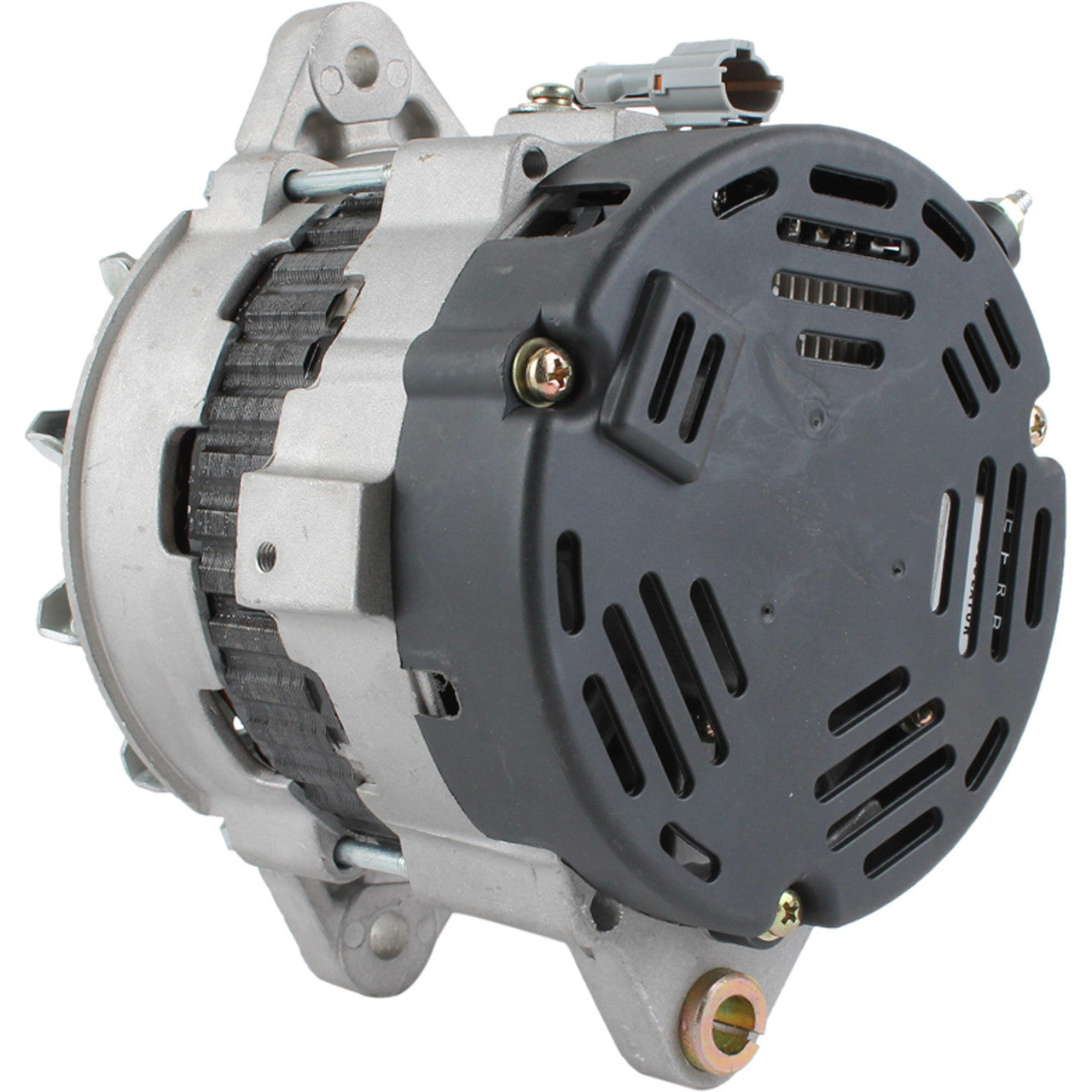

24V 50A Alternator for Isuzu 4JJ1 – John Deere 135D, Case & Takeuchi
Brand new aftermarket 24-volt, 50-amp alternator for excavators and industrial machines powered by the Isuzu 4JJ1 diesel engine. It replaces Isuzu OE 8-98092-112-2 / 8-98092-112-1 (Nikko 0-35000-4858 / 0-35000-4648) and is listed for the John Deere 135D excavator, plus Case and Takeuchi machines fitted with the Isuzu 4JJ1.
Technical Specifications
| Voltage |
24V |
| Output |
50A |
| Rotation |
CW (clockwise) |
| Regulator |
Internal (IR) |
| Fan |
External (EF) |
| Pulley |

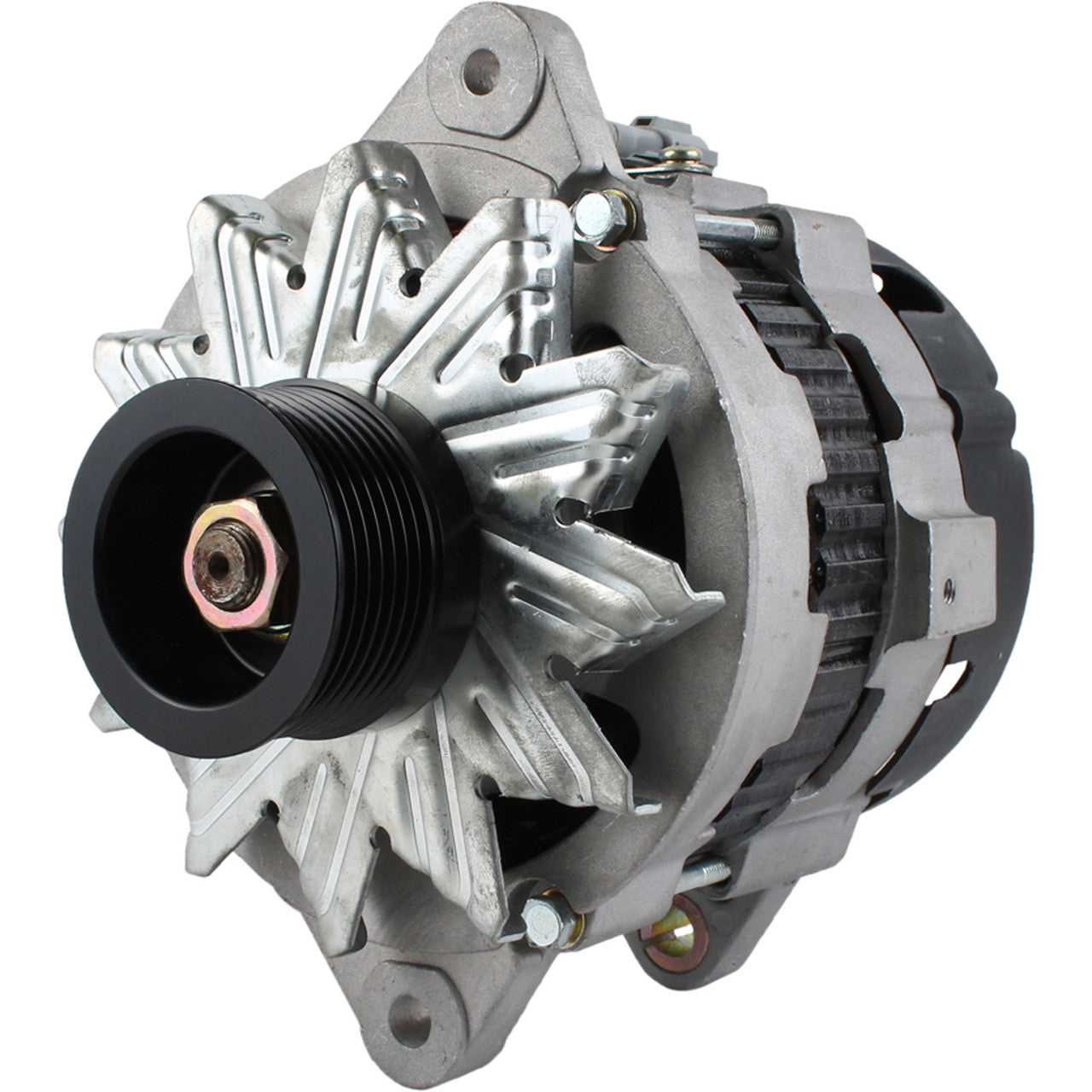

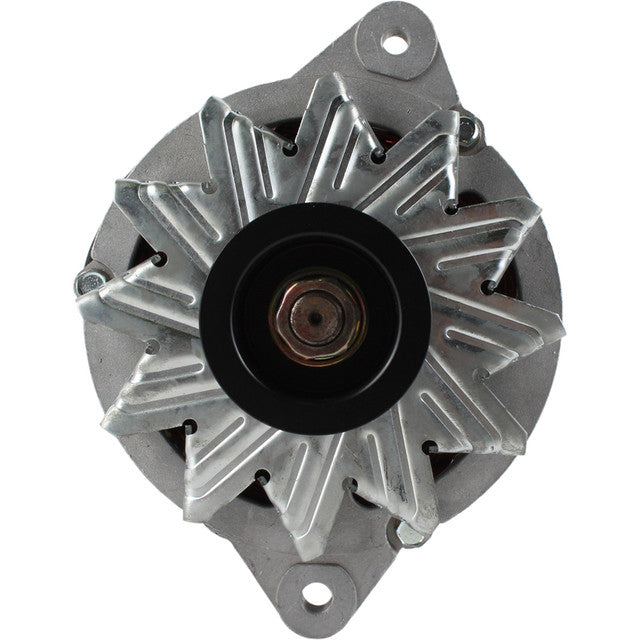

7-groove (poly-V), approx. 65 mm diameter |
| B+ terminal |
M6 |
| Mounting |
3 mounting holes |
| Free-wheel pulley |
No |
| Weight |
approx. 10 kg (22 lb) |
| Condition |
New, aftermarket |
| Part number |
400-50016 |
Applications
| Make |
Machine |
Engine |
| John Deere |
135D excavator (all years) |
Isuzu 4JJ1 |
| Case |
Excavators with Isuzu 4JJ1 (Case OE 87709229) |
Isuzu 4JJ1 |
| Takeuchi |
Machines with Isuzu 4JJ1 |
Isuzu 4JJ1 |
For Case and Takeuchi, please confirm by the part number on your original alternator – the same machine model can be built with different engines and alternators.
OEM & Cross-Reference Numbers
| Isuzu |
8-98092-112-2 (8980921122), 8-98092-112-1 (8980921121), 8980921120, 8980182040, 8976835890 |
| Nikko |
0-35000-4858, 0-35000-4648, 0-35000-4628, 0-62000-0140 |
| Case / CNH |
87709229, 91712671 |
| JCB |
714/40526 (71440526) |
| WAI / Lester |
11833N / 11833 |
| Arrowhead |
ANK0016 |
| HC-Cargo |
115814 |
| PSH |
136.011.050.440 |
Questions & Answers
Is this a genuine original part?
No – it is a brand new aftermarket replacement built to OE specification.
Will it fit a 12V Isuzu D-Max or other 12V vehicle?
No. This is a 24V unit for heavy machinery; it will not work on a 12V system.
How do I check fitment?
Compare the part number on your original alternator with the cross-reference list above, and check the 7-groove pulley, clockwise rotation and 3 mounting points. If in doubt, send us the number or a photo of your old unit before ordering.
