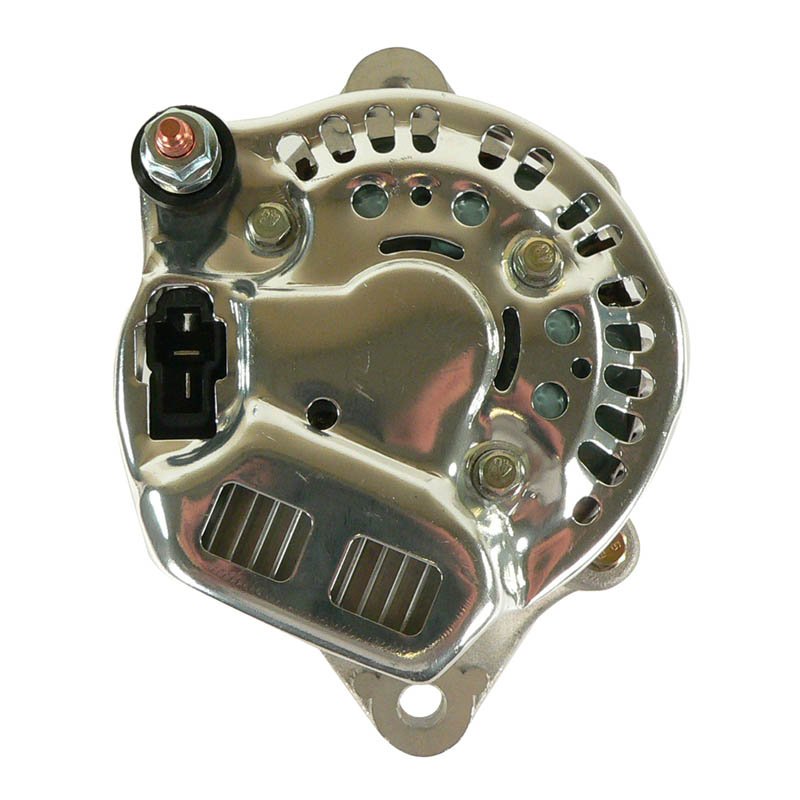

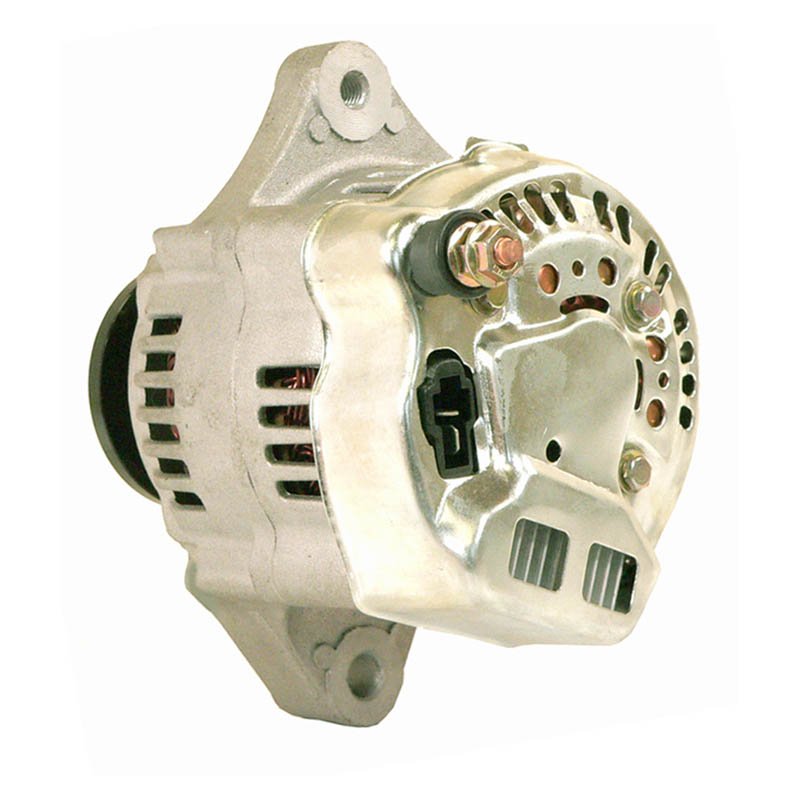

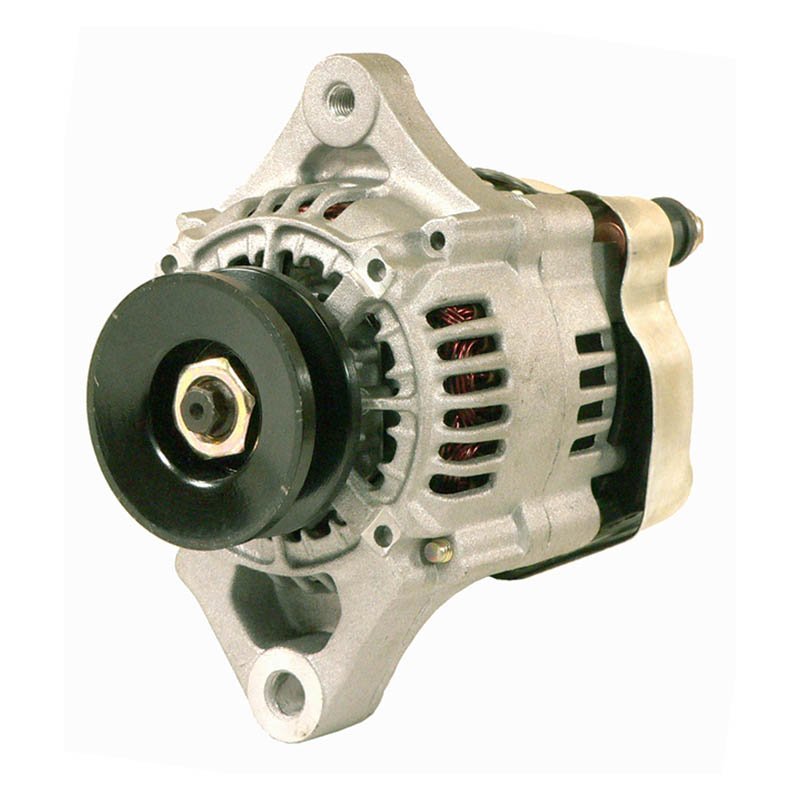

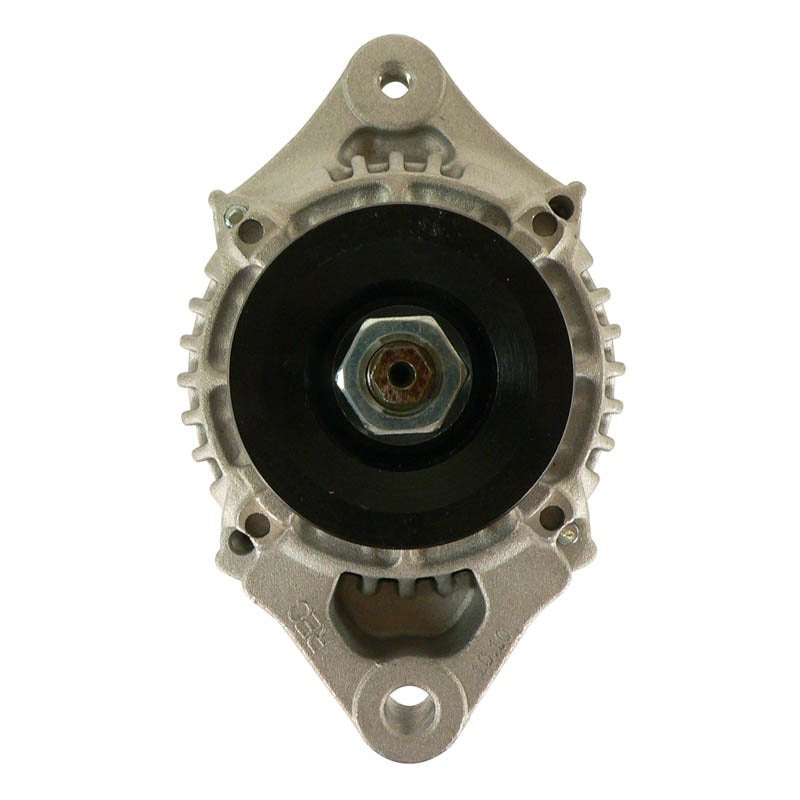

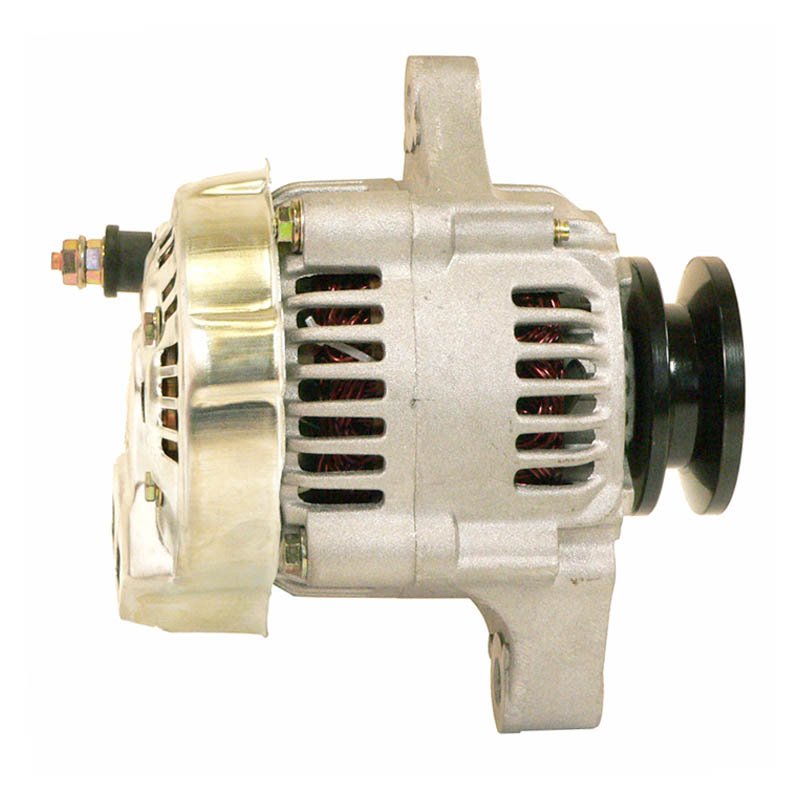

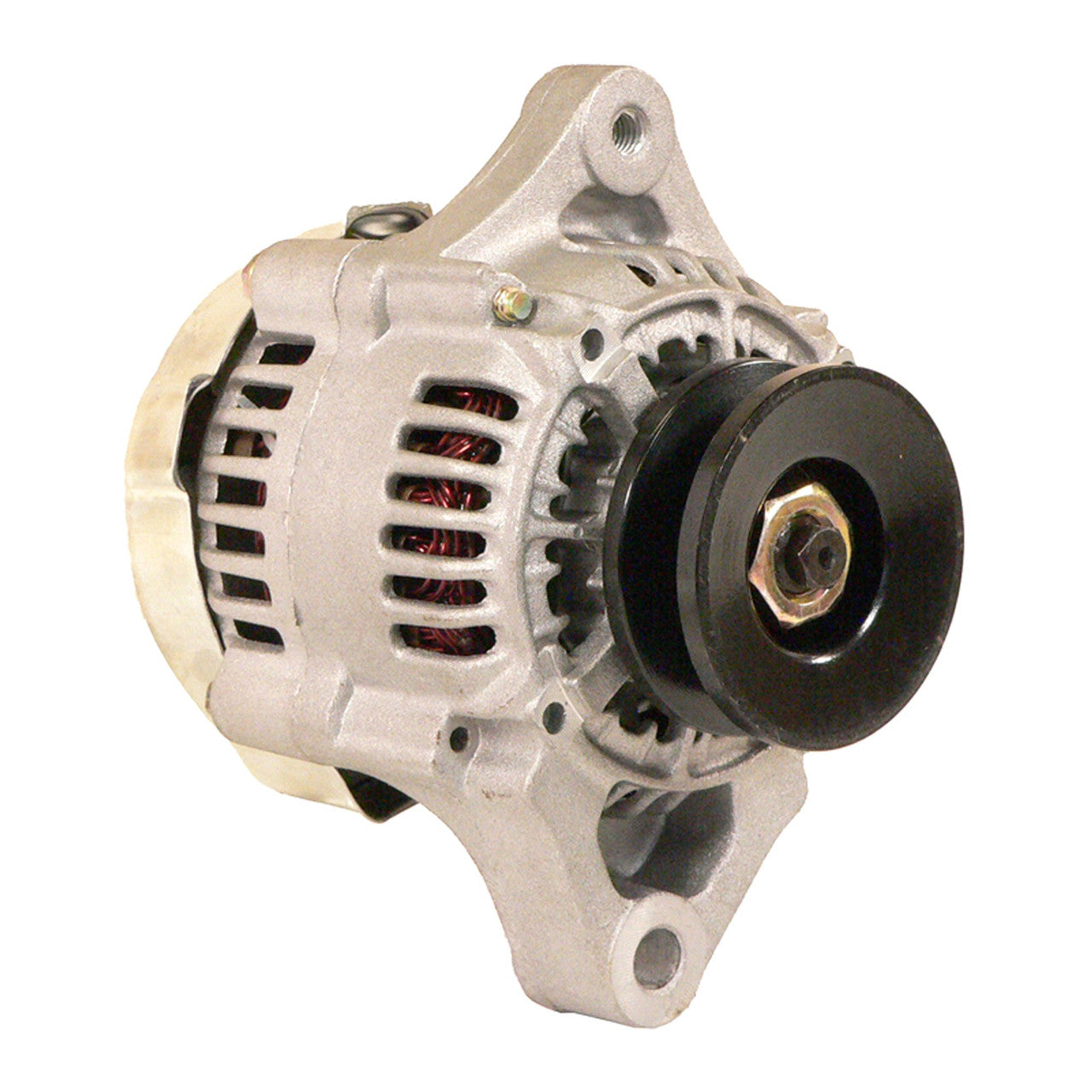

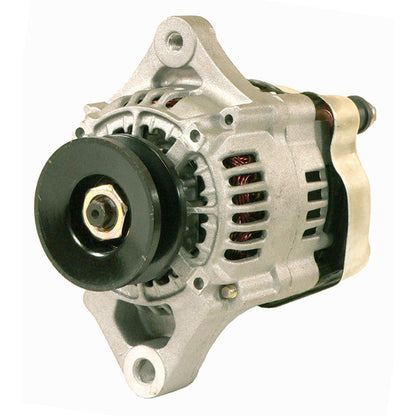

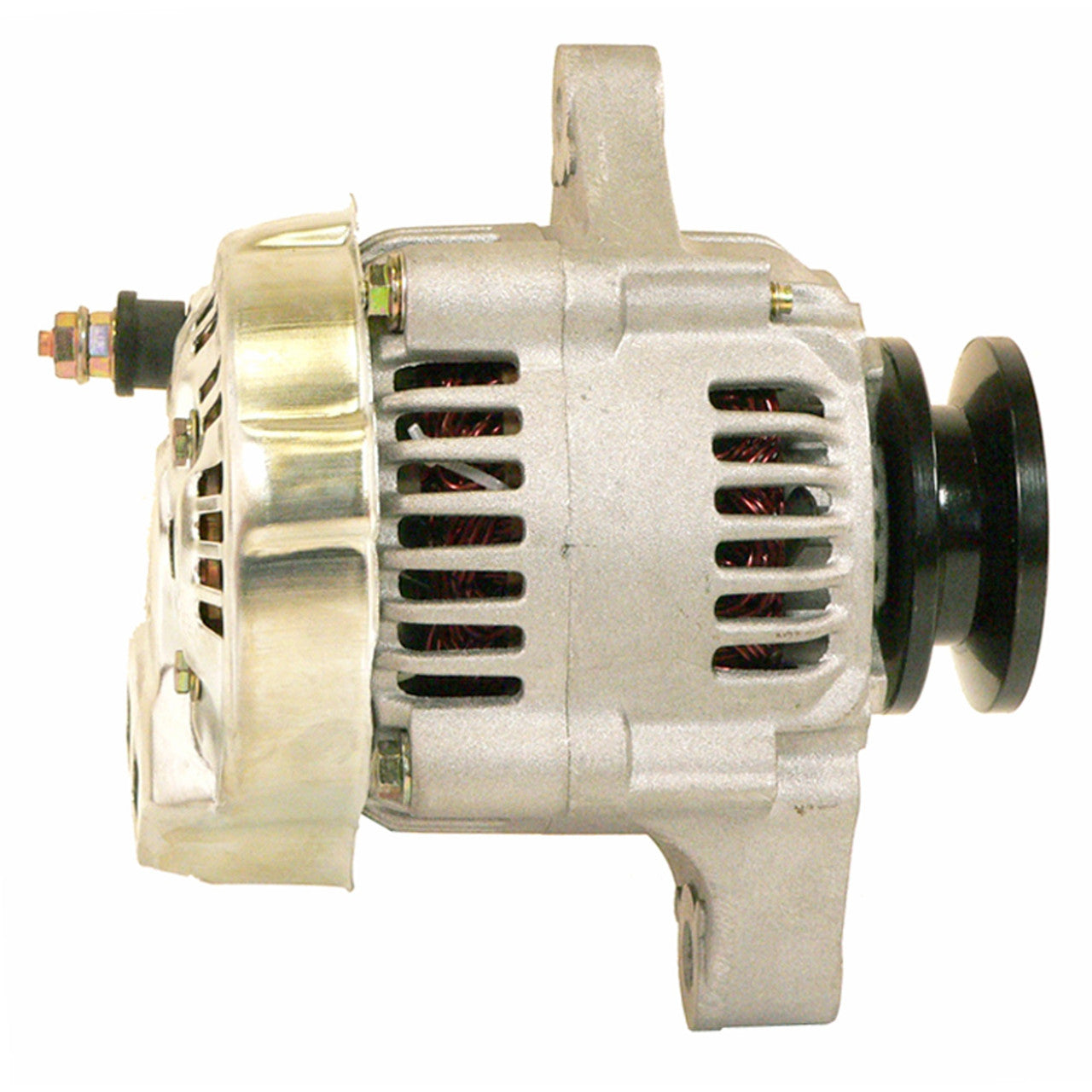

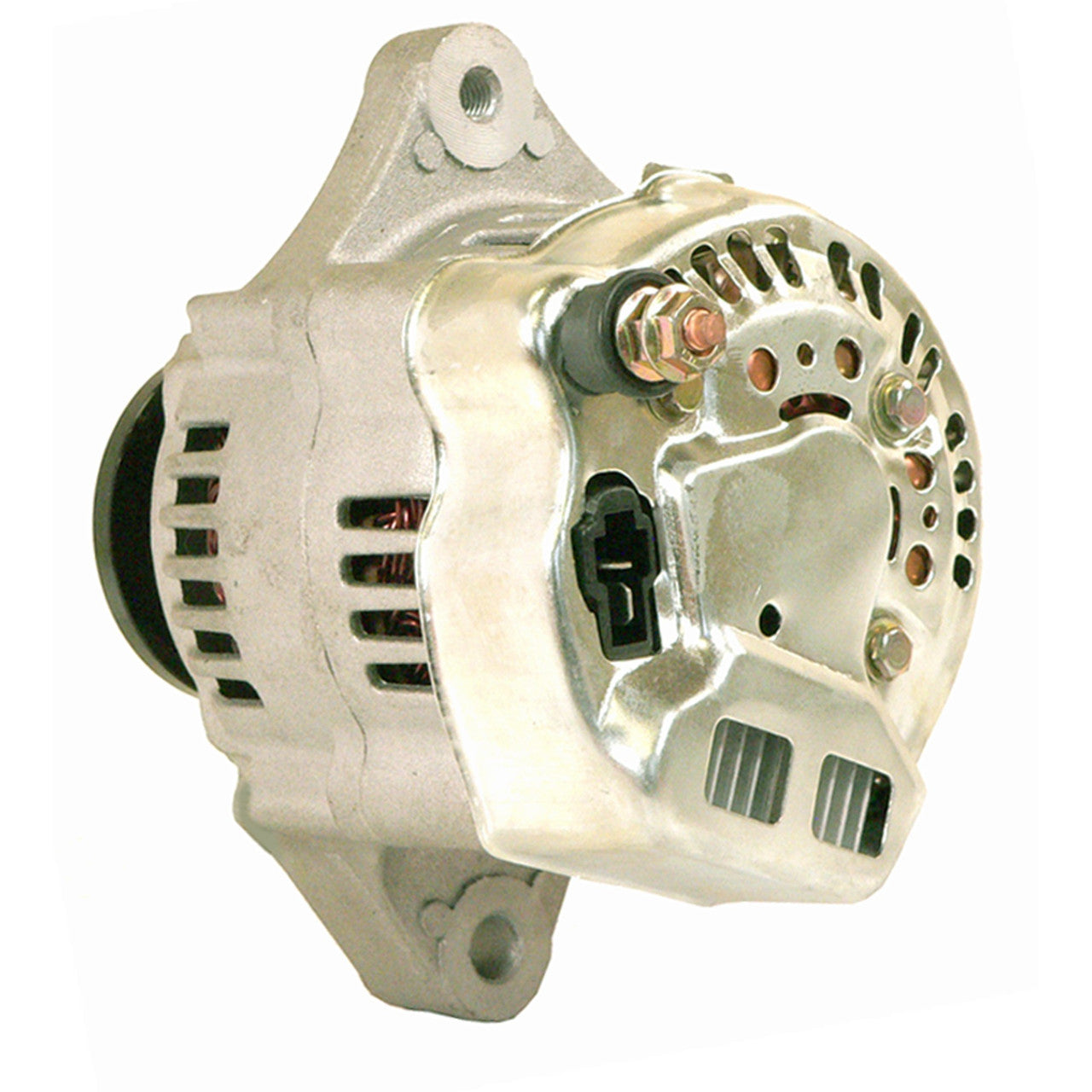

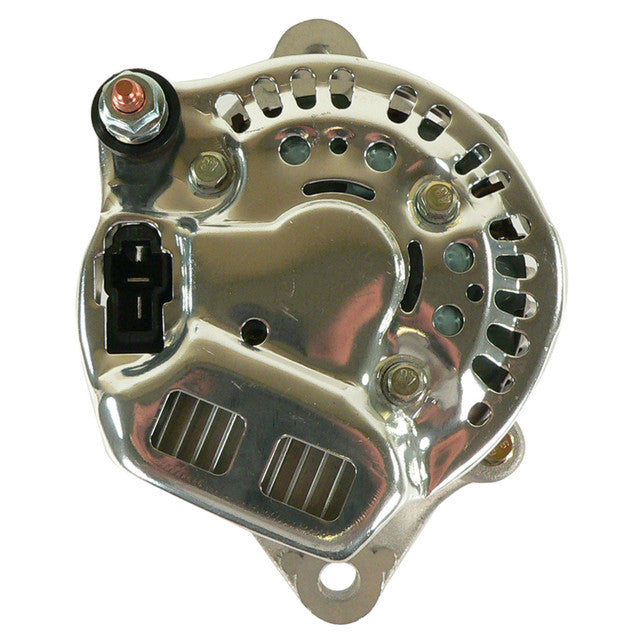

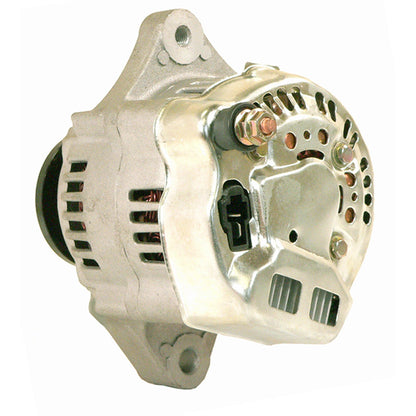

This premium 12-volt alternator is a direct-fit replacement for Case and Kubota industrial machinery. Engineered to withstand high-heat environments and heavy duty cycles, it provides a stable 40-amp output to ensure your electrical system and battery remain fully charged during demanding operations.
RELIABILITY: 100% brand new aftermarket unit—not remanufactured. Built with high-temperature epoxy and heavy-duty rectifiers to meet or exceed OEM performance.
Key Features
✔ Direct-fit for Case 460 & 1825B

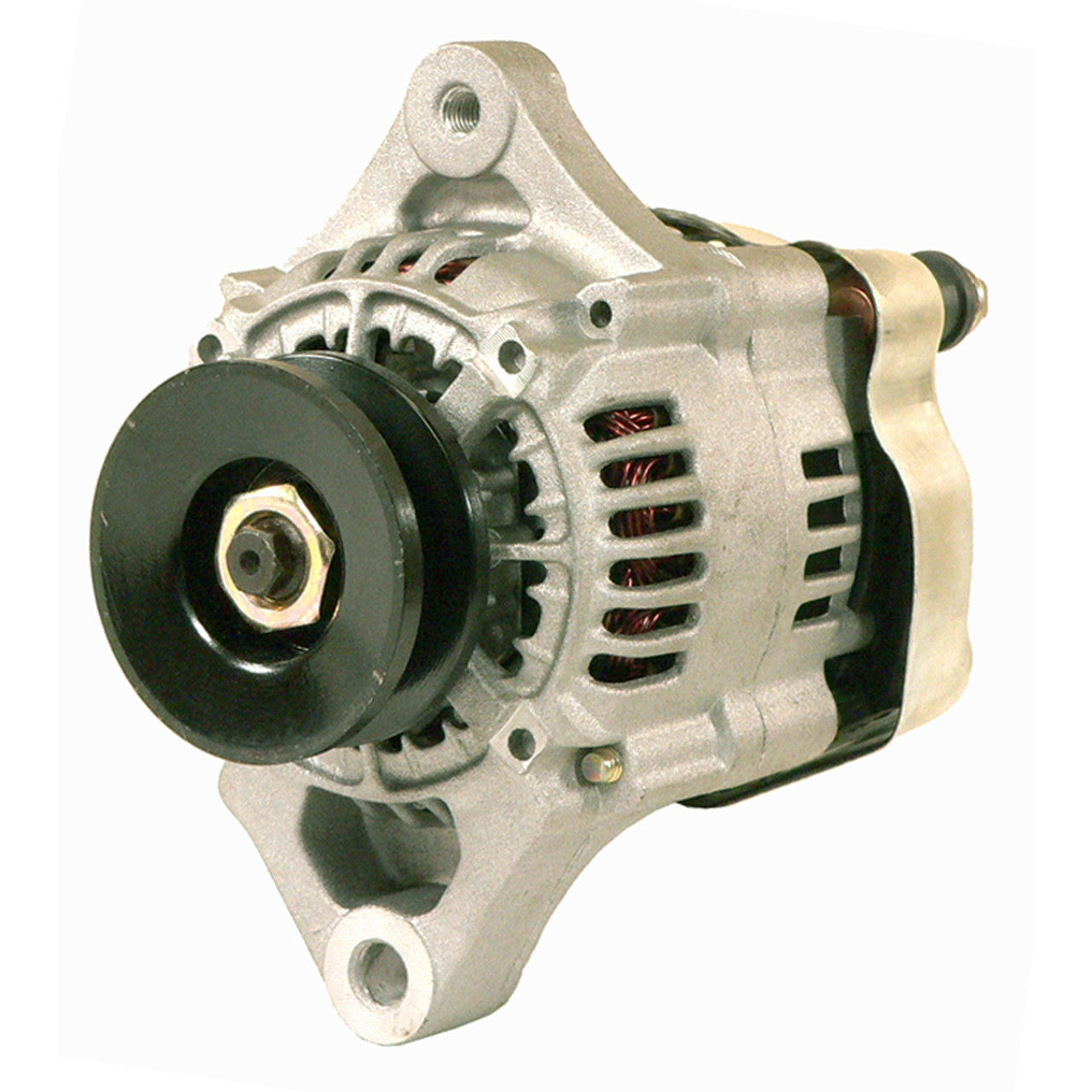

✔ Includes 1-Groove V-Belt Pulley
✔ Internal Regulator & Internal Fan
✔ Clockwise (CW) Rotation
Technical Specs
Voltage:
12V
Amperage:
40A
Rotation:
CW
Pulley:
1-Groove V-Pulley
Regulator:
Internal (IR)
Clocking:
9:00
Compatibility / Fitment Guide
Make
Model / Application
Engine
Case
460 Trencher (1994-2001)
Kubota V1505-B
Case
6010 Trencher (1997-2000)
Kubota V2203
Case
1825B Skid Steer (1997-1999)
Kubota Diesel
Case
1838 Skid Steer (1995-1999)
Kubota Engine
Grasshopper
928D Mower
Kubota 28HP
Kubota
B21, B26, B7500, B7610
Various Diesel
OEM Cross Reference
Case:
125564A1, 133745A1
Denso:
100211-1670, 100211-4520, 100211-4740
Kubota:
16231-64012, 16241-64012, 66436-64013
Lester:
12179, 12190
Arrowhead:
400-52014
Questions & Answers
Is this a genuine original part?
This is a premium quality aftermarket replacement part, manufactured to meet or exceed original equipment (OE) standards for fitment and performance.
How do I know if it is compatible?
We recommend checking the SKU/MPN and Cross Reference list provided above. If your original part number matches any of these, it is a guaranteed fit.
Does this unit come with the pulley attached?
Yes, this alternator comes pre-fitted with a 1-groove V-belt pulley, making it ready for immediate installation upon arrival.
Note: Please verify your original part number against the references above before purchasing. All 4Drive parts are tested for quality assurance at 4drive.co.uk.
