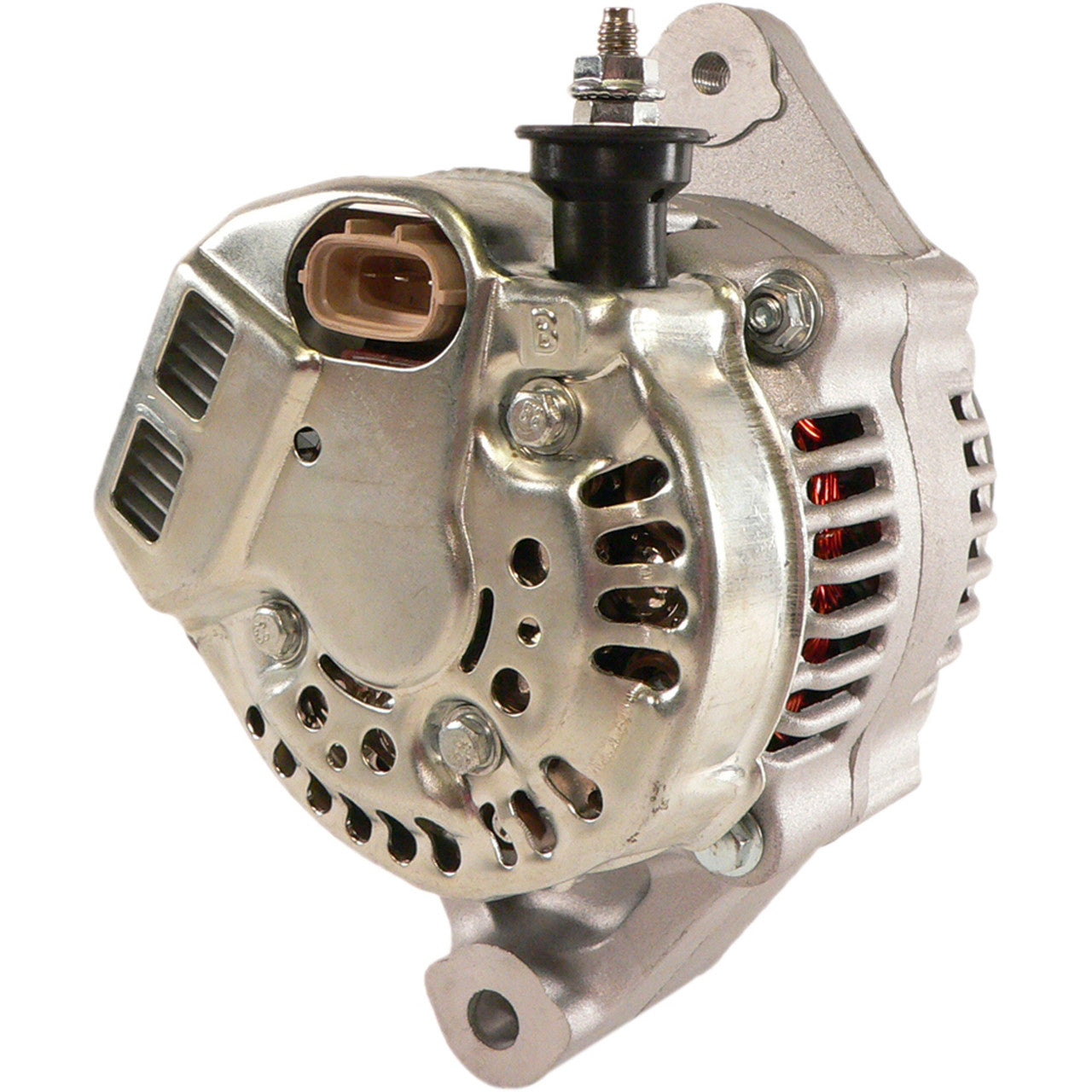

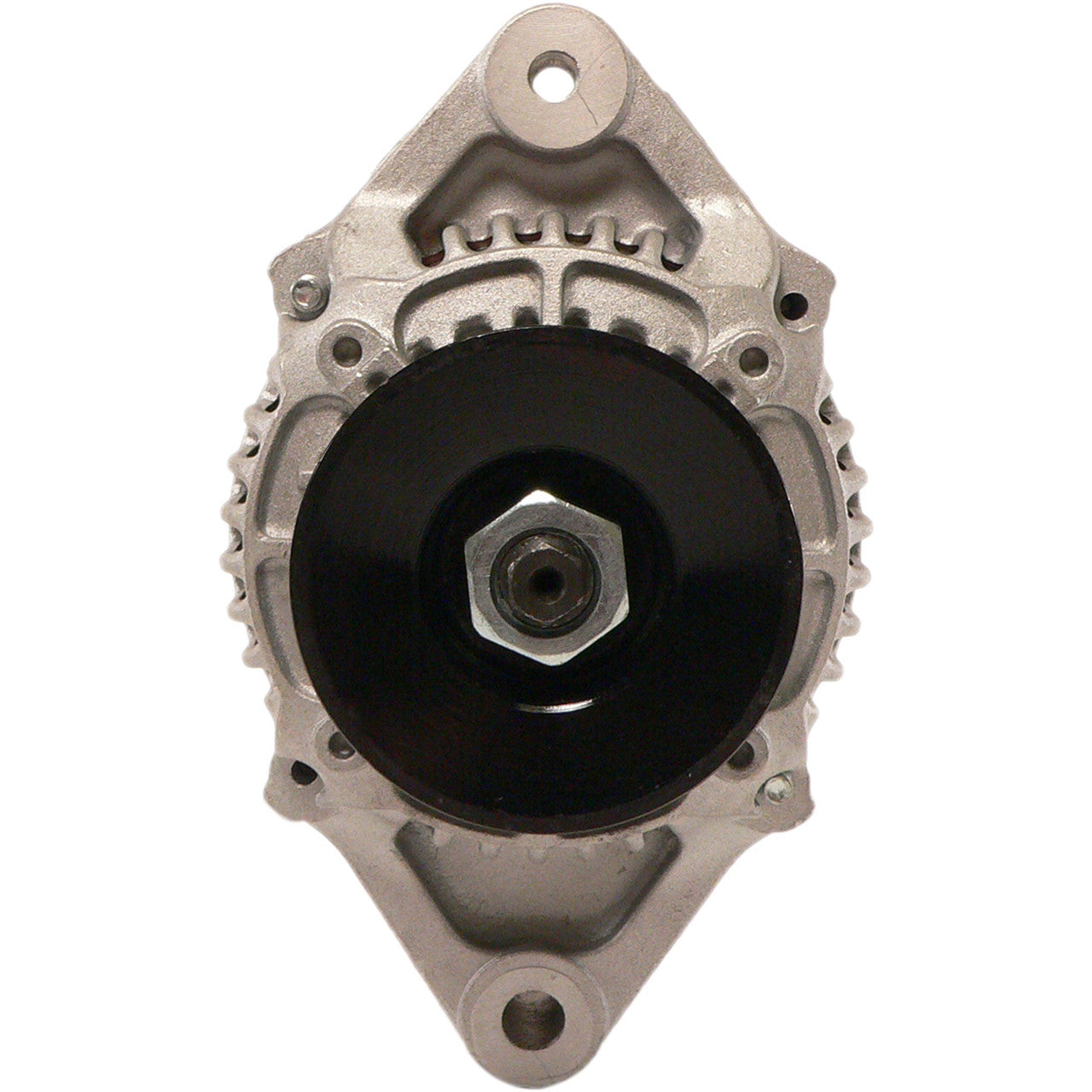

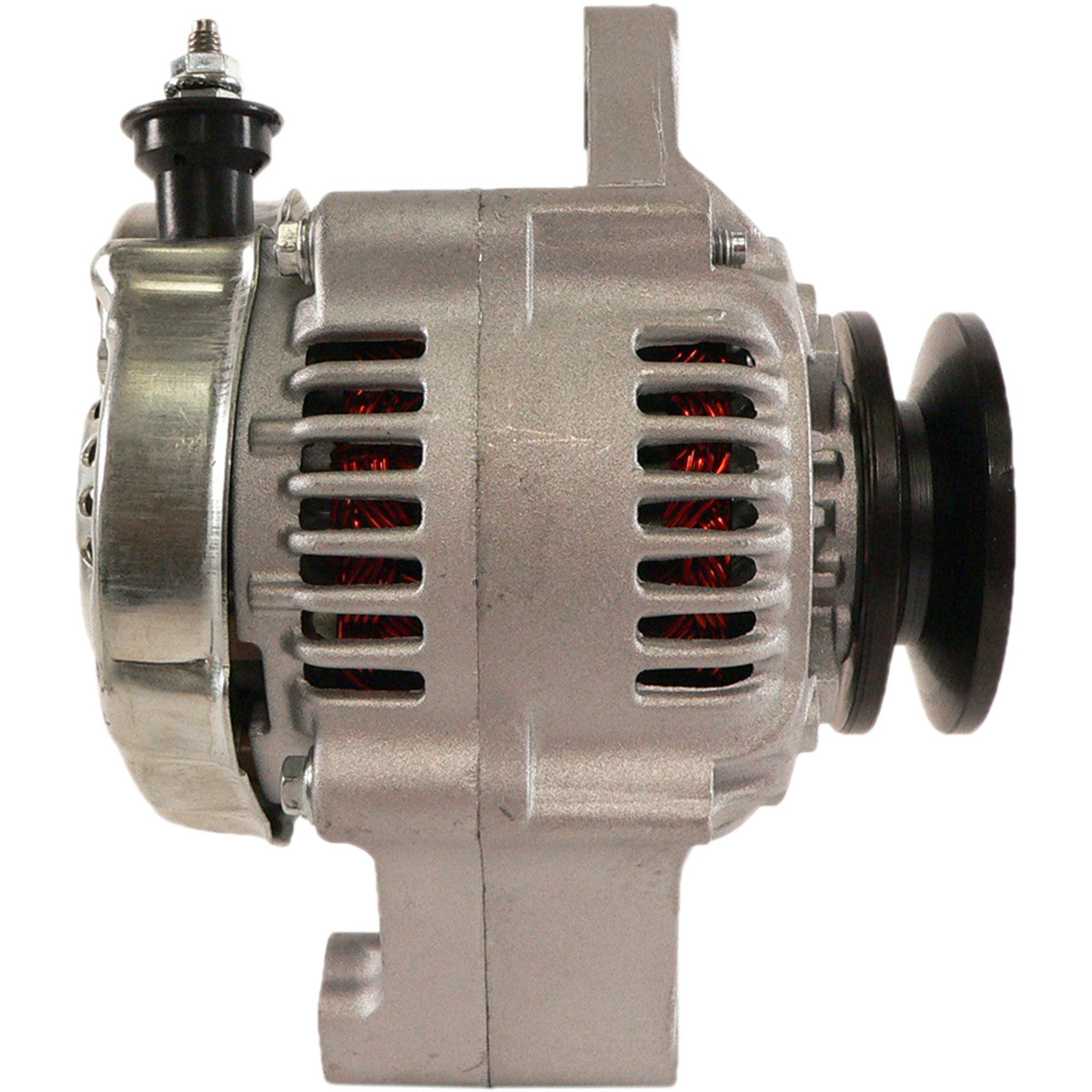

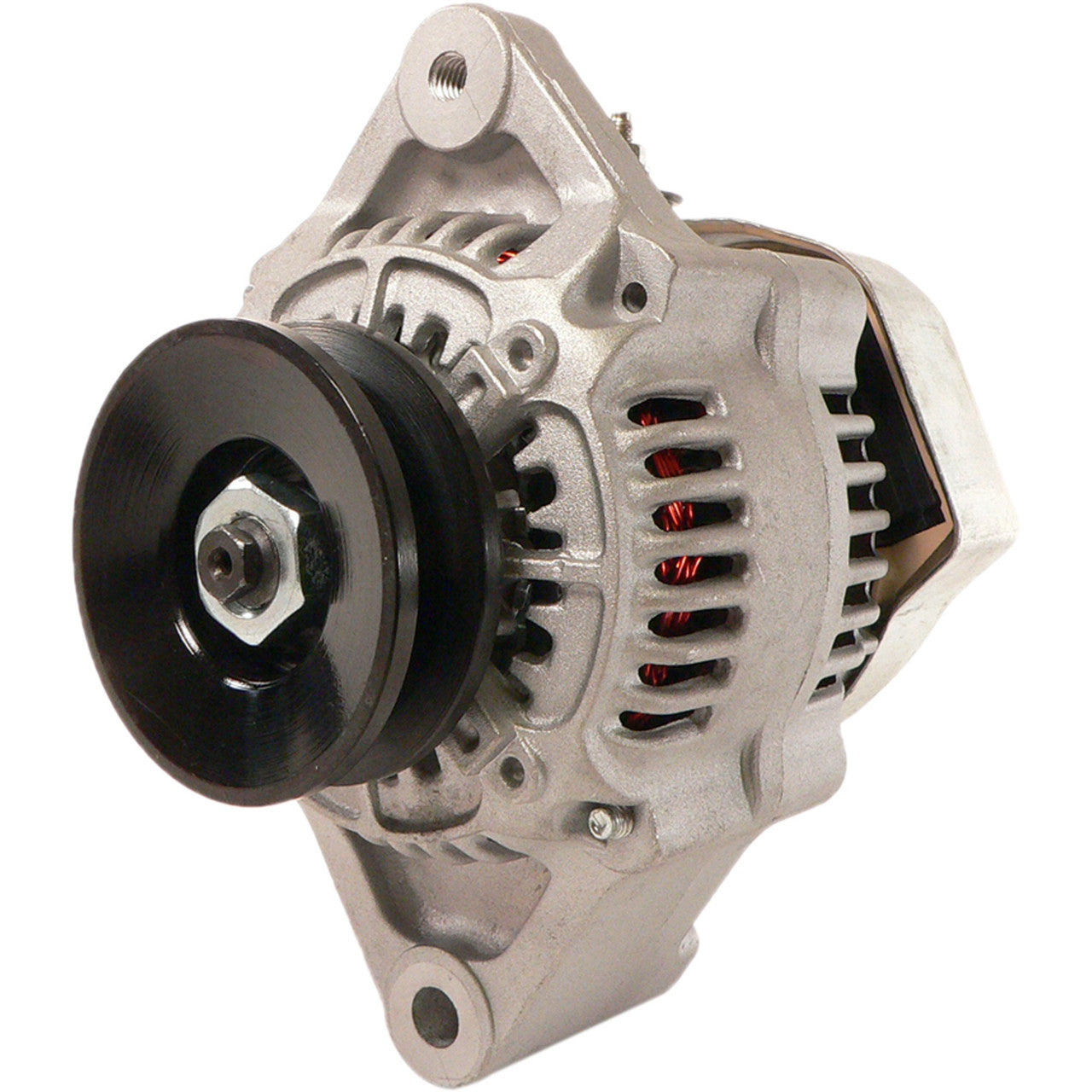

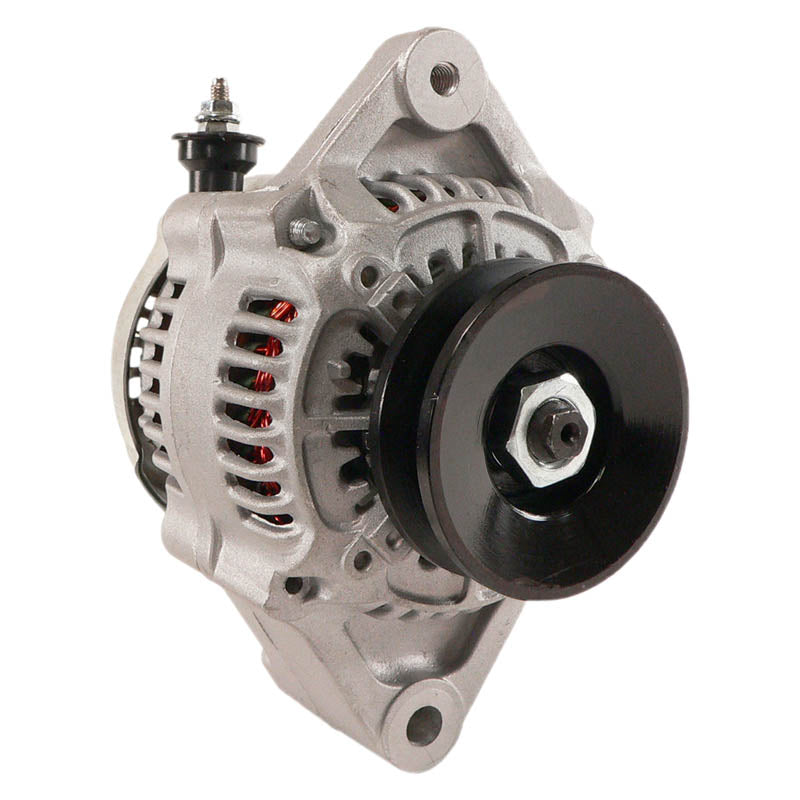

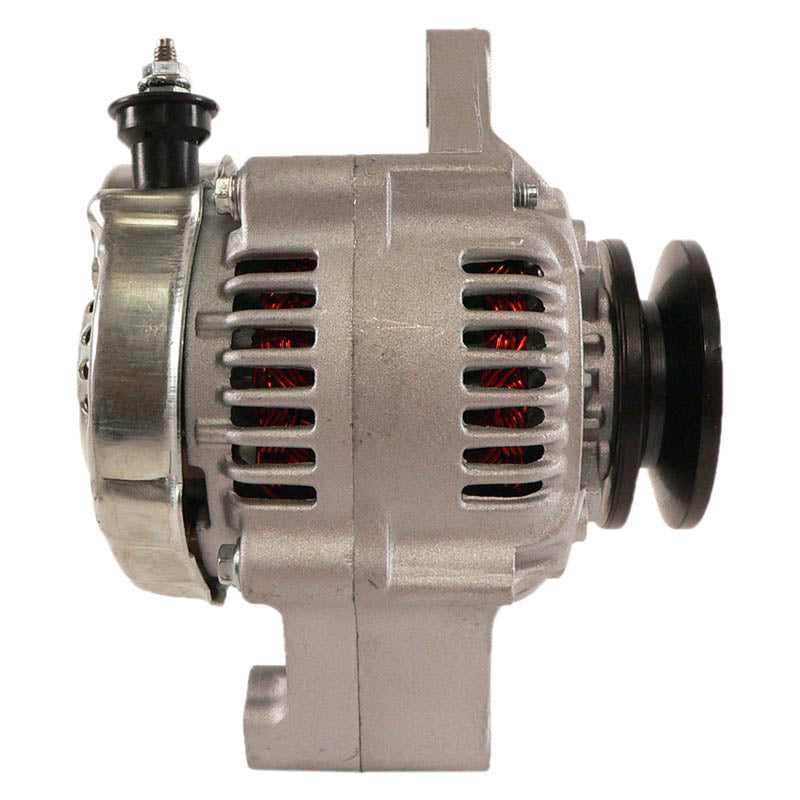

Alternator for Caterpillar Mini Excavators
Fits Caterpillar 301.5, 301.6, 301.8, 302.5, 303.5 & 304.5, 1998-On · 12V 55A
This alternator is a direct OEM-fit replacement for the Caterpillar mini excavator range, covering the 301.5, 301.6, 301.8, 302.5, 303.5 and 304.5 machines built from 1998 onwards, as well as the Caterpillar 232 and 902. It is built to a 12 volt, 55 amp specification with clockwise rotation and a single V-belt pulley to match the original factory fitment.

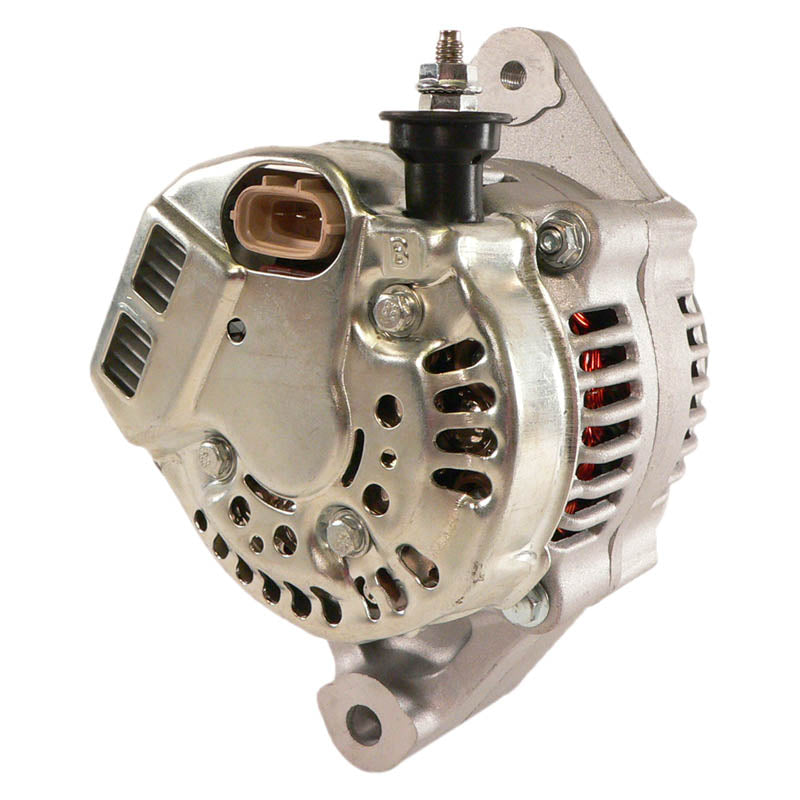

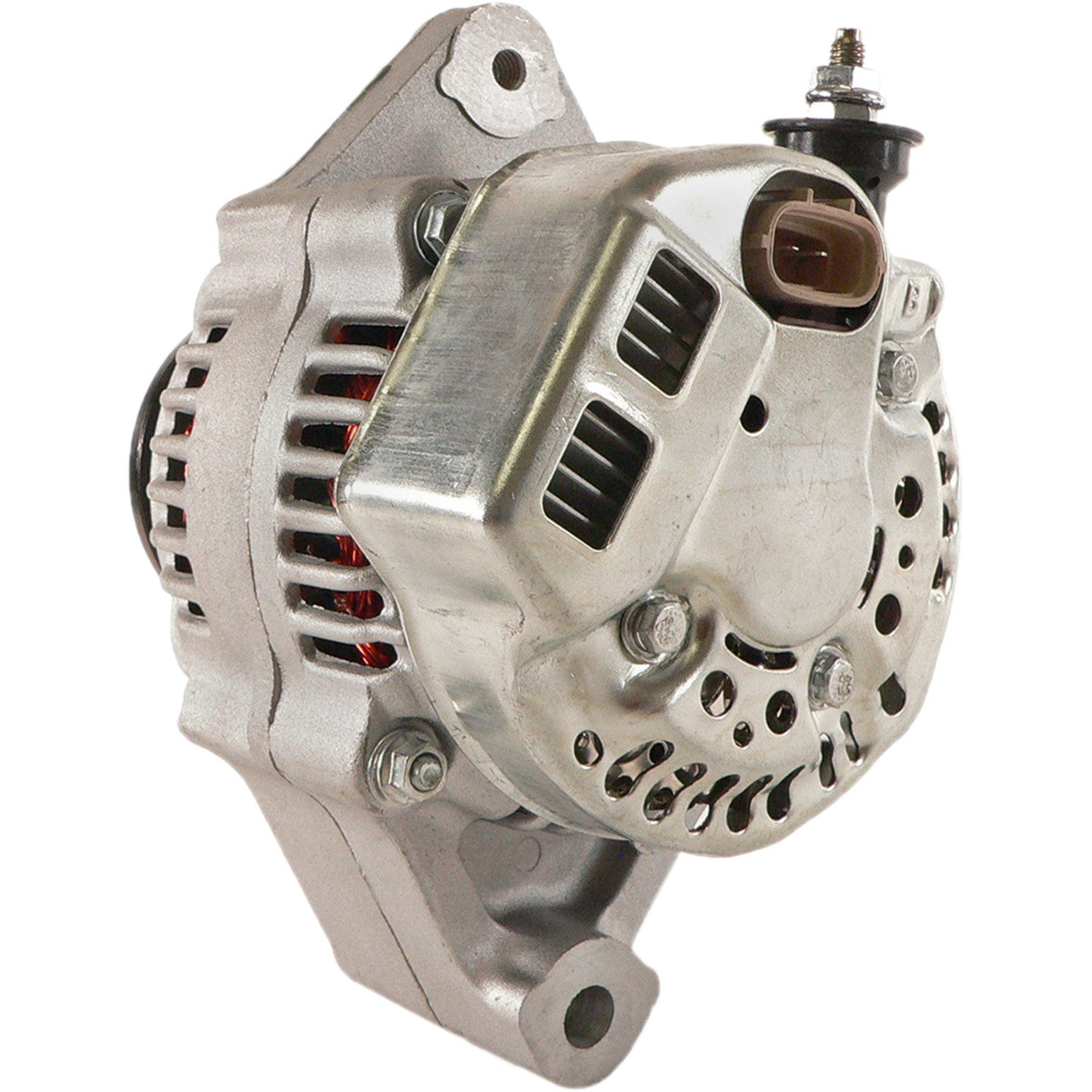

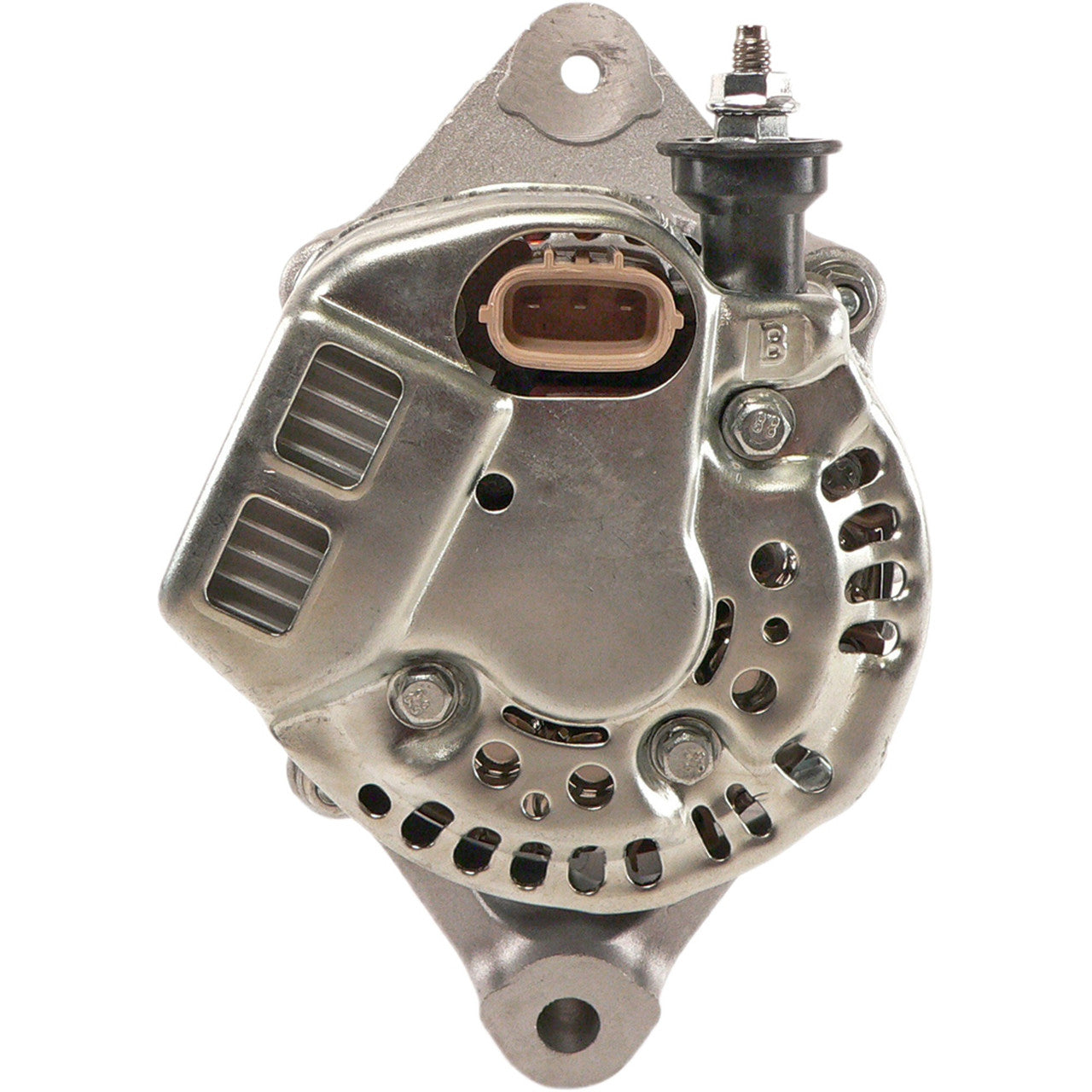

The unit is internally regulated (IR) with an internal fan (IF) and uses the original P-IG-L plug connector, so no wiring changes are required. It replaces Caterpillar 0R9698 and 144-9952 and the Denso 101211-2780 unit fitted to the Cat 3003 and 3013 engines. Because several similar alternators were used across this equipment range, it is worth confirming the amperage and pulley against your original unit before fitting.
Key Features
- 12V, 55 Amp output
- Clockwise rotation
- Single V-belt pulley, 2.713 in outside diameter
- Internally regulated with internal fan
- Regulator at the 12 o'clock position
- P-IG-L plug connector for a direct electrical match
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 55A |
| Rotation | Clockwise (CW) |
| Pulley | 1-groove V-belt, 2.713 in OD |
| Regulator | Internally regulated (IR), 12:00 clock position |
| Fan Type | Internal (IF) |
| Polarity | Negative earth |
| Connector | P-IG-L plug |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Caterpillar 301.5 Mini Excavator (Cat 3003 engine) | 1998-2005 |
| Caterpillar 301.6 Mini Excavator (Cat 3003 engine) | 1999-On |
| Caterpillar 301.8 Mini Excavator (Cat 3003 engine) | 1999-On |
| Caterpillar 302.5 Mini Excavator (Cat 3013 engine) | 1999-On |
| Caterpillar 303.5 Mini Excavator (Cat 3013 engine) | 1999-On |
| Caterpillar 304.5 Mini Excavator | 1999-On |
| Caterpillar 232 | All Years |
| Caterpillar 902 | All Years |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 0R9698 | Caterpillar |
| 144-9952 / 1449952 | Caterpillar |
| 154-2658 | Caterpillar |
| 101211-2780 | Denso |
| AND0544 / ND101211-2780 | AC Delco |
| 12854 | Lester |
Frequently Asked Questions
Will this alternator fit my machine without modification?
Yes, it is built to the original Caterpillar specification and fits using the factory mounting points, pulley and plug.
What is included?
One complete alternator unit, ready to fit.
How do I know my old alternator has failed?
Signs include a charging warning light, low system voltage, or the battery not holding charge during operation.
How do I confirm this is the right alternator for my machine?
Check the number on your original unit against the cross reference table above - this alternator replaces Caterpillar 0R9698, 144-9952 and 154-2658 and Denso 101211-2780 - and compare the amperage, pulley and P-IG-L plug before ordering.
