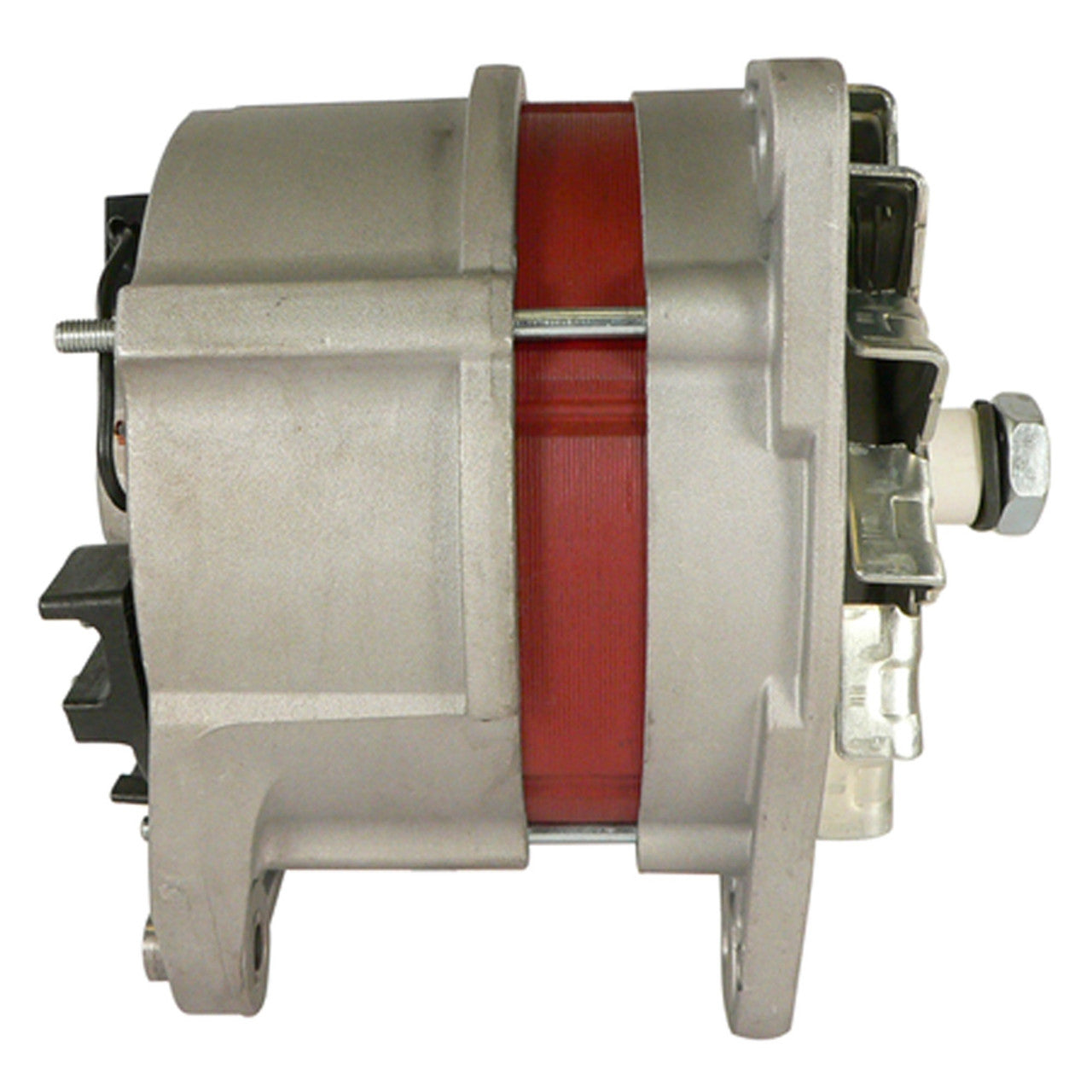

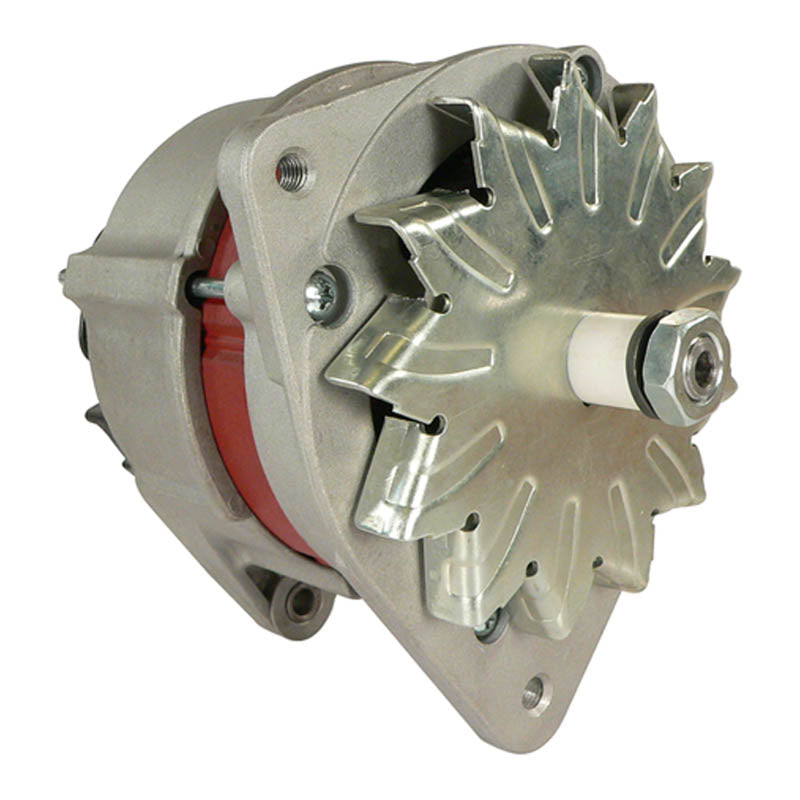

Alternator for Caterpillar TH63 TH103 IT14F IT14G & Perkins - 12V 55A
12-Volt 55 Amp IR/EF Alternator, Bosch-Style - replaces Cat 100-8223 / Bosch 0120488286
This 12-volt, 55-amp alternator is built to OEM specifications for Caterpillar telehandlers, tool carriers and wheel loaders fitted with Perkins engines, including the TH63 and TH103 telehandlers and the IT14F, IT14G and IT18F tool carriers. It uses the internally regulated, externally fanned (IR/EF) design and is manufactured to Bosch specification.
The unit is fitted with a 2-groove V pulley at 86mm outside diameter, matching the original fitment exactly, so it bolts straight in as a fit-and-function replacement with no wiring or bracket changes required. It replaces Caterpillar 100-8223 and 0R1905, Bosch 0120488286 and Perkins 2871C105, and carries Lester number 12164.
Key Features
- 12-Volt, 55-Amp output rating
- Fits Caterpillar TH63 and TH103 telehandlers
- Fits Caterpillar IT14F, IT14G and IT18F tool carriers and 910G wheel loader
- Internally regulated, externally fanned (IR/EF)
- Bosch-specification construction
- 2-groove V pulley, 86mm outside diameter
- Direct OEM fit and finish
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 55A |
| Rotation | Clockwise (CW) |
| Regulator | Internally Regulated (IR) |
| Fan Type | Externally Fanned (EF) |
| Manufacturer Spec | Bosch |
| Pulley | 2-groove V, 86mm OD |
| Lester Number | 12164 / 12164N |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Caterpillar TH103 Telehandler | 1997-2003 |
| Caterpillar TH63 Telehandler | 1995-1996 |
| Caterpillar IT14F Tool Carrier | 1995-1996 |
| Caterpillar IT14G Tool Carrier | 1995-2001 |
| Caterpillar IT18F Tool Carrier | 1992-1994 |
| Caterpillar 910G Wheel Loader | 1996 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 100-8223, 0R1905 | Caterpillar |
| 0120488286, 0986034470 | Bosch |
| 2871C105 | Perkins |
| AAK4526 | Letrika / Iskra |
| 9-516-735 | Magneton |
| YLE10088 | Land Rover |
| 12164, 12164N | Lester |
| 400-24113, ABO0114, 220-385, 110891 | Arrowhead / J&N |
Frequently Asked Questions
Will this fit without modification?
Yes. The 2-groove, 86mm V pulley and mounting match the original Caterpillar/Perkins fitment, so it bolts straight in.
How do I confirm this is the right alternator?
Check the number on your original unit. Caterpillar 100-8223 and 0R1905, Bosch 0120488286 and Perkins 2871C105 all supersede to this alternator.
What's included?
One complete 12-volt, 55-amp alternator with pulley fitted, ready to install.
How do I know my old alternator has failed?
Look for a charge warning light staying on, a battery that won't hold charge, dimming lights at idle, or a whining noise from the unit.
Is this a genuine Bosch part?
It is manufactured to Bosch specification as a direct-fit aftermarket replacement, not an OEM Bosch-branded unit.
