Alternator for Mitsubishi FD, TCM & Hyster Forklift Trucks - 24V 20A
Replaces Mitsubishi 34468-16100 / A1T70283 · Hyster 3046659 · Lester 12309

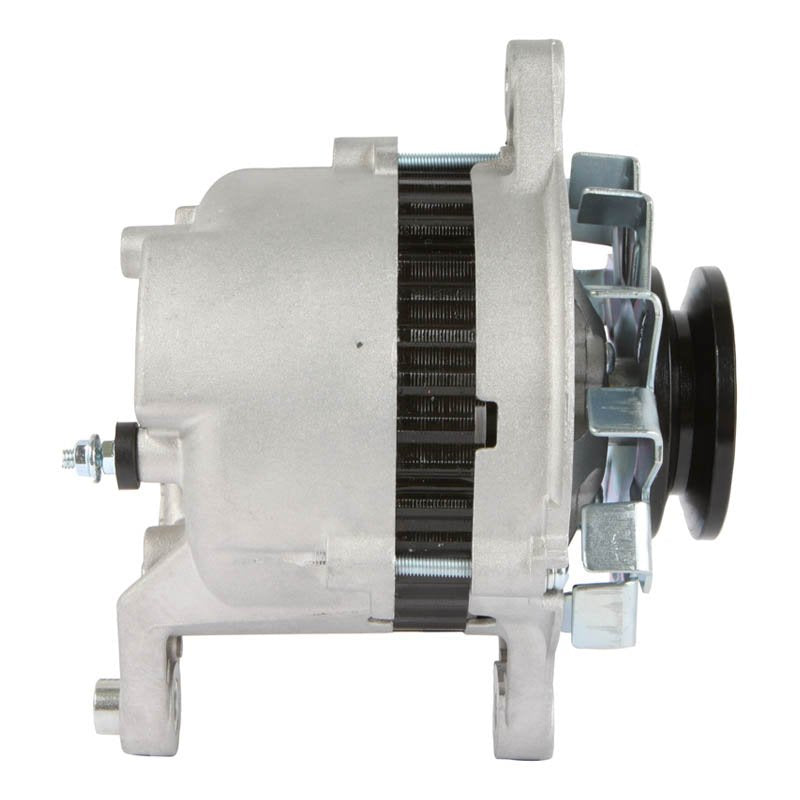

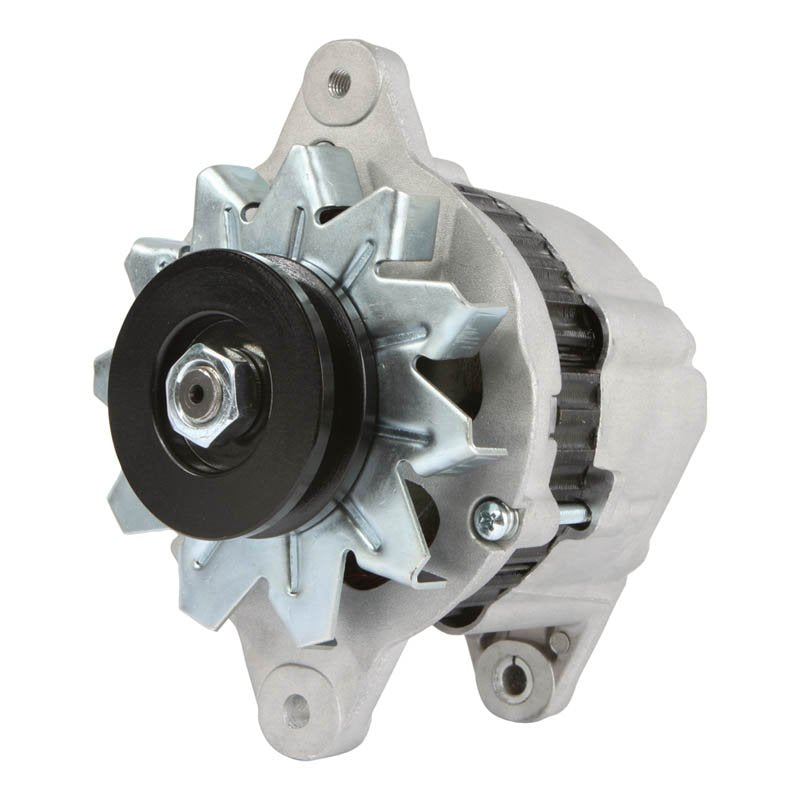

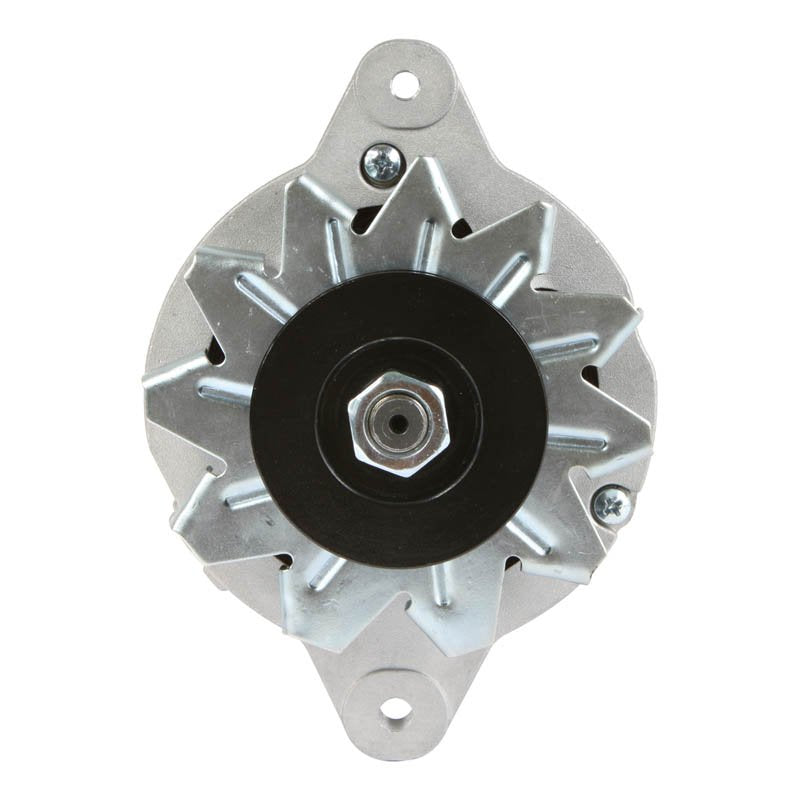

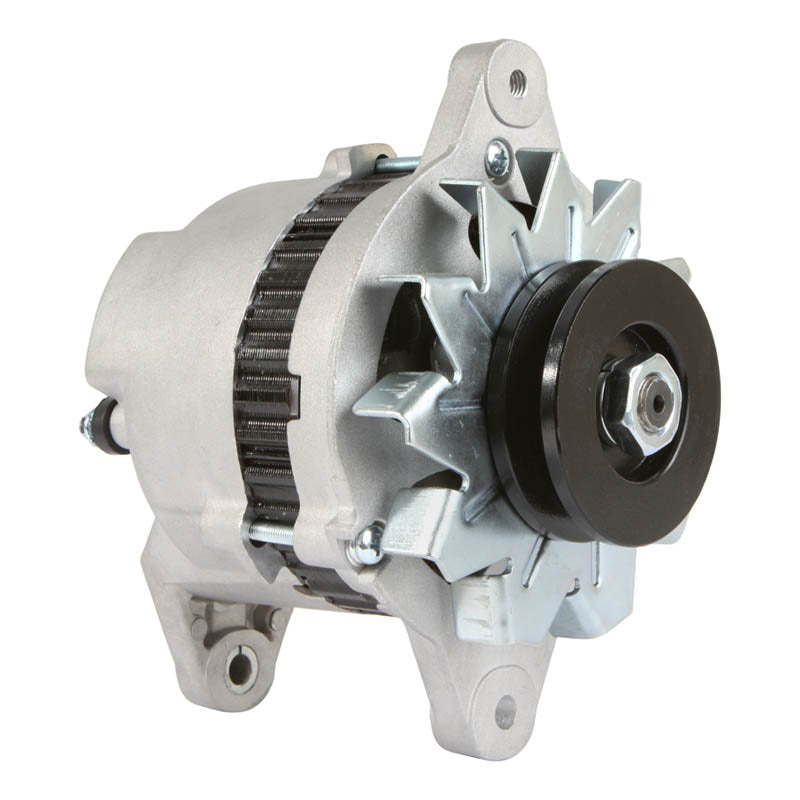

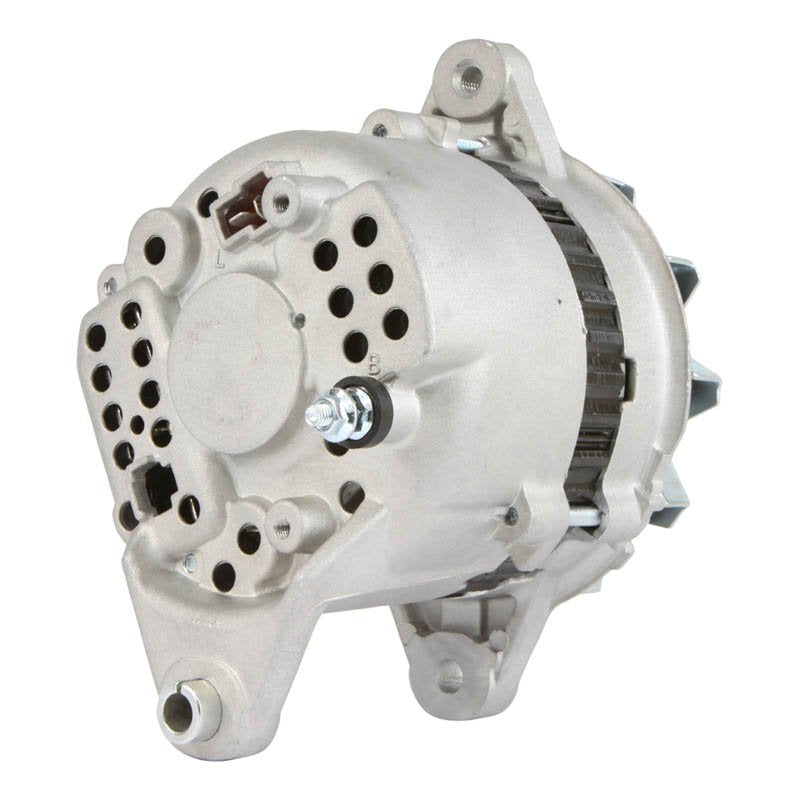

This 24-volt, 20-amp alternator is a complete replacement unit built to the output and mounting specification of the original equipment fitted to Mitsubishi FD-series forklift trucks, TCM FD and SD lift trucks, and Hyster and Clark lift truck applications sharing the same unit.
It is supplied complete with a solid single-groove V-belt pulley (68mm / 2.677in outside diameter, 9mm belt width), matching the factory setup exactly. It is a negative-earth unit with an internal regulator and external fan. Each unit is tested for correct output and rotation before it is dispatched.
Key Features
- 24-volt, 20-amp output to factory specification
- Internal regulator, external fan (IR/EF) configuration
- Solid single-groove (1-V) pulley, 68mm OD, 9mm belt width
- Negative earth
- Covers the Mitsubishi FD10 to FD35AT range and FDC20D / FDC25D
- Also fits TCM FD20Z-FD30Z and SD10Z / SD12Z lift trucks
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 24V |
| Amperage | 20A |
| Rotation | Clockwise (CW) |
| Regulator | Internal (IR) |
| Fan Type | External (EF) |
| Pulley Type | Solid single-groove V-belt, 68mm OD, 9mm belt |
| Polarity | Negative |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Mitsubishi FD10, FD14, FD15, FD15T, FD20, FD25, FD30, FD30B, FD30D, FD30T | Not specified - confirm against OEM part number |
| Mitsubishi FD35, FD35A, FD35AB, FD35AT | Not specified - confirm against OEM part number |
| Mitsubishi FDC20D, FDC25D | Not specified - confirm against OEM part number |
| TCM FD20Z, FD23Z, FD25Z, FD28Z, FD30Z, SD10Z, SD12Z | Not specified - confirm against OEM part number |
| Isuzu industrial equipment (C240 diesel / Mitsubishi S4, S4E engines) | Not specified - confirm against OEM part number |
| Hyster and Clark lift trucks | Not specified - confirm against OEM part number |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 34468-16100, 34468-26100, A1T70283, A1T70783 | Mitsubishi |
| 3046659, 3779856 | Hyster |
| LRA02437 | Lucas Electric |
| AMT0254 | Arrowhead |
| 12309 | Lester |
Frequently Asked Questions
Will this alternator fit without modification?
Yes, it is a direct bolt-in replacement, matching the mounting and pulley configuration of the original unit.
What voltage is this alternator?
This is a 24-volt unit rated at 20 amps. Please check the voltage marked on your existing alternator before ordering, or get in touch and we will help confirm it.
How do I confirm this is the right unit for my truck?
Compare the number stamped on your existing alternator against the cross reference table above - Mitsubishi 34468-16100 / 34468-26100 / A1T70283 / A1T70783, Hyster 3046659 / 3779856, Lucas LRA02437 or Lester 12309 all indicate this unit.
What's included?
You receive one complete alternator unit, ready to fit - no additional brackets or pulleys are required.
Does this alternator come with a warranty?
Yes, every unit is covered by our standard 12-month warranty.
