Alternator Deutz Fahr DX Intrac KHD Tractor 12V 80A High Output 01182961 Iskra
Alternator Deutz Fahr DX Intrac KHD Tractor 12V 80A High Output 01182961 Iskra
SKU:400-29035
Free shipping over £150. Terms apply
Couldn't load pickup availability

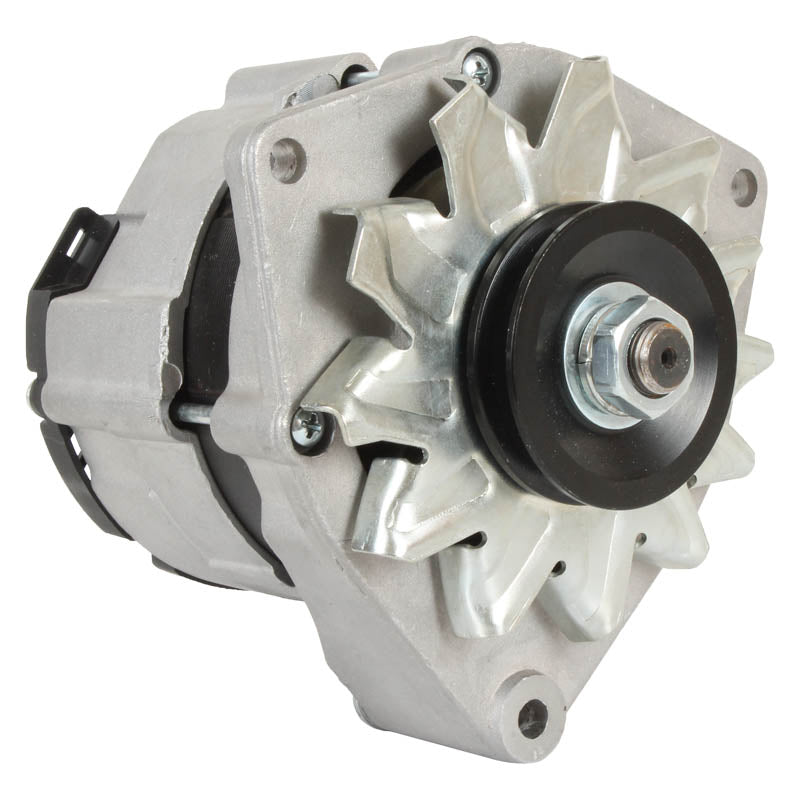

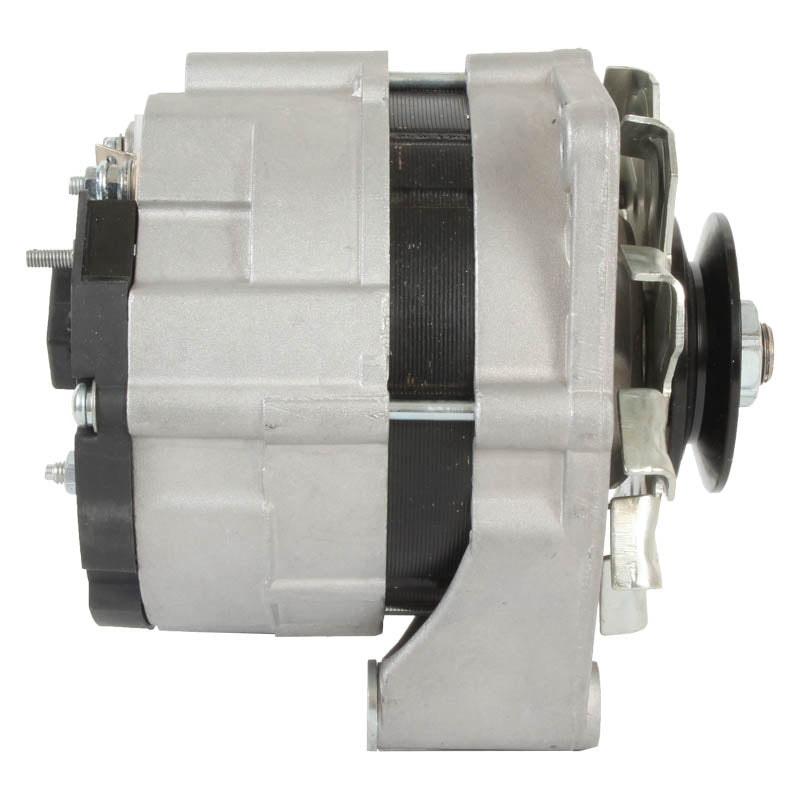

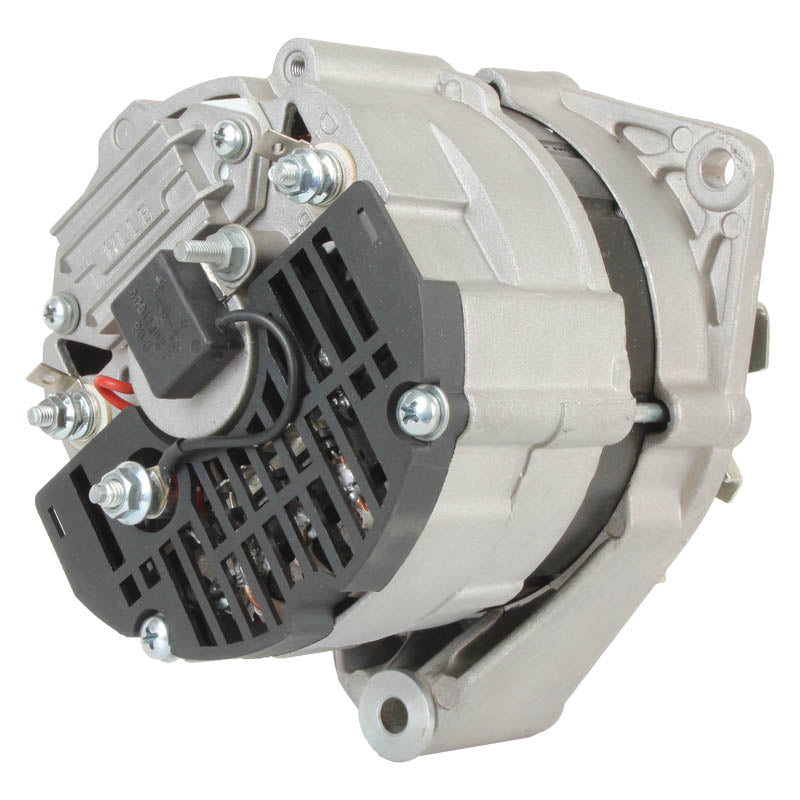

Deutz-Fahr High Output Alternator
Fits Deutz-Fahr DX, Intrac & KHD Engines (80 Amp)
Ensure maximum electrical performance for your agricultural machinery with this **80 Amp High Output Alternator**. Designed as a direct upgrade or replacement for **Deutz-Fahr tractors** and equipment using **KHD / Deutz engines**, this unit provides superior charging power compared to standard 55A or 65A units.
This **Iskra Style** alternator features a robust dust-proof housing, an external cooling fan for better heat dissipation, and comes ready to install with a **Single Groove (V1) Pulley**.
Key Features
- ✔ High Output: 80 Amps for demanding loads.
- ✔ Direct Fit: Replaces Iskra 11.201.xxx series.
- ✔ Ready to Install: Includes V1 Pulley.
- ✔ Dust Proof: Sealed for agricultural use.
Technical Specs
| Voltage: | 12 Volts |
| Amperage: | 80 Amps |
| Rotation: | CW (Clockwise) |
| Pulley: | V1 (Single Groove) |
| Fan Type: | External (EF) |
| SKU Reference: | 400-29035 |
Vehicle Fitment Guide
| Make | Series / Model | Engine |
|---|---|---|
| Deutz-Fahr | DX Series | Various |
| Deutz-Fahr | Intrac Series | Various |
| Deutz / KHD | Industrial Engines | BF4M2012, etc. |
| Iveco | MK Trucks | Select Models |
OEM Part Number Cross Reference
| Deutz-Fahr / KHD | 01182961, 01182403, 1178607, 1182173 |
| Iskra / Letrika | 11.201.704, 11.201.914, AAK3321, IA0914 |
| Mahle | MG111, MG210 |
| Arrowhead | AIA0009 |
Frequently Asked Questions
Is this 80 Amps?
Yes, this is an 80 Amp high-output alternator, offering significantly more charging power than the standard 33A or 55A units often found on older Deutz tractors.
Does it fit my Deutz DX tractor?
It fits many DX series models (e.g., DX3.50, DX4.50). Please verify your mounting style matches the Iskra "spool" mount type shown.
What terminals does it have?
It typically features B+ (Battery), D+ (Warning Light), and W (Tachometer) terminals, standard for these agricultural applications.
Note: Please check your existing alternator's part number to confirm compatibility.
Fast shipping available across the UK and Europe.
