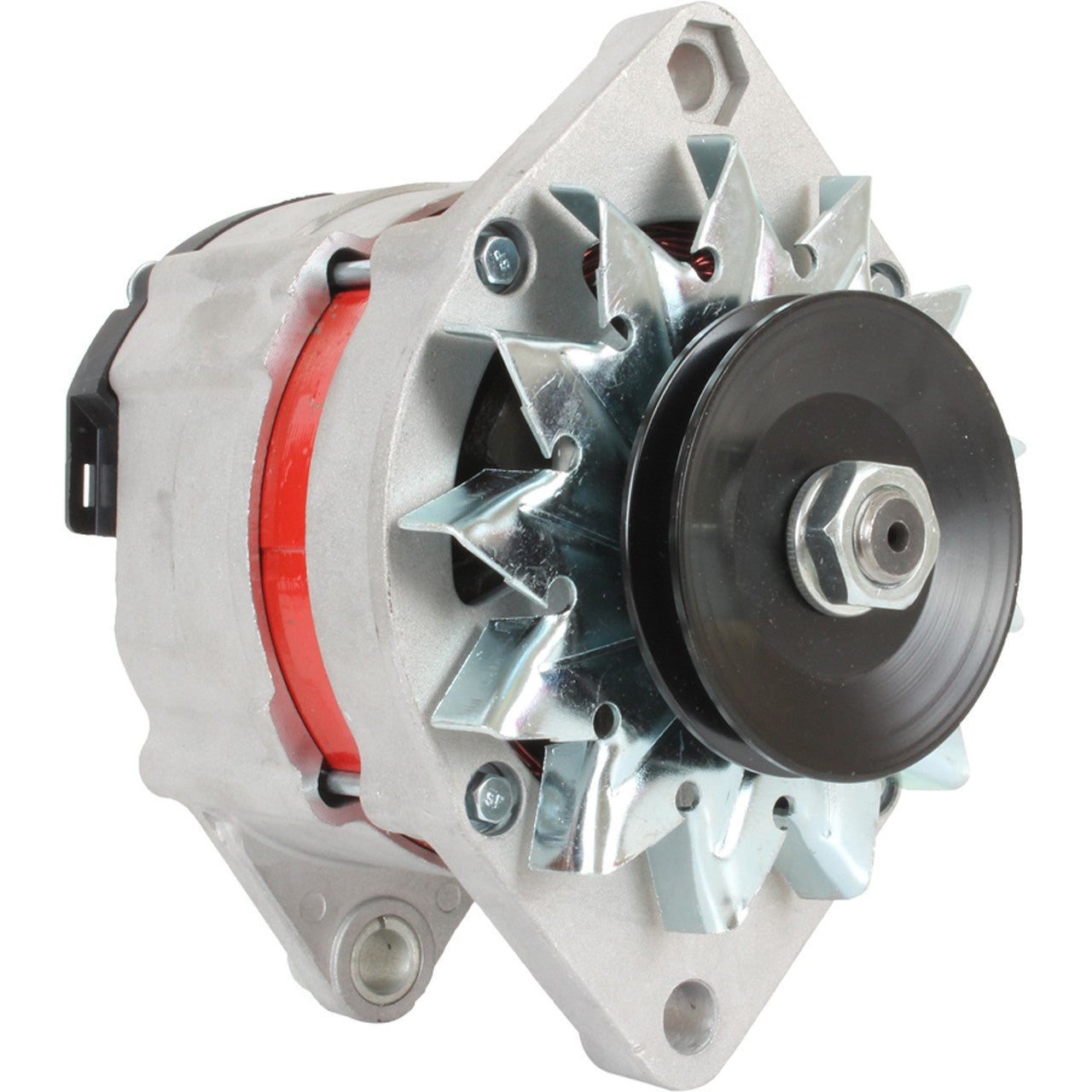

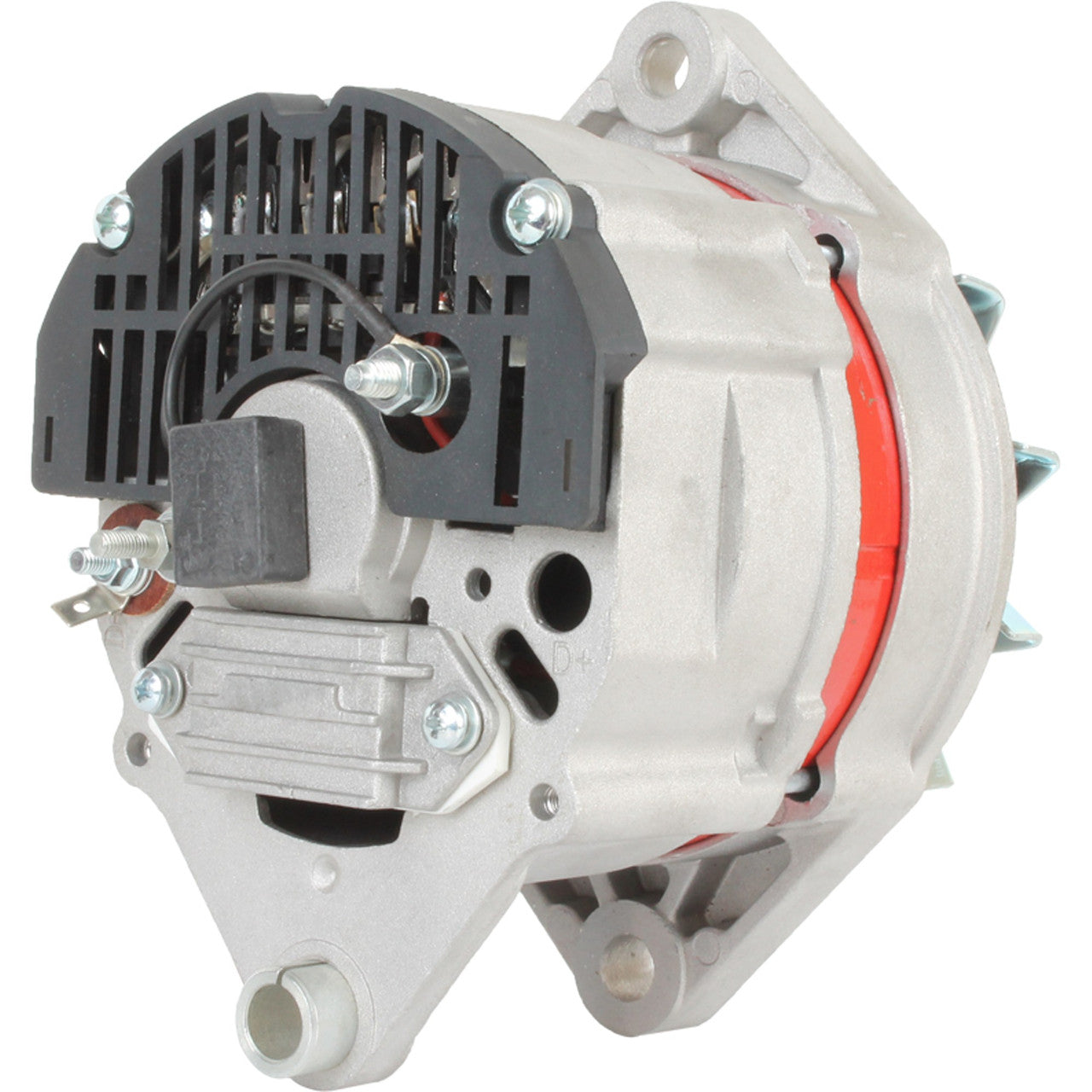

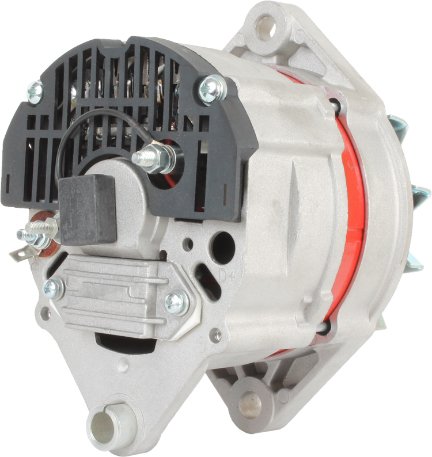

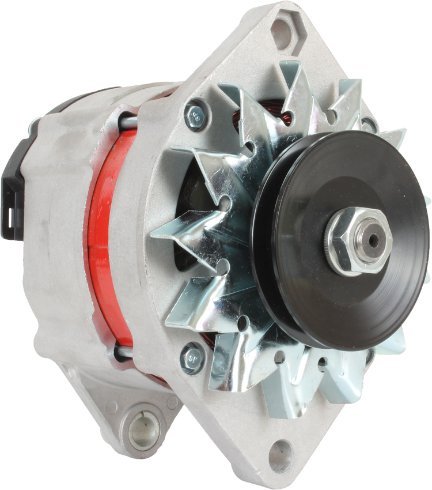

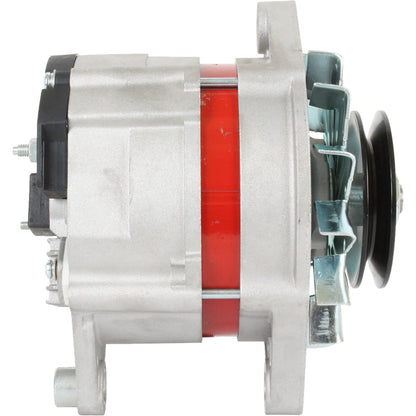

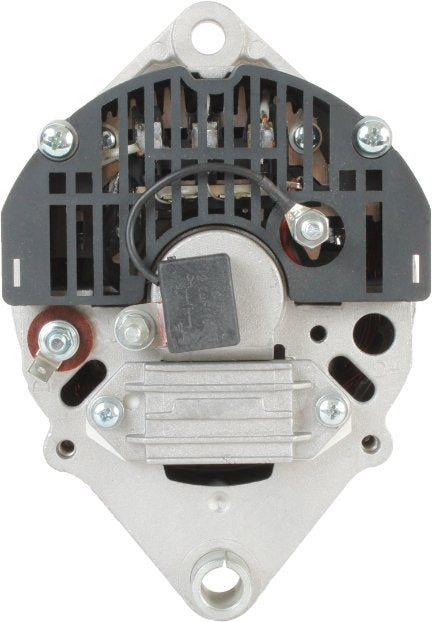

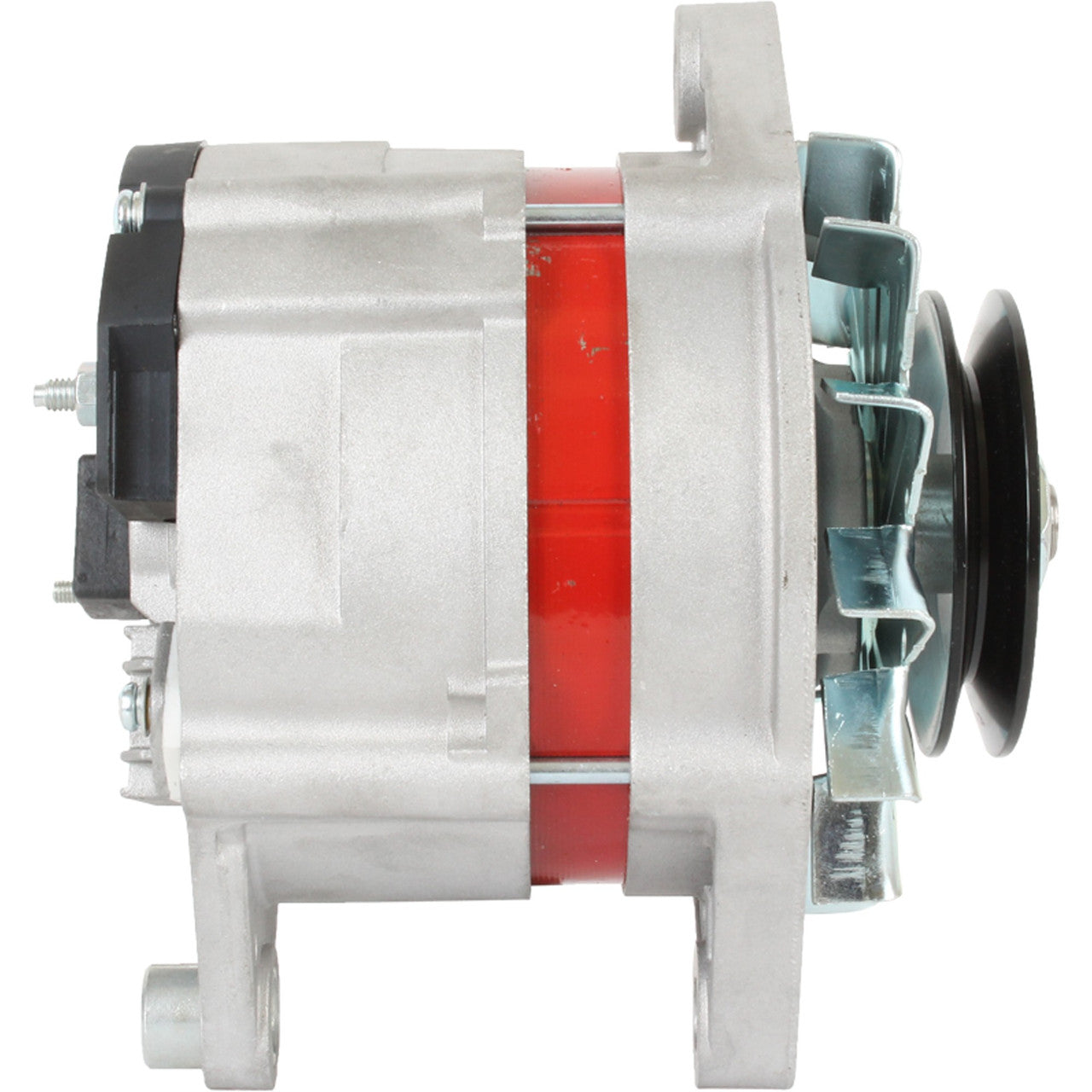

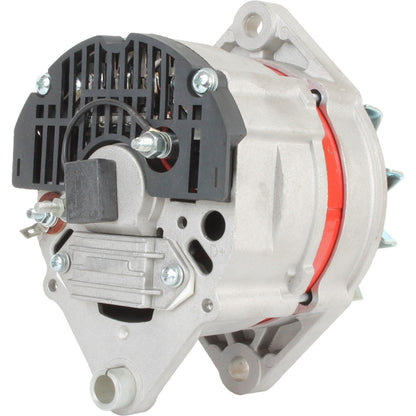

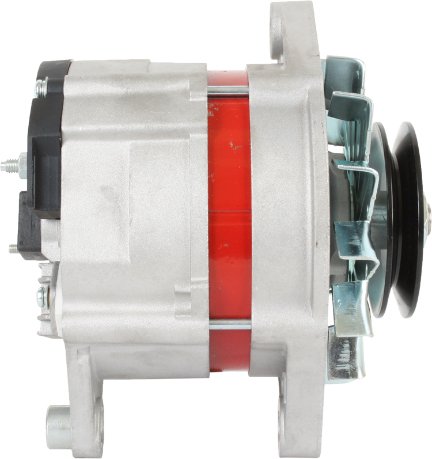

Alternator for Fiat Allis Industrial & Agricultural Applications
24-Volt 35 Amp Externally Fanned Alternator
This 24-volt alternator is built to OEM specifications for Fiat Allis and related Same Deutz-Fahr Group industrial and agricultural equipment, including Aifo, Astra, Fiat, Fiat-Allis, IMR, Iveco, Laverda (Fiatagri), OM (Brescia), Palmieri, Unic and Zastava applications.
The unit is built as a fit-and-function replacement for the original equipment alternator, with an externally fanned, internally regulated design matching the factory unit, so it bolts straight in without rewiring or bracket changes.
Key Features
- 24-Volt output rating
- Internally regulated, externally fanned (IR/EF)
- Covers Fiat Allis and Same Deutz-Fahr Group applications
- Direct OEM fit and finish
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 24V |
| Amperage | 35A |
| Rotation | Clockwise (CW) |
| Regulator | Internally Regulated (IR) |
| Fan Type | Externally Fanned (EF) |
| Pulley Class | V1 |
| Weight | 19.50 lbs |
| Applications | Fiat Allis, Same Deutz-Fahr Group (Aifo, Astra, Fiat, IMR, Iveco, Laverda, OM, Palmieri, Unic, Zastava) |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Fiat-Allis 10C Crawler (8365.0 Diesel) | 1993 |
| Fiat-Allis FR-20 Loader (8215.0 Diesel) | 1991 |
| Fiat-Allis FL-20B Loader (8205.0 Diesel) | 1992 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 0-120-489-410 to 0-120-489-796 (range) | Bosch |
| 4220357 / 4474592 / 4699242 / 4702305 / 4702306 / 4702308 / 4715786 / 4717509 / 4717871 | Fiat |
| 4718088 / 4738773 / 4738774 / 4738775 / 4738778 / 4808268 / 4808269 / 4808270 / 4808271 | Fiat |
| 77040550 / 77050550 / 77445410 / 88206010 / 88206020 | Fiat |
| MG369 | Mahle |
| 12134 | Lester |
| 12134N | WAI |
| 471-7509 / 473-8772 | KHD |
Frequently Asked Questions
Will this fit without modification?
Yes. This alternator matches the OEM externally fanned mounting and wiring configuration used across Fiat Allis and related Same Deutz-Fahr Group equipment.
What's included?
One complete 24-volt alternator, ready to fit.
How do I know my old alternator has failed?
Look for a charge warning light staying on, a battery that won't hold charge, dimming lights, or a whining/grinding noise from the unit.
How do I confirm this fits my specific machine?
This alternator covers a wide range of related brands under the Same Deutz-Fahr Group; check the OEM number on your original unit before ordering.
