Alternator for Ford Backhoe 550 555 655 755 - 12V 70A Premium Replacement
Alternator for Ford Backhoe 550 555 655 755 - 12V 70A Premium Replacement
SKU:400-30007
Free shipping over £150. Terms apply
Couldn't load pickup availability
Triumph Alternator
Fits 8610, 8765, L783, MF-253 & More (45 Amp)

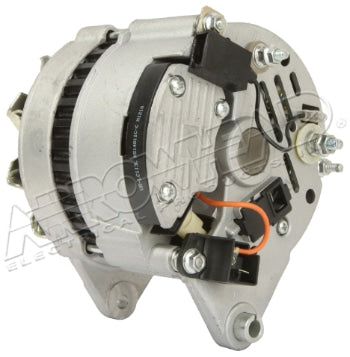

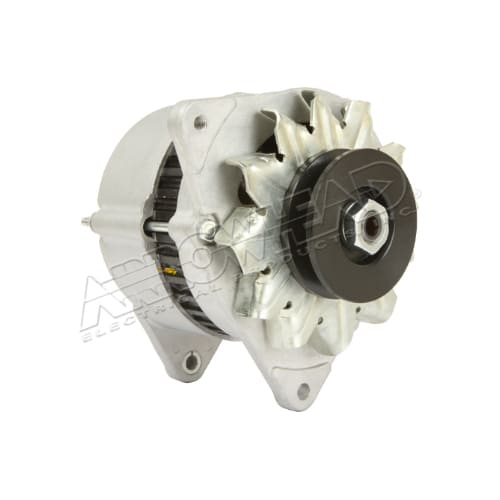

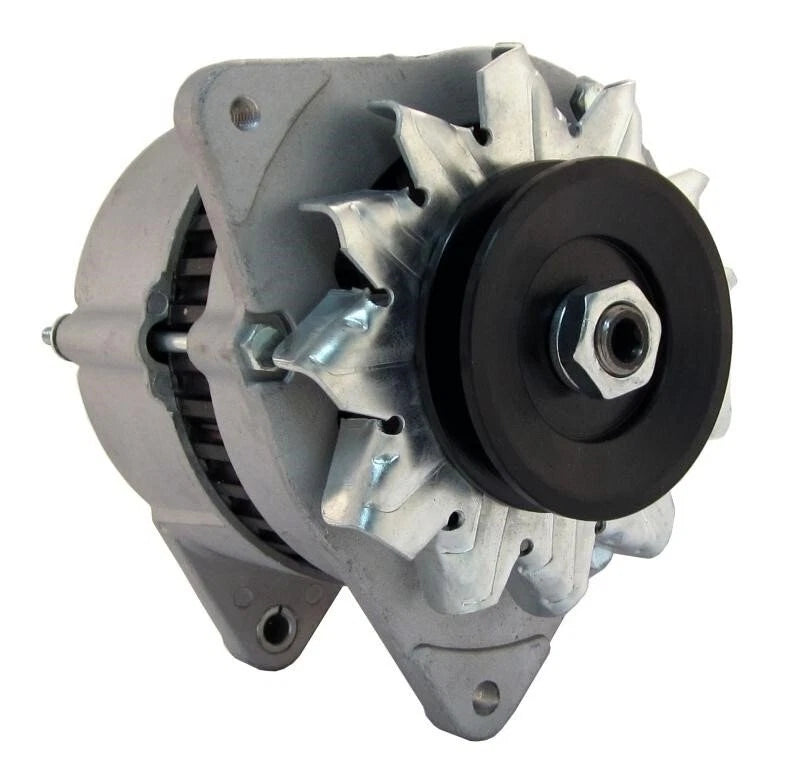

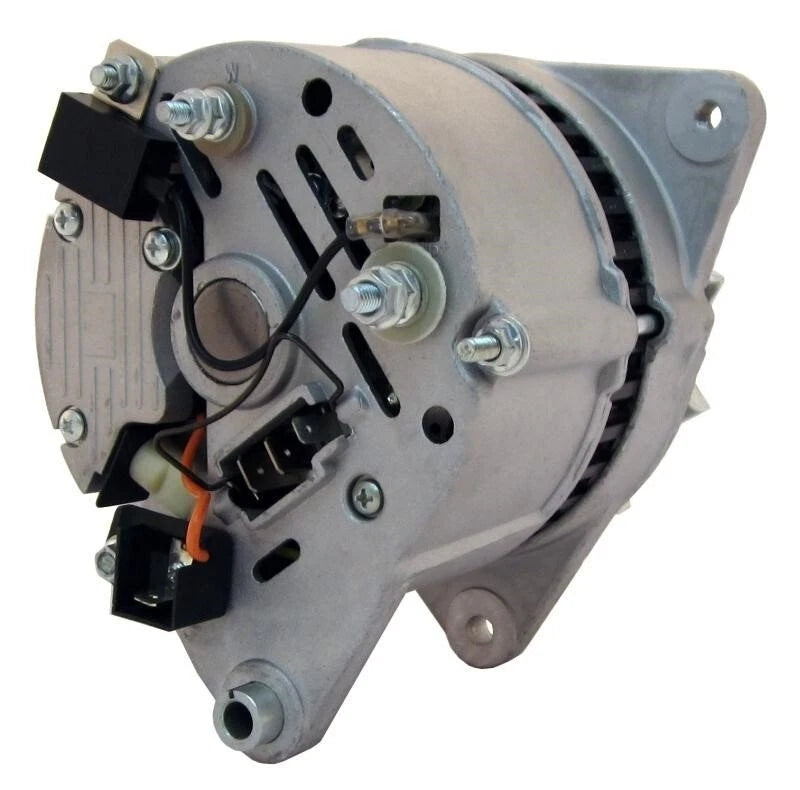

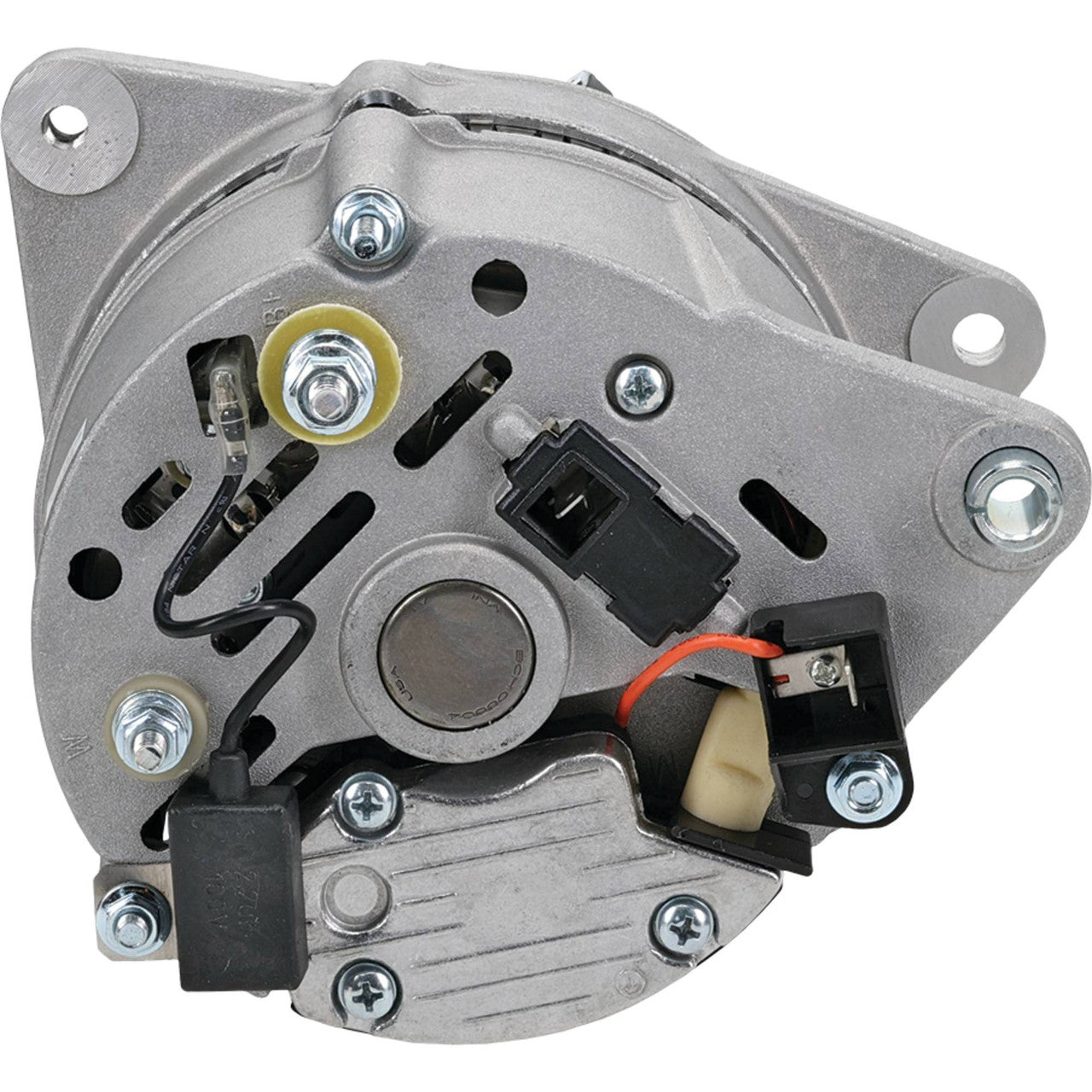

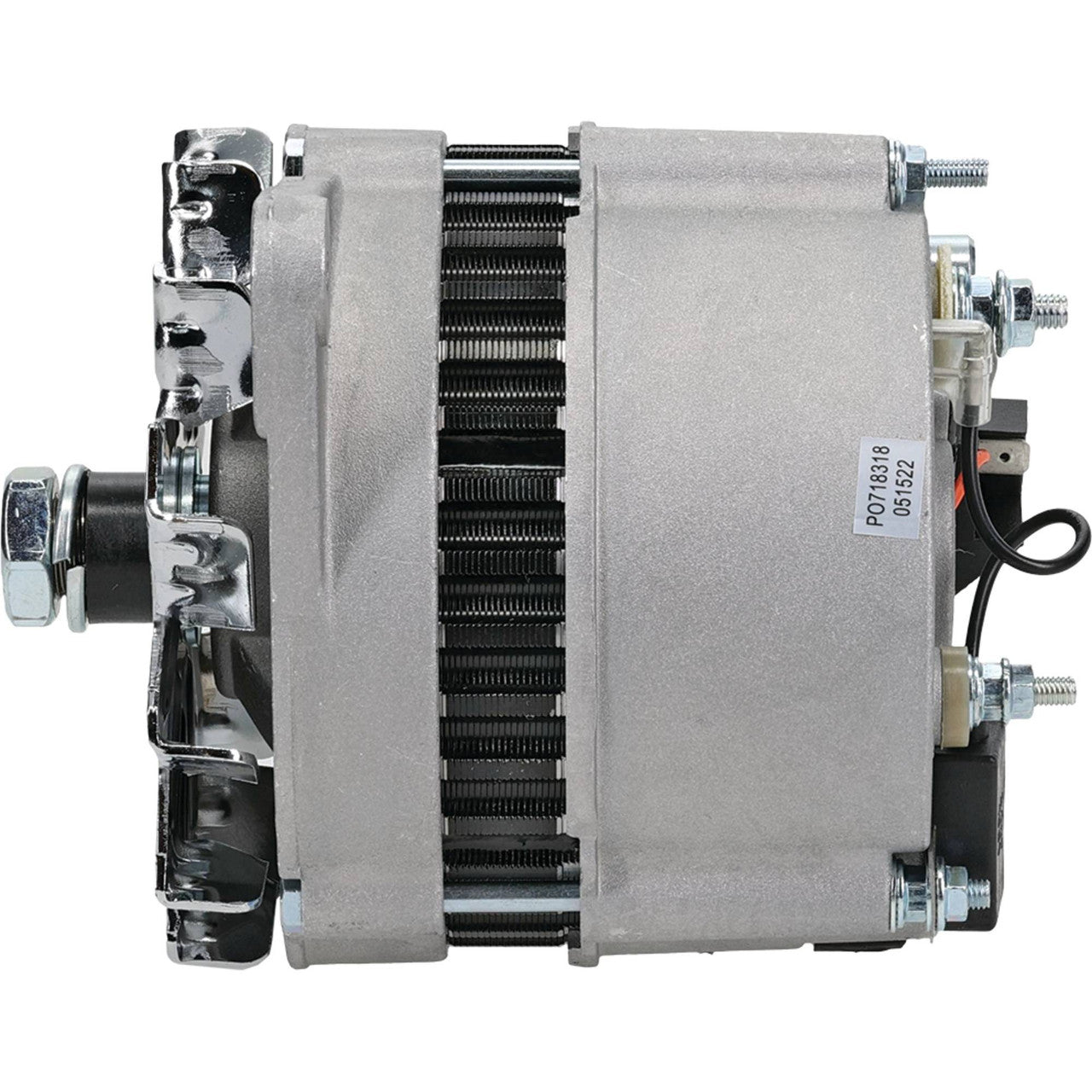

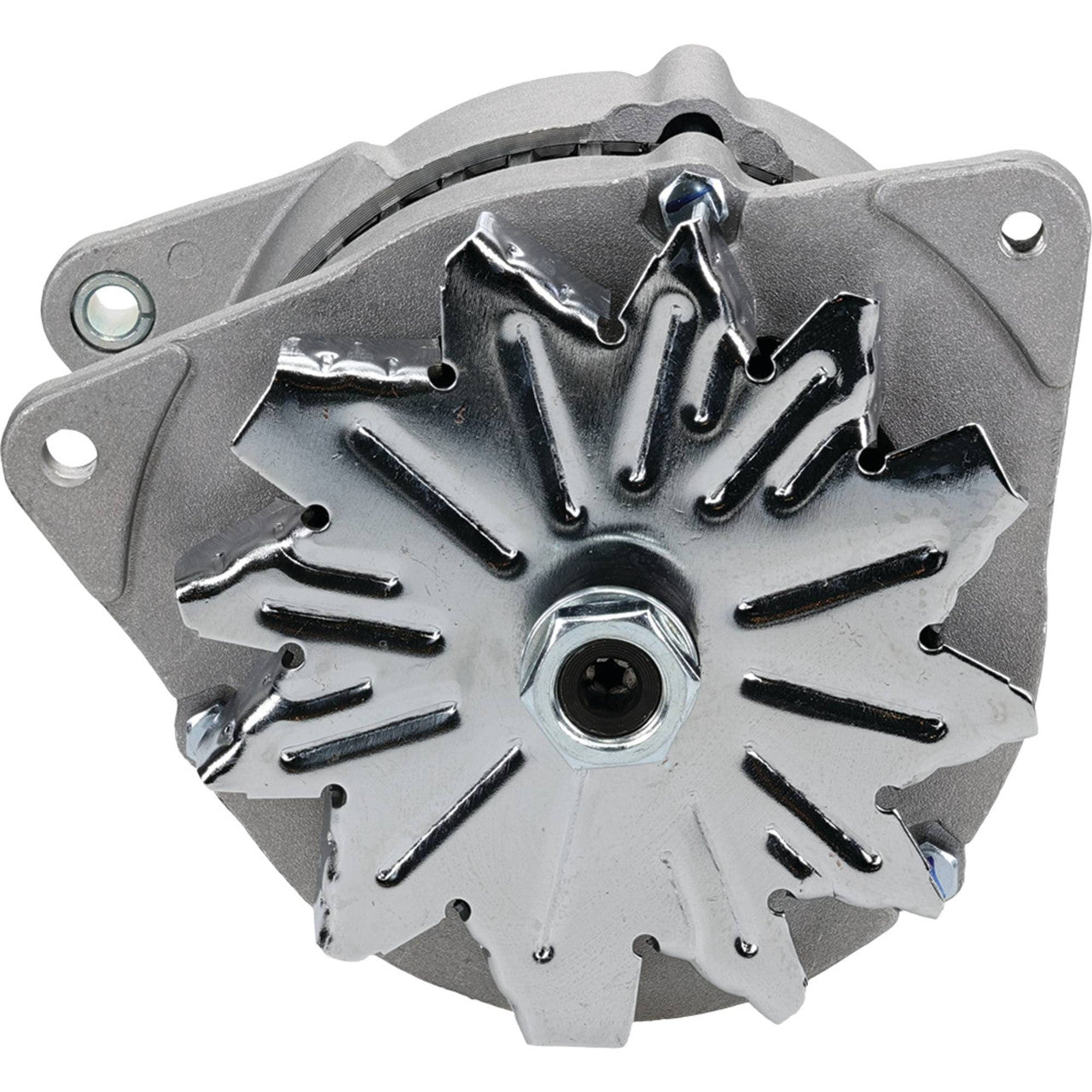

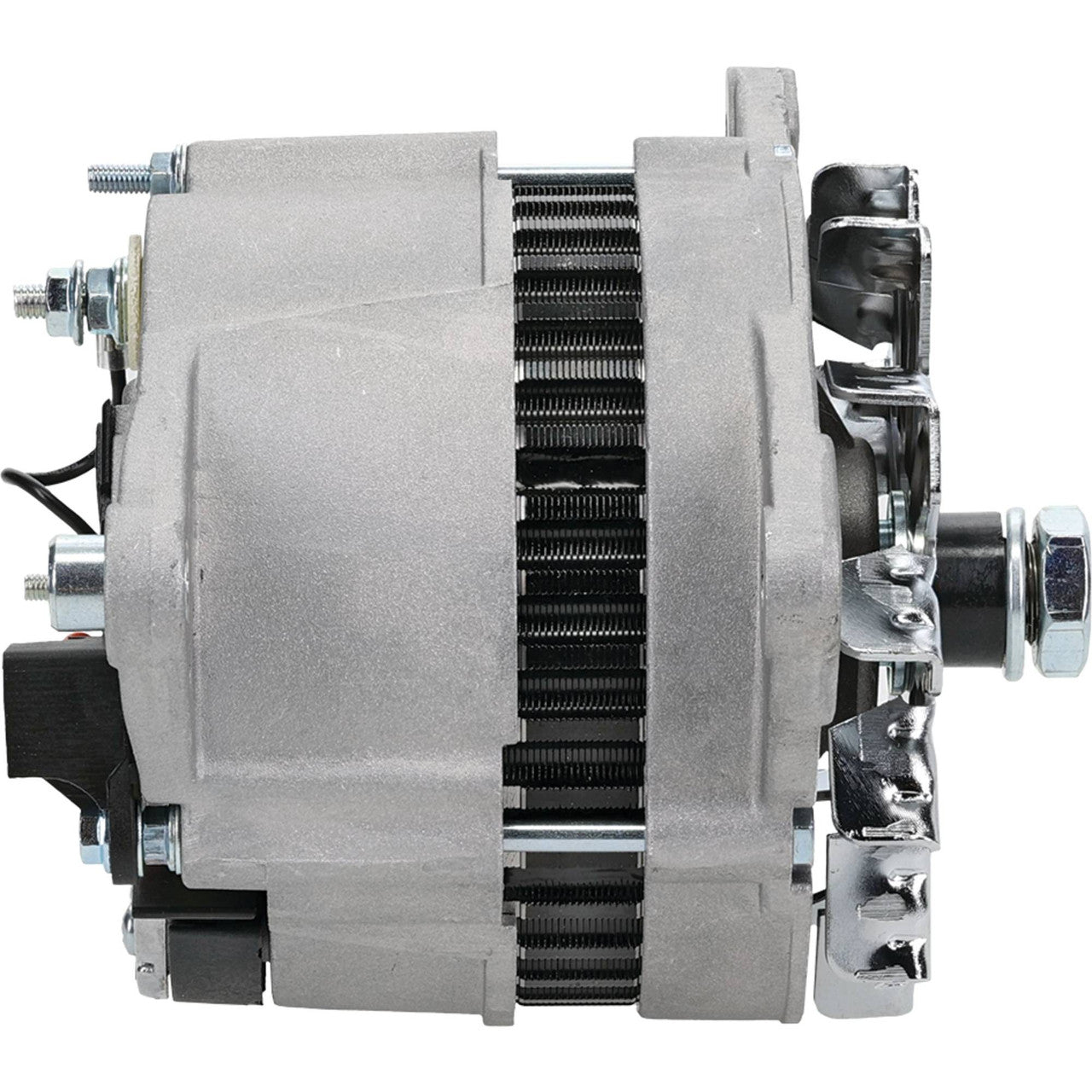

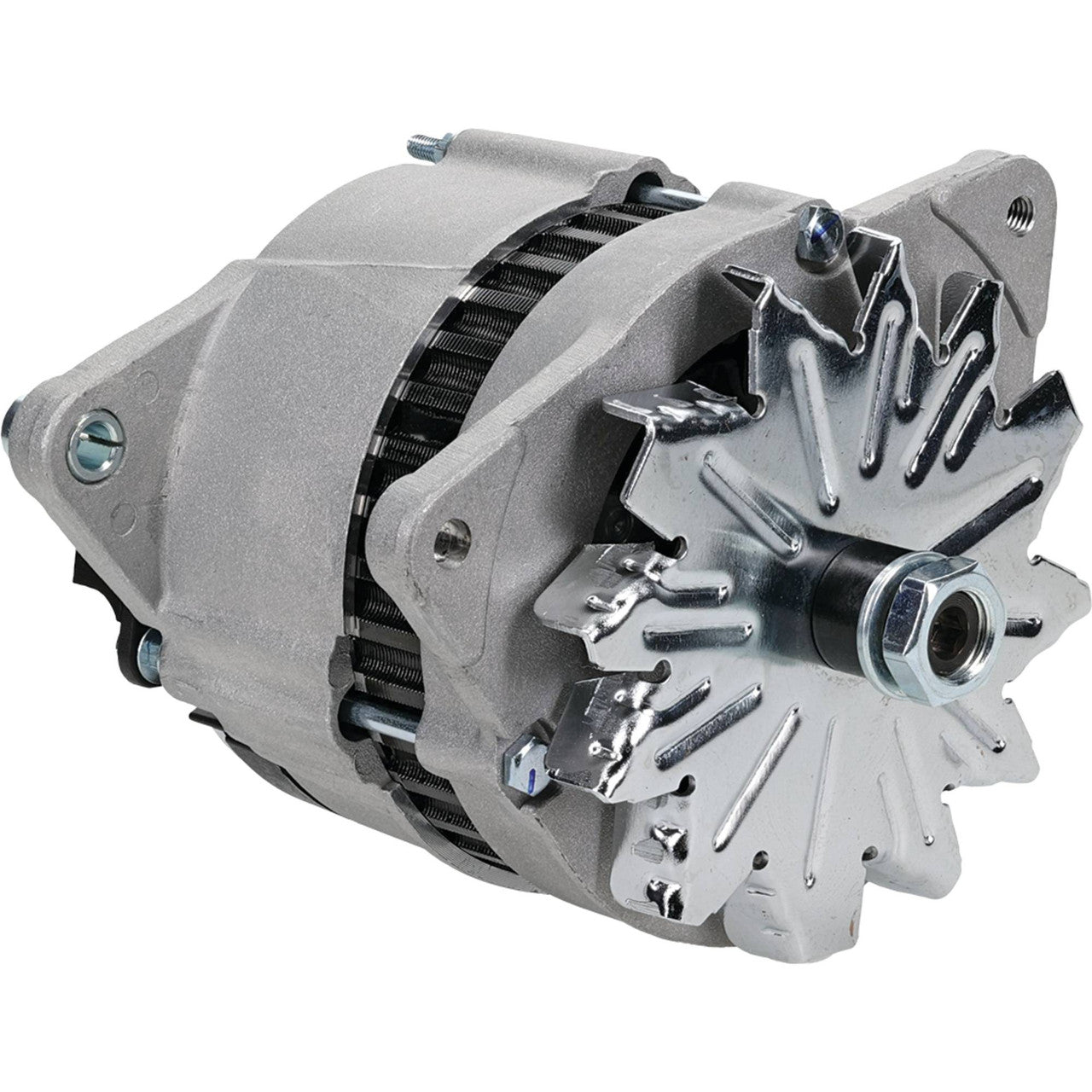

Keep your Triumph running with this 45 Amp 12V replacement alternator. Designed as a direct-fit replacement for the tractor, skid steer listed below, it delivers reliable charging for standard and accessory electrical loads.
This unit features an external fan (EF) and an internal regulator (IR), and is supplied with a V1 pulley already fitted.
Key Features
- ✔High Capacity: 45 Amps of charging output.
- ✔Direct Replacement: Replaces Arrowhead IA0504.
- ✔Pulley Fitted: V1 pulley installed and ready to fit.
- ✔Robust Design: EF fan. IR regulator.
- ✔Quality Assured: New aftermarket unit, 12 month warranty.
Technical Specs
| Voltage: | 12 Volts |
| Amperage: | 45 Amps |
| Rotation: | CW (Clockwise) |
| Pulley: | V1 (Single Groove) |
| Regulator: | Internal (IR) |
| Fan Type: | External (EF) |
| SKU Reference: | 400-30007 |
Vehicle Fitment Guide
| Make | Equipment Type | Models | Years |
|---|---|---|---|
| Agco | Tractor | 8610, 8765 | |
| Ford/New Holland | Skid Steer | L783 | 1995 |
| Massey Ferguson | Tractor - Farm | MF-253 | 1999 |
| Massey Ferguson | Tractor | MF-254, MF-255 | 1982–1987 |
| Triumph | Auto And Light Truck | GT6, TR6 | 1973–1974 |
OEM Part Number Cross Reference
| Arrowhead | IA0504, IA0505, MG207, MG283, ALU0006, ALU0011, ALU0007 |
| Atlantic Quality Parts | 1100-0501, 1100-0516 |
| Cargo | 111363, 111739, 111740 |
| Dixie | A-460, A-461, A-476 |
| EMS | 12091N |
| Family | A127 |
| Ford | E3NN-10B376-AB, E3NN-10B376-AC, E3NN-10B376-AD, E4NN-10B376-AB, E7NN-10B376-AA, E7NN-10B376-AB, E7NN-10B376-BB |
| IAT | A-522, A530, A542336 |
| J&N Electrical Products | 400-30001, 400-30001R, 400-30007, 400-30010 |
| Lester | 12089, 12090, 12091 |
| Letrika (iskra) Aftermarket IA | 0504, IA 0505 |
| Letrika (iskra) Description | AAK1341, AAK1343, AAK1344, AAK1345 |
| Letrika (iskra) OEM | 11.201.495, 11.201.503, 11.201.504, 11.201.505 |
| Lucas Electrical Europe | LRA00522, LRA00530, LRA02690 |
| Lucas Electric | 24246, 24246B, 24256, 24256A, 24256B, 24256C, 24256D, 24273, 24273A, 24274, 24274D, 51022337D, 54022292, 54022310, 54022310F, 54022336, 54022336D, 54022337, 54022528, 63324273 |
| Mahle | MG207, MG283 |
| Marelli | 540223108, 54022310E, 54022776D, 63324256, 63324273, 63324274, MAN134, MAN141, MAN142 |
| Massey Ferguson | 3701-909-M91 |
| Minnpar | 47-1227, 47-3401, 47-4291 |
| NEW Holland | 81863039, 81868798, 82857207, 83961474 |
| NSA | ALT-4039 |
| PIC | 280-307, 280-307A, 280-309, 280-309A, 280-309C, 280-339, 282-136, 282-136A, 282-138 |
| RCP | AL-12090, AL-12091 |
| Remy Light Duty | 50506 |
| USA Industries | 12091, A12090 |
| WAI | 12089N, 12091N, 1-3219-01LU, 1-3242-00LU |
| Wilson HD | 90-17-8060, 90-17-8064, 90-17-8080 |
| Wilson Small Engine | 70-17-12091 |
| Wilson | 90-17-8060, 90-17-8064, 90-17-8080, 90-23-6543 |
| Wood Auto | ALT10022, ALT16027, ALT16037 |
Frequently Asked Questions
Will this fit my Triumph 8610?
Yes — the 8610 appears in the fitment guide above. Check your existing part number against the cross reference table to confirm.
Is this a 45 Amp alternator?
Yes, this is a 45 Amp 12V unit with an IR regulator.
Is the pulley included?
Yes, a V1 pulley is pre-installed.
Is this new or remanufactured?
This is a brand new aftermarket unit — not a remanufactured core.
Note: Please verify your machine's serial number or existing part number to ensure compatibility.
