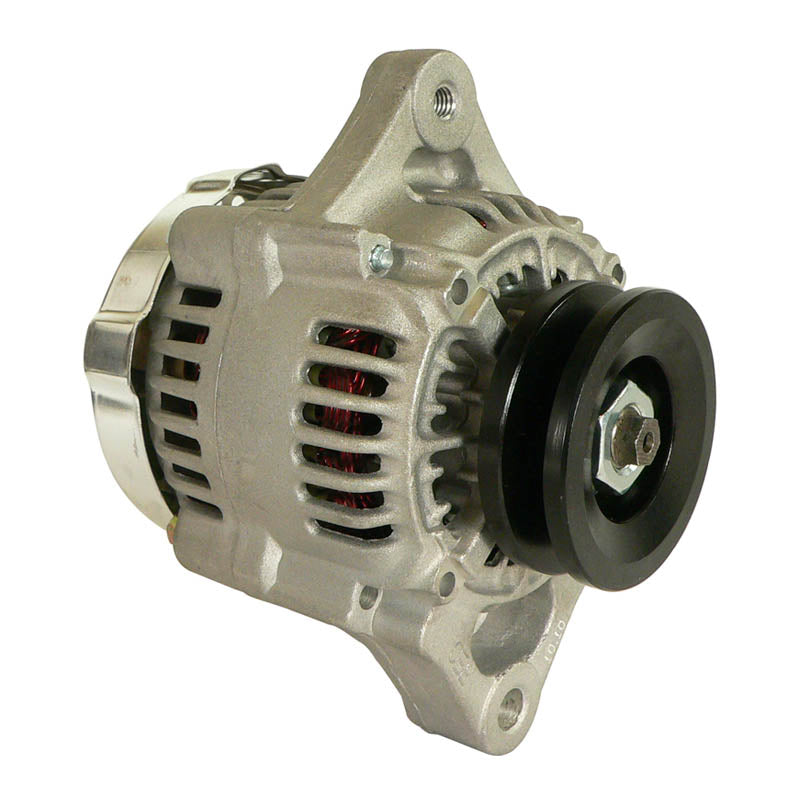

Alternator for Ford & New Holland Engines
Ford & New Holland Engines - 12V, 40 Amp
This alternator is a direct replacement for Ford and New Holland engines fitted with an alternator of this specification. It is built to OEM specifications, giving the same fit, output and mounting as the original alternator it replaces, with no modification required for installation.
Rated at 12 volts with a 40 amp output, this internal-regulator, internal-fan (IR/IF) unit rotates clockwise (CW) and uses a single-groove V1 pulley with an IG-L plug connection, matching the original equipment fitted by the manufacturer.
Key Features
- 12V, 40 Amp output
- Internal regulator, internal fan (IR/IF) design
- V1 single-groove pulley
- IG-L plug connection
- Direct OEM fit and function replacement
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 40A |
| Rotation | Clockwise (CW) |
| Pulley Type | V1 (single groove) |
| Fan Type | Internal (IF) |
| Regulator | Internal (IR) |
| Plug Type | IG-L |
| Interchange Reference | Lester 12189 / PIC 290-198 |
Vehicle Fitment Guide
This alternator fits a range of Ford and New Holland engines fitted with a 12V, 40 Amp alternator of this specification. The supplier has not published specific model or year data for this part - please check the specification above and the OEM cross reference table below against the unit you are replacing before ordering.
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| 100211-1630, 100211-469, 100211-4690, 9760211-163, 9760218-163 | Denso |
| 5D36221G01 | Thermo King |
| 93019 | Delco |
| 70-29-12189, 90-29-5104, 90-29-5313 | Wilson |
| 12189 | Lester |
| 290-198 | PIC |
Frequently Asked Questions
Will this alternator fit without any modification?
Yes. This is a direct OEM fit and function replacement using the same mounting, pulley and electrical connections as your original unit, so no modification is needed.
What is included?
You receive one new alternator, ready to install using your existing bracket, belt and wiring loom.
How can I tell my old alternator has failed?
Common signs include a battery warning light, dim or flickering lights, a battery that won't hold charge, or a whining or growling noise from the alternator itself.

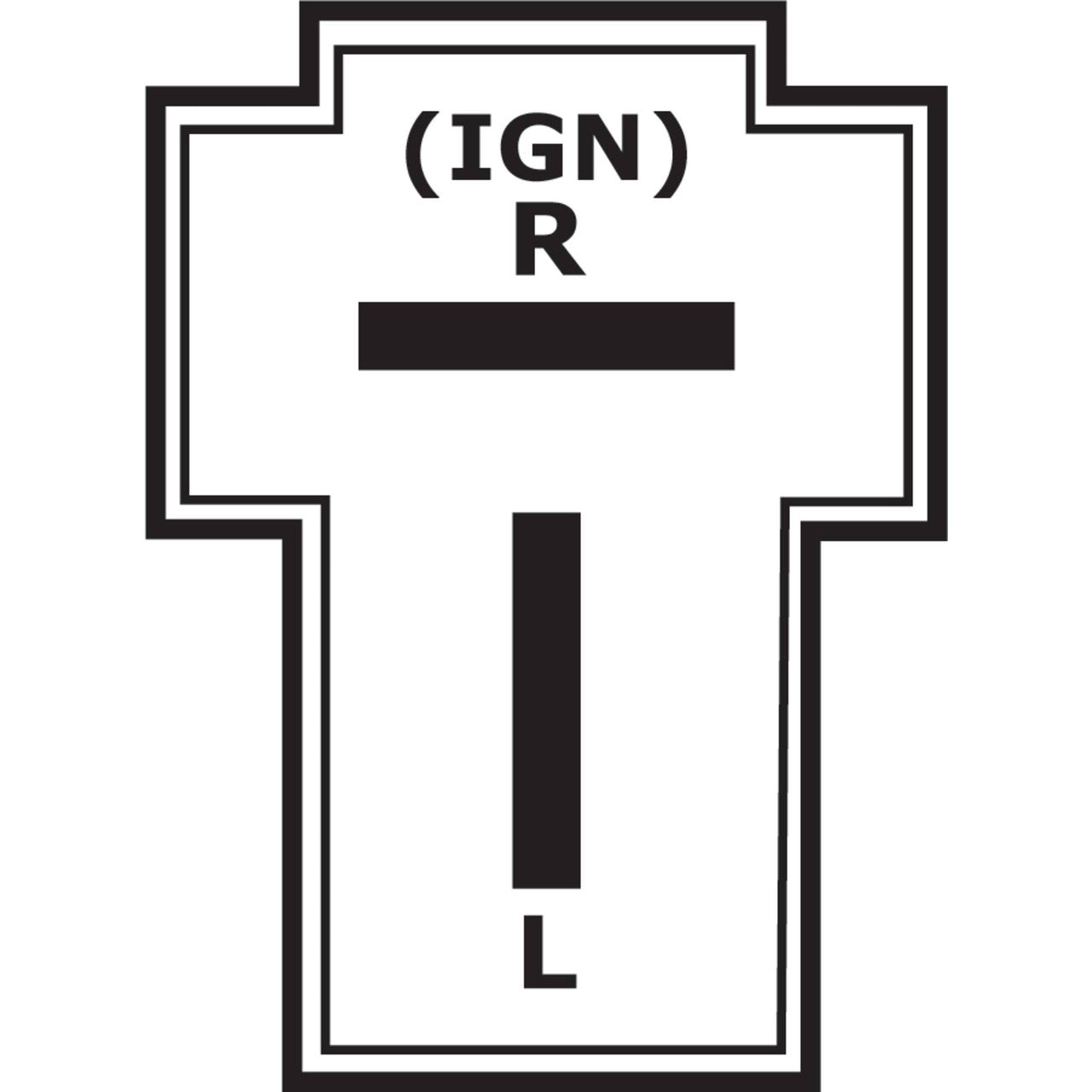

What type of plug does this alternator use?
This unit uses an IG-L plug connection, matching the original equipment wiring for these Ford and New Holland engines.
