Alternator for Ford 1500 1700 1900 1910 2110 Tractors - 12V 35A
Alternator for Ford 1500 1700 1900 1910 2110 Tractors - 12V 35A
SKU:400-44047
Free shipping over £150. Terms apply
Couldn't load pickup availability
Alternator for Ford & New Holland Compact Tractors
Ford 1500, 1700, 1900, 1910, 2110 and New Holland CL45 - 12V 35A

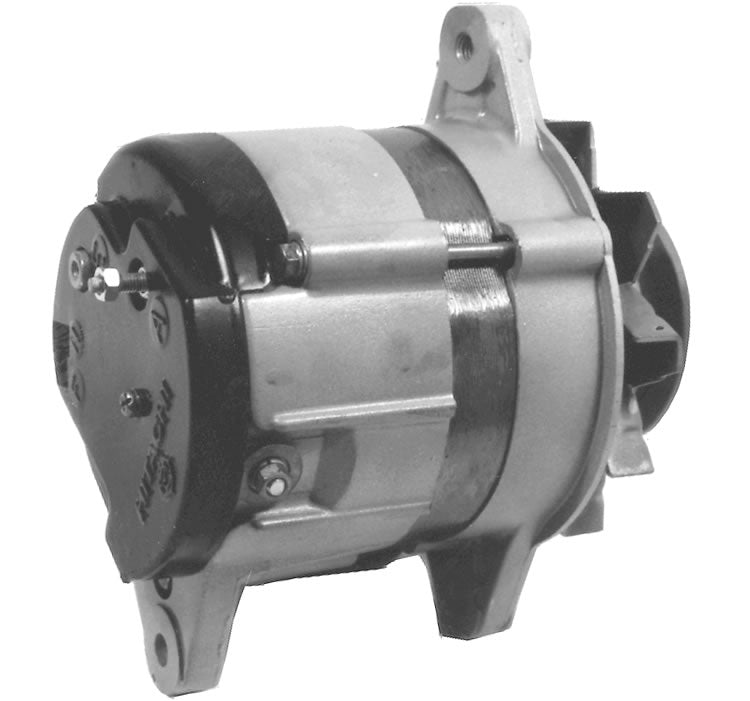

This alternator is built to OEM specifications as a direct fit and function replacement for the Hitachi LT135-83B unit fitted to Ford and New Holland compact tractors with Shibaura diesel engines, including the 1500, 1700, 1900, 1910 and 2110 ranges and the CL45 skid steer. It is rated at 12 volts and 35 amps.
The unit rotates clockwise (CW), is externally fan cooled and runs a single V-groove pulley of 74mm outside diameter with a 15mm bore, matching the original factory configuration so it bolts straight into place without modification. It replaces Ishikawajima 18504-6150 directly.
Key Features
- 12-volt, 35-amp output
- Clockwise (CW) rotation, external fan
- 1-V pulley, 74mm OD / 15mm bore
- Direct fit for Ford and New Holland compact tractors
- Replaces Hitachi LT135-83B and Ishikawajima 18504-6150
- 12-month warranty as standard
Technical Specs
| Specification | Detail |
|---|---|
| Voltage | 12V |
| Amperage | 35 Amp |
| Rotation | CW (Clockwise) |
| Fan Type | EF (External Fan) |
| Pulley | 1-V, 74mm OD / 15mm bore |
| Unit Type | Hitachi-type alternator |
Vehicle Fitment Guide
Years shown are the overall coverage span for this part. Please confirm against the OEM part number on your original unit before ordering.
| Make & Model | Years |
|---|---|
| Ford 1500, 1700 Tractor | 1981-1982 |
| Ford 1900 Tractor | 1981-1983 |
| Ford 1910, 2110 Tractor | 1983-1986 |
| Ford 1000, 1600 Tractor | All years |
| New Holland 1500 Tractor | All years |
| New Holland CL45 Skid Steer | 1983-1986 |
OEM Part Number Cross Reference
Aftermarket replacement. OEM part numbers are listed for reference only.
| Part Number | Manufacturer / Brand |
|---|---|
| LT135-83B, LT135-83BR | Hitachi |
| 18504-6150 | Ishikawajima |
| SBA18504-6071 | Ford / New Holland |
| 70-25-12127, 90-25-1058 | Wilson |
| 12127 | Lester |
| 400-44047 | Arrowhead / J&N |
Frequently Asked Questions
Will this alternator fit my Ford tractor without modification?
Yes. This is a direct OEM-fit replacement built to the same 12-volt, 35-amp specification as the original unit, with the same pulley and mounting, so no modification is required.
What's included with this part?
You receive the alternator unit only. Mounting hardware and pulleys are not included unless already fitted to the original unit you are replacing.
How can I tell my old alternator has failed?
Common signs include a warning light staying on, dimming or flickering lights, a dead or slowly draining battery, or unusual whining noises from the unit.
Is this a genuine Ford part?
No, this is a quality aftermarket replacement built to OEM specifications for fit, function and performance, not a genuine Ford-branded part.
